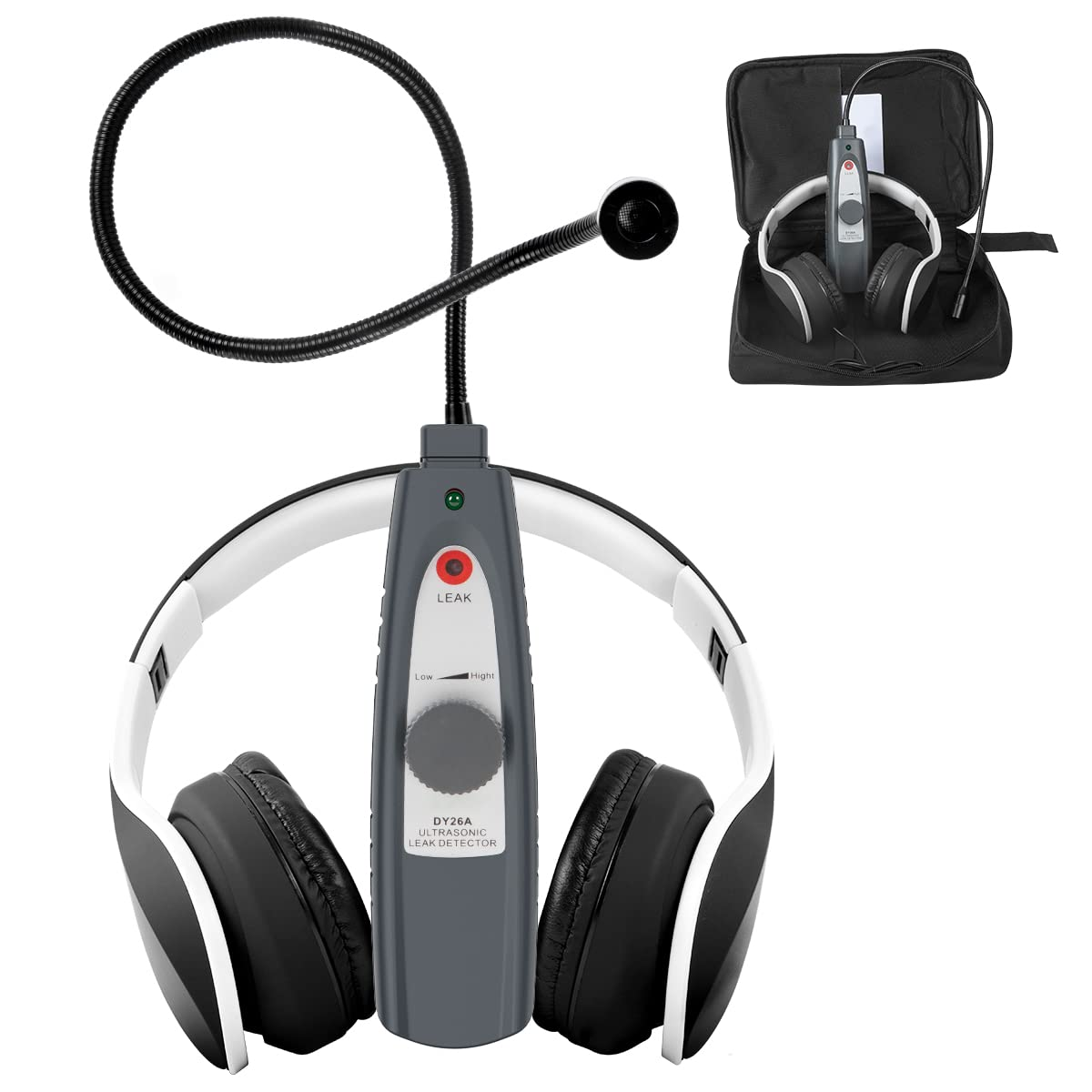

Ultrasonic Leak Detector 40Khz±2Khz Air Leak Detector Sensitivity Adjustable Automotive Stethoscope, Leak Detection Tools with Sound&Light Alarm, Sensitive Sensor,420Mm Probe,Foldable Headset,Handbag

Description

Item Weight	1.15 pounds
Package Dimensions	10.28 x 7.44 x 3.5 inches

• 【Quick Leak Location】Ultrasonic leak detector adopts advanced ultrasonic sensing technology, which is specially used to detect the leakage of gas, liquid, etc. Air leak detector can quickly and accurately find gas or liquid leaks in various pressure or vacuum systems. Ultrasonic leak detector can be used to detect the tightness of cabins, car cockpits, refrigerators, containers, etc., and can also be used to track and locate leaks in doors and windows, pipes, tires, and refrigeration equipment.
• 【High Sensitivity Sensor & Adjustable Sensitivity】Ultrasonic leak detector adopts advanced high-quality sensor with high sensitivity, which can respond quickly and detect tiny leaks, providing you with stable and high-precision detection. The sensitivity of the ultrasonic air leak detector can be manually adjusted according to the detection environment. Adjust to the required sensitivity, the measurement accuracy will be higher (Frequency Response: 40KHz ± 2KHz).
• 【Sound & Light Dual Alarm Prompt】When ultrasonic waves are detected, the LCD indicator of the ultrasonic leak detector will light up, and ultrasonic leak detector will issue rapid ticking sounds to remind you at the same time. Our ultrasonic leak detector comes with a headset that quickly captures the location of leaks with even the tiniest of sounds. The closer the probe is to the leak, the faster the frequency and the higher the pitch of the ticking sound in the headset.
• 【420MM Flexible Probe&Foldable Headset &Portable Handbag】The probe of ultrasonic leak detector is 420MM long and can be bent at will, so the position of the leak can be easily accessed and detected even in difficult and hard-to-reach areas. The headset has a foldable design, compact and easy to store. Air leak detector comes with a handbag, which is convenient to carry around. Note: The ultrasonic air leak detector is powered by a 9V 6F22 battery (not included).
• 【2-Year Warranty】We aim at trying our best to offer you the best product and services to make you unworried before/after the purchase. We promise a 2-year warranty. If you have any questions or doubts, our professional technical team will help you solve the problem within 24 hours.

Product description

Working Principle:

Turbulence created by gas or air forced through a small orifice generates ultrasonic sound. Ultrasonic sound occurs when the atmosphere leaks into a vacuum vessel or when a pressure vessel leaks to the outside atmosphere. Ultrasonic sound's frequency is related to the size of the orifice which ultrasonic sound passes through, but usually the frequency is about 40kHz. Ultrasonic sound is very directional, this directionality is used to pinpoint the origin of the ultrasonic sound, the leak point.

Specification:

• Frequency Response: 40kHz ± 2kHz

• Operating Temperature: 0°C - 40°C

• Operating humidity: <80% relative humidity

• Power supply: 1pc 9V 6F22 battery (not included)

• Maximum working current: about 35mA

• Unit Size: 171*43*38mm

• Unit Weight: 240g

• Package Weight: 540g

HOW TO USE

1. Connect the headset to the headphone jack of the leak detector, then wear the headphone.

2. Rotate power knob clock wise, the" POWER" light is on. You can hear"ticking tone" through the headphone, adjust the volume of the headphone to a suitable level.

3. Adjust the sensitivity to a desired level with the sensitivity knob. Keep turning the knob to the right. After hearing the high-pitched sound, turn it slightly to the left until the high-pitched sound just disappears and becomes a slow ticking sound, the sensitivity is the best at this time.

4. Move the probe of the leak detector slowly along the area to be tested to detect leaks or gaps. When there is no leak, the LEAK indicator does not light up, and the earphones emit a repeated, slow ticking sound. When the ultrasonic leak detector detects the leak, the "LEAK" indicator lights up, and the frequency of the ticking sound from the earphone increases. The closer the probe is to the leak, the faster the frequency and higher the pitch of the sound in the headphone.

5. After you locate the leak, repair it properly and then test again to verify the repair effect.

6. After the test is completed, turn off the power button.

Note:

1. There are many factors involved in the ultrasonic leak detection, such as the pressure within the vessel under test, hole shape, hole size, temperature etc. In some cases, the ultrasonic sound caused by leak is very weak, so you should set the DY26A's sensitivity to the highest level at the beginning of leak detection.

2. If the detected ultrasonic sound is too intense so that it is impossible to pinpoint the leak because the" ticking tone" is too high in frequency, you should decrease the sensitivity with the sensitivity knob.

3. In noisy environments, you can decrease the sensitivity appropriately to exclude the disturbance caused by noise.

4. When detector detects ultrasonic sound, move its probe around the suspected leak to determine whether the detected ultrasonic sound is from the suspected leak or from other areas.

5. Because ultrasonic sound attenuates rapidly when it travels over distance, we need to move the probe as close as possible to the suspected leak, remember to decrease the sensitivity if necessary. During location, move the probe slowly.

PACKING LIST:

1pc * Ultrasonic Leak Detector

1pc * Headphone

1pc * Instruction Manual

1pc * Carrying bag

1pc * Packaging Box

Note:

• Do not use detector near any electrical appliances which emits electromagnetic wave; otherwise, detector will give wrong indications.
• Do not use the instrument for the detection of flammable and explosive gas (or liquid) leakage. Do not use the detector near flammable, explosive gases, liquids, vapors or dust.
• If the pressure in the pipe or vessel is insufficient or the leak is too large, the instrument may not be able to detect.
