Purchase Tips:

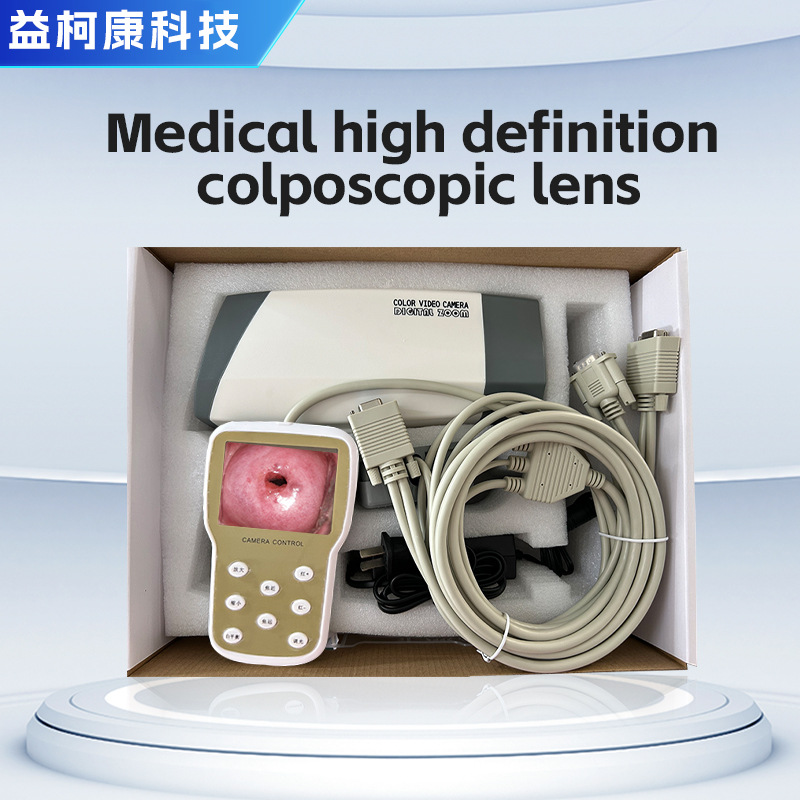

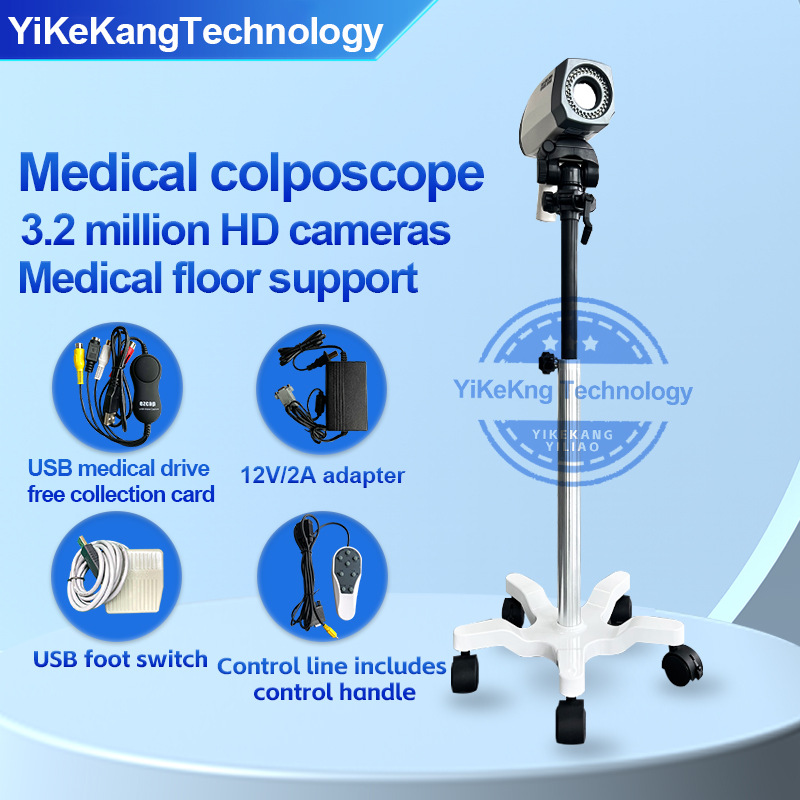

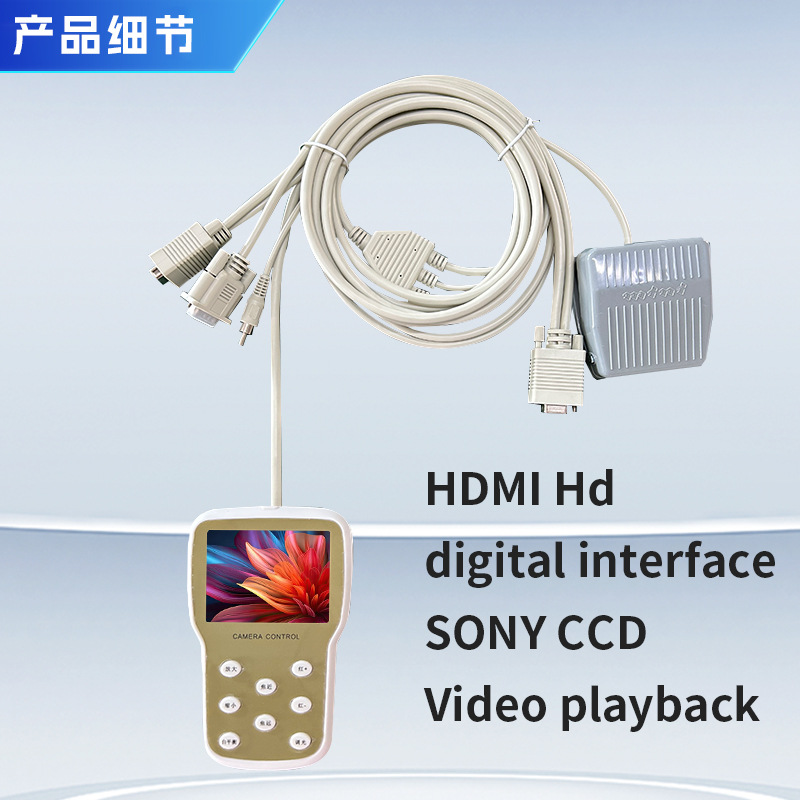

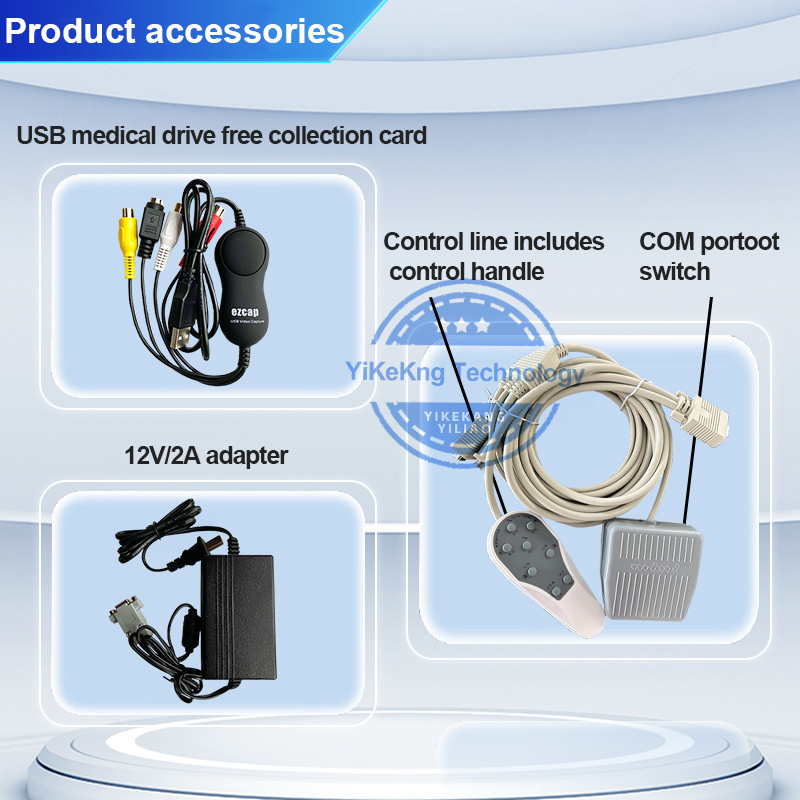

(1) The configuration included in this price is: colposcope+data cable (including remote control, COM foot switch)+USB driver free video capture card+12V power adapter (interface specifications need to be left in the notes or annotations)+USB to 232 interface conversion cable (suitable for computers without RS232 interface)+camera bracket
(2) This configuration is compatible with laptops, desktop computers, and all-in-one computers, with fully compatible interfaces;
(3) The colposcopy system is compatible with XP WIN7 WIN8、WIN10、WIN11
(4) The shell, label, packaging, and software support both Chinese and English versions.



Main technical parameters：



2.1.1 Magnification factor
The magnification can be adjusted from 1 to 30 times, with a step size of 1.
2.1.2 Working distance
At maximum magnification, digital cameras should cover a working distance of at least 30cm to 40cm.
2.1.3 Field of View Range
The field of view should cover at least 25mm to 300mm.
2.1.4 Depth of Field
The depth of field under maximum magnification shall not be less than 100mm.

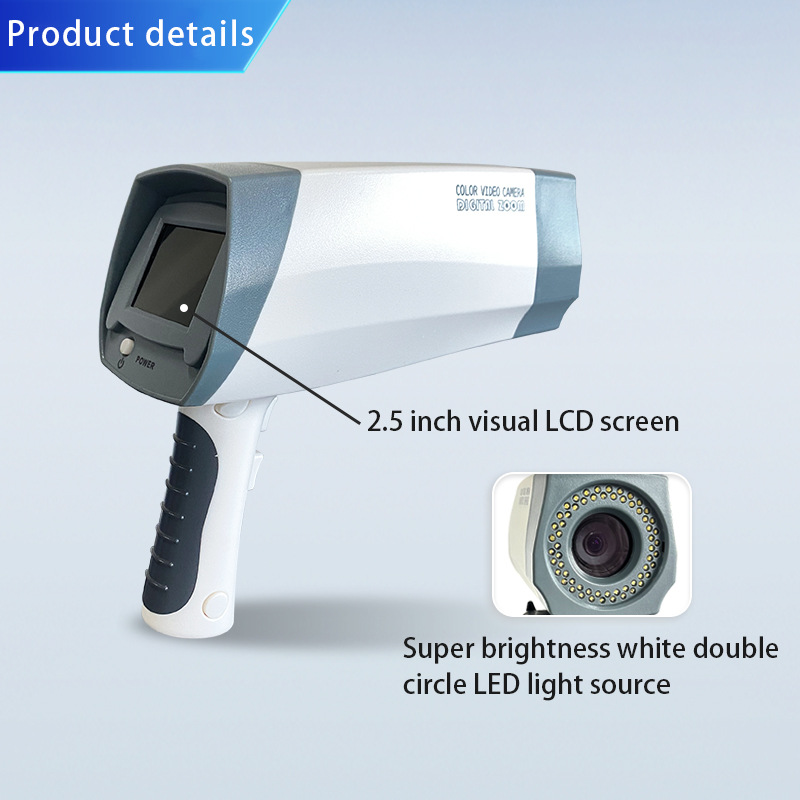

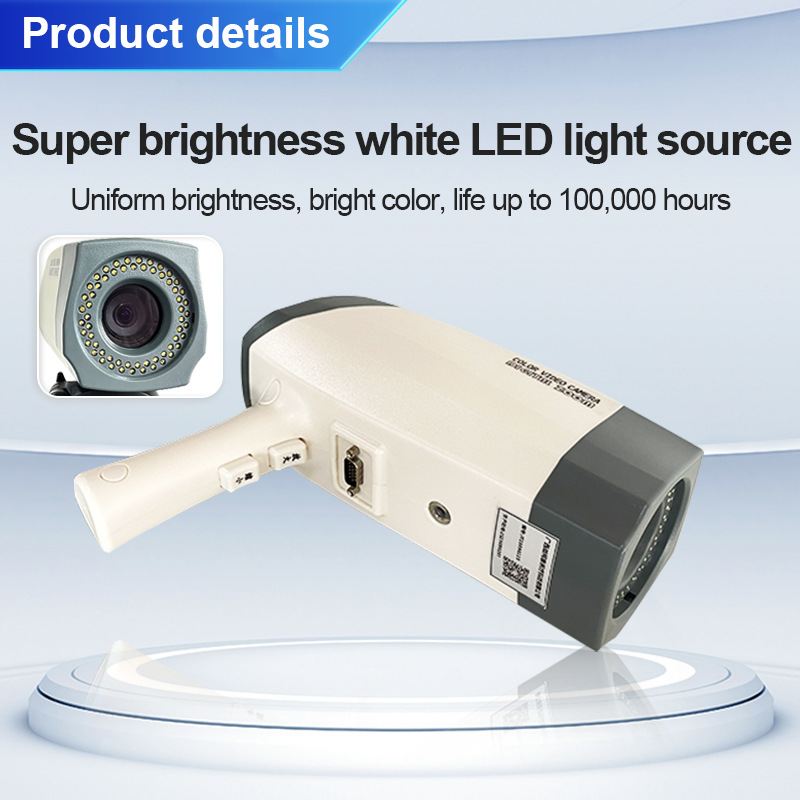

2.1.5 Illuminance of Light Source
The illumination intensity of the light source is ≥ 2000 lx.
2.1.6 Color temperature of light source
≥ 5100K.
2.1.7 Horizontal Resolution of Digital Camera
≥ 750TVL.
2.1.8 Radiant Heat
At the maximum radiation intensity, the radiation intensity value should not exceed 50W/m2..
2.1.9 Spot diameter
Not less than 60mm.
2.1.10 Uniformity of Illumination
Not exceeding 1.2.
2.1.11 Geometric Distortion
The absolute value of pillow or barrel distortion around the output image of the instrument should not exceed 3%.
2.1.12 Color reproduction accuracy
The maximum error of color reproduction for a single color block in 24 color test chart cards by the instrument should not exceed 30 NBS, and the average color reproduction error should not exceed 20 NBS.
2.2 Functional requirements for use

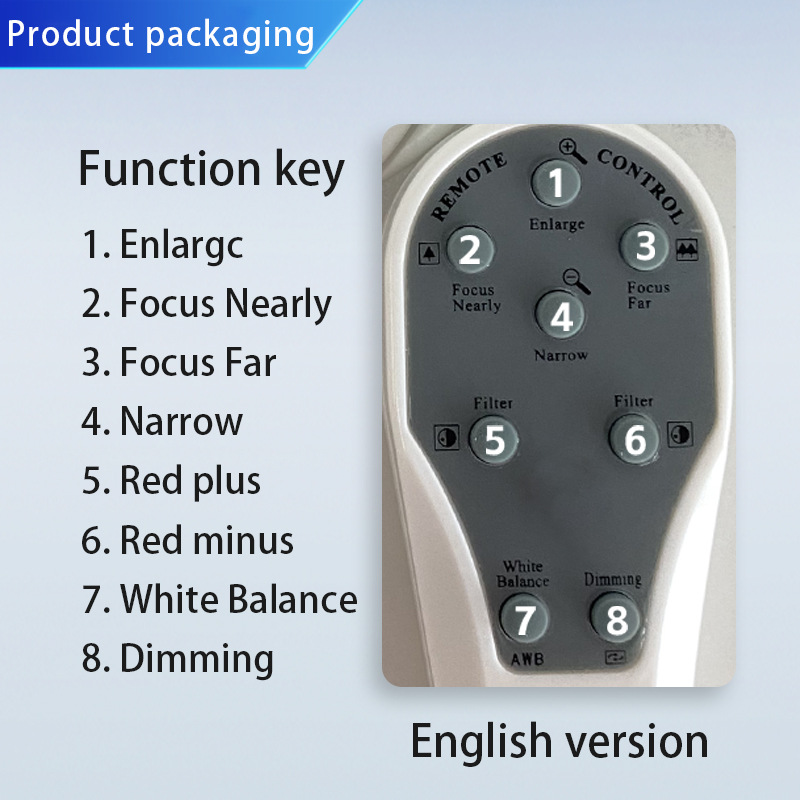

2.2.1 It should have functions such as zooming in and out, timing display, green filter, auto focus, manual focus, red plus, red minus, foot pedal image capture, and white balance function.
2.2.2 Software Functions
Patient management: creating new patients, modifying information, etc;
Medical record management: searching for medical records, viewing and editing reports, etc;
Observation and inspection: image and video capture, freezing, viewing, etc;
Image editing: adding labels, measurements, etc;
Report functions: report editing, report printing, etc;
Terminology management: adding, deleting, modifying, importing and exporting functions, etc;
Account management: account creation, permission settings, etc.
