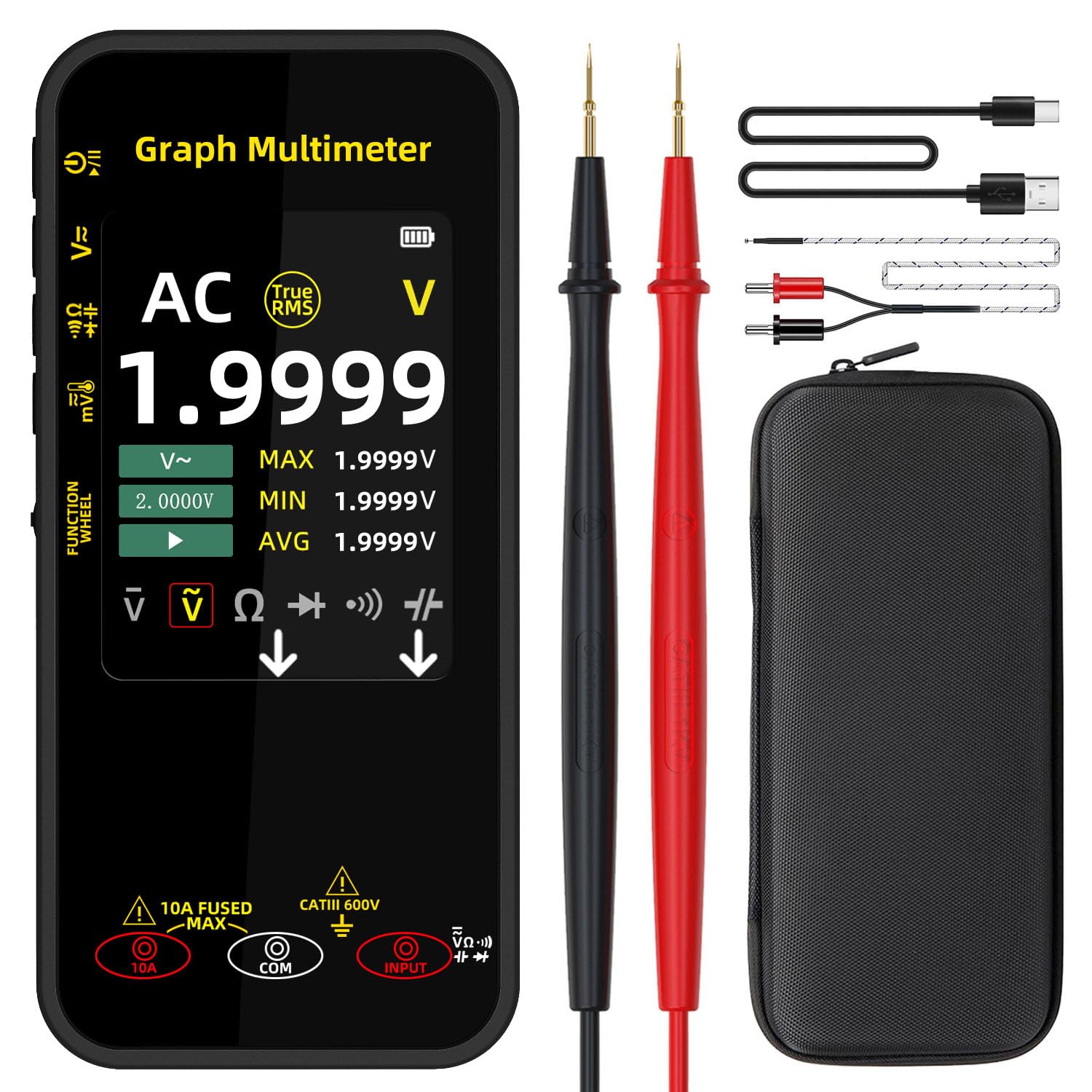

BSIDE 20000 Counts Digital Multimeter Date Recorder, 0.1mA/10uV/1000V with Smart Mode, 360-Degree Rotate LCD with Rechargeable, Measures Amp Cap Diode Temp MAX/MIN/Peak Voltage for Photovoltaic Miners
- [0.1mA and 10uV Sensitivity]: BSIDE S500 multimeter with 0.1mA and 10uV resoultion helps make measurements more accurate. Widely used for precision measurements industry, especially for photovoltaic systems and solar panel.
- [Recording Mode]: Smart multimeter can records the graph of voltage over time. Records up to 5 measurements, the maximum recorded data per measurement is 10000.
- [360-Degree Rotation Screen]: Pocket multimeter features 360-degree rotation ultra-large screen, which provides you with best reading enjoyment in different working environment.
- [MAX/MIN/PEAK Measurement]: Multimeter tester measures capacitance, diode, temperature, MAX/MIN/PEAK, resistance, continuity, etc.
- [Rechargeable]: Smart voltmeter comes with a 1200mAh rechargeable battery, ensuring that you never have to worry about running out of power during your measurements.
Features:
20000 counts multimeter
Smart multimeter tester
Pocket voltmeter with date recorder
Multimeter with 360-degree rotation screen
Measures voltage, resistance and continuity
Measures capacitance, diode and current
Measures temperature, MAX/MIN/PEAK
Auto range, auto power off, low battery indication
Specifications:
MAX Display: 20000 counts
DC Voltage:
2V/20V 0.0001V/0.001V ±(0.1%+3); 200V/1000V 0.01V/0.1V ±(0.5%+3);
20mV/200mV 0.001mV/0.01mV ±(0.1%+3)
AC Voltage (Frequency:40Hz-1000Hz):
2V/20V/200V/750V 0.0001V/0.001V/0.01V/0.1V ±(0.5%+3);
20mV/200mV 0.001mV/0.01mV ±(0.5%+3)
AC Current (Frequency:40Hz-1000Hz): 2A/10A 0.0001A/0.001A ±(0.8%+3)
DC Current: 2A/10A 0.0001A/0.001A ±(0.8%+3)
Resistance:
200Ω 0.01Ω ±(0.5%+3); 2KΩ/20KΩ/200KΩ 0.0001KΩ/0.001KΩ/0.01KΩ ±(0.2%+3);
2MΩ/20MΩ 0.0001MΩ/0.001MΩ ±(5.0%+5); 200MΩ 0.01MΩ ±(5.0%+20)
Capacitance:
999.99nF 0.01nF ±(5%+20); 9.999μF/999.99μF 0.001μF/0.01μF ±(2%+5); 99.999mF 0.001mF ±(5%+10)
Temperature: -20℃~1300℃/-4℉~2372℉ 1℃/1℉ ±(2.0%+5)
Date Recorder Measurements: 5 times (MAX 10000 dates per timers)
Continuity: Yes
Diode: Yes
Power: 1200mAh (built-in, rechargeable)
Size: 143*66*21mm
Weight: 159g
Package Includes:
1 x Digital Multimeter
1 x Test Leads
1 x Charging Cable
1 x Carrying Case
1 x Thermocouple
1 x User Manual
-
-
