Features

• LVDS input signal to HDMI output, the maximum bandwidth can reach 150MHz;

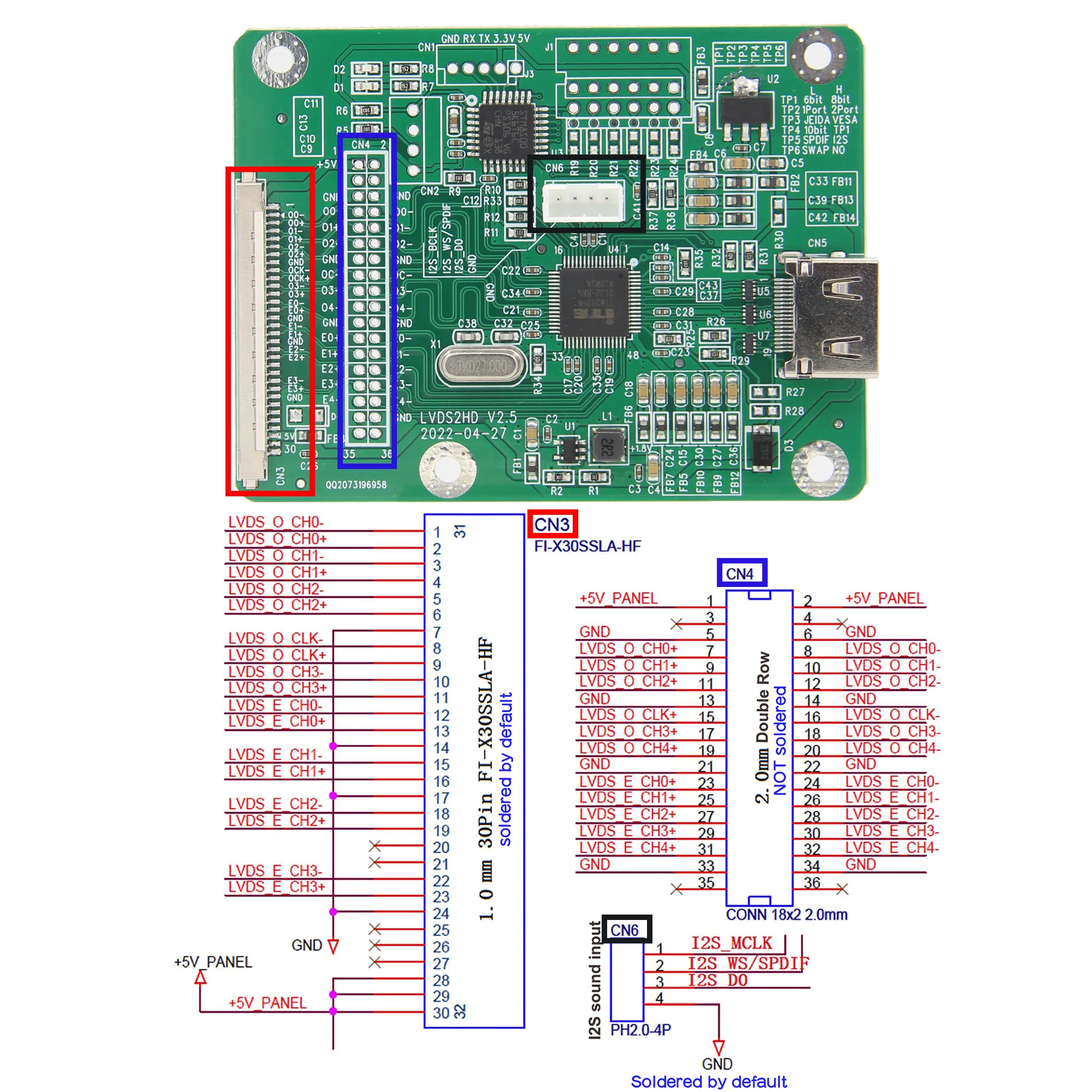

• LVDS input interface adopts the general 30-pin socket FI-X30SSLA-HF, which supports dual 8 inputs, and the riginal screen cable can be used directly;
• Optional 36-pin double-row pin input, support dual-link 10Bit;

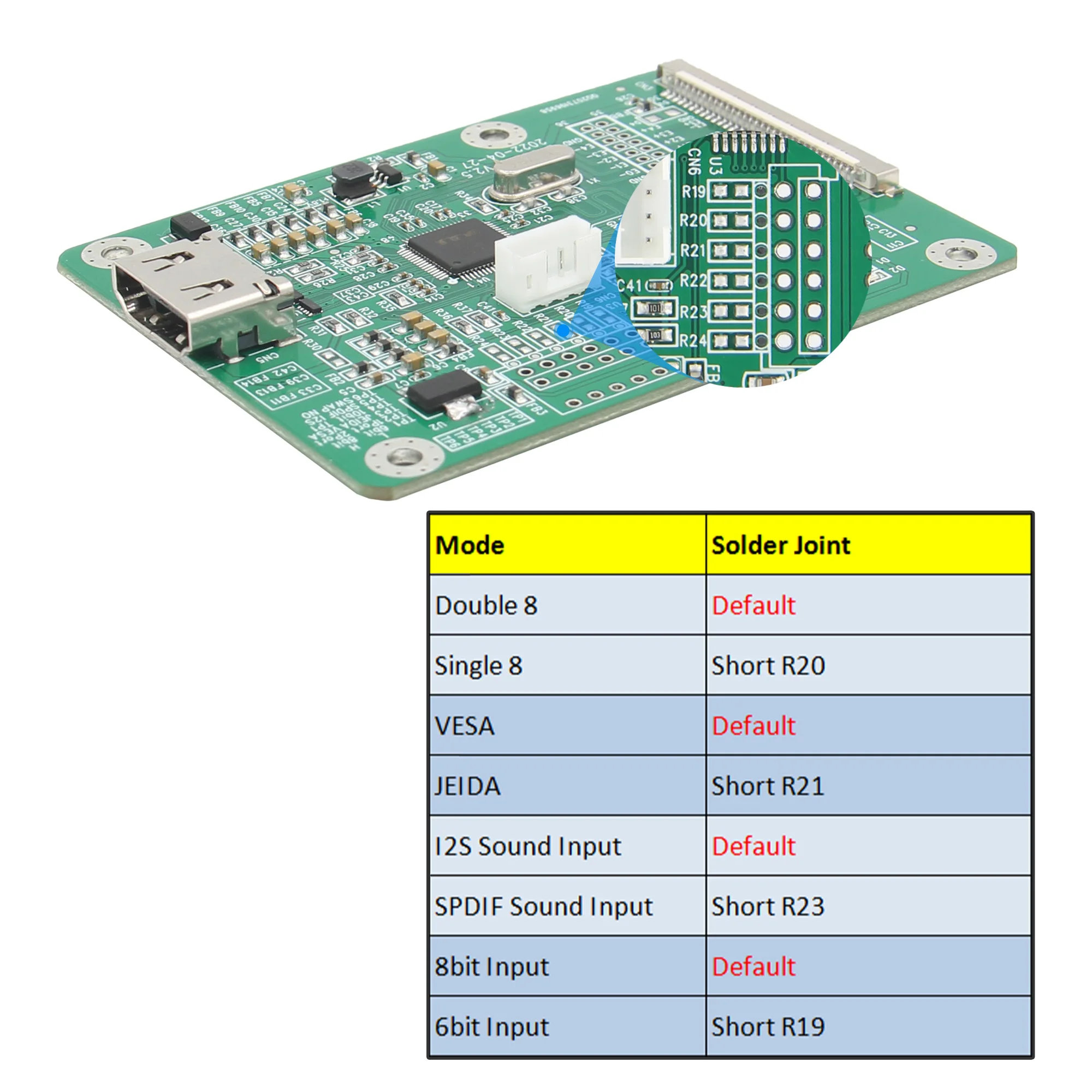

• A variety of options are reserved on the board, which can be selected by pull-down resistors:
• 6Bit / 8Bit / 10Bit;
• Single-strand / double-strand;
• JEIDA / VESA;
• SPDIF / I2S sound input;
• Not only supports standard HDMI signals, but also supports other graphics format signals, the common formats are as follows:
• 1920x1200, 1920x1080, 1600x1200, 1280x1024, 1280x720, etc.
• Support LVDS signal to spread spectrum
• Powered by 5V in the screen cable

User Manual

• https://wiki.geekworm.com/LVDS2

Packing List
