Heavy Duty 2" Lift Strut Kit for Land Rover Discovery/Range Rover Sport 05-2016



All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Overview

This conversion kit is designed to replace the air suspension system with a 2inch coil spring lift kit system for reduced maintenance costs, improved reliability, and simplified maintenance by eliminating complex air suspension componentsHigh-pressure nitrogen charged twin-tube shock absorber with high durability.

Feature

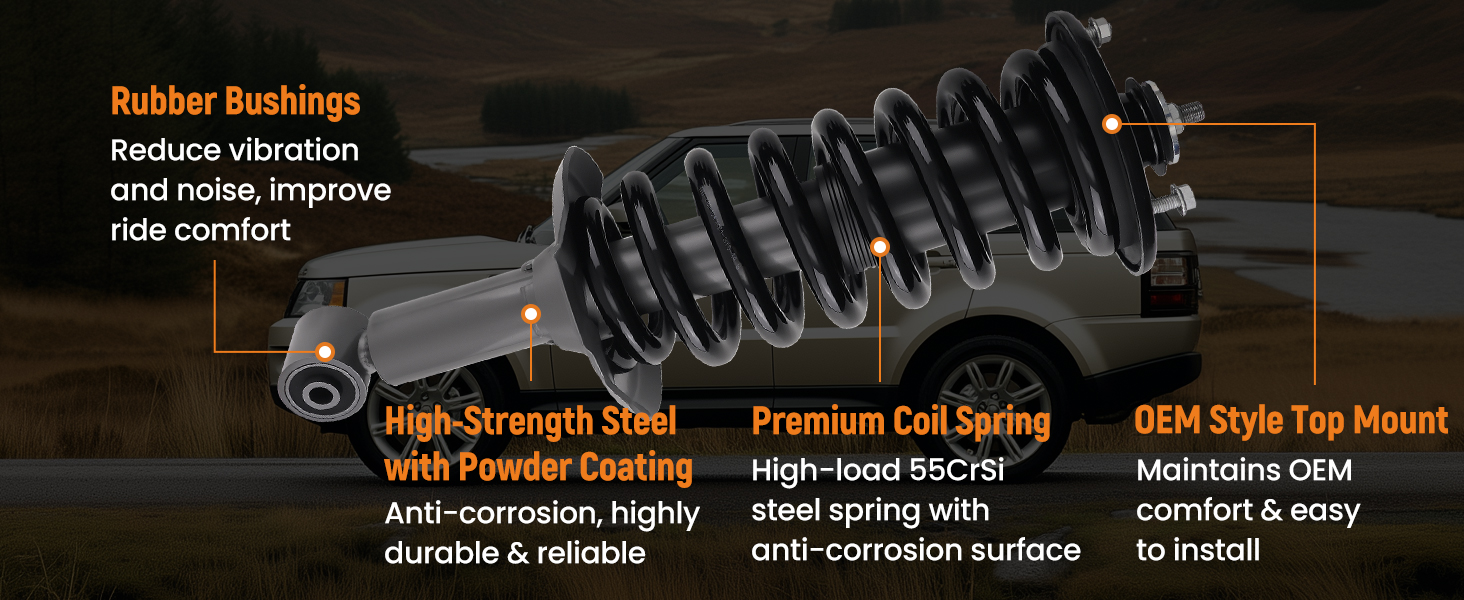

Smooth Ride: Equipped with premium rubber bushings, our lift struts effectively absorb road vibrations and impacts, delivering a noticeably smoother and more comfortable driving experience.

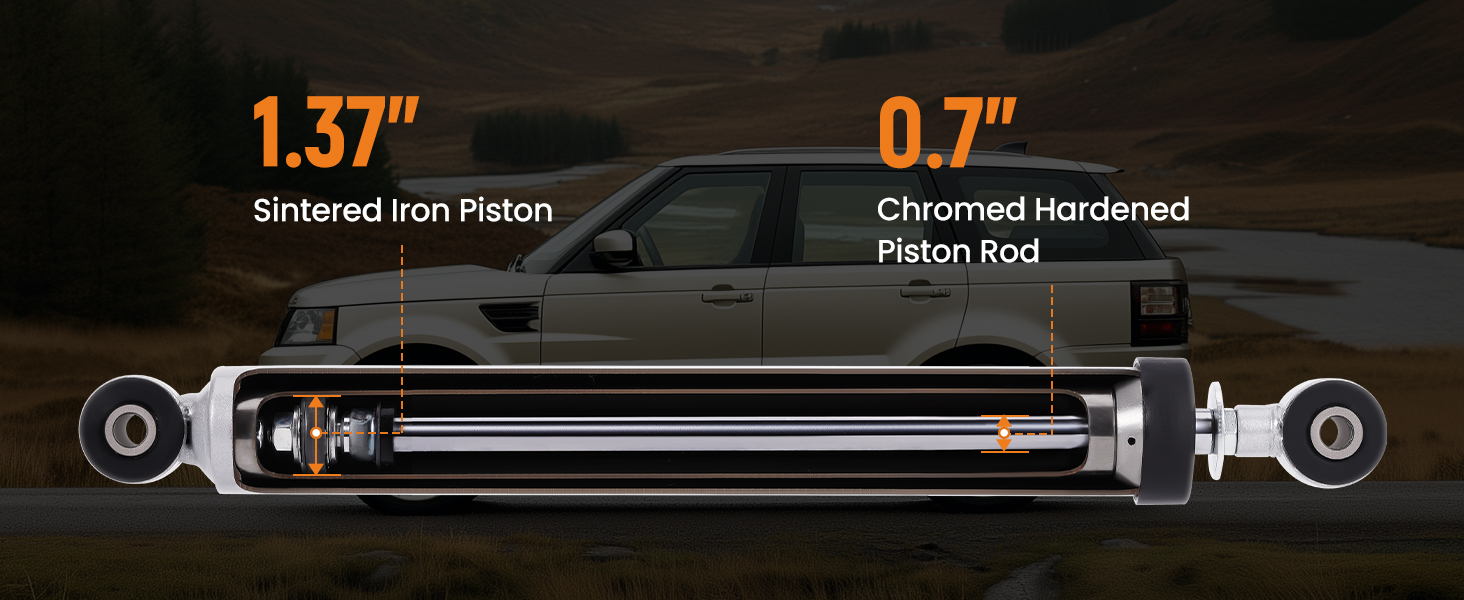

Durable Performance: Featuring an 18mm chromed hardened piston rod, a 35mm sintered iron piston, and a 54mm wide body, this strut is engineered for superior strength and efficient heat dissipation, ensuring reliable performance even under demanding conditions.

Trusted Strength: Built to withstand up to 36KN of tensile force, this lift strut provides dependable support for your vehicle's lift system, giving you confidence on every journey.

Long-Lasting Care: Includes a protective dust cover that shields the piston rod and oil seal from dirt, debris, and moisture, helping to extend the life of your strut and maintain optimal function over time.

Reliable Build: Crafted with precision welding techniques, each strut ensures tight seams and structural integrity, reflecting our commitment to quality and long-term durability.

Specification:

Specification:

Type:Air To Coil Spring Conversion Kit

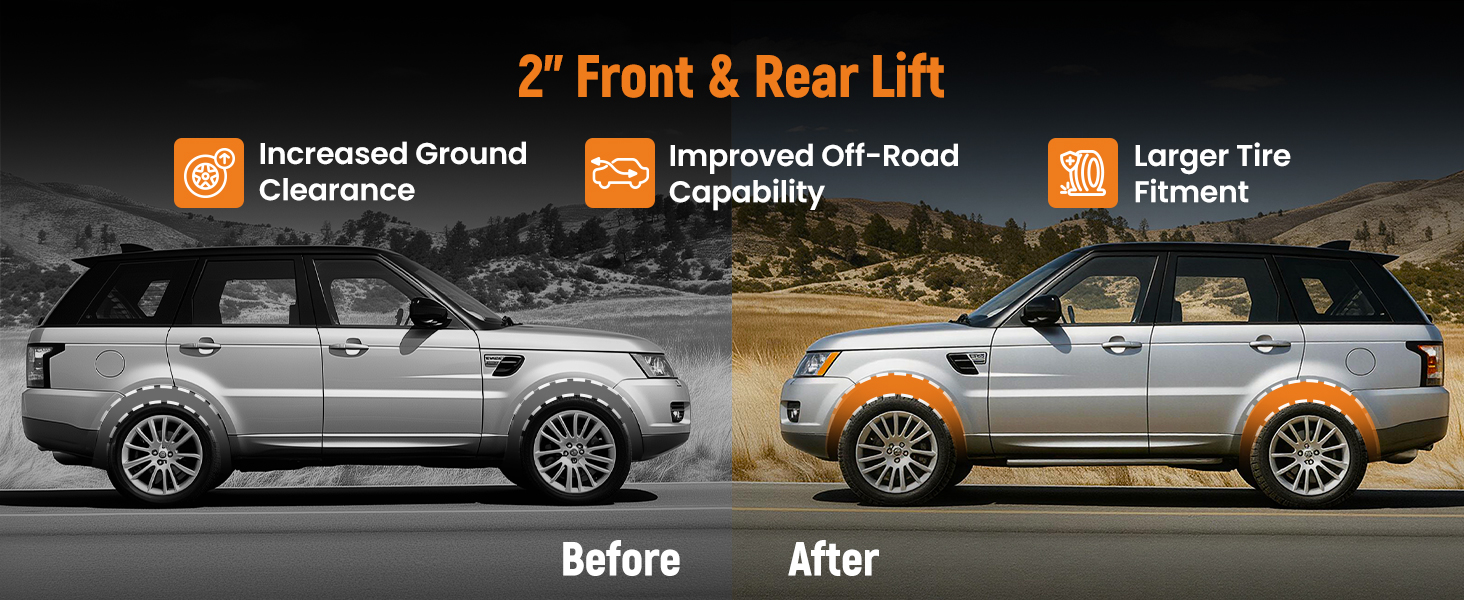

Lift  Height:Lift Front 2", Rear 2"
Material: High Tensile Strength Carbon Steel
Spring Material:(55CrSi) Steel
Finish: Powder Coated
Bushing Material: Rubber
Diameter Of Piston Rod: 18mm/0.70"
Piston Diameter: 35mm/1.37"

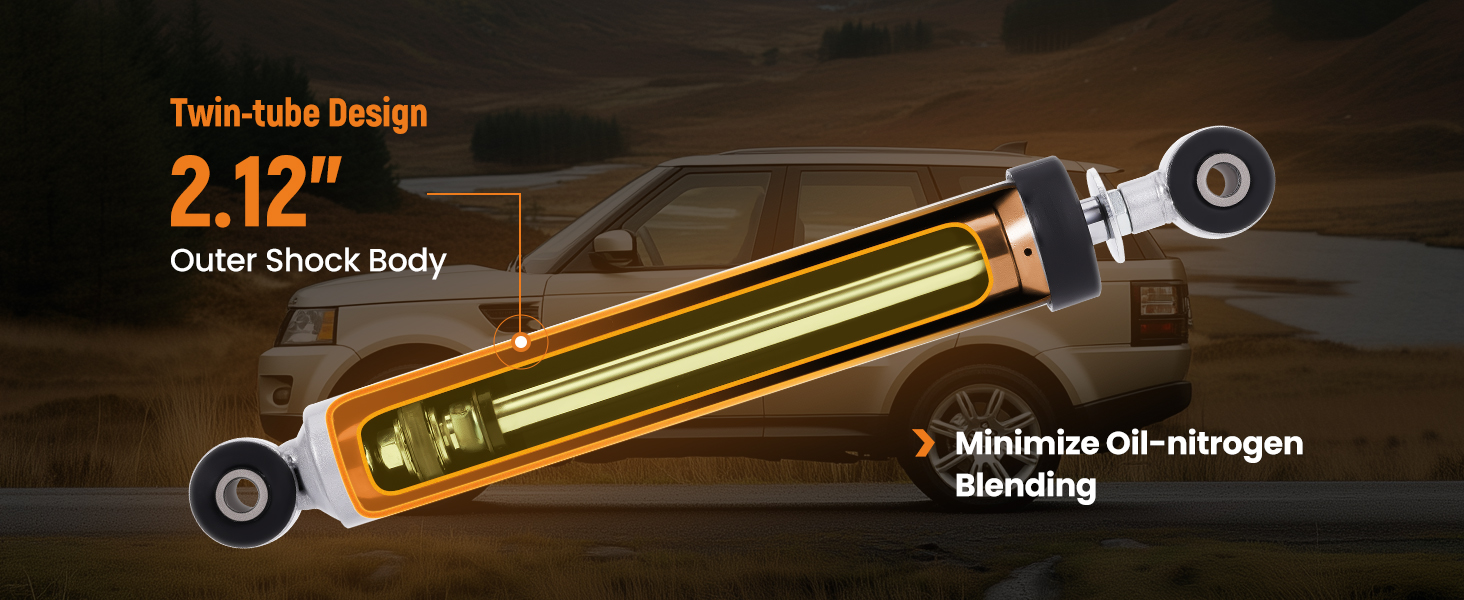

Outer Cylinder Diameter: 54mm/2.12"

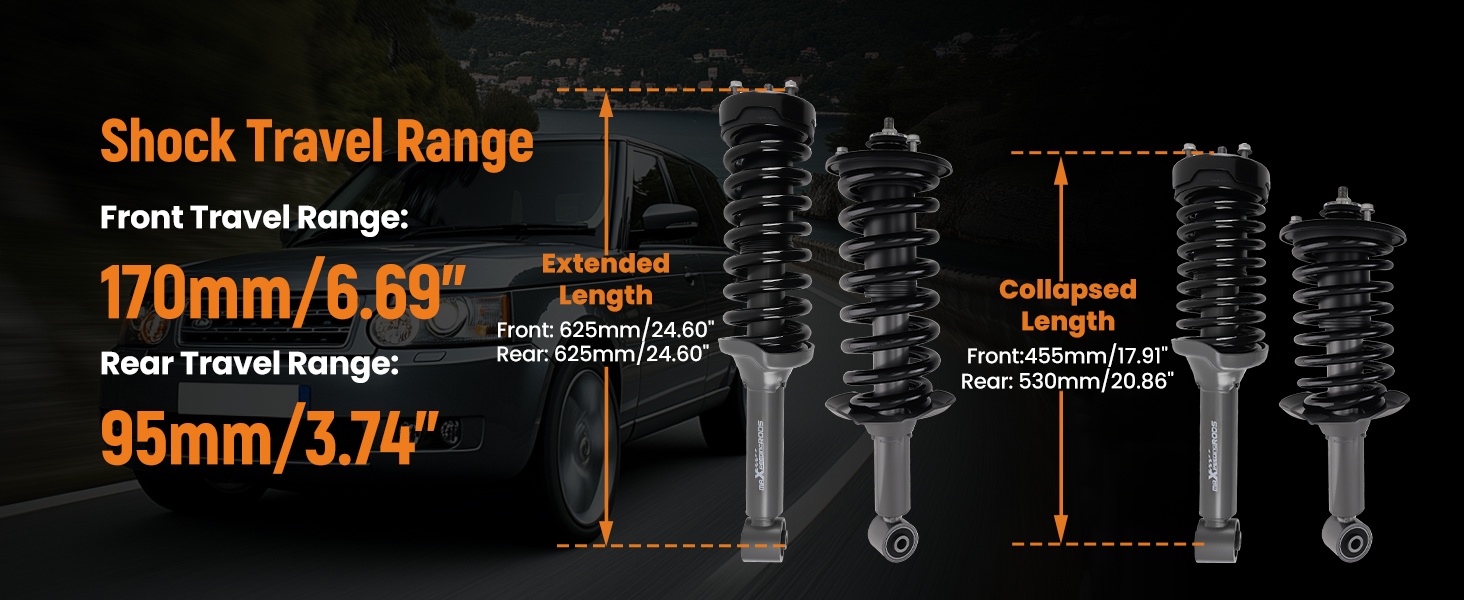

Travel: 170mm/6.69"(Front)     95mm/3.74" (Rear)
Extended Length: 625mm/24.60"(Front)     625mm/24.60" (Rear)
Collapsed Length: 455mm/17.91"(Front)       530mm/20.86"(Rear)
Spring Rate: (Front) 15kg/mm (839.96 lbs/in)   (Rear) 12kg/mm (671.97 lbs/in)
Spring Length: (Front)  375mm/14.76"     (Rear) 404mm/15.90"
Nitrogen Charged:Yes
Dust Cover Equipped: Yes

WHY CHOOSE US

WHY CHOOSE US

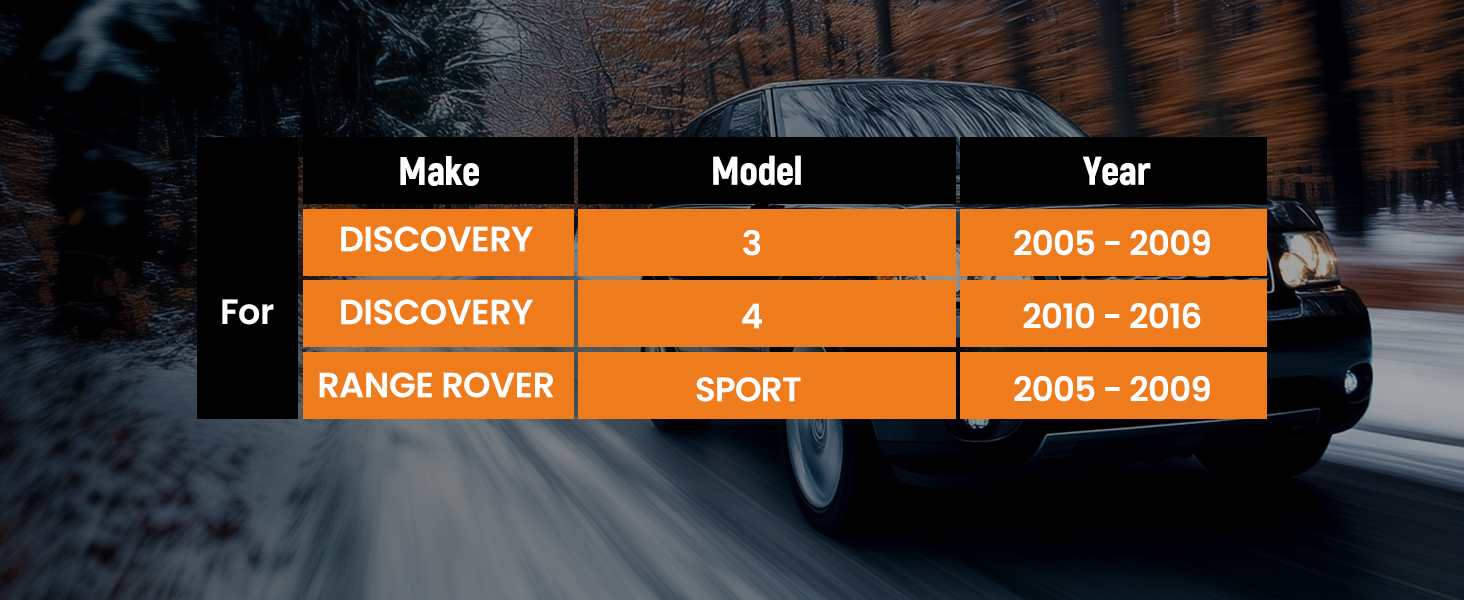

for DISCOVERY 3 2005 - 2009 for DISCOVERY 4 2010 - 2016 for RANGE ROVER SPORT 2005 - 2009 ——This conversion kit is designed to replace the air suspension system with a 2inch coil spring lift kit system for reduced maintenance costs, improved reliability, and simplified maintenance by eliminating complex air suspension componentsHigh-pressure nitrogen charged twin-tube shock absorber with high durability.
