Description

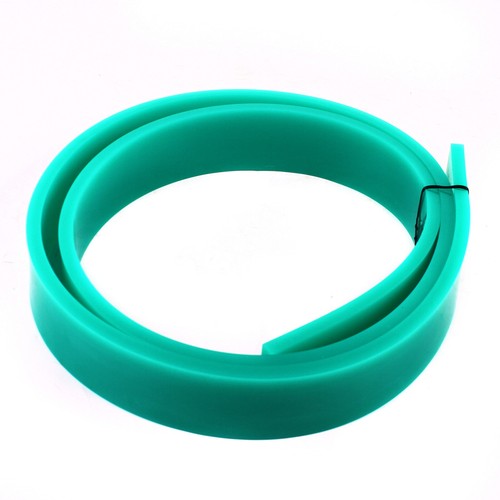

This screen printing squeegee is made of selected high-performance materials to ensure clear patterns and vibrant colors, efficiently rendering both fine lines and large blocks of color. Easy to operate and durable, it is ideal for both artistic creation and commercial printing, making every print a unique work of art.

Key Features

Selected Material: This product is made of high-grade PU, which has excellent solvent resistance, abrasion resistance, and stability under different printing conditions, and is easy to grind and has a long service life without frequent replacement.

High Hardness: 80 durometer hardness allows it to maintain good shape stability during use, reducing deformation caused by pressure and thus improving printing quality.

Practical Tool: You can use this squeegee to push the ink evenly across the printing area, ensuring efficient and precise screen printing results.

Efficient Work: The size of 70.87*1.97 inches makes it suitable for larger printing jobs, enabling effective ink transfer and control to ensure printing quality and efficiency.

Easy to Use: You only need to fix the squeegee on the supporting aluminum clamp (not included) to grind, very convenient and fast.

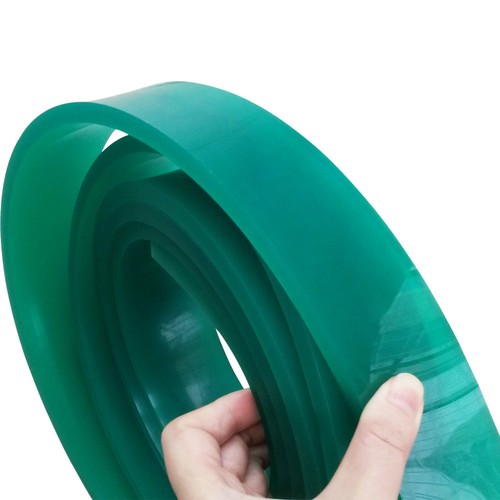

Easy to Carry & Store: The light weight(2.36lbs) and rollable nature of this product makes it convenient to carry and store, making it easy for you to transport to any workplace without taking up too much space.

Easy to Clean: The smooth surface and simple structure allow you to quickly remove surface stains with a wet towel (not included).

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

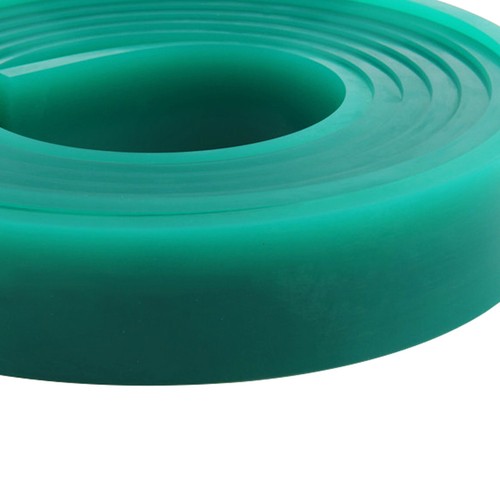

Smooth Edges: The smooth and burr-free edges ensure smoother printing results.

9mm Thickness: It has a large contact area for more even application and glide.

Application

It is widely used for screen printing in ceramics, glass, advertising, PCB, photovoltaic, and other industries. It removes excess ink, paint, or other material by sliding it across a screen or other surface.

Grinding Requirements

• The scraper should be clean and dry when grinding, preferably after 24 hours.
• The scraper should be fixed on a supported aluminum clamp for grinding.
• Medium grit (110 mesh-130 mesh) should be used whether the grinder is a belt or wheel type. If the grit is too fine, it can cause clogging or overheating. Fine grit can be ground in the final stage, thus suitable for high-precision printing.
• Please choose a mechanical system with jig, squeegee, and grinding in a steady state.
• Please clean the squeegee with weak and mild solvents (not included) or grind it for more than 2 hours to cool it down before use.

Storage Requirements

• Please do not immerse the squeegee in solvents (not included) for a long time.
• The printing edge of the squeegee needs to be replaced. Due to contact with solvents, the squeegee begins to corrode, and after some time/pressure, the squeegee becomes softer, and the blade structure is damaged. Therefore, the squeegee should be turned over every 2-4 hours. After turning the squeegee over, it is a new printing edge.
• After the squeegee has been used, the ink adhering to it should be cleaned and dried. Cleaning is usually done with a mild thinner (not included). Please wear gloves and clean with a clean cloth (not included).

Specification

Assembly Required: No

Style: Modern

Shape: Rectangular

Color: Green

Material: PU

Type: Squeegee

Thickness: 9mm/0.35in

Hardness: 80 Durometers

Product Size(L*W): 180*5cm/70.87*1.97in

Package Size: 28*27*6cm/11.02*10.63*2.36in

Gross Weight: 1.13kg/2.49lbs

Net Weight: 1.07kg/2.36lbs

Package Included

1* Screen Printing Squeegee

Notes

• Please check the style and size before purchasing.
• Please note that this product does not contain any other items.
• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
