Product View
Detailed Description

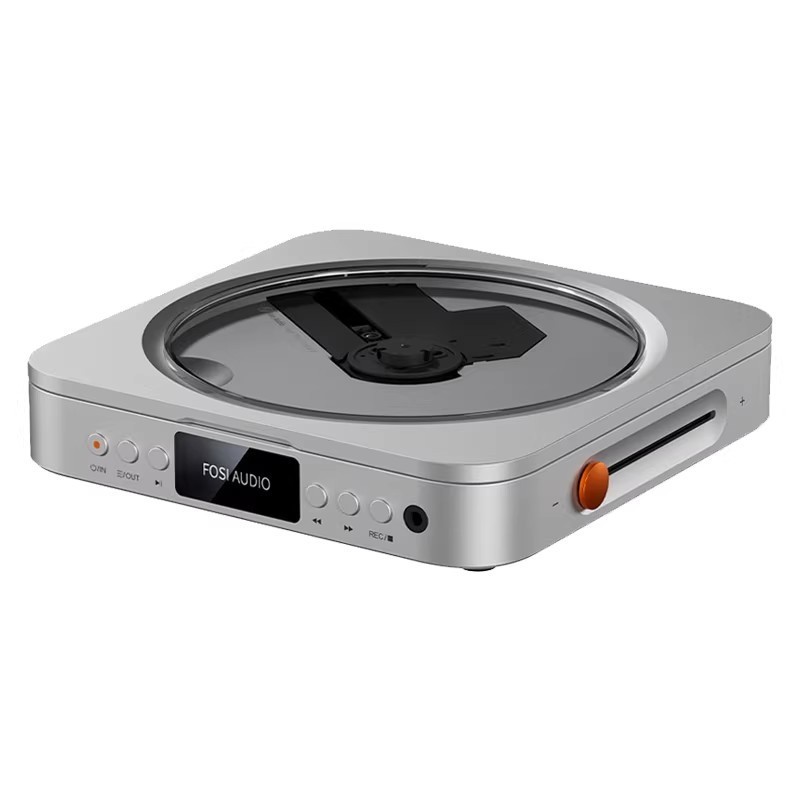

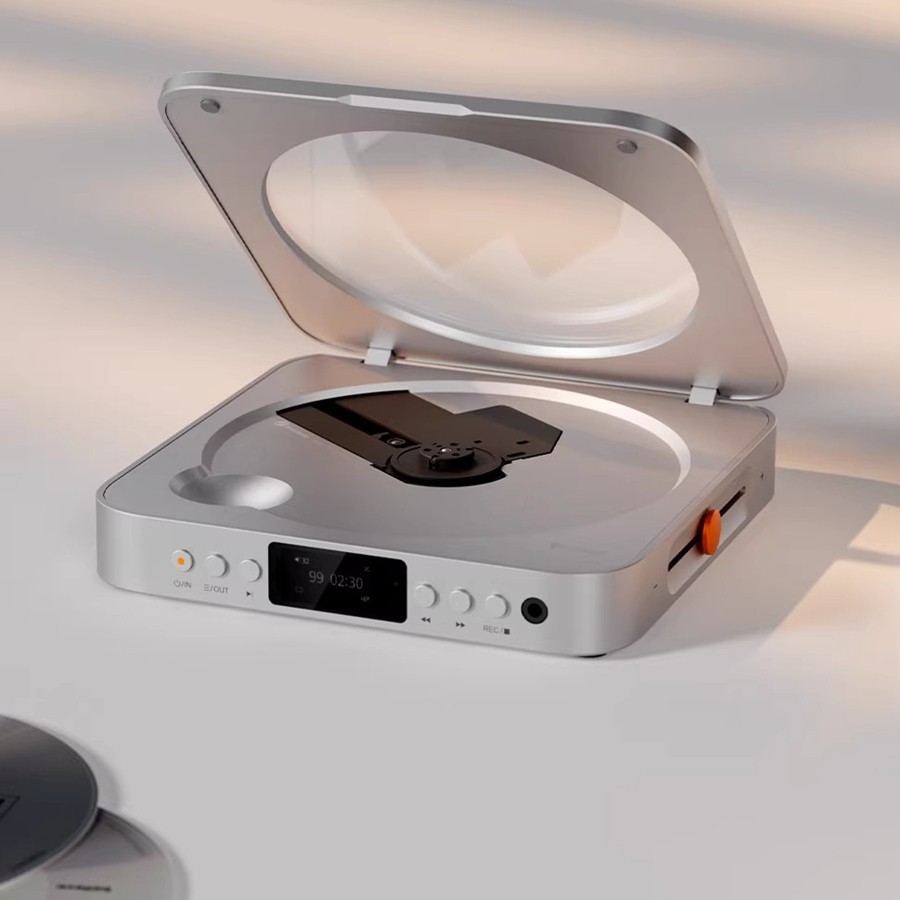

Fosi Audio Merak CD Player Pure Digital Turntable Professional Hifi Chip Support Usb Playback
Headphone Output Optical Output

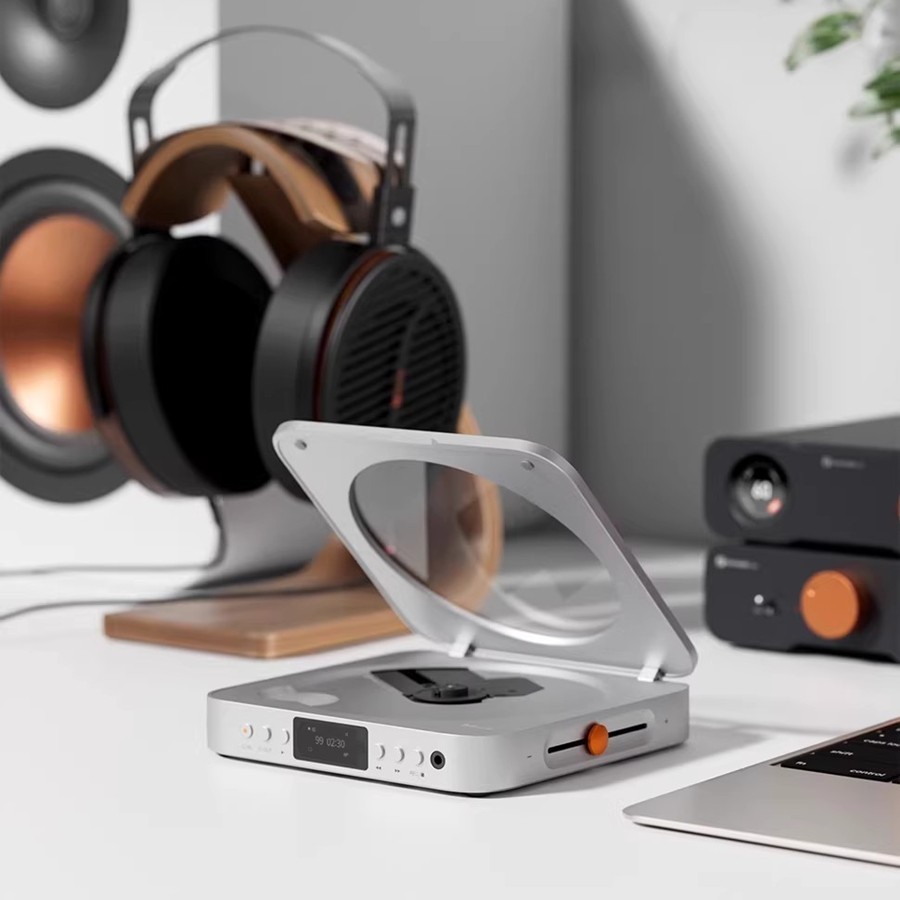

Seamless System Integration
With optical and line outputs, it connects easily to DACs, amplifiers, or active speakers.

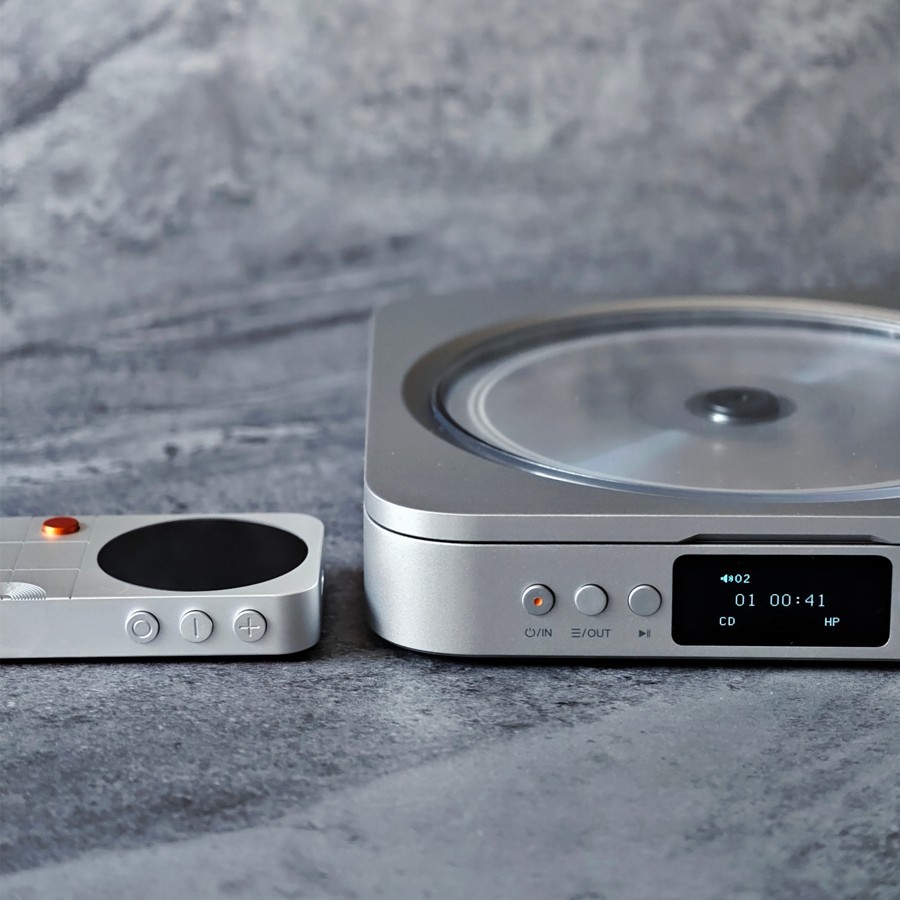

The included remote control allows convenient input/output switching and track selection.
A 12V Trigger output enables synchronized power with Fosi devices like ZD3 and ZA3.
Input: USB-A (USB flash drives), CD
Output: 3.5mm Headphones Jack, LINE, OPT, 12V Trigger

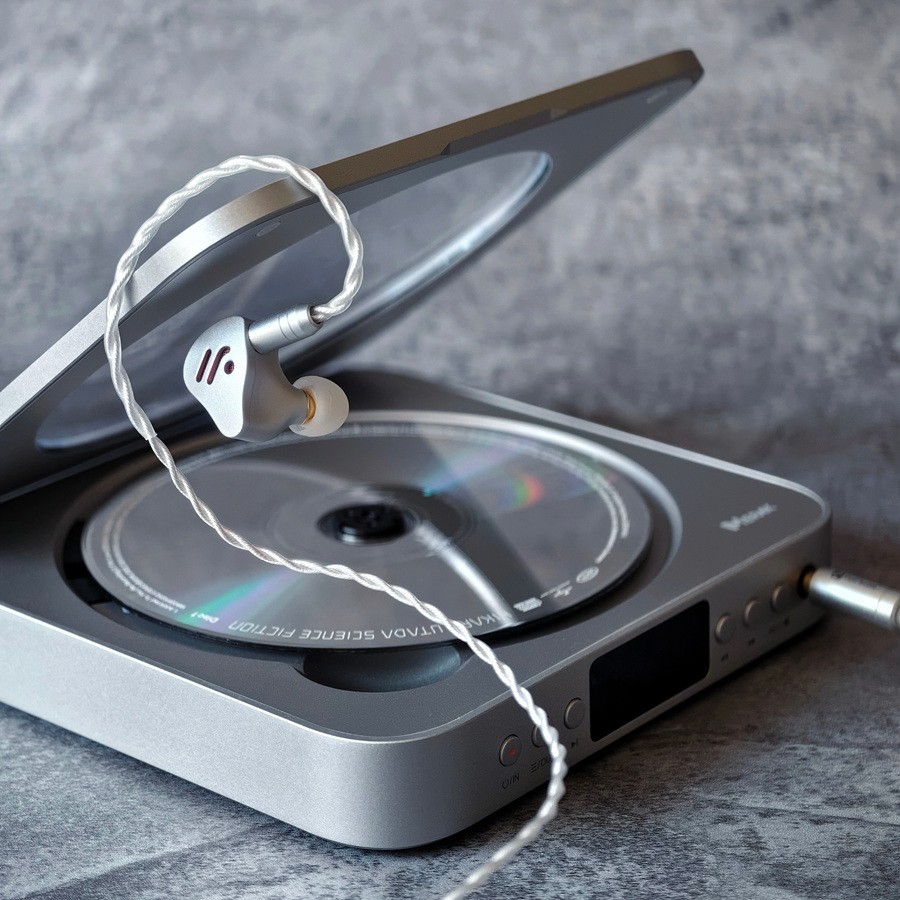

Plug and Play

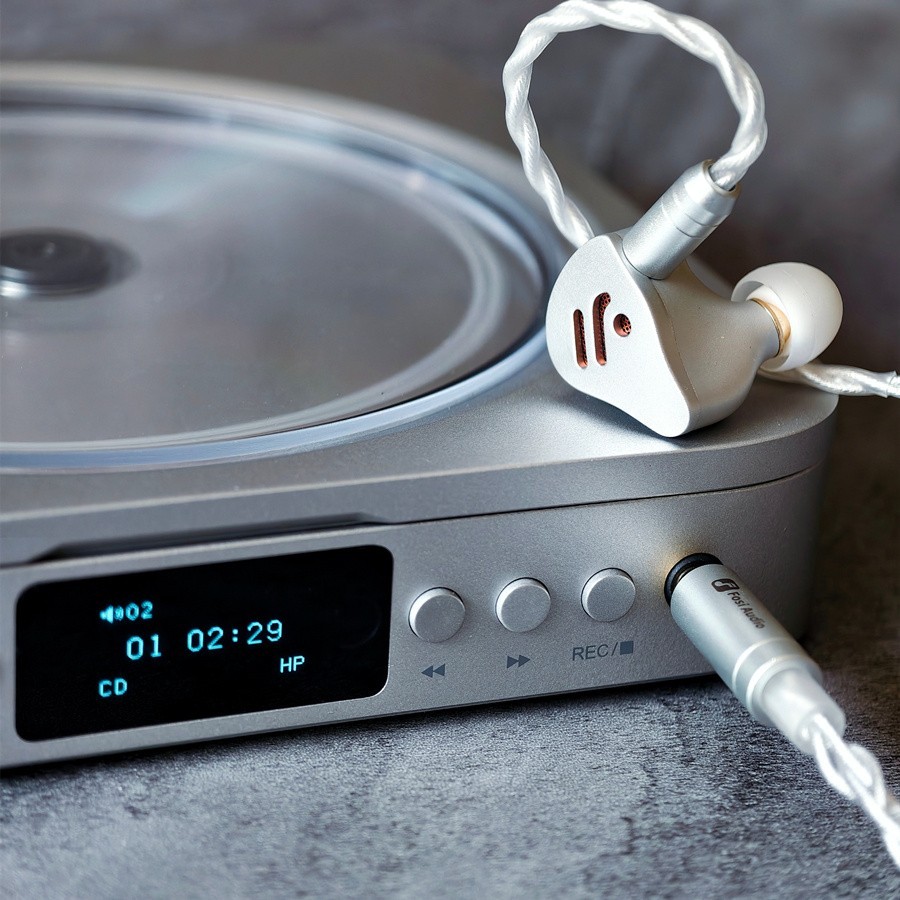

Equipped with a 3.5mm headphone jack delivering up to 210mW x2 ofoutput power.
Simply plug in your headphones and enjoy your own privatelistening moment.
Its compact design fits easily on a bedside table orbeside the sofa,
letting you fully relax and unwind with music.Simple Setup, Instant Playback
Curated Audio Chipset
Built-in CS43131 DAC paired with 2 TPA6120 op-amps design, Meraksupports up to PCM 16bit/96kHz audio.
With a 124dB SNR and 0.0009%THD, it delivers a clean signal faithful to the original CD recording.
CD Ripping
Merak features one-touch CD ripping, saving original CD audio as16bit/44.1kHz WAV files to a USB drive without loss of quality.
Equippedwith a USB-A input, supporting USB drives up to 128GB for direct musicplayback.
USB Drive Playback
Description
Precision CD Transport: Optimized servo system ensures accurate disc reading, smooth playback,
and reduced wear, supporting stable long-term performance and consistent audio output.
All-in-One Audio Design: Combines CD player, DAC, and headphone amplifier in one unit,
simplifying setup while maintaining low distortion and clear signal reproduction.
CD Ripping & USB Playback: Supports CD ripping to USB and direct playback,
enabling easy conversion to digital files and convenient access without additional devices.
Flexible Output Connectivity: Multiple outputs support headphones, amplifiers, and active speakers,
allowing seamless integration into desktop systems or larger audio setups.
ESP Anti-Skip Protection: 60-second buffering reduces interruptions from vibration,
maintaining stable playback and improving reliability in movement or less controlled environments.
Specifications
Chipset: SC6137D + CS43131 + TPA6120
Max Sampling Rate
CD: PCM 16bit / 96kHz
USB (USB flash drives): PCM 16bit / 96kHz
Headphone Impedance: 16–300Ω
Input: USB-A (USB flash drives), CD
Output: 3.5mm Headphones Jack, LINE, OPT, 12V Trigger
CD Formats: CDDA, CD-R / CD-RW (partially readable). Original pressed discs are recommended
CD-R Formats: FLAC / WAV / WMA / AAC / MP3
SACD Playback: Only SACDs with a CD layer are supported
Formats for USB Drive Playback: MP3 / WAV / FLAC / AAC / APE / WMA
IR Remote Control: Supports a maximum operating distance of up to 7 meters
Input Voltage: DC 5V / 2A
Firmware Upgrade: Firmware can be updated online via a USB-A port using a USB flash drive
3.5mm Output Performance (CD)
Rated Output Power: L+R ≥ 210mW + 210mW (32Ω / THD+N < 1%)
SNR: 121 dB (A-weighted)
THD+N: 0.002% (A-weighted)
Dynamic Range: 121 dB
Noise Floor: ≤ 3µV (A-weighted)
LINE Output Performance (CD)
Output Level: ≥ 2Vrms
SNR: 124 dB (A-weighted)
THD+N: 0.0009% (A-weighted)
Dynamic Range: 124 dB
Noise Floor: ≤ 3µV (A-weighted)
