Features:
Wide Measurement Range: Measures capacitance from 1pF to 100mF and inductance from 1uH to 100H, with wide applications.
High : Measurement accuracy up to 1% for small capacitors (1pF-1uF) and inductors (1uH-100mH).
Advanced LC Resonance Technology: Employs the LC resonance principle and a high-speed microcontroller for precise small-value measurements.
Digital Calibration: Uses non-volatile flash memory to store calibration settings, maintaining measurement accuracy without the need for a potentiometer.
User-Friendly Display: Equipped with a 1602 LCD display showing 4 digits for easy and clear data interpretation.
Calibration: Disconnect the test clip, press and hold the red button until the LCD screen displays the calibration result, then release the button. Calibration is successful. During calibration, there should be no near the test clip!
Test for frequency: The test for frequency can be viewed during testing by pressing the FUNC key. It is automatically assigned by the instrument's MCU and cannot be manually set.
Specifications:
Part Name: Inductance/Capacitance Meter
Material: ABS
Color: Green
Size: 8*5*3 cm

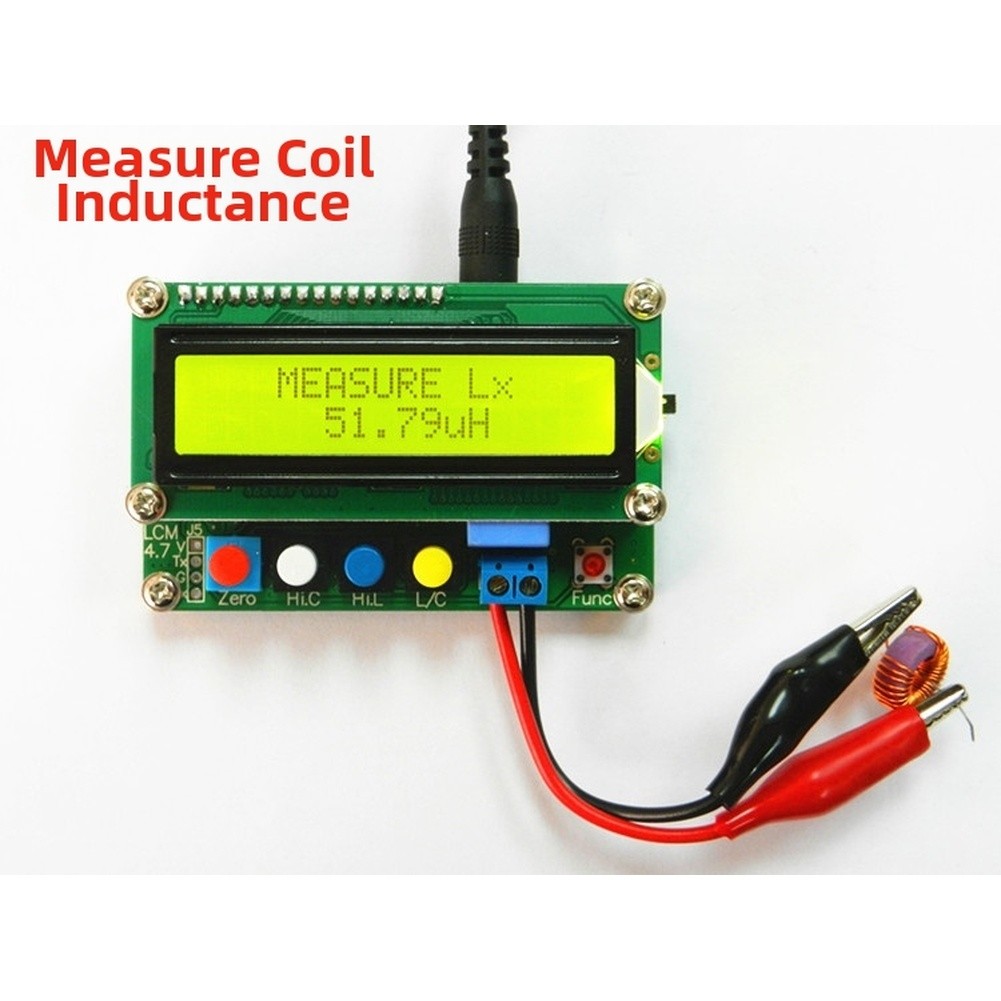

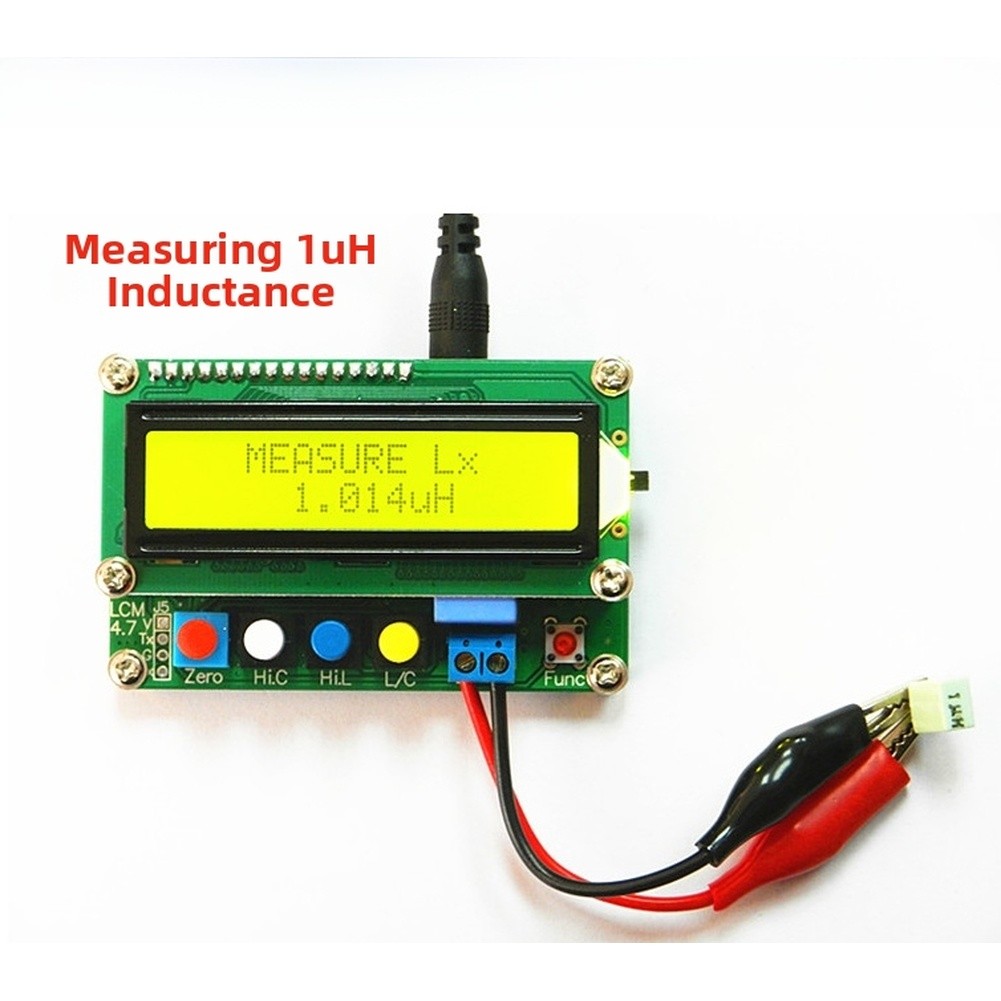

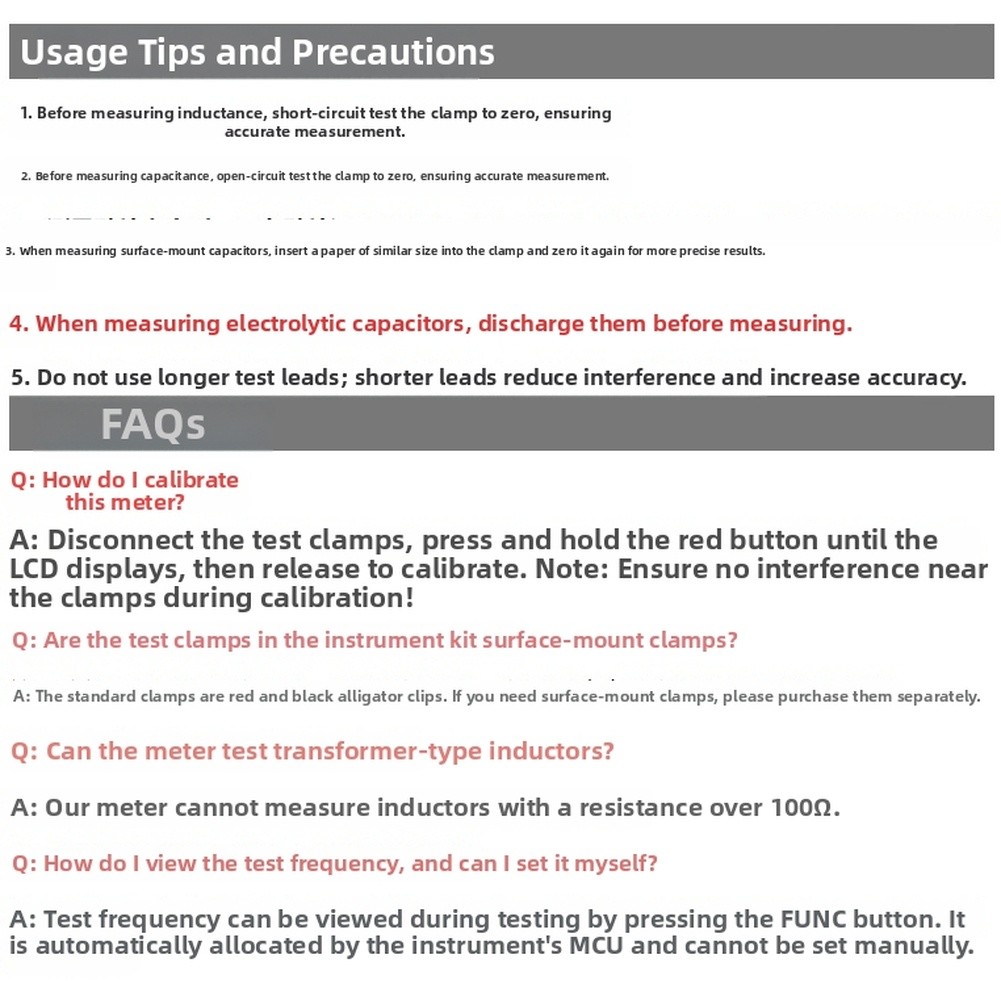

1. Before measuring inductance, short-circuit the test clip to for zero it to for ensure accuracy.
2. Before measuring capacitance, open-circuit the test clip to for zero it to for ensure accuracy.
3. When measuring surface-mount capacitors, you can clamp a piece of paper of similar size to the capacitor in the surface-mount test clip before zeroing for more accurate results.

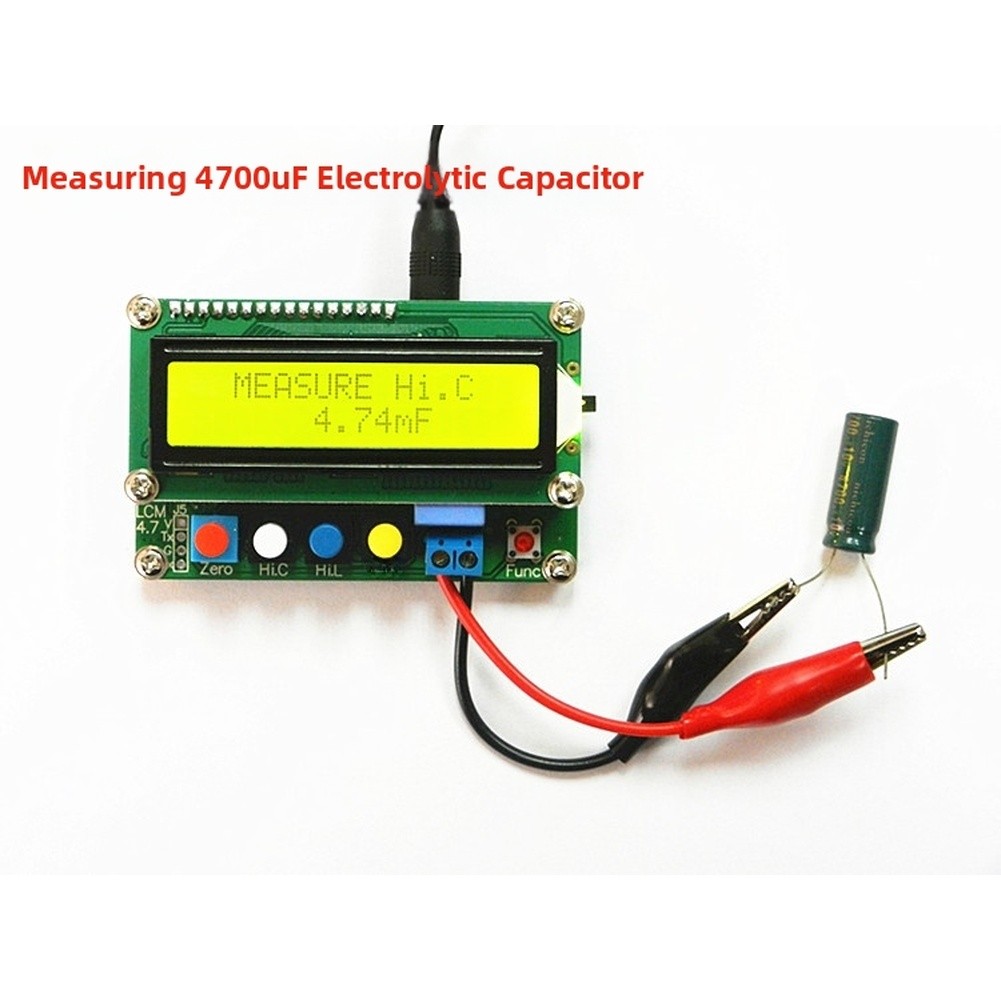

4. When measuring electrolytic capacitors, please discharge them before measurement.
5. Do not use longer test leads during measurement. The shorter the test leads, the less and the higher the accuracy.

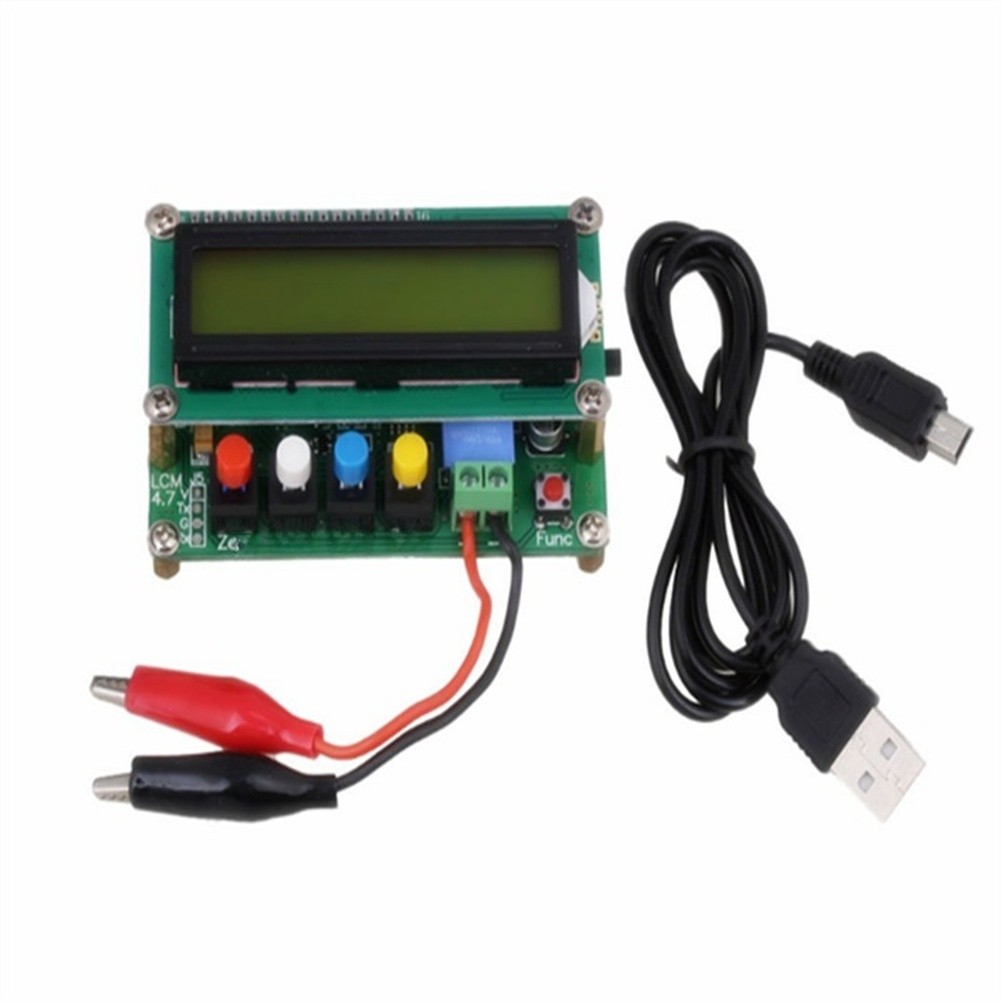

Package Contents:
1*Capacitance Meter
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
