OBDSTAR P001 Progarmmer RFID & Renew Key & EEPROM Functions 3 in 1 Work with OBDSTAR X300 DP Master

On the basis of original adapter features, P001 progarmmer, integrated with the EEPROM adapter, RFID adapter and Key Renew adapter, is a multifunctional progarmmer.

It brings a brand new experience, which not only allows auto technician to reduce more cumbersome procedures.

OBDSTAR P001 Progarmmer= EEPROM adapter, RFID adapter and Key Renew adapter 3-in-1 for X300 DP/ Key Master DP/ MS80/ X300 MINI Series

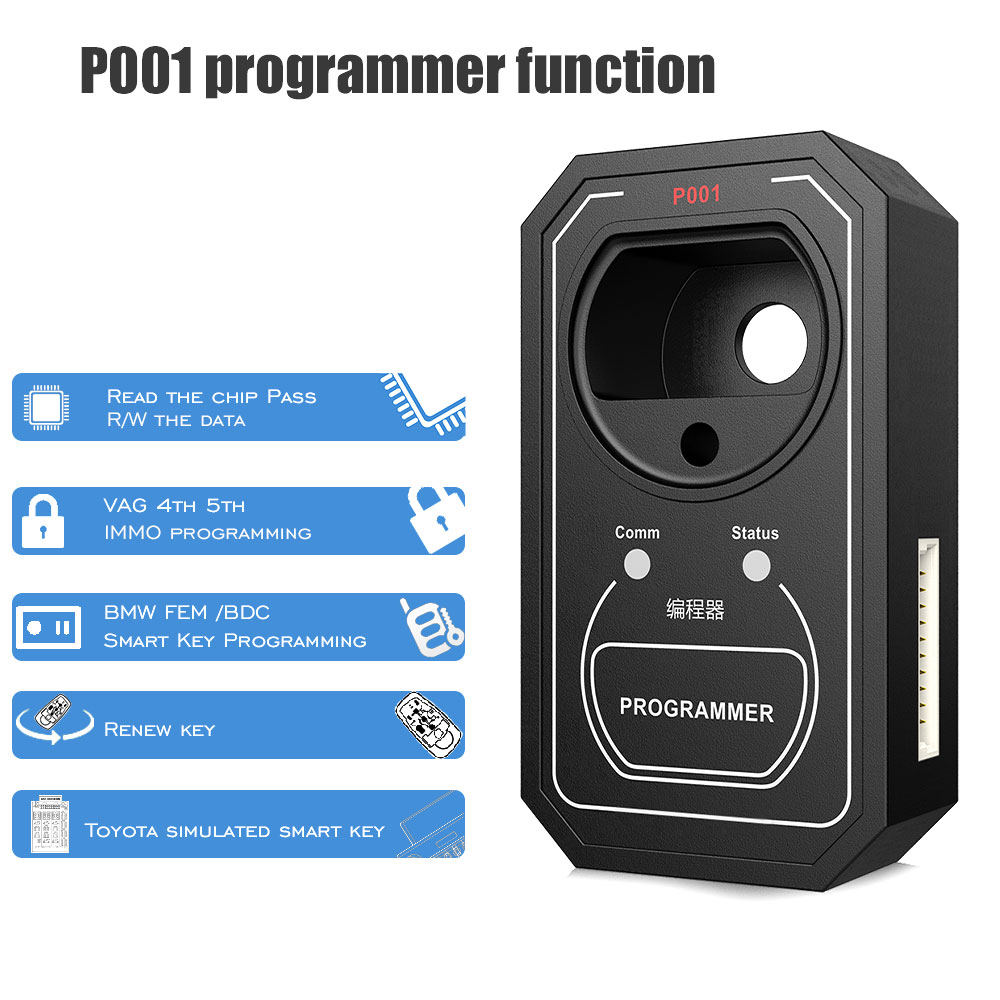

OBDSTAR P001 Progarmmer Features:

On the basis of original adapter features, P001 progarmmer, integrated with the EEPROM adapter, RFID adapter and Key Renew adapter, is a multifunctional progarmmer.

OBDSTAR P001 not only allows  auto technician to reduce cumbersome procedures, but also is compatible with simulated smart keys to realize the Toyota all lost.

OBDSTAR P001 can progarm keys for R-enault Talisman/Megane IV/Scenic IV/Espace V used with OBDSTAR Converter.

Advanced Functions

P001 progarmmer uses dual coils with stronger signal, supporting a wider range of RFID.

1. Fit For FIAT/ALFA ROMEO/LANCIA/IVECO/ABARTH/FERRARI make dealer Keys

2. Fit For V-W/AUDI/SEAT/SKODA/BENTLEY/LAMBORGHINI make dealer Keys

3. Fit For R-ENAULT/DACIA/LADA/SMART make dealer Keys

4. Fit For TOYOTA/LEXUS 94/D4, A8, 98, A9, 39 make simulated Keys

5. Fit For SUBARU 78/F1 make simulated Keys

6. Fit For GM EPICA read pincode from original Keys

7. Fit For BMW make simulated Keys

8. Fit For LAND ROVER/ JAGUAR make simulated Keys

9. Motorcycles make simulated Keys

10. Fit For PIAGGIO/VESPA/APRILIA/GUZZ/GILERA/DERBII/PEUGEOT/ITALJETH copy Keys by OBD

11. Fit For HONDA/SUZUKI/YAMAHA reading pincode

12. Read, write and fix EEPROM/PIC data

13. Renew Keys

Note: OBDSTAR P001 Progarmmer only works with OBDSTAR X300 DP/ X300 DP PLUS/ Key Master DP/ MS80/ MK70/ X300 PRO4/ X300 MINI Series

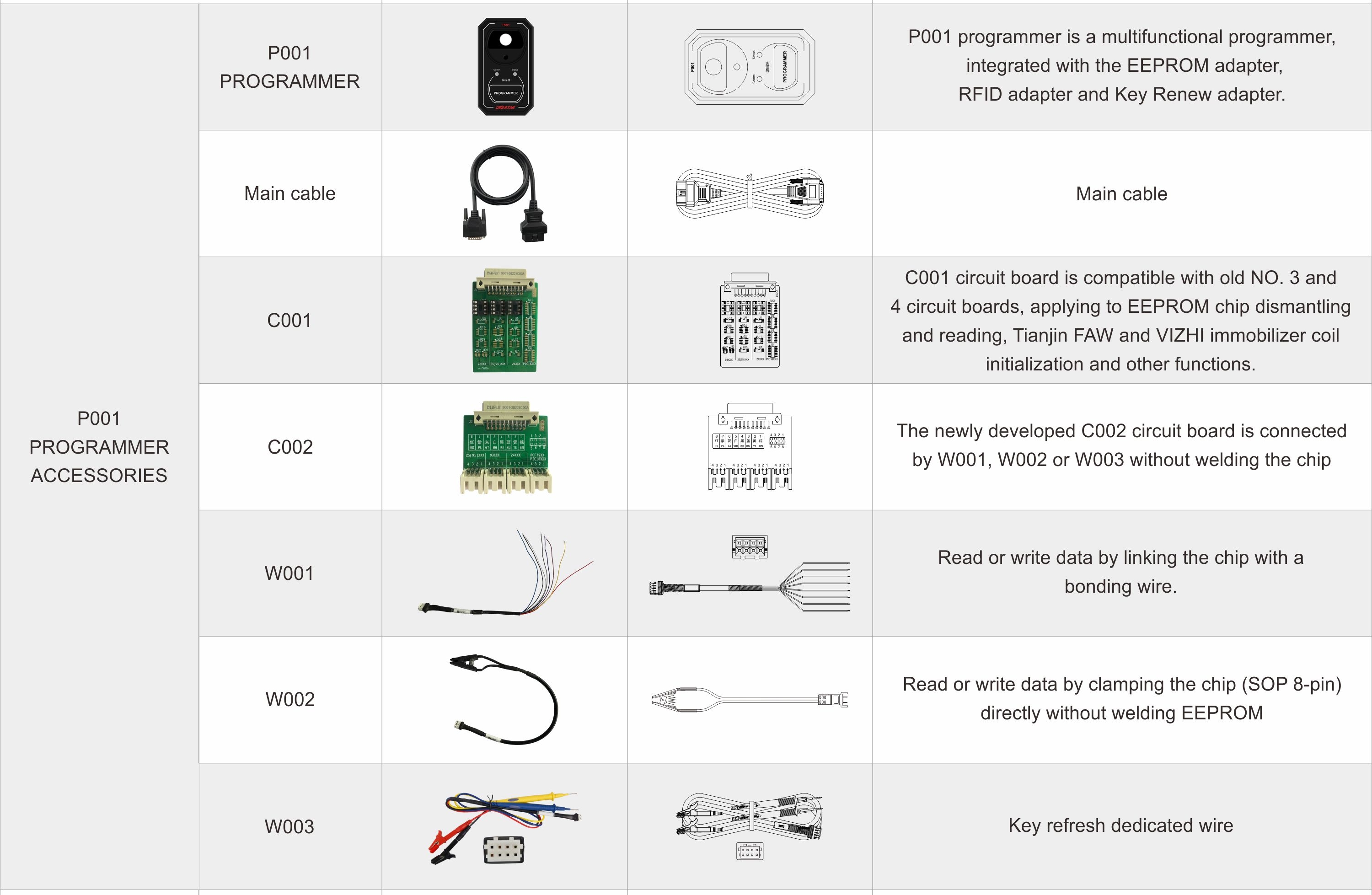

P001 progarmmer configurations

P001 progarmmer unit + C001 circuit board + C002 circuit board + W001 data cable + W002 data cable + W003 data cable

P001 progarmmer accessories

1. Accessory 1: C001 circuit board

• C001 circuit board is compatible with old NO. 3 and 4 circuit boards, applying to EEPROM chip dismantling and reading, Tianjin FAW and VIZHI imm0bilizer coil initialization and other functions.

2. Accessory 2: C002 circuit board

•  The newly developed C002 circuit board is connected by W001, W002 or W003 without welding the chip.

3. Accessory 3: W001 data cable

•  W001 data cable can read or write data by linking the chip with a bonding wire

4. Accessory 4: W002 data cable

• W002 data cable can read or write data by clamping the chip (SOP 8-pin) directly without welding EEPROM.

5. Accessory 5: W003 data cable

• W003 data cable can read or write data by clamping positive pole and negative pole with red and black clips and contacting the data interface with yellow and blue probes.

Wiring instruction

To better understand the connection among P001 progarmmer and its accessories, examples for W001 and W003 wiring instructions are as below. (During the actual operation process, there is a diagram of wiring inside tablet)

• Way 1.  W001 connecting

• Way 2.  W003 connecting

About Toyota simulated smart key

1.Why use a Toyota simulated smart key?

For the Toyota/Lexus 2007-2016 models, if all smart keys are lost, the instrument table must be removed and the ECU must be replaced. The cost is very high!

This Toyota simulated smart keycan generate a Toyota key with our devices in the case of all keys lost, so the ignition switch can be turned on, and then a new smart key can be added and progarmmed with our devices.

2.What are the advantages of the Toyota simulated smart key?

Save costs;

Reusable.

3. Which type of smart keys can be simulated?

• Supports 46, 4D Data Collection
• Supports 46 Transponder Password Calculation
Support models:

1. Porsche(2005-2010) 46 Pincode decryption

2. HYUNDAI/KIA 46 Pincode decryption,etc.

•  Supports Toyota/Lexus 4D (94/D4, 98) Smart Key Simulation
• Supports Toyota/Lexus H (88/A8, A9, 39) Smart Key Simulation
Please buy the Key SIM 5 in 1 to work together.

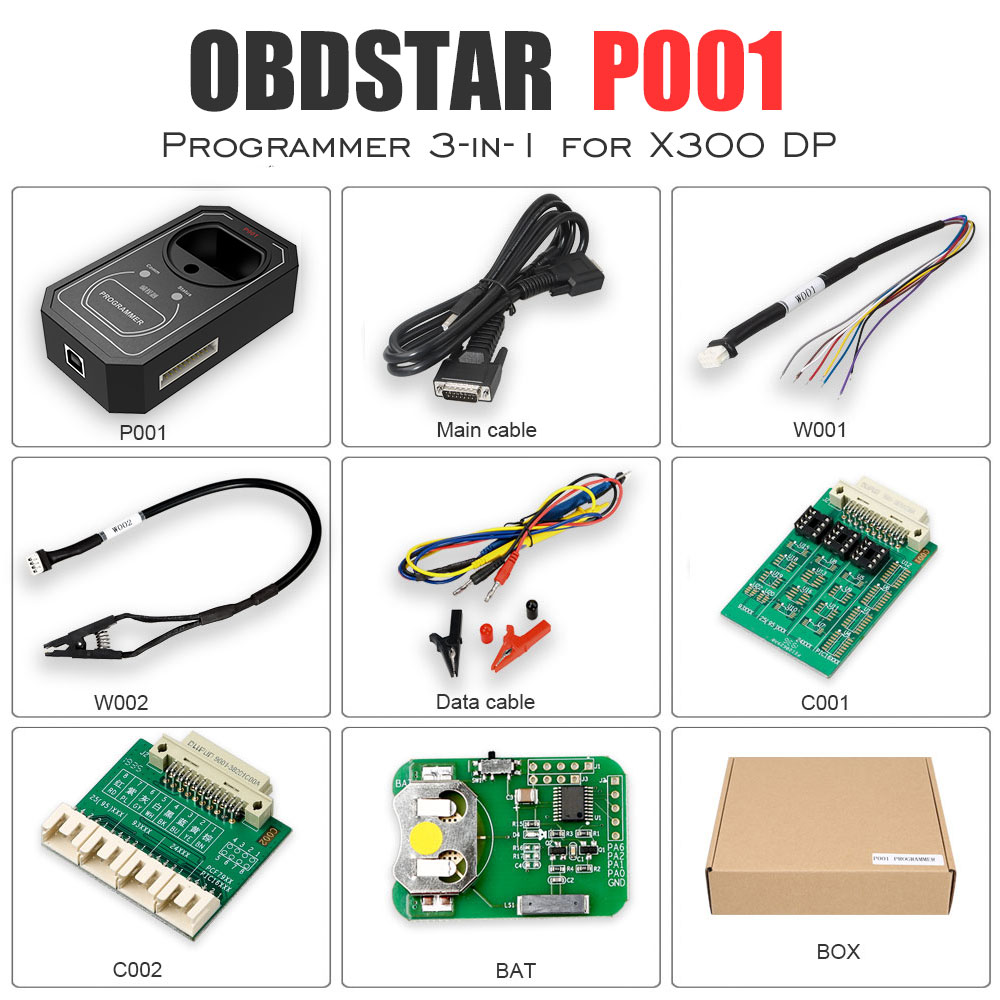

Specifications

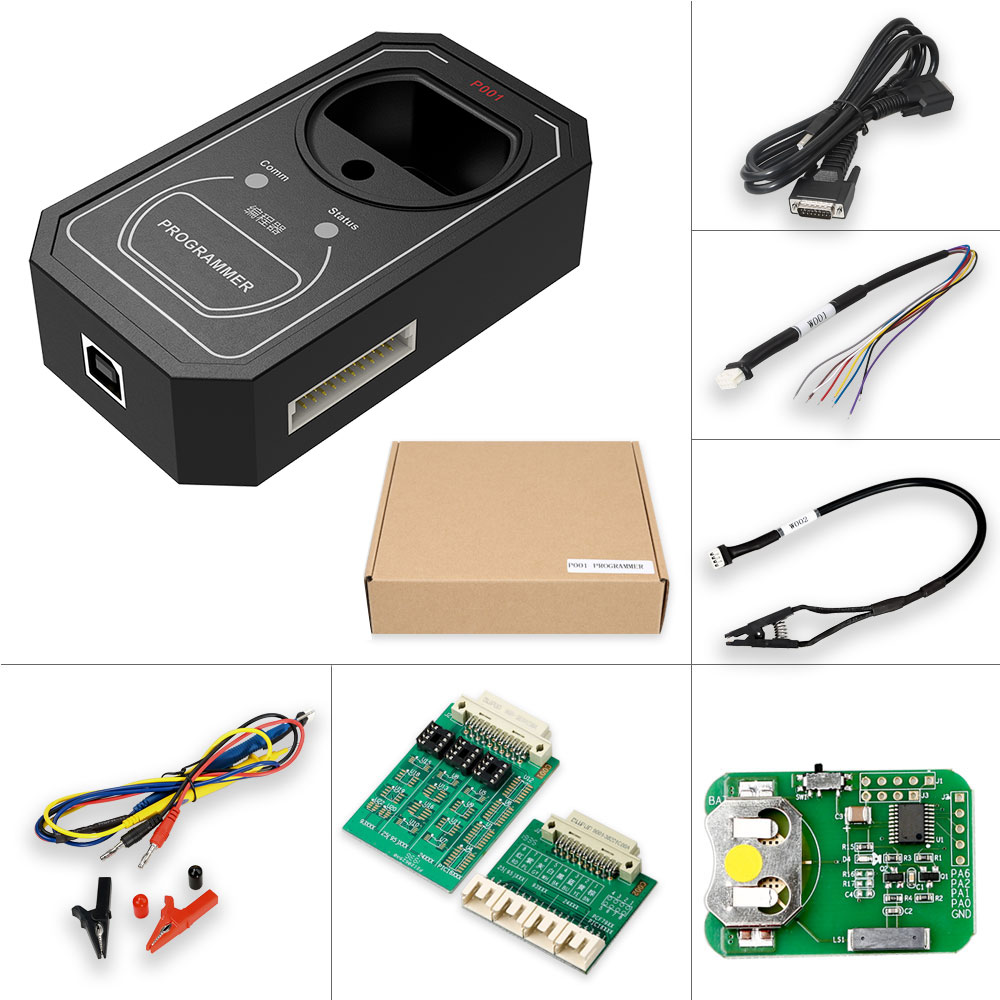

Package includes:

1pc x P001 Progarmmer Unit

1pc x Main cable

1pc x C001 Circuit Boad

1pc x C002 Circuit Boad

1pc x W001 data cable

1pc x W002 data cable

1pc x W003 data cable
