CO2 laser tube
Professional glass laser tube, mainly used in laser engraving machine, laser marking machine and laser cutting machine. It is a spare part for laser machines that can engrave and cut acrylic, cloth, leather, bamboo, wood and other materials. Our co2 laser tube adopts the uses German Schoot discharge tube and special coating technology to improve the performance of the laser tube. It is definitely your best choice.

  • TEMOO Mode

  • High Temperature Resistance

  • Special Coating Technology

  • Longer Service Life




Remind:
Because the power of each laser tube is different, there are many factors affecting the laser power, such as laser loss caused by mirror reflection, laser loss caused by laser propagation in the air, different laser power sources, etc.,
The maximum power is for reference only.

Note: Please check the package as soon as you receive it. If it is damaged, please contact customer service.
 Note: The laser Tube only has  3 months warranty

Key Features
High-quality Material
Using the boron silicate glass as the material, the 40/50/60/80/100/130/150 watt laser tube is with high temperature and high pressure resistance.
TEMOO Mode
TEMOO mode is applied on the laser cutting tube to provide the better high spot concentration and high energy density. Equipped with the output mirror, the mode is further improved.
Special Coating Technology
The special coating technology is used in the discharge tube (imported German Schotter tube). The coating is a reducing catalyst mixed with materials like rare earth and gold.
Long Service Life
The laser tube is fully enclosed to prevent gas from diffusing inside. Nano-coating technology is used inside to increase the output power and extend the service life. Note: After generally working 3-4 hours, it should pause for about 30 minutes.
Stable Power
The laser uses German Schoot glass tube. Special treatment of the discharge tube improves the laser output and reduce power attenuation.
Wide Application
The co2 laser tube is perfect for laser engraving machine, laser marking machine, laser cutting machine and acrylic cutting ect.

40W CO2 laser tube

  • Power output: 40W

  • Length: 700 mm

  • Beam diameter: 2.5 mm

  • Wavelength: 10.64 microns

  • Material: Boron Silicate Glass

  • Outer diameter: 50 mm

  • Trigger voltage: 20KV

  • Working voltage: 16KV

  • Optimal operating current: 10-13mA

  • Gross Weight: 5.13kg(11.30lbs)

  • Package Size: 90 x 20 x 16cm/35.43 x 7.87 x 6.29inch

Package Content

  • 1 x Laser Tube

50W CO2 laser tube

  • Power output: 50W

  • Length: 800mm

  • Beam diameter: 4.8mm

  • Wavelength: 10.6microns

  • Material: Boron Silicate Glass

  • Outer diameter: 50-55mm

  • Trigger voltage: 24KV

  • Working voltage: 16KV

  • Optimal operating current: 22mA

  • Gross Weight: 5.56kg(12.25lbs)

  • Package Size: 100 x 20 x 16cm(39.37 x 7.87 x 6.29inch)

Package Content

  • 1 x Laser Tube

60W CO2 laser tube

  • Power output: 60W

  • Length: 1000mm

  • Beam diameter: 2.5mm

  • Wavelength: 10.64microns

  • Material: Boron Silicate Glass

  • Outer diameter: 55mm

  • Trigger voltage: 24KV

  • Working voltage: 18KV

  • Optimal operating current: 15-18mA

  • Gross Weight: 7.08kg(15.61lbs)

  • Package Size: 120 x 20 x 16cm/47.24 x 7.87 x 6.29inch

Package Content

  • 1 x Laser Tube

80W CO2 laser tube

  • Power output: 80W

  • Length: 1230mm

  • Beam diameter: 2.5mm

  • Wavelength: 10.64microns

  • Material: Boron Silicate Glass

  • Outer diameter: 80mm

  • Trigger voltage: 26KV

  • Working voltage: 18KV

  • Optimal operating current: 7-30mA

  • Gross Weight: 14.5kg(31.961lbs)

  • Package Size: 141 x 32 x 27cm/55.51 x 12.59 x 10.62inch

Package Content

  • 1 x Laser Tube

100W CO2 laser tube

  • Power output: 100W

  • Length: 1430mm

  • Beam diameter: 2.5mm

  • Wavelength: 10.6microns

  • Material: Boron Silicate Glass

  • Outer diameter: 80mm

  • Trigger voltage: 26KV

  • Working voltage: 20KV

  • Optimal operating current: 7-40mA

  • Gross Weight: 16.46kg(36.281lbs)

  • Package Size: 161 x 32 x 27cm/63.38 x 12.59 x 10.62inch

Package Content

  • 1 x Laser Tube

130W CO2 laser tube

  • Power output: 130W

  • Length: 1670mm

  • Beam diameter: 2.5mm

  • Wavelength: 10.6microns

  • Material: Boron Silicate Glass

  • Outer diameter: 80mm

  • Glow-starters Voltage:40KV

  • Working Voltage:28KV

  • Optimal operating current: 30mA

  • Glow-starters Current:8-9KV

  • Gross Weight: 18.67kg(41.161lbs)

  • Package Size: 181 x 32 x 28cm/71.25 x 12.59 x 11.02inch

Package Content

  • 1 x Laser Tube

Features & Details

  • 【HIGH TEMPERATURE RESISTANCE】- This laser tube is made of the boron silicate glass that is also applied on the solar tubes. It is resistant to high temperature and high pressure.

  • 【TEMOO MODE】- The co2 laser tube adopts the TEM00 mode, which is characterized by high spot concentration, high energy density as well as good and stable spot. At the same time, the use of output mirrors further enhances the mode.

  • 【SPECIAL COATING TECHNOLOGY】- The inside of the discharge tube (imported German Schotter tube)uses the special coating technology. The coating is a reduction catalyst mixed with materials such as rare earth and gold.

  • 【LONGER SERVICE LIFE】- Our service life of discharge tubes coated with special catalysts is much improved. Compared with other laser cutting tubes, our 40/50/60/80/100/130/150 W co2 laser can last longer.

  • 【VARIOUS APPLICATION】- Professional 40/50/60/80/100/130/150 watt laser, one of the spare parts of CO2 laser engraving machine, widely used in engraving and cutting acrylic, cloth, leather, bamboo, wood and other materials.




Features & Details

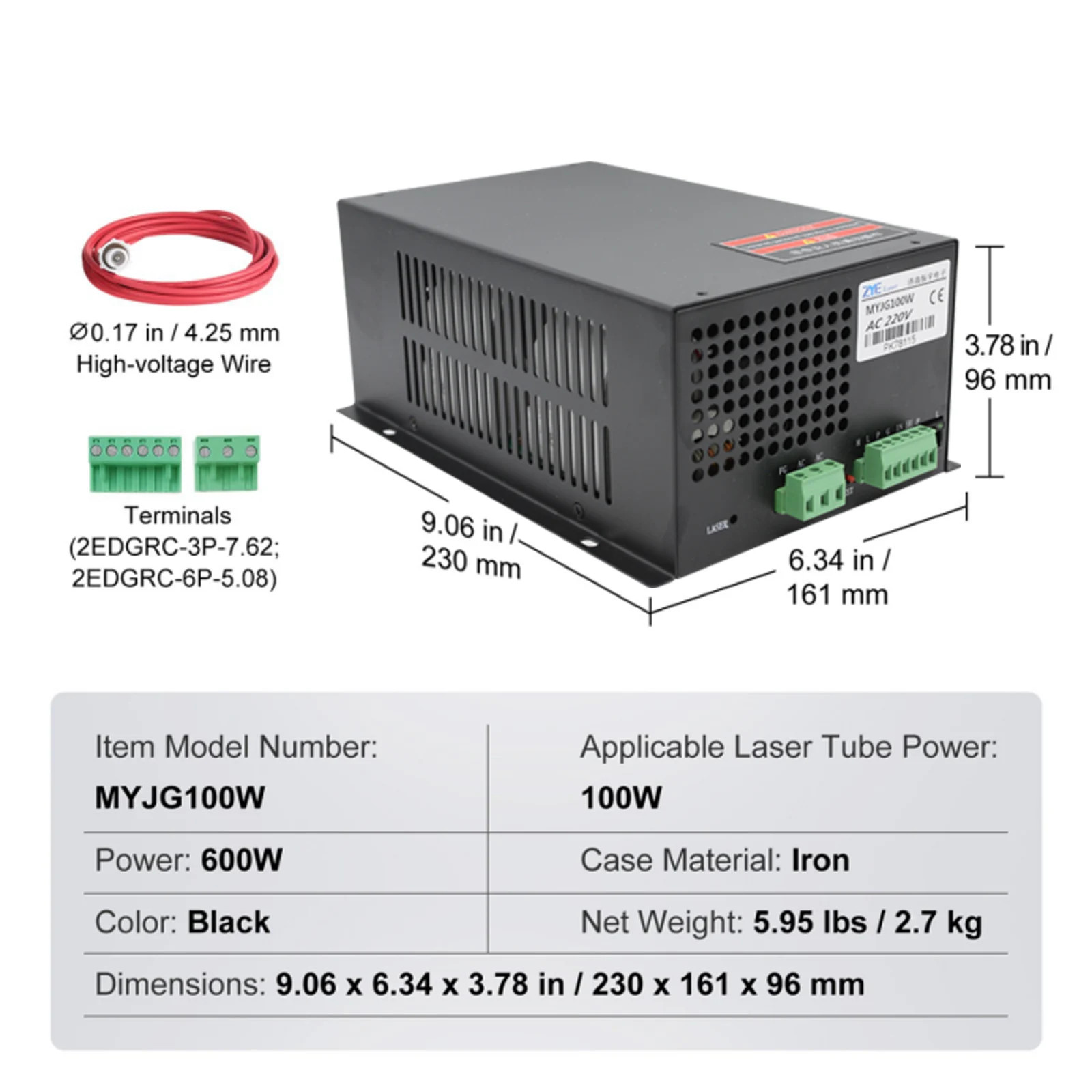

  • Compatible with 100W Laser Tube: The laser power supply specially made for laser engraving machine is perfectly compatible with different brands of 100W laser tubes, the ports are clearly marked with corresponding labels, you can easily complete the connection according to the guidelines.

  • Fast heat dissipation: The laser power supply is equipped with a built-in high-performance cooling fan, which can sustainably maintain the stable performance of the machine, reduce malfunctions, and simultaneously extend the working time, avoiding frequent power outages caused by overheating or malfunctions caused by overloading the equipment.

  • Excellent Performance: Our laser power supply unit passes 500 start/stop tests within 7 seconds, and also has ≤ 1ms response efficiency, which can maintain more than 90% efficiency, and you can use it in -30℃ to 65℃ environment again.

  • Security Protection: Configuration of constant current protection and open circuit protection, constant current can ensure the consistency of the accuracy of the engravers or cutters, open circuit protection can be overloaded in the machine automatically cut off to ensure the security of the equipment, and at the same time, to avoid the danger of bursting the laser tube.

  • Durable & Long-lasting: With an average service life of 30,000 hours, the case is made of corrosion-resistant iron and durable, equipped with high-quality high-voltage packages and pure copper power tubes to provide you with long-lasting working hours.
