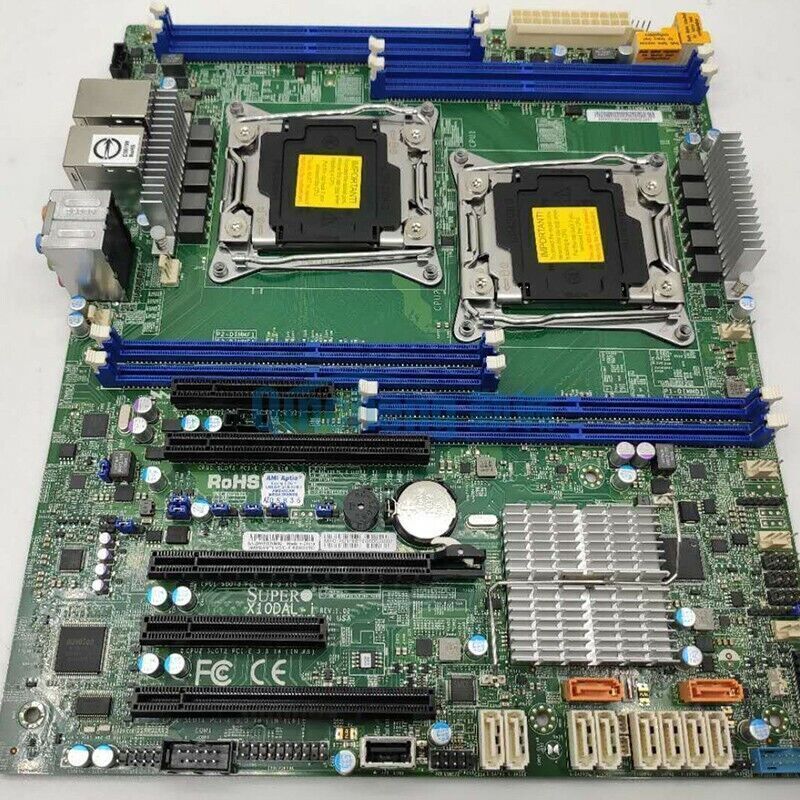

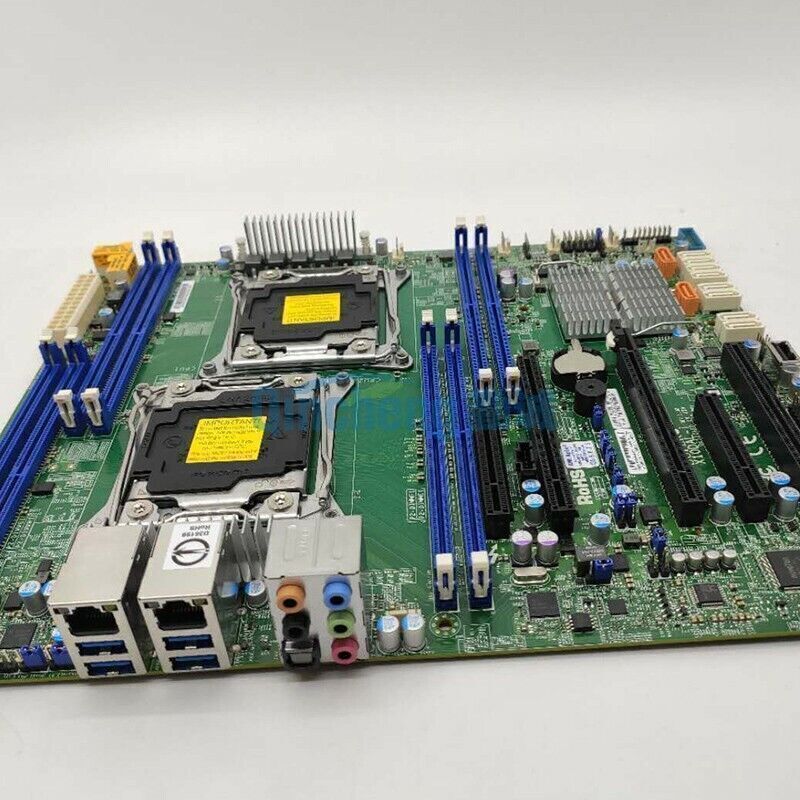

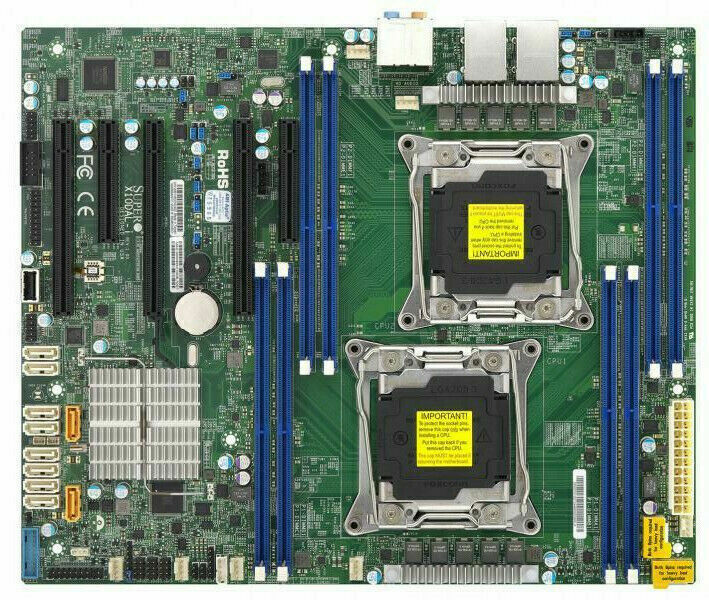

SuperMicro X10DAL-I ATX Server Motherboard Dual LGA 2011-3 Intel C612 DDR4 SATA

Processor/Cache

CPU：Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.

Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 160W, 1 QPI up to 9.6GT/s

Cores / Cache：Up to 22 cores † / Up to 55MB† cache

Note：BIOS version 2.0 or above is required

Note： Motherboard supports this maximum TDP. Please verify your system can thermally support.

Memory Capacity

256GB ECC RDIMM, DDR4-2400MHz, in 8 DIMM slotsUp to 1TB ECC 3DS LRDIMM

Memory Type

2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

RDIMM: 4GB, 8GB, 16GB, 32GB

LRDIMM: 32GB, 64GB

3DS LRDIMM: 128GB

Memory Voltage：1.2V

Chipset

Intel® C612

Input / Output

SATA

10 SATA3 (6Gbps) port

LAN

2 RJ45 Gigabit Ethernet LAN ports

USB

3 USB 2.0 ports (2 headers, 1 Type A)

6 USB 3.0 ports (4 rear + 2 headers)

Serial Port / Header

1 COM Port (1 header)

TPM

1 TPM Header

Expansion Slots

PCI-E

2 PCI-E 3.0 x16 (in x16 slot),

1 PCI-E 3.0 x8 (in x16 slot),

1 PCI-E 3.0 x4 (in x8 slot)

1 PCI-E 2.0 x4 (in x8 slot)

System BIOS

BIOS Type

128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

Plug and Play (PnP)

PCI 2.3，ACPI 1.0 / 2.0 / 3.0 / 4.0

USB Keyboard support：SMBIOS 2.7.1，UEFI 2.3.1

Voltage

+12V, +3.3V, +5V, +5V standby, 3.3V standby, 5 Phase-switching voltage regulator, VBAT

FAN

7x 4-pin fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control

Temperature

Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI

Other Features

Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC

5% - 95% (non-condensing)

Operating Environment

Operating Temperature Range

10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range

-40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

8% - 90% (non-condensing)

Non-Operating Relative Humidity Range
