Hobbywing 80A Brushless ESC Sensorless Electronic Speed Controller 2-4S IP67 Waterproof 6V/7.4V/8.4V BEC For RC 1/10 Crawlers Car For 3530SL 540 555 Brushed Motors
Features:

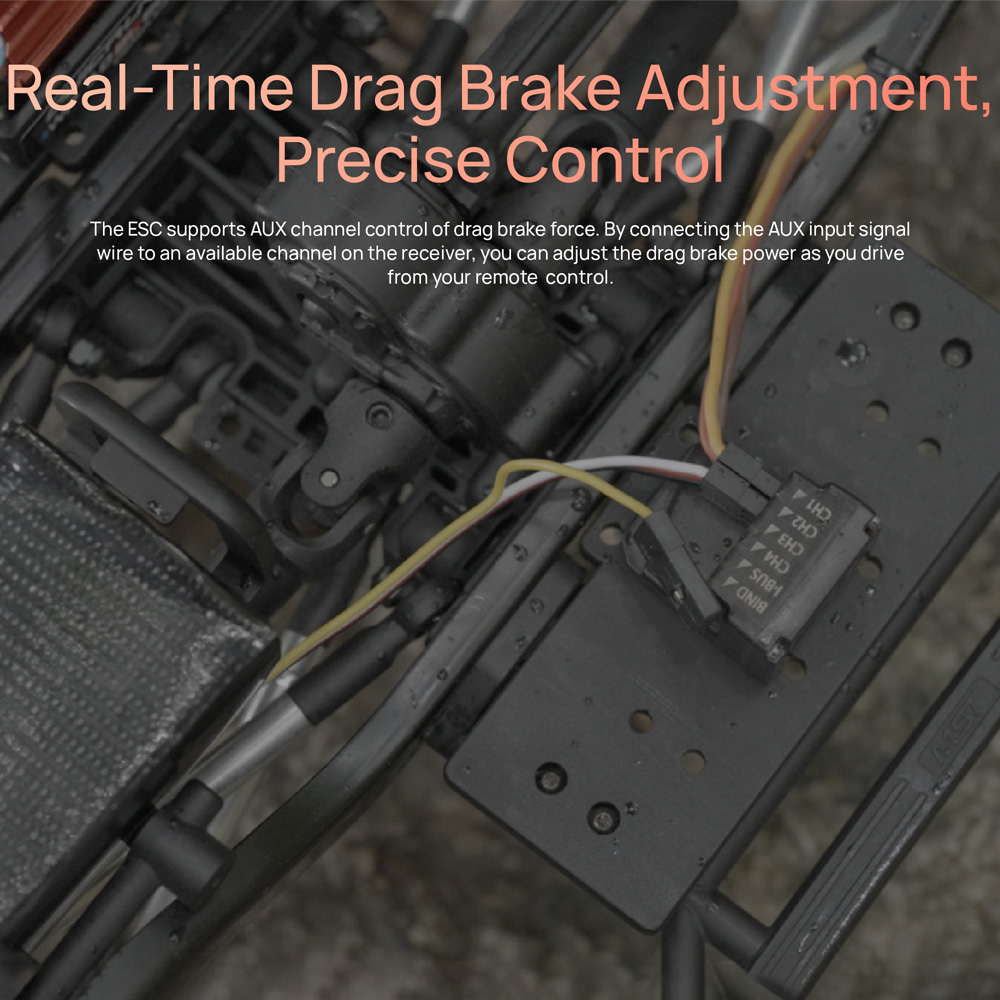

1. Supports AUX channel control of drag brake force.

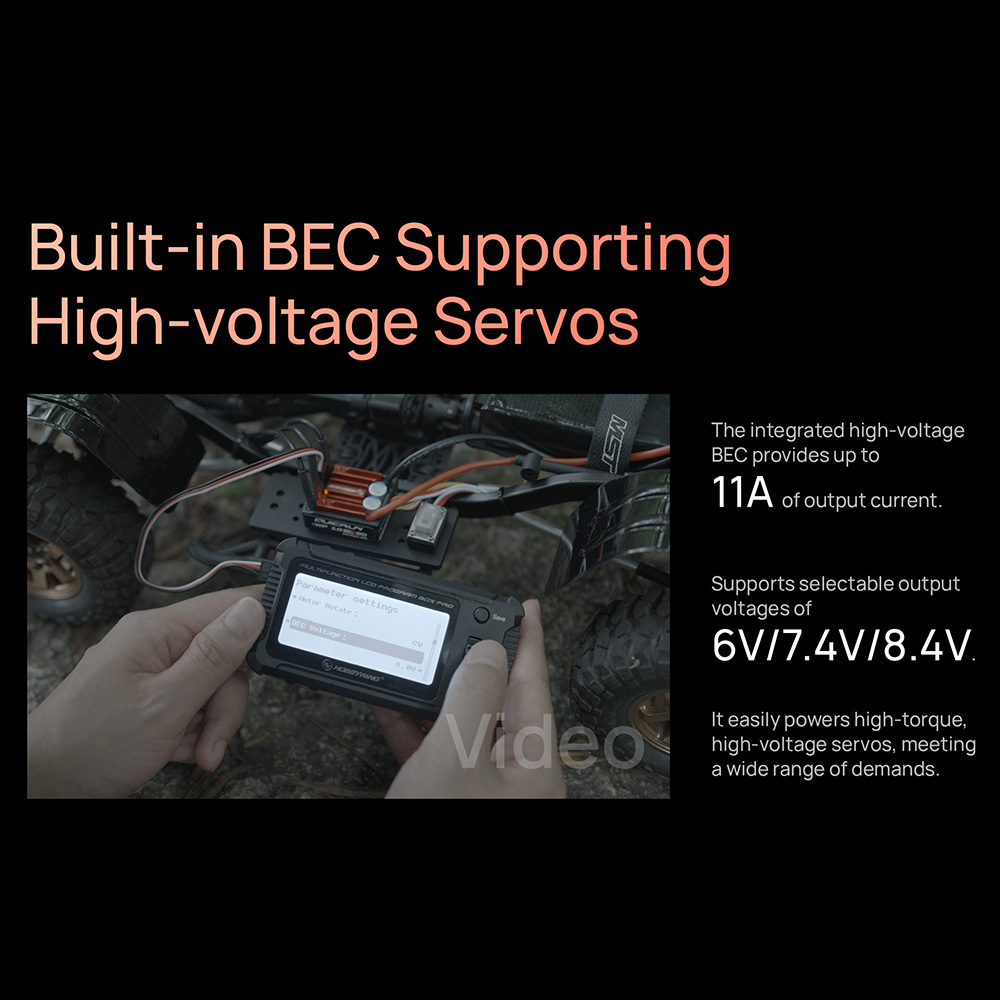

2. Built-in BEC 6V/7.4V/8.4V adjustable,Supporting High-voltage Servos.
3. The integrated high-voltage BEC provides up to11A of output current.

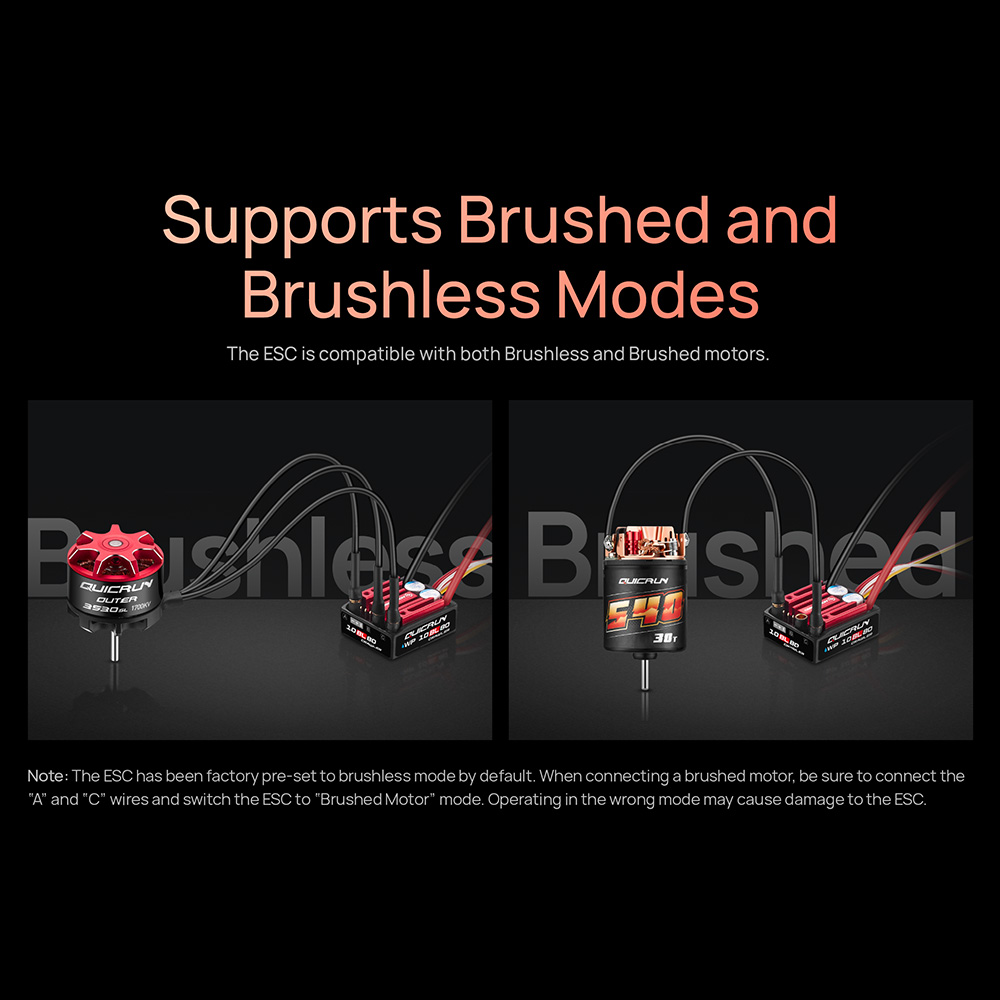

4. The ESC is compatible with both Brushless and Brushed motors.

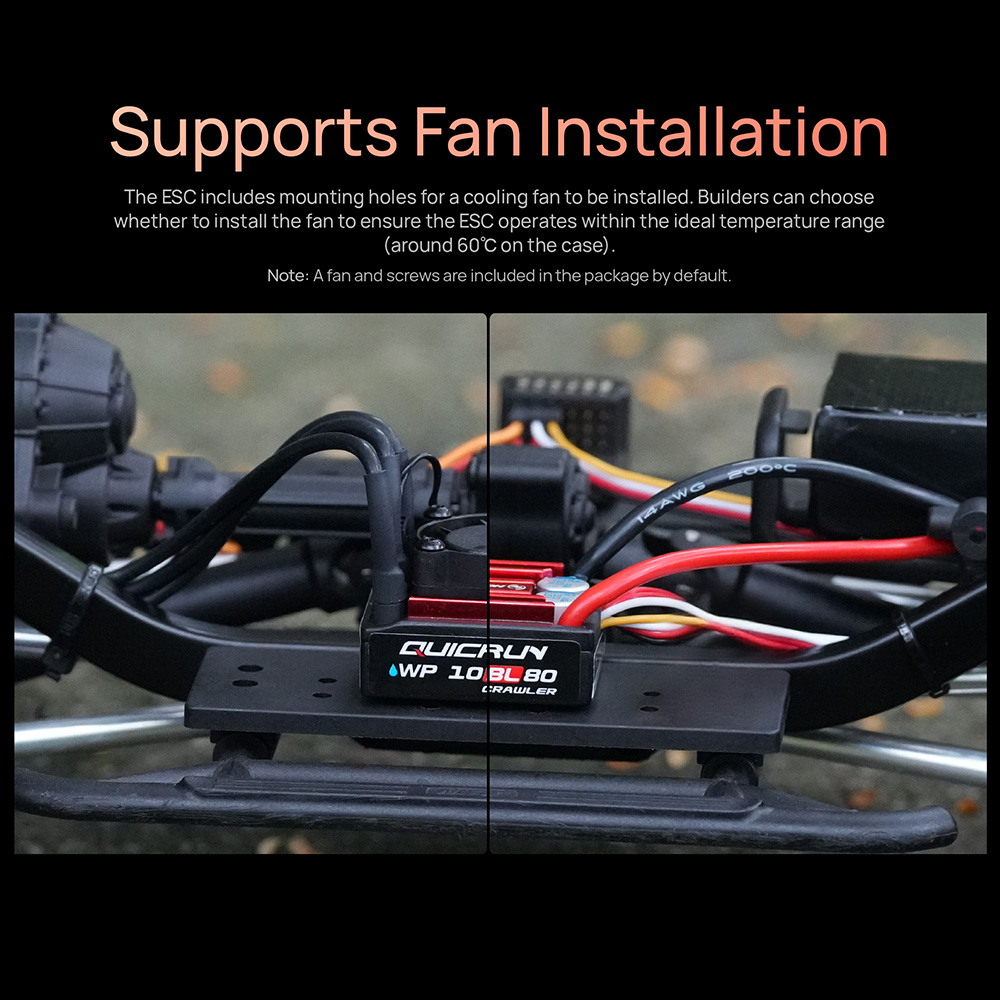

5. Supports Fan installation,can choose whether to install the fan(around 60'℃ on the case).

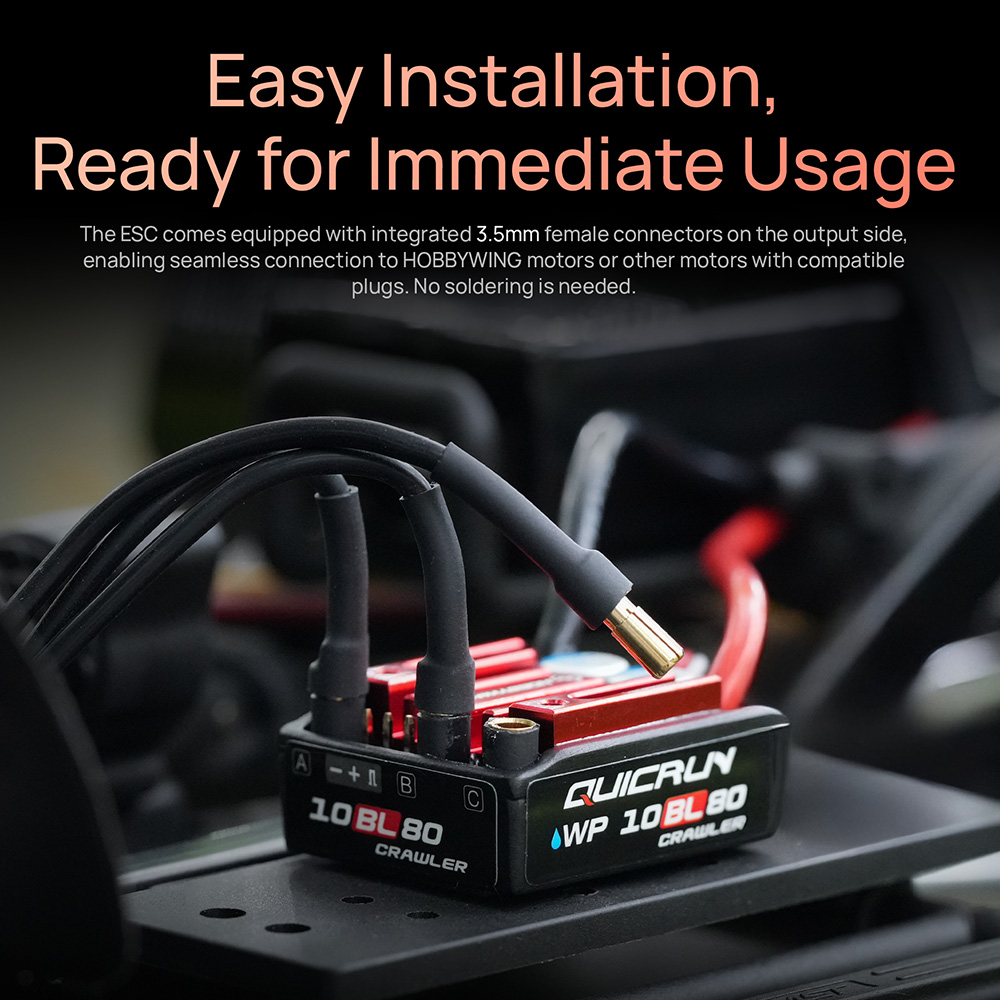

6. Equipped with integrated 3.5mm female motor connectors,No soldering is needed.

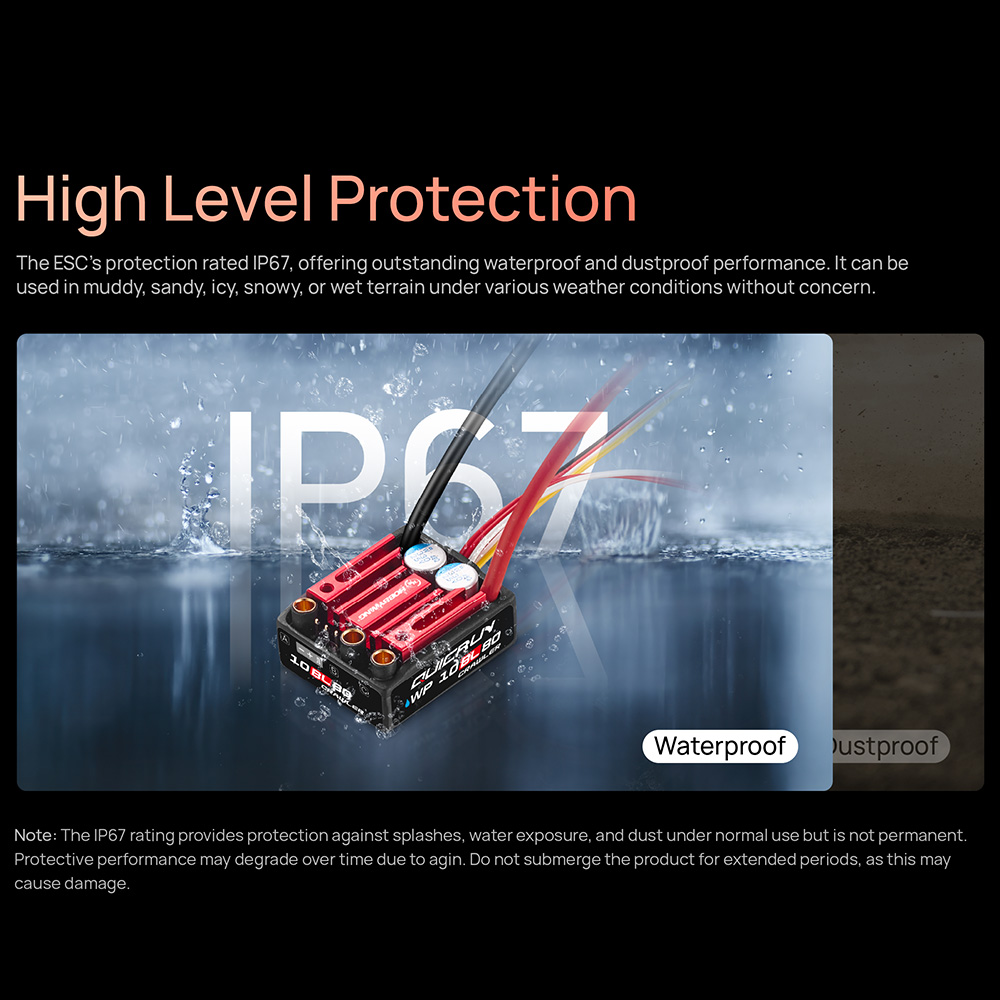

7. lP67, offerina outstandina waterproof and dustproof performance.

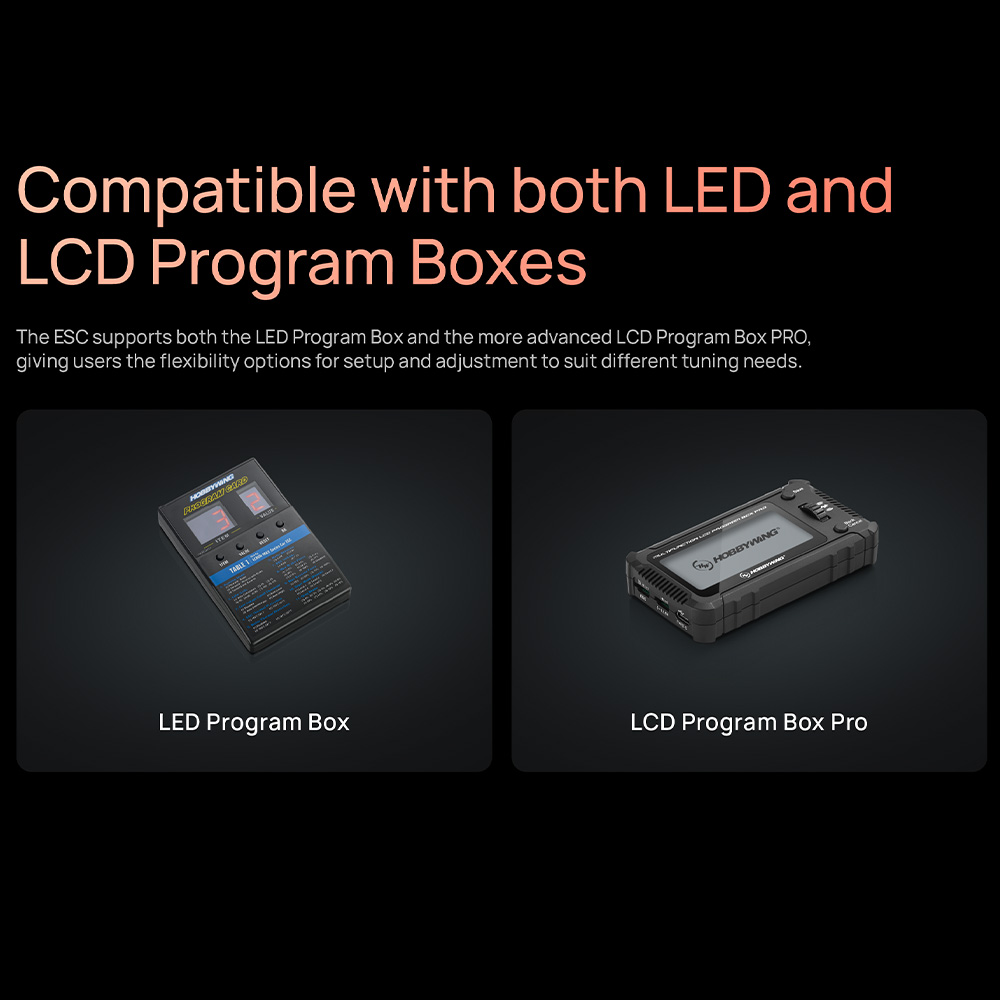

8. Compatible with both LED and LCD Program Boxes

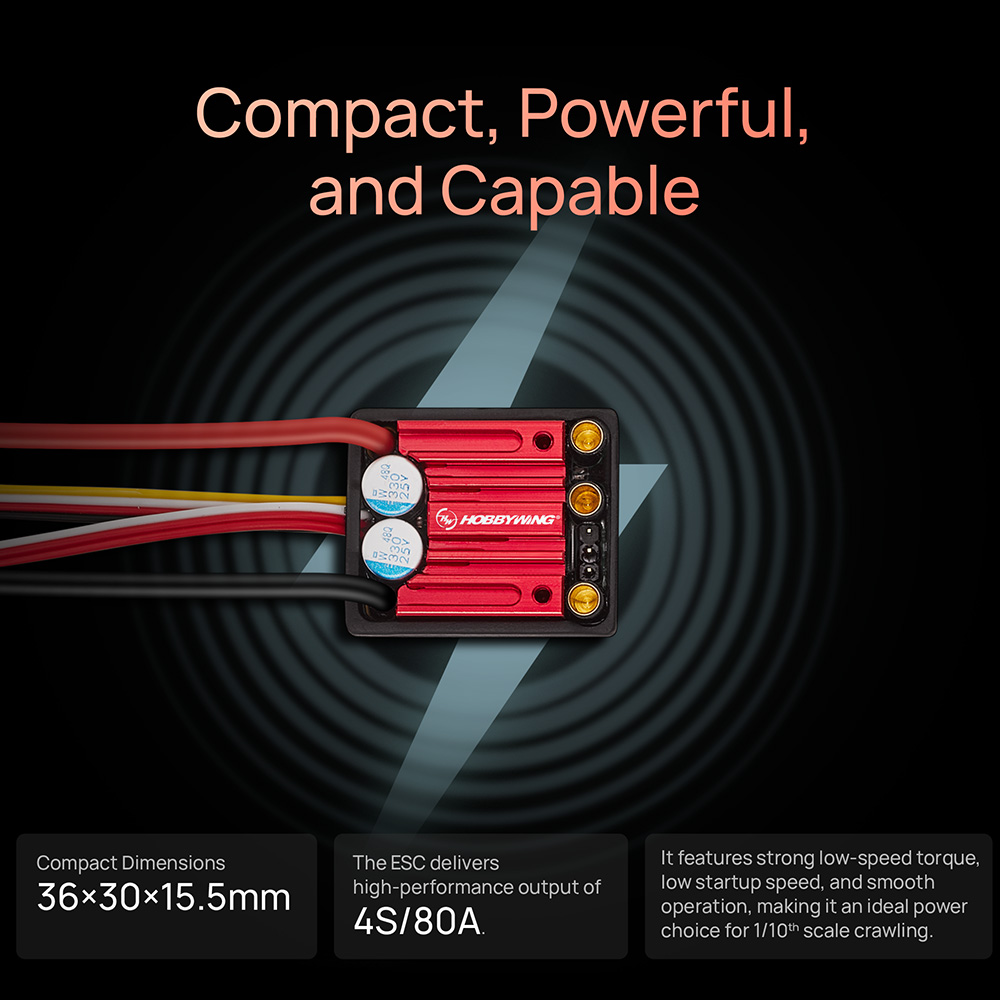

9. It features strong low-speed torque,low startup speed, and smoothoperation, making it an ideal powerchoice for 1/10 scale crawling.
Note: The ESC has been factory pre-set to brushless mode by default. When connecting a brushed motor, be sure to connect the A" and "C" wires and switch the Esc to "Brushed Motor" mode. Operating in the wrong mode may cause damage tothe ESC.
Specifications:

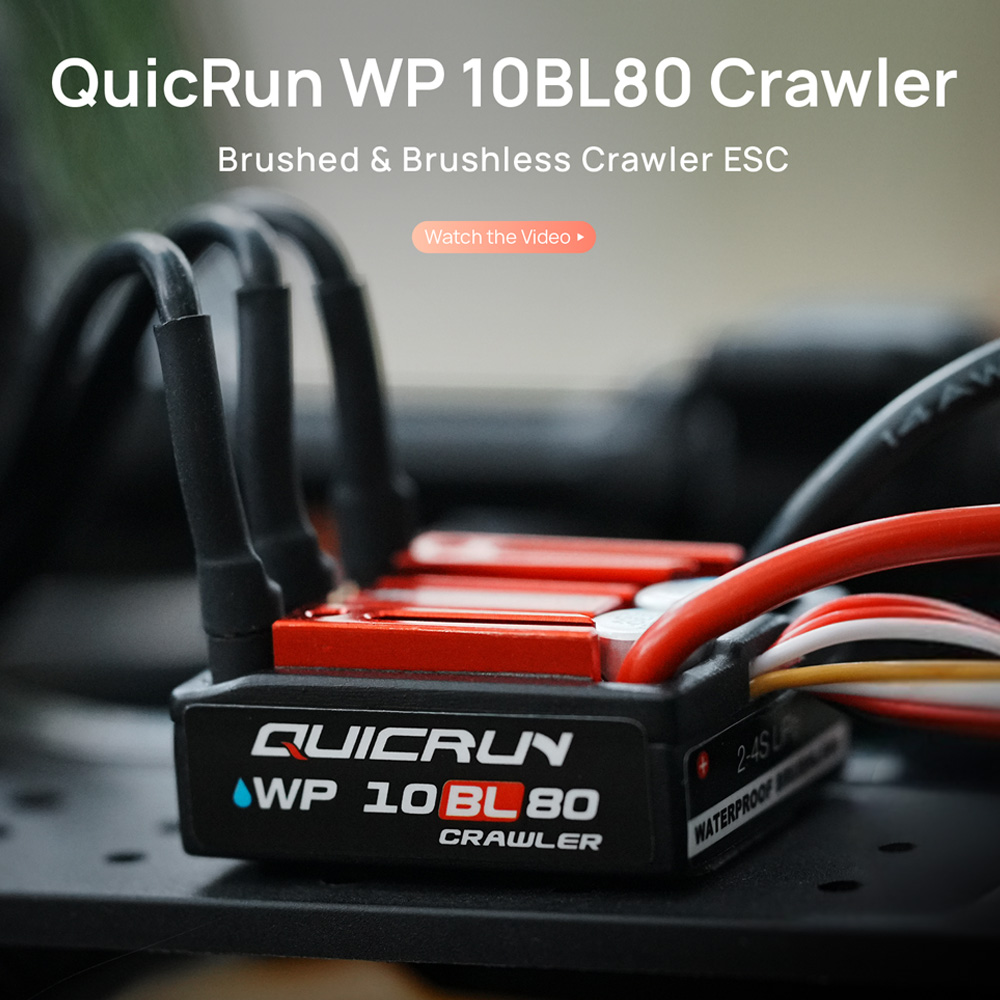

Product Name: QUICRUN WP 10BL80 Crawler
Item: Brushless Sensorless ESC
Scale: 1/10
Waterproof: IP67
Cont./Peak Current: 80A/240A
Input Voitage: 2-4S LiPo
BEC Output: 6V/7.4V/8.4V,5A
Input Connectors: XT60
Output Connectors: 3.5MM Gold (female)
SET Button on ESC: Supported
LED Program BoX: Supported
LCD G2 Program Box: Supported
LCD PRO: supported
OTA Programmer: Not supported
Program Port: Separate Program Port
Motors: Sensorless/Sensored Brushless Motor
Vehicles: 1/10th Crawlers
KV Rating/r count: Outer 3530SL sensorless outrunner motors; 540.555 including other brushed motors
Package contents:
1* Brushless Sensorless ESC
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.No warranty,if you receive a defect item,please contact us at once with item picture.
4.Use the vouchers for more saving.
After purchase:
1.If you are satisfied,please express your use feeling.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. If you receive a defect item,please contact us at once with item picture or video.
