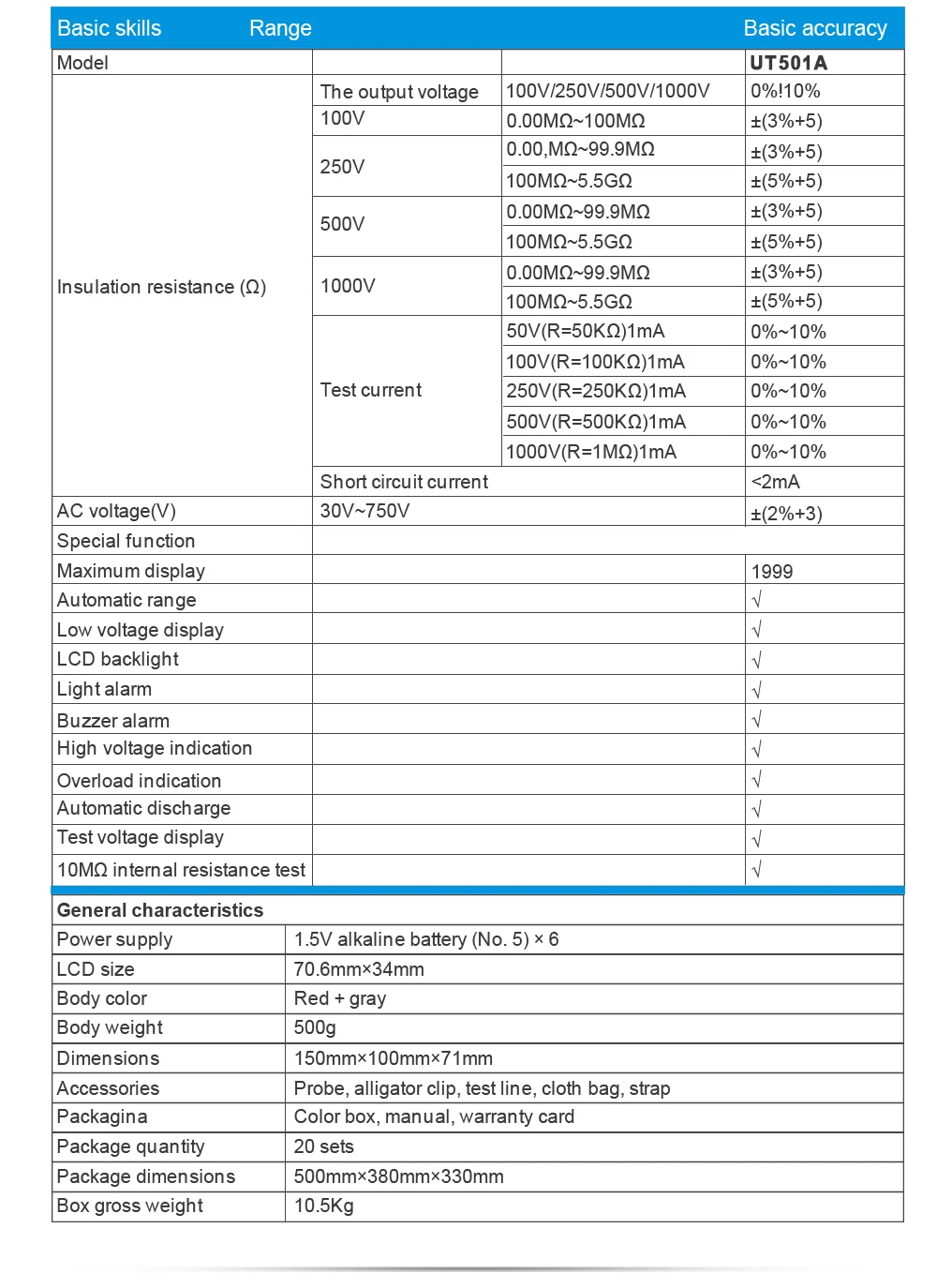

Specifications
|
|
Range
|
UT501A
|
|
Insulation resistance (Ω)
|
Test voltages
|
100V/250V/500V/1000V
|
0%~10%
|
|
100V
|
0MΩ~100MΩ
|
±(3%+5)
|
|
|
250V
|
0MΩ~99.9MΩ
|
±(3%+5)
|
|
|
100MΩ~5GΩ
|
±(5%+5)
|
||
|
500V
|
0MΩ~99.9MΩ
|
±(3%+5)
|
|
|
100MΩ~5GΩ
|
±(5%+5)
|
||
|
1000V
|
0MΩ~99.9MΩ
|
±(3%+5)
|
|
|
100MΩ~5GΩ
|
±(5%+5)
|
||
|
Load current
|
50V (R=50kΩ) 1mA
|
0%~10%
|
|
|
100V (R=100kΩ) 1mA
|
0%~10%
|
||
|
250V (R=250kΩ) 1mA
|
0%~10%
|
||
|
500V (R=500kΩ) 1mA
|
0%~10%
|
||
|
1000V (R=1MΩ) 1mA
|
0%~10%
|
||
|
Short-circuit current
|
|
<2mA
|
|
|
AC voltage (V)
|
30V~750V
|
±(2%+3)
|
|
|
Features
|
|||
|
Display count
|
|
2000
|
|
|
Auto range/Low battery indication
|
|
√
|
|
|

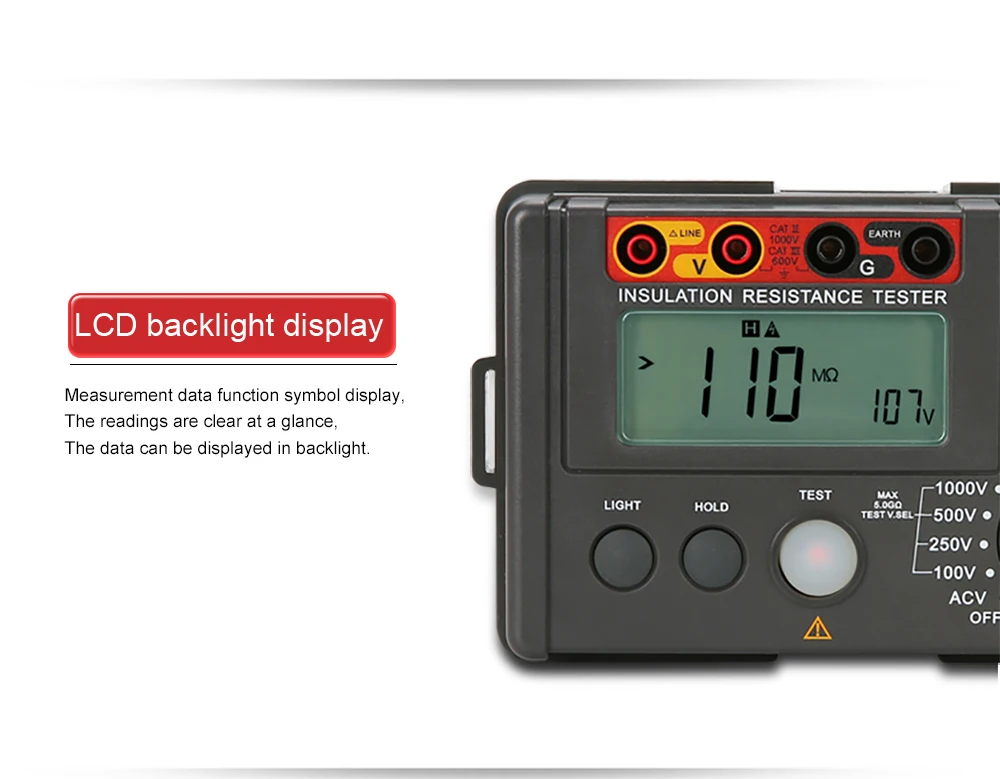

LCD backlight/Light alarm
|
|
√
|
|
|
Buzzer alarm/High voltage indication
|
|
√
|
|
|
Over load indication/Auto discharge
|
|
√
|
|
|
Test voltage secondary display
|
|
√
|
|
|
10MΩ internal resistance test
|
|
√
|
|
|
General Characterisitics
|
|||
|
Power
|

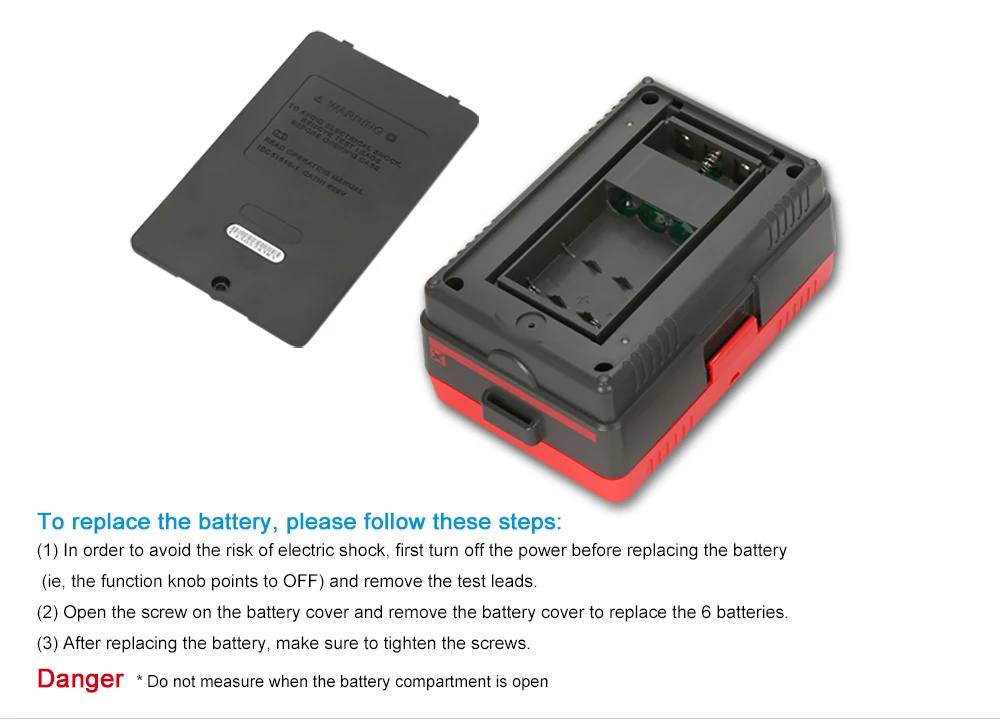

1.5V battery (LR6) x 6
|
||
|
Display
|
70.6mm x 34mm
|
||
|
Product color
|
Red and grey
|
||
|
Product net weight
|
500g
|
||
|
Product size
|

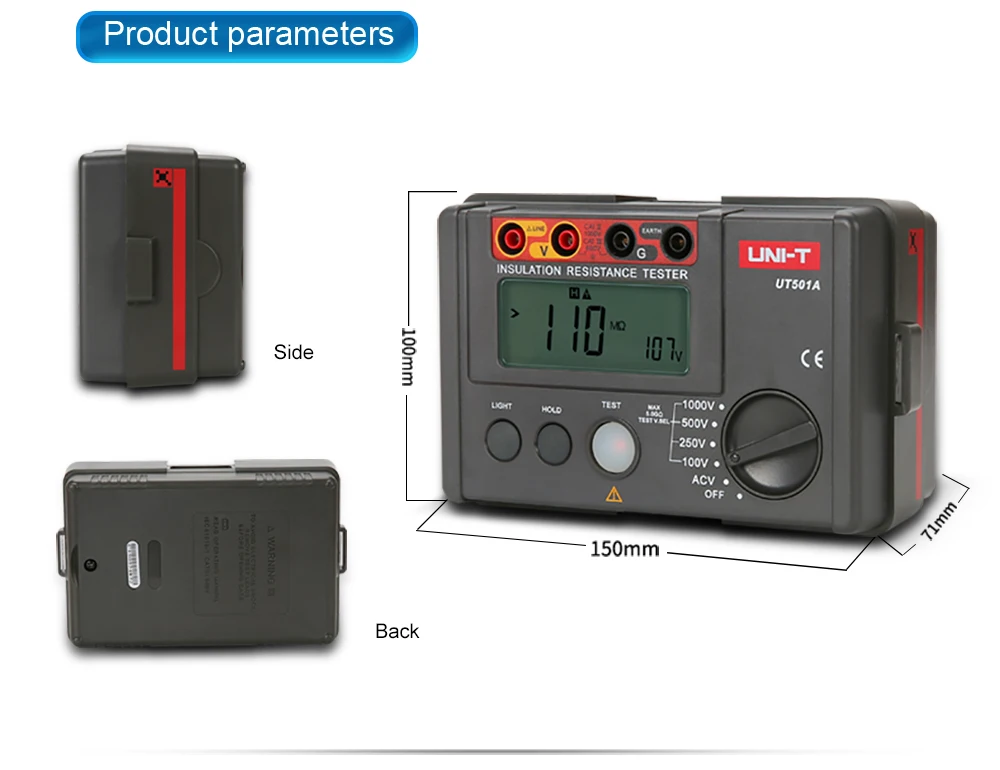

150mm x 100mm x 71mm
|
||
|
Standard accessories
|

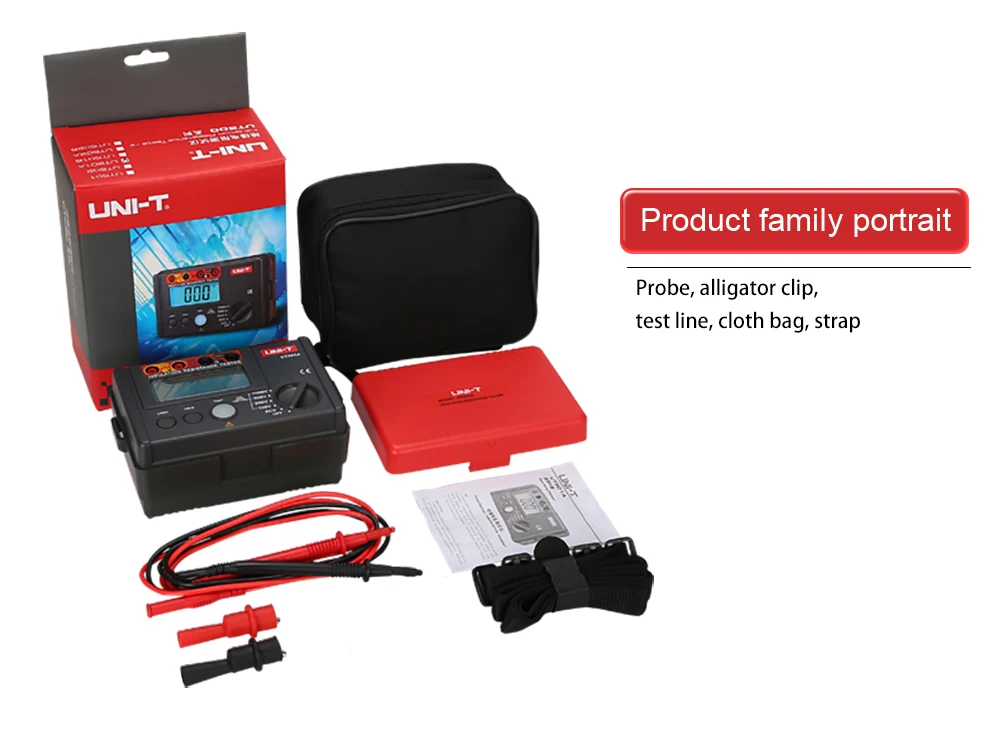

Batteries, test leads, alligator clips, gallus
|
||
|
Standard individual packing
|
Gift box, carrying bag, English manual
|
||
|
Standard quantity per carton
|
20pcs
|
||
|
Standard carton measurement
|
500mm x 380mm x 330mm (0.063 CBM per standard carton)
|
||
|
Standard carton gross weight
|
17.7kg
|
||
