Option 1： 0.96 inch OLED small screen size _128*64 （Support regular 7 protocols,not support J1939)

Option 2：0.96 inch OLED small Screen size _(only supported J1939)

Option 3：2.4-inch TFT multi-screen size _320*240 (Support regular 7 protocols,not support J1939)

Option 4：2.4-inch TFT multi-screen specifications _(only supported J1939)

Option 5：2.4-inch TFT multi-screen specifications _ (Automatically jumps to 7 normal protocols,not support J1939)

Option 6：2.4-inch TFT multi-screen specifications _ (only support Jump to J1939)

Special reminder: This product is only provided for vehicle electronic engineers to learn OBD technology, or enterprises to develop HUD/ OBD-like products, other uses please go another way, annual review please bypass !!!!

1. Product name: Vehicle OBD simulator /ECU simulator

2. Baby description1> Vehicle OBD simulator is a simulator device that simulates vehicle OBD bus protocol. With dynamic simulation, real-time LCD display the main parameters of the function, very convenient and practical!

2> Support a variety of protocol interface standard simulation, through the dip switch can be flexibly switched between various protocols

3> Provide more than 150 data real-time simulation, close to the real car environment, can let you save fuel and save the car

4> Support the modification and saving of frame number, and support the simulation of three fault codes

5> Provide 220V to 12V power adapter, so that the simulated environment can be closer to the real vehicle environment

6> Standard package ----(1 OBD simulator +1 12V power adapter +1 debugging serial cable +1 12V charging cable)

7> Multiple configuration specifications at your choice

3. Baby characteristics

1> Board loaded with LQFP48 foot STM32F103CBT6 chip (Flash:128KB,RAM:20KB), rich interface, powerful function, fast running speed

2> board carries standard 16pin OBD connector

3> The board is equipped with 6 adjustable mobile potentiometers, which can dynamically adjust various parameters ---- support page turning of simulation parameters, 6 inputs corresponding to 6 parameters of the current interface

4> board is loaded with 320*240 LCD screen display, convenient real-time data display

The 5> board is loaded with 7-bit DIP switches to facilitate switching between various protocols

6> board is equipped with 3 LED indicators and a self-locking switch input to facilitate the simulation and prompt of various fault codes

7> The board is equipped with a buzzer to facilitate the output of the prompt tone

8> The board contains 3 user defined buttons ---- the left and right buttons are used for the function of page turning on the interface ---- The middle button is not used for the purpose of ignition/extinguishing simulation in the future

Regal OBD emulator supports the following seven protocols:...... \ 1>ISO14230--4ADDR K \ 2>ISO14230--4HL K \ 3>ISO9141--2ADDR K \ 4>ISO15765--4STD--500K CAN \ 5>ISO15765--4EXT--500K CAN \ 6>ISO15765--4STD--250K CAN \ 7>ISO15765--4EXT--250K CAN

Our OBD simulator simulates the OBD data in the car, which is a passive unit and will only return various parameter data after sending commands. To buy the data used to simulate your car, you must first understand the OBD protocol format of your car and then determine it!!

If the OBD protocol of your car is exactly supported by our OBD simulator, you can buy it. Only after you buy it can you simulate it and use it. Please REMEMBER THIS!!

4. Hardware resources of vehicle OBD simulator

1> 1 OBD simulator

2 One 12V power adapter

3> 1 serial port debugging cable based on the PL2303HX chip

5. Vehicle OBD simulator software materials

1. Onboard OBD simulator instruction manual.rar---- includes serial port operation instruction manual and onboard PID definition manual

2. Vehicle OBD simulator component documents.rar

3. Vehicle OBD simulator demo package.RAR

4. Driver for the PL2303HX serial port chip on the OBD emulator.rar

5. Vehicle OBD emulator Various OBD protocols rar

6. Technical support

The technical team has more than 10 years of front-line technology research and development experience, in the software and hardware of a variety of industries have dabblings and deep attainments, for many technical support issues can provide very broad technical insights and feasibility of high suggestions.

The technical team in an open mind, you are welcome to consult all kinds of technical problems, we progress together, for the rapid development of China's electronic industry to do their best.

7. General characteristics

1> Overall diagram

2>ELM327 usage

(1) Normal connection of the first protocol.bmp

(2) Normal connection of protocol 1 _ Fault code.bmp

(3) Normal connection of the first protocol _ real-time data monitoring.BMP

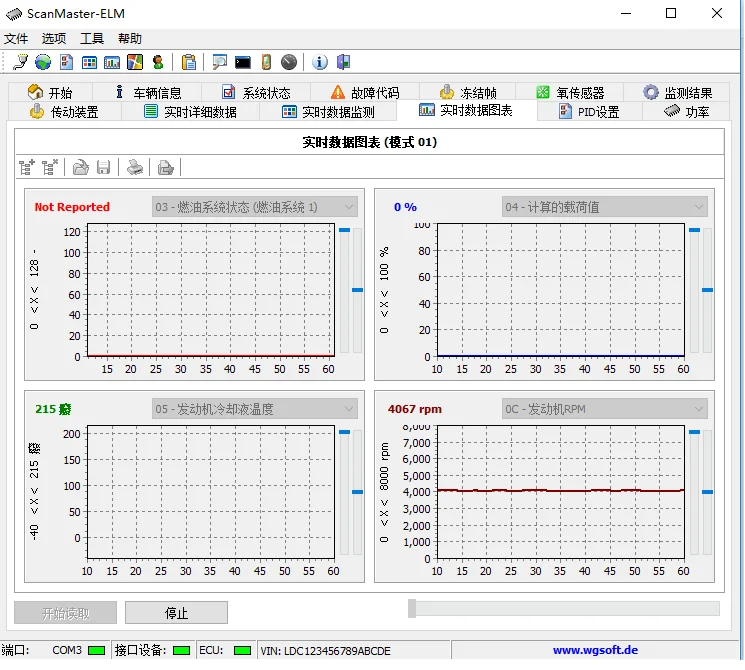

(4) Normal connection of the first protocol _ Real-time data chart.BMP

(5) Normal connection of the first protocol _ Real-time details.bmp

(6) Normal connection of the first protocol _ dashboard.BMP

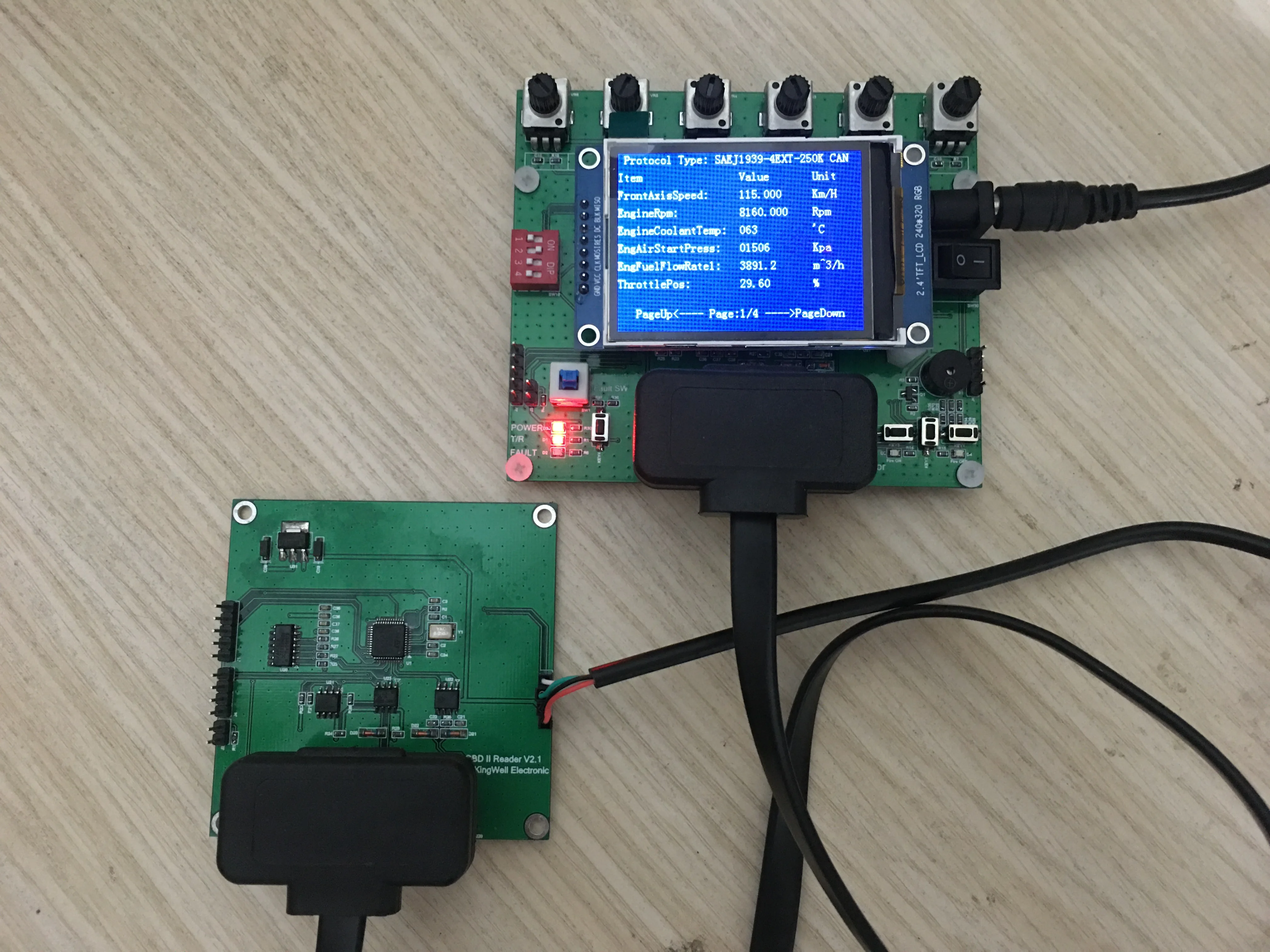

Finally, a diagram showing the speed of the front axle read by SAEJ1939 protocol simulator is attached

The speed of the front axle shown on the simulator interface is 115km/h

Through the serial port command to read the value is 115, the calculation formula of the front axle speed is clear, so it shows that the reading is correct!!

The speed is the 0th and the first byte; That is, vehicle speed =(data[1]<<8+data[0])/256
