UK Stock, UK seller for rapid dispatch to UK, EU and rest of world. Check out sellers shop for a variety of other DIY electrical and battery essentials

DISCLAIMER: This item is a sophisticated electronic controller. You will need skill and knowledge to install it and use it. You will need to have done research, some available on YouTube - search "eBike School" and "Jehu Garcia" by example to find out what a bms is, what it does and especially how to install it. Wiring diagrams and how to use the bms are found on this listing. It will not be possible to return this item once opened and used, but most especially due to use or damge caused by negligence or lack of knowledge.

10S 36V 40A BMS

This bms is for a Lithium-ion battery. Not suitable for a LiFePO4 battery

Specifications

Voltage: 36V
Brand Name: ANN
Size: L108W60T11mm
Nominal Capacity: 10-50Ah
Weight: 0.1KG
Model Number: 10M40AFK
Type: Li-ion battery BMS
Application: Lithium ion battery pack
is_customized: Yes
Components: PCBA
Composed Type: 10S
Features
1. It is suitable for 3.7V cell 10S 36V / 37V 10Ah, 20Ah, 30Ah, 40Ah and 50Ah lithium ion batteries pack.
2. With functions of protection from voltage, current detection, including over-current, overvoltage, under-voltage and short circuit protection, voltage balance function.
3. This BMS was build with high end electronic components (High End Integrated IC chip and MOSFET ) ,It has high precision on detection on voltage and current .stable working performance in extremely condition.
Electrical Characteristic (Ta=25 ºC)

No.
Test Item
Min.
Typ.
Max
Unit
1
Input Charging Voltage
41.8
42
42.2
V
2
Input Charging Current

15

A
3
Output Discharging Current

40
42
A
4
Over-Current Discharging Protection
85
100
115
A
5
Current Consumption
10
15
25
uA
6
Balance Current
44
50
54
mA
7
Balance Voltage
4.16
4.18
4.20
V
8
Over-Charge Protection Voltage
4.21
4.25
4.3
V
9
Over-Charge Protection Voltage Release
4.0
4.15
4.2
V
10
Over-Charge Protection Voltage Delay Time
1.0
1.5
2.0
S
11
Over-Discharge Protection Voltage
2.42
2.5
2.58
V
12
Over-Discharge Protection Voltage Release
2.9
3.0
3.1
V
13
Over-Discharge Protection Voltage Delay Time
1.0
1.5
2.0
S
14
Short Circuit Protection Release
Remove the load
15
Impedance

8
15
mΩ
16
Operating Temperature
-15
+25
+45
ºC
17
Storage Temperature
-20
+25
+30
ºC

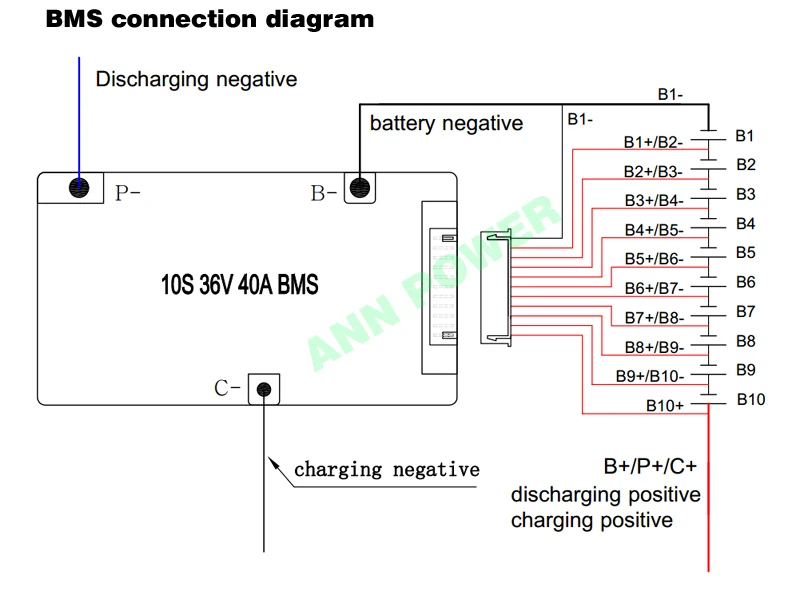

Wiring instructions:
power cable
B-:Connect to battery negative (Black cable 12AWG L=150±5mm)
P-:Connect to negative of discharge port (Blue cable 12AWG L=150±5mm)
C-:Connect to negative of charge port (Black cable 14AWG L=150±5mm)

Voltage monitoring cable
cable type:UL1007 22AWG L=300±5mm
B-(Black),B10+(Red)
B-(GND)/B1/B2/B3/B4/B5/B6/B7/B8/B9/B10(B+)

Remarks:
Please connect B- line firstly, and then connect voltage monitoring wiring harness. The last step is to connect charge and discharge lines. If you want to remove them, the order should be reversed. Please pay attention to the connection order, or it will damage the component.

Listing and template services provided by inkFrog

No.	Test Item	Min.	Typ.	Max	Unit
1	Input Charging Voltage	41.8	42	42.2	V
2	Input Charging Current		15		A
3	Output Discharging Current		40	42	A
4	Over-Current Discharging Protection	85	100	115	A
5	Current Consumption	10	15	25	uA
6	Balance Current	44	50	54	mA
7	Balance Voltage	4.16	4.18	4.20	V
8	Over-Charge Protection Voltage	4.21	4.25	4.3	V
9	Over-Charge Protection Voltage Release	4.0	4.15	4.2	V
10	Over-Charge Protection Voltage Delay Time	1.0	1.5	2.0	S
11	Over-Discharge Protection Voltage	2.42	2.5	2.58	V
12	Over-Discharge Protection Voltage Release	2.9	3.0	3.1	V
13	Over-Discharge Protection Voltage Delay Time	1.0	1.5	2.0	S
14	Short Circuit Protection Release	Remove the load
15	Impedance		8	15	mΩ
16	Operating Temperature	-15	+25	+45	ºC
17	Storage Temperature	-20	+25	+30	ºC
