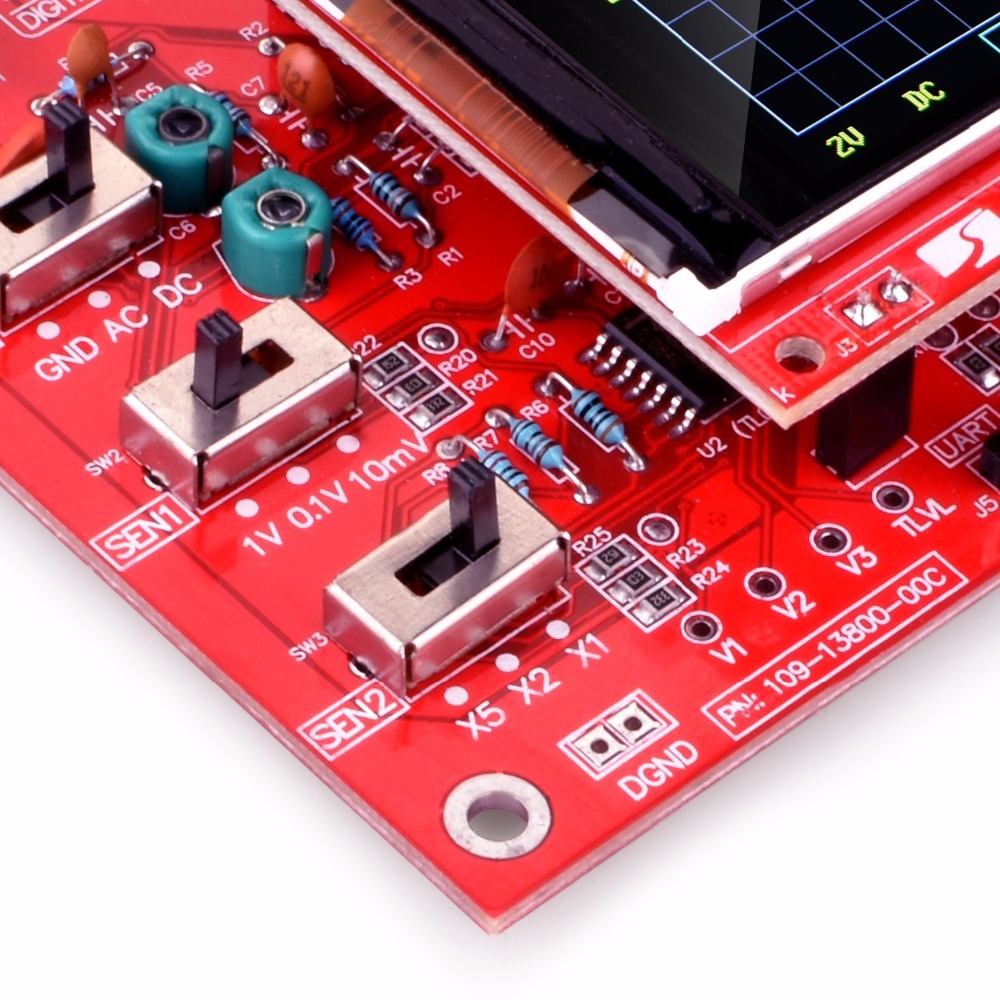

2.4in TFT Digital Assembled DSO138 Oscilloscope Kit DIY Module Education Board Y
Product Description
Features: Training for electronic production , complete detailed descriptive information , including schematics , production guidance , instructions , troubleshooting methods , etc., making a high success rate . Component species diversity for students to identify elements , inline elements welding, soldering SMD components training. Students can get in at the same time making a practical tool for audio, video synchronization , low-frequency switching power supply , infrared receiver transmitter signal waveform and many other occasions, effectively observed and measured , increased interest in learning, improve learning outcomes . Kits using ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4 -inch color TFT display can be used as test ARM development board . Available source , the ability of a friend can be secondary development kit based on , for example, it can be changed to Millivoltmeter , data loggers , and so on . Circuit is simple , reliable , inexpensive

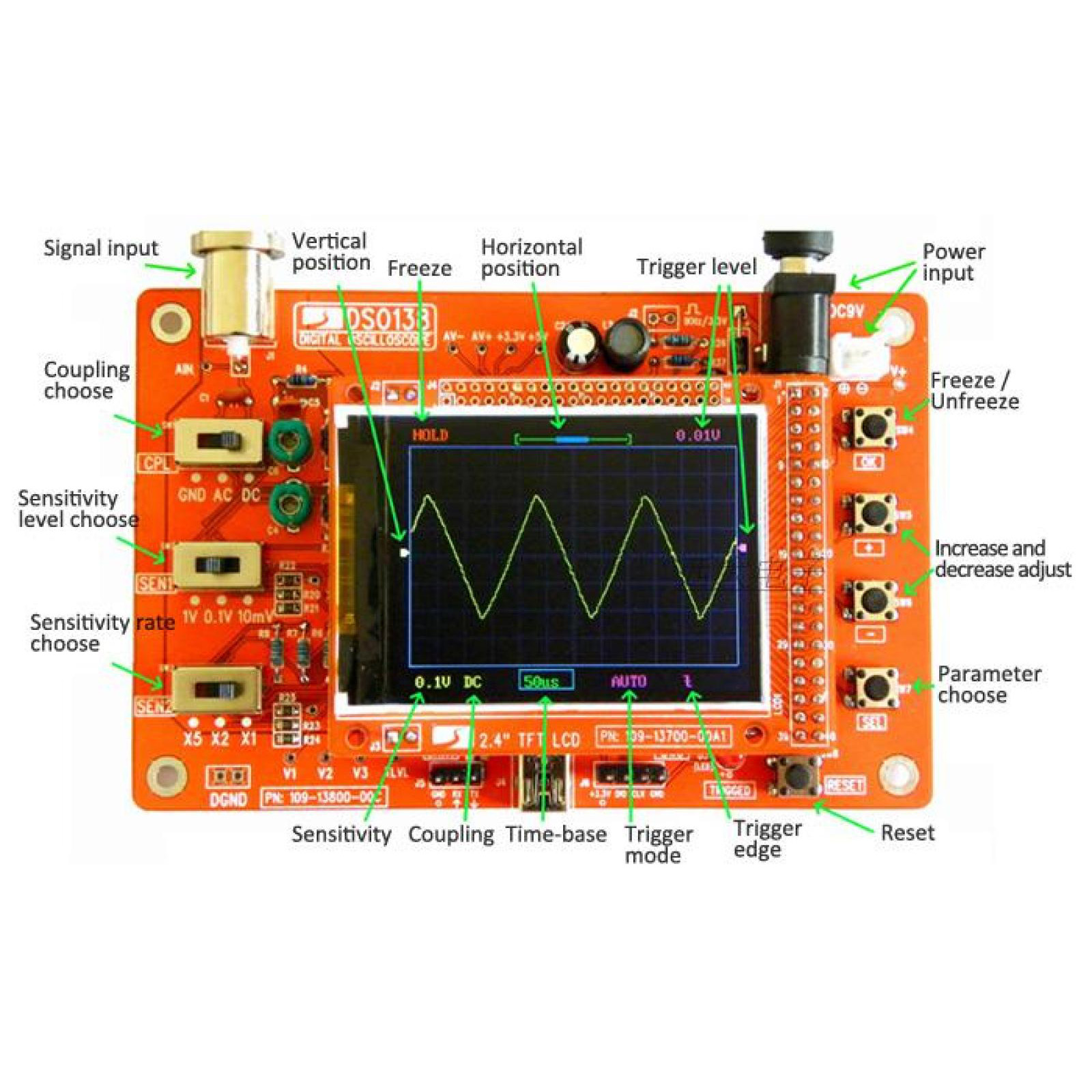

Specifications: Maximum real-time sampling rate: 1Msps Accuracy: 12Bit Sampling buffer depth: 1024 bytes Analog bandwidth: 0 - 200KHz Vertical Sensitivity: 10mV / Div - 5V / Div ( 1-2-5 progressive manner ) Adjustable vertical displacement, and with instructions Input impedance: 1MΩ Maximum input voltage: 50Vpp (1: 1 probe ), 400Vpp (10: 1 probe ) Coupling modes include DC / AC / GND The horizontal time base range: 10μs / Div - 50s / Div ( 1-2-5 progressive manner ) With automatic, regular and one-shot mode , easy to capture the moment waveform Available rising or falling edge trigger Adjustable trigger level position , and with instructions Observable trigger waveform before ( negative delay ) Can freeze at any time waveform display (HOLD function ) Comes 1Hz /3.3V square wave test signal source Supply Voltage: DC 9V

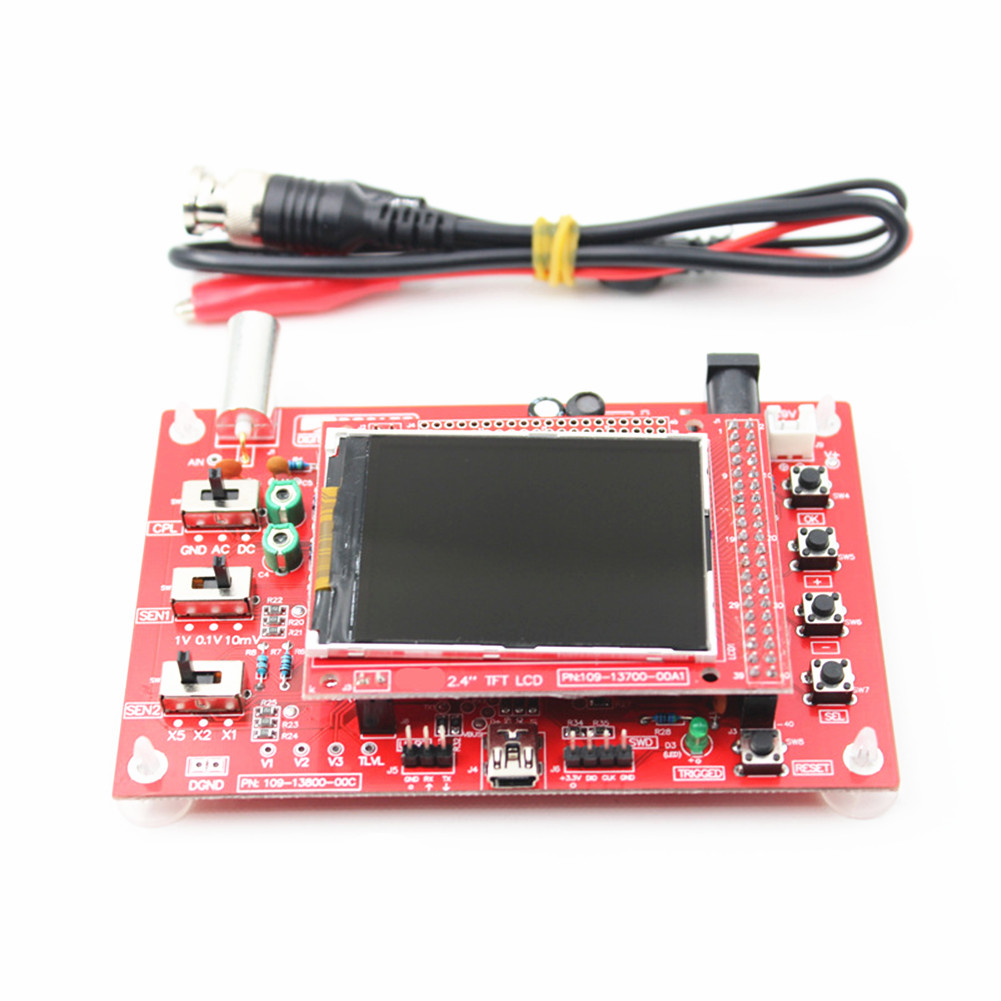

Package includes: 1PCS Welded Assembled DSO138
