Features:
Digital LCD display for easy readings, can display measured data and graphics
Rotary switch control, a key measurement for convenient use
Main chip is the DIP, easy for electronic enthusiasts to DIY or update the main chip
Use 9V battery(not included), can also use DC power(DC 6.8-12V)
Automatic shutdown, shutdown current is only about 20nA
Automatically detects NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, Automatic identification of the transistor pinout.
Test NPN and PNP transistor common-emitter current amplification factor, the base-emitter threshold voltage, off the collector - emitter leakage current.
Support 2 resistors measurement, show its positive and negative, on-state voltage.
Resistance measurement maximum resolution 0.01Ω, can be measured up to 50MΩ.
Automatically test the pins of a component and show on the display.
Measure FET gate threshold voltage and gate capacitance.
For the following 2100Ω resistor while measuring its inductance measuring range from 0.01mH - 20H.
Can be used as signal generator and frequency meter: frequency range from 1Hz-2MHz and can generate 1%-99% PWM(pulse width modulation) signals

Specifications:

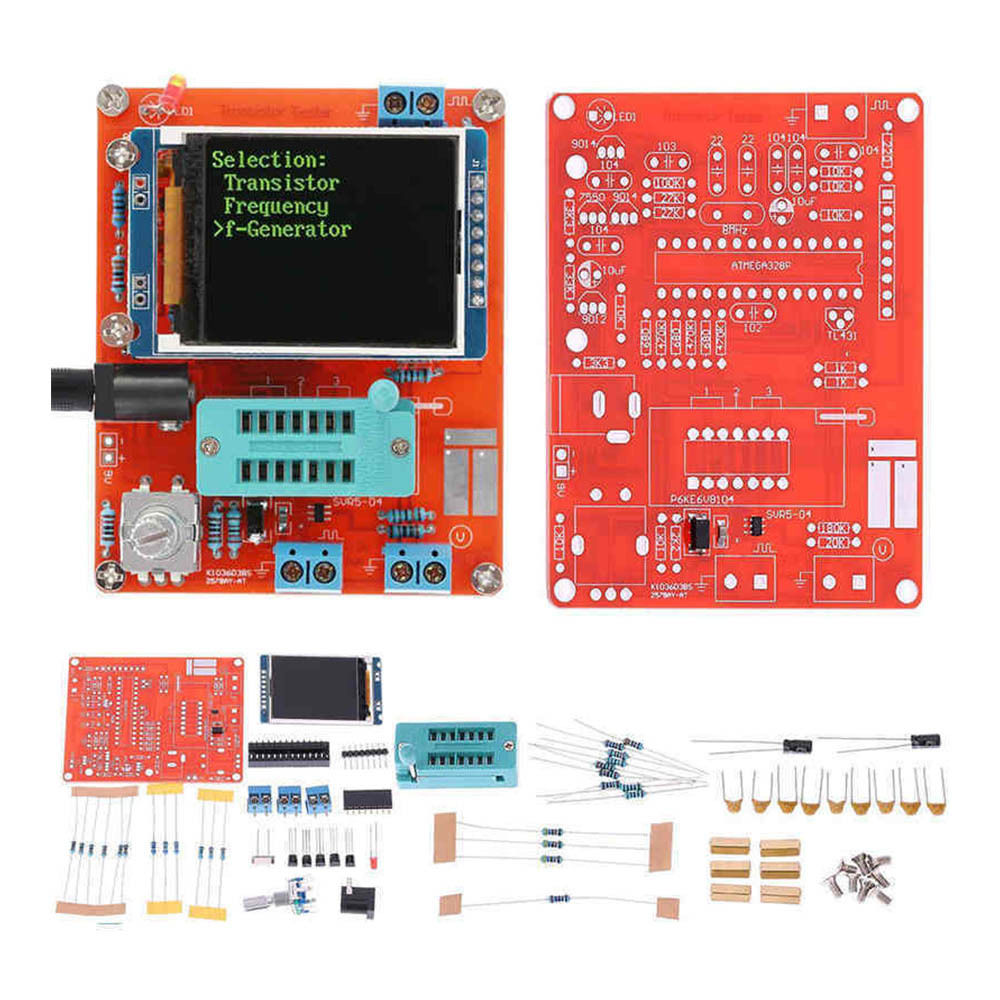

Type: DIY Kit
Display: 160*128 LCD
Power Supply :1 * 9V Battery(not included); DC 6.8-12V
Current Approx. 30mA
Resistance Measurement Max. 50MΩ
Resistance Resolution 0.01Ω
Capacitance Measurement 25pF~100mF
Capacitance Resolution 1pF
DC Voltage Measurement Up to 50V
Screen Size Approx. 3.7 * 3cm / 1.45 * 1.18in
PCB Size Approx. 7.8 * 6.2cm / 3.1 * 2.44in

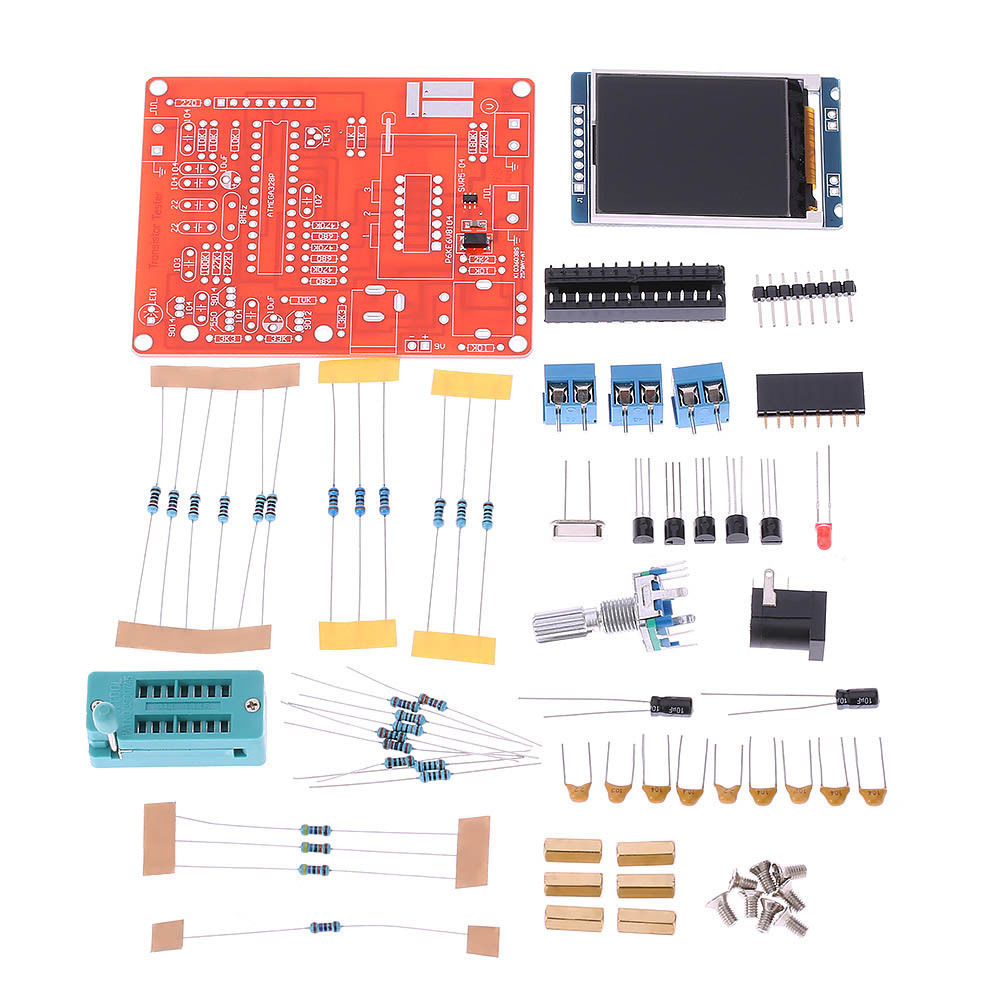

Package Content:
1 Set DIY Kits
