Product Description

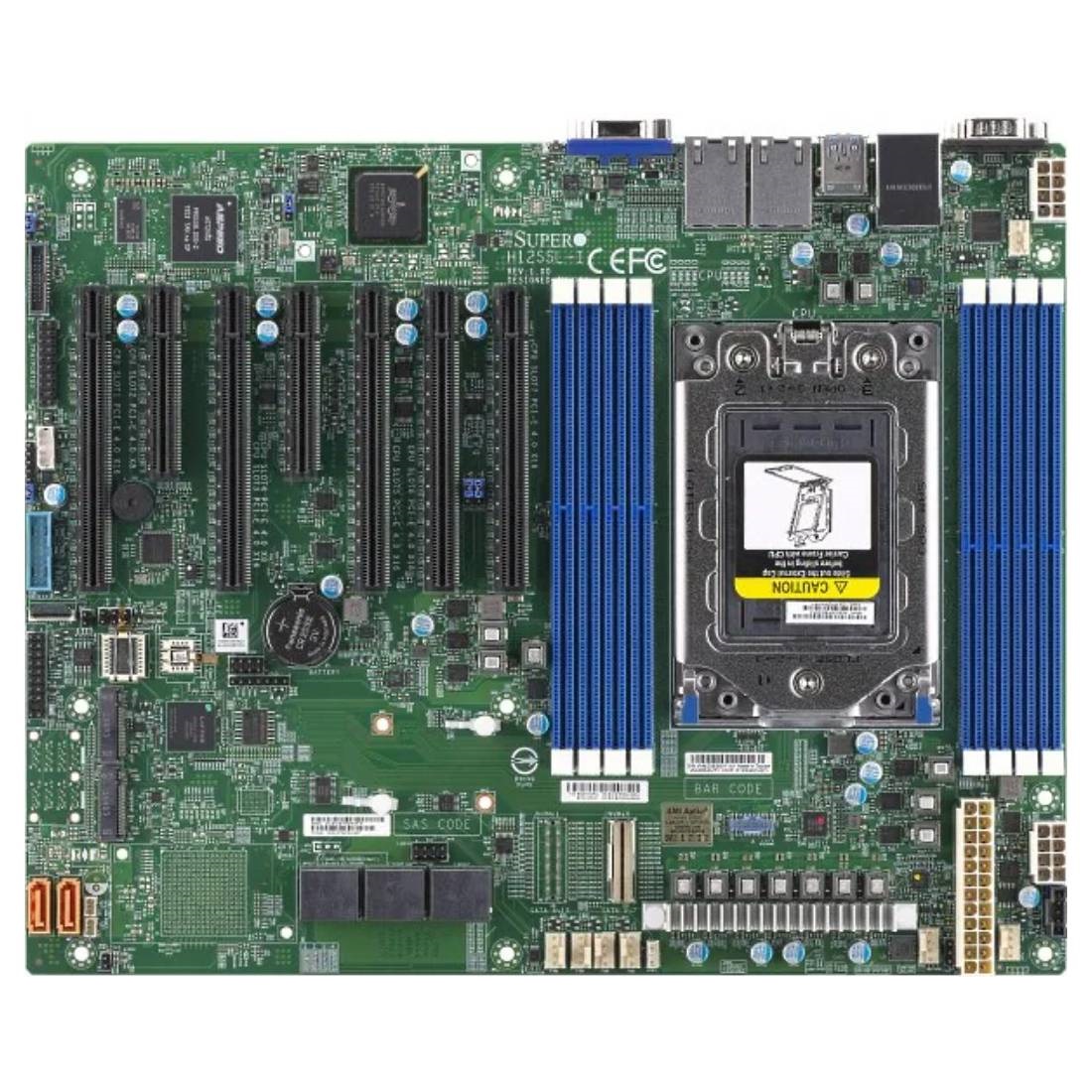

1 pcs Supermicro H12SSL-i Socket SP3 ATX Server Motherboard

Specifications

Product SKUs

MBD-H12SSL-i
  • H12SSL-i
MBD-H12SSL-i-O
  • H12SSL-i (Retail Pack)


Physical Stats

Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.5cm x 24.4cm)


Processor/Chipset

CPU
  • Single AMD EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
Cores
  • Up to 64 Cores
Chipset
  • System on Chip


System Memory

Memory Capacity
  • 8 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM
  • 8-channel memory bus
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)


On-Board Devices

SATA
  • SATA3 (6 Gbps)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Controllers
  • Dual gigabit LAN via Broadcom BCM5720
  • 1 Realtek RTL8211F PHY (dedicated IPMI)
VGA
  • ASPEED AST2500 BMC


Input / Output

SATA
  • 8 SATA3 (6 Gbps) ports
SATA/NVMe Hybrid
  • 8 SATA3 or 2 NVMe via single SlimSAS x8
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 3.0 ports
    (4 rear + 2 via header)
VGA
  • 1 VGA port
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connectors
  • 1 TPM 2.0 header


Expansion Slots

PCI-Express
  • 5 PCI-E 4.0 x16
  • 2 PCI-E 4.0 x8

M.2
  • Interface: 2 PCI-E 4.0 x4
  • Form factor: 2280, 22110
  • Key: M-key

Chassis ( Optimized for H12SSL-i )

1U
2U
3U
Mid-Tower
  • SC732i-903B
Tower/4U



Server(s) ( with H12SSL-i )

Model(s)


System BIOS

BIOS Type
  • AMI 256Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1


Management

Software
Power Configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery


PC Health Monitoring

CPU
  • Monitors CPU Core Voltages, +3.3V, +5V, +5V standby, +3.3V standby
  • CPU switching voltage regulator
  • Supports system management utility
  • VBAT
FAN
  • Up to 7-fan status tachometer monitoring
  • Up to 7 4-pin fan headers
  • Dual Cooling Zone
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 7x Fan connectors
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
  • UID



Operating Environment / Compliance

Environmental Specifications
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
