Wall Mounted Digital Ultrasonic Flowmeter Water Flow Meter & TM-1 TS-2 TUF-2000B

Application

It is widely used in water supply, heating, water conservancy, chemical, pharmaceutical, energy, and other industries. It is suitable for copper and PVC pipes and can detect the flow of liquids such as seawater, alcohol, river water, industrial wastewater, lubricating oil, diesel fuel, and fuel oil.

Specifications

Material: ABS, Steel

Process: Injection Molding

Style: Modern

Color: Blue

Shape: Rectangular

Assembly Required: Yes

Display Type: LCD

Battery Type: Built-in Coin Cell Battery

Mounting Type: Wall and Rail Mounting

Display Content: Current Flow/Heat, Accumulated Flow/Heat ( Need to be Equipped with the Corresponding Sensor )

Rate Units: Meters, Feet, Cubic Meters, Liters, Cubic Feet, U.S. Gallons, Imperial Gallons, Oil Drums, U.S. Oil Drums, Imperial Oil Drums, U.S. Mega Gallons. ( User Configurable )

Applicable Liquid Type: Single Liquid can Transmit Ultrasonic Waves, such as Water, Seawater, Sewage, Oil, Alcohol, etc.

Applicable Tube Materials: Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Glass Reinforced Plastic, etc. (Lining is Allowed)

Signal Output: 1 x 4-20ma Output, 1 x Oct Pulse Output, 1 x Relay Output

Signal Inputs: 2 x 4-20ma Inputs for Heat Measurement by Connecting Pt100 Platinum Resistors

Interface: Rs485 with Modbus Support

Data Storage: SD Card for Periodic Storage of Preset Results (Without SD Card)

Main Host Protection Grade: IP67

Sensor Protection Grade: IP65(Potting up to IP68)

Host Working Temperature: -20~60°C/-4~140℉

Sensor Working Temperature: -30~90°C/-22~194℉

Humidity: ≤85%Rh

Accuracy: ±1 %

Repeatability: 0.20%

Flow Rate Range: 0~±10m/s

Applicable Tube Diameter: TS-2 Ultrasonic Sensor 20-100mm/0.78-3.94in, TM-1 Ultrasonic Sensor 50-700mm/1.97-27.56in

AC Wide Voltage: AC85~264V

DC Wide Voltage: DC8~36V

Flow Signal Cable Length: 10m/32.81ft

Each Ultrasonic Transducer Width: 8.5cm/3.35in

Host Length: 15.6cm/6.14in(Back), 13.2cm/5.2in(Front), 15cm/5.91in(Left), 9.4cm/3.7in(Right)

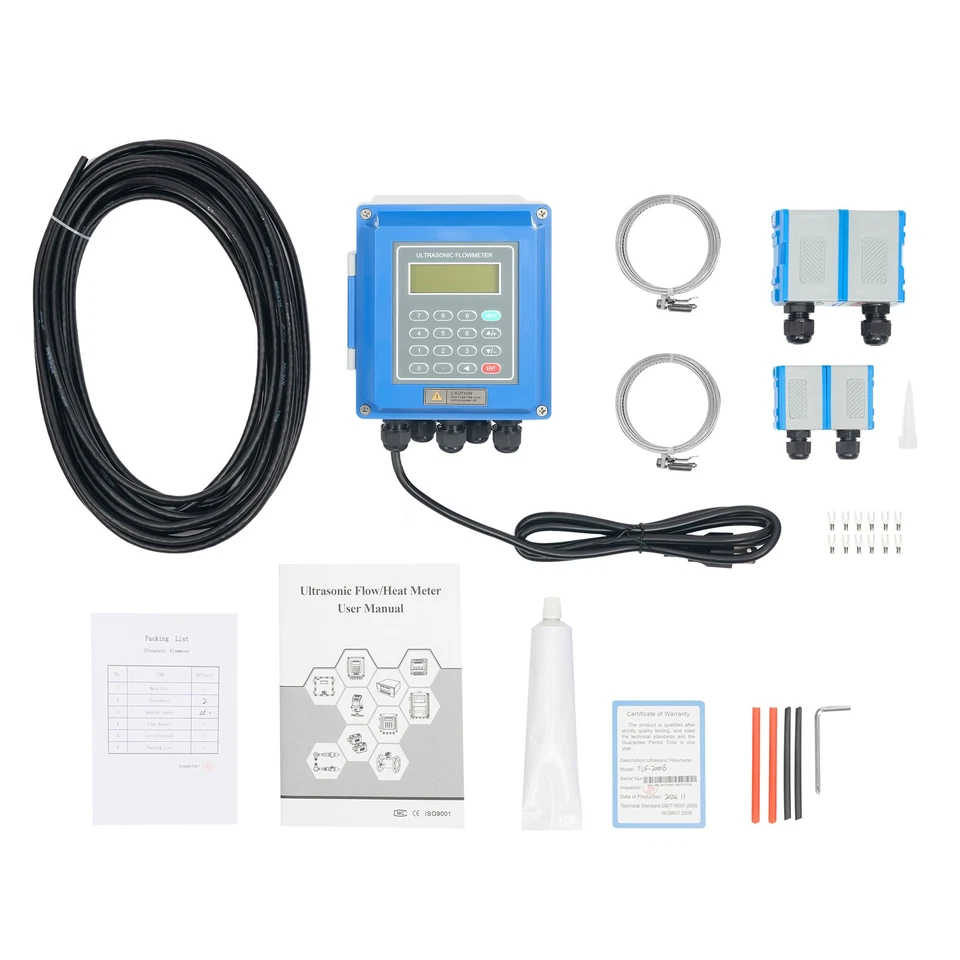

Package Included

1* Tuf-2000B Host

2* Steel Belts

1* TS-2 Ultrasonic Transducer(0.78-3.94in)

1* TM-1 Ultrasonic Transducer(1.97-27.56in)

1* 32.81ft Flow Signal Cable

1 Set * Connection Terminal

1* Silicone Sealant

1* English Manual

All Accessories for Assembly

Notes

• Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
• To avoid signal reduction and improve anti-jamming ability, it is better to use the customized signal cable from the flow meter manufacturer.
• The temperature and humidity of the working environment should be in the range of technical specifications. Avoid direct sunlight on LCD.
• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
