Suitable for all kinds of vehicle modification, the use of stepper motor drive pointer, accurate display engine RPM,
and with the LCD display clear display hour, with instructions of high precision, repeatability and versatility,
reliability and stability, drive And control is relatively simple and so on
Tachometer using stepper motor drive pointer, accurate display of the engine RPM,
and with the LCD display clear display hour
Name: Tachometer
Materials: stainless steel+nickel-plated plastic
Operating Voltage: 12V/24V

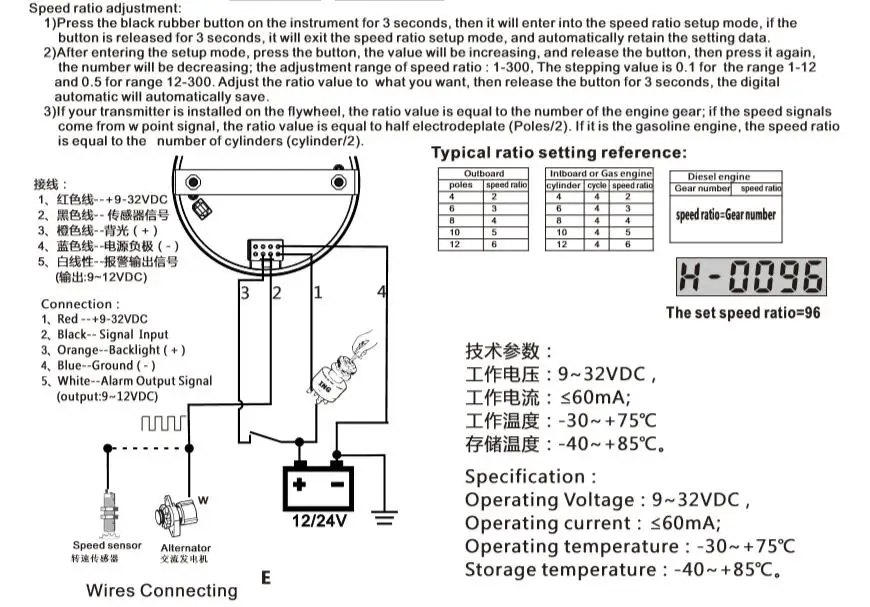

Connection: Red-Battery(+9-32VDC) Blue-Battery(-) Black-Signal Orange-Backlight(+9-32VDC)

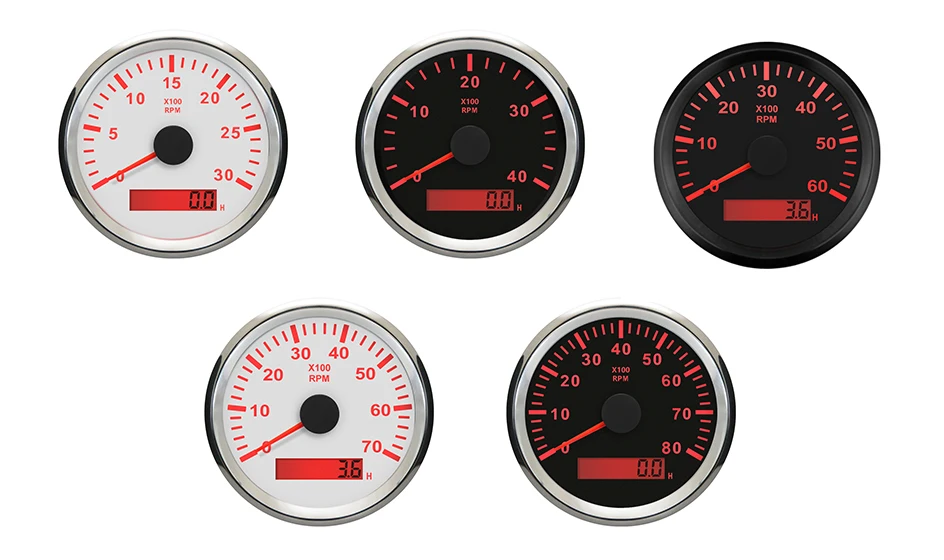

Indicating Range:0-3000RPM 0-4000RPM 0-6000RPM 0-7000RPM 0-8000RPM
Input Signal: Pulse Signal from tacho sensor, engine, alternator, ignition coil, crankshaft sensor, etc.
Adjustable speed ratio: 1-300
Protection Class: IP67, can work underwater 1m position

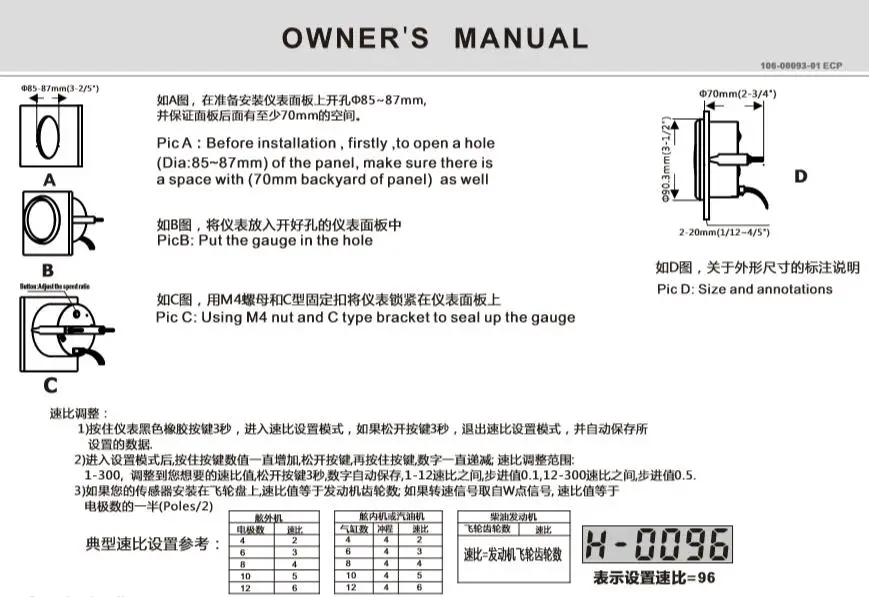

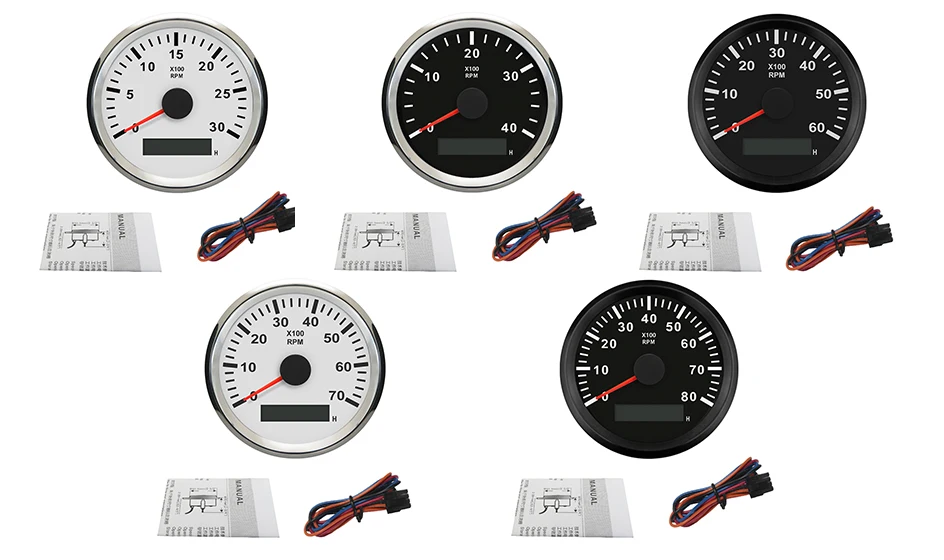

1 x Tachometer 1 x Cable 1 x Owner's Manual
