Feature:
1. 60GHz Millimeter-Wave Precise Detection: 1-transmit 2-receive sensing system with 120° wide-angle coverage and up to 50m long-range detection, eliminating blind spots on the side and rear for more secure lane changes.

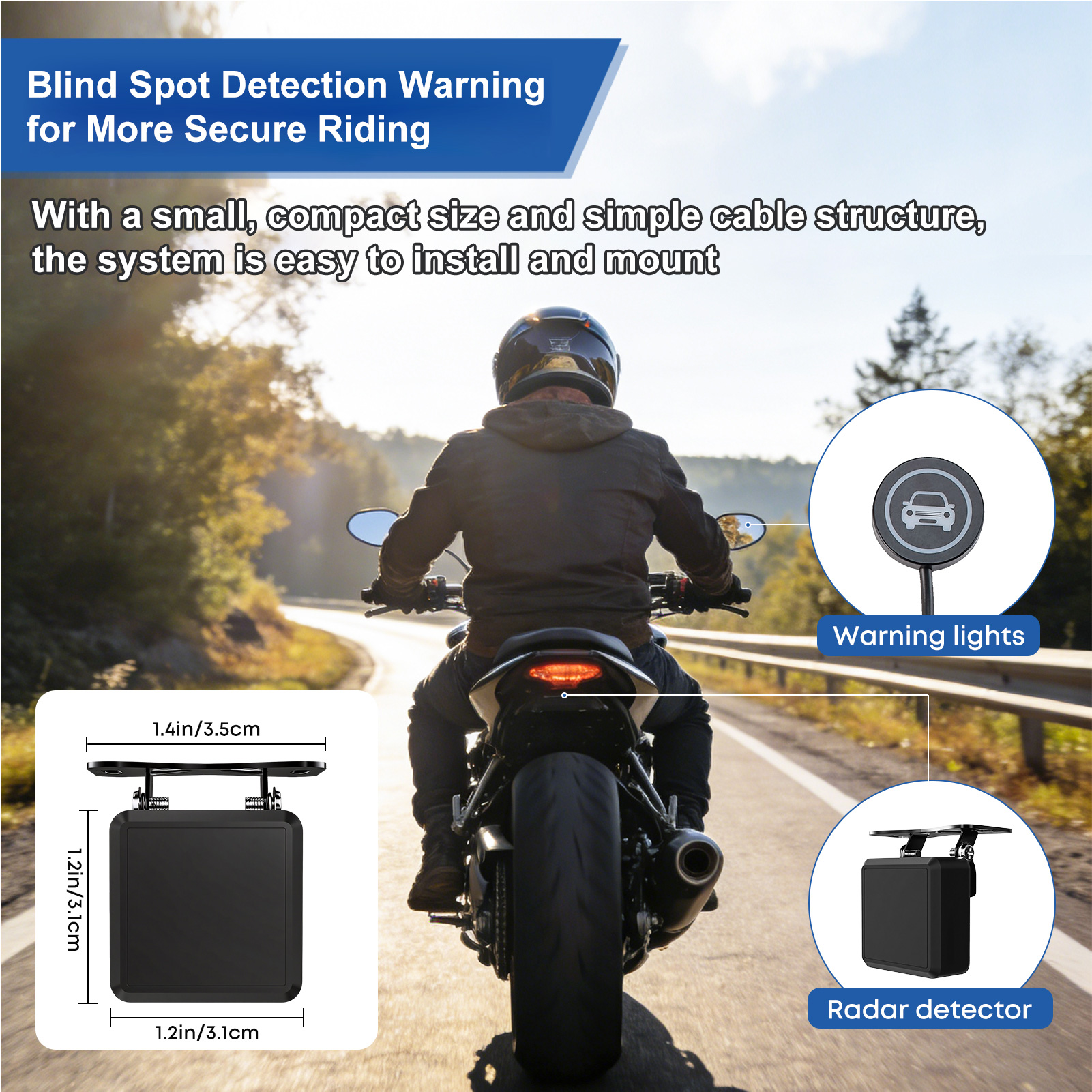

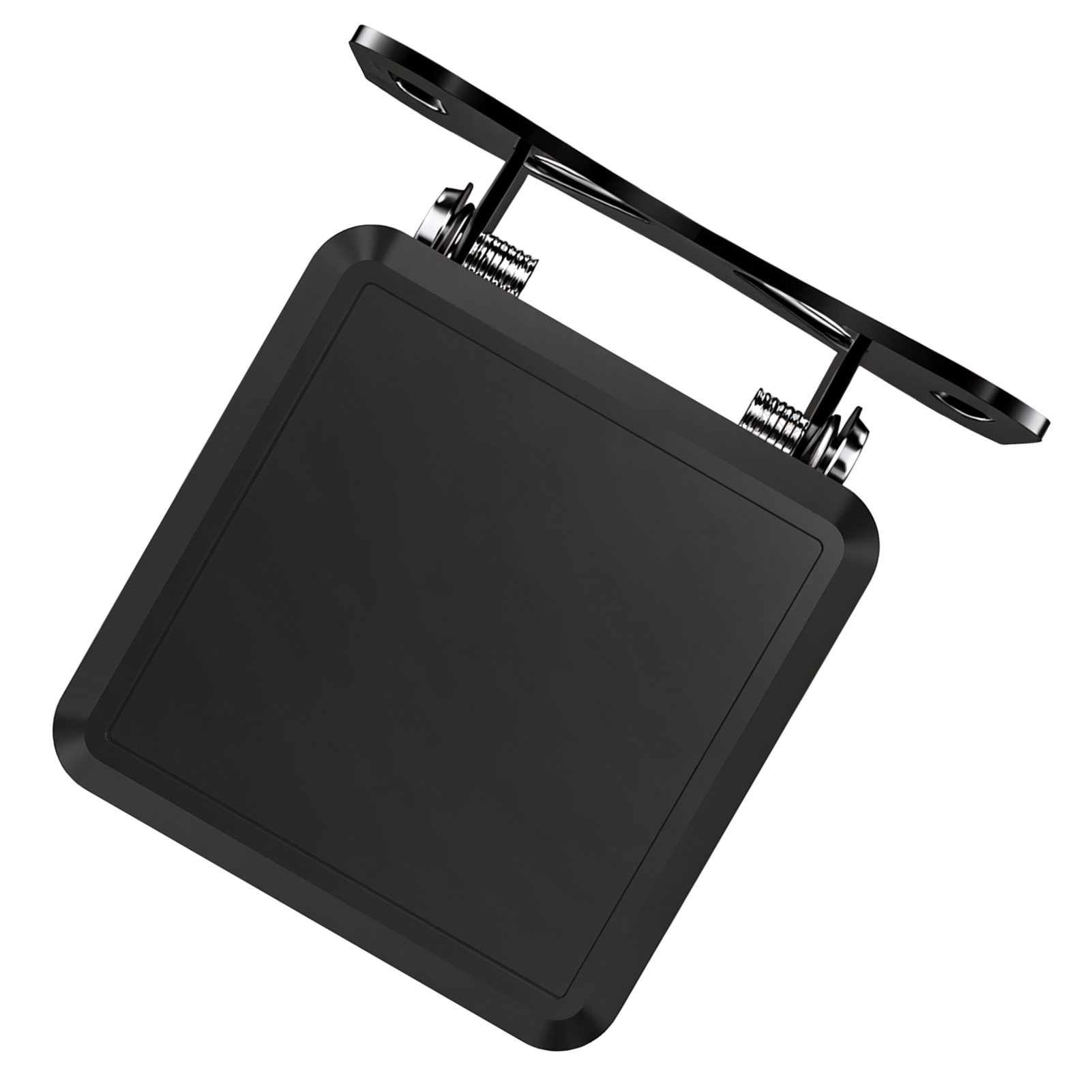

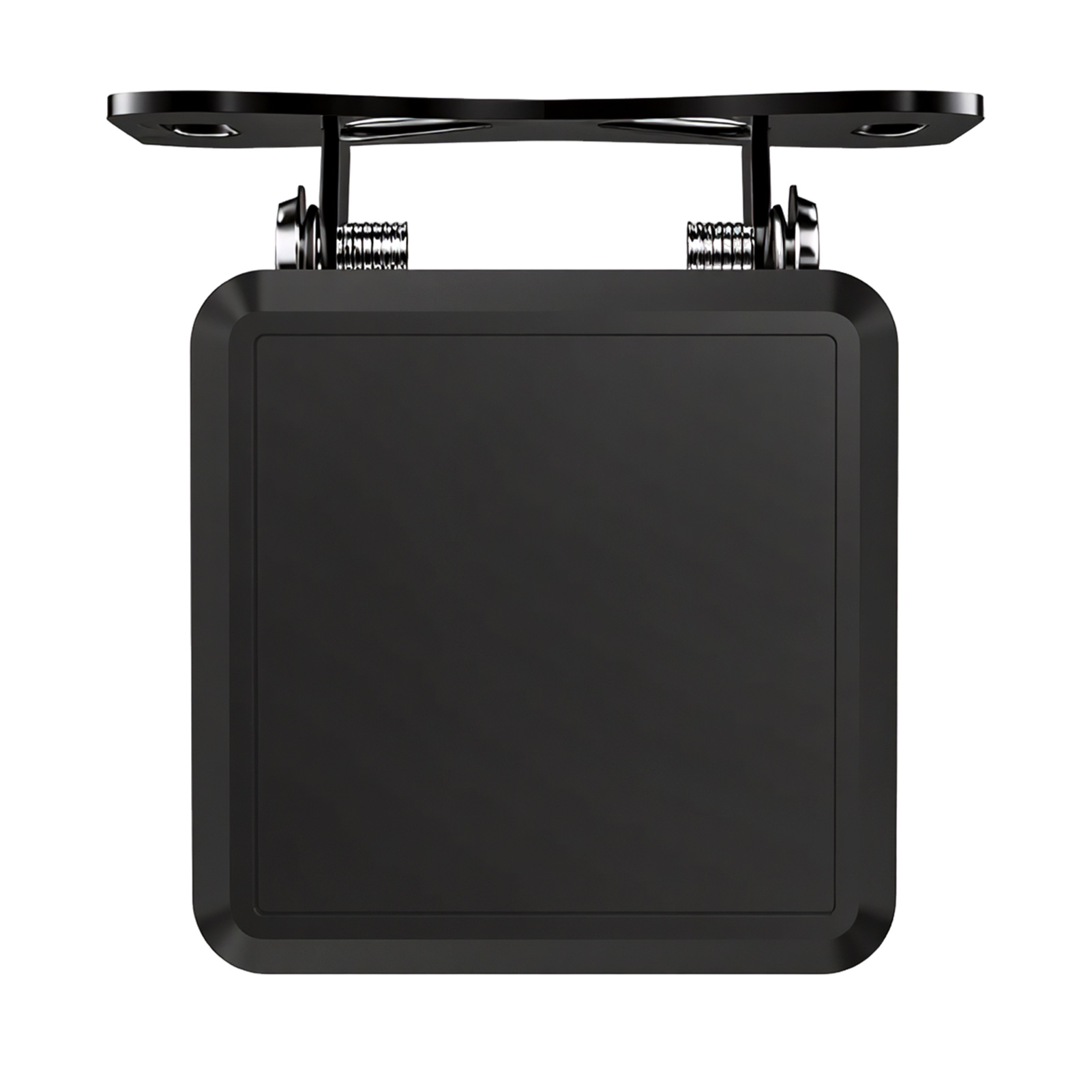

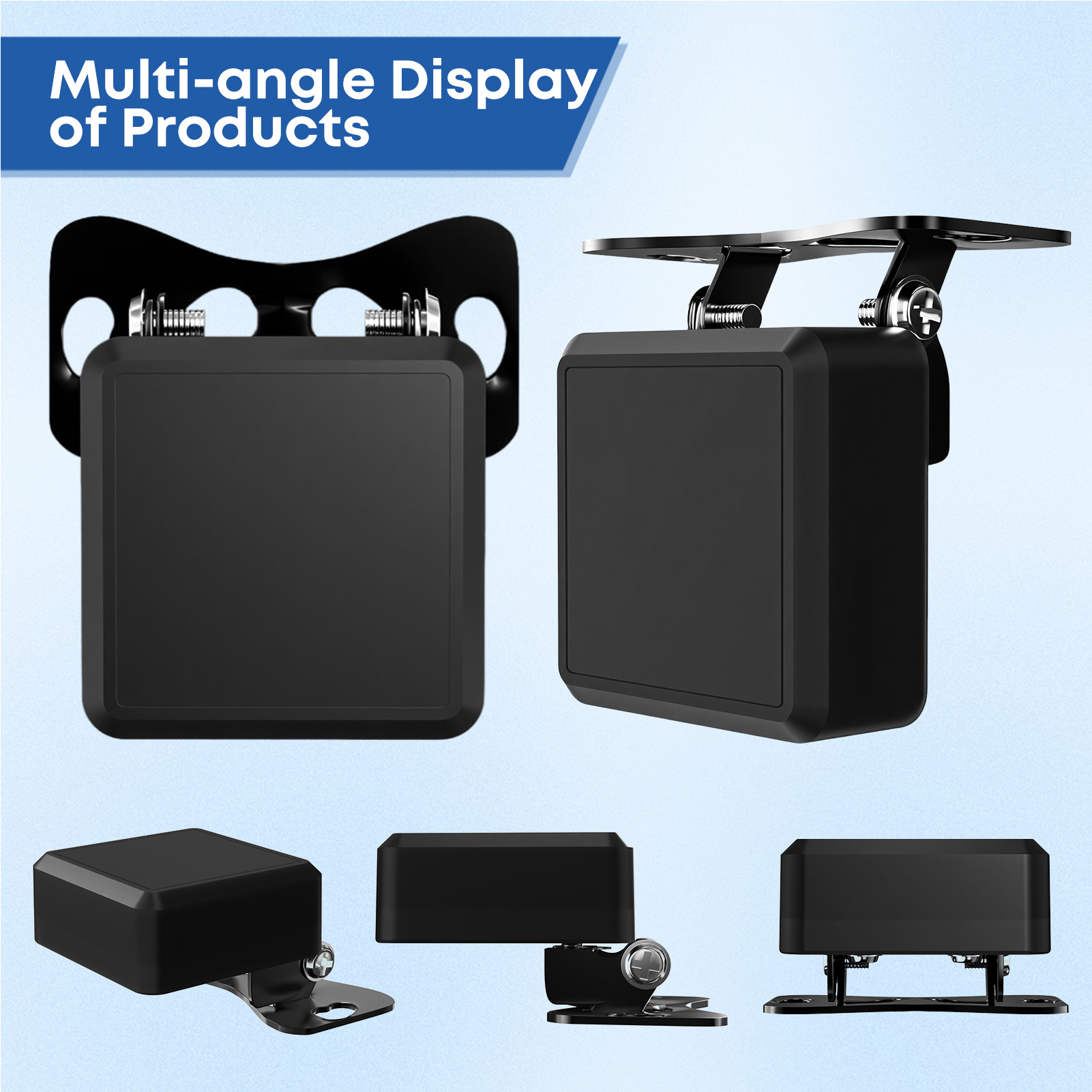

2. Integrated Tail-Mounted Design: Compact ABS shell for easy installation. Designed for motorcycle rear or tail box use without compromising the original look of the motorcycle.

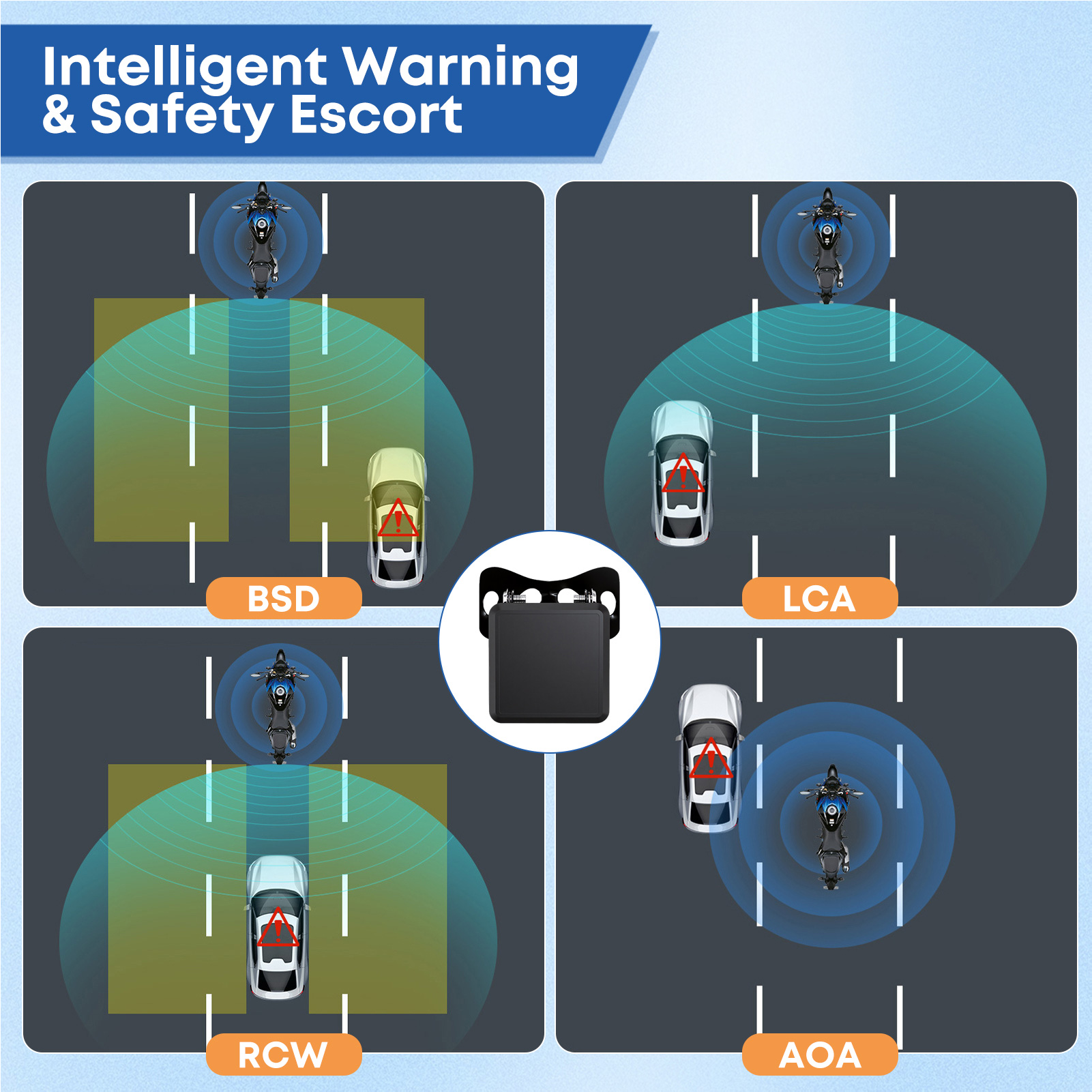

3. Dual-Stage Visual and Audible Alerts: The system uses clear logic: steady light activation for distant vehicles, and flashing light plus buzzer alerts for closer threats. It avoids nuisance alerts while ensuring you never miss a warning.
4. IP67 All-Weather Protection: Fully sealed structure ensures reliable performance in rain, car washes, and extreme outdoor riding conditions, operating stably from -20°C to 85°C.

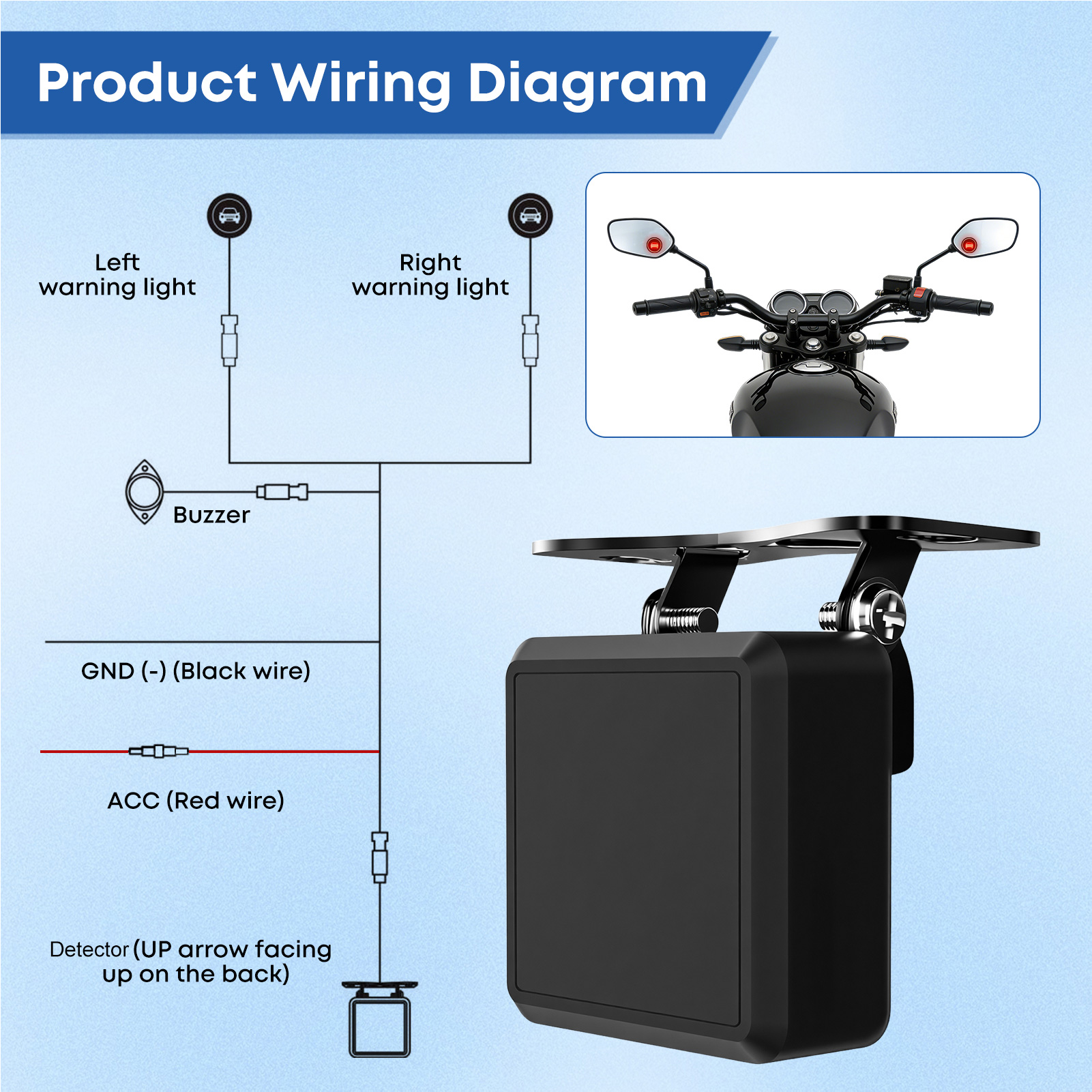

5. Plug-and-Play Complete Wiring Kit: Includes full wiring set (detector cable, main cable, power cable, left/right extension wires). No cutting required—easy installation even for beginners.

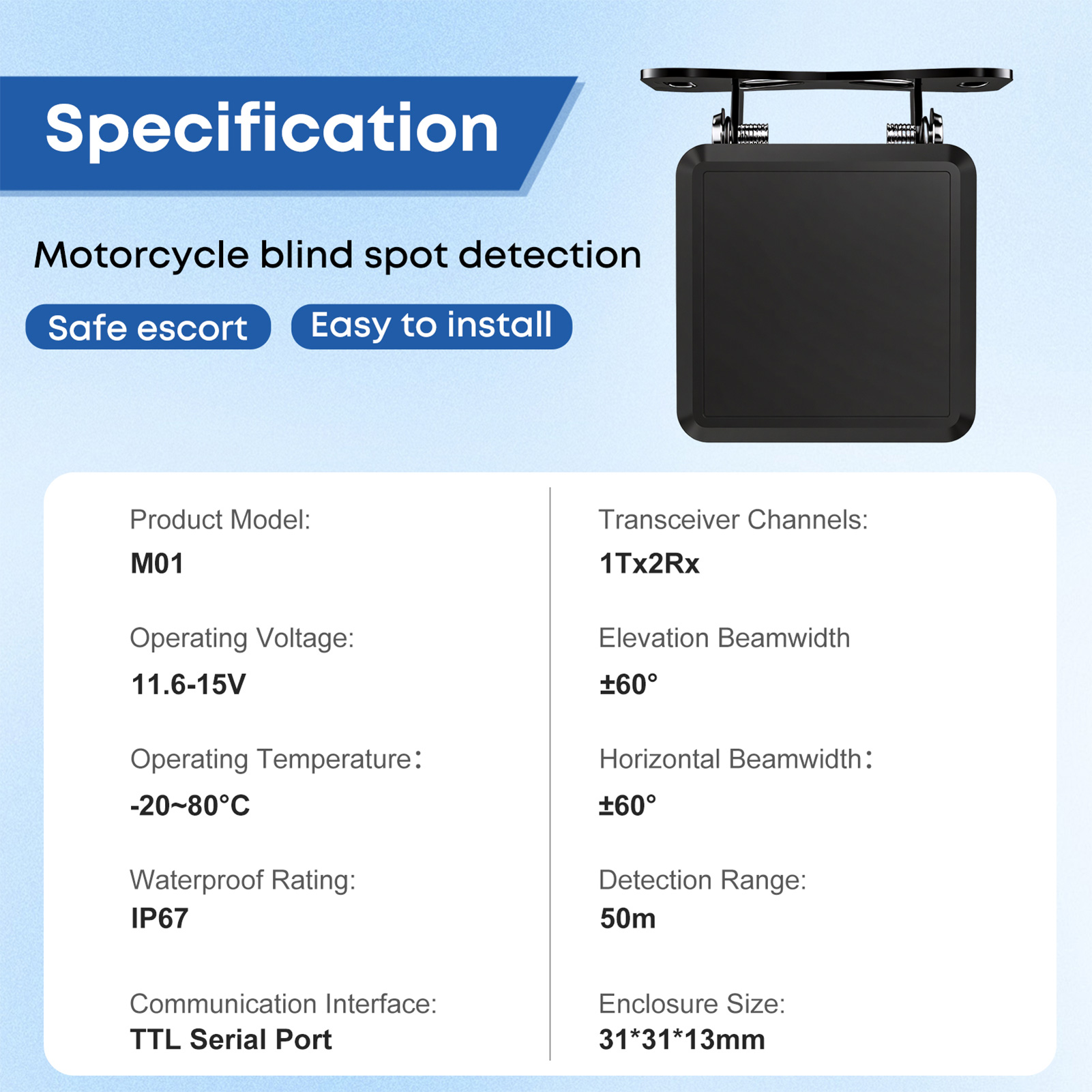

Specification:
Working Frequency: 60GHz Millimeter Wave Sensor
Transceiver Configuration: 1 Transmitter, 2 Receivers
Detection Range: Up to 50m / 164.04ft
Detection Angle: 120° Wide Angle
Warning Range: 15-30m/ 49.21-98.43ft (Based on Target Size)
Alert Mode: 10-30m Warning Light Steady On; ≤10m Warning Light Flashing + Buzzer
Warning Light: Default single-color light; interface reserved for dual-color light
Wire Length: Detector Wire 1000mm / 39.37in; Main Wire 1800mm / 70.87in; Power Wire 1000mm / 39.37in; Left/Right Warning Light Extension Wires 600mm/ 23.62in Each
Operating Voltage: 11.6-15V
Operating Current: 20mA
Operating Temperature: -20℃ to 85℃
Ingress Protection Rating: IP67
Housing Material: ABS

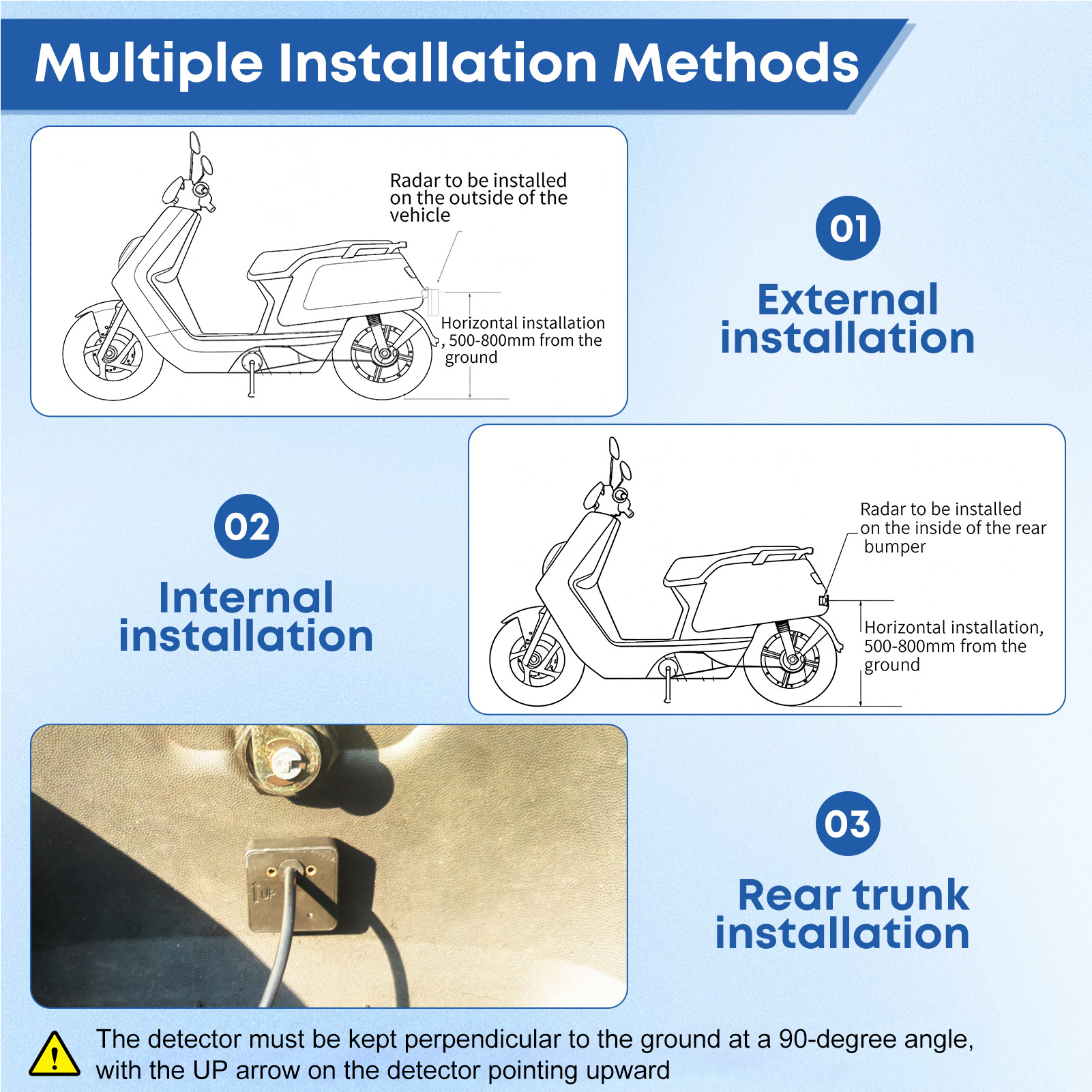

Installation Position: Dedicated for rear / tail box
Detection Module Size: Approx. 3.1x3.1x1.3cm / 1.2x1.2x0.5in

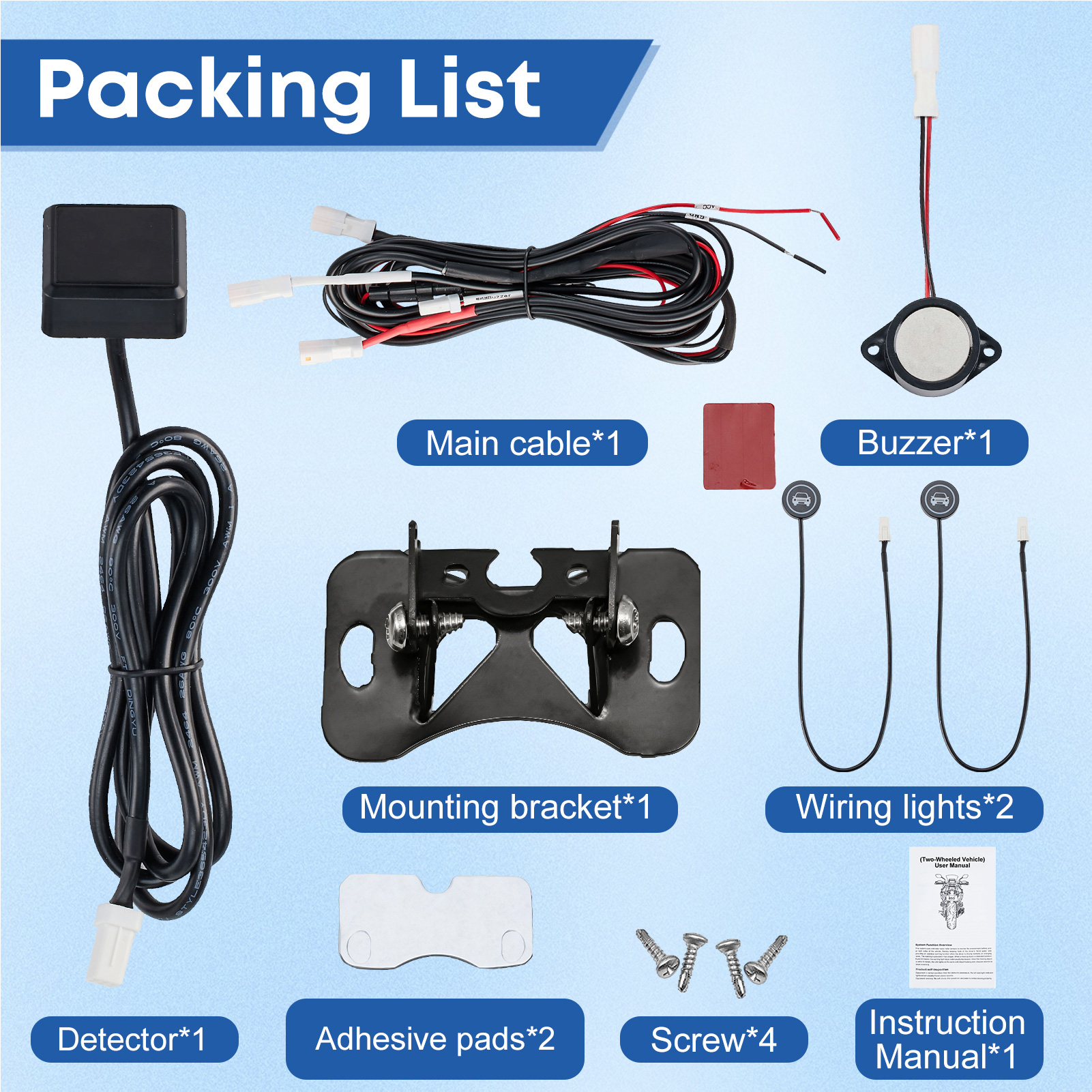

Package List:
1 x Detector
1 x GND And ACC Wire
1 x Buzzer
2 x Warning Lights
2 x Adhesive Pads
4 x Screws
1 x Bracket
1 x Instruction Manual
