Features:

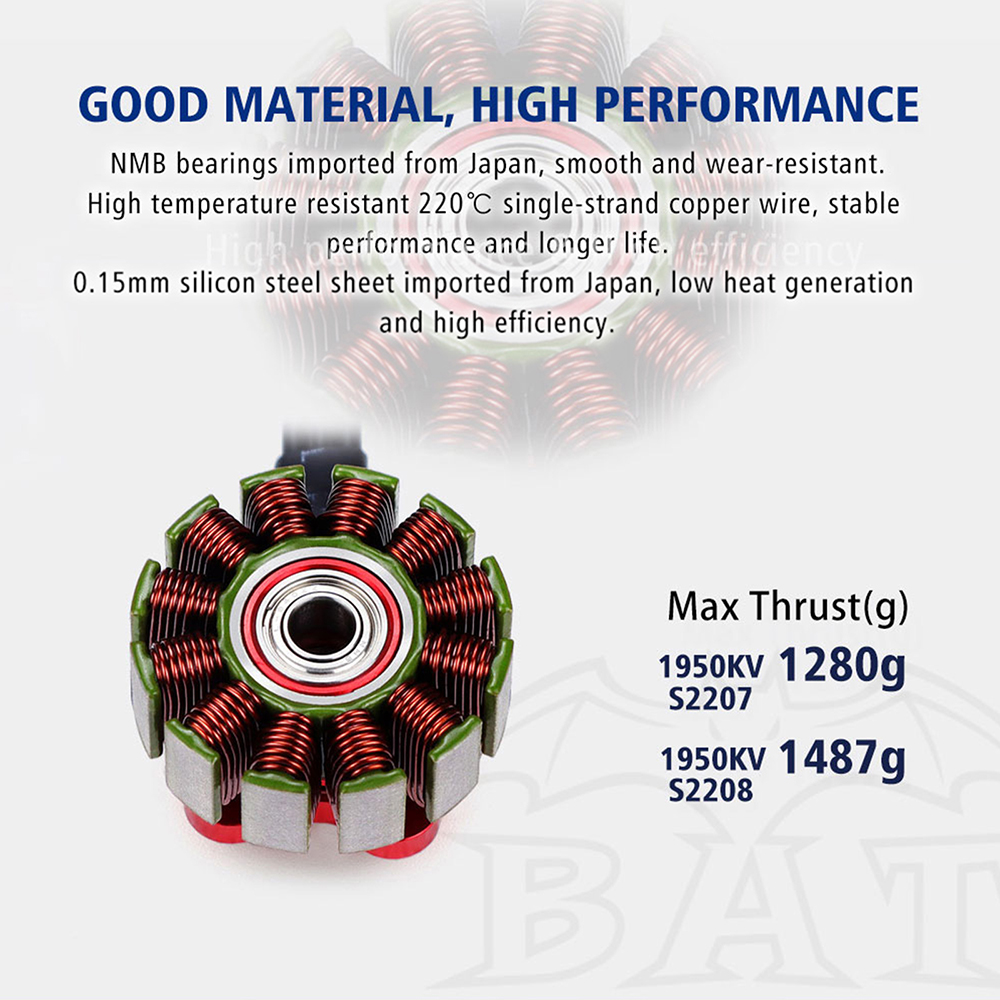

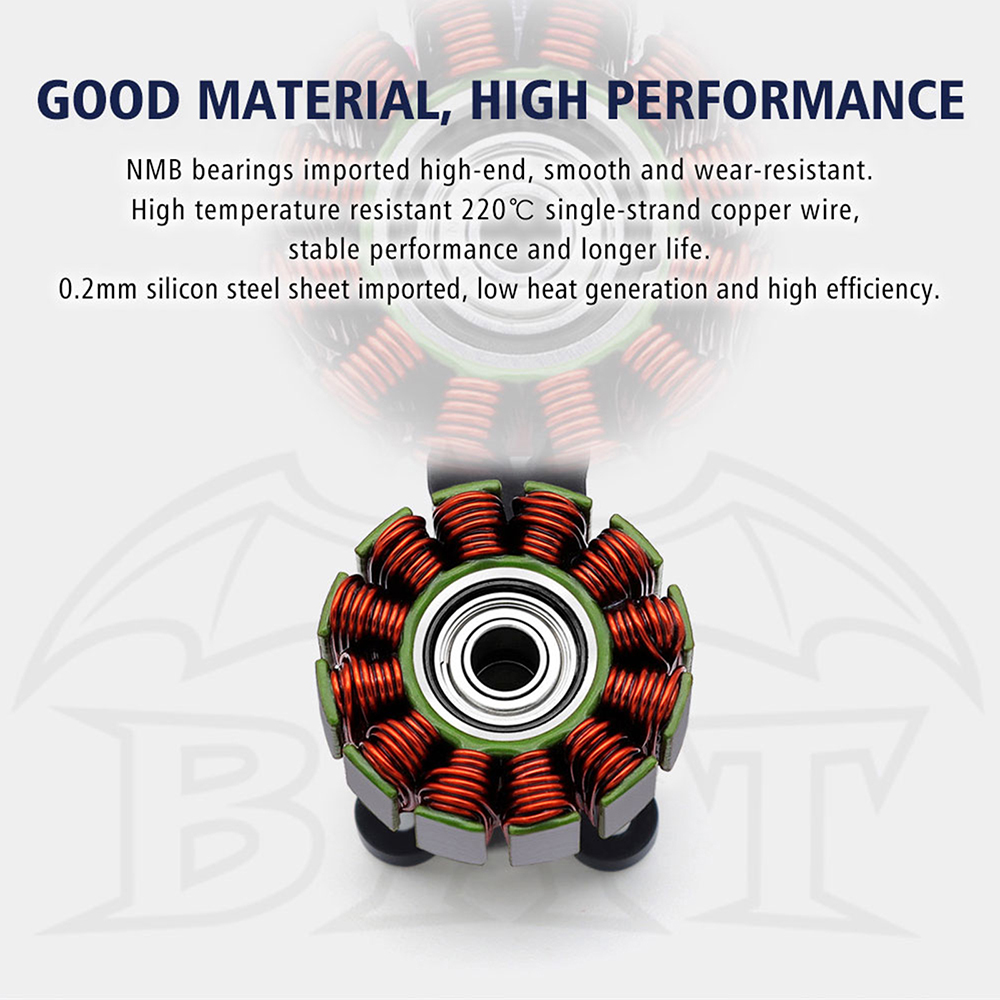

1. single-strand copper wire
2. stable performance and longer life.
3. 0.2mm silicon steel sheet imported, low heat generation and high efficiency.
4. NMB bearings imported high-end, smooth and wear-resistant.High temperature resistant 220℃

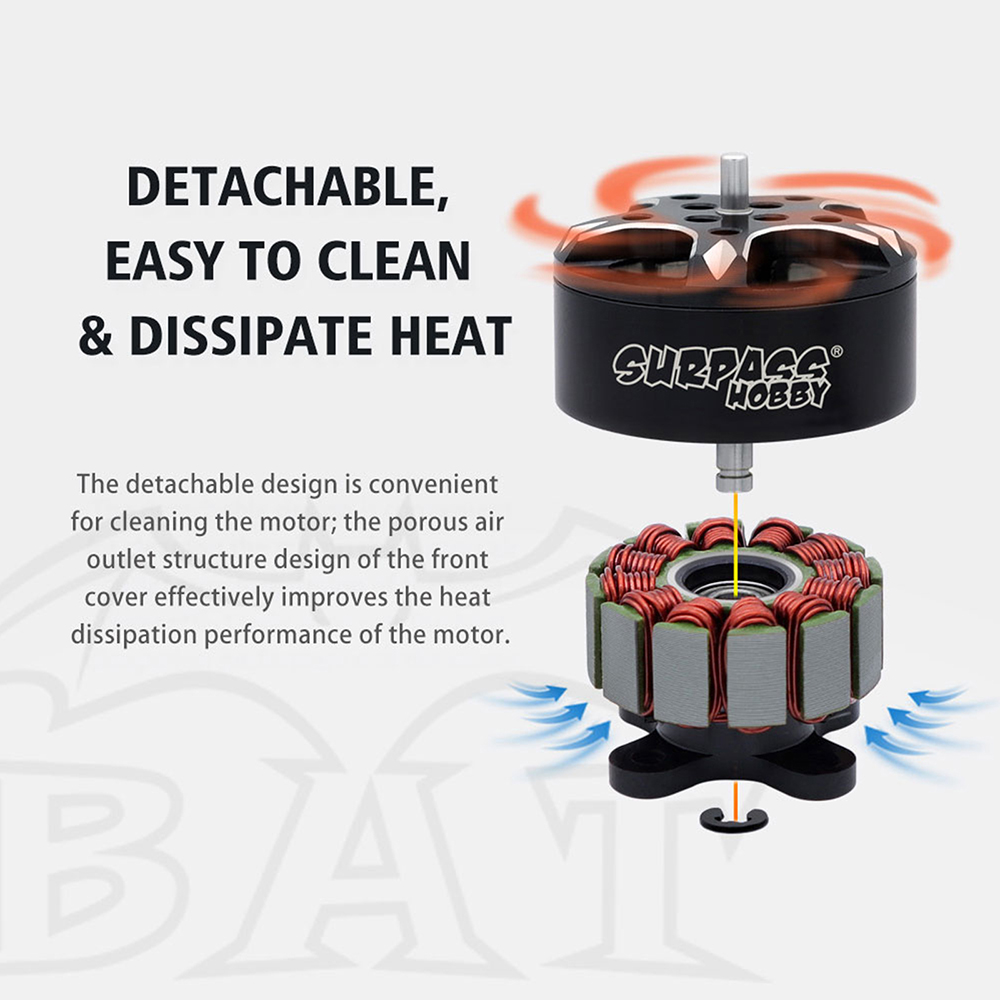

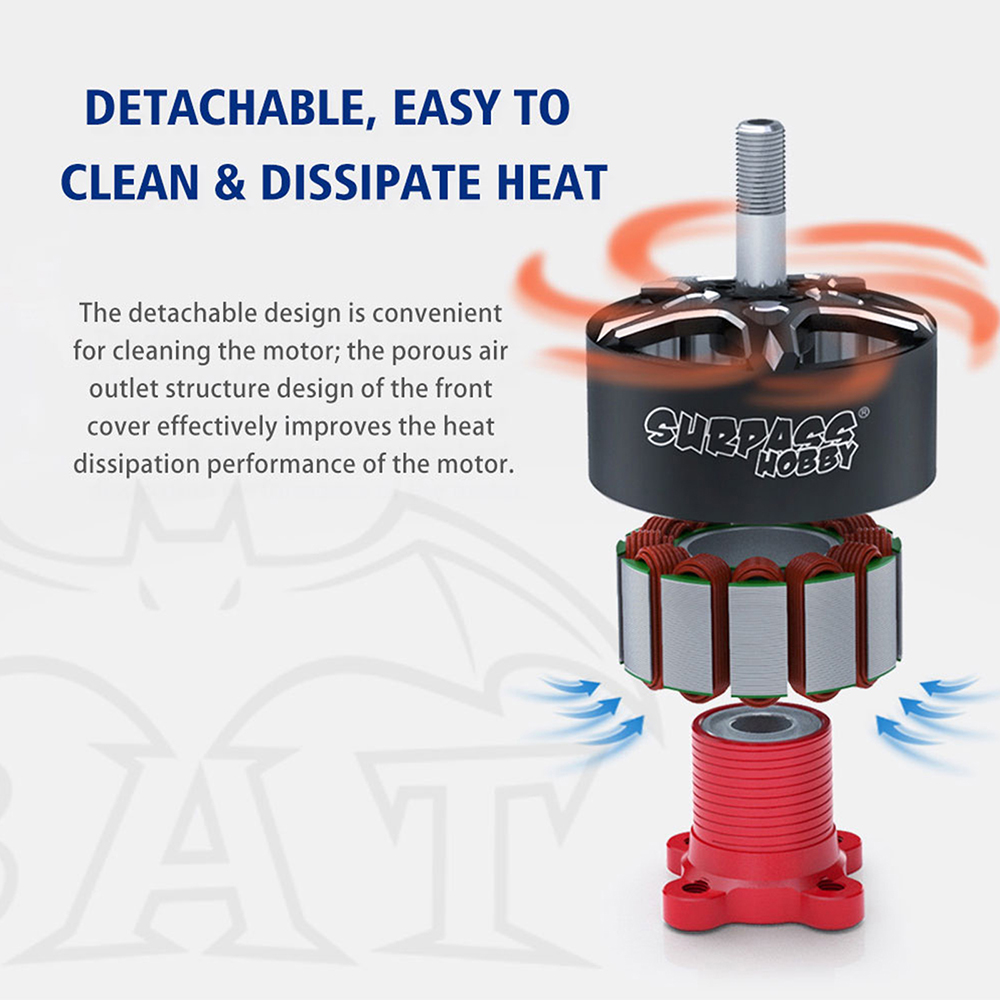

5. The detachable design is convenientfor cleaning the motor;
6. the porous airoutlet structure design of the frontcover effectively improves the heatdissipation performance of the motor.

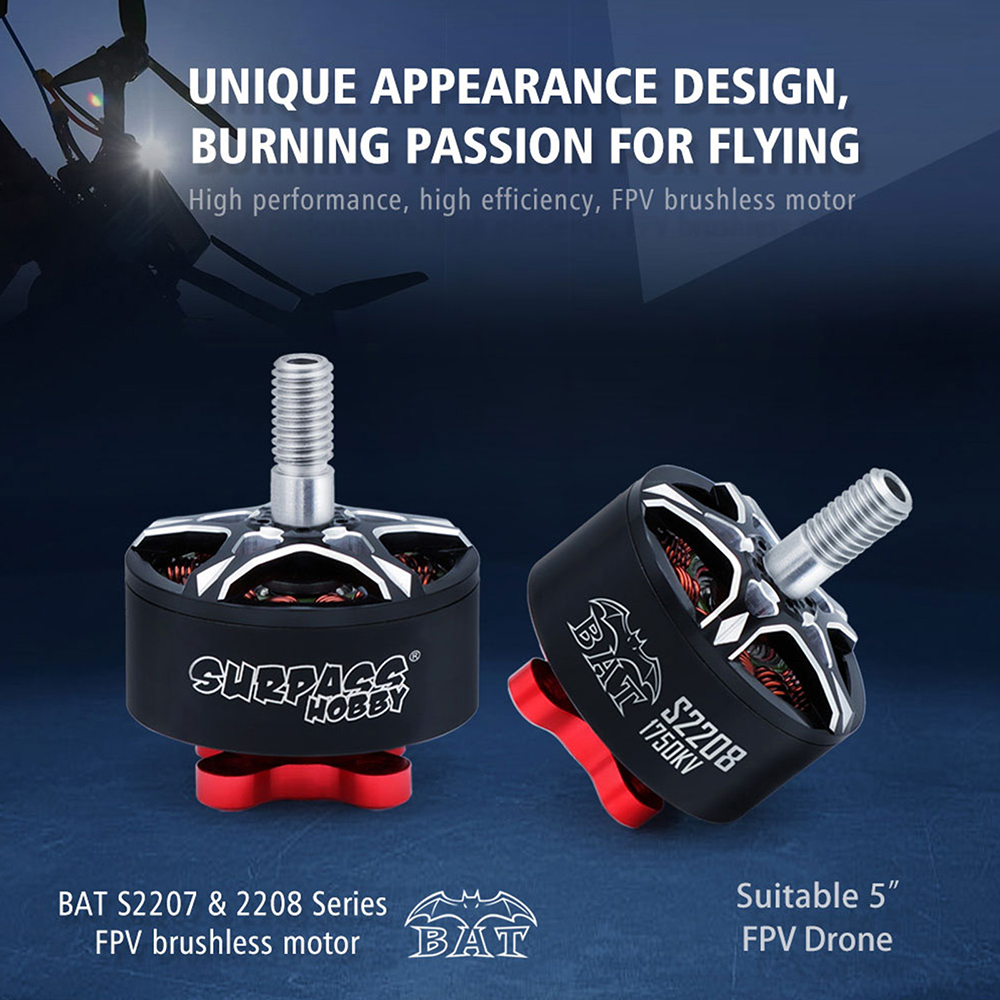

7. S2207& S2208 Suitable 5”FPV Drone

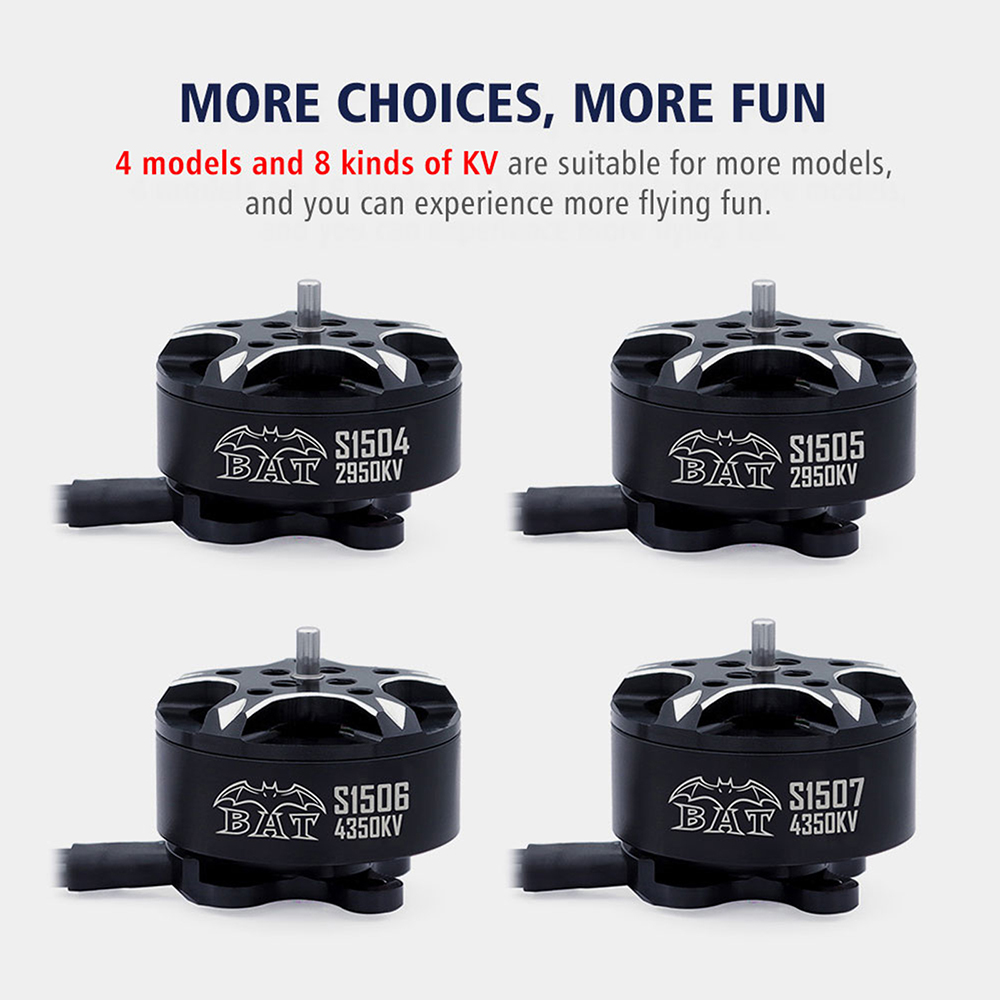

8. S1504/S1505/S1506/S1507 For 3" 3.5" 4" FPV Drone
Description:
NEW SURPASSHOBBY BAT S15 S22 Series stable performance and longer life For 3" 3.5" 4" 5" FPV Drone

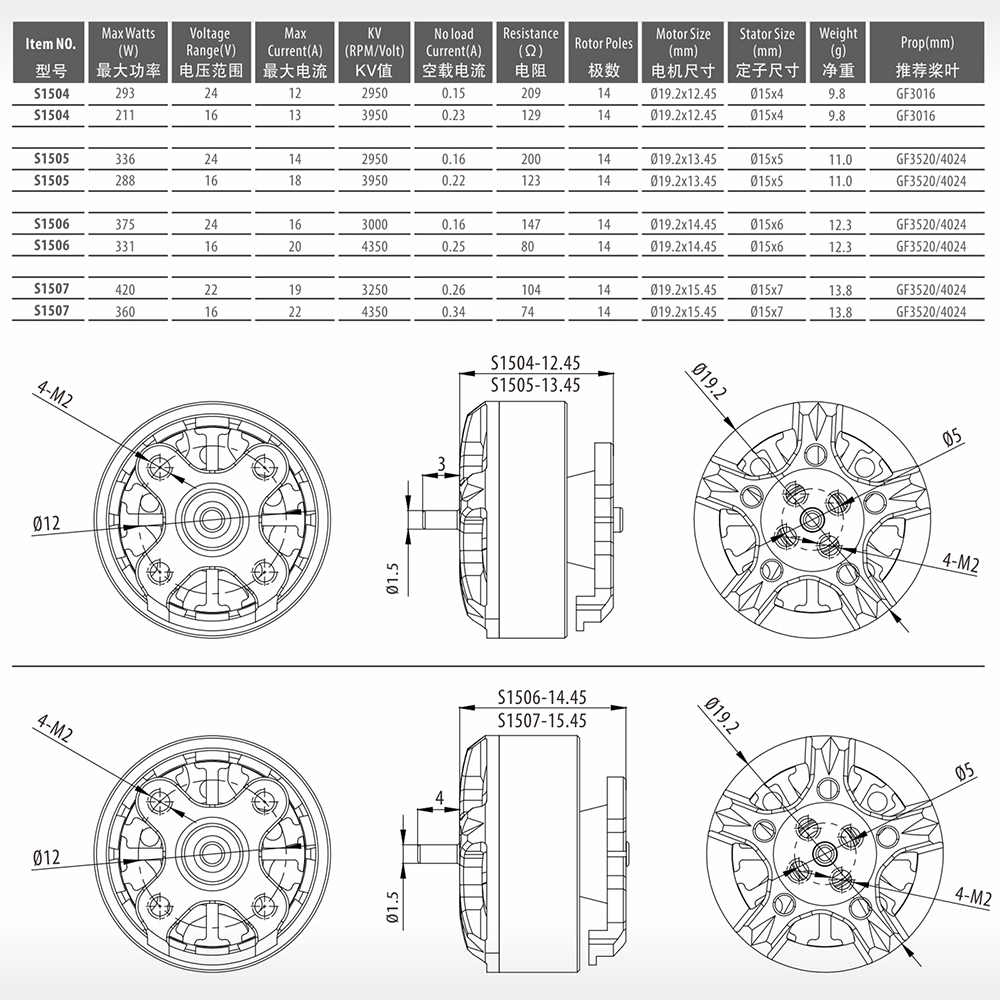

S1504-2950KV Motor Specifications:
Max watts: 293W
Voltage: 24V
MAX Current: 12A

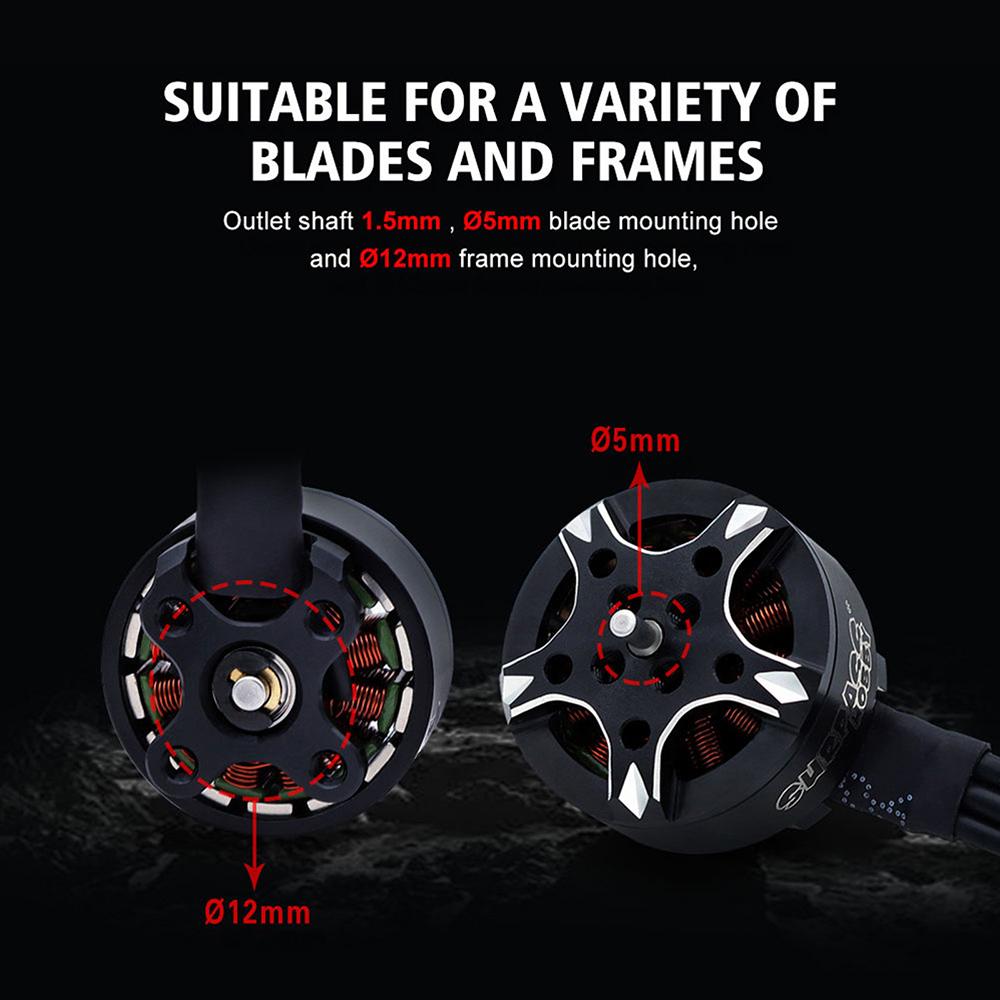

Outlet shaft 1.5mm
Rotor Poles: 14
Battery: 6S Battery
Recommended blade: 3-inch blade
S1504-3950KV Motor Specifications:
Max watts: 211W
Voltage: 16V
MAX Current: 13A
Outlet shaft 1.5mm
Rotor Poles: 14
Battery: 4S Battery
Recommended blade: 3-inch blade
S1505-2950KV Motor Specifications:
Max watts: 336W
Voltage: 24V
MAX Current: 14A
Outlet shaft 1.5mm
Rotor Poles: 14
Battery: 6S Battery
Recommended blade: 3.5" 4" blade
S1505-3950KV Motor Specifications:
Max watts: 288W
Voltage: 16V
MAX Current: 18A
Outlet shaft 1.5mm
Rotor Poles: 14
Battery: 4S Battery
Recommended blade: 3.5" 4" blade
S1506-3000KV Motor Specifications:
Max watts: 375W
Voltage: 24V
MAX Current: 16A
Outlet shaft 1.5mm
Rotor Poles: 14
Battery: 6S Battery
Recommended blade: 3.5" 4" blade
S1506-4350KV Motor Specifications:
Max watts: 331W
Voltage: 16V
MAX Current: 20A
Outlet shaft 1.5mm
Rotor Poles: 14
Battery: 4S Battery
Recommended blade: 3.5" 4" blade
S1507-3250KV Motor Specifications:
Max watts: 420W
Voltage: 22V
MAX Current: 19A
Outlet shaft 1.5mm
Rotor Poles: 14
Battery: 6S Battery
Recommended blade: 3.5" 4" blade
S1507-4350KV Motor Specifications:
Max watts: 360W
Voltage: 16V
MAX Current: 22A
Outlet shaft 1.5mm
Rotor Poles: 14
Battery: 4S Battery
Recommended blade: 3.5" 4" blade
S2207-1750KV Motor Specifications:
Max watts: 854W
Voltage: 24V
MAX Current: 36A

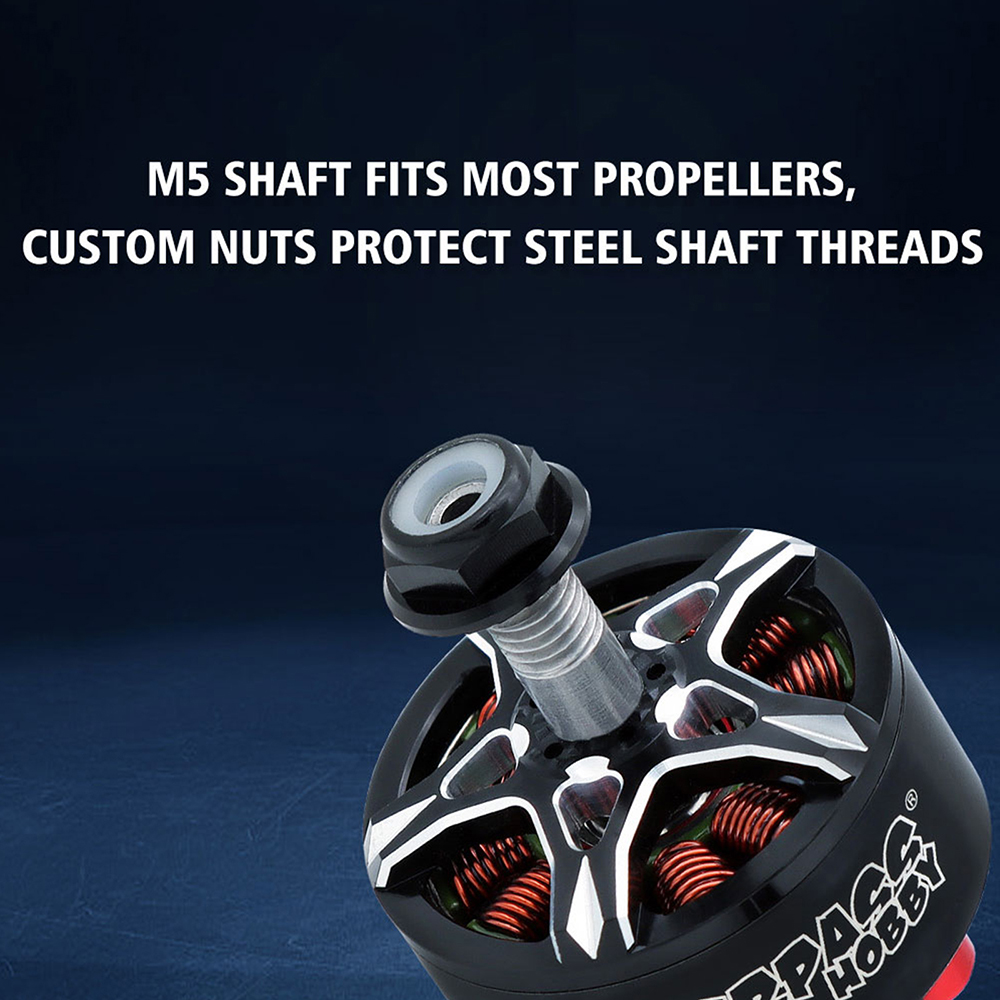

Shaft Diameter: Φ5 (M5)
Rotor Poles: 14
Battery: 6S Battery
Recommended blade: 5" blade
S2207-1950KV Motor Specifications:
Max watts: 1402W
Voltage: 24V
MAX Current: 44A
Shaft Diameter: Φ5 (M5)
Rotor Poles: 14
Battery: 6S Battery
Recommended blade: 5" blade
S2207-2550KV Motor Specifications:
Max watts: 777W
Voltage: 16V
MAX Current: 47A
Shaft Diameter: Φ5 (M5)
Rotor Poles: 14
Battery: 4S Battery
Recommended blade: 5" blade

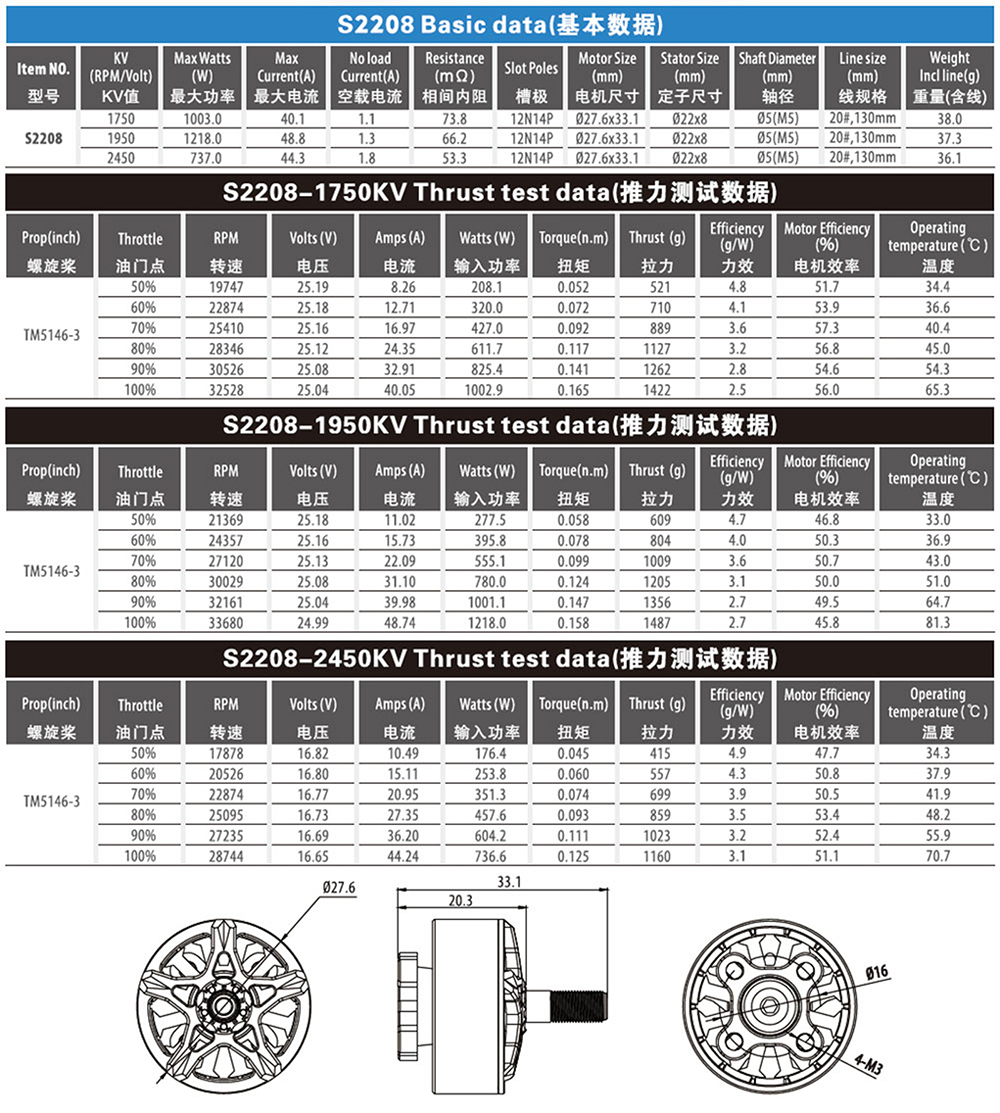

S2208-1750KV Motor Specifications:
Max watts: 1003W
Voltage: 25V
MAX Current: 40A
Shaft Diameter: Φ5 (M5)
Rotor Poles: 14
Battery: 6S Battery
Recommended blade: 5" blade
S2208-1950KV Motor Specifications:
Max watts: 1218W
Voltage: 25V
MAX Current: 49A
Shaft Diameter: Φ5 (M5)
Rotor Poles: 14
Battery: 6S Battery
Recommended blade: 5" blade
S2208-2450KV Motor Specifications:
Max watts: 737W
Voltage: 16.65V
MAX Current: 44.3A
Shaft Diameter: Φ5 (M5)
Rotor Poles: 14
Battery: 4S Battery
Recommended blade: 5" blade
4* BAT S15/S22 Series Brushless Motor
Only the above package content, other products are not included.
