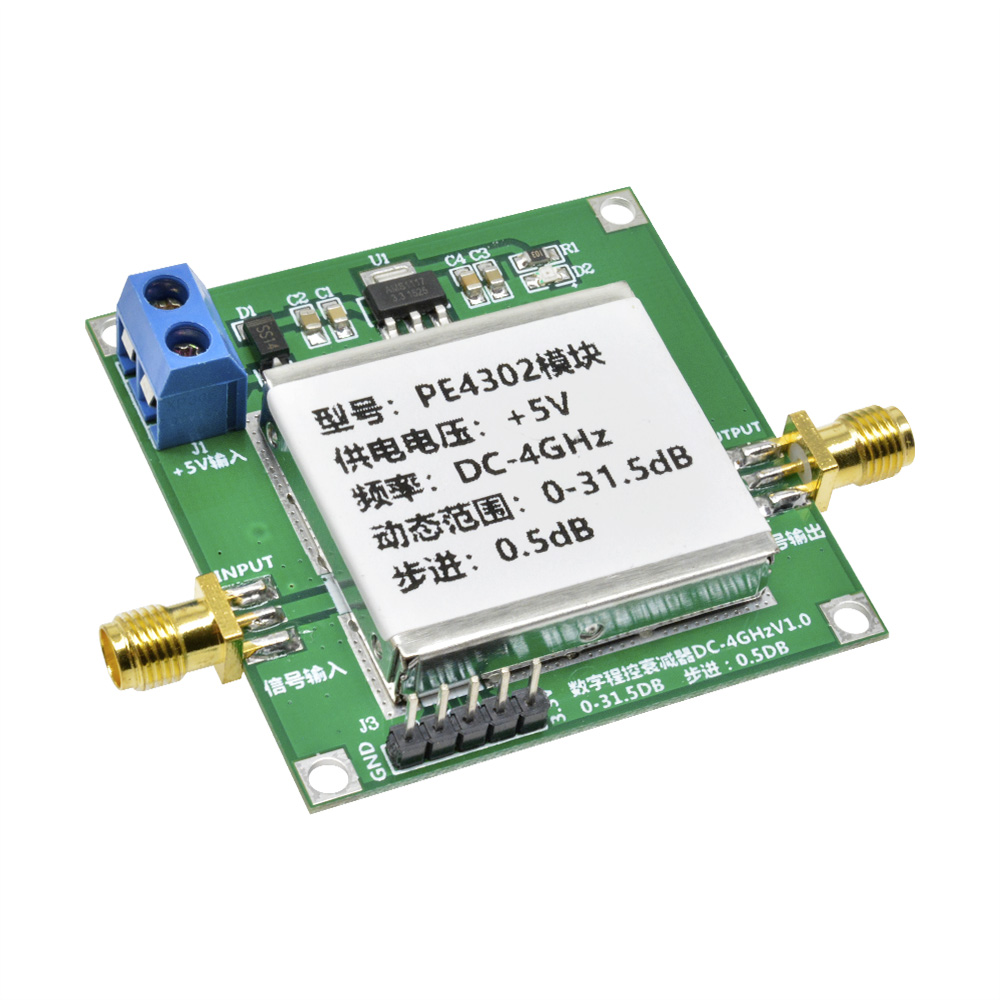

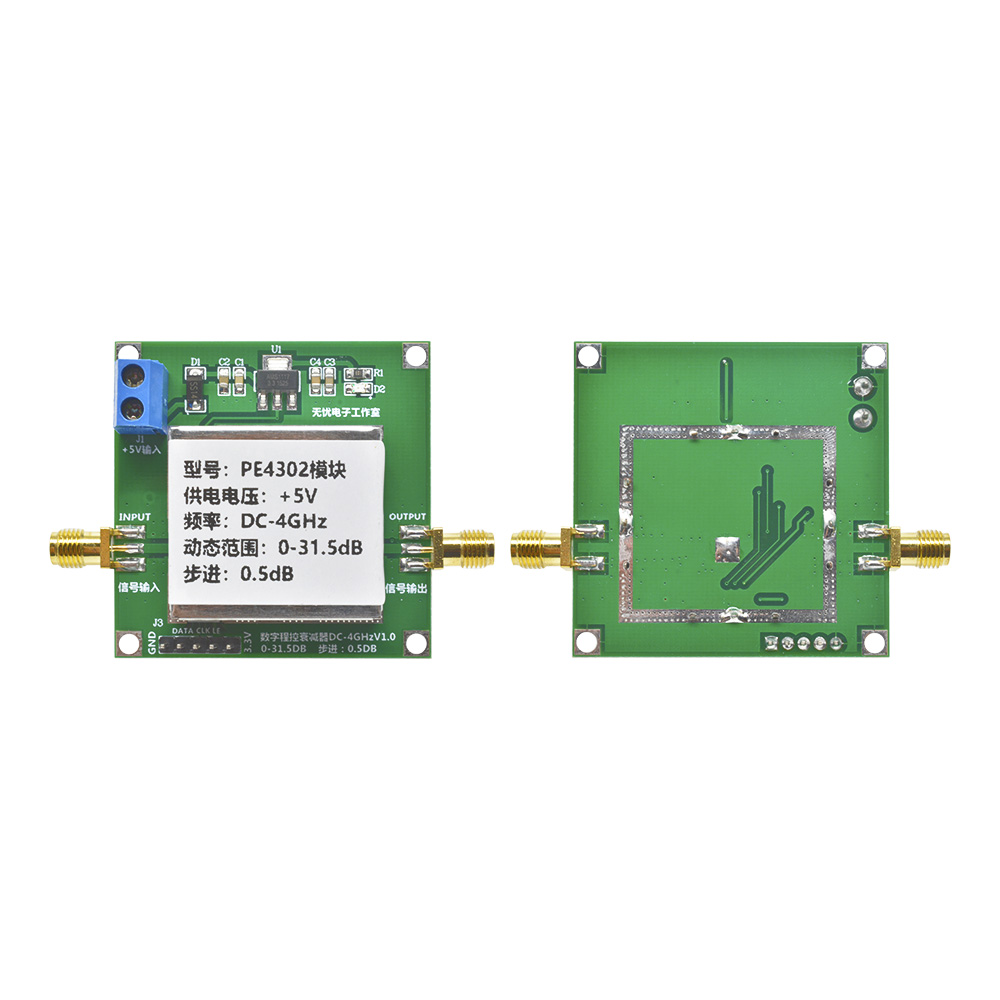

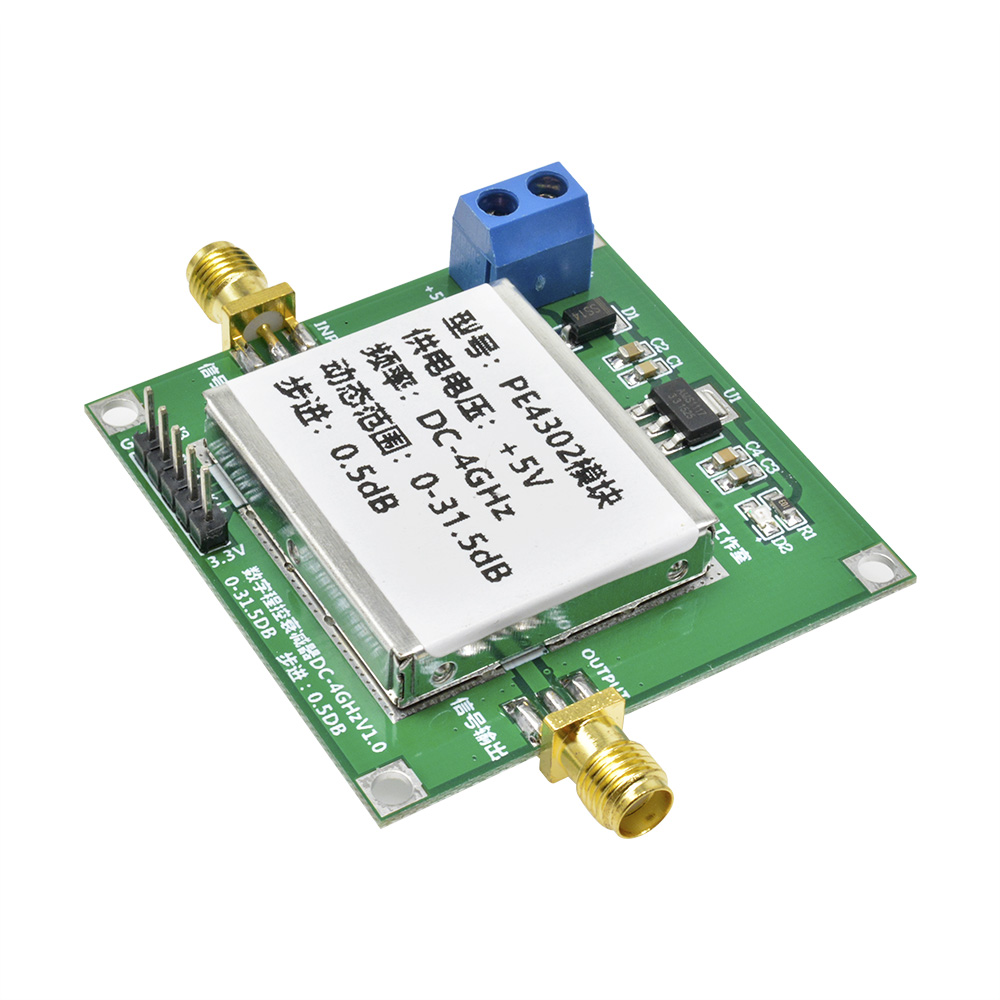

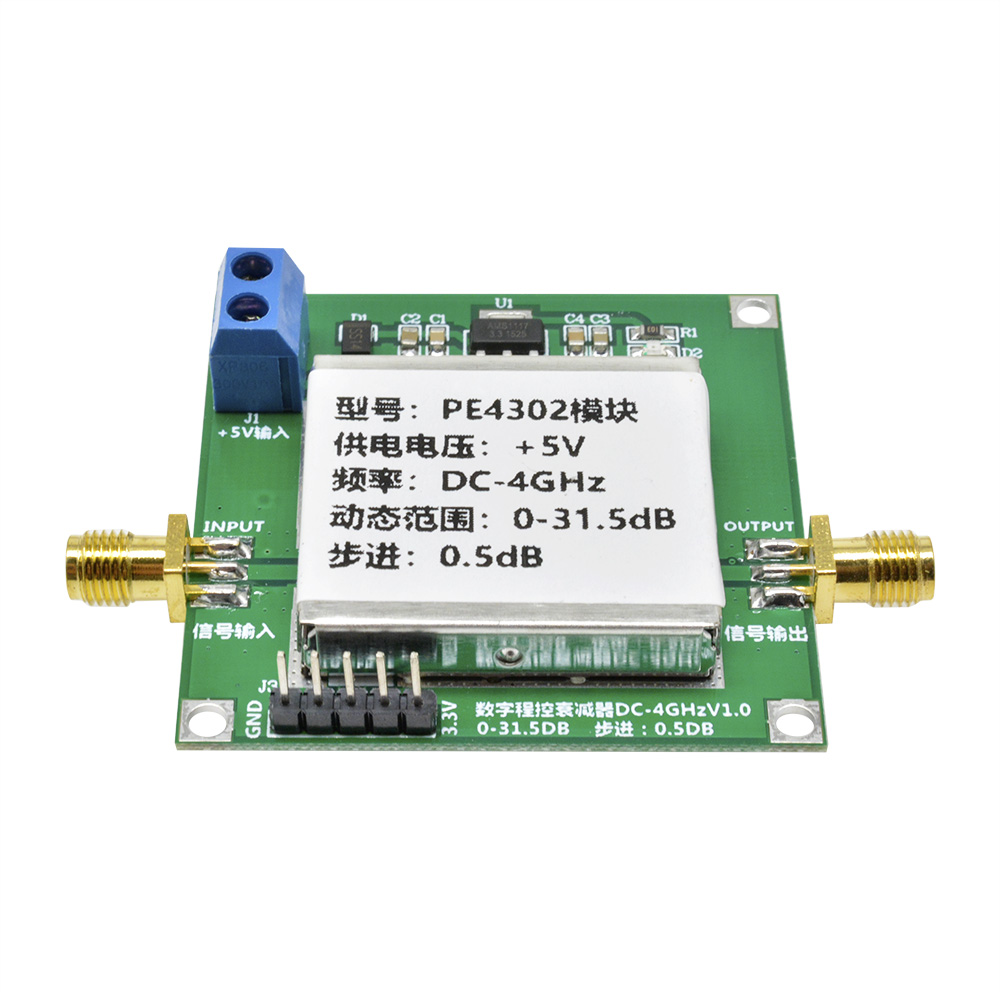

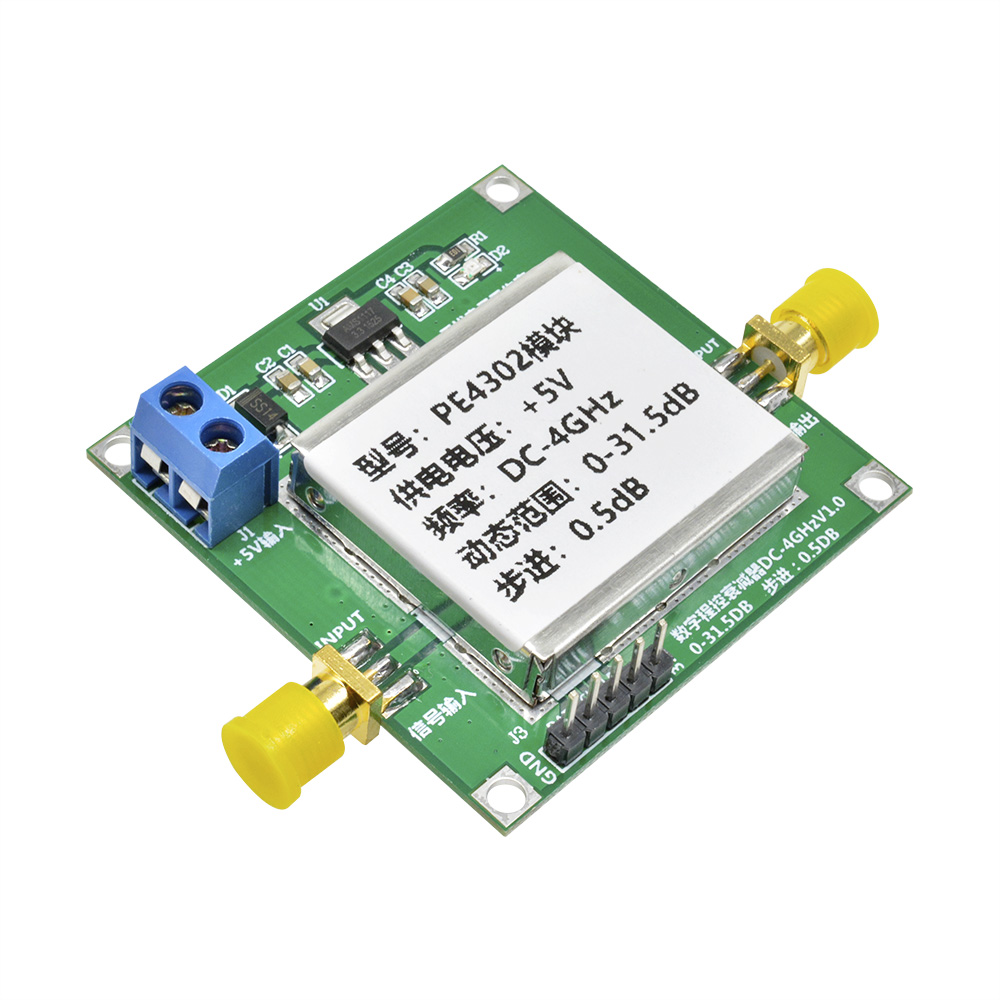

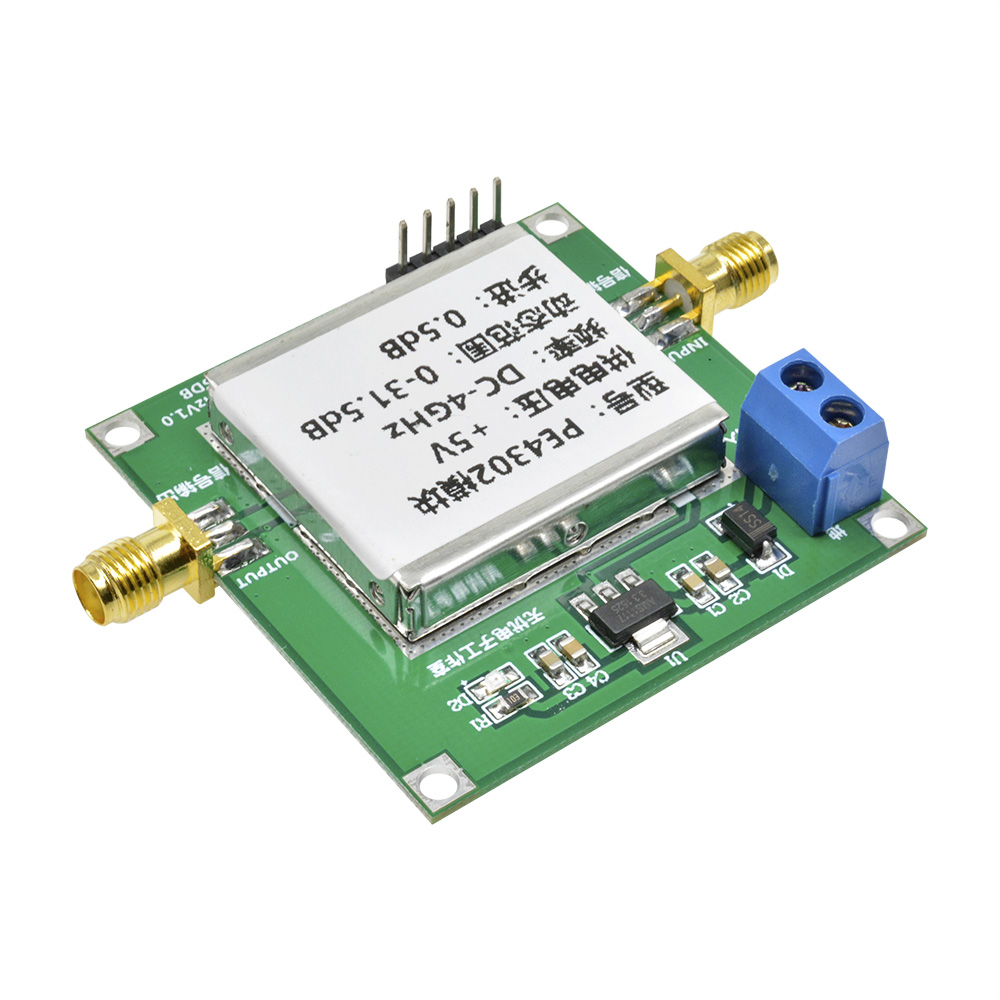

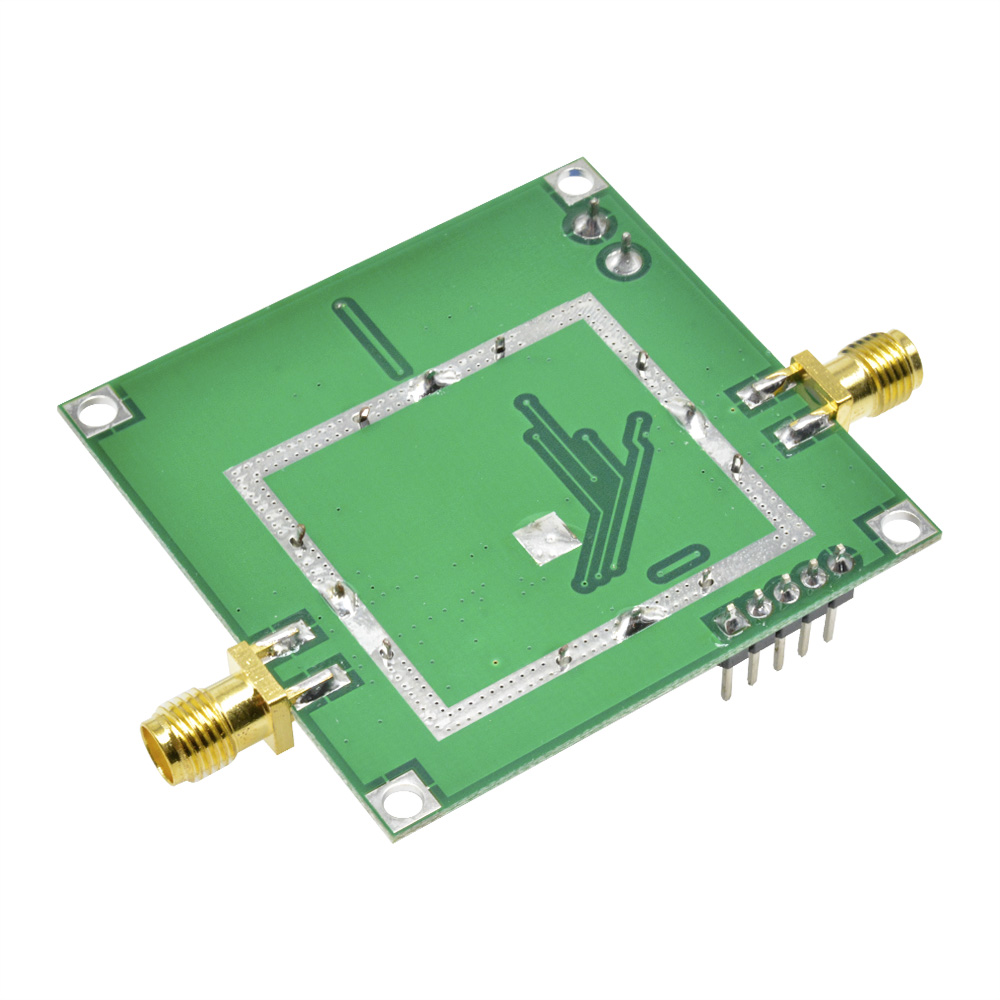

PE4302 Digital Programmable Step Attenuator Module DC 4GHZ 0-31.5DB 0.5dB RF
1. Using high quality materials, quality is guaranteed
2. Exquisite appearance, beautiful arrangement of components
3. Stable performance
4. Easy to use
5. Wide range of applications, suitable for a variety of occasions
PE4302 is a high linearity, 6-bit digital RF step attenuator, "DSA" to 0.5dB step to 31.5dB attenuation range. The frequency range is from DC - 4000MHz to achieve attenuation. This 50 Ohm RF DSA provides both parallel and serial CMOS control interfaces running on a single 3 volt power supply and maintains high attenuation accuracy over frequency and temperature. It also has a unique control interface that allows the user to select the initial attenuation state at power-up. Features a shielded enclosure and anti-reverse connection protection diodes.
Supply voltage: 5V DC (typical current value 5mA)
Programmed gain attenuation range: 0 to 31.5DB in 0.5DB steps
Input and output impedance: 50 ohms
Module supports parallel and serial port modes as well as power-on state selection function
Bandwidth: 1MHz to 4GHz (different attenuation values at different frequencies)
1, serial mode configuration: disconnect J5 J7 J6 short J4
Three-wire serial mode, the pins are: GND DATA CLK LE 3.3V
2, parallel port C0.5-C16 control mode configuration: disconnect J4 J7 short J5 J6
3, parallel port PUP control mode configuration: disconnect J4 J5 short J7 J6
RF module *1
