Specification：

• Voltage: 24V DC;

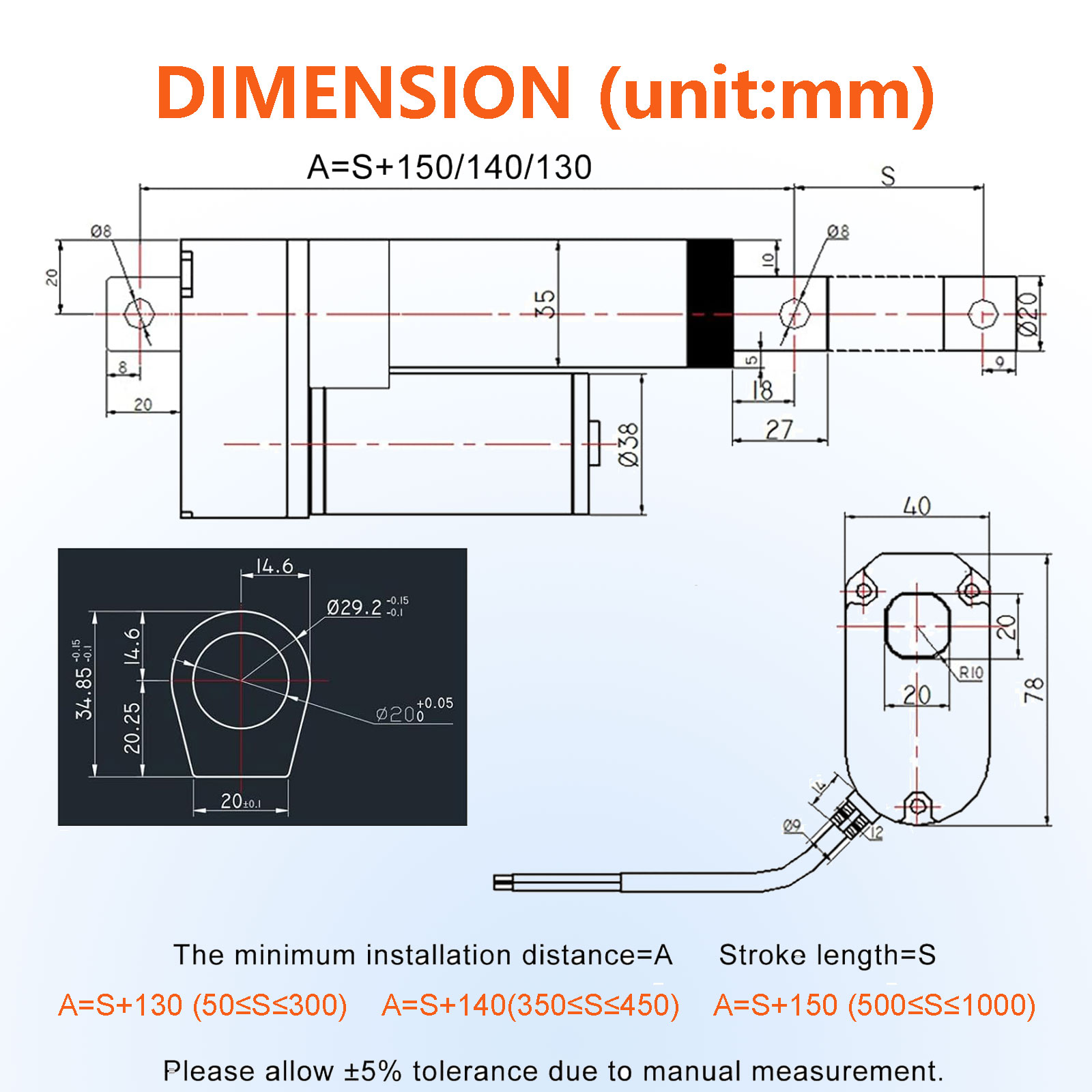

• Stroke Length: 2"-40" (50mm-1000mm),
• No load speed: 0.2 "/sec (5mm/s)
• Maximum Load: 660lbs (3000N);
• Maximum current draw: 2.5A;
• Duty Cycle:10%, Working power should reach 40W-50W

Powerful & Long-Lasting Upgraded Motor:

Linear motion actuator with high-performance motor provides 660 lbs max thrust & 440 lbs max pull, ideal for heavy-duty use.Built-in screws ensure strong rustproof & waterproof performance, while reducing exposed fasteners and lowering maintenance difficulty.

Durable & Robust Material：

Crafted from high-quality aluminum alloy, this linear actuator with corrosion resistance,heat dissipation and high hardness,it can extend the service life,and the black powder-coated surface of the actuator can enhance corrosion resistance.

Quiet Operation & Stable Base Design：

Low-noise design (≤50dB),with a premium plastic turbine that resists oxidation, extends service life, and ensures quiet movement.Upgraded four-corner fixed base, which resists loosening and breakage, enhances stability and ensures operational safety.

Reliable Operation & Easy to Install：

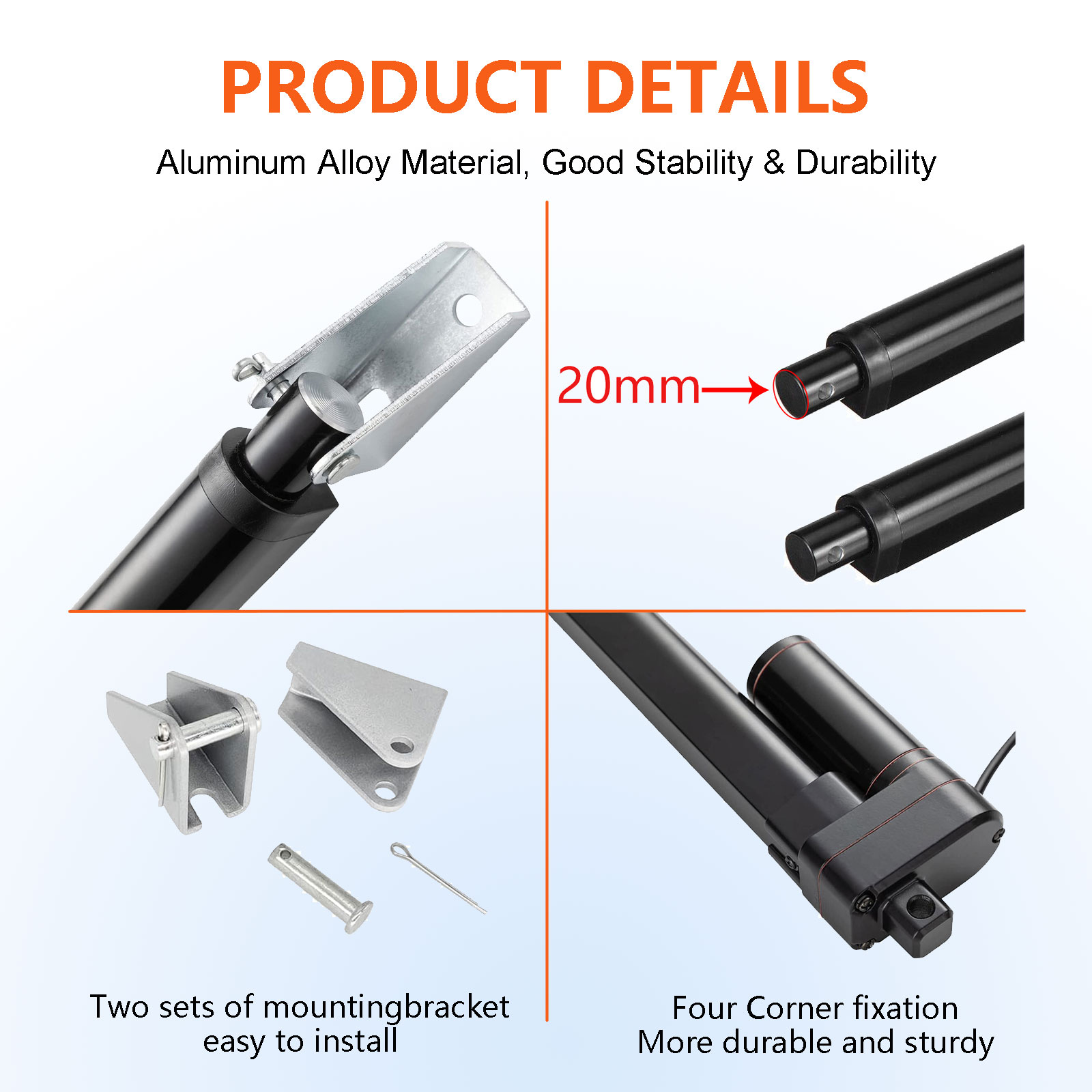

Equipped with a limit switch,it can automatically stop the motor when reaching both ends, and its strong self-locking function allows it to stay in any position,preventing motor burnout and load slipping.The linear actuator comes with mounting brackets for quick, easy assembly.

IP65 Waterproof Rating & Multi-Scene Applications：

With an IP65 waterproof rating, this actuator is suitable for indoor & outdoor use, withstands dusty environments, splashing water, and lightly humidity (Note:Please take appropriate protective measures for long-term outdoor use). Ideal for industrial electric lifting systems, door openers, electric beds, sofas, sunroofs, solar trackers, and various marine and RV equipment.

NOTE:

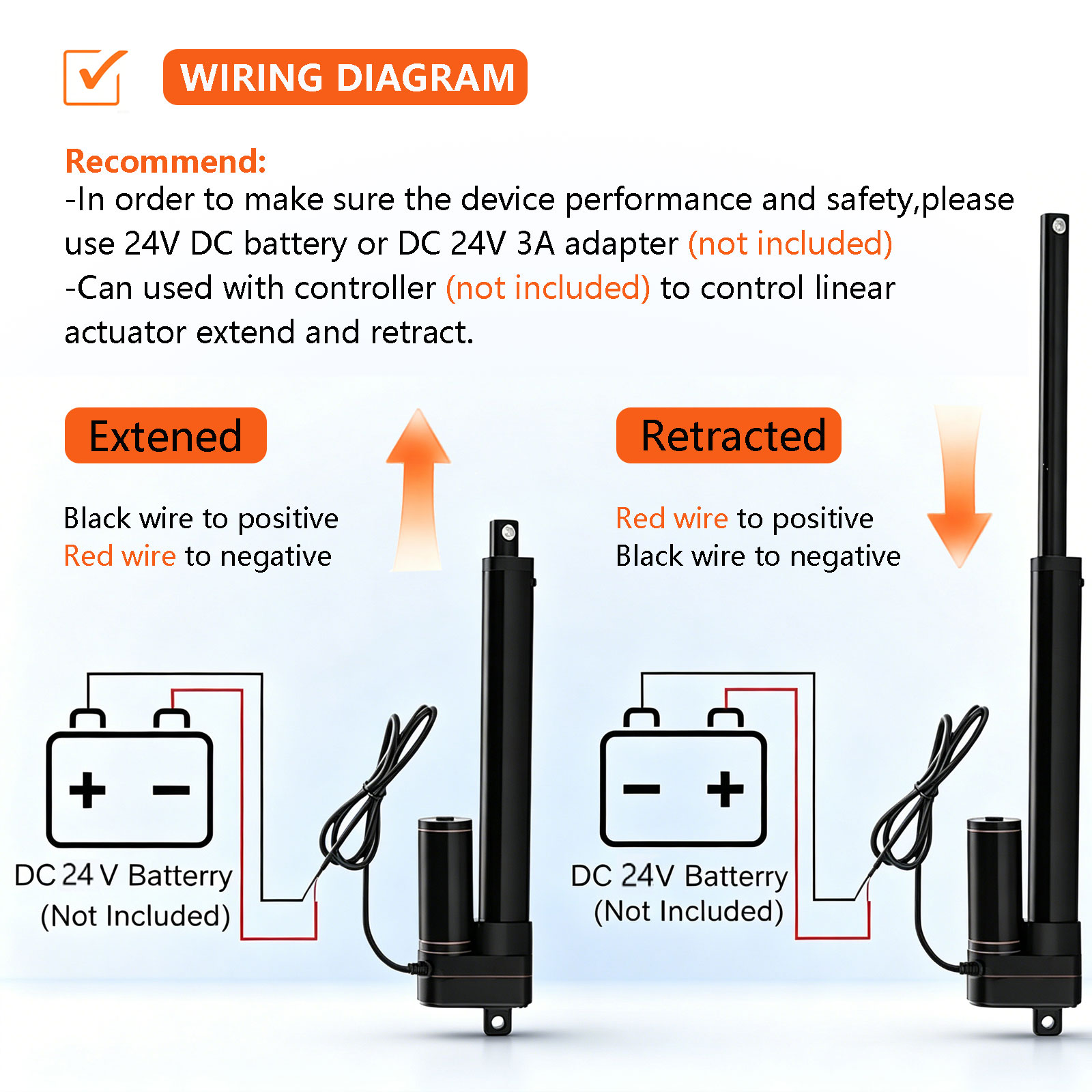

• Please use the 24V DC power battery. If the voltage is lower than 24V, the linear actuator can't work normally, if the voltage is much higher than 24V, the linear actuator will be damaged.
• Please makes sure that the actual load does not exceed the rated load.
• All the actuators have duty cycle, they are unable to work all the time without stop.
• Operating Temperature: -4°F to 140°F (-20°C to 60°C). Please don't store or operate in high temperature or humid environment, and do not place in corrosive gas.
• The working power should reach 40W-50W.

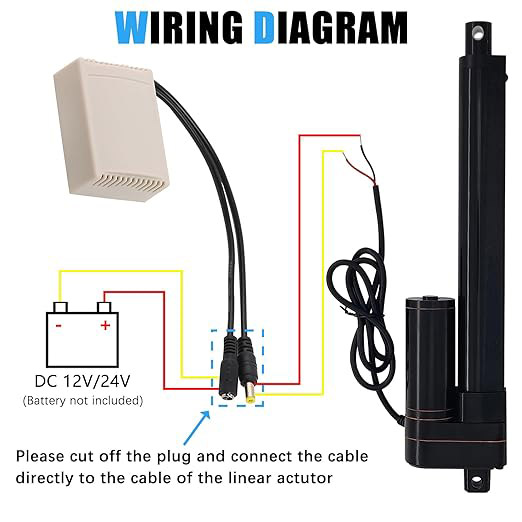

• For optimal performance,you can use the actuator in conjunction with a controller,which makes it easier to control the extension and retraction of actuator.
