Air Suspension Kit W/ Compressor For Citroën Relay 1994-2024 5000kg Campervan

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

Maxpeedingrods Air Spring Bag

Condition	Brand New
Placement on Vehicle	Rear Left and Right
Capacity	5000 KG
Stroke	130mm
Max. Extended	260mm
Min. Compressed	130mm
Unloaded	Min 10 PSI
Loaded	75 PSI
Maximum Working Voltage	10 bar (1 MPa )
Operating Pressure	≤2.0Mpa
Temperature	≤+70° , ≥-40°

MaXpeedingrods Air Compresssor

Air Compressor inlcuded	Yes
Power	150 W
Output Voltage	12 V
Maximum Current	10 A
Maximum Working Voltage	10bar（1MPa )

MaXpeedingrods Air suspension kit

Application

For Peugeot Boxer 230/244/250 1994-

For Fiat Ducato Z6 ZFA230 / ZFA244 / ZFA250 1994-

For Citroen Jumper Relay 230/244/250 1994-

Notice: Does not fit vehicles with the national Italian ABE "DGM 54739 OM"

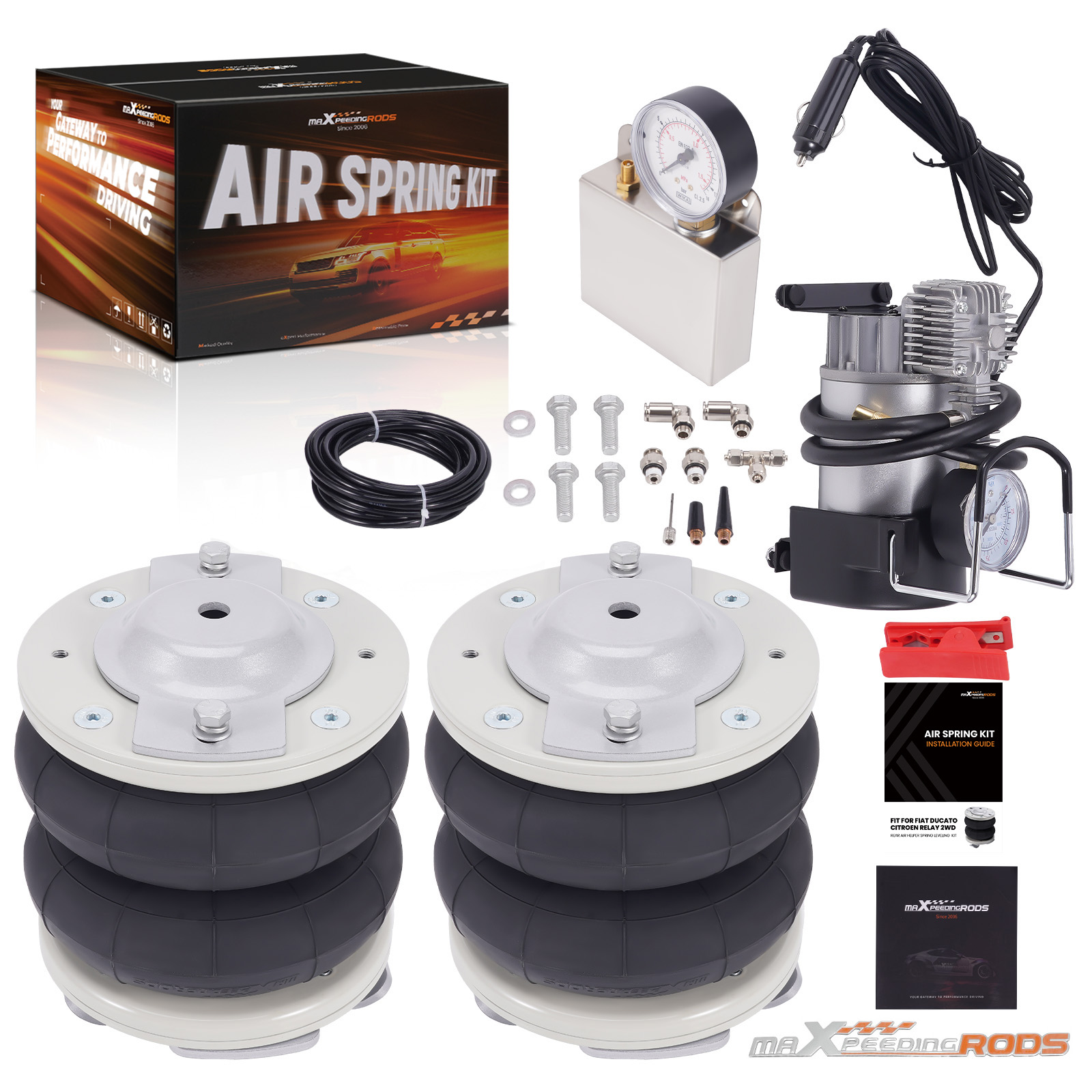

Package Includes:

2x Natural Rubber & Hi-tensile steel Air spring bag

2x Galvanised Heavy duty mounting bracket

1x 12V Air suspension compressor

2x Gauge

1x Air line

Mounting bolts and Air fittings

Notice:

- Professional installation is recommended

- Contact us please for whatever we can help

MaXpeedingrods Air suspension kit

How to Prevent Leaks Caused by Installation Mistakes

1. Make sure leave a perfectly smooth and tight seal.

2. Verify that the air line is properly placed and routed.

3. Use a spray bottle filled with soap and water to spray down all of your fittings (included the bag itself) which helps you find a leak instantly and easily.
