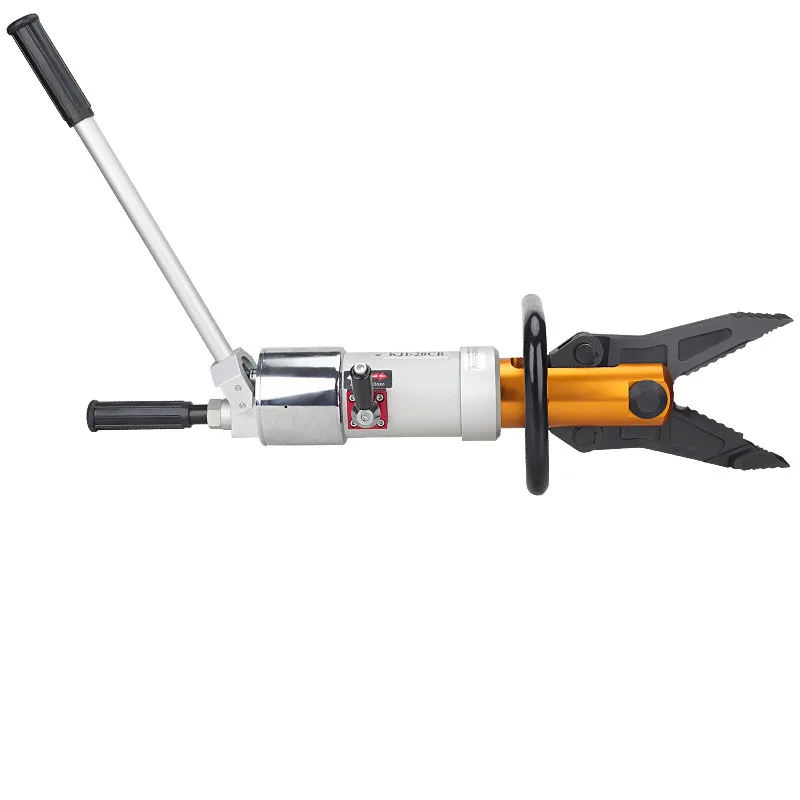

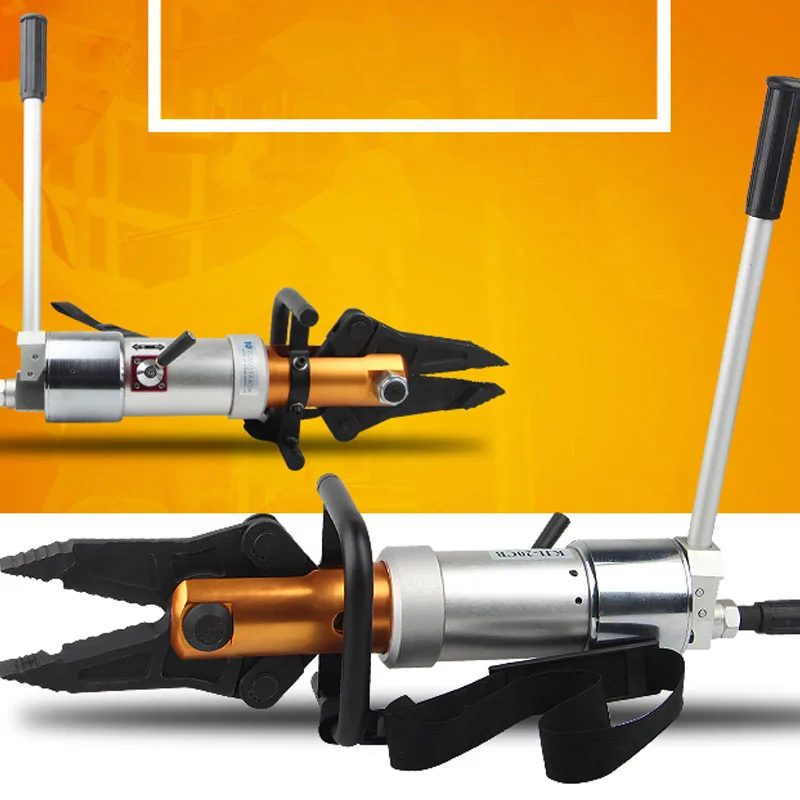

New Portable Universal Cutting Expanding Pliers Portable Expander Hydraulic Multi-function Pliers Special For Fire Fighting

Maximum opening distance: 2160mm
Rated working pressure: 63MPa
Maximum shearing capacity (Q235 material): 10mm (steel plate) q20mm (round steel)
Shearing force: 18T
Expansion force: 5.5T

Portable hydraulic multi-function pliers can be cut and expanded, the cutter head can be rotated universally

Scope of application

■Traffic accident rescue, earthquake and other disaster rescue, accident rescue
■Can work underwater
■Suitable for working on the top of ladders and hillsides
■Pry doors and deform metal structures
■Cut off metal structures, vehicle parts, pipes and sheet metal

Features

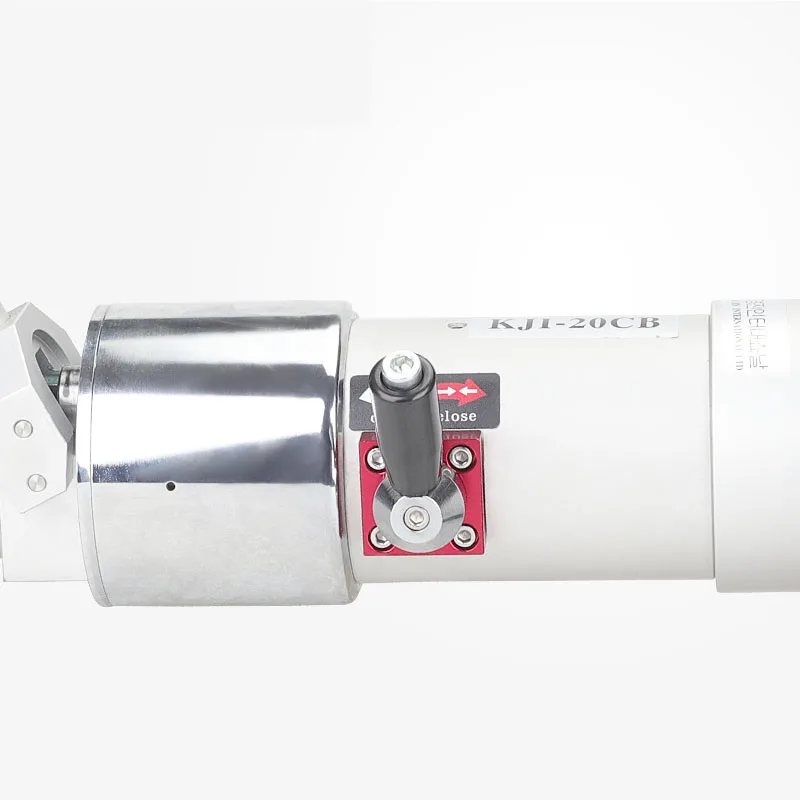

The tool is integrated with the manual pump, no external power source is required, and the high and low pressure are automatically converted

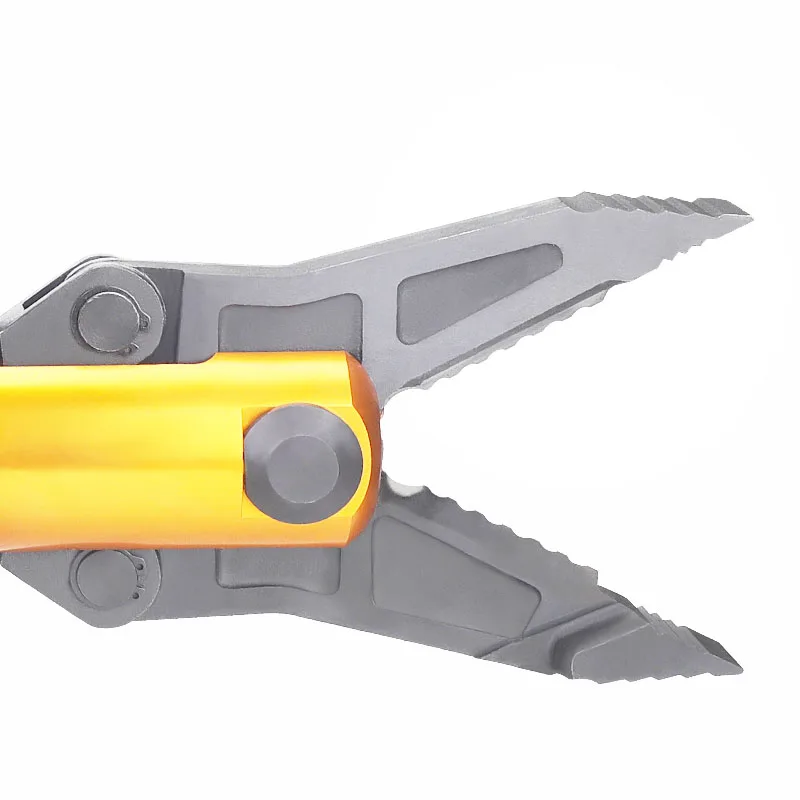

The shearing knife and the manual pump can be rotated 360° with each other to adapt to different occasions and orientations
The tool is made of regrindable tool steel, which can be sheared, expanded and clamped
■Light weight, easy to carry

technical parameter
■Maximum opening distance: ≥160mm
■Rated working pressure: 63MPa
■Maximum shearing capacity (Q235 material): 10mm (steel plate) Φ20mm (round steel)
■Shearing force: 18t
■Expansion force: 5.5t
■Expansion distance: 160mm
■Rated expansion force: ≥24kN
■No-load opening and pressing times: ≤9 times
■No-load closing and pressing times: ≤11 times
■Handle force: ≤300N
■Quality: ≤10.5kg
■Size: L×W×H 740×195×175mm
