Bryant Cable Support Grip 1.25-1.49" Split Mesh Rod Close Double U Eye SPSR125DE

Responsive image

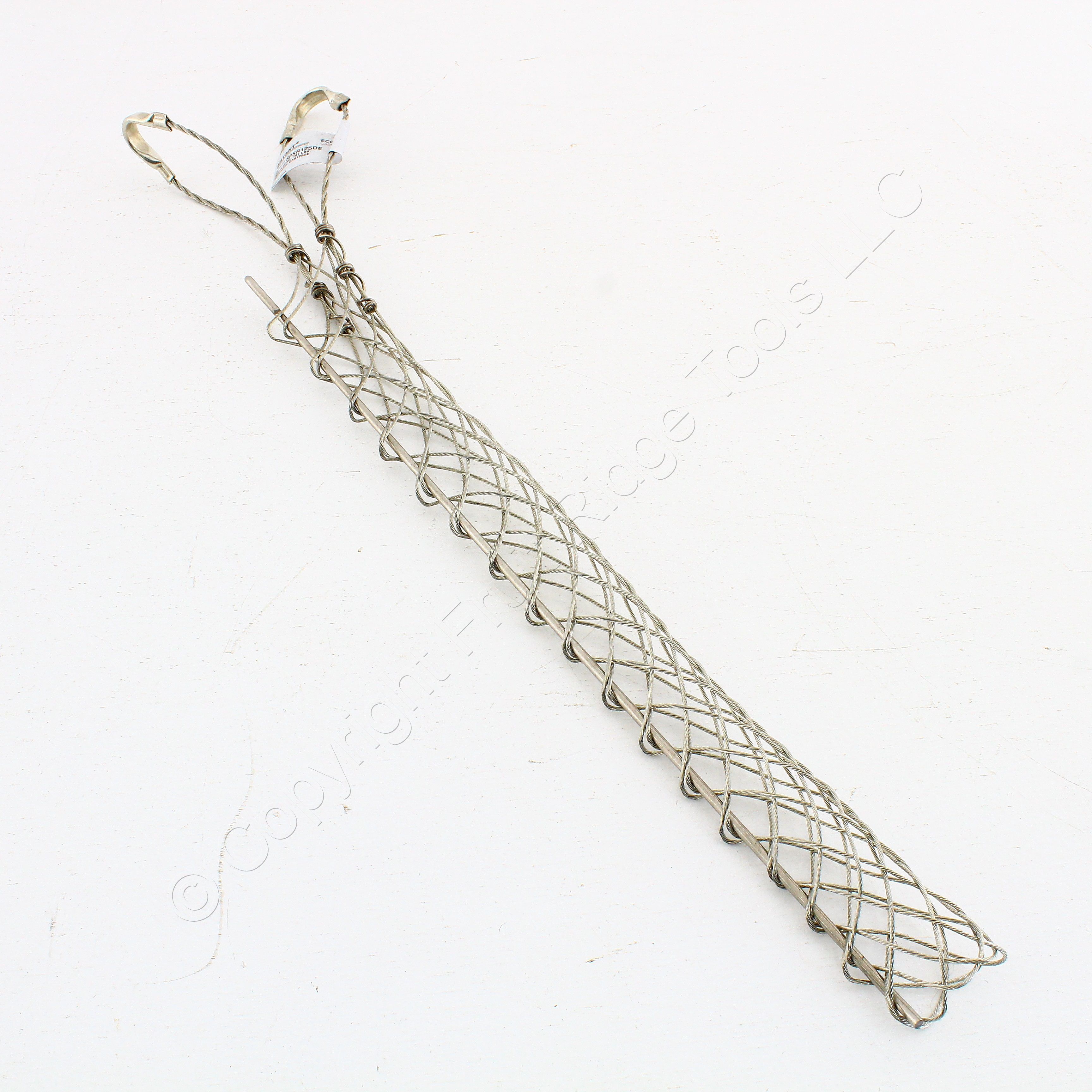

Bryant/Hubbell SPSR125DE standard duty, double U eye, split mesh, rod closing cable support grip (Bryant is a division of Hubbell). Used to hold the weight of electrical cable as it hangs in a vertical, sloping, or horizontal position. Electrical cable must be supported, or its dead weight can cause excessive strain or pullout at the connections resulting in power failure. Support grips also absorb additional strain from flexure, vibration, expansion, and contraction. Features include:

  • Cable diameter range: 1.25-1.49"
  • Approximate breaking strength: 1,610 lbs.
  • Working load: unknown.
  • Eye length: 5"
  • Wire mesh length: 14.5"
  • Tin-coated bronze for extra corrosion resistance
  • Split mesh design for use when the ends of cables are not available
  • Positive action mesh grip
  • Strand equalizer positions wires for equal loading throughout the entire grip length
  • Never use grip to approximate breaking strength. Refer to manufacturer specifications for safety and working load factors

This is New Old Stock and is returnable for any reason. (SKU # BRYSPSR125DE-EA; Weight: 0.4000 lbs.)
