Coilovers+10x Rear Wisbone Track Control Arm Kit For BMW E90 E91 E92 E93

Images

Coilovers+10x Rear Wisbone Track Control Arm Kit For BMW E90 E91 E92 E93 Coilovers+10x Rear Wisbone Track Control Arm Kit For BMW E90 E91 E92 E93 Coilovers+10x Rear Wisbone Track Control Arm Kit For BMW E90 E91 E92 E93 Coilovers+10x Rear Wisbone Track Control Arm Kit For BMW E90 E91 E92 E93 Coilovers+10x Rear Wisbone Track Control Arm Kit For BMW E90 E91 E92 E93 Coilovers+10x Rear Wisbone Track Control Arm Kit For BMW E90 E91 E92 E93



All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Notice:No Top Mount Included. Modification Required If You Use OE Top Mount



Application:



for BMW 3 Series E90 Saloon RWD 2004-2011

for BMW 3 Series E91 Estate / Touring 2004-2012

for BMW 3 Series E92 Coupe 2005-2013

for BMW 3 Series E93 Convertible / Cabriolet 2006-2013



Note: Does not fit:

not for BMW 320d 318d

not for BMW E92 325i, 335i

not for BMW E93 330d

not for M3 models

not for all-wheel

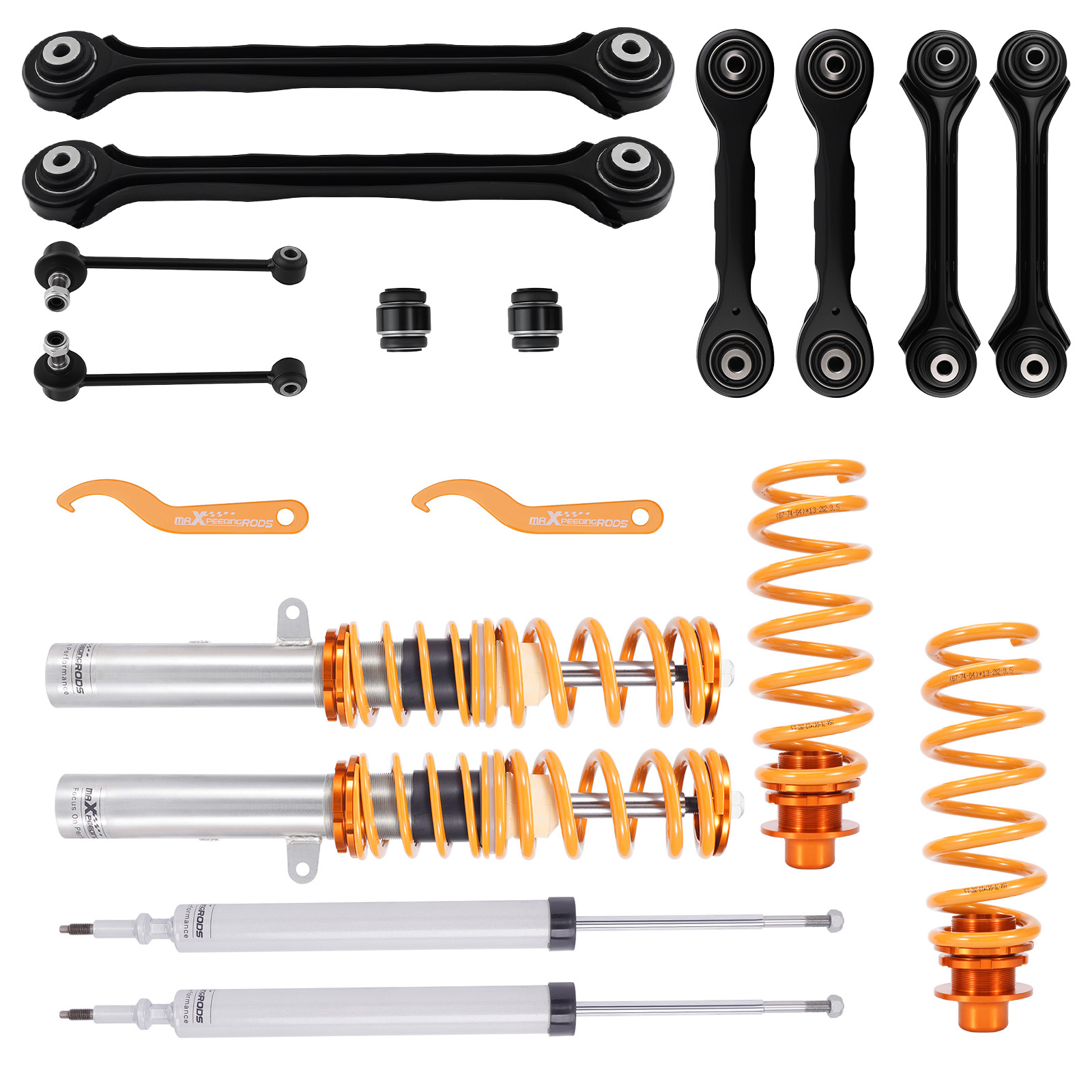

Package included



2x Front Coilovers

2x Rear Coilovers

2x C spanners

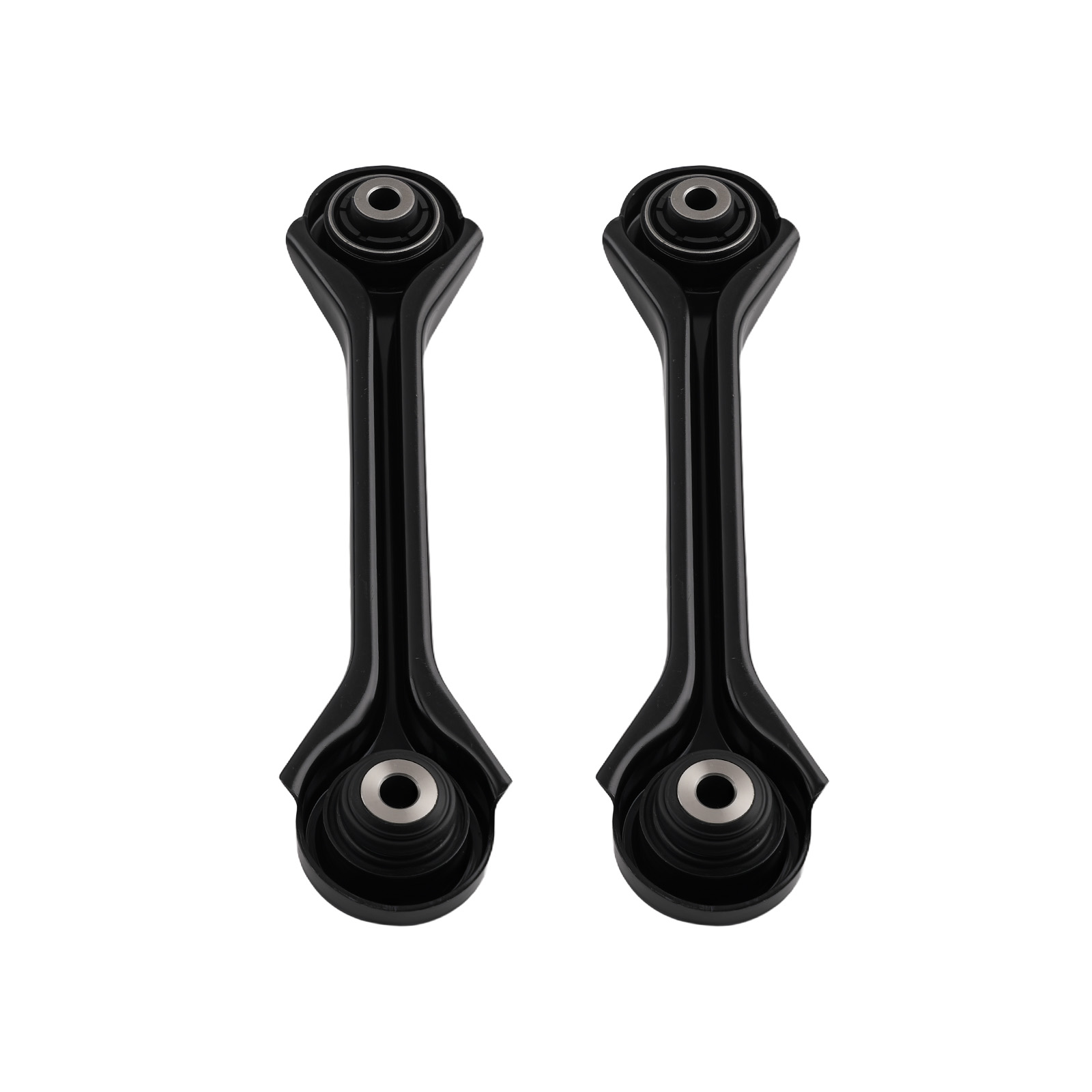

2x Wishbone of the rear axle left + top right: Including rubber bearing; Length: 273.0 mm

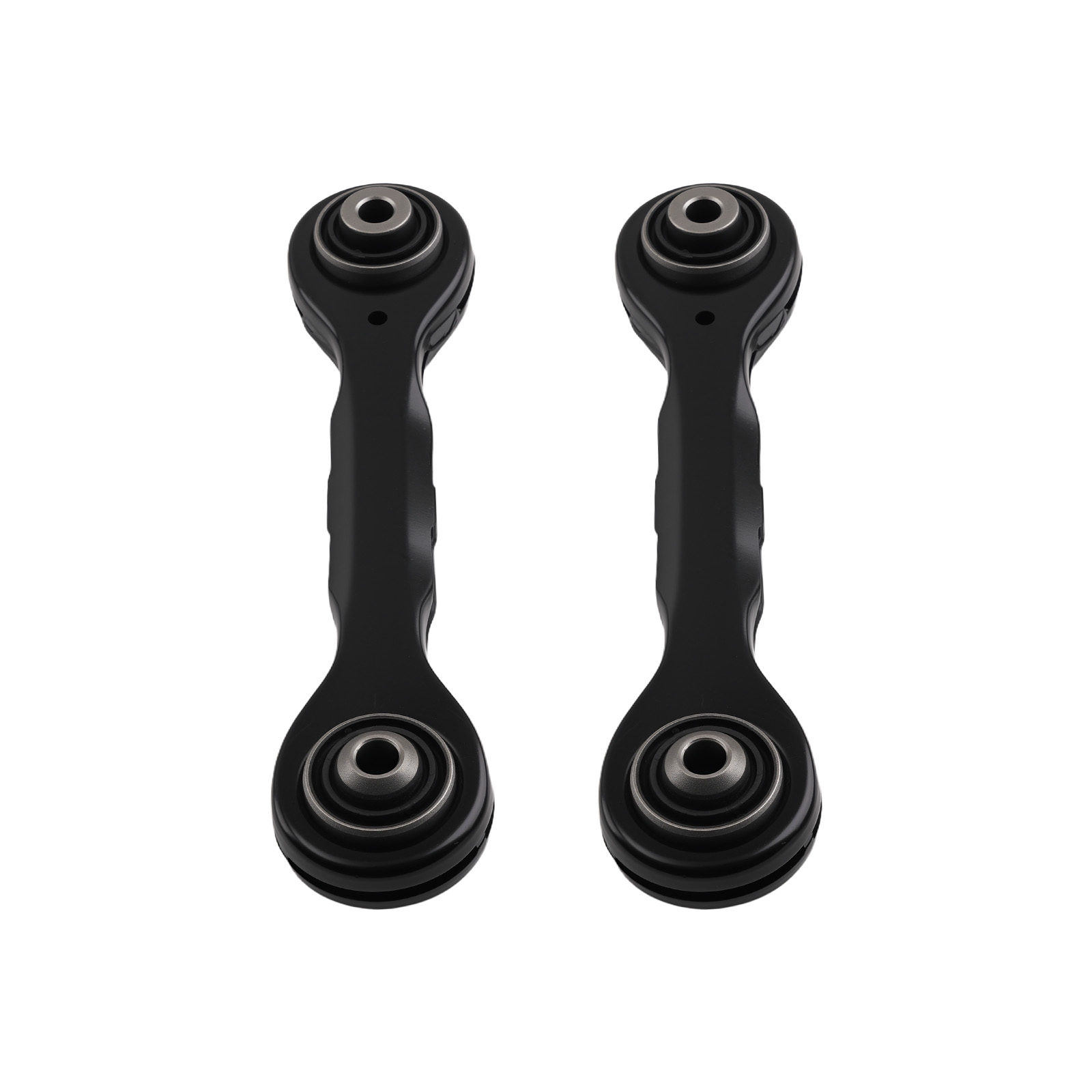

2x Push rod of the rear axle left + right: Including rubber bearing; Length: 413 mm; Material: Steel sheet

2x Inclined handlebars of the rear axle left + right: Including rubber bearing; Length: 240 mm; Material: Steel sheet

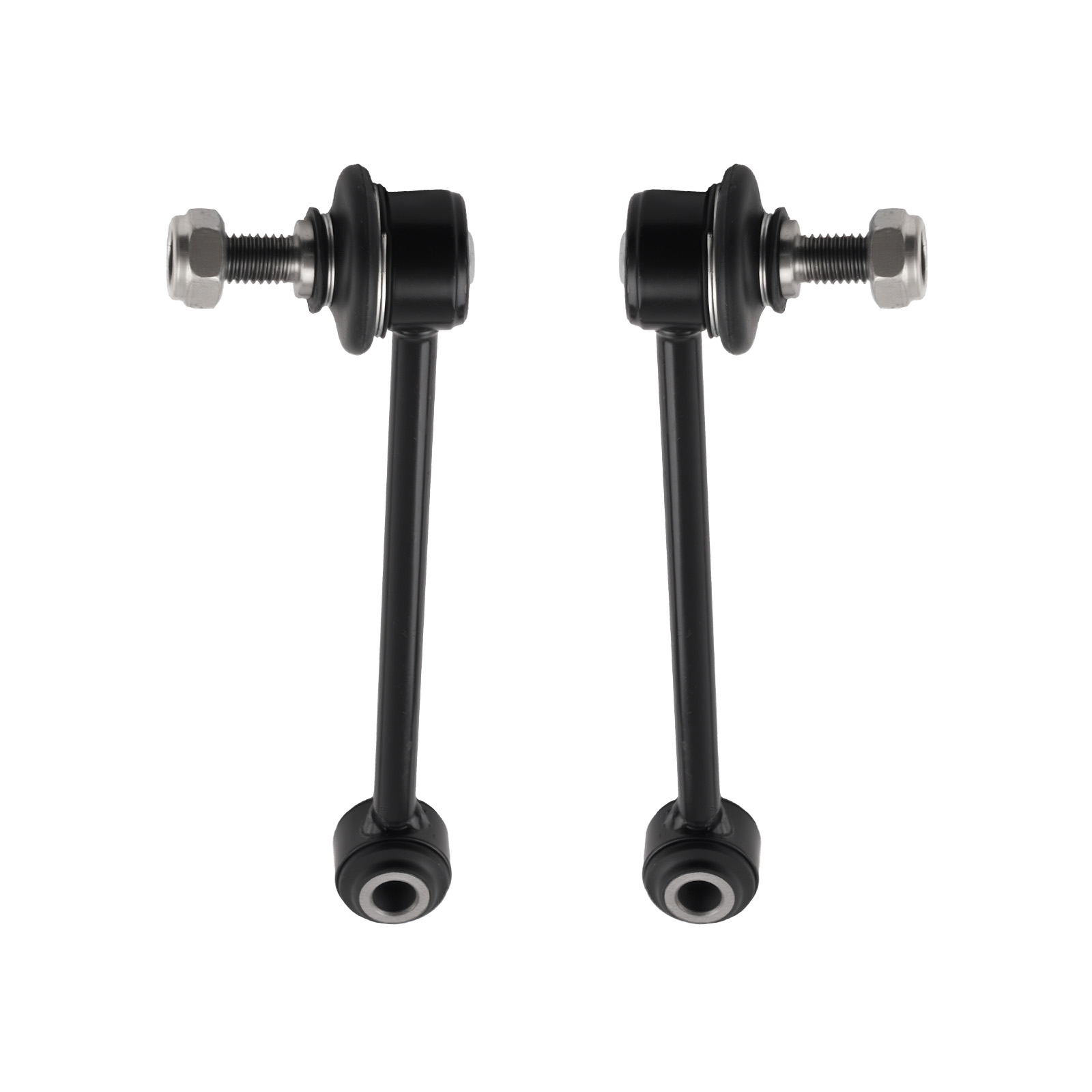

2x Coupling rod of the rear axle left + right: Length: 161.0 mm; Thread: M10x1.5; Rubber bearing bore: 8.2 mm

2x Bearing wishbone of the rear axle left + right outside: Outer diameter: 47.3 mm; Inner diameter: 14.2 mm; Width: 55.0 mm





Specification:

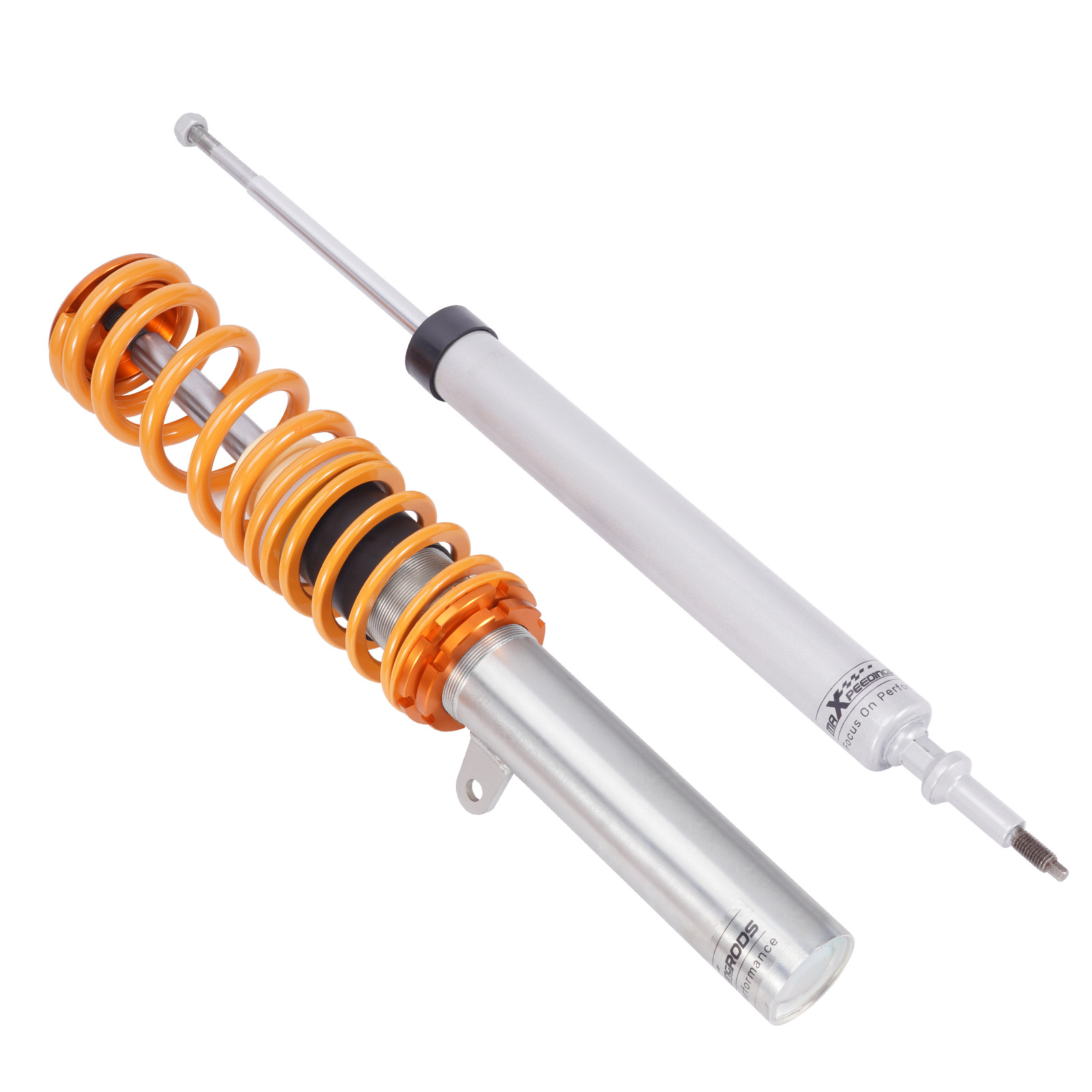

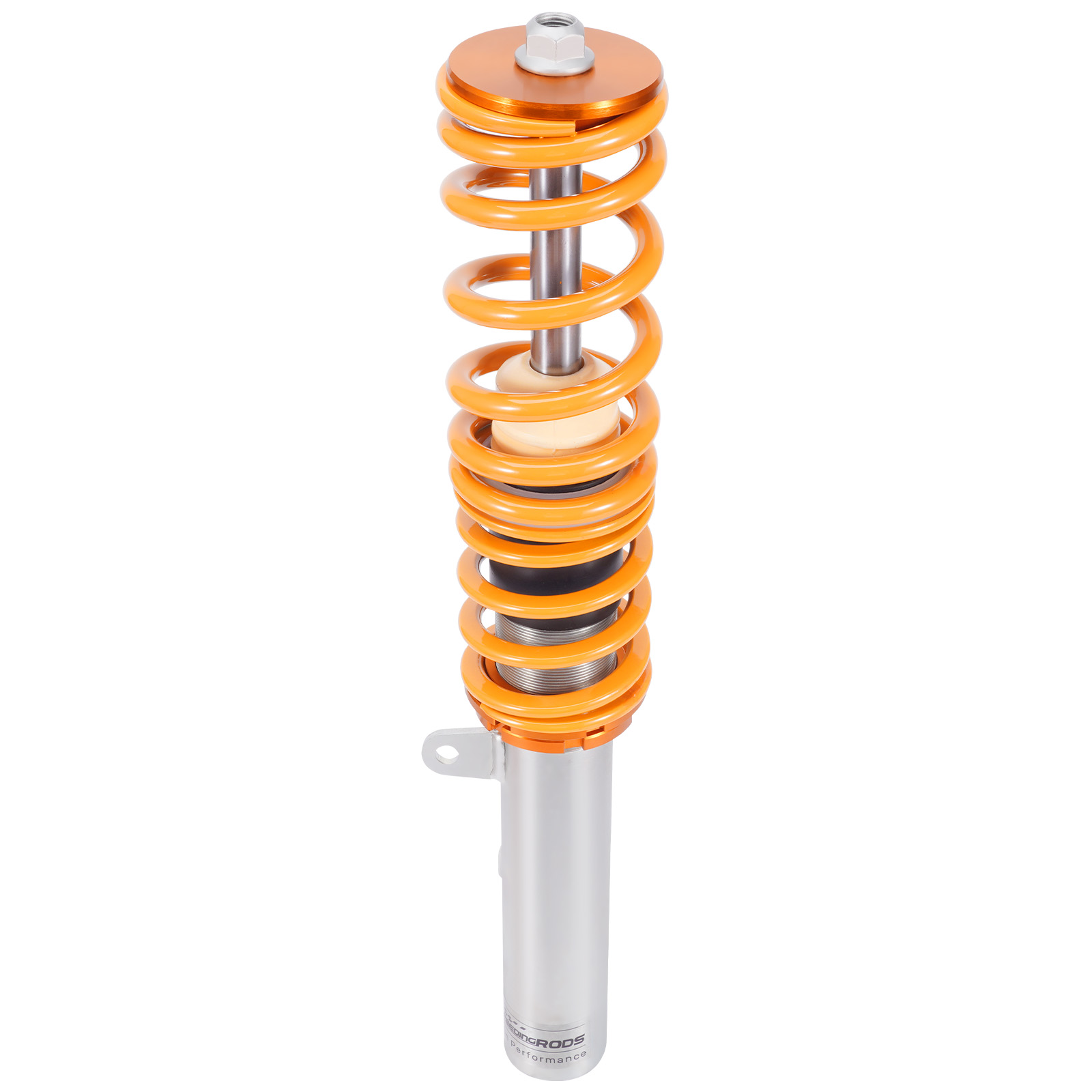

Coilovers

Adjustable height: Front lowering 30-85mm

Adjustable height: Rear lowering 30-65mm

Damping : fixed damping

Top mounts: Front and rear OE top mounts required

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 8 kg/mm (448 lbs/in)

Front spring inner diameter: 62 mm

Rear spring inner diameter: 64 mm

Spring length Front: 170 mm

Spring length Rear: 262 mm

Helper spring rate Front: 1 kg/mm (56 lbs/in)

Helper spring length Front: 102 mm

Spring Preload advised: 7-10 mm

Shock type: twin tube



Wishbone Kit

Material:  steel
Surface finish: Powder coated
Placement on Vehicle: Left,Rear,Right



Reference & OEM Part Number

33326763473, 33326777980, 33326763471, 33322406290

33326765425, 33326782237, 33326782238, 33356764428

33556764428, 33326775552, 33326792553, 33326756249







Note



We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.

Adjustable height Fix damping with helper springs
