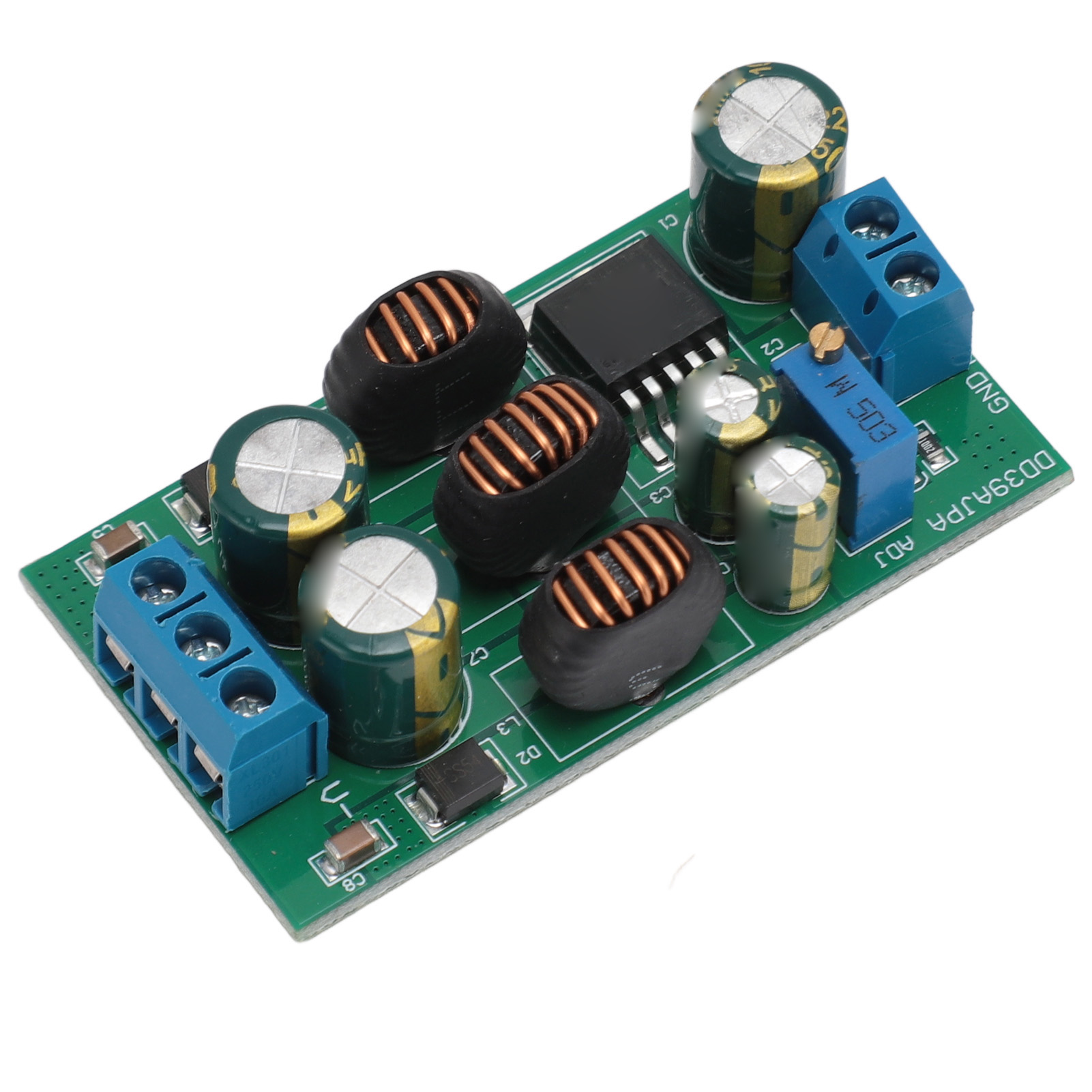

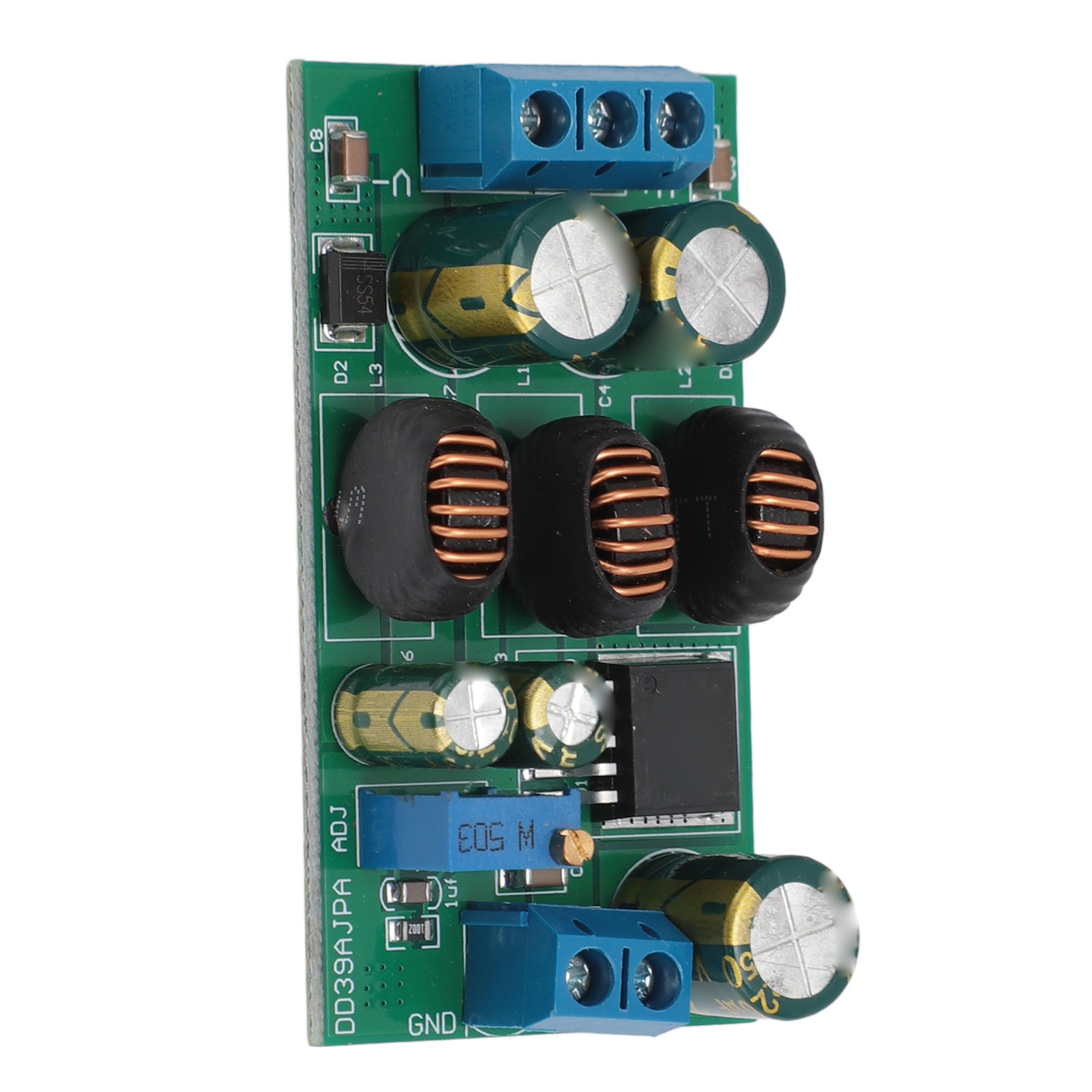

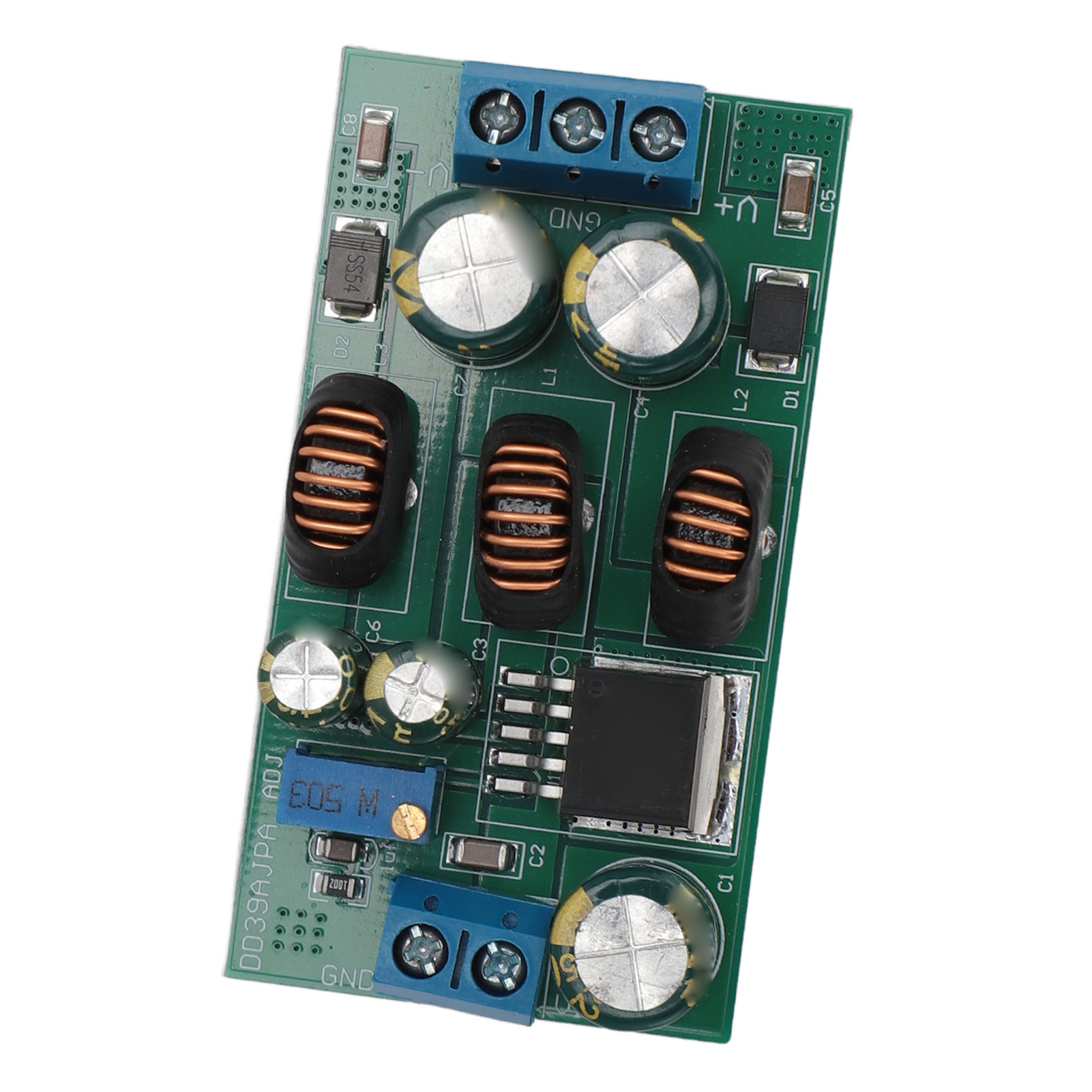

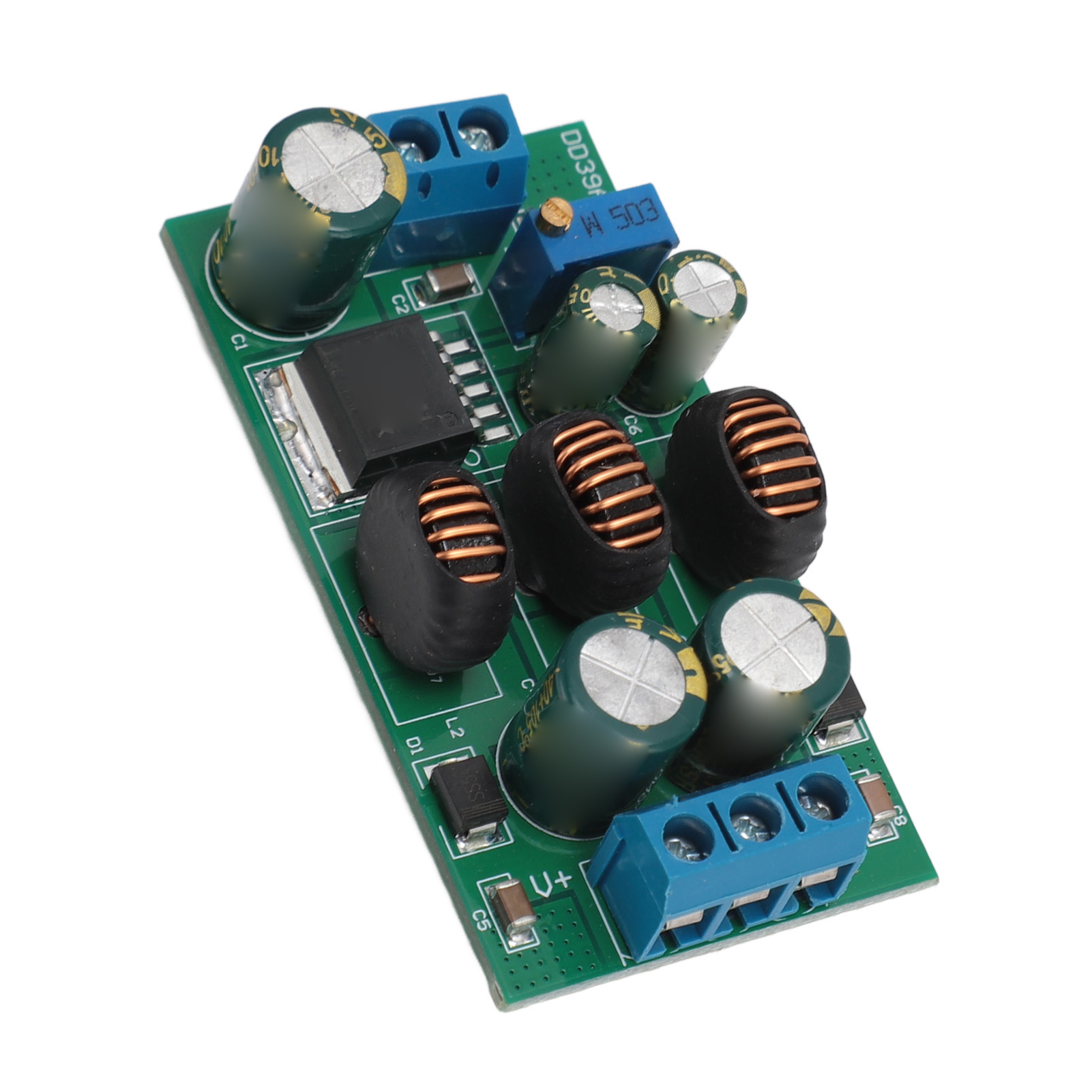

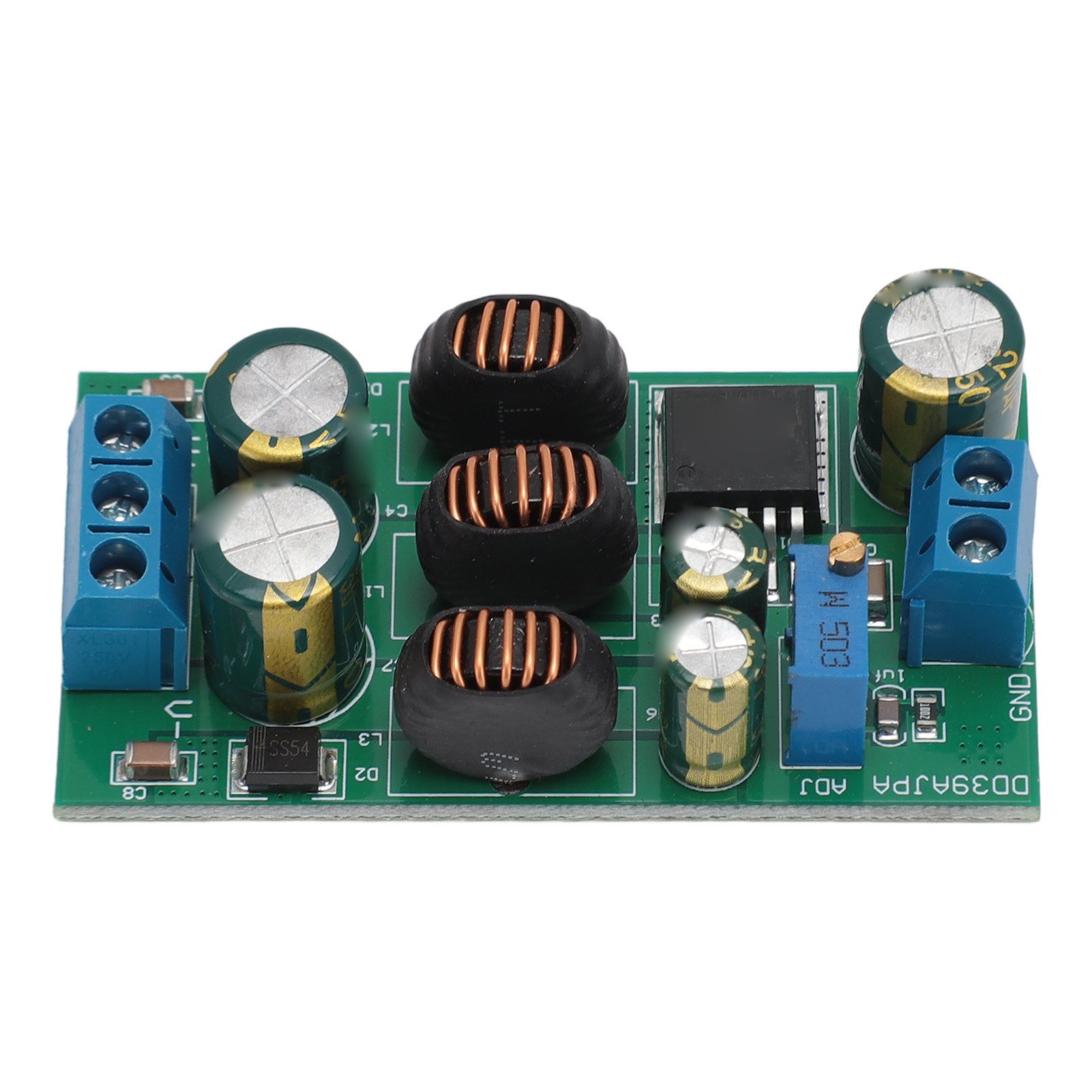

Feature:

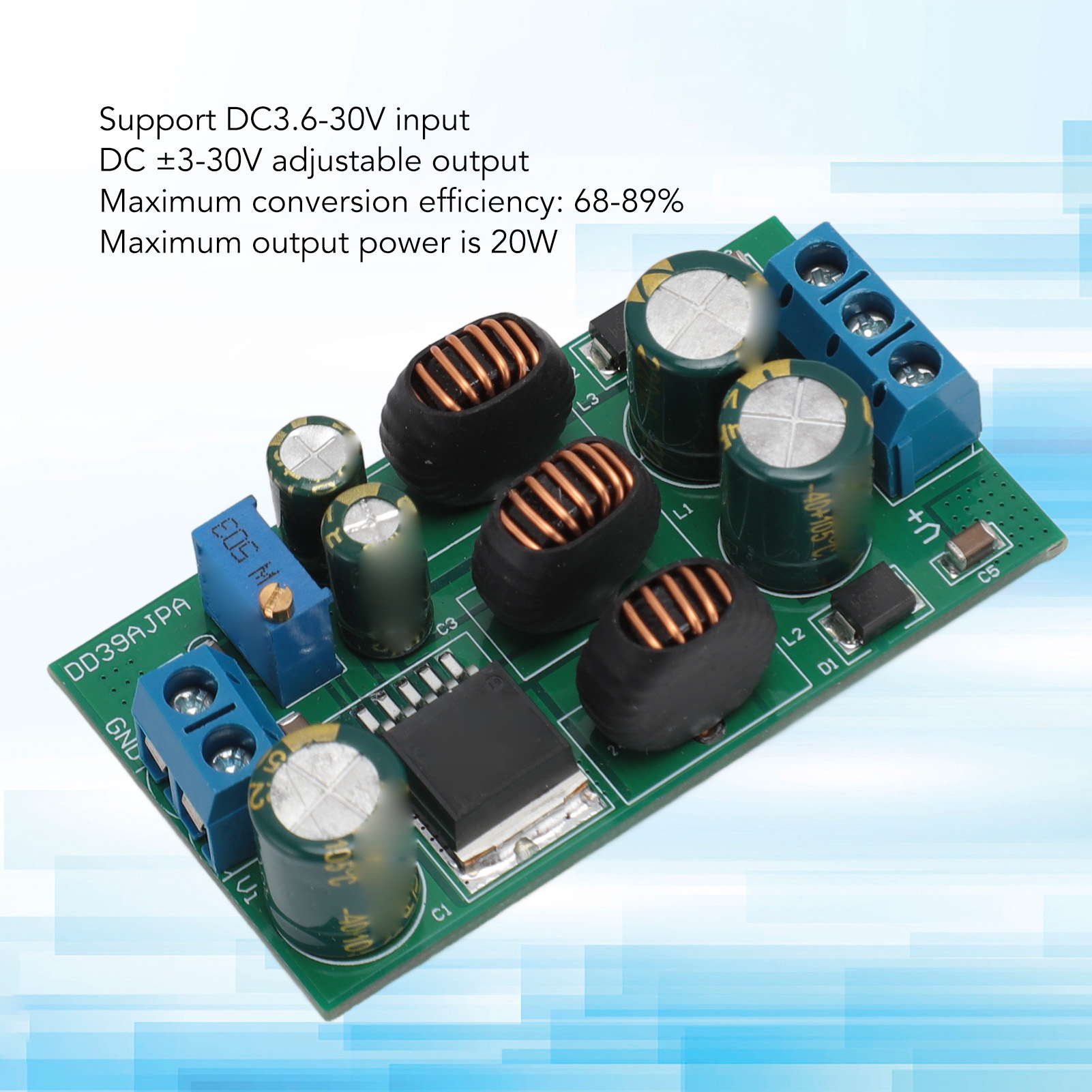

1. Input and Output Voltage: Lift voltage positive and negative pressure module supports DC3.6‑30V input, DC ±3‑30V adjustable output, static working current is 2.5mA
2. High Efficiency: The boost module is designed for high conversion efficiency up to 68‑89% with a maximum output power of 20W.

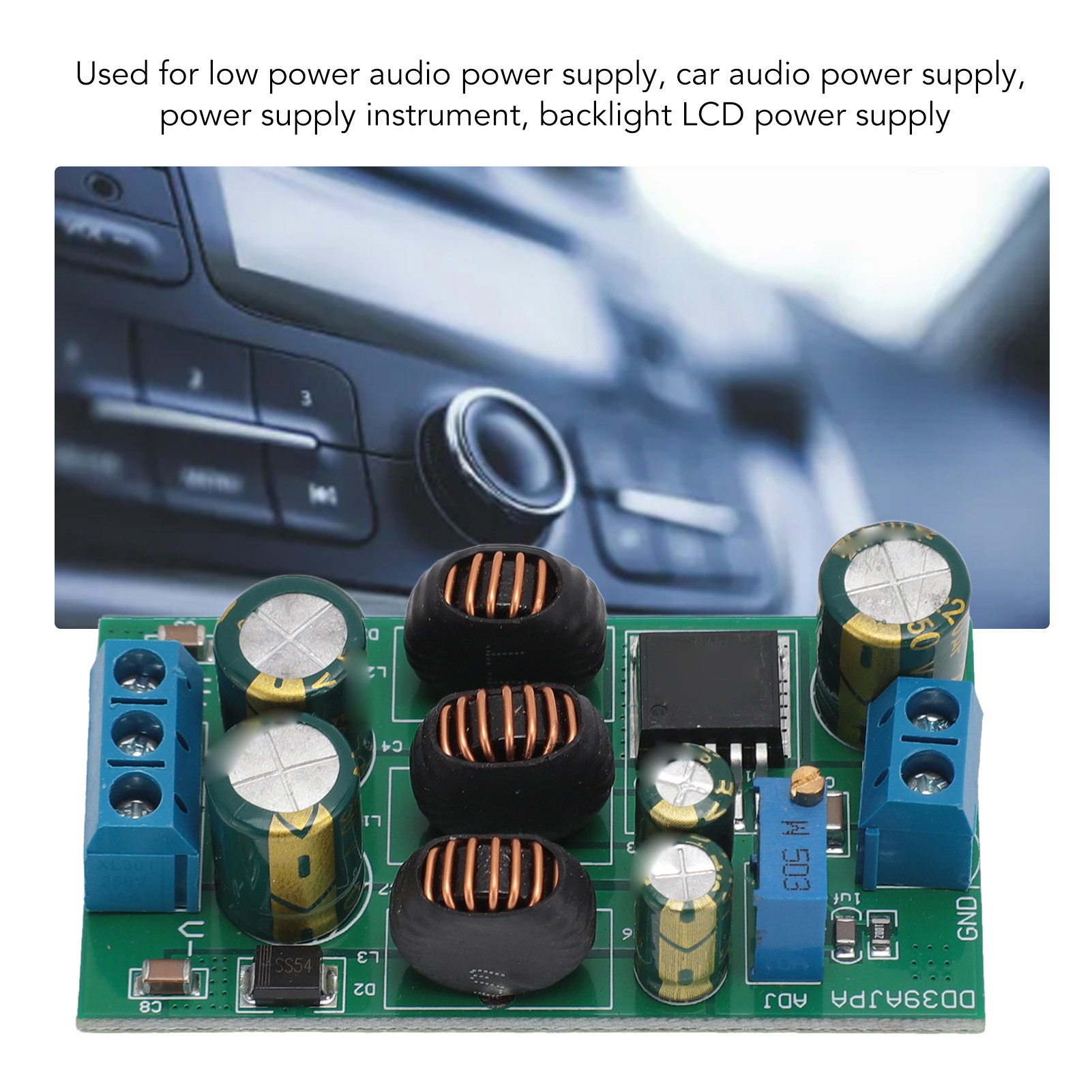

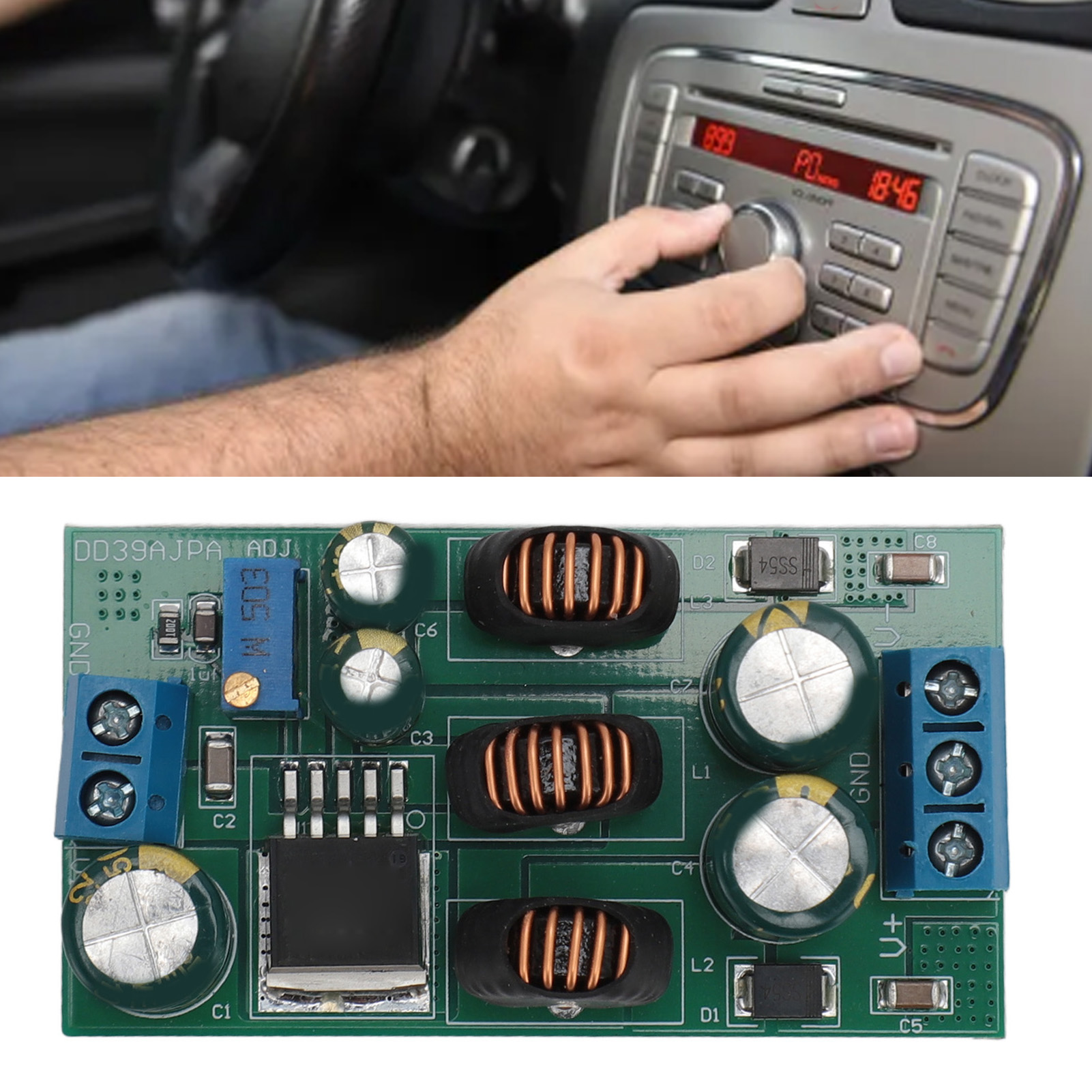

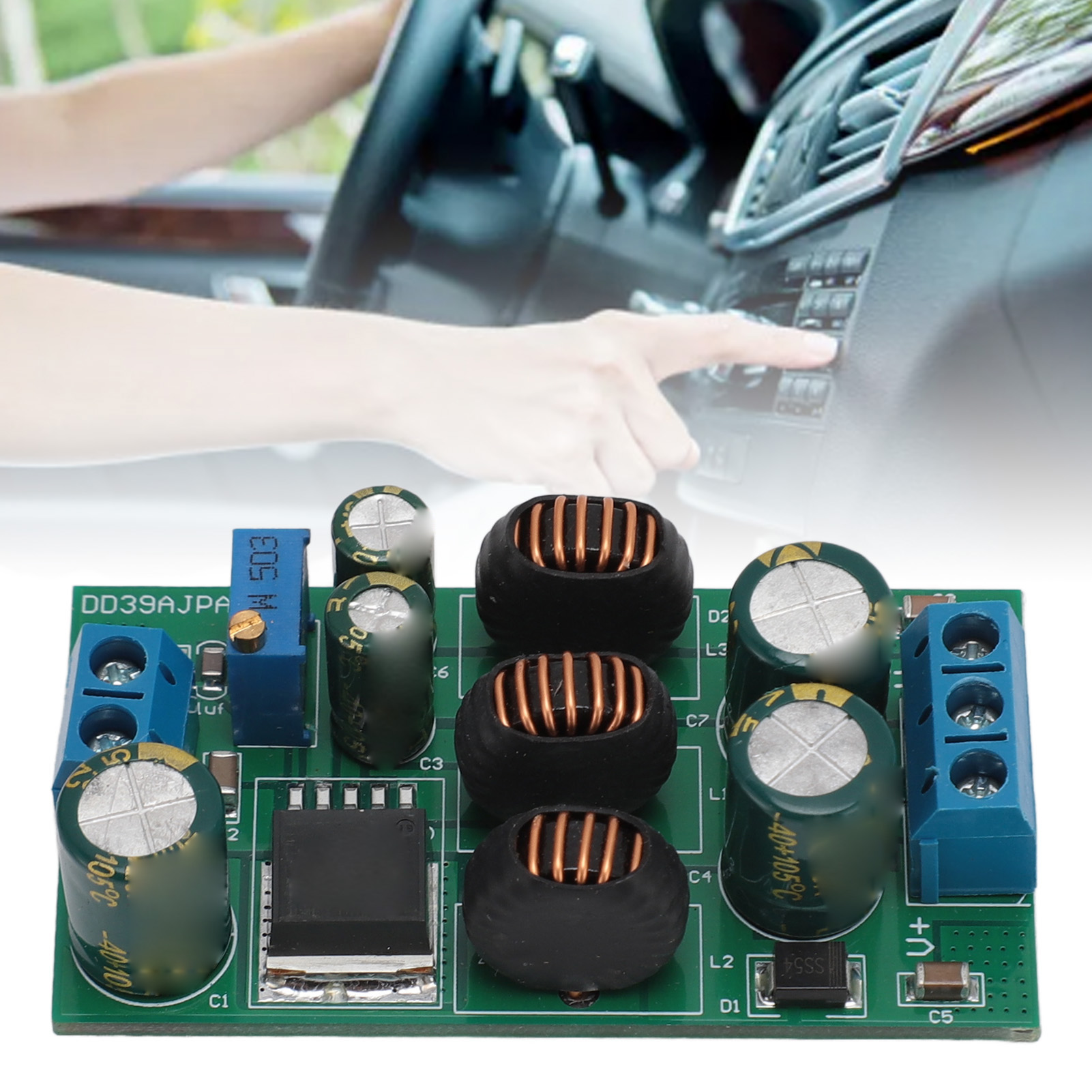

3. Application: Used for ADC, DAC, power transmission amplifier, RS232 RS485 RS422 bus power supply, low power audio, car audio, backlight LCD power supply, power supply instrument,

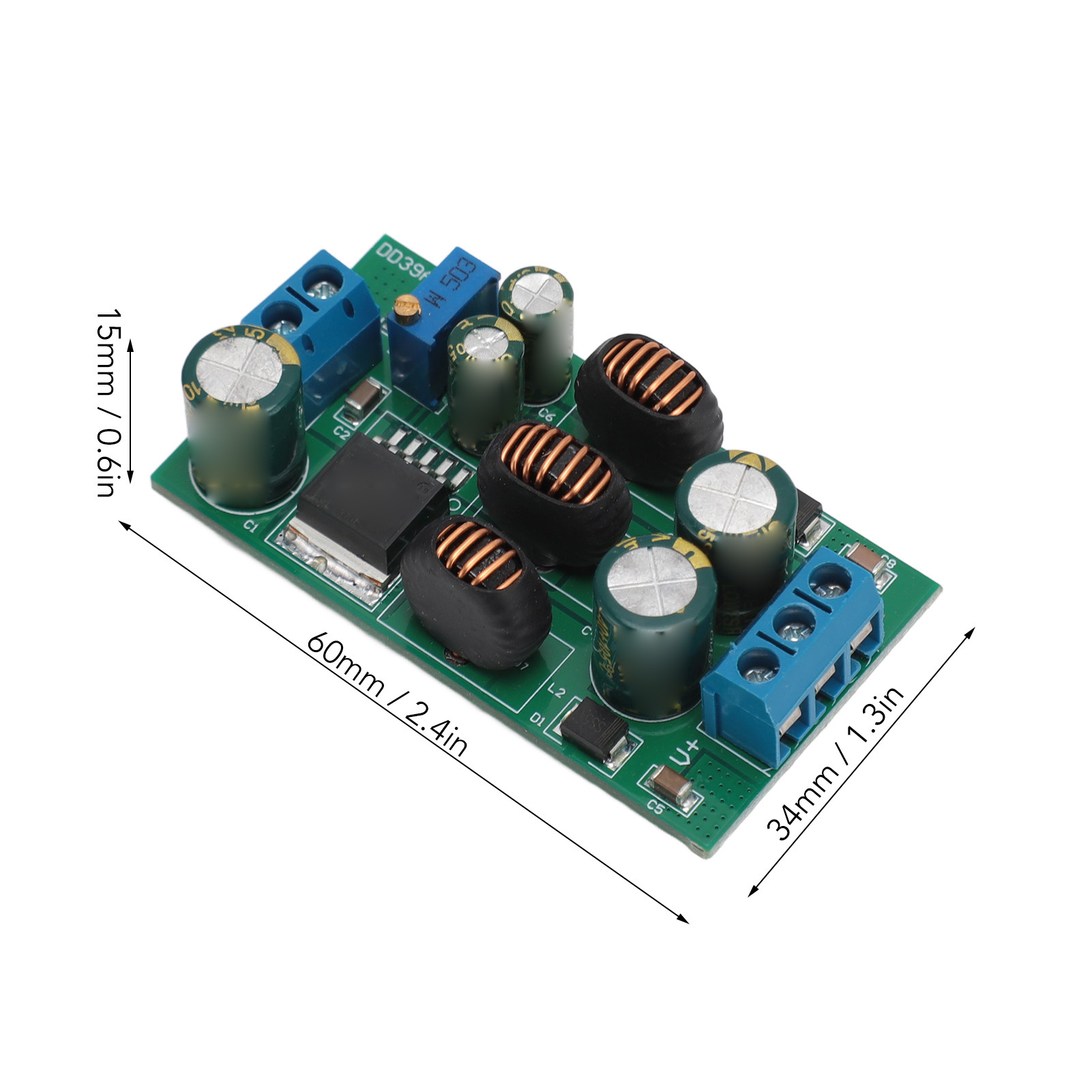

4. Compact: The boost module is compact and lightweight, with a size of 60 x 34x 15mm, making it ideal for use in applications where space is limited.

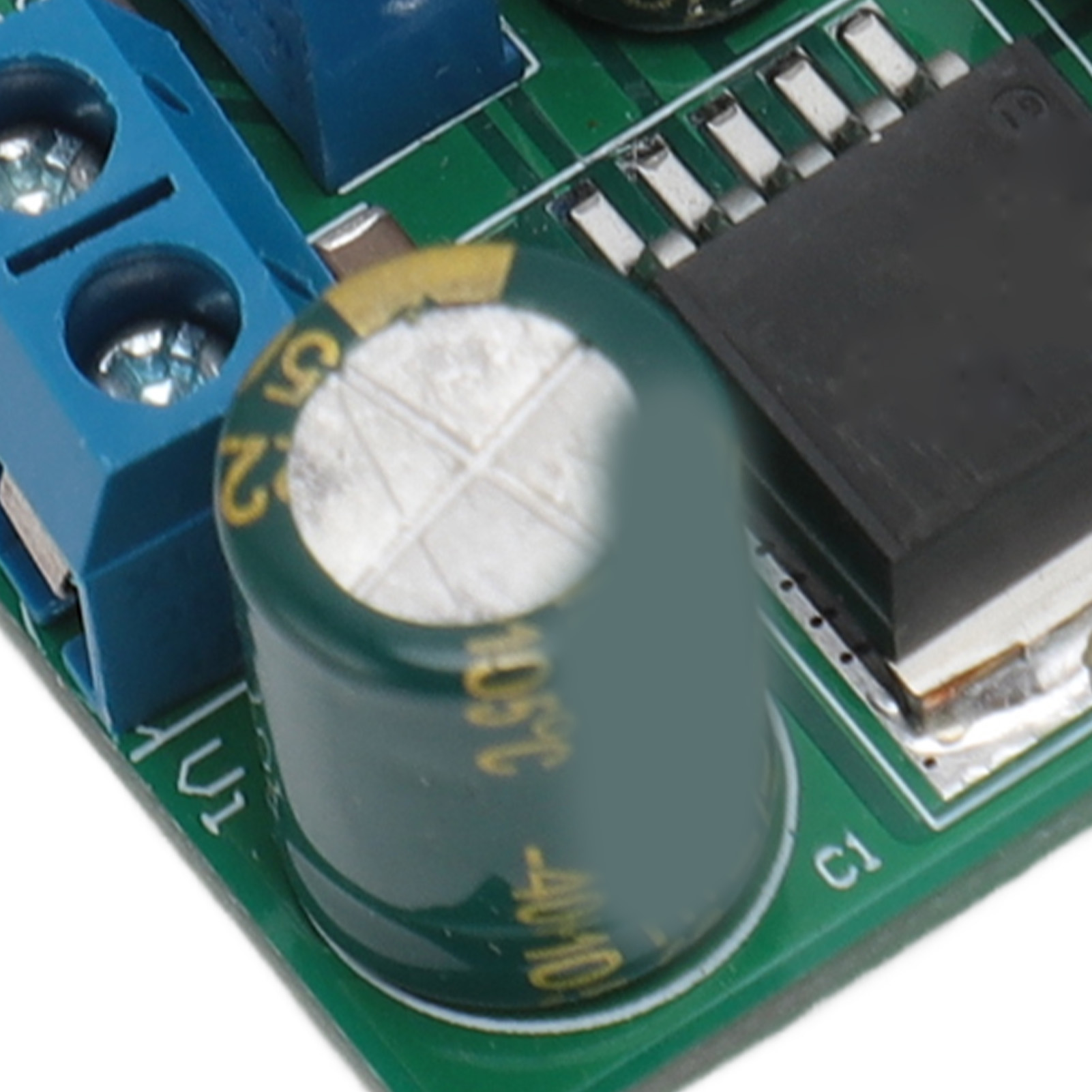

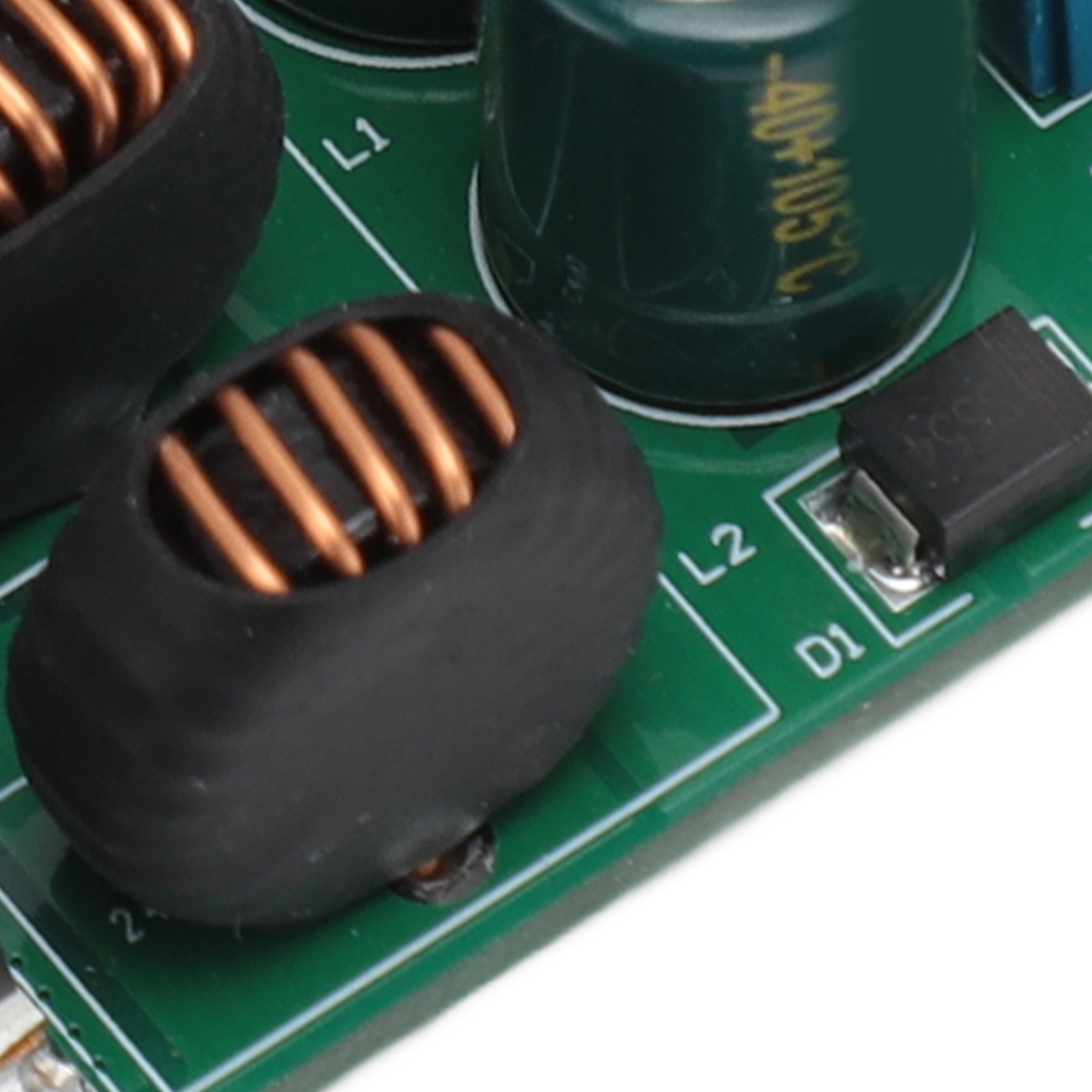

5. Stable Performance: Built with premium PCB materials, our boost ensures stable and efficient power conversion.

Specification:

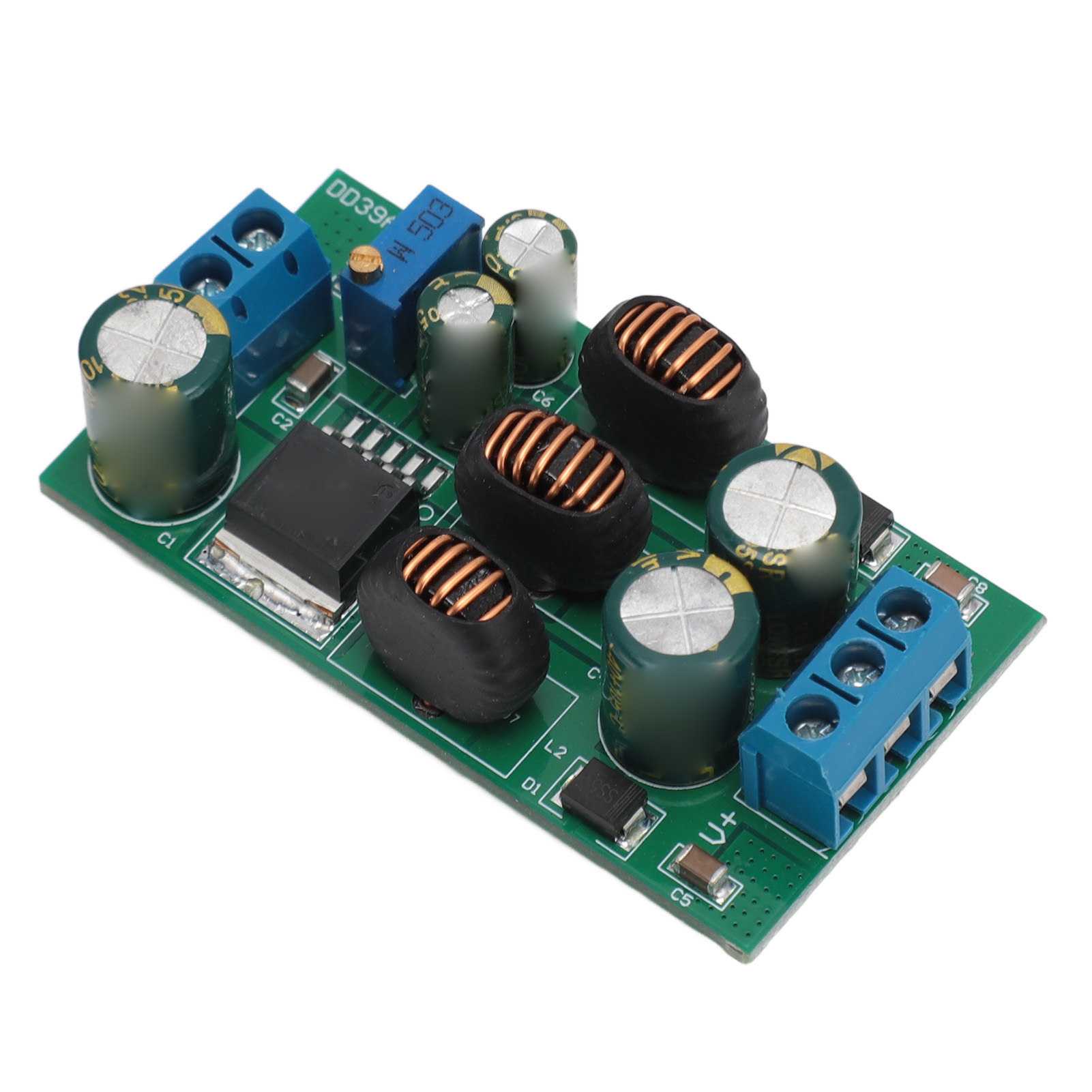

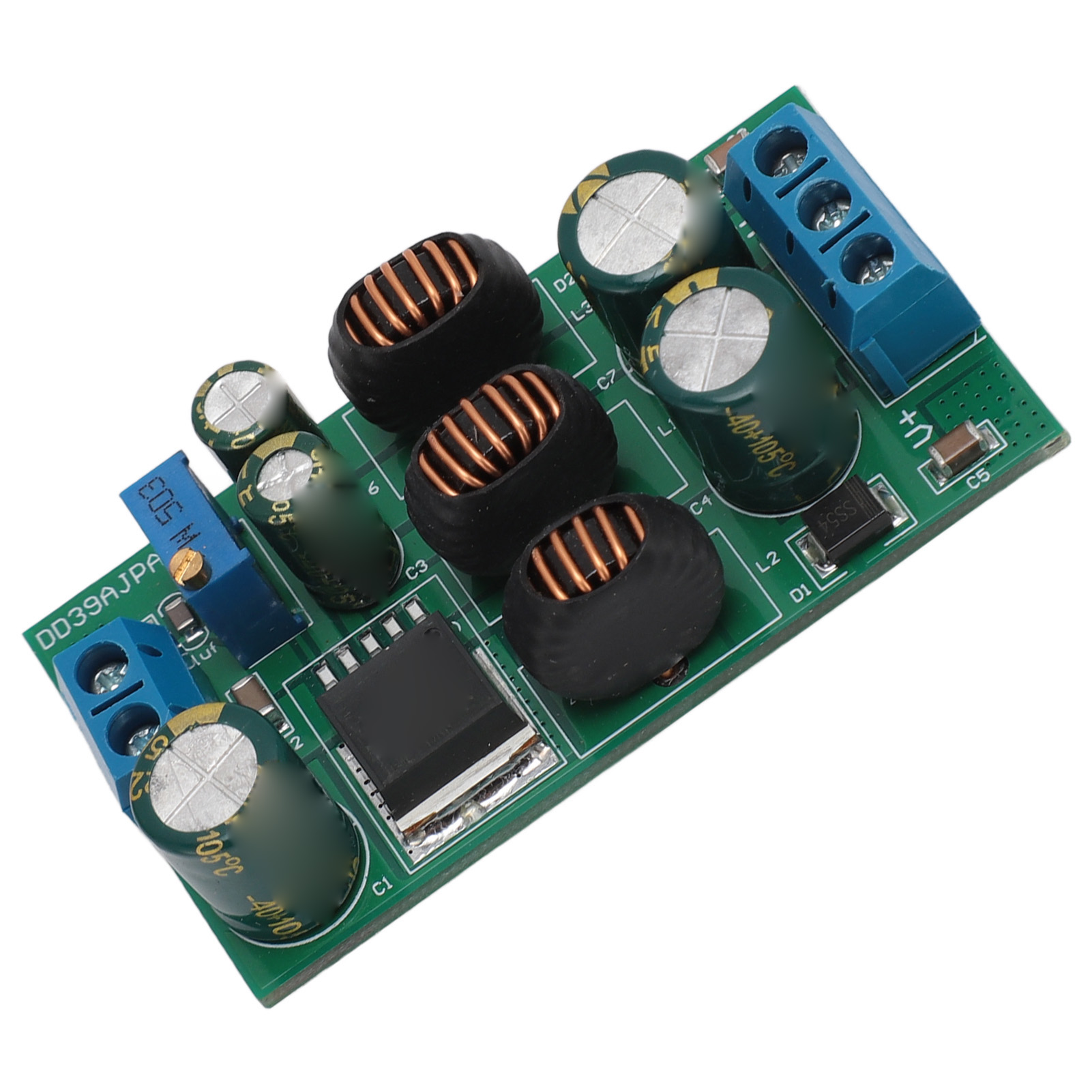

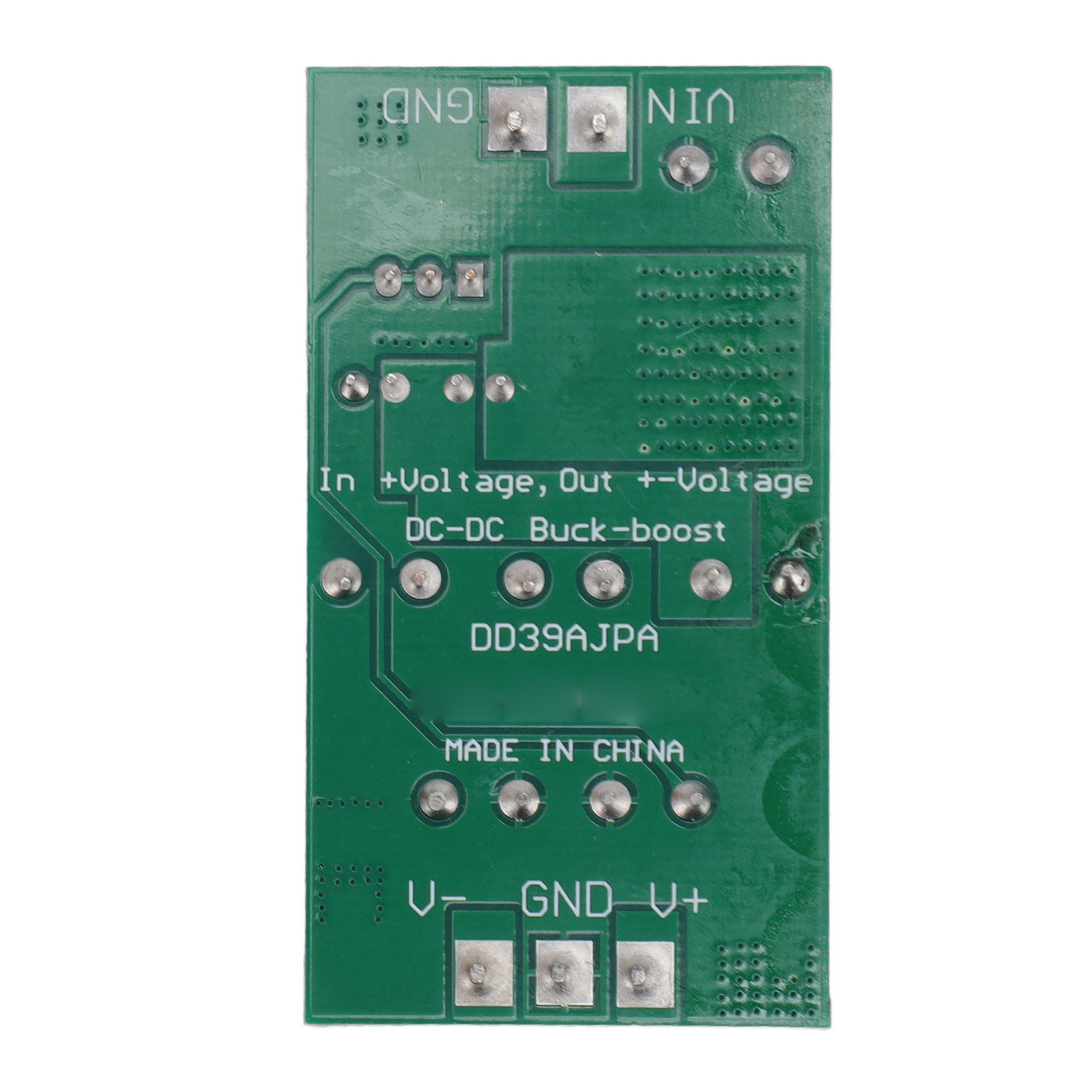

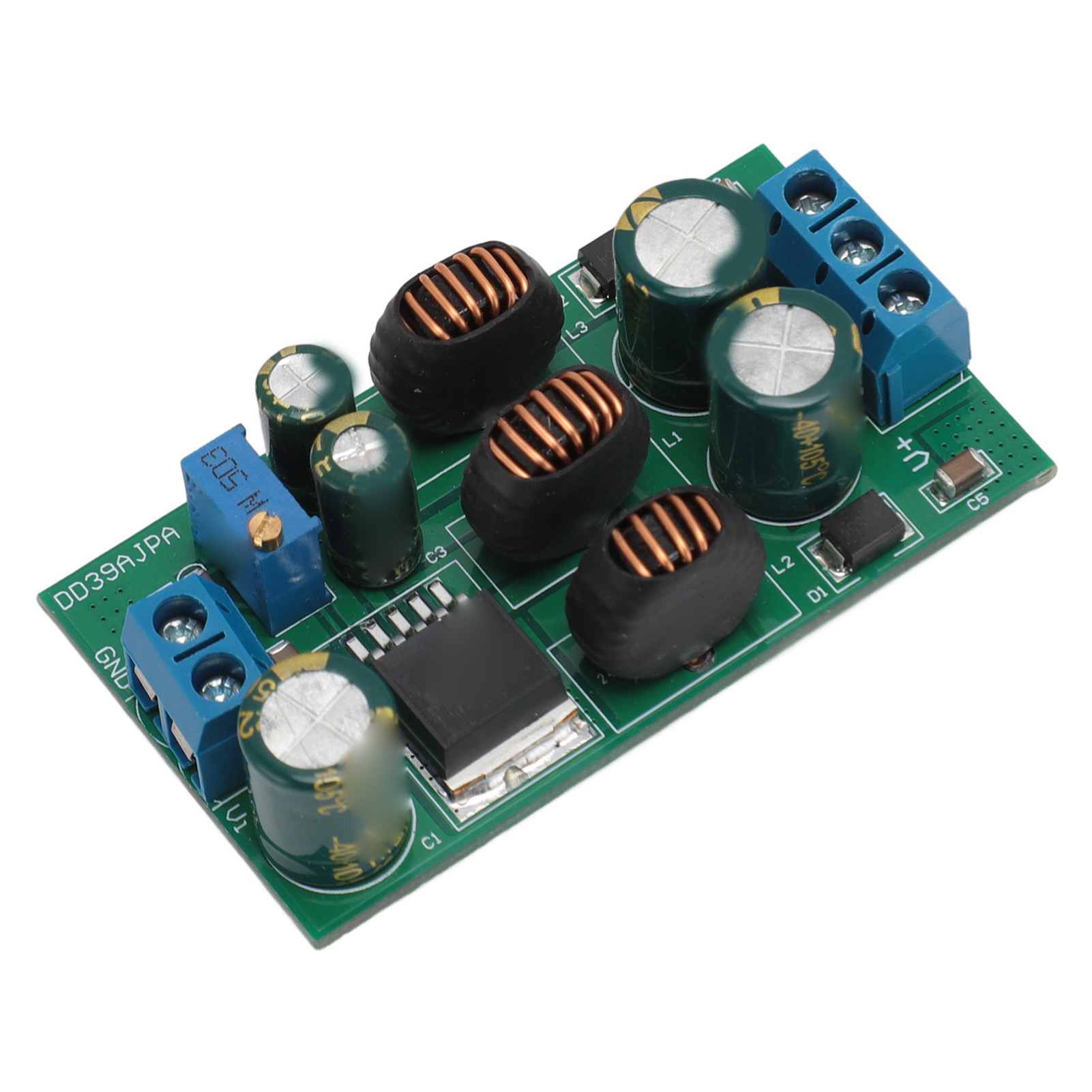

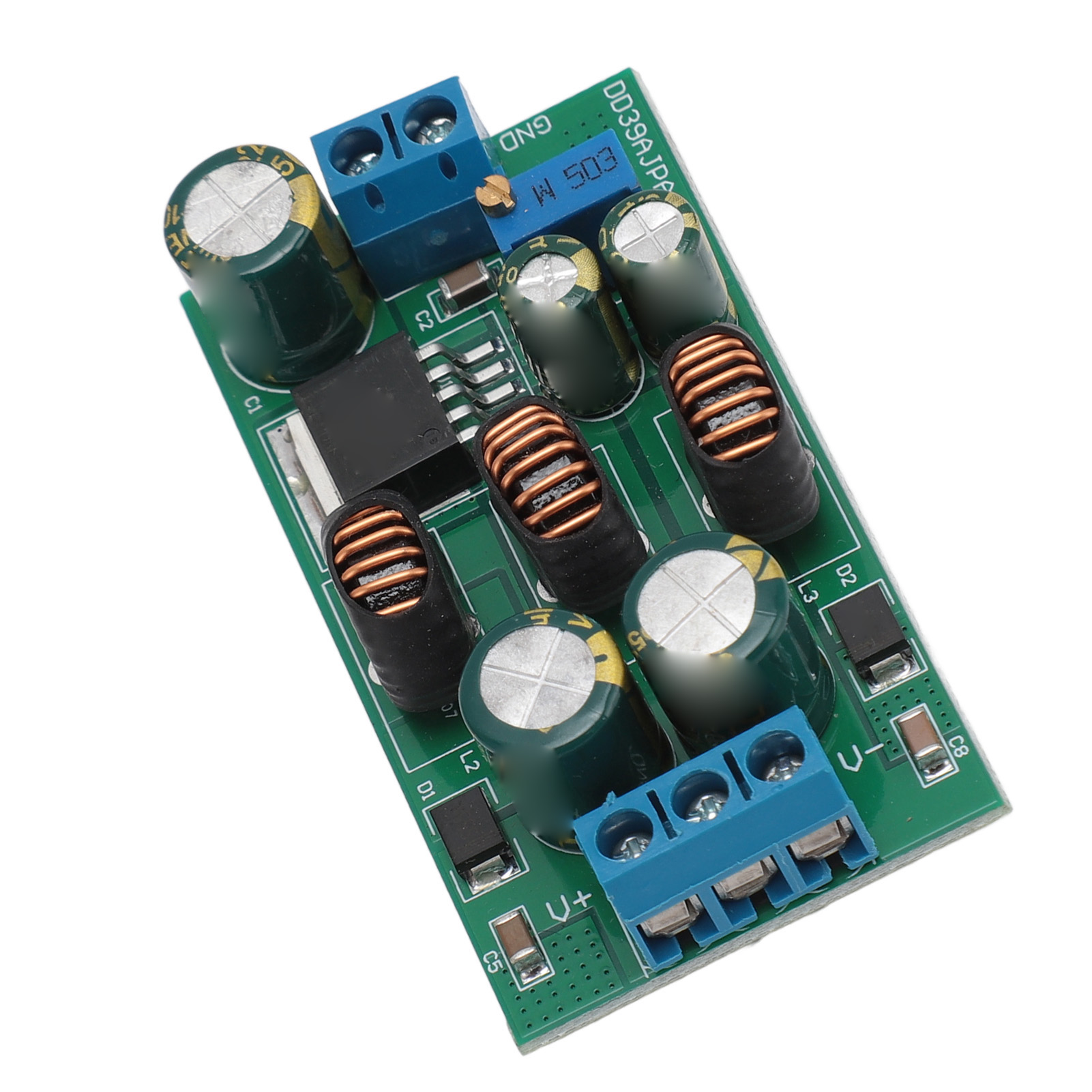

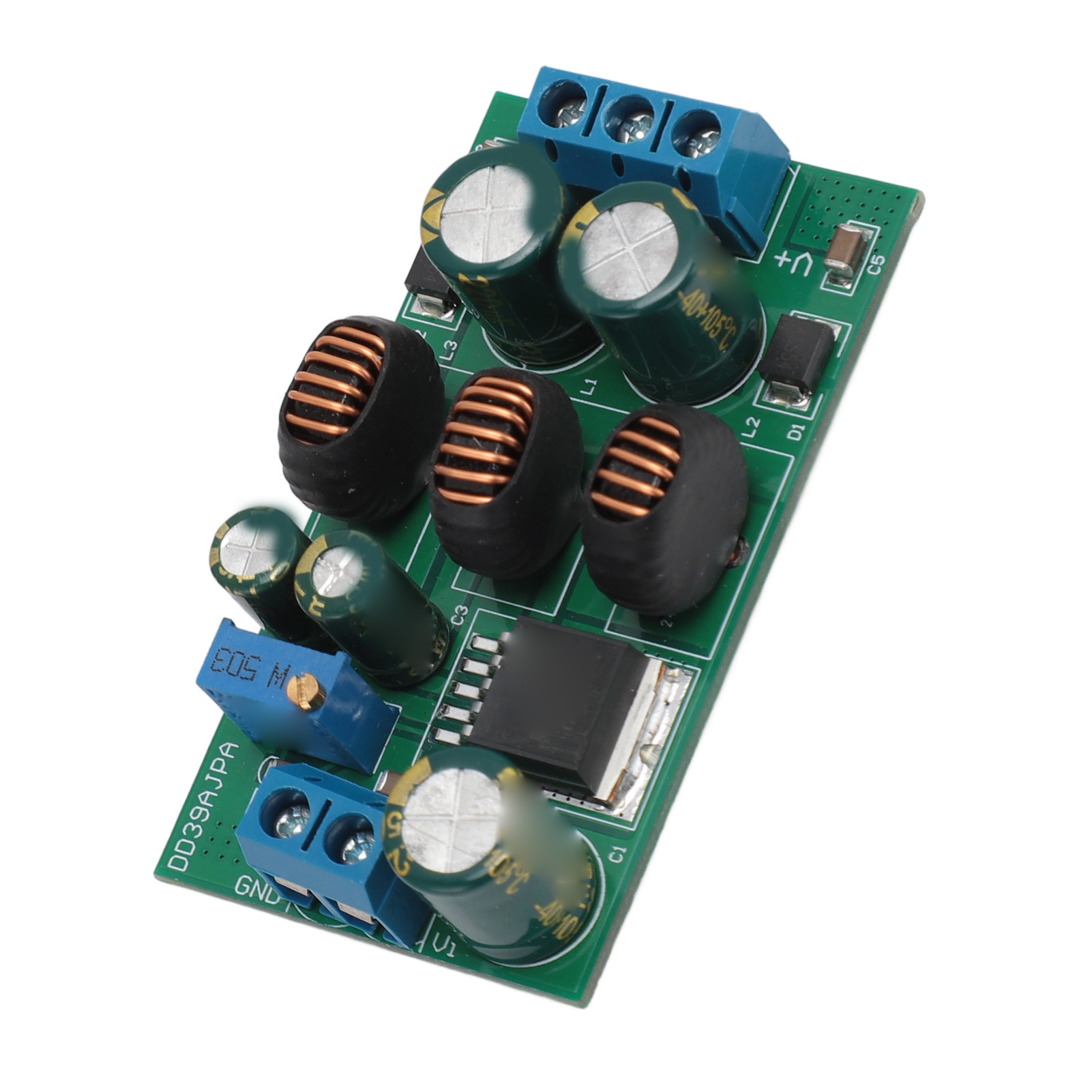

Item Type:  Boost Module
Material: PCB
Input: DC 3.6-30V
Output: Adjustable DC ±3-30V
Maximum Output Power: 20W
Maximum Conversion Efficiency: 68-89%
Static Working Current: 2.5mA

Size: Approx. 60 x 34 x 15mm / 2.4 x 1.3 x 0.6in



Package List:

1 x  Boost Module
