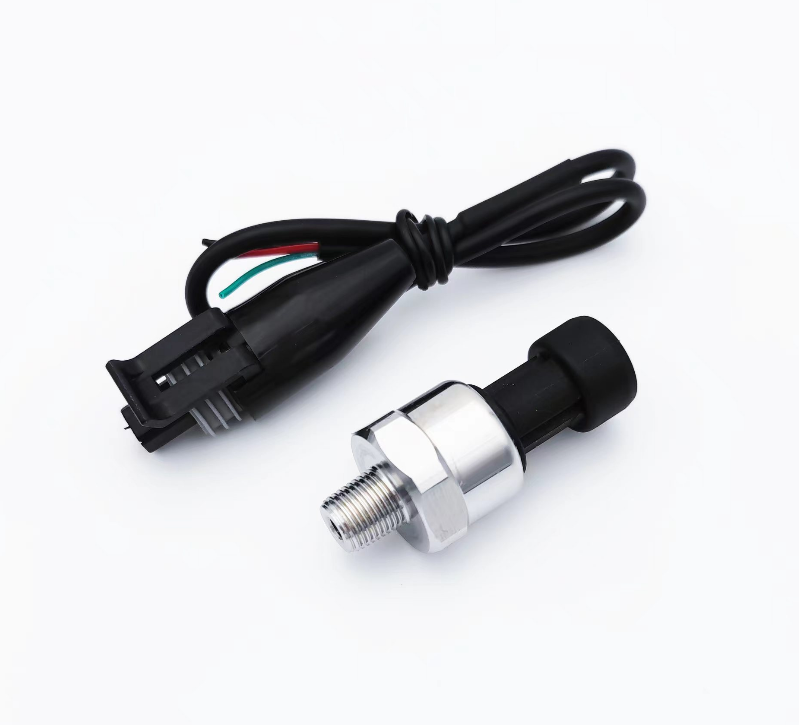

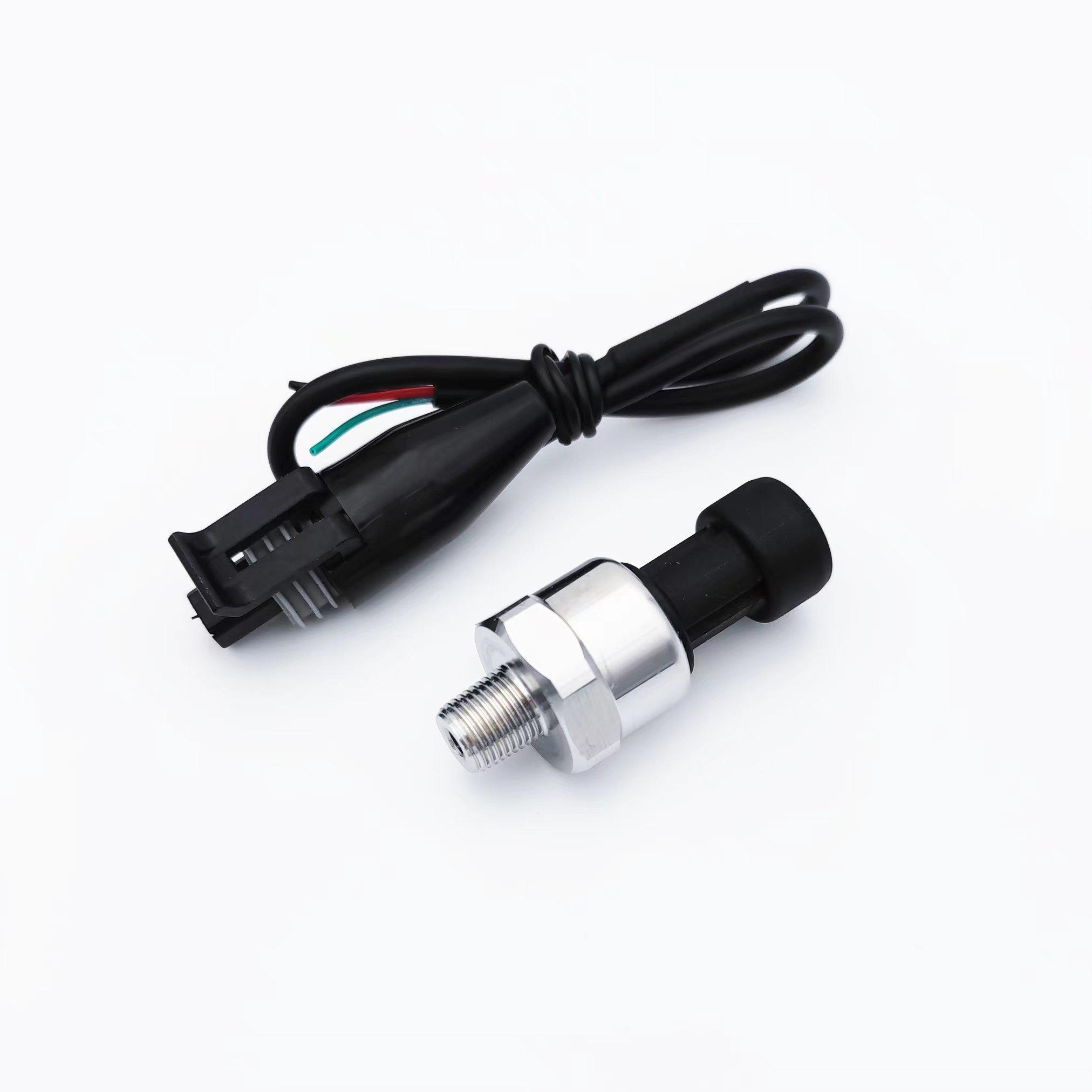

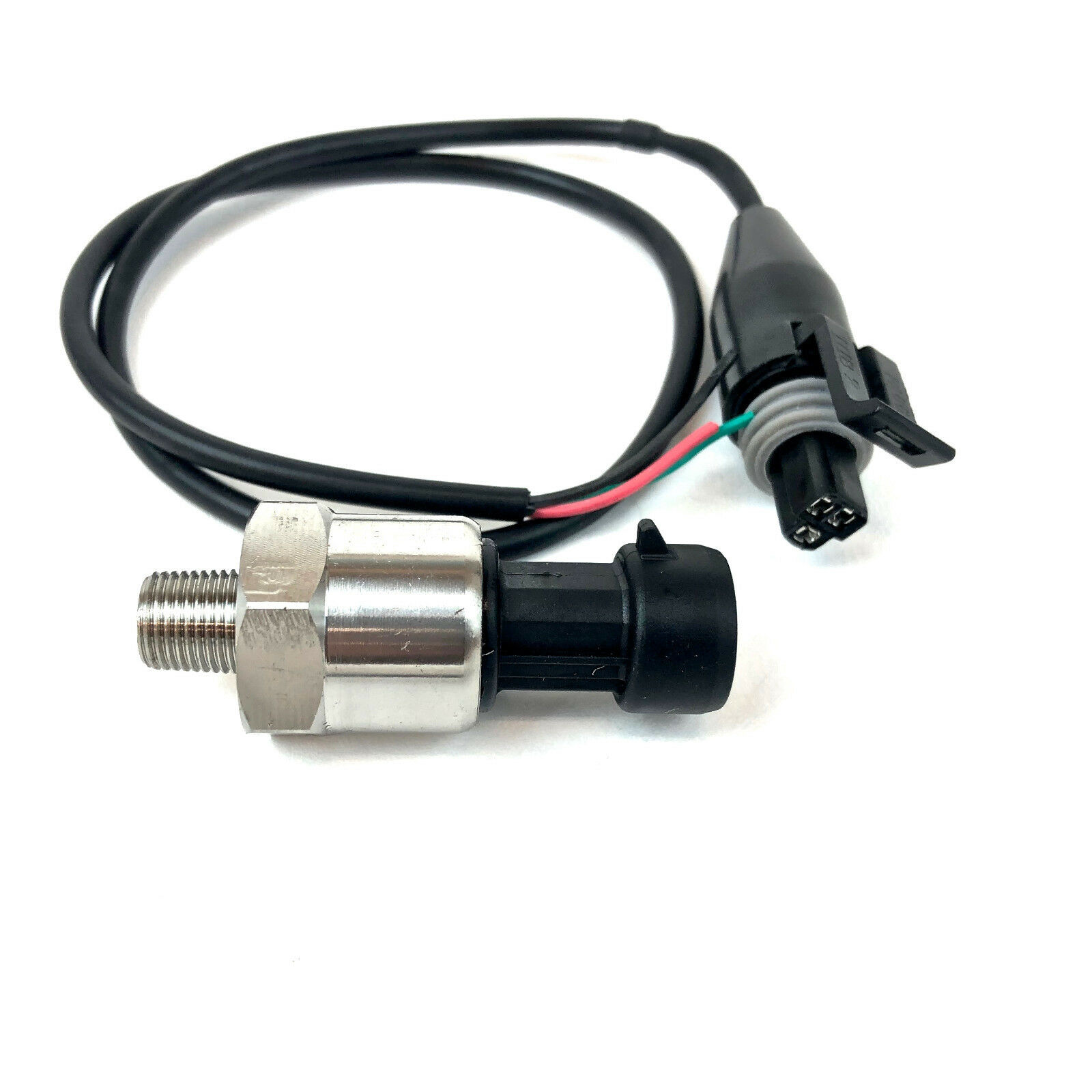

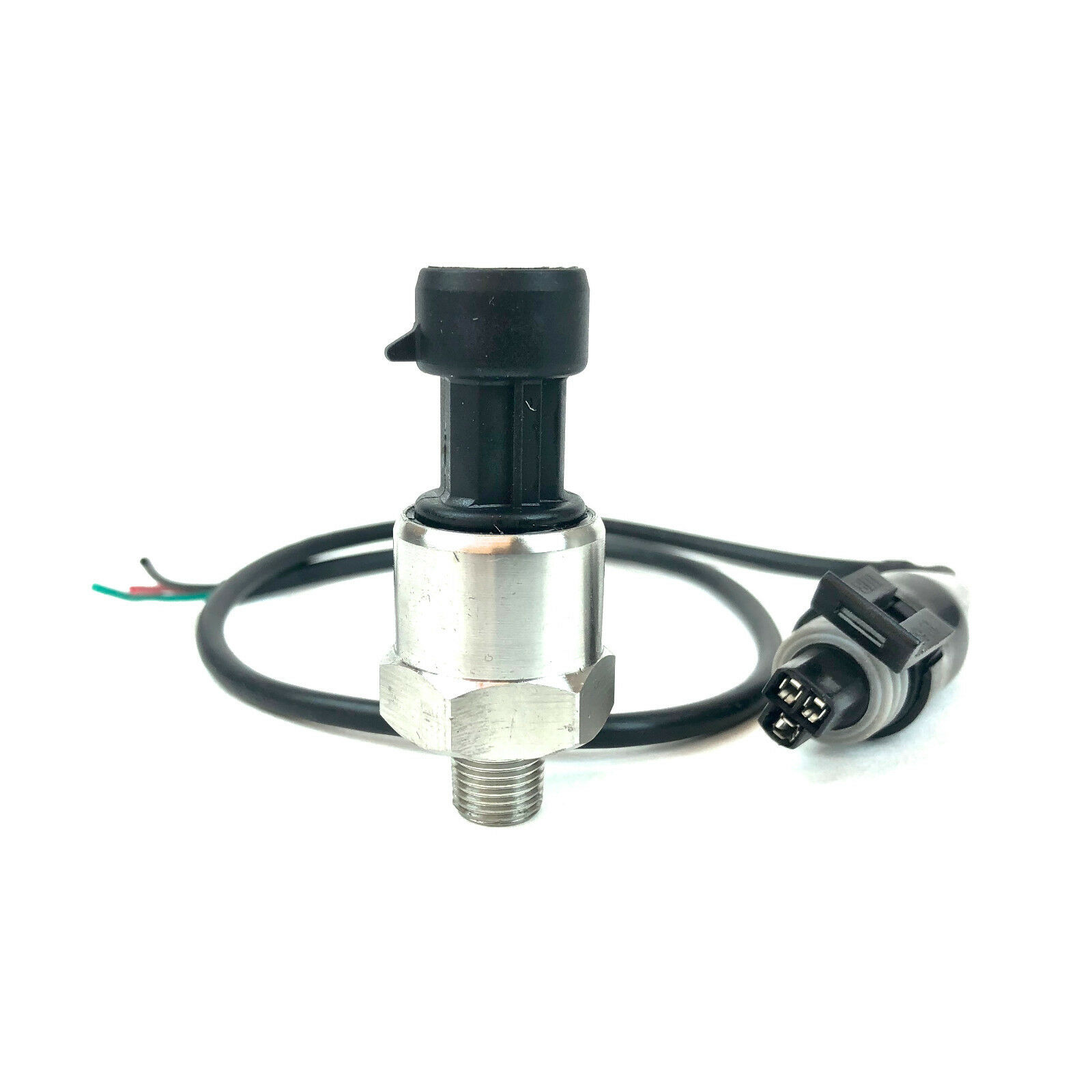

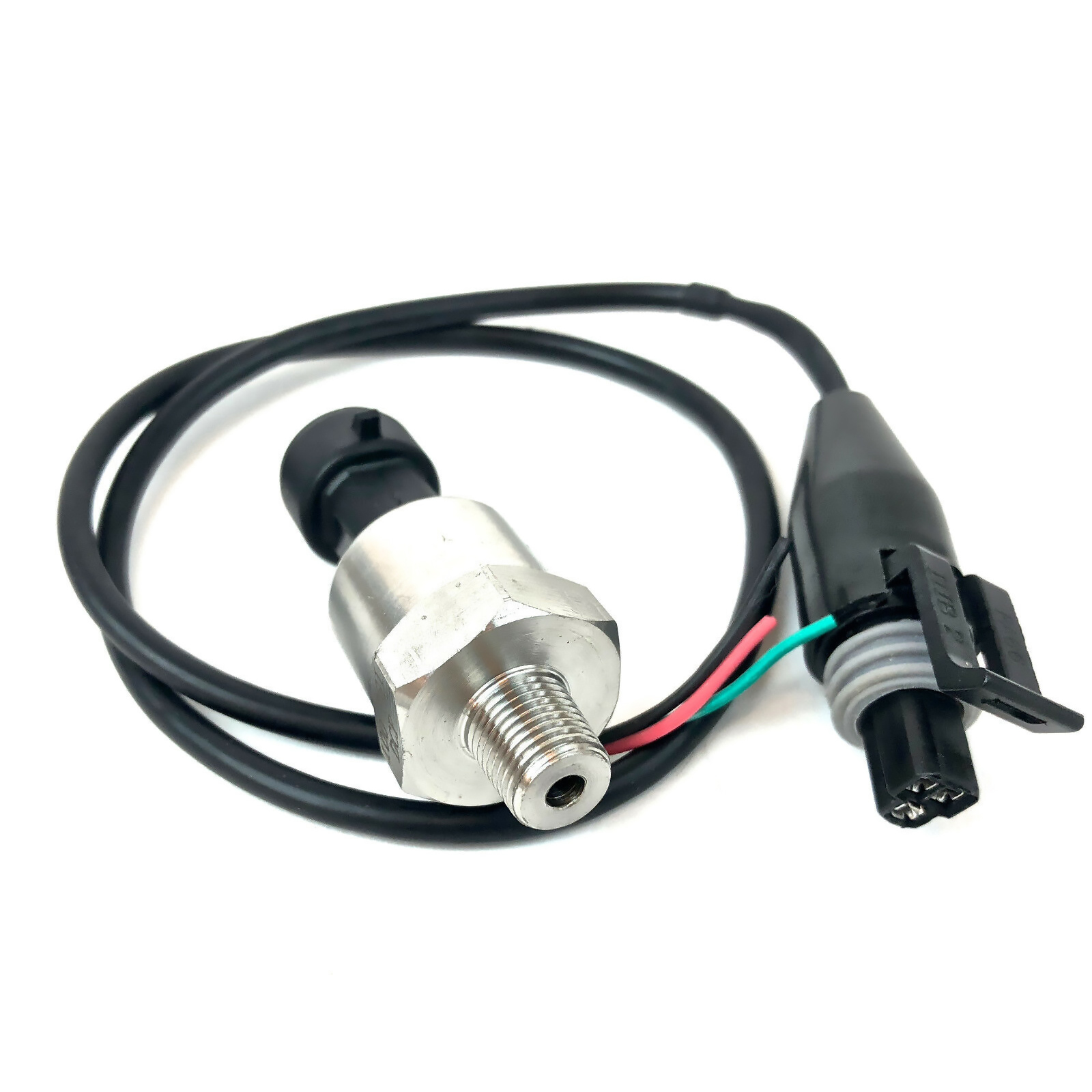

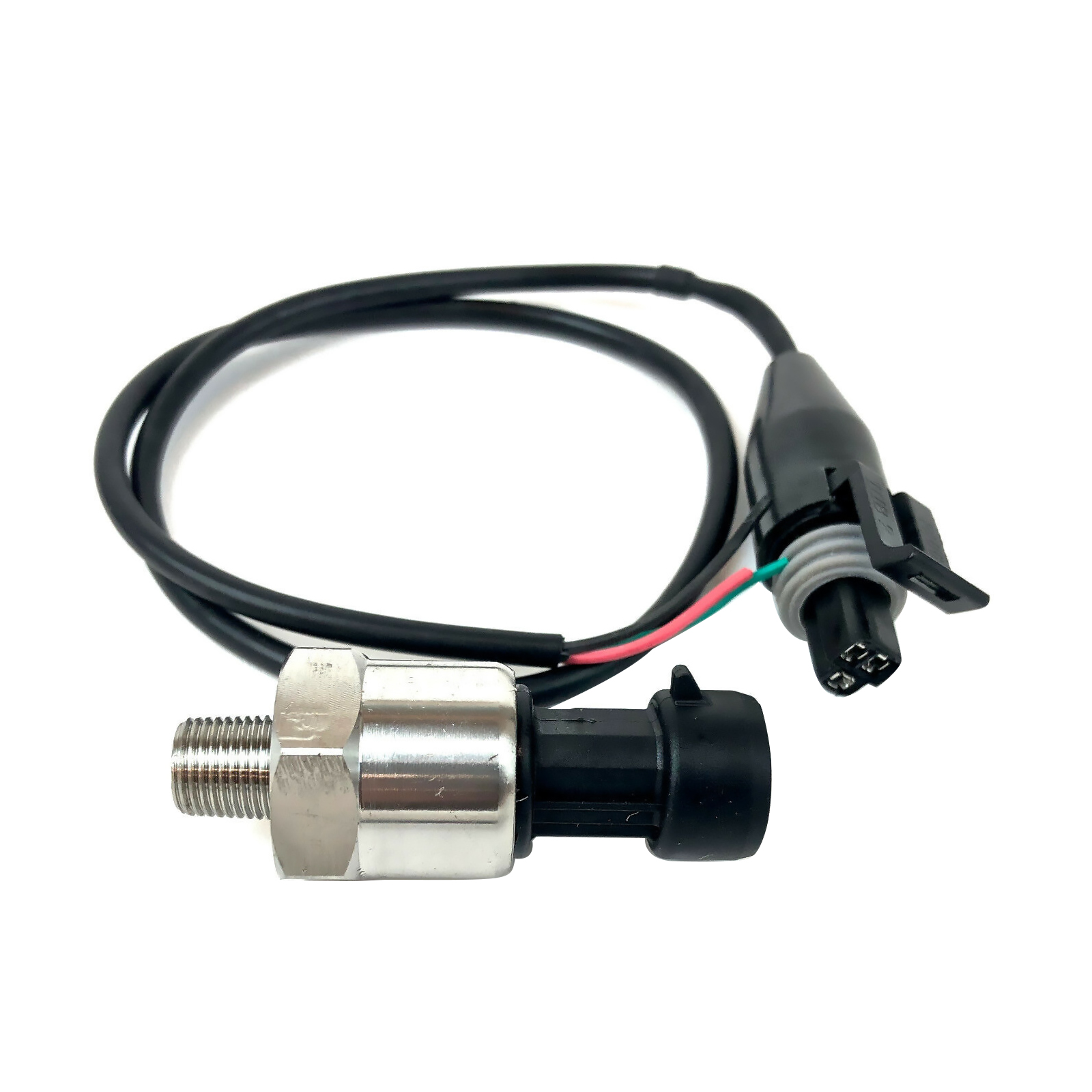

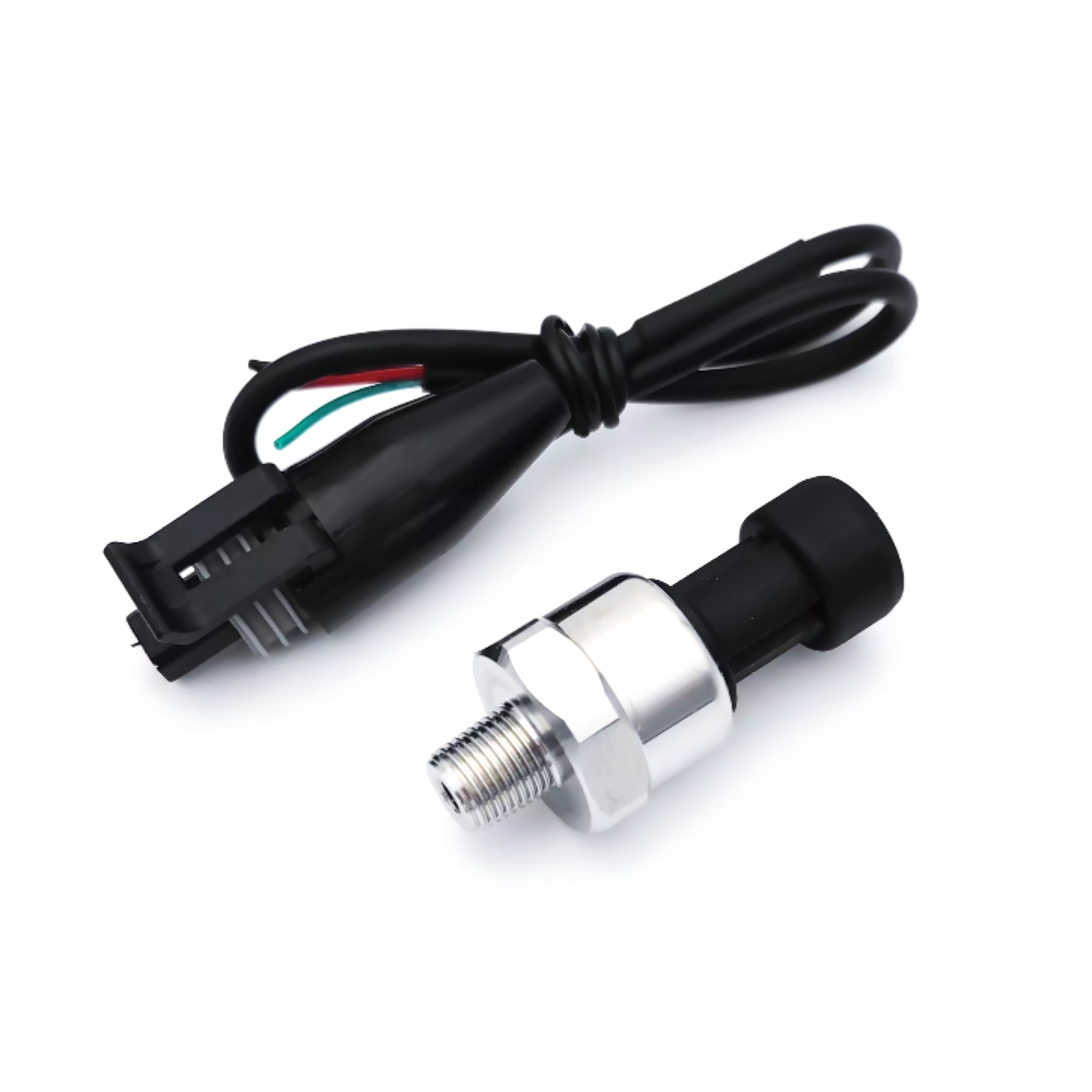

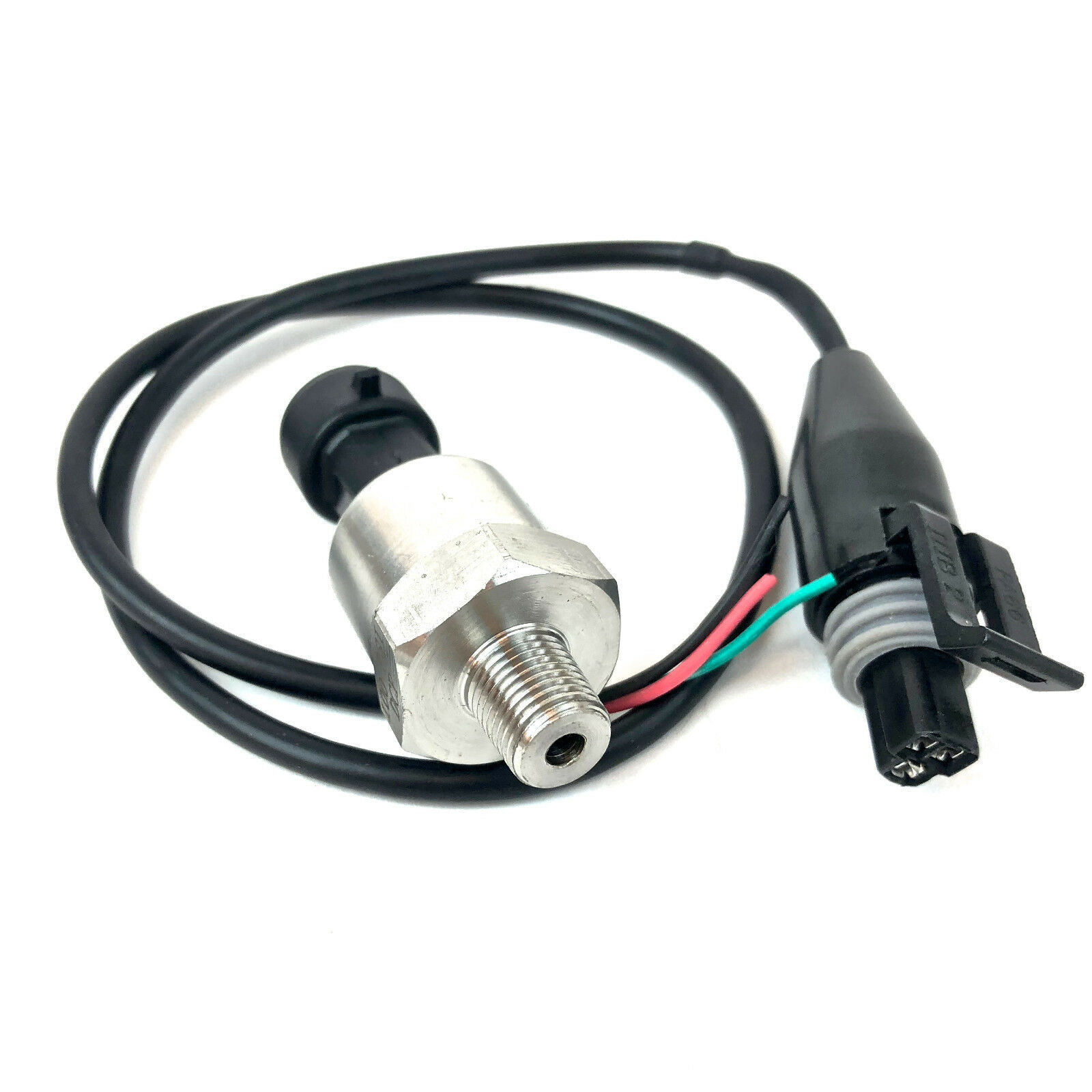

Features:
100% brand new, high quality metal case (not plastic)
Suitable for oil, fuel, diesel, gas, water, air pressure.
Can be used with oil, water, fuel, air, etc.
Easy installation with included connectors
Specifications:
100psi
Enter 0-100 psi
Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, and 100 psi outputs 4.5V.
Accuracy: Within 2% of reading (full scale).
Thread: 1/8"-27 NPT.

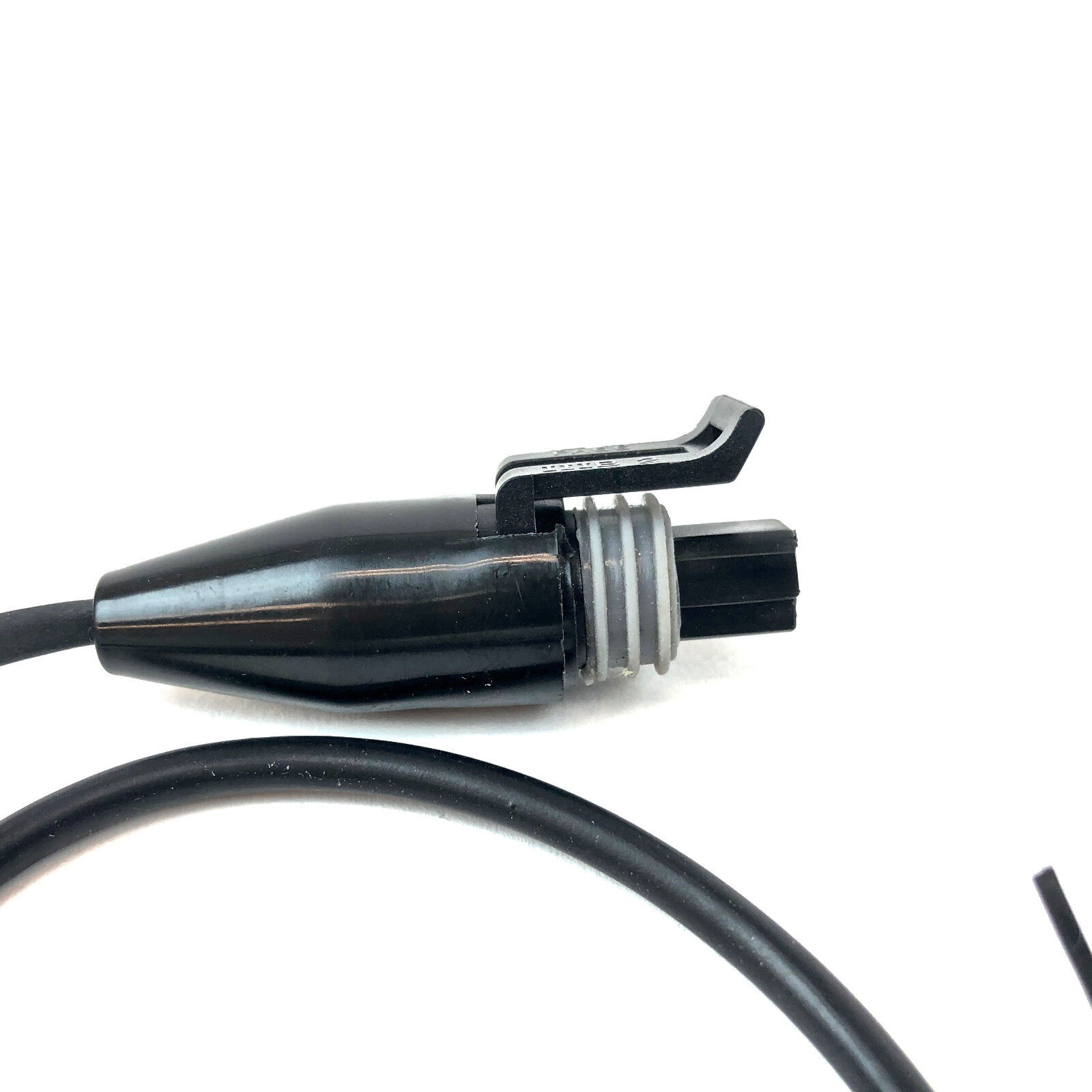

Wiring Connector: Water seal quick disconnect. Includes mating connector and harness (pigtail).
Wiring: +5V red. Black is the ground. Green is the signal output.
Weight: 55 grams
Overload capacity: 2-4 times;
Working temperature: -40—+120℃;
Compensation temperature: -20—+80℃;
Protection class: IP67;
Pressure medium: gases and liquids compatible with 316L stainless steel;
Load resistance: ≤ (power supply -6.5V/0.02A) Ω;
Long-term stability: less than 0.1%FS/year;
Effect of Temperature on Zero: Typical: 0.02%FS/ºC; Maximum: 0.05%FS/ºC;
Effect of Temperature on Sensitivity: Typical: 0.02%FS/ºC; Maximum: 0.05%FS/ºC;
Shock resistance: 1000g;
Shock resistance: ≤+/-0.01%FS (X, Y, Z axis, 200Hz/g);
Response time: ≤1ms;
Insulation resistance: >100mΩ 500VDC;
Explosion-proof grade: ExiaTTCT6;
Electromagnetic Compatibility: EN50051-1.
Package Included:
1*Connector Kit
 |  |
 |  |
 |  |
 |  |
 |  |
