Features:
Four Way Remote Control Switch, Crystal Oscillator Frequency Locking, Stable And Non Offset, No Wiring, Can Pass Through Walls, Easy To Install;
Low Power Consumption, Working Mode Switching, Receiver Switching Different Functions Through Jump Cap Short Circuit;
Realize One Panel To Control Multiple Lights, Select A Pc Flame-Retardant Shell, And Have A Long Service Life;
Adopting Imported Chips And Independent Coding, Multiple Sets Installed In One Household Do Not Cross Code, And Can Be Controlled Through Walls;

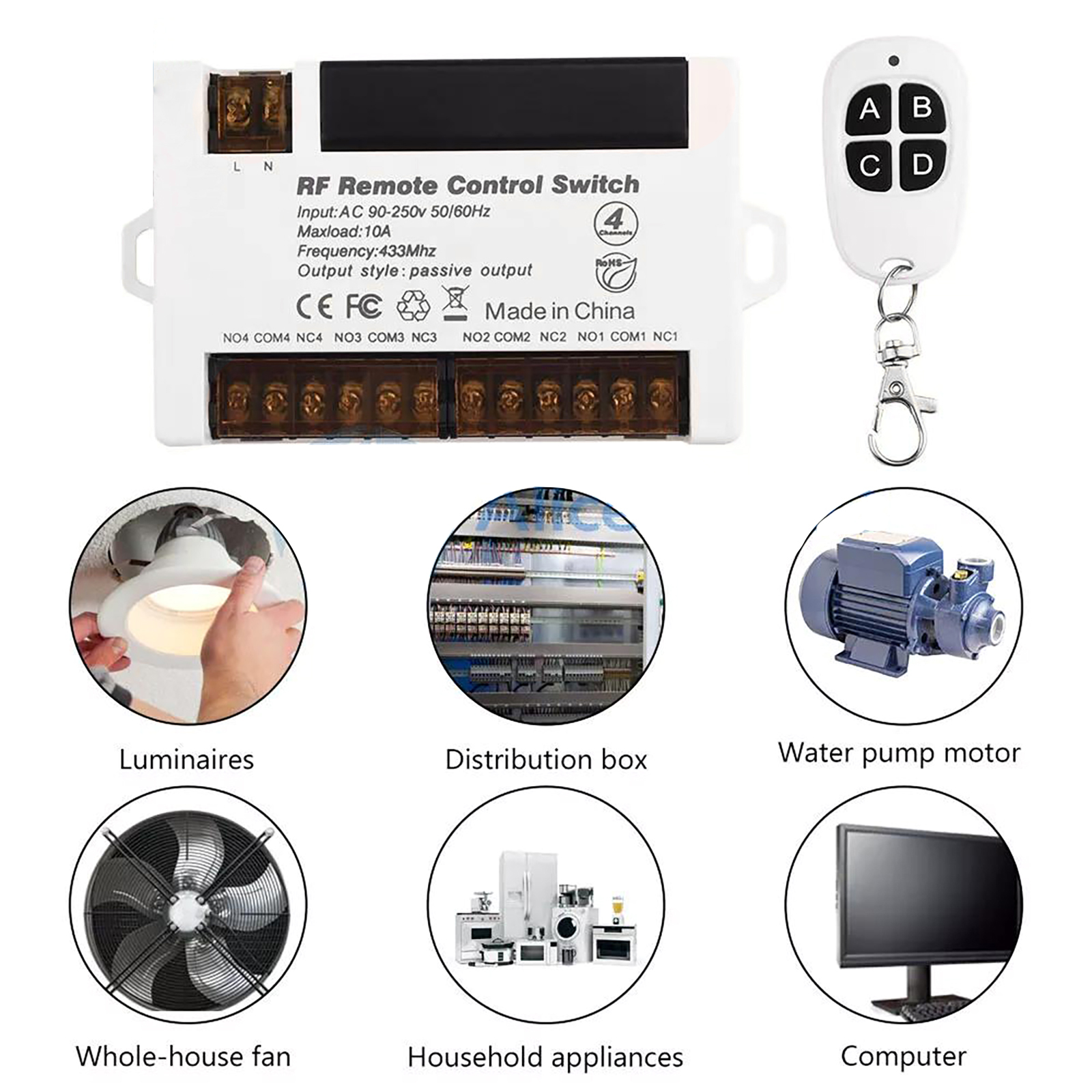

It Is Applicable To The Lighting Of The Whole House To Meet The Needs Of Home, Office And Factory Decoration. One Button Remote Control Enables You To Switch On And Off Freely, Making Your Home Intelligent;

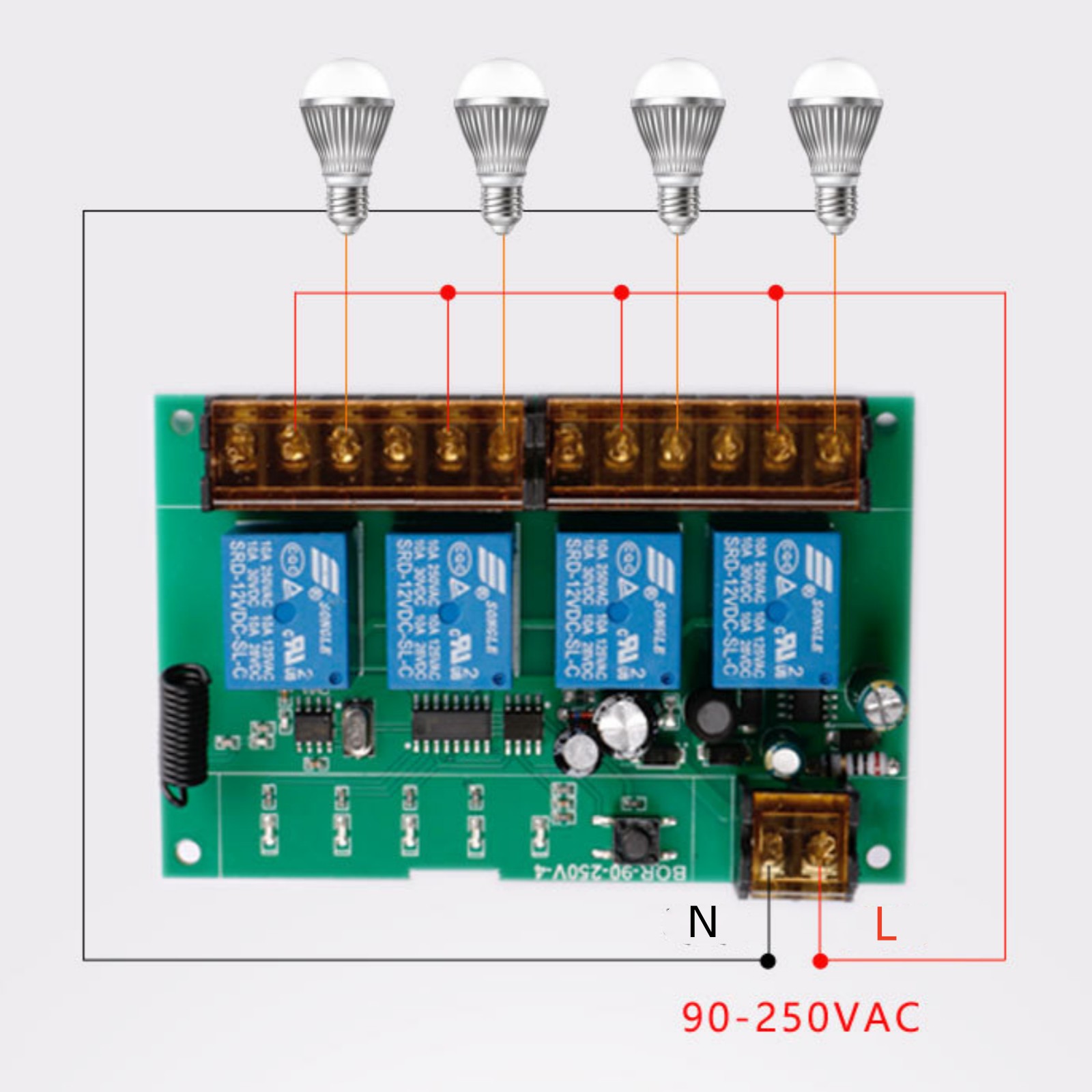

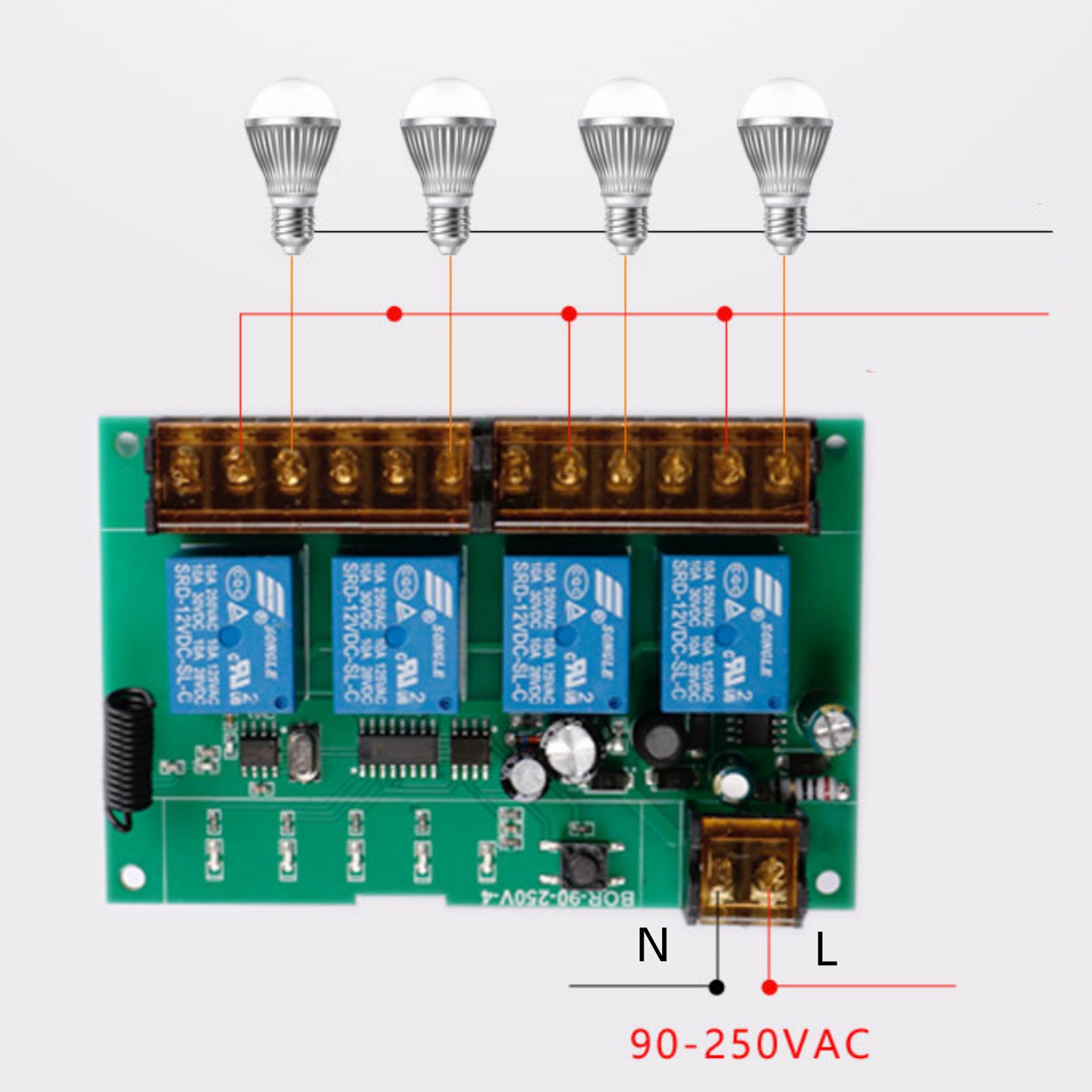

Directly Add A Receiver In Front Of The Lamp Or Other Electrical Appliances, Which Can Be Controlled By Pasting Freely Without The Need For Rewiring, Making Installation Convenient. If Multiple Places Need To Be Controlled, Simply Add Random Stickers.
Specifications:

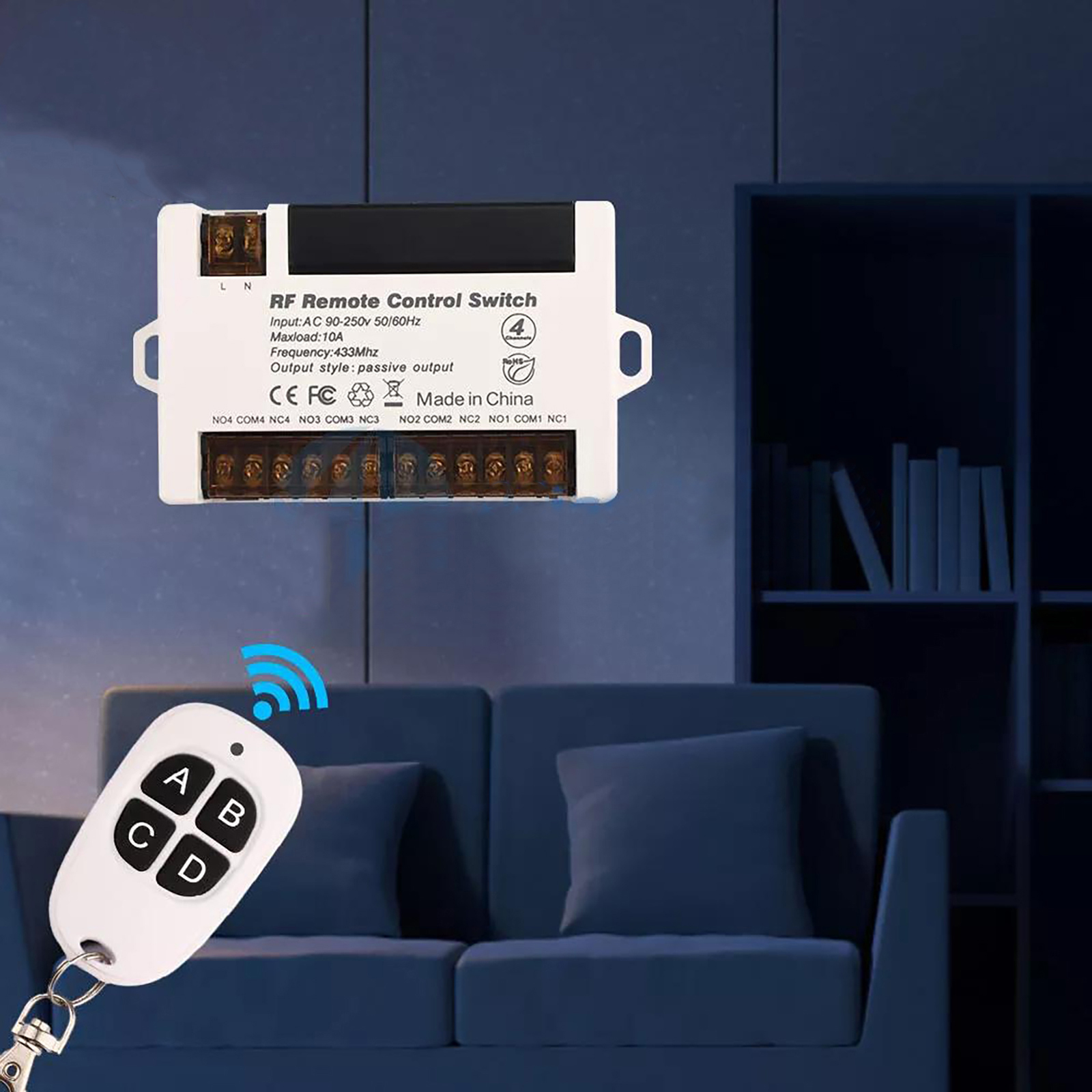

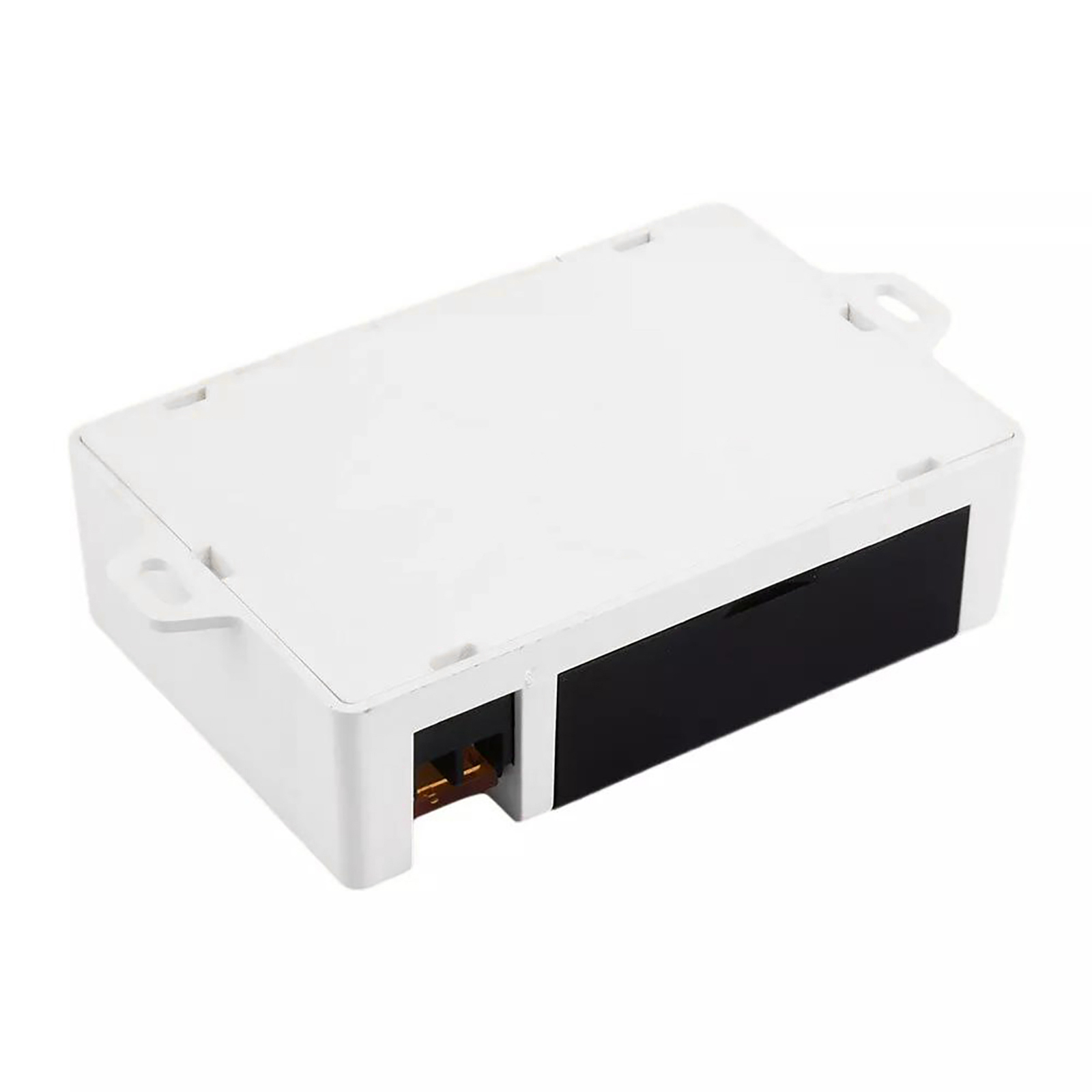

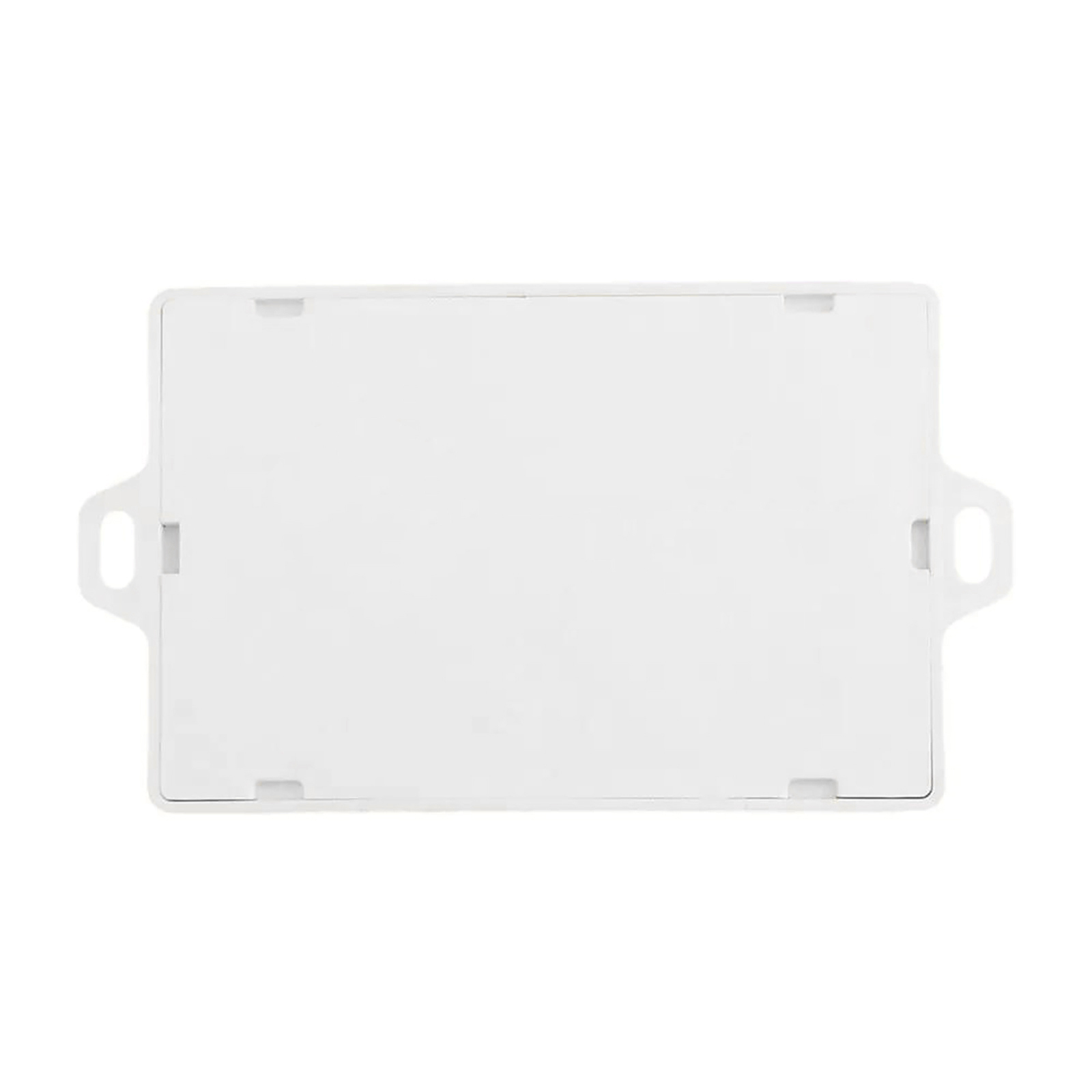

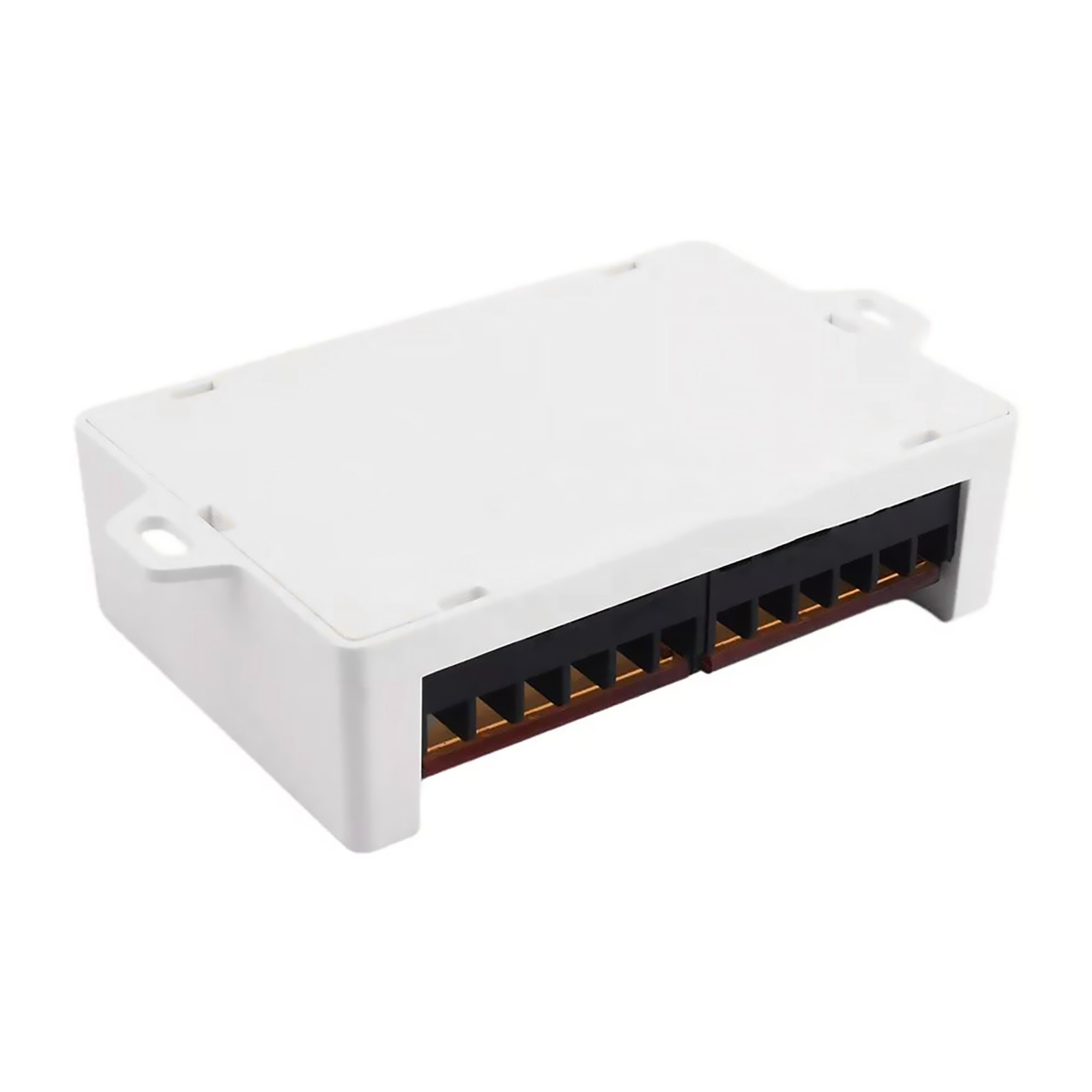

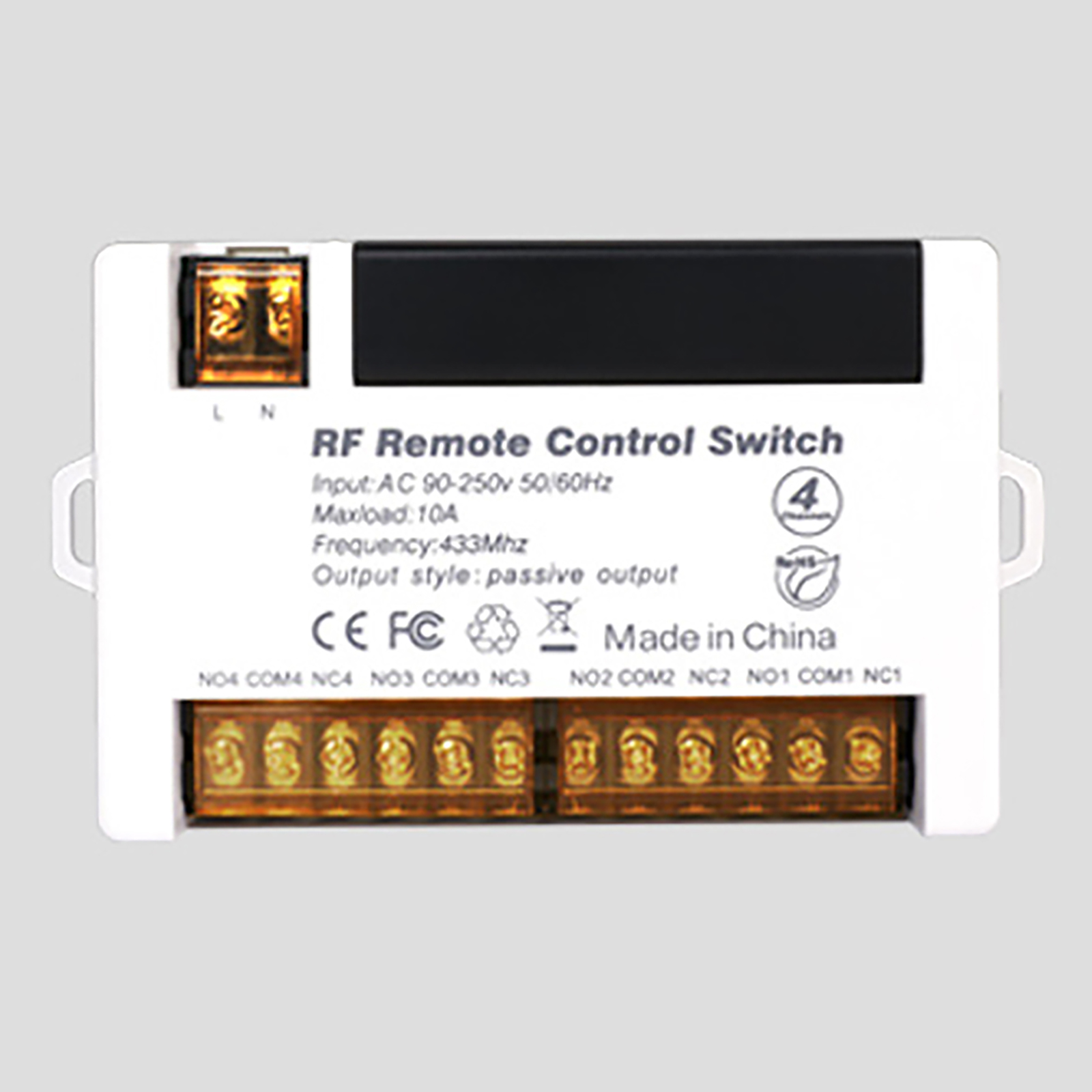

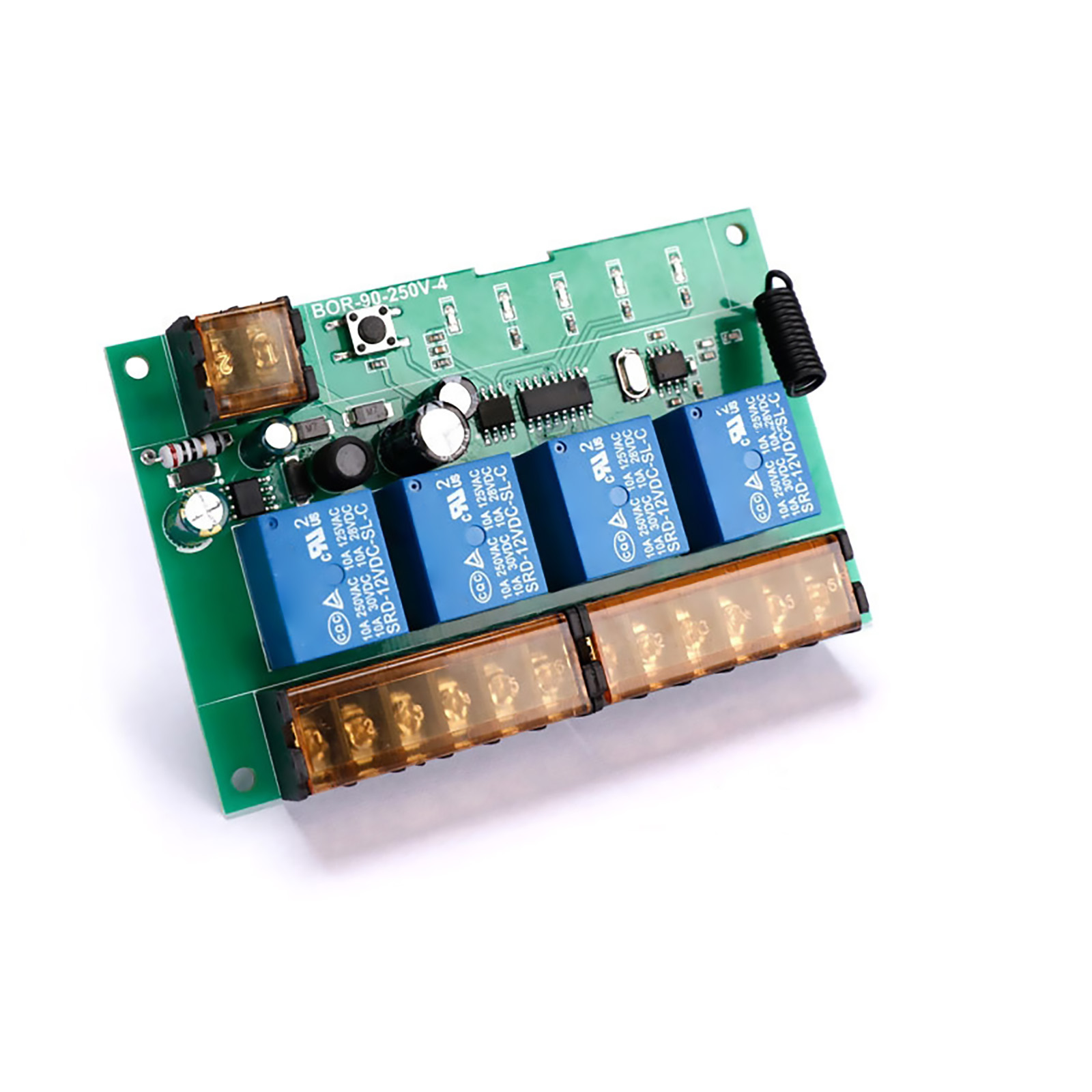

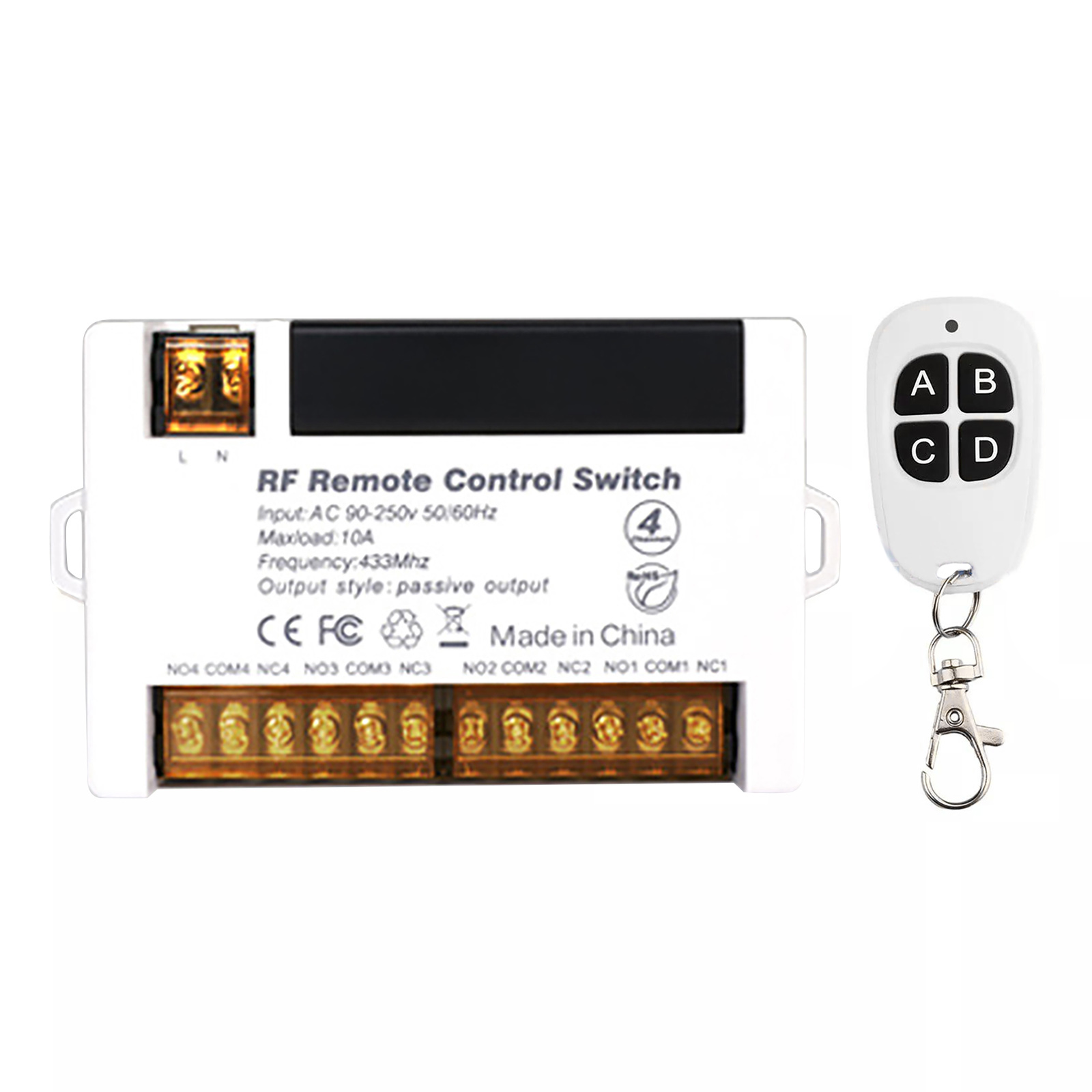

Wireless Remote Control Switch Receiver
Power Supply: Ac90-250v (50/60hz)
Current: 10a
Working Frequency: 433mhz
Applicable Lighting Fixtures: Led Pendant Lamps, Energy-Saving Lamps, Etc

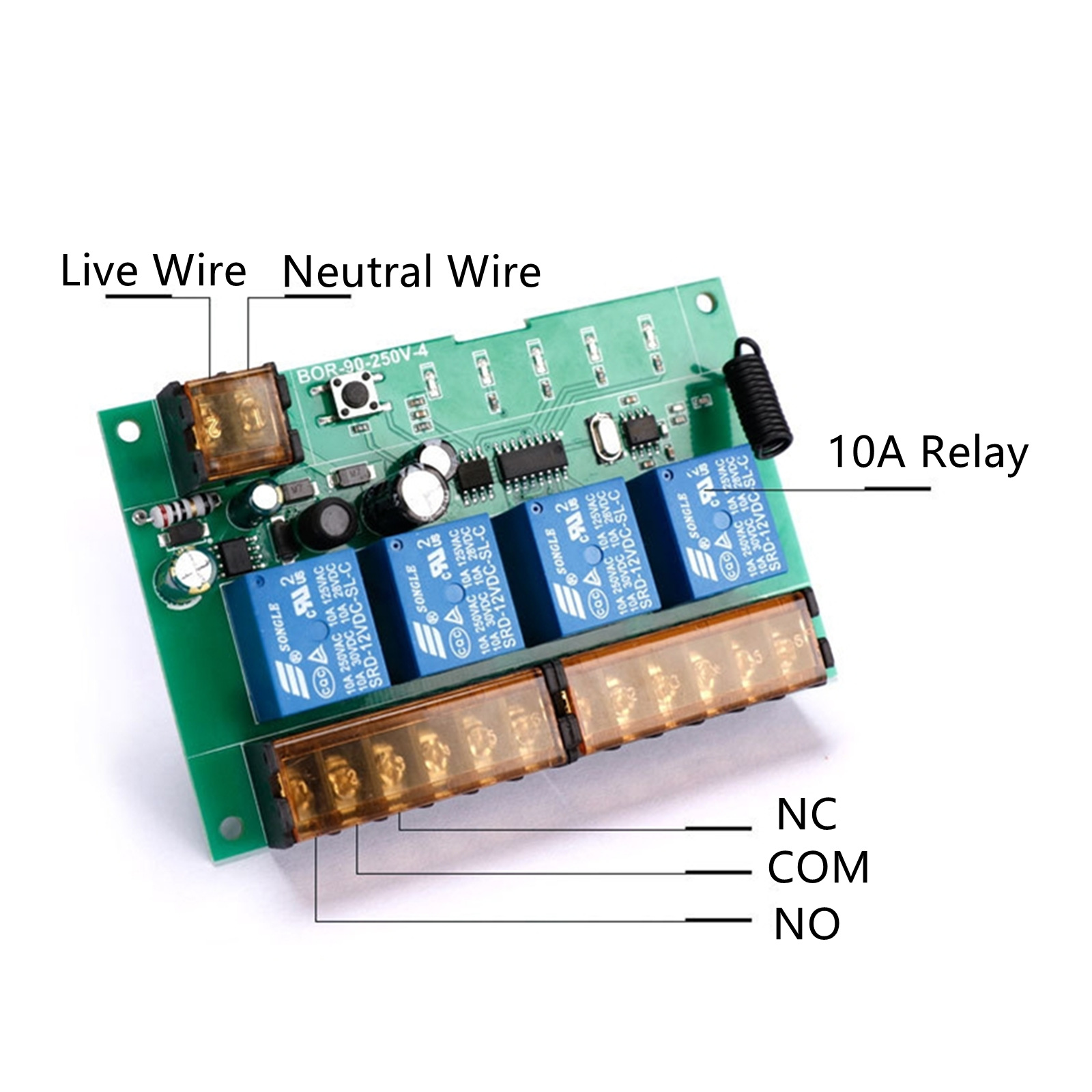

Output Method: Passive Signal/Dry Contact Signal

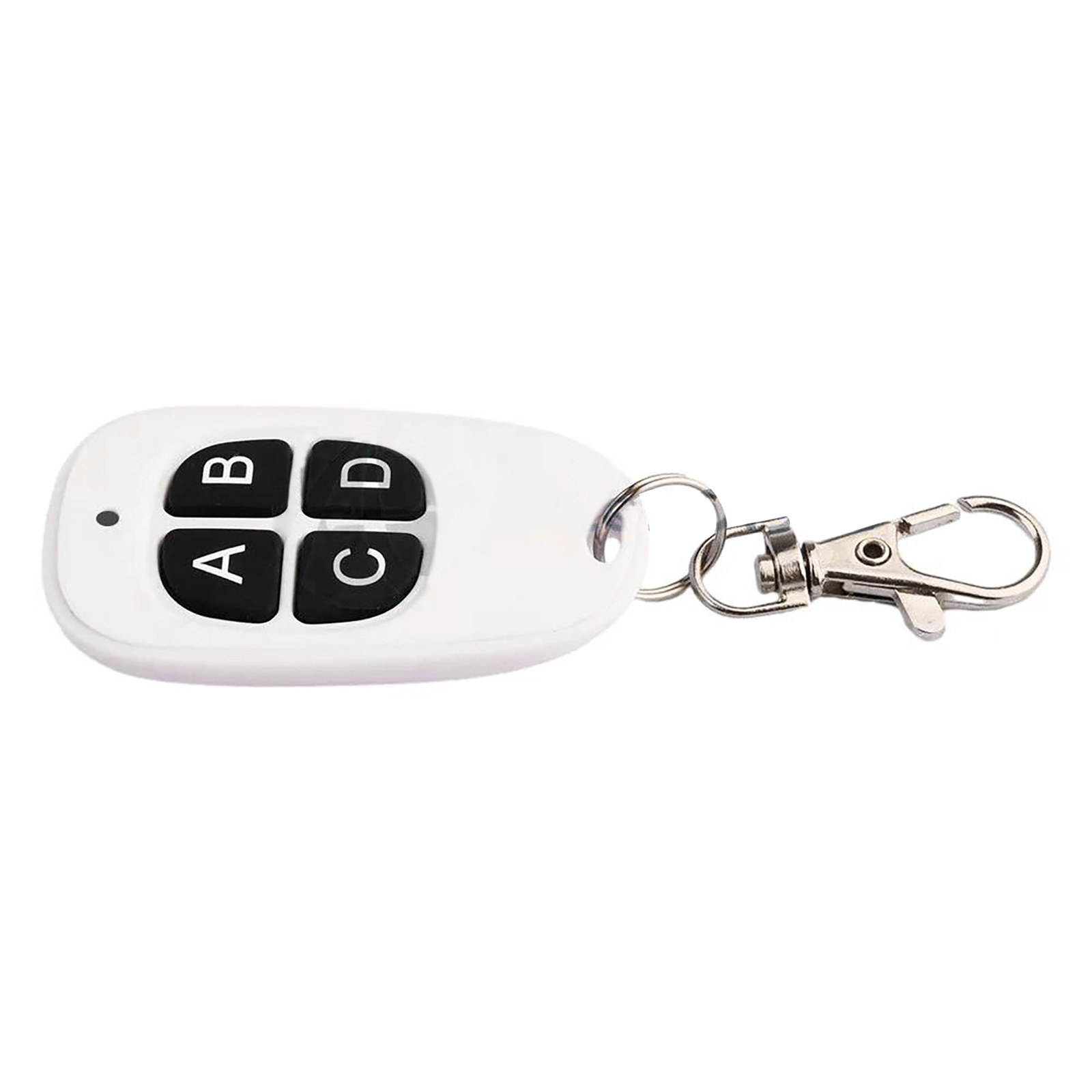

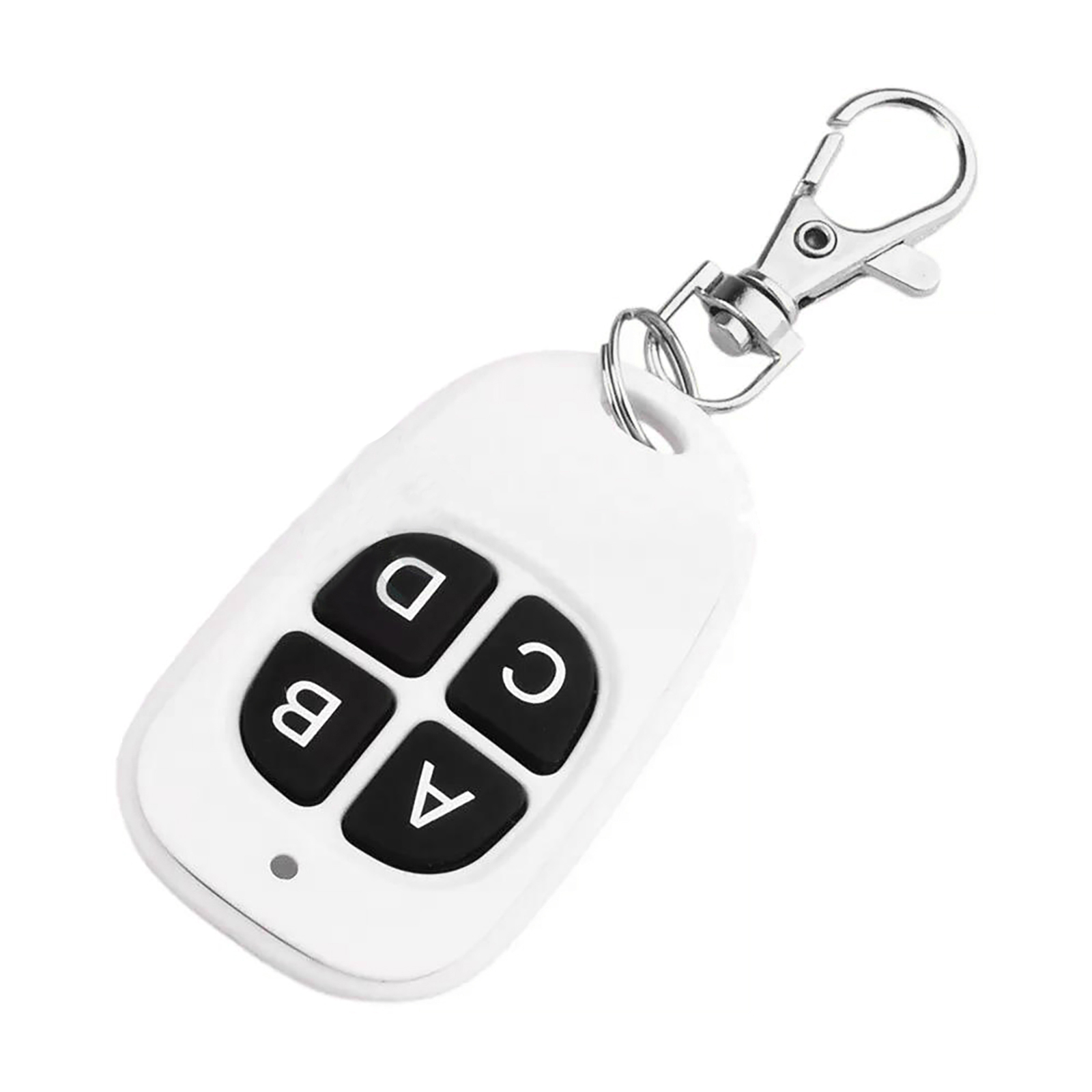

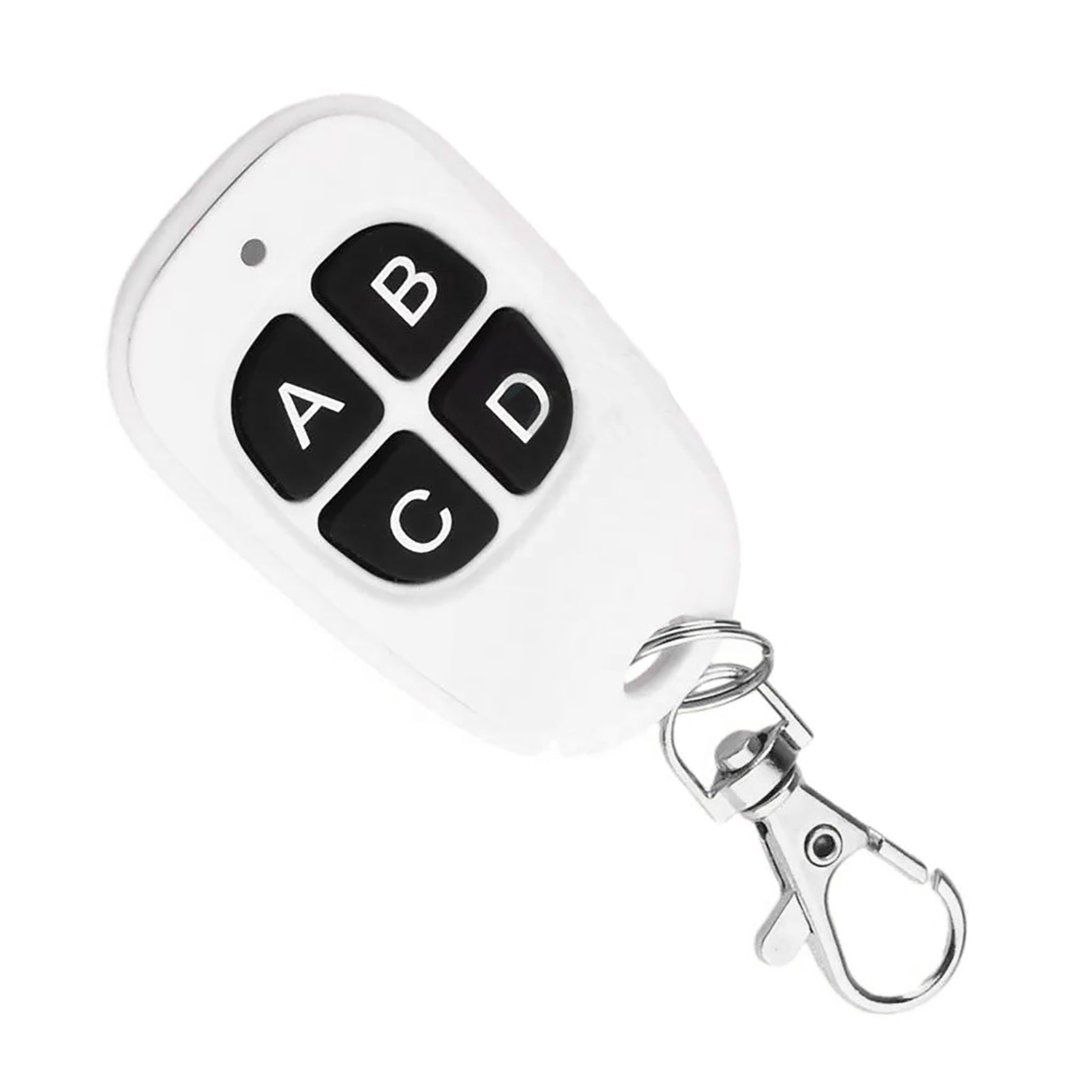

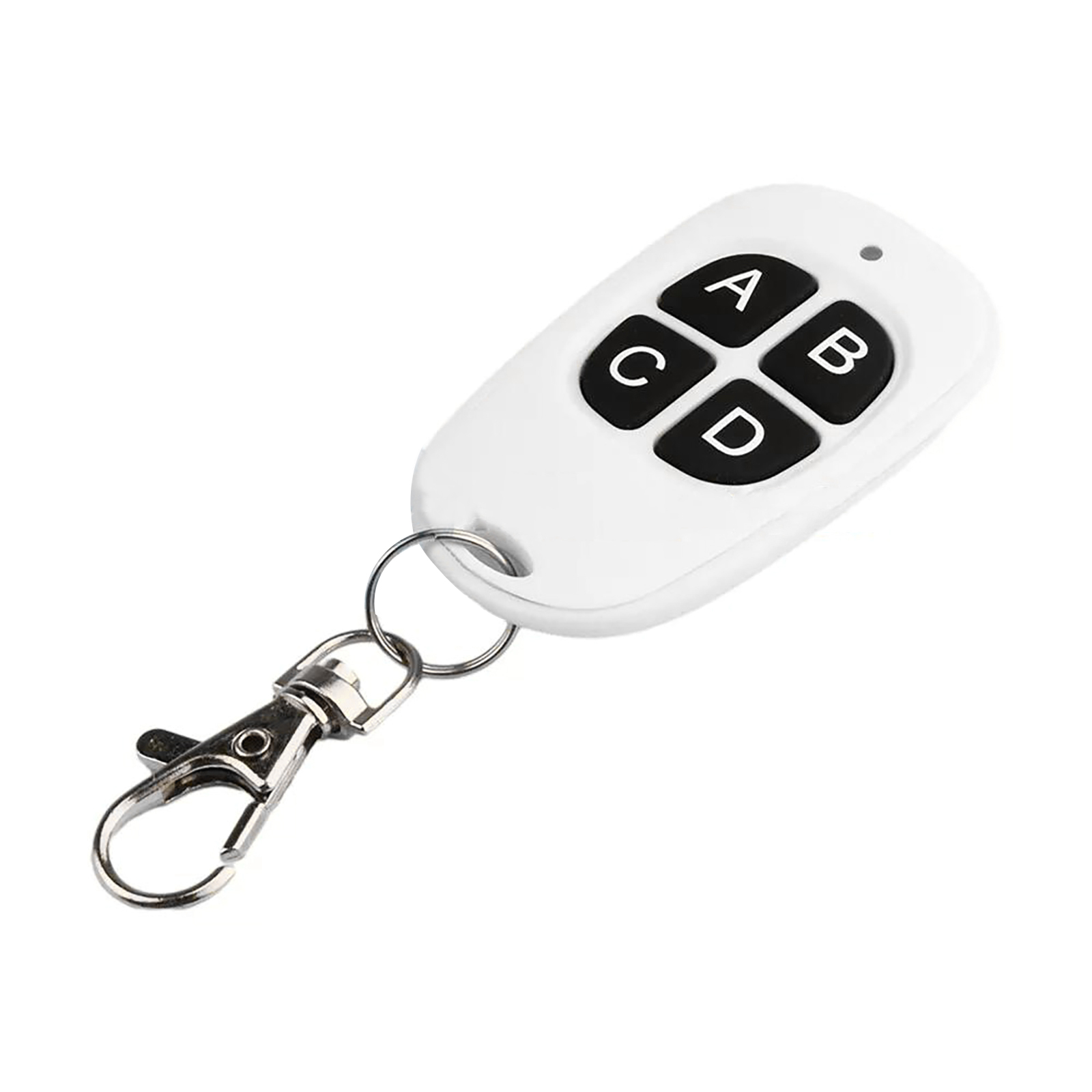

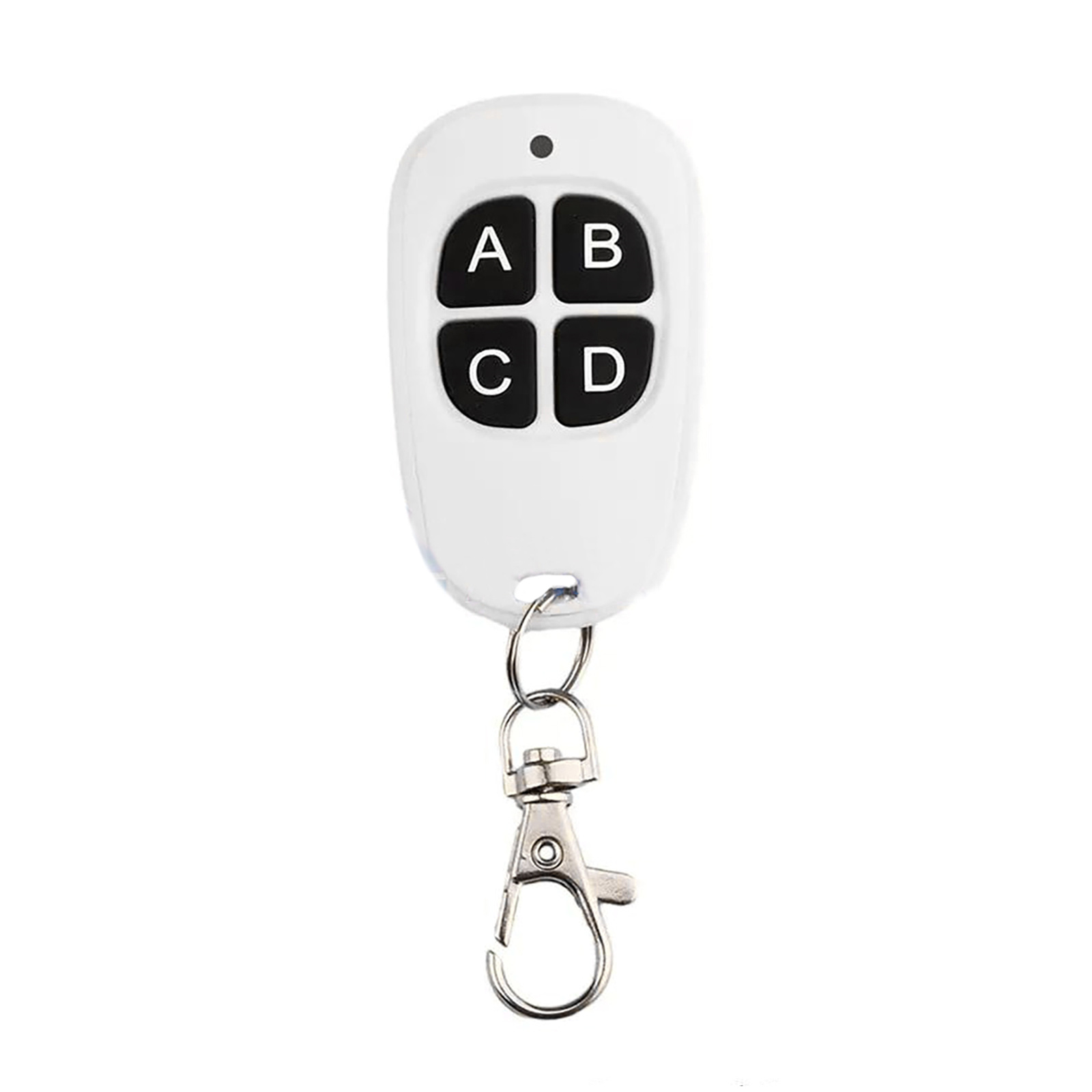

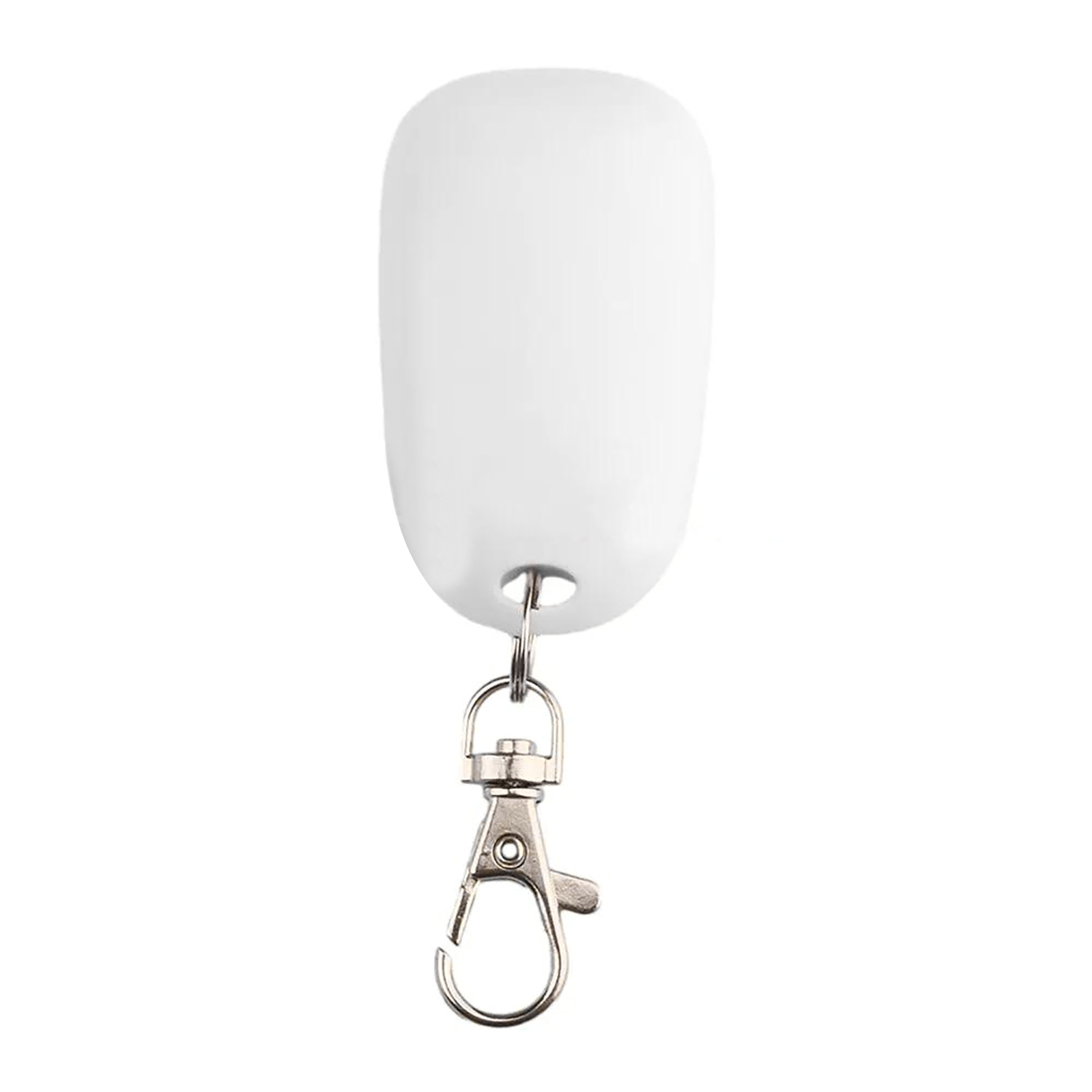

Circular Four Button Remote Control
Color: White
Working Frequency: 433mhz
Remote Control Distance: Approximately 50m
Size: 60*35*10mm
Remote Control Battery: 1* Cr2032 Battery(battery included)
Instructions For Setting Four Different Control Methods:
1. Four Way Jog Mode: Press The Learn Button Once.
2. Four Way Self-Locking Mode: Press The Learning Button Twice Continuously.
3. Four Way Interlocking Mode: Press The Learning Button Three Times Continuously.
4. Switch Between Two Jogs And Two Self-Locking Modes By Continuously Pressing The Learn Button Four Times.
Clear Code&Check Code:
Note: Two Keys Need To Be Learned To Successfully Learn
Code Checking: Press The Learning Button Once, And The Indicator Light Will Light Up. At This Point, Immediately Press The First Button On The Remote Control, And The Indicator Light Will Flash Twice To Indicate Successful Learning
Clear Code: Press The Learn Button 8 Times Continuously, And The Indicator Light Flashes 8 Times Continuously, Indicating Successful Code Clearing

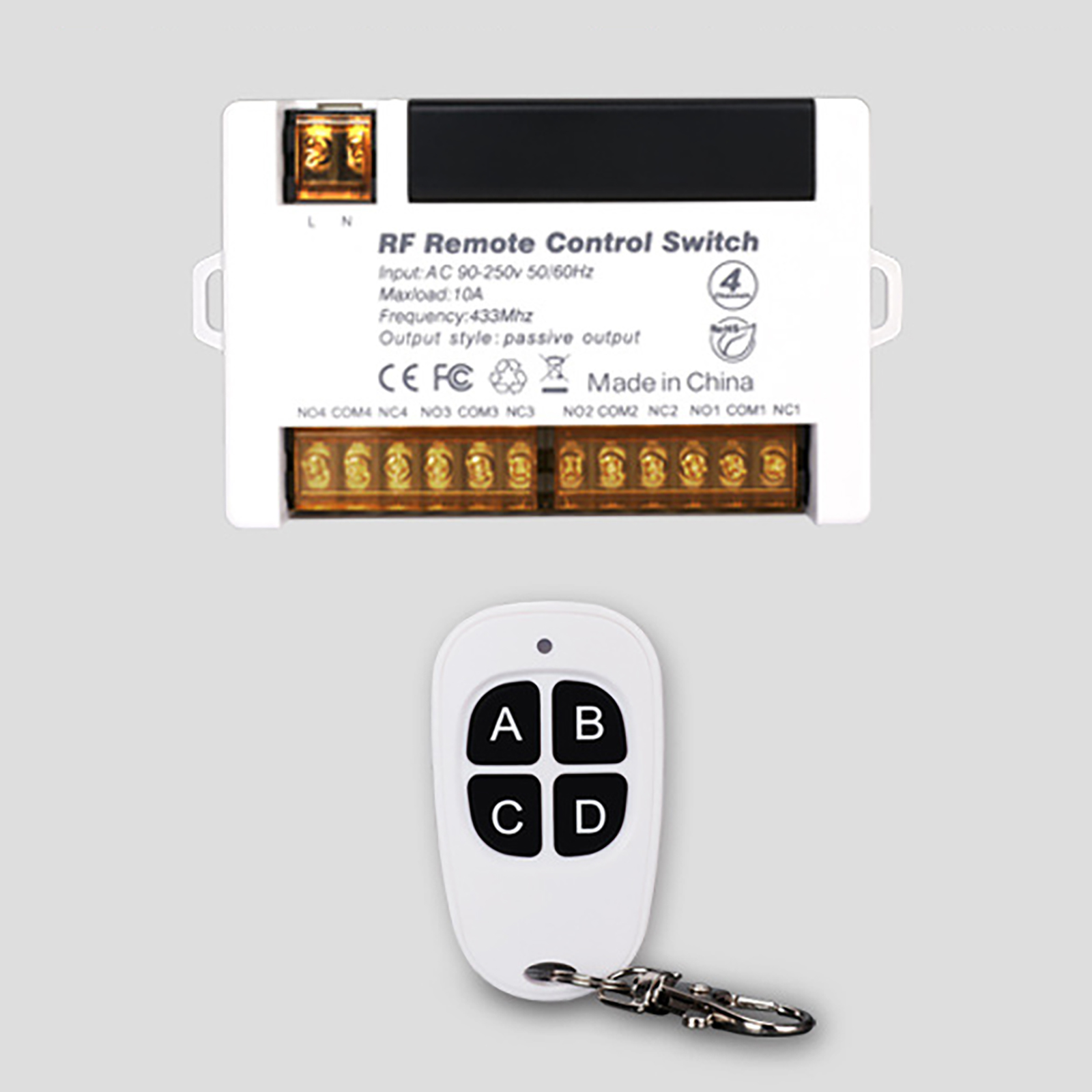

Product Included:
1 X Remote Control
1 X Receiver
Warning: Button/coin batteries can cause severe injuries when swallowed. Keep batteries out of reach of children. If you suspect a child has swallowed or inserted a button/coin battery, seek medical attention immediately.
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
