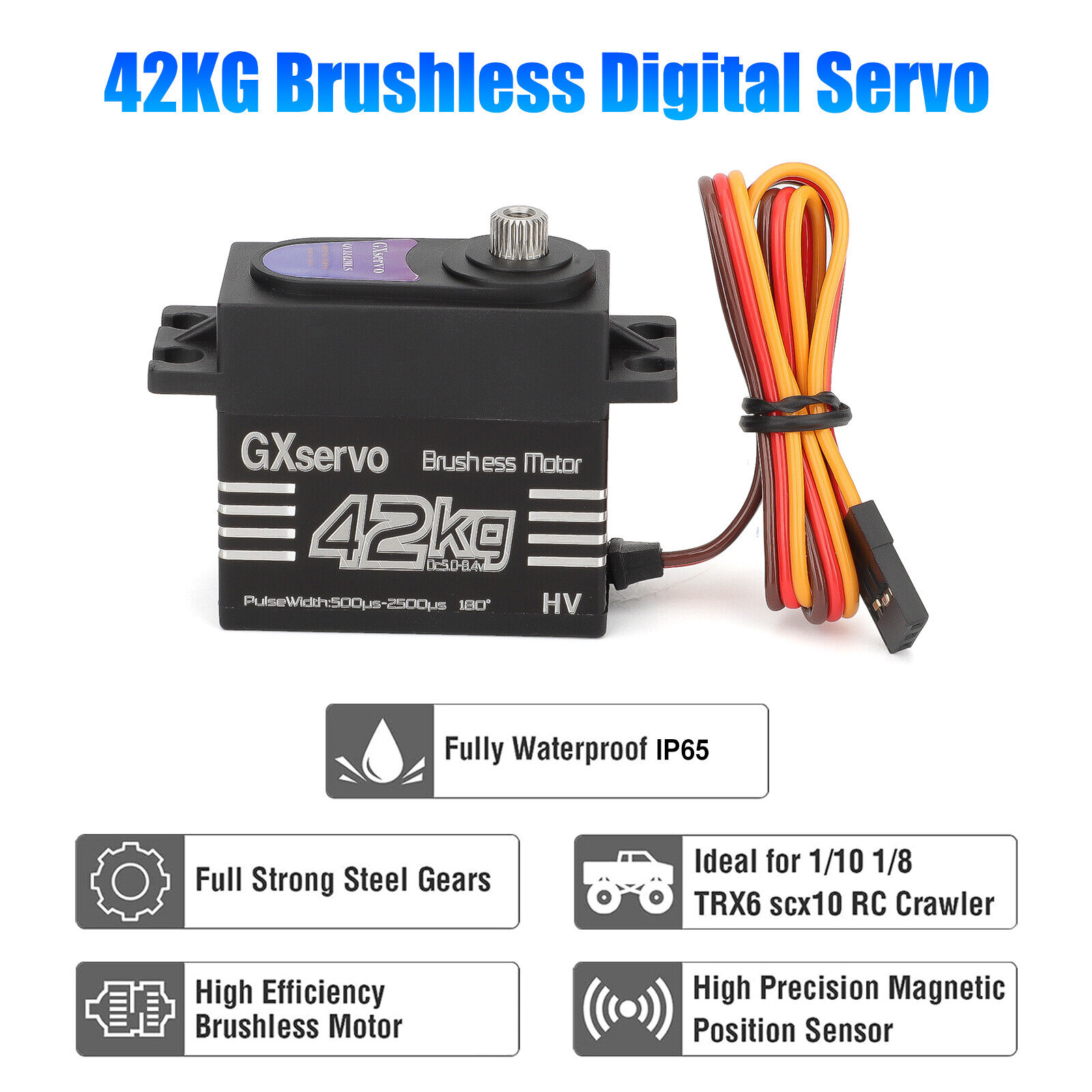

Features:

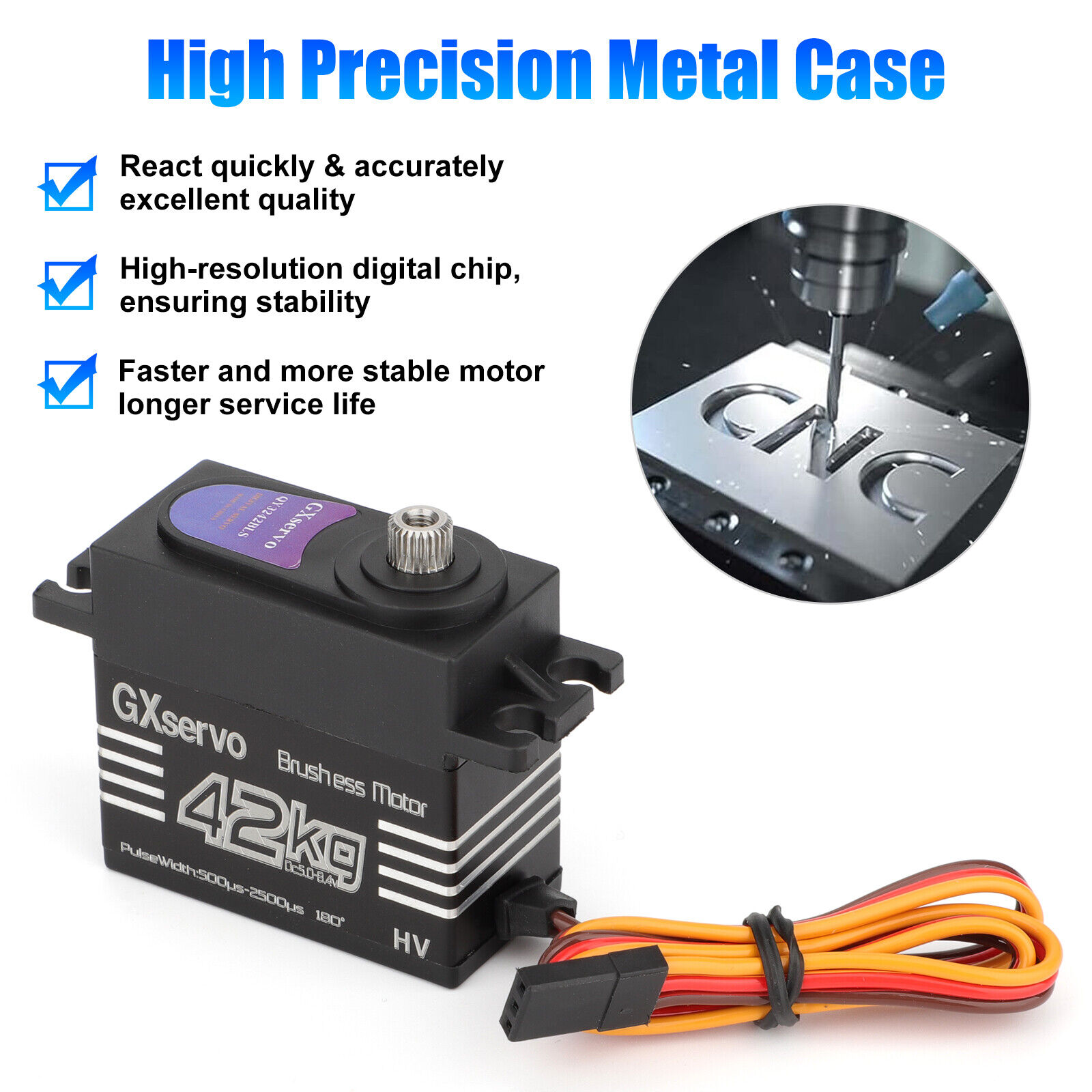

Equipped with a high-accuracy potentiometer and a high-resolution digital chip, ensuring stability, strong anti-interference, and rapid response for precise and smooth control.
Achieve up to 42kg/cm maximum torque, ensuring powerful and reliable performance.

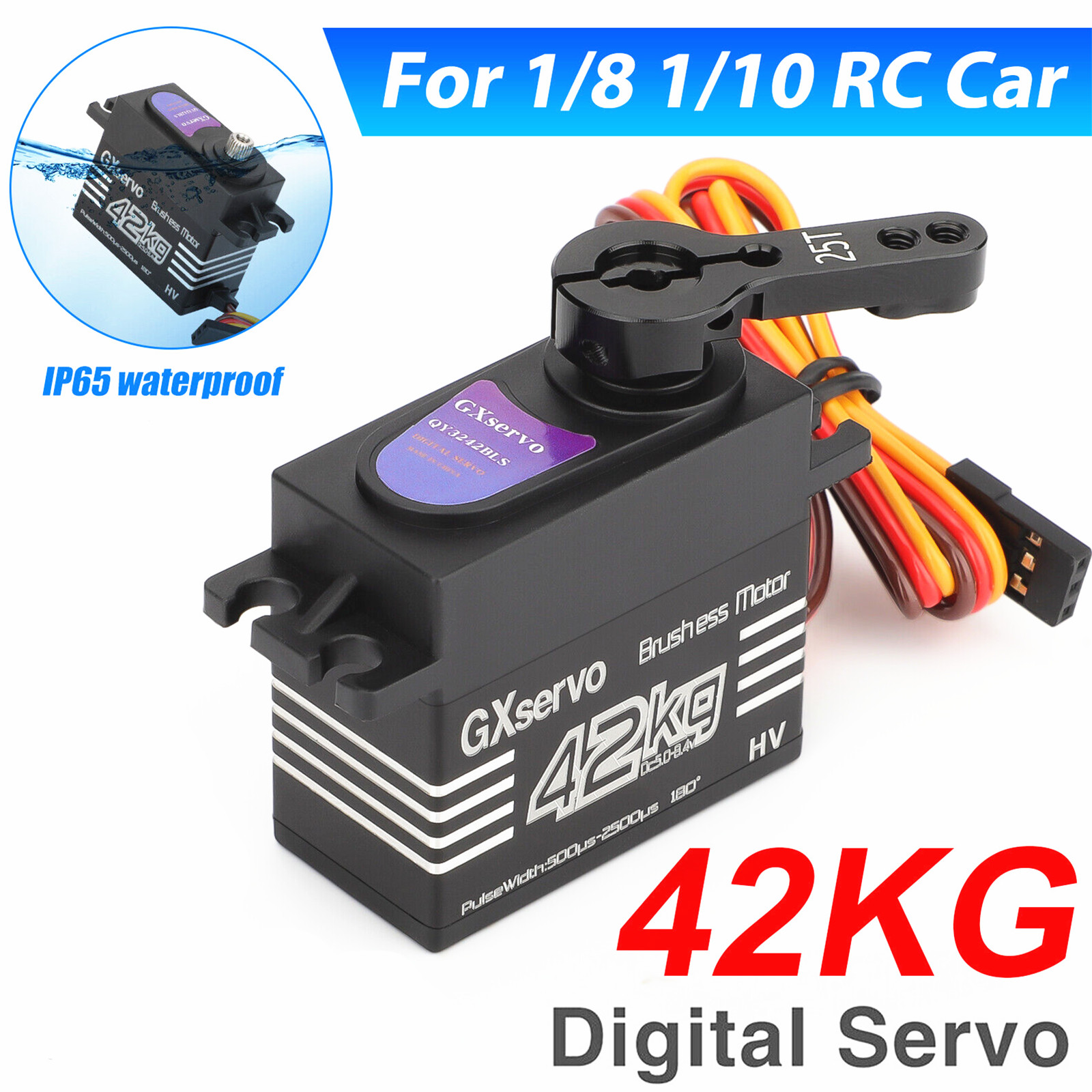

With an IP65 waterproof rating, this servo can handle various environments. Its controllable angle range from 0 to 180 degrees guarantees excellent linearity and precise control.
Compatible with 1/8, 1/10 trucks, RC cars, robots, boats, and other remote control models, making it perfect for various applications.
This digital servo comes with a comprehensive package, including the digital servo, steering gear accessories, and a 25T metal steering gear arm for added convenience and flexibility.
Specifications:
Operating Voltage: 5-8.4V
Temperature: -20C°~+60C°
PMW Volts: 3.3-5Vadvised
Puise Width Angle: 500-2500us, 180°
Dead band: 2usec
Signal: Digital

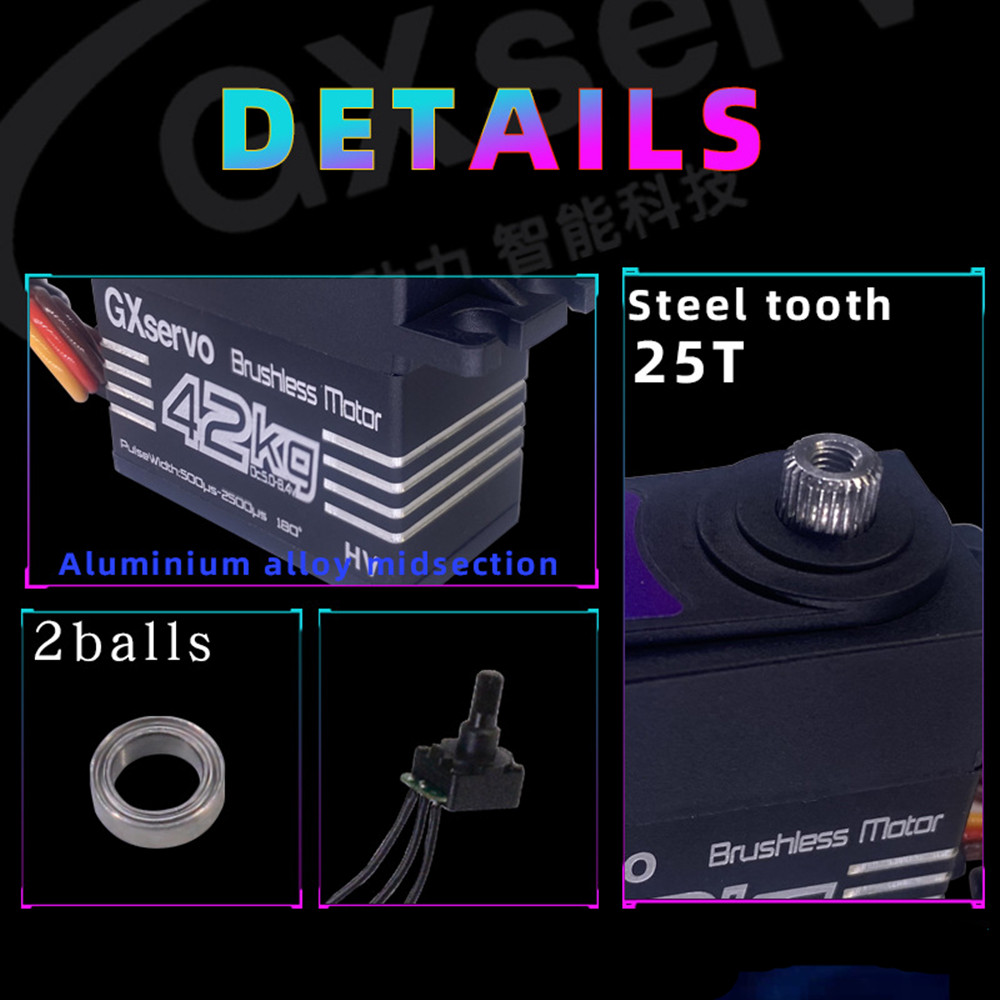

Ball Bearing: 2BB
Wire length: JR300mm

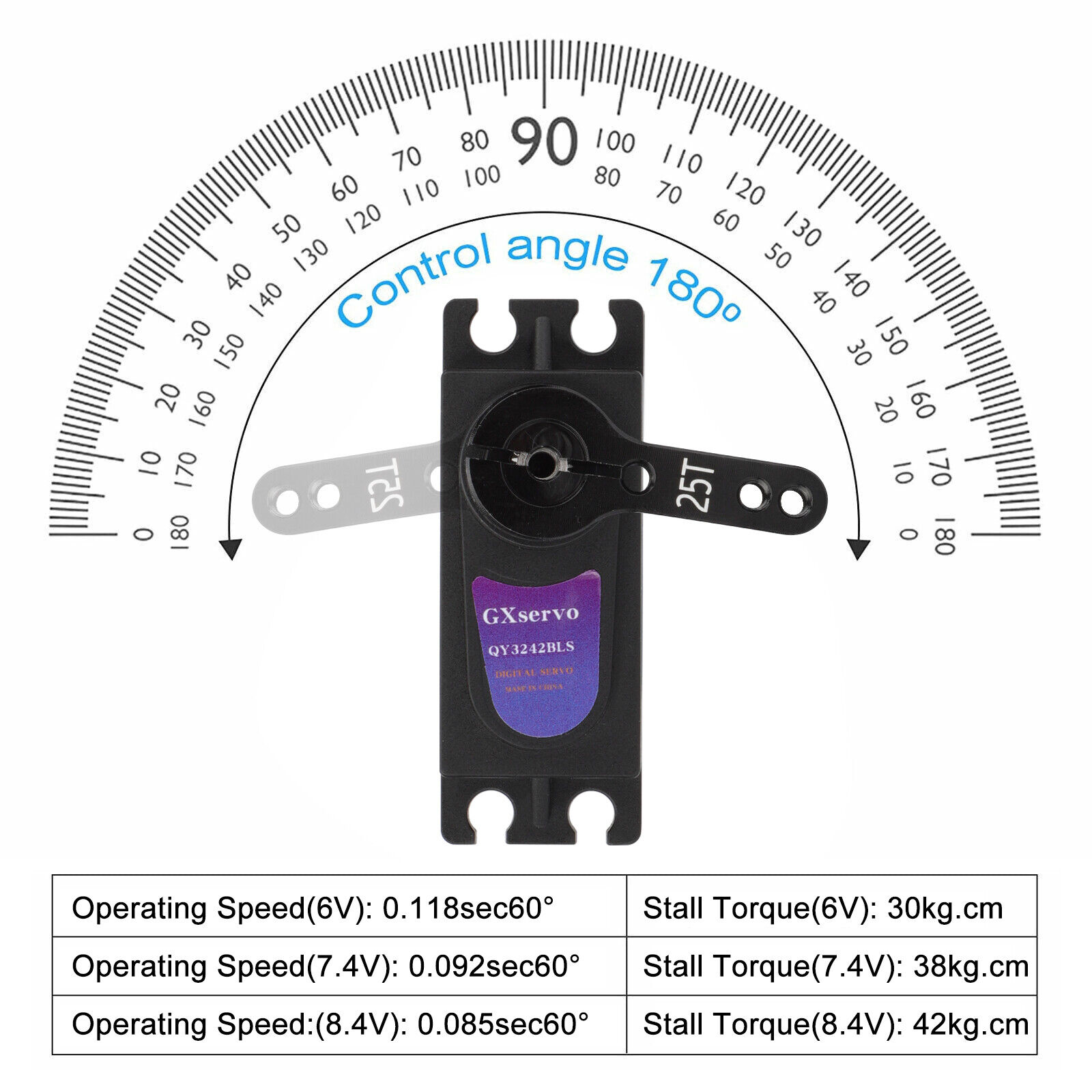

Stall Torque(6V): 30kg.cm
Stall Torque(7.4V): 38kg.cm
Stall Torque(8.4V): 42kg.cm
Operating Speed(6V): 0.118/sec60°
Operating Speed(7.4V): 0.092/sec60°
Operating Speed(8.4V): 0.085/sec60°

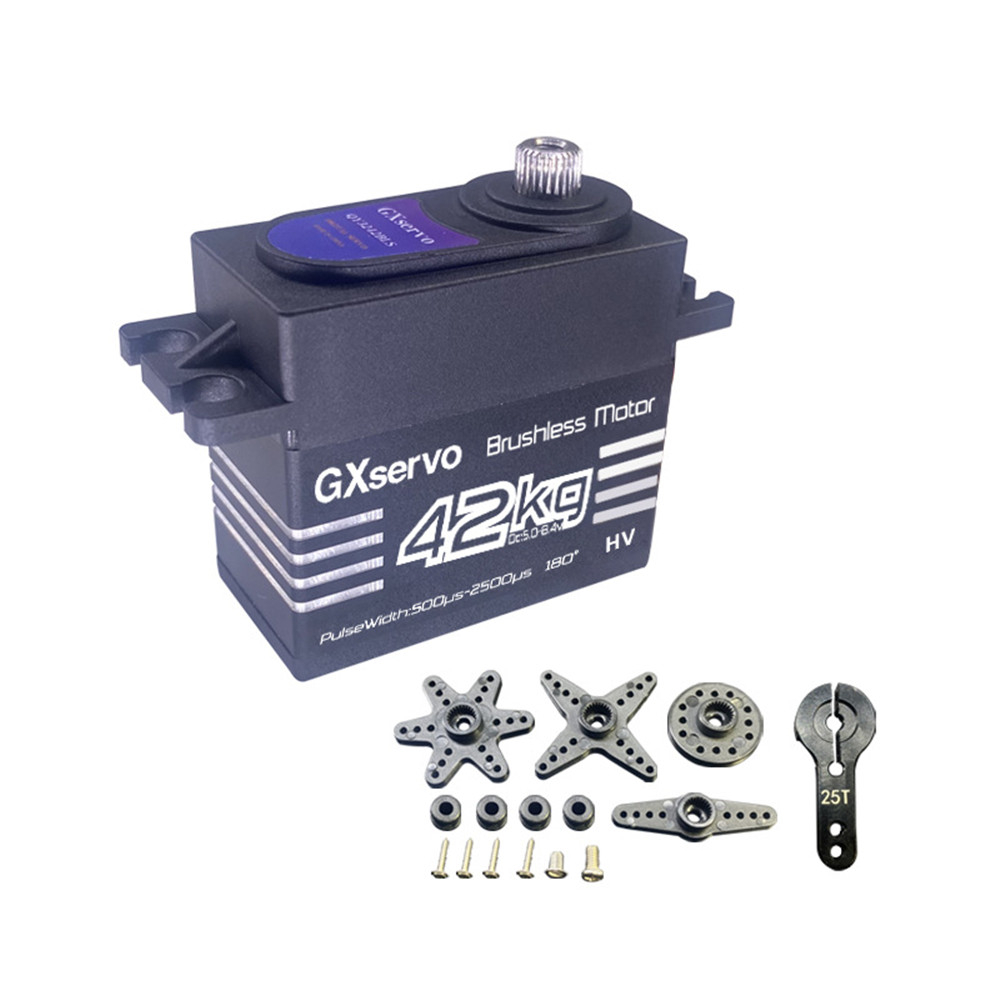

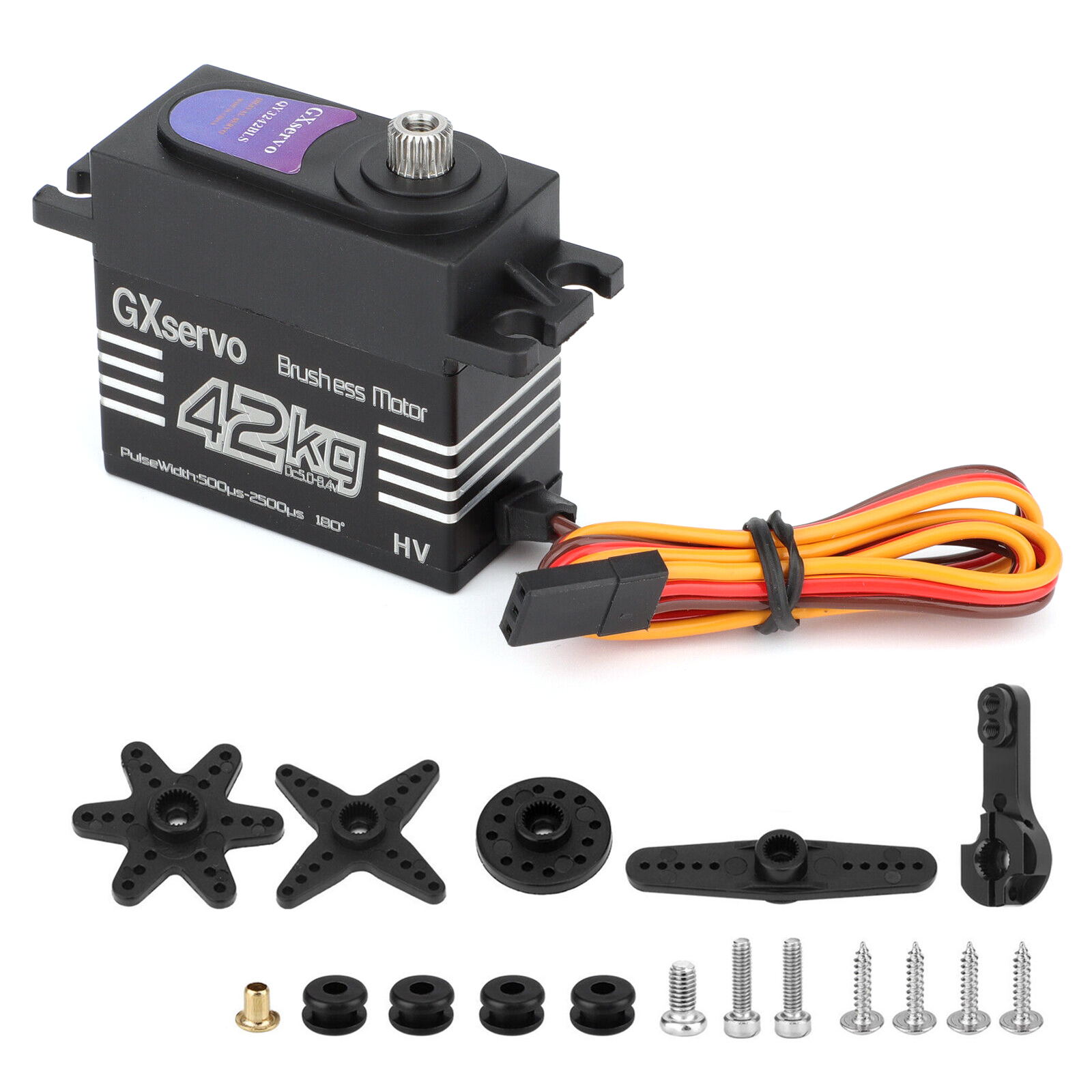

Package Includes:
1 x 42kg Brushless Servo
1 x 25T Servo Arm
1 x set of Accessories
