Features:

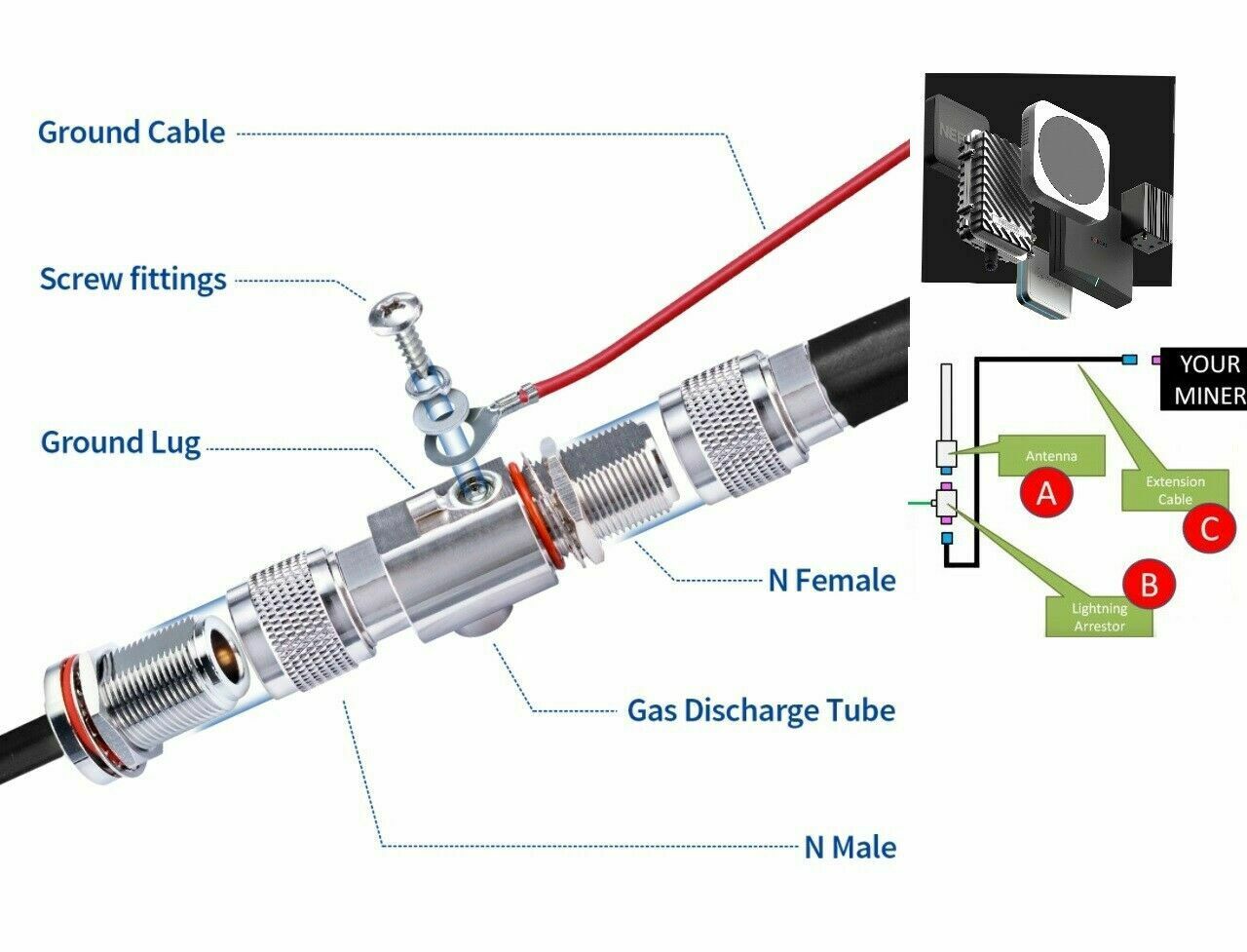

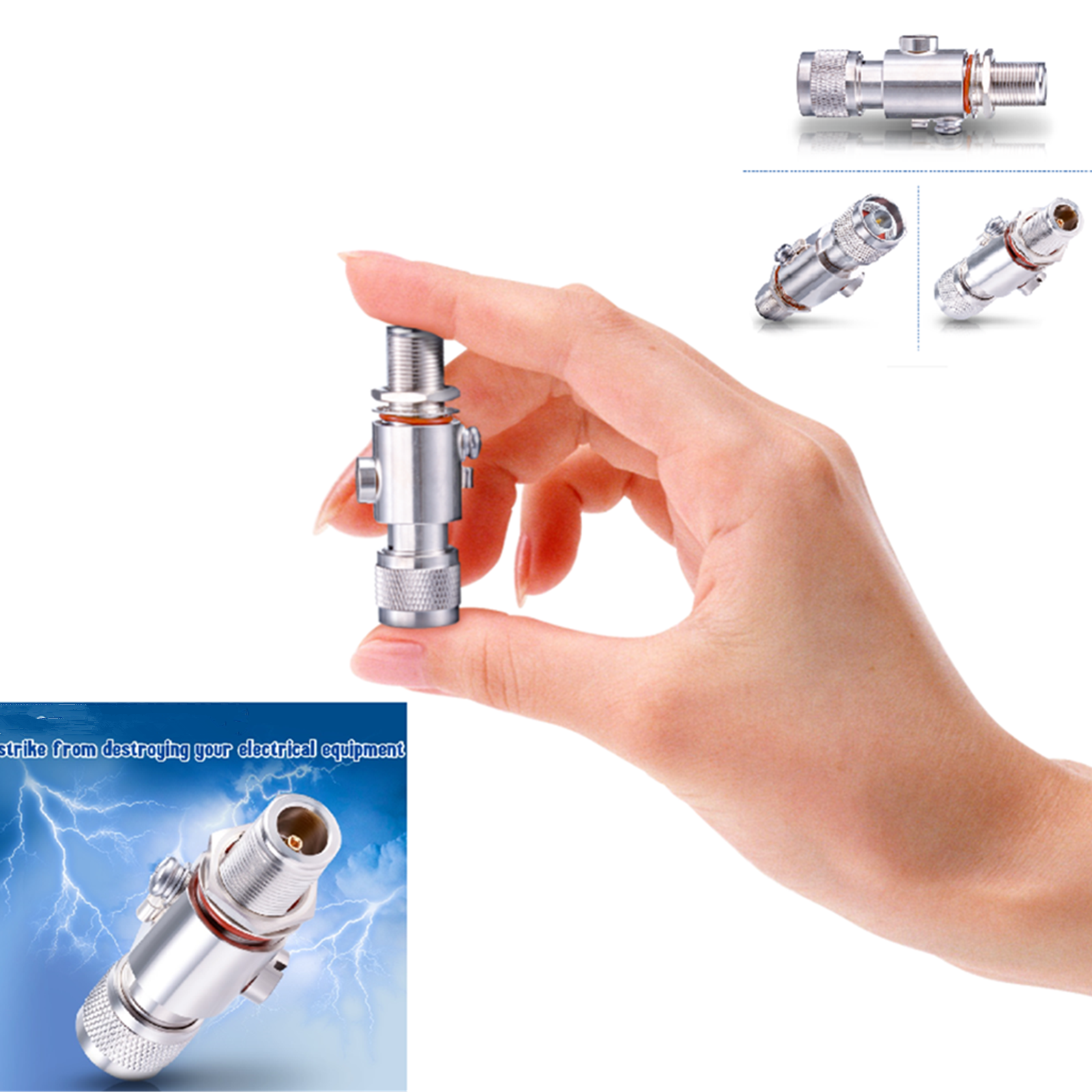

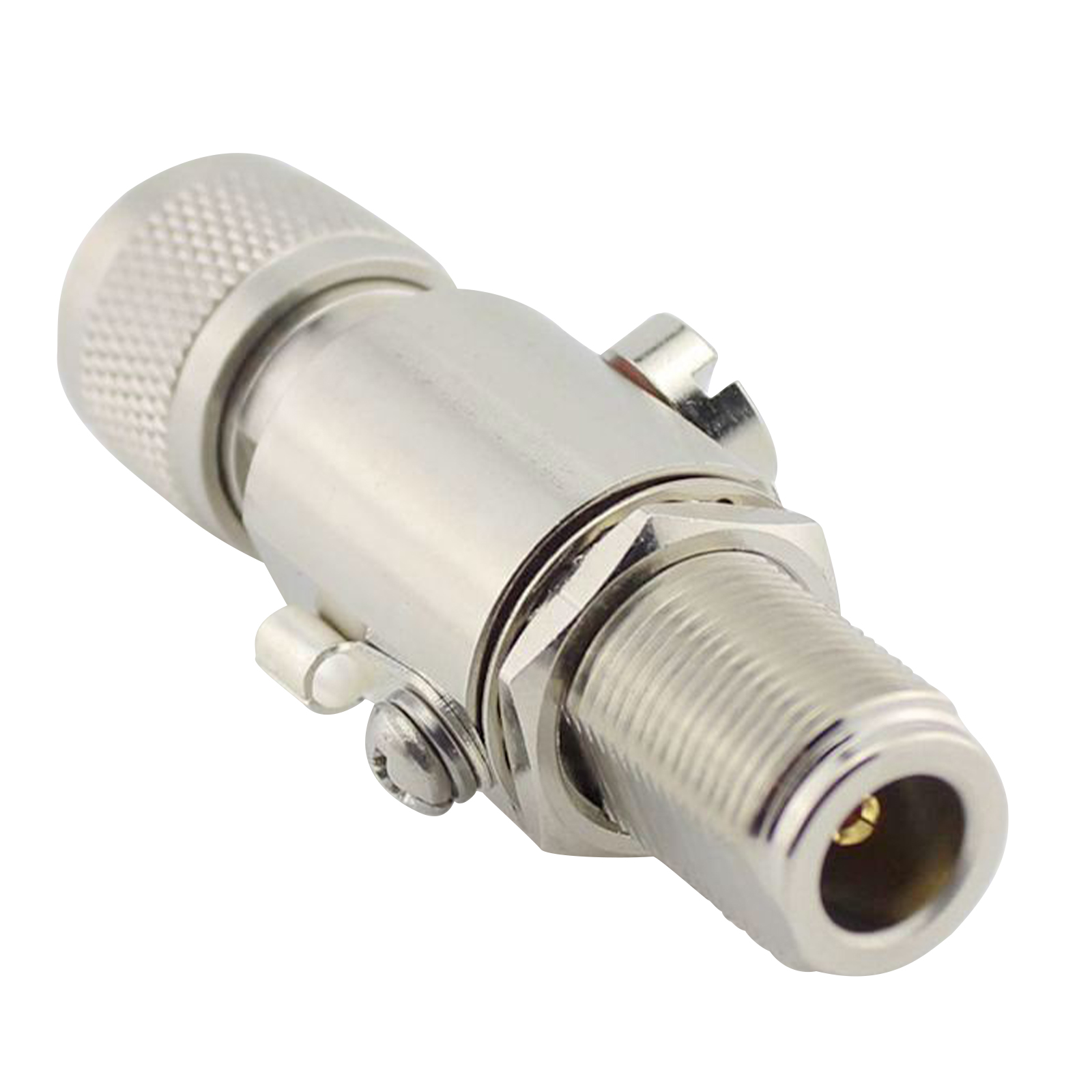

Protects system from dangerous electrical thunderstorm by installing the n male to n female thunderstorm arrestor between the amplifier and the outdoor antenna.
Designed for easy installation and manufactured the thunderstorm protector with high quality nickel plated brass to provide superior performance and longevity
It is also a great thunderstorm protector for 2G, 3G, 4G, and LTE service as well as 2.4 GHz Wi-Fi, Ham radio and other lower frequency applications
Specifications:
Model Name: Thunderstorm Arrester
Impedance: 50 ohms
Discharge Voltage: DC 90V
Voltage standing wave ratio: ≤1.15
Insertion loss: ≤0.2dB
Frequency range: 0 - 6 GHz
Ransmission power: up to 20KW
Working temperature: +80℃-45℃
Waterproof rating: IP67
Grounding wire diameter: more than 6²
Response time: less than 50 nano-seconds
Residual voltage: 0.2V
Package Include:
1* Thunderstorm Arrester
