Features:
Surge overload ratings to 400 amperes
Electrically isolated metal case for maximum heat dissipation
Case to terminal isolation voltage 2500V
Specifications:
Maximum repetitive peak reverse voltage (VRRM): 1000V
Maximum RMS bridge input voltage (VRMS): 700V
Maximum DC blocking voltage (VDC): 1000V
Maximum average forward rectified output current at TA=40 C (IF(AV)): 50A
Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) (IFSM): 400A
Typical thermal resistance per element (ReJA): 2.5 degrees C/W
Operating junction and storage temperature range: -55°C~150°C
Maximum instantaneous forward voltage drop per leg at 25A (VF): 1.0V
Maximum DC reverse current at rated TA=25 C (IR): 10uA
DC blocking voltage per element TA=125 C (IR): 500uA
Package include:

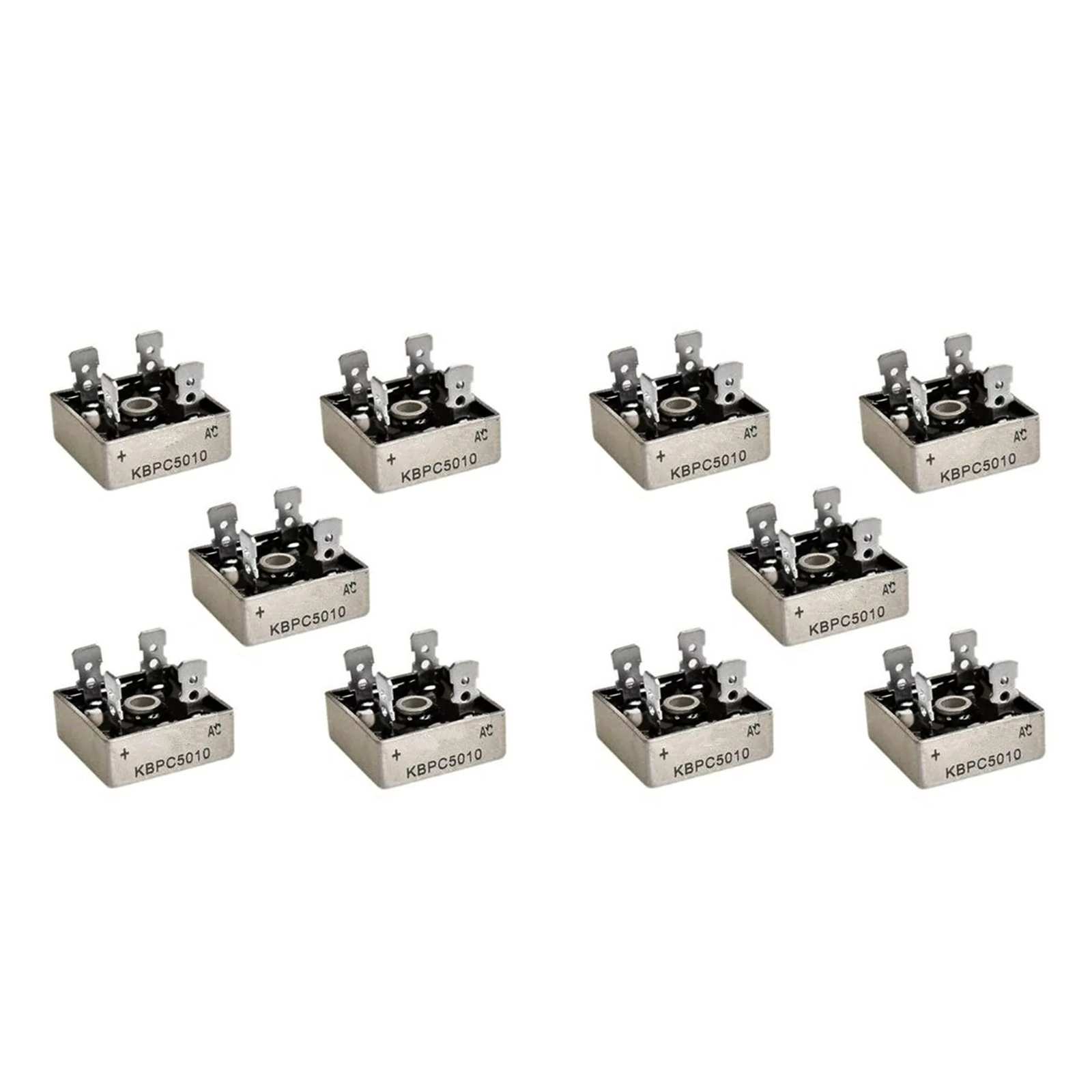

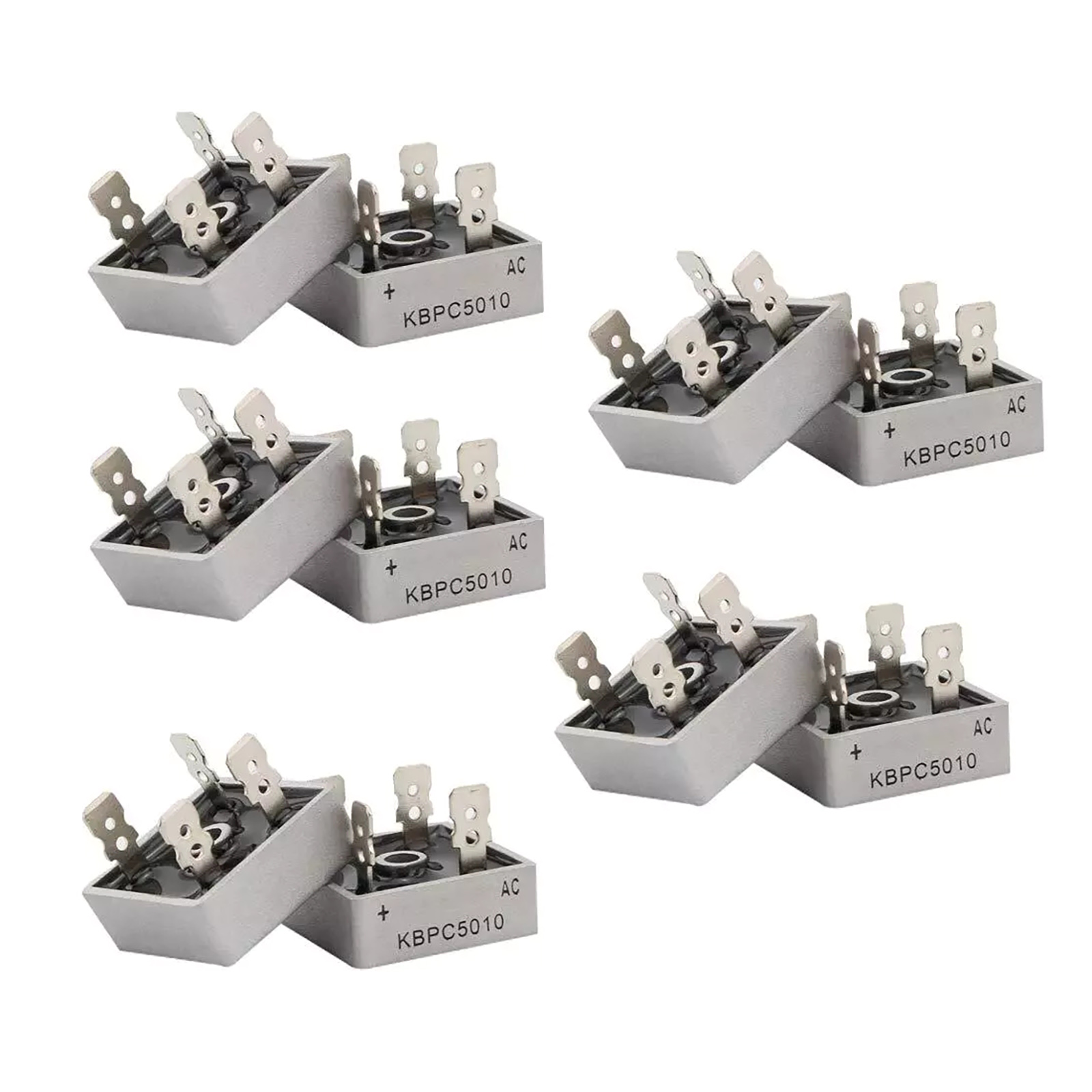

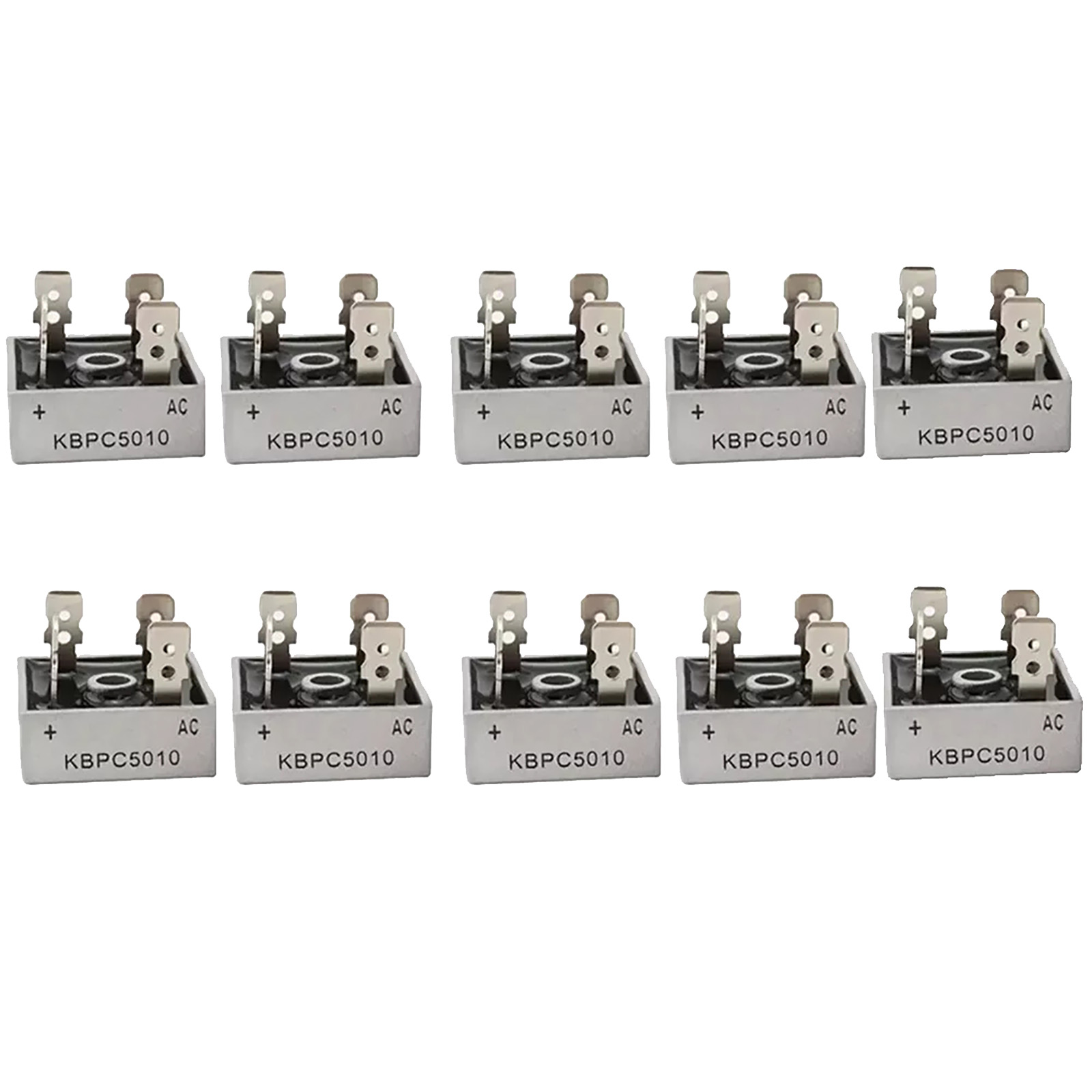

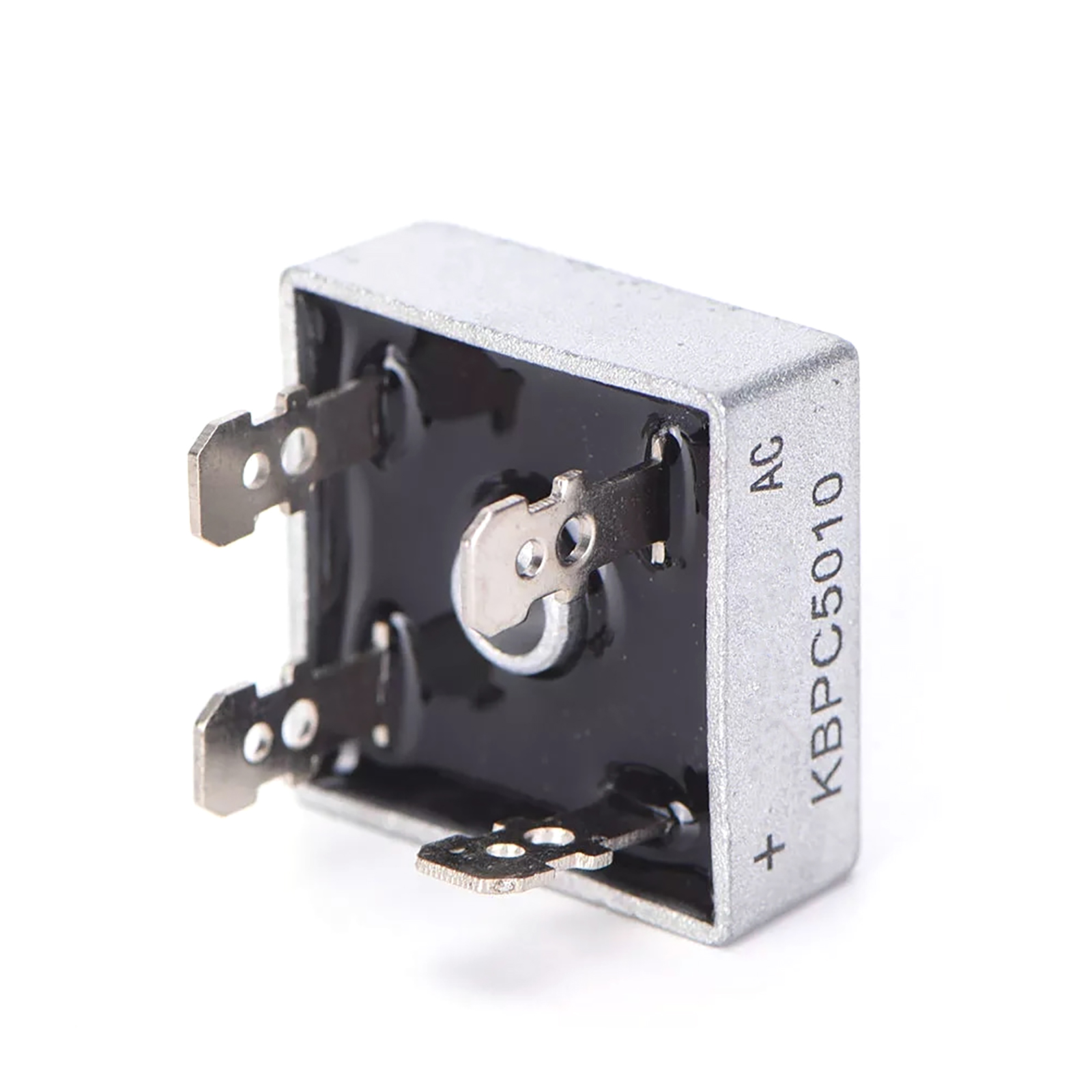

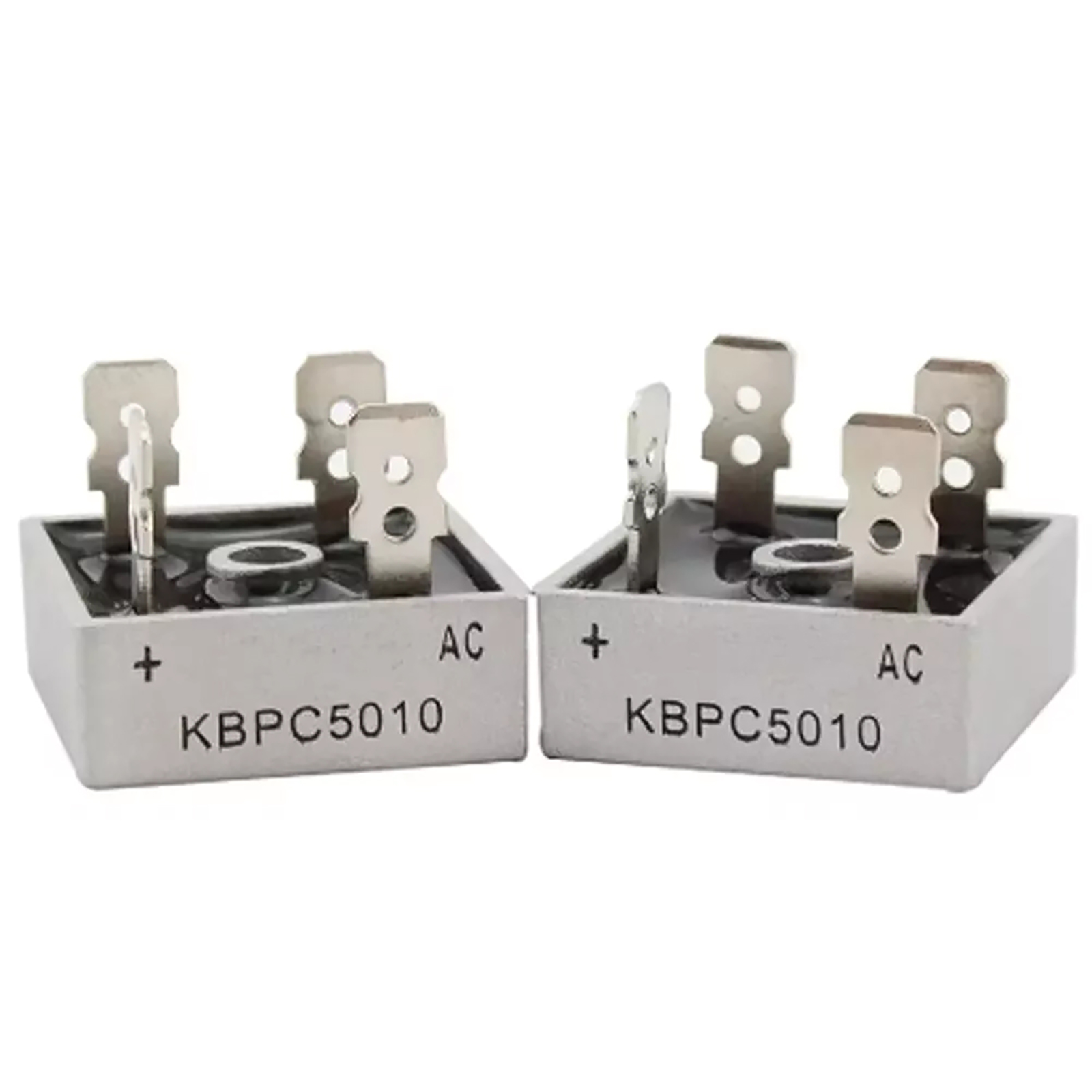

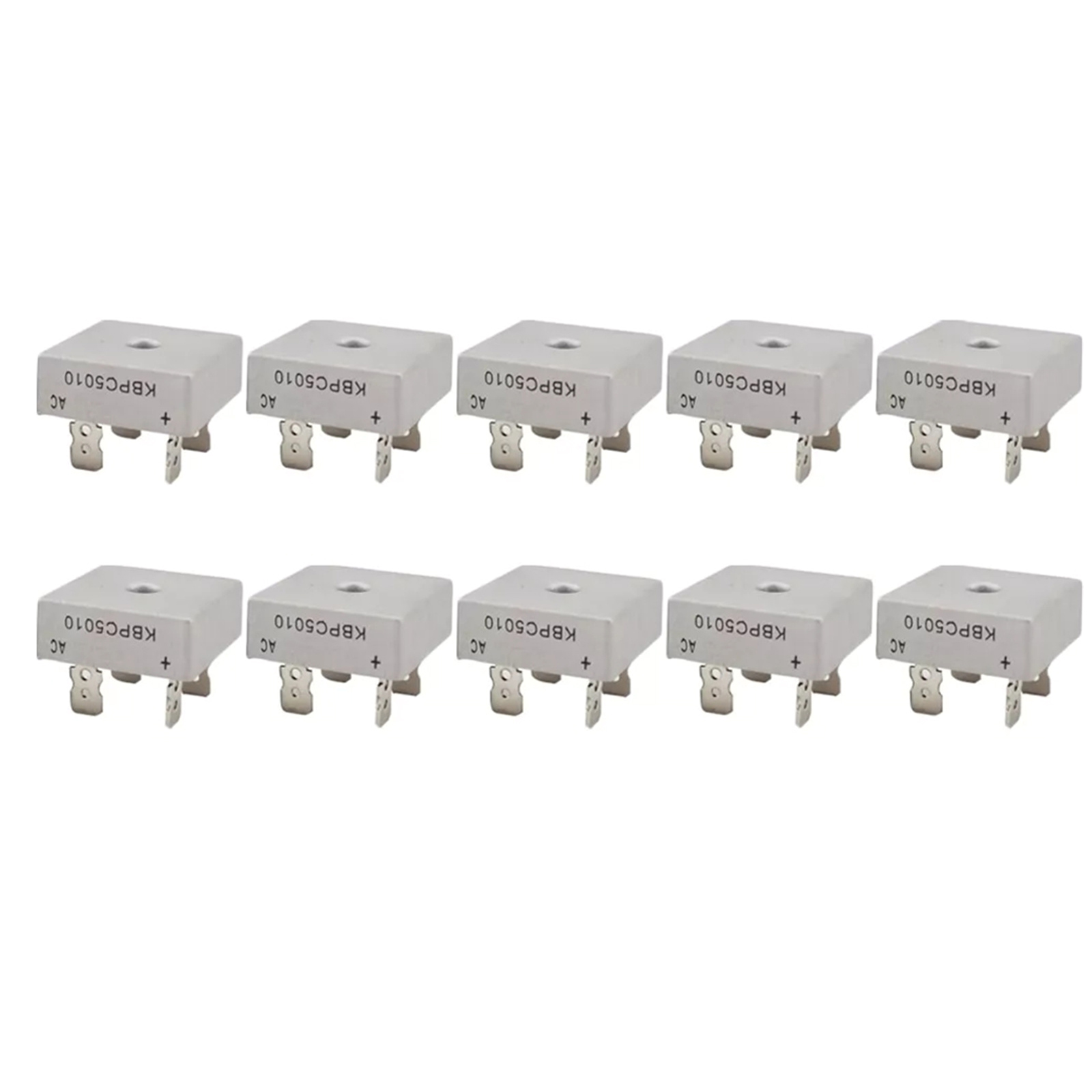

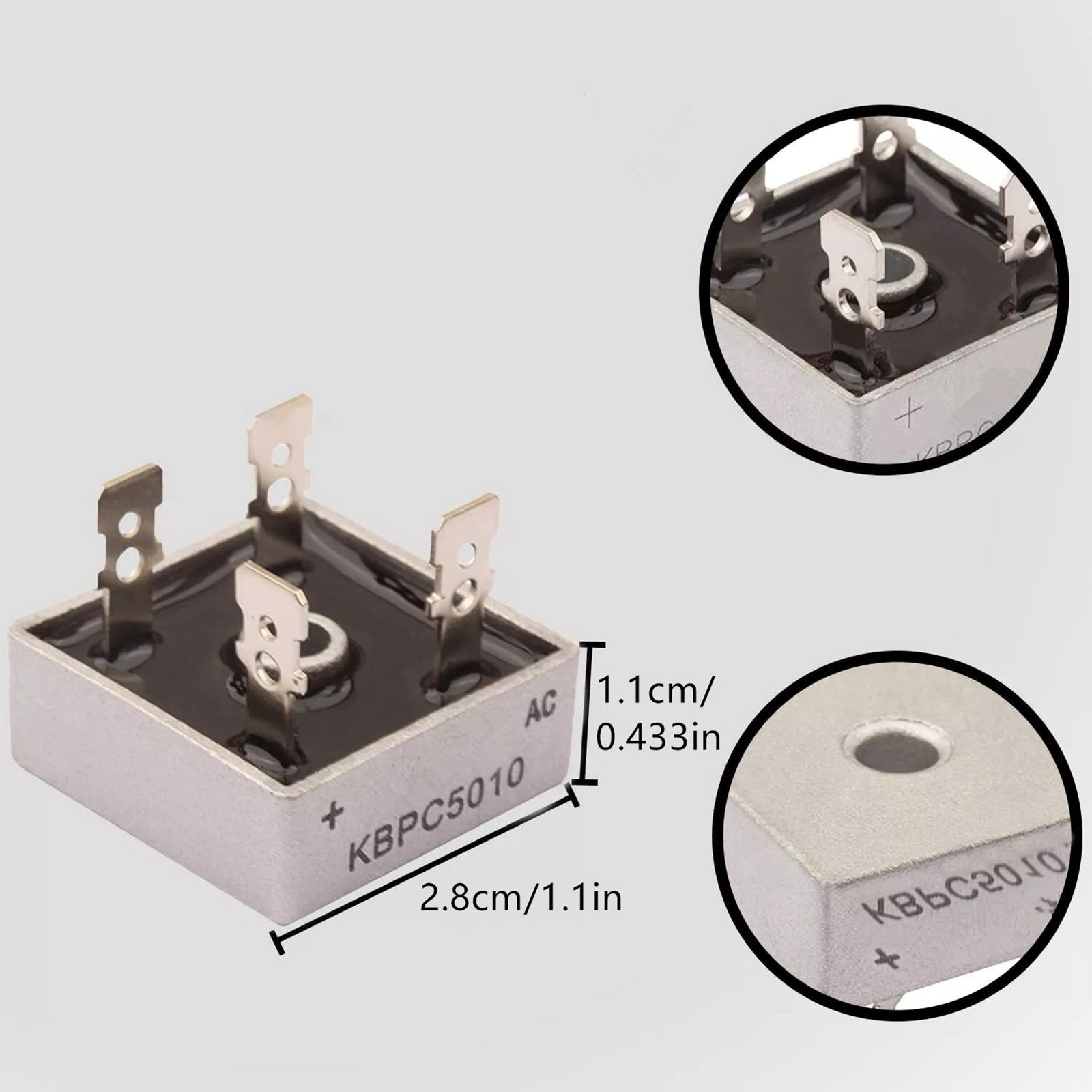

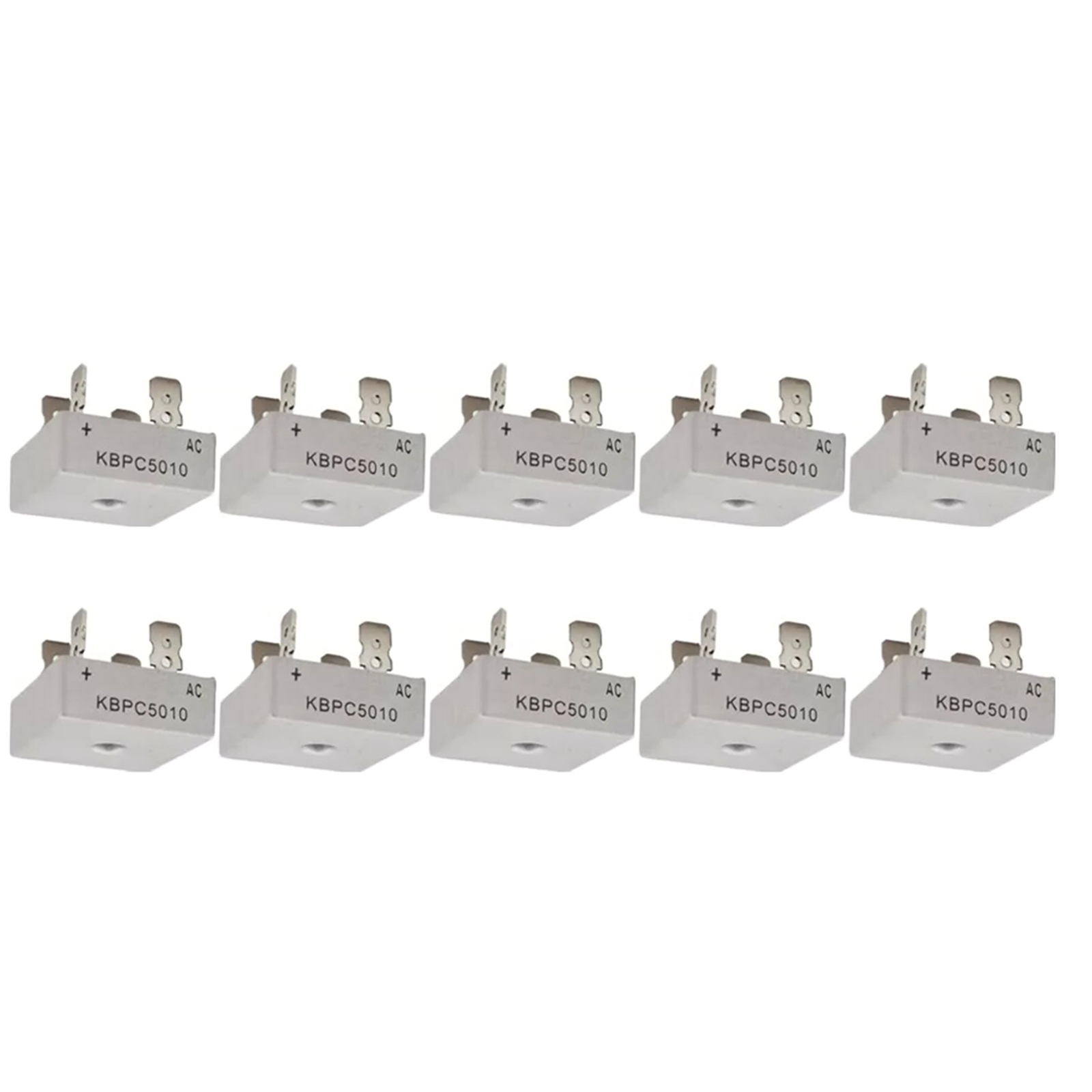

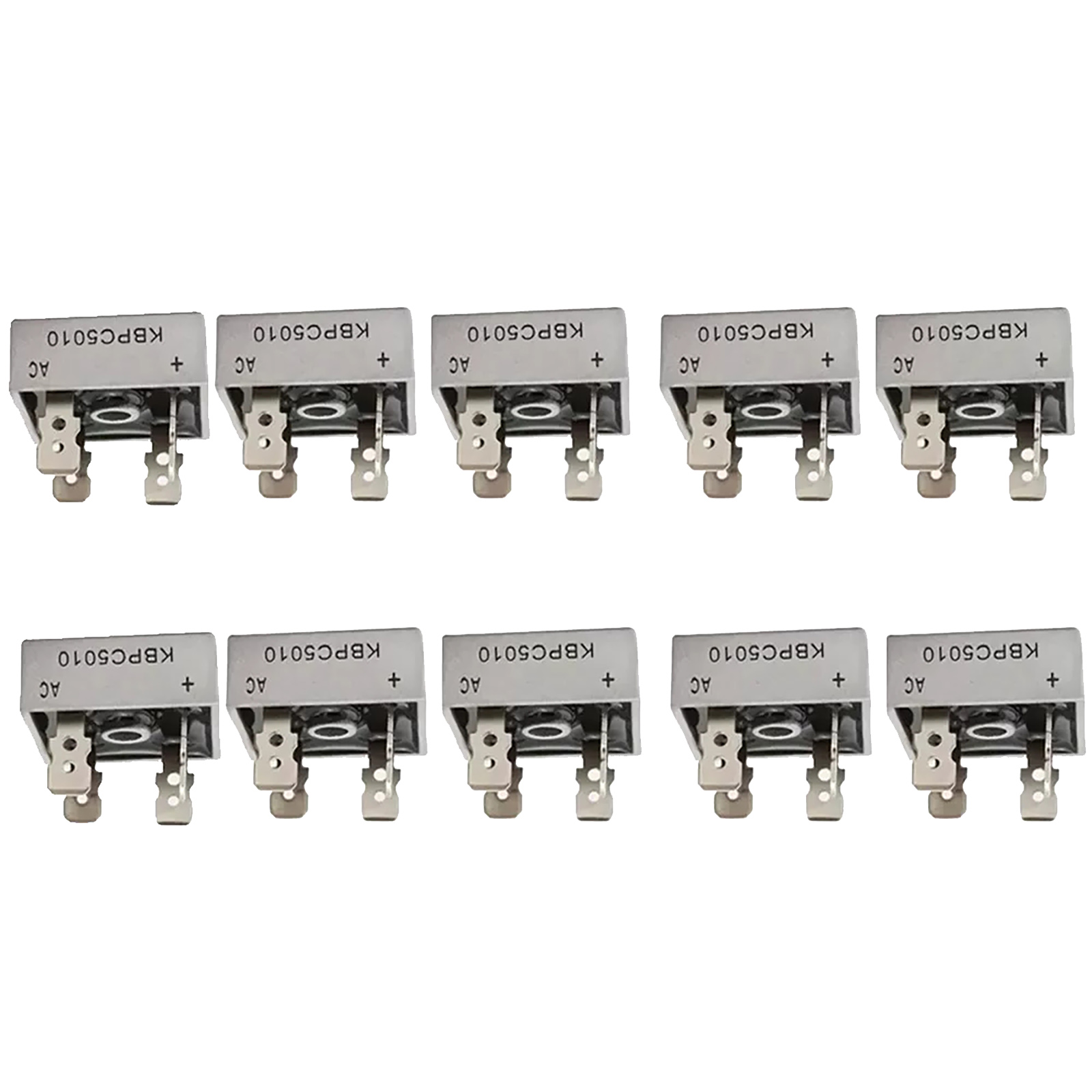

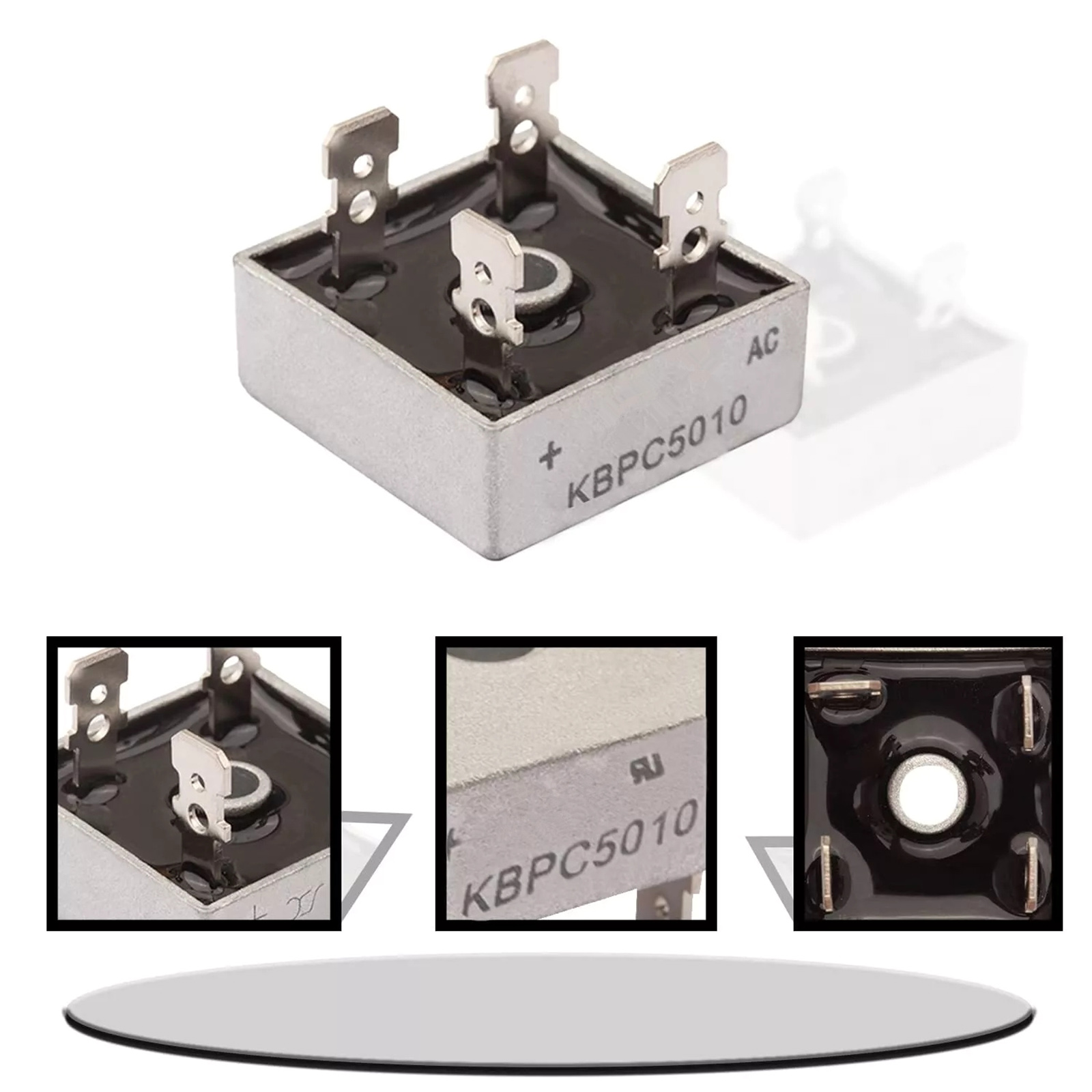

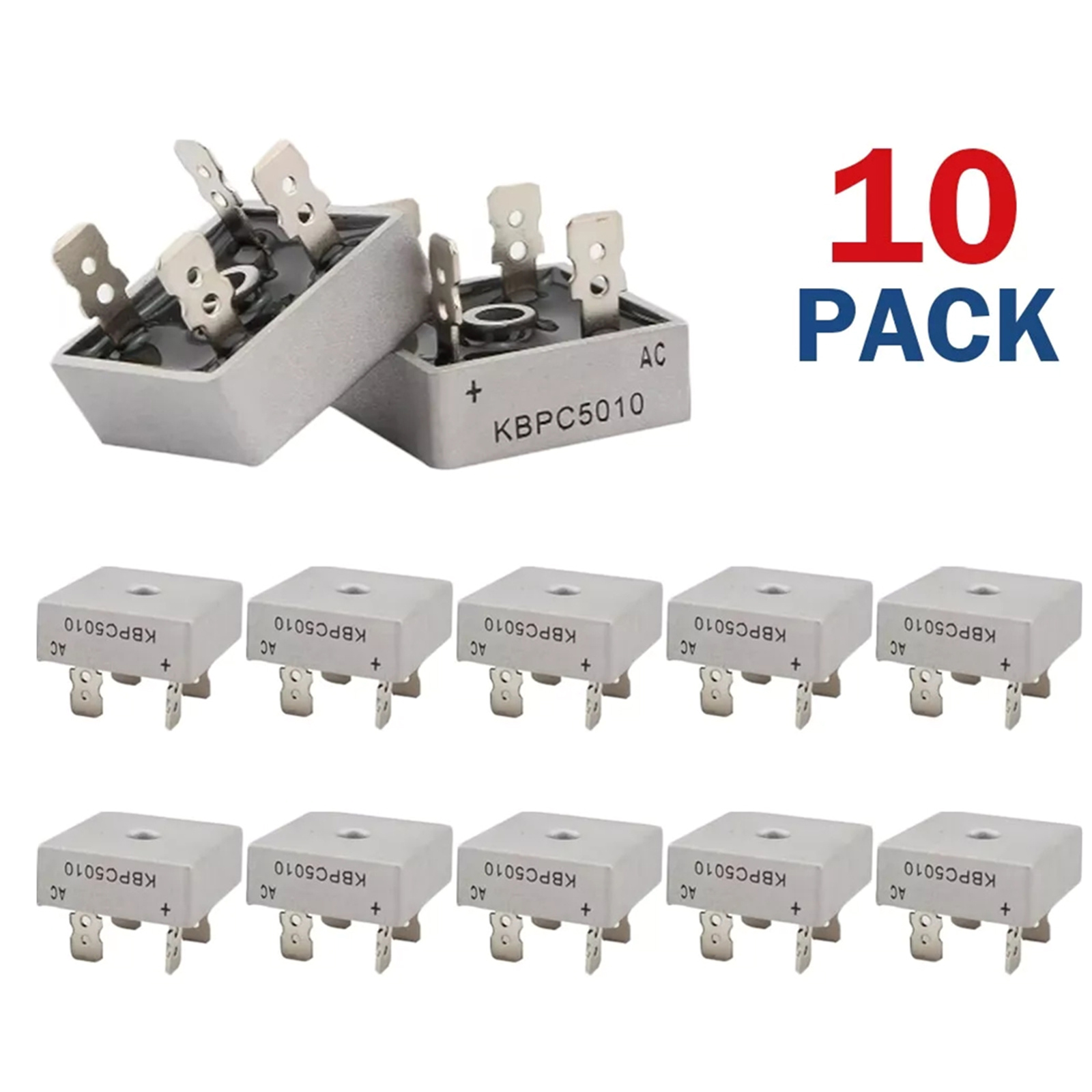

10PCS KBPC5010 50A 1000V Metal Case Single Phase Diode Bridge Rectifier
Surge overload ratings to 400 amperes
Electrically isolated metal case for maximum heat dissipation
Case to terminal isolation voltage 2500V
Specifications:
Maximum repetitive peak reverse voltage (VRRM): 1000V
Maximum RMS bridge input voltage (VRMS): 700V
Maximum DC blocking voltage (VDC): 1000V
Maximum average forward rectified output current at TA=40 C (IF(AV)): 50A
Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) (IFSM): 400A
Typical thermal resistance per element (ReJA): 2.5 degrees C/W
Operating junction and storage temperature range: -55°C~150°C
Maximum instantaneous forward voltage drop per leg at 25A (VF): 1.0V
Maximum DC reverse current at rated TA=25 C (IR): 10uA
DC blocking voltage per element TA=125 C (IR): 500uA
Package include:
10PCS KBPC5010 50A 1000V Metal Case Single Phase Diode Bridge Rectifier
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
