Features:

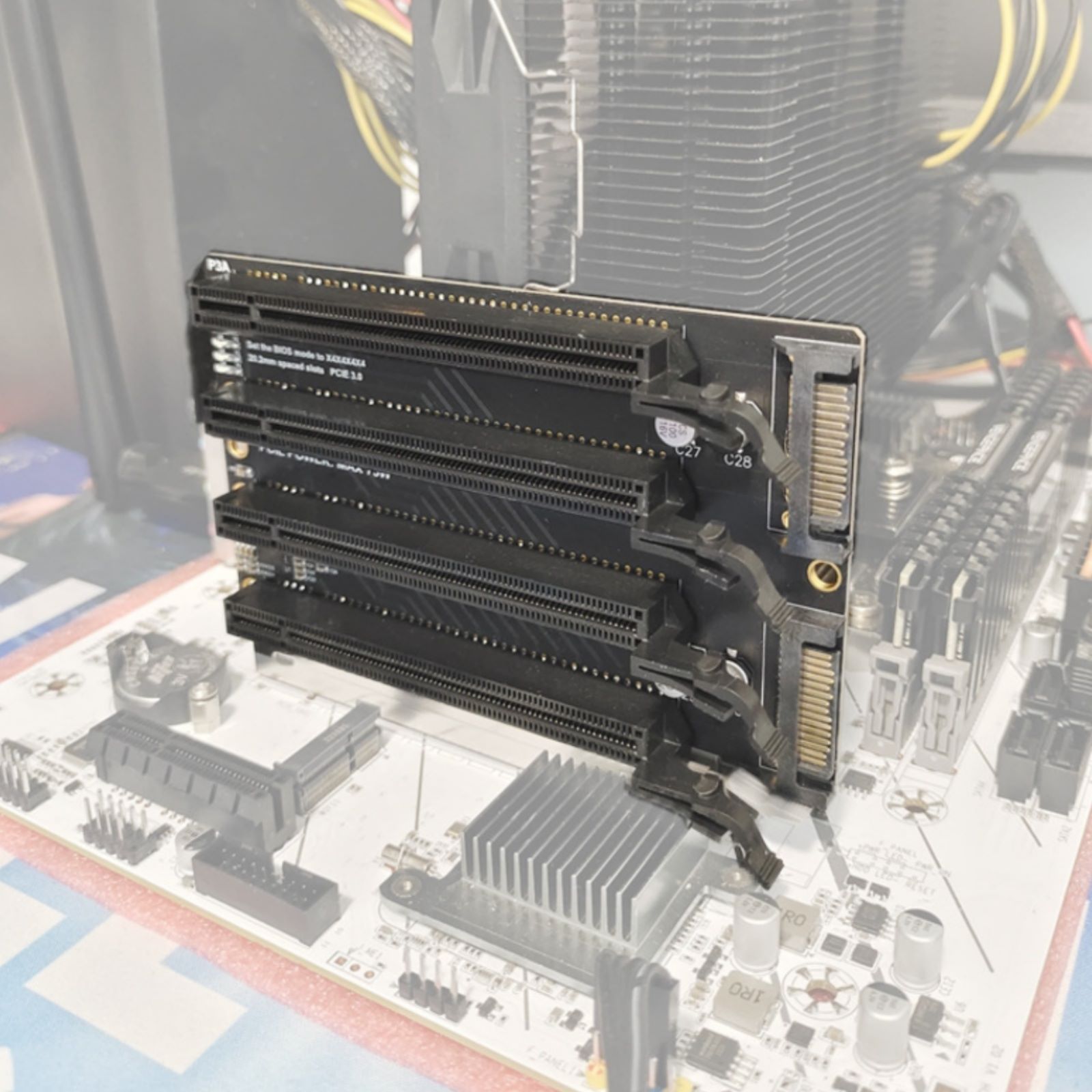

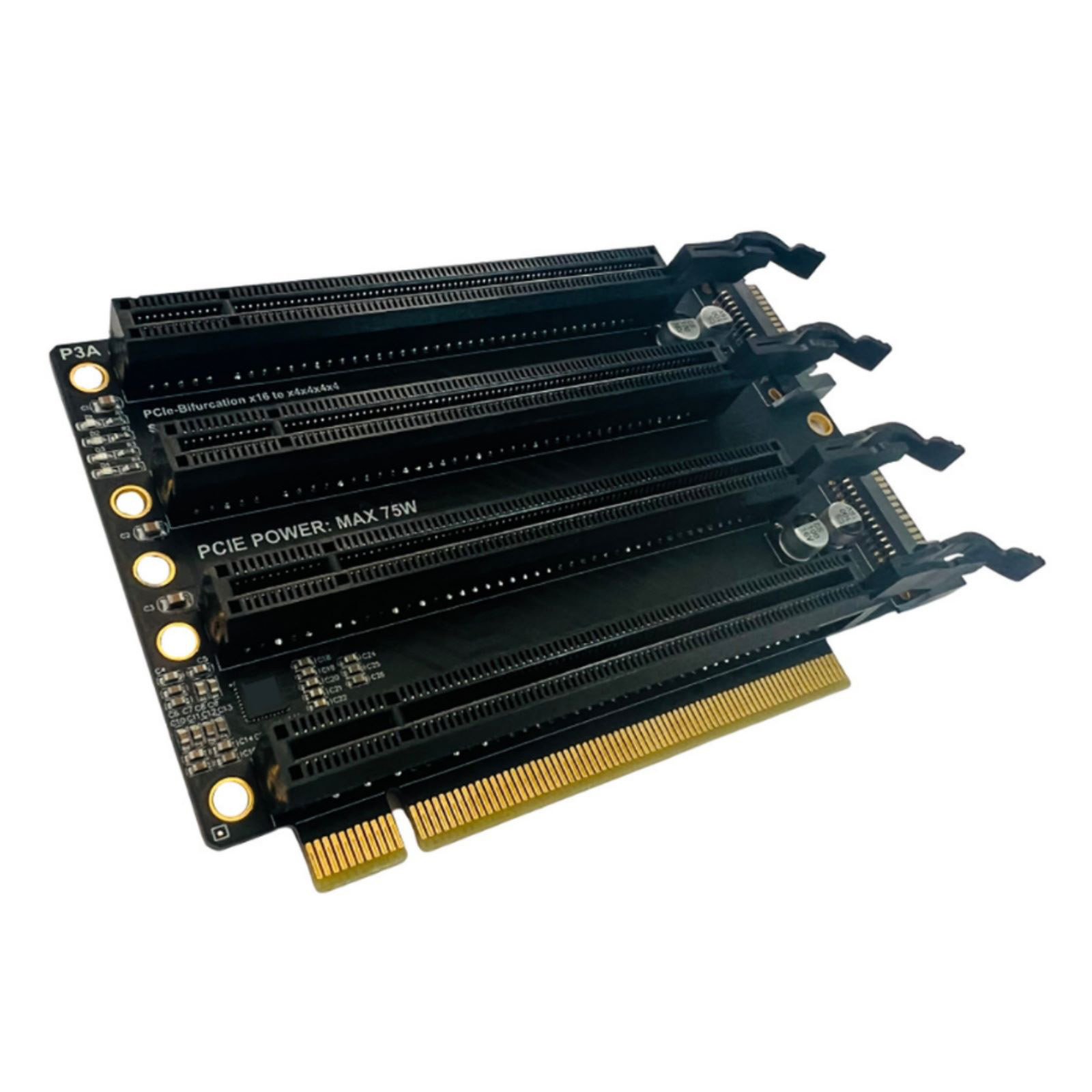

Flexible PCIE Slot Configuration: The PCIE X16 slot can be split into four PCIEX4 slots (physically housed in the X16 slot), allowing for versatile configurations to accommodate a variety of PCIE devices. With support from your motherboard's BIOS, you can change the PCIE working mode to X4X4X4X4, adapting to your specific hardware needs.
Optimized Performance Settings: Before use, simply configure your motherboard's BIOS to set the maximum connection speed of the corresponding PCIE slots to GEN3. This ensures that your devices operate at optimal performance levels, taking full advantage of the PCIE technology.

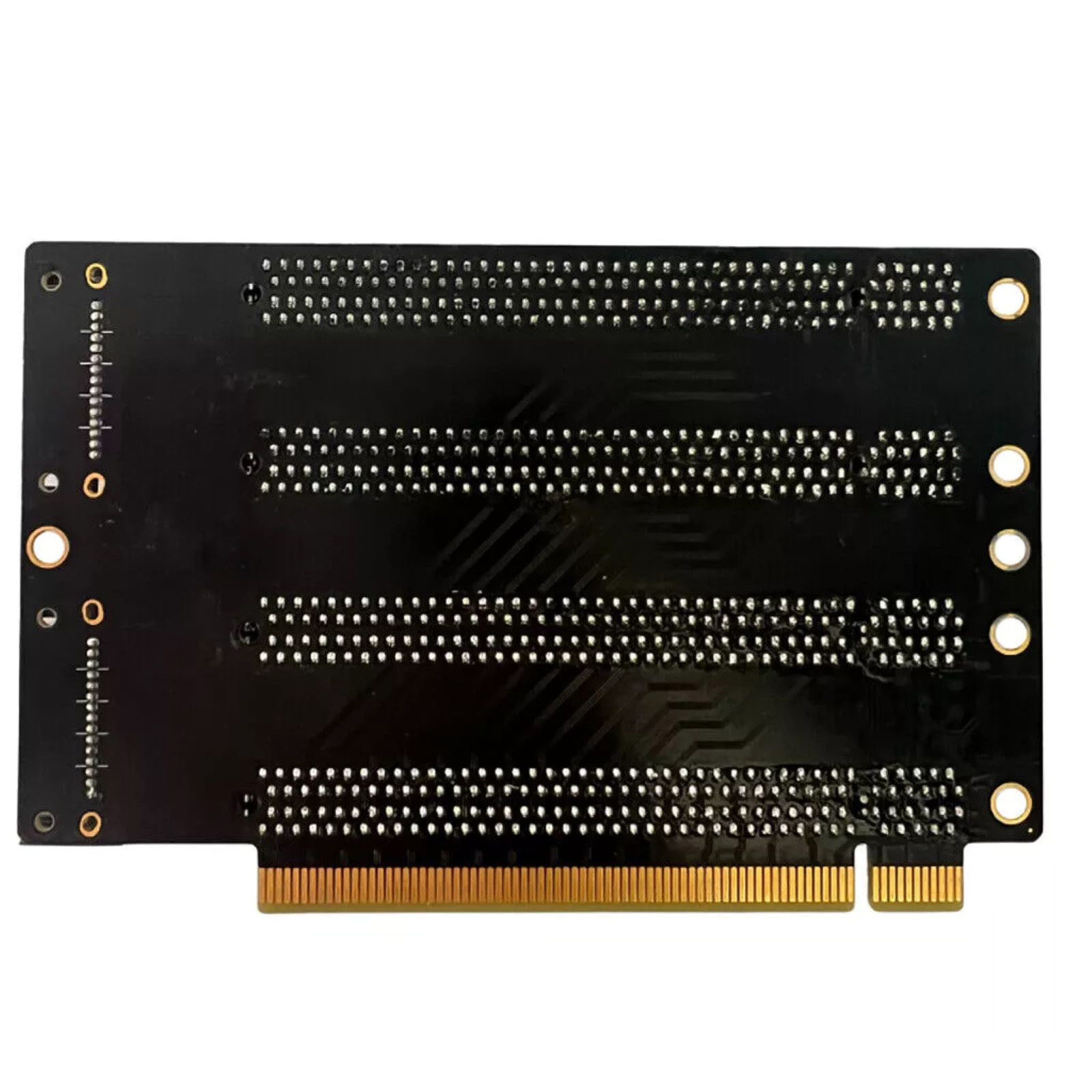

Premium Construction Quality: Featuring a gold finger sinking process with increased gold thickness to 5U and utilizing high TG circuit boards, these PCIE slots offer enhanced durability and conductivity. Furthermore, the slots are equipped for Foxconn connectors with snaps, ensuring a secure and reliable connection.

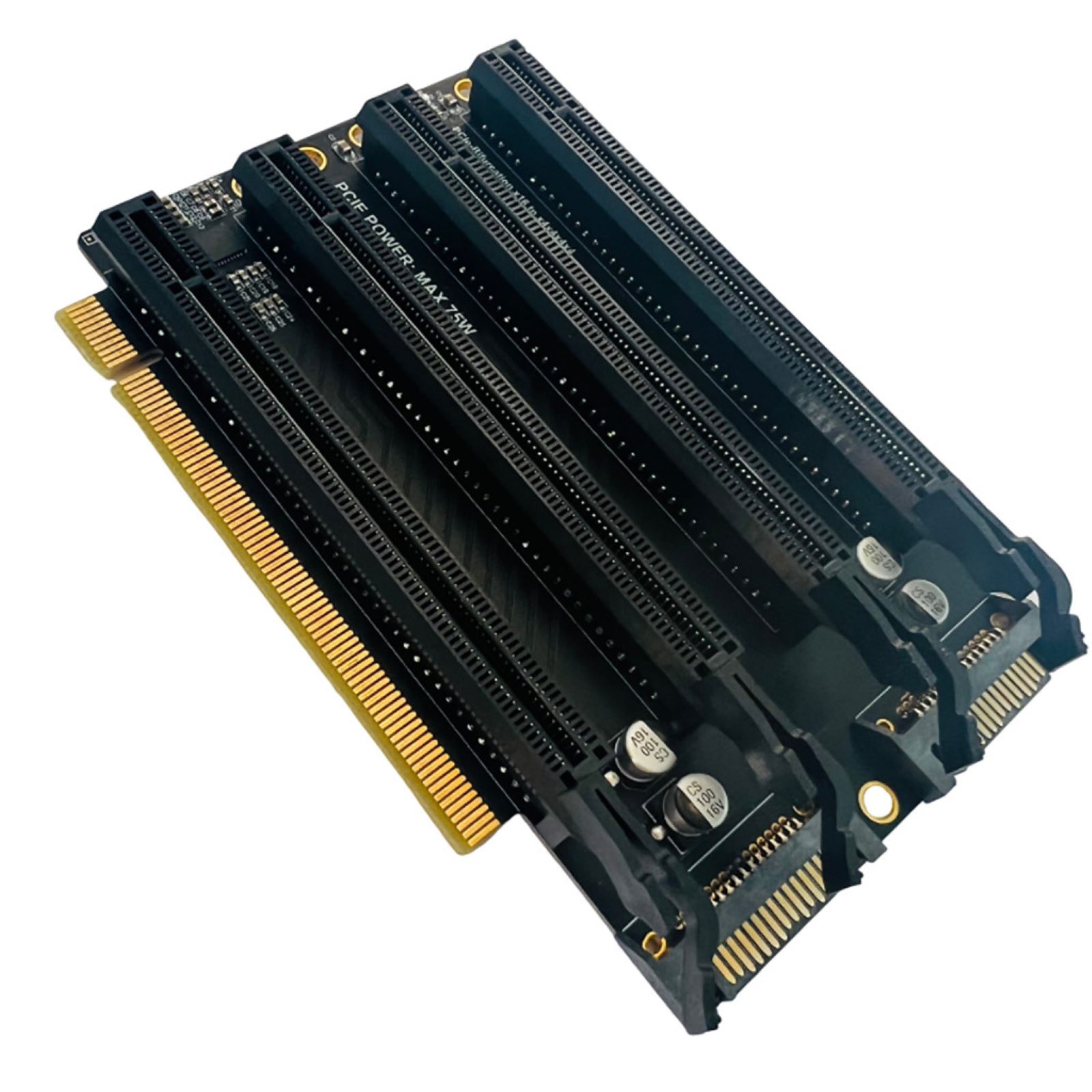

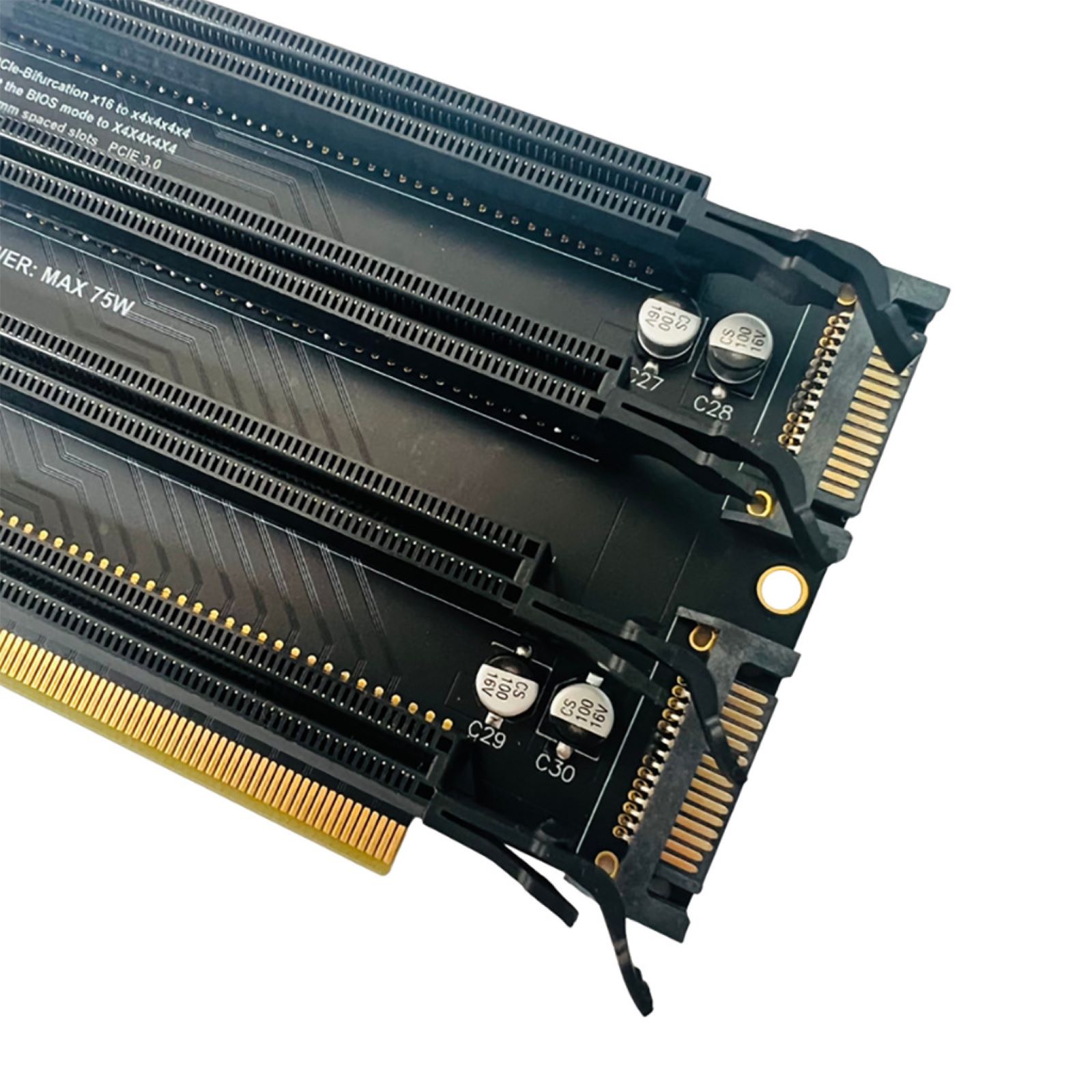

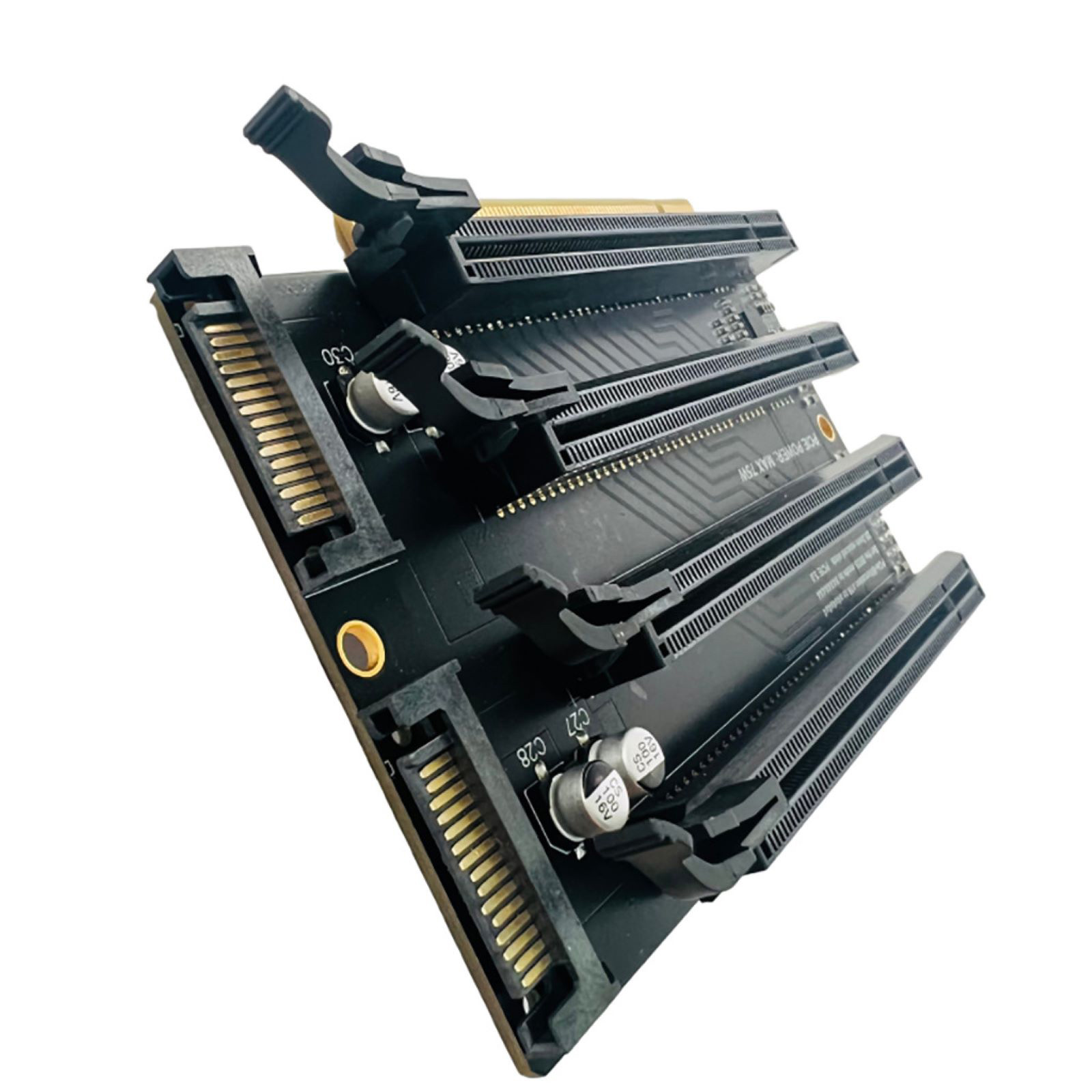

Enhanced Power and Visual Indicators: Equipped with a SATA power supply port and four solid capacitors, these PCIE slots provide stable and sufficient power for your devices. Additionally, four powered-on LED indicators offer visual confirmation of power status, making it easy to monitor your system's performance.
Compact and Versatile Design: With a shortened PCB design that minimizes size and maintains a standard slot pitch of 20.2mm, these PCIE slots are perfect for installing in compact systems. They support a wide range of PCIE cards, including graphics cards, network cards, solid state drives, passthrough cards, capture cards, and computing cards, all operating at maximum X4 performance. Furthermore, they can be used with PCIE extension cables for added flexibility in your system setup.
Specifications:

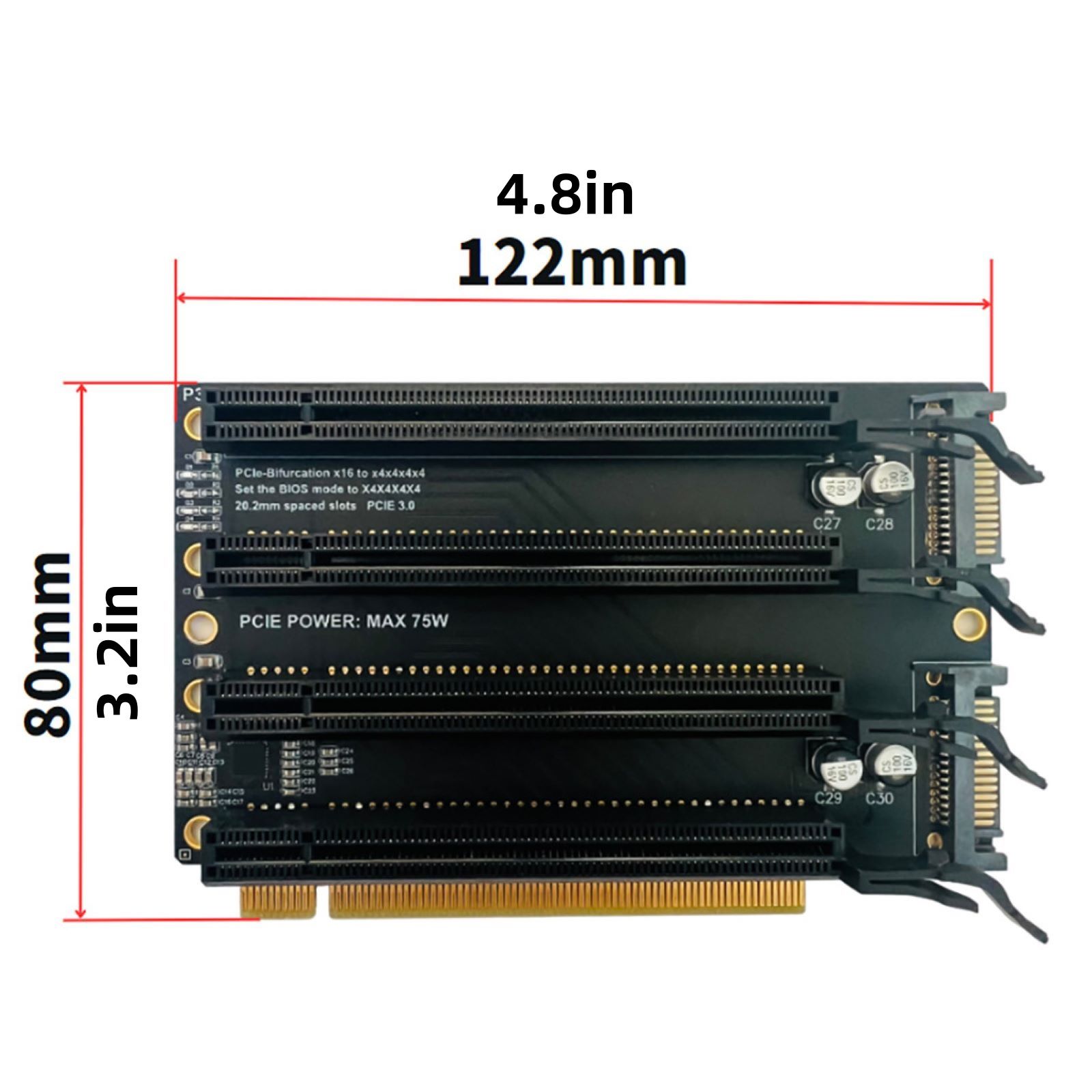

Size: 122*80mm / 4.8*3.2in
Color: As picture show
Slot Configuration: PCIE X16 split into 4 PCIE X4 slots
BIOS Requirement: Motherboard BIOS support for X4X4X4X4 PCIE working mode
Max PCIE Speed: GEN3
Connector Brand: For Foxconn with snaps

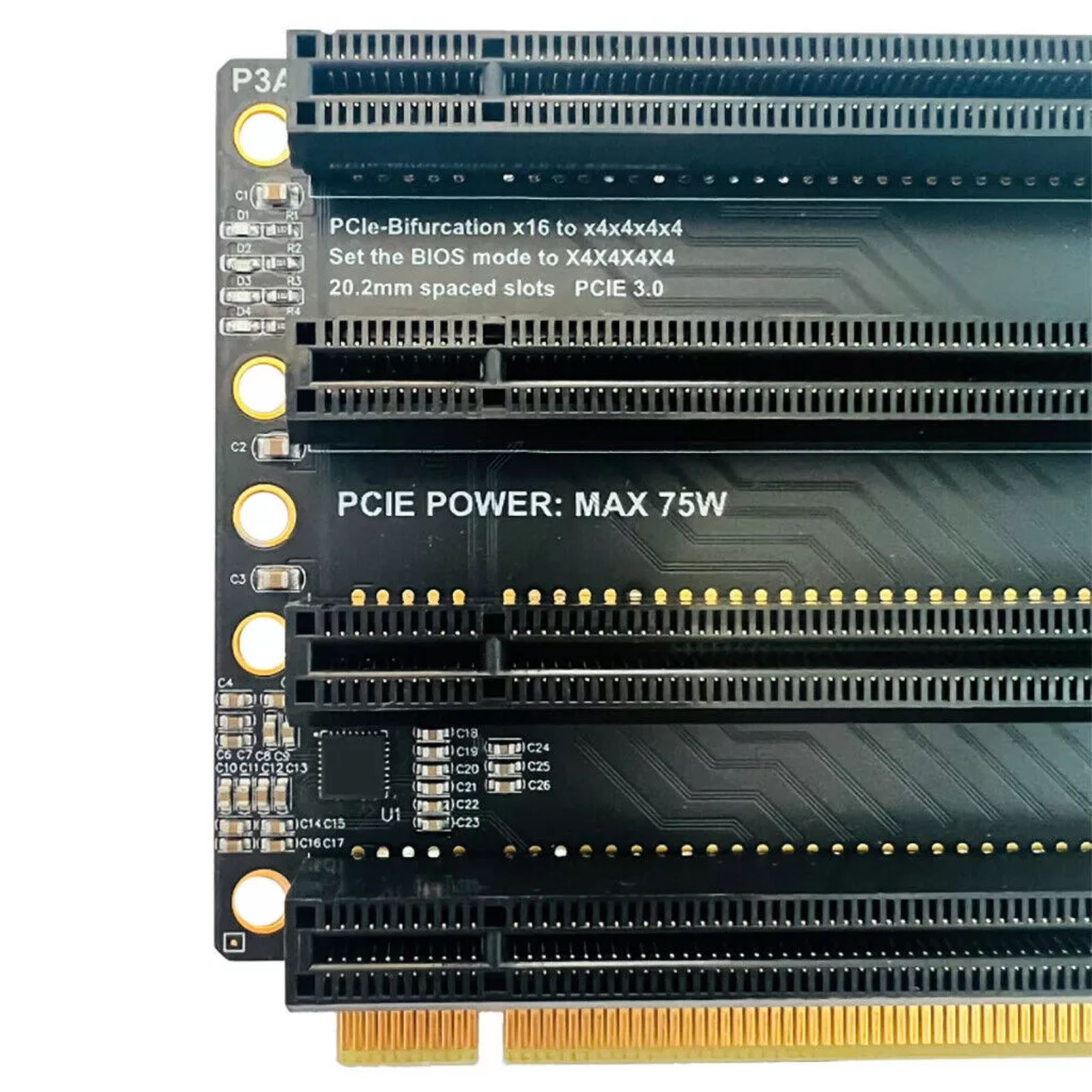

Clock Splitter: 1-to-4 clock splitter IC
LED Indicators: 4 powered-on indicators
Power Port: SATA
Capacitors: 4 solid capacitors
Slot Pitch: 20.2mm
Supported Cards: Graphics card, network card, SSD card, passthrough card, capture card, computing card, etc.
Max Performance: X4
Compatibility: PCIE extension cable compatible
Package Included:
1 x Splitter Card
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
