Features:

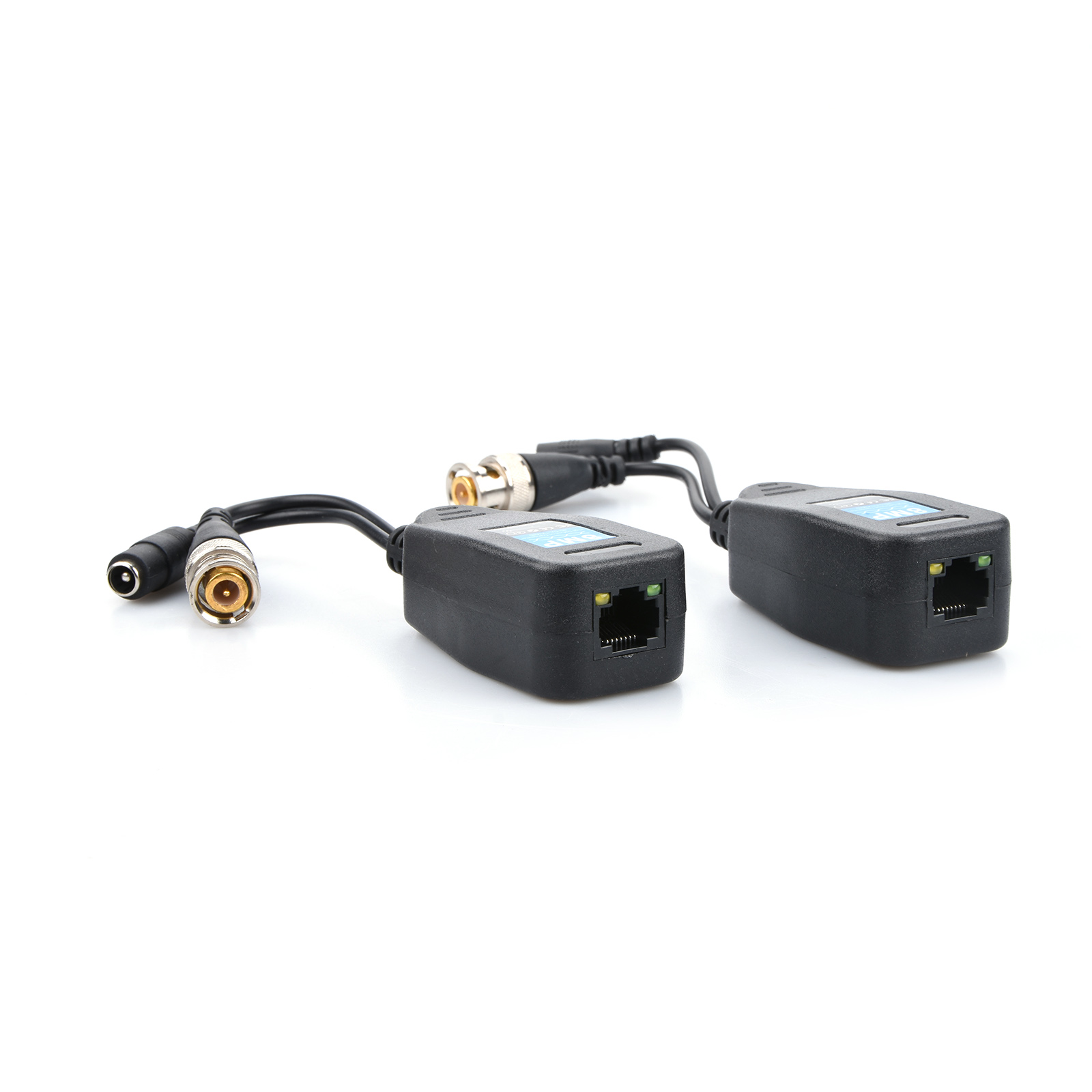

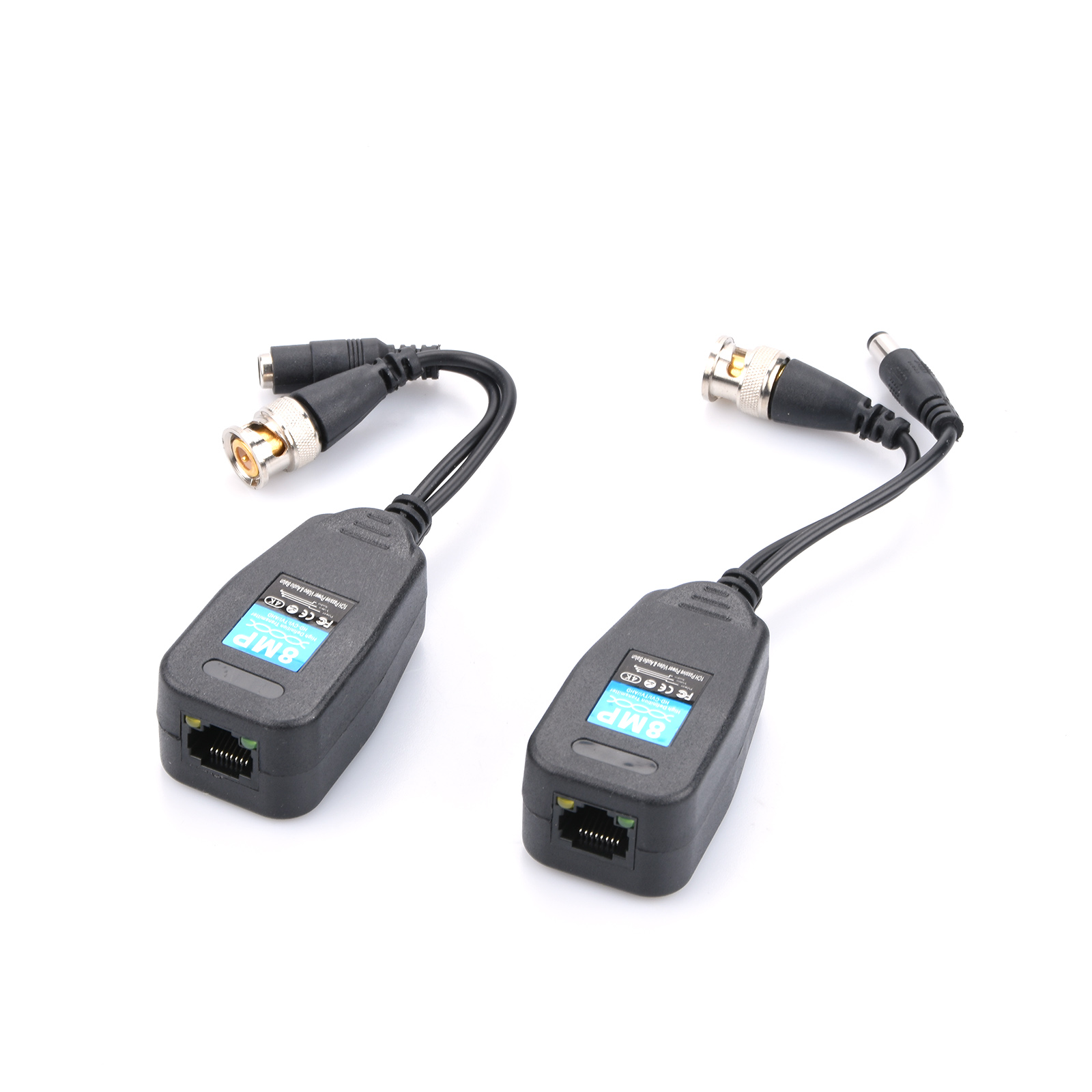

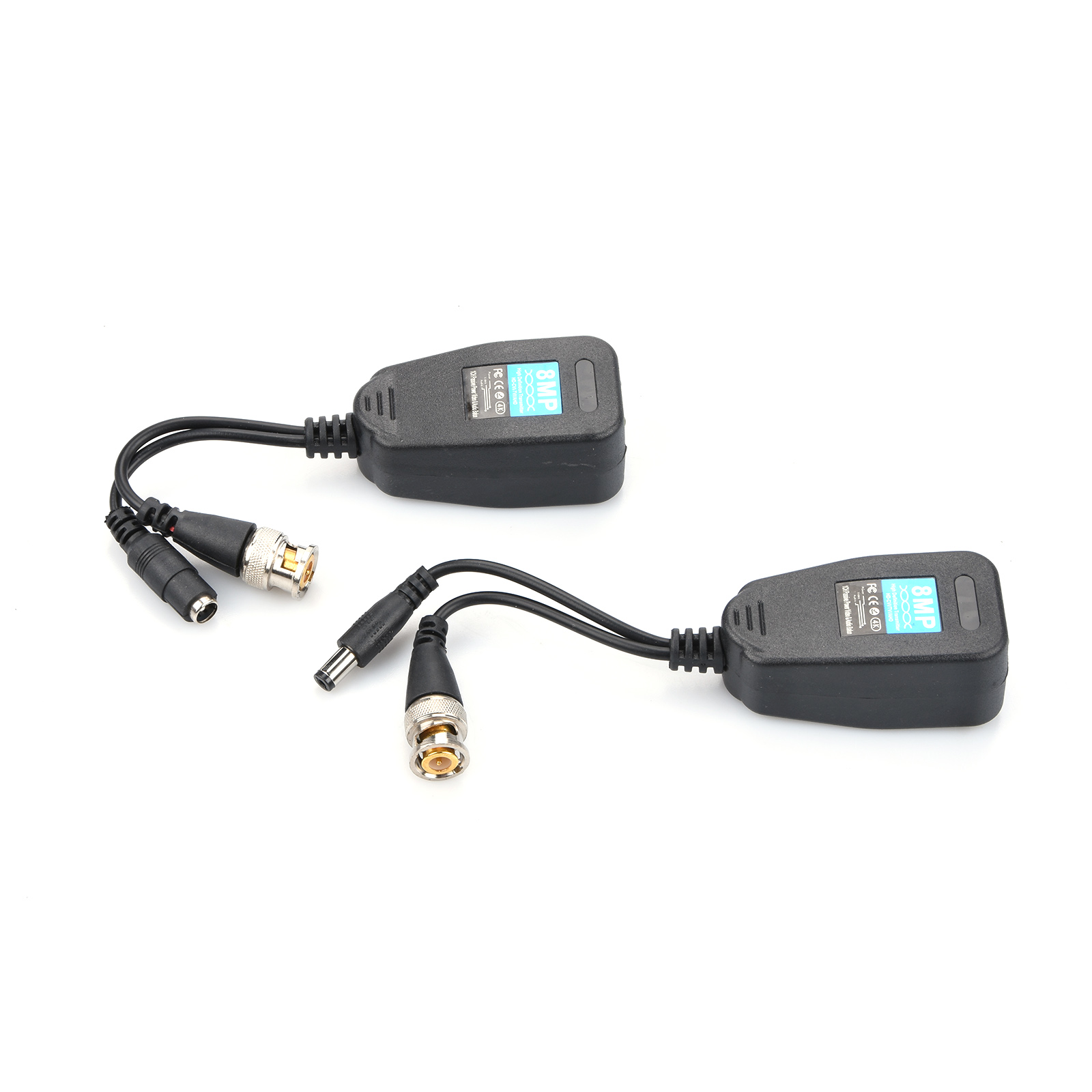

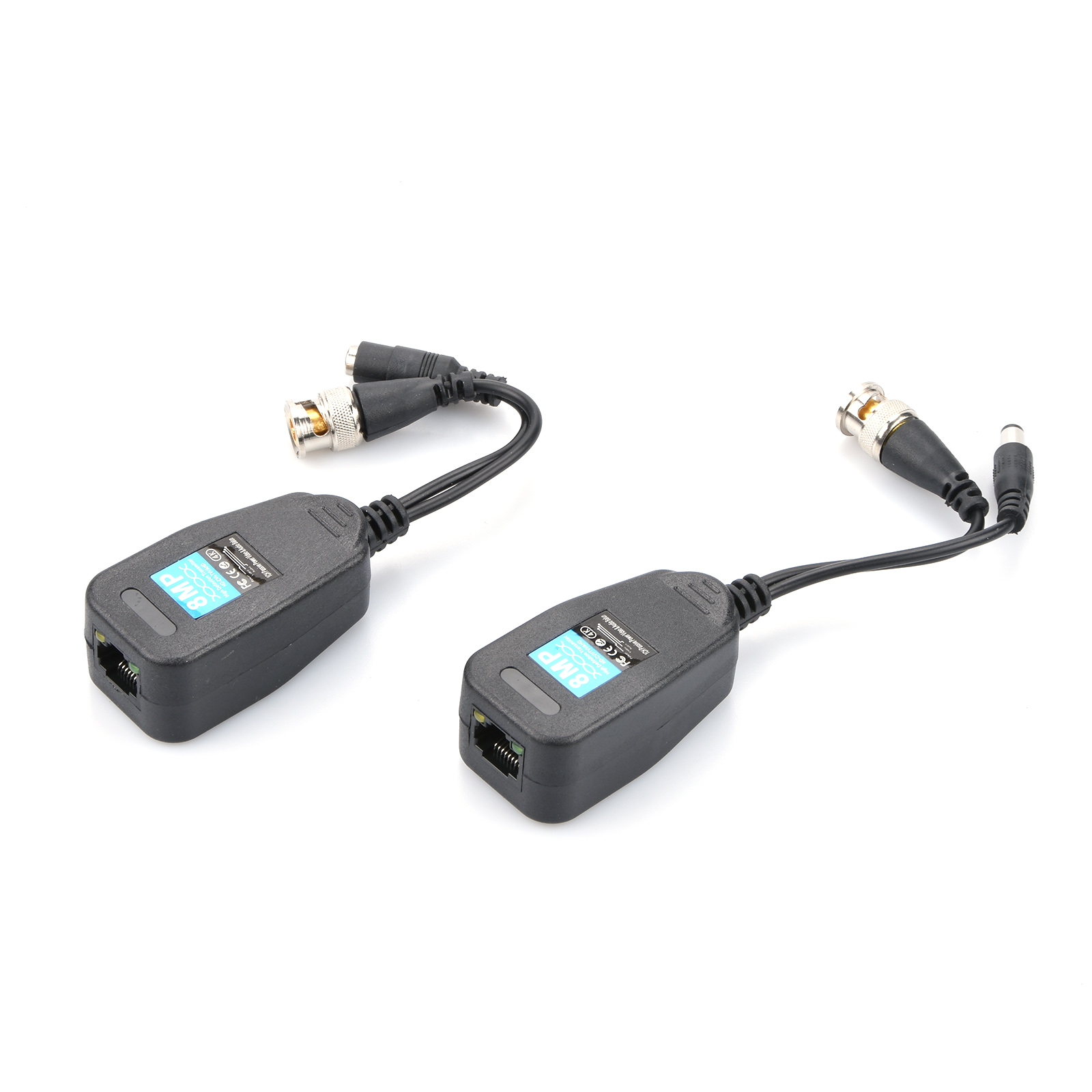

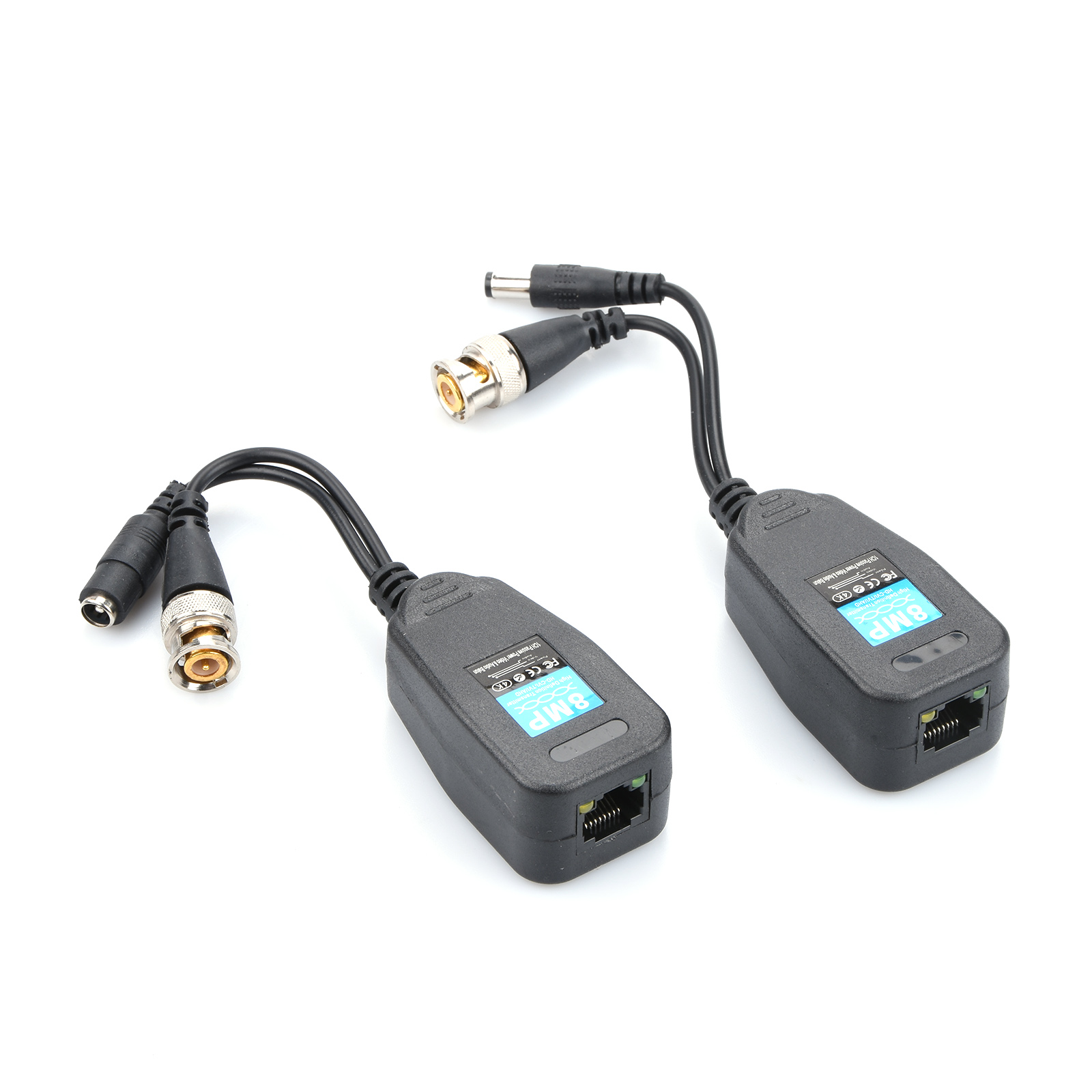

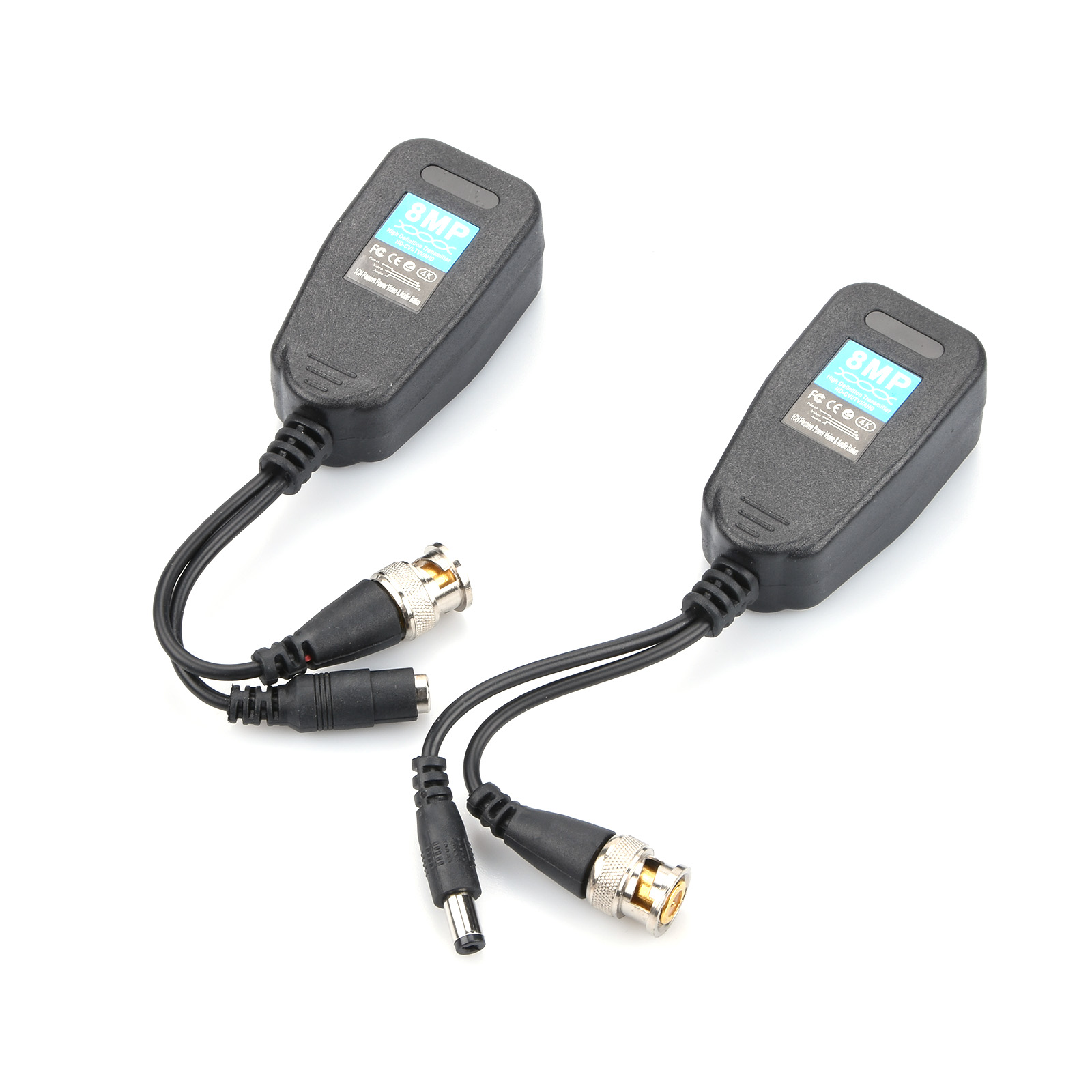

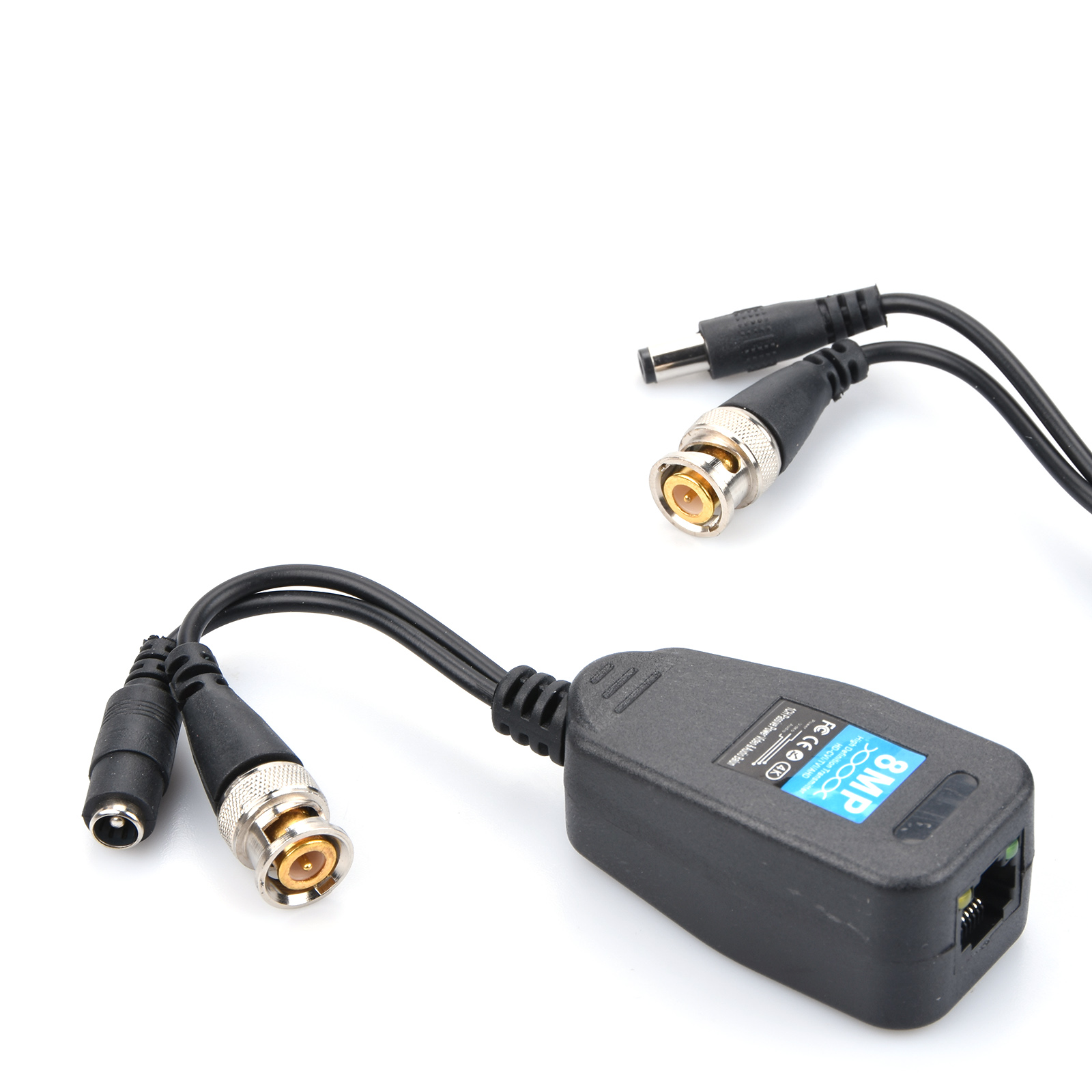

1. The Video Data Power Balun Connector Is A Passive Device That Eliminates Costly And Bulky Coaxial Cable And Allows The Transmission Of Real-Time CCTV Video Signal Via Cost-Effective UTP Cable.
2. The Video Data Power Balun Connector Are Also Compactible With All The Other CCTV Passive Transceivers For Applications At Distance Of Up To 200-500m
3. Pure Copper Contact Core: Can Transmit PAL, NTSC, CSECAM Composite Video Signals Without Power Supply, With Excellent Workmanship And High-Quality Pure Copper BNC, Maintaining The Image And Video Transportation Effect, Avoiding Intermittent Or Unstable Images Caused By Poor Contact

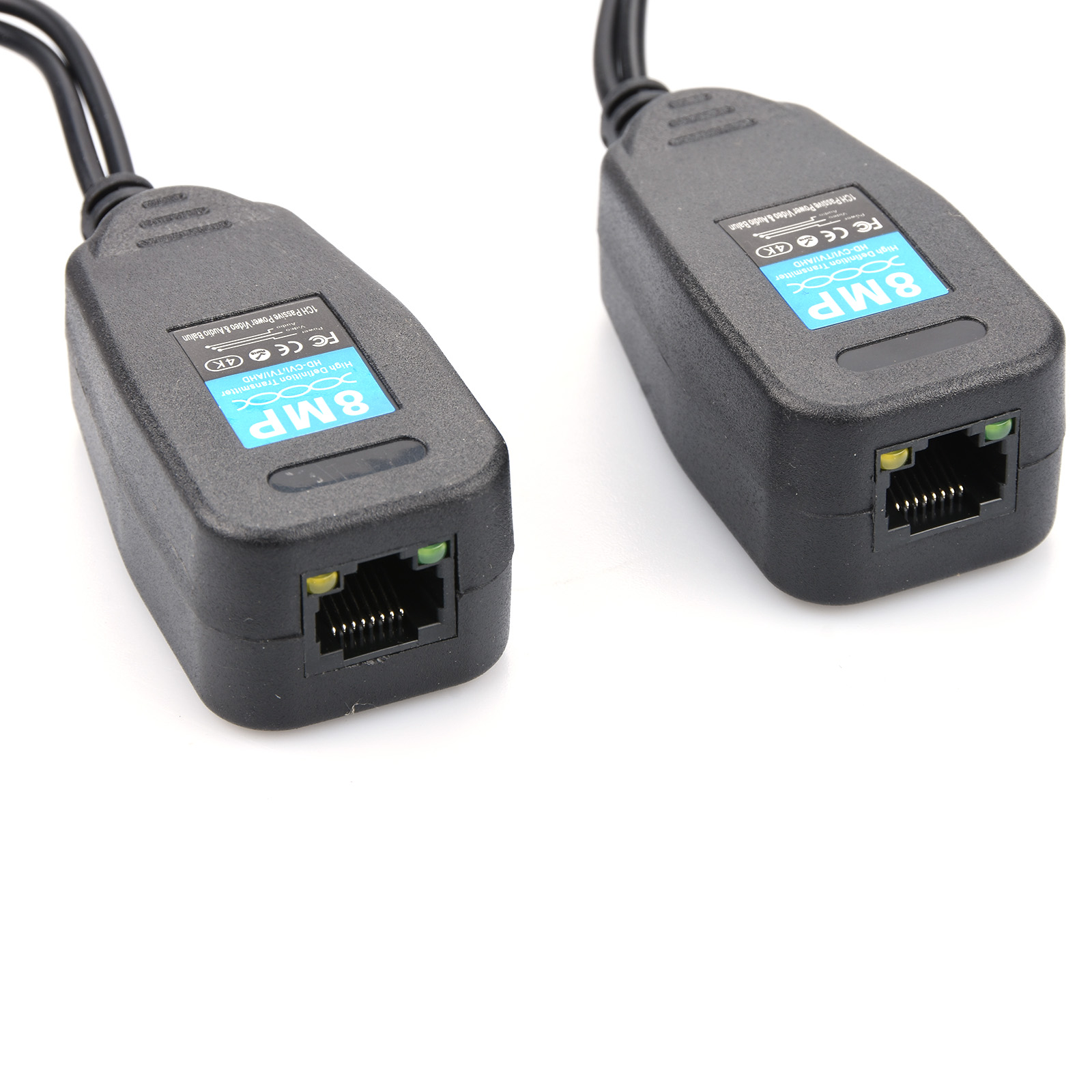

4. RJ45 Pure Copper Female Connector (Crystal Head Interface): Adopts Spring Type Terminal Blocks (Screw Free Wiring) For Easy Installation, High-Quality Terminal Blocks, Screw Free Design, Super Good Hand Feel, And Super Strong Wire Pressure
Specifications:
Shell Material: Black Flame Retardant ABS Plastic
Input Signal: 1-2Vp-p Unbalanced Input
Output Signal: 1-2Vp-p Balanced Output
Video Transmission Distance: 300m
Cable Type: 24-16AWG
Cable Impedance: 80-120Ω
Distributed Capacitance: Less Than 62pF/M
Compatible With: AHD/CVI/TVI/1080P
Package Includes:
1 Pair Of Video Data Power Balun Connector
 |  |
 |  |
 |  |
 |  |
