Features:
1. Built With Original For Intel I350 Gigabit Ethernet Controller Chip, Enables Customers To Take Full Advantage Of 1GBE
2. Low Profile & Full Height Brackets. PCI Express* 2.1. 5 Gt/S X4 Lane. Compatible With X4, X8, X16 Standard (Except X1 Slots) And Low-Profile PCI Express* Slots.

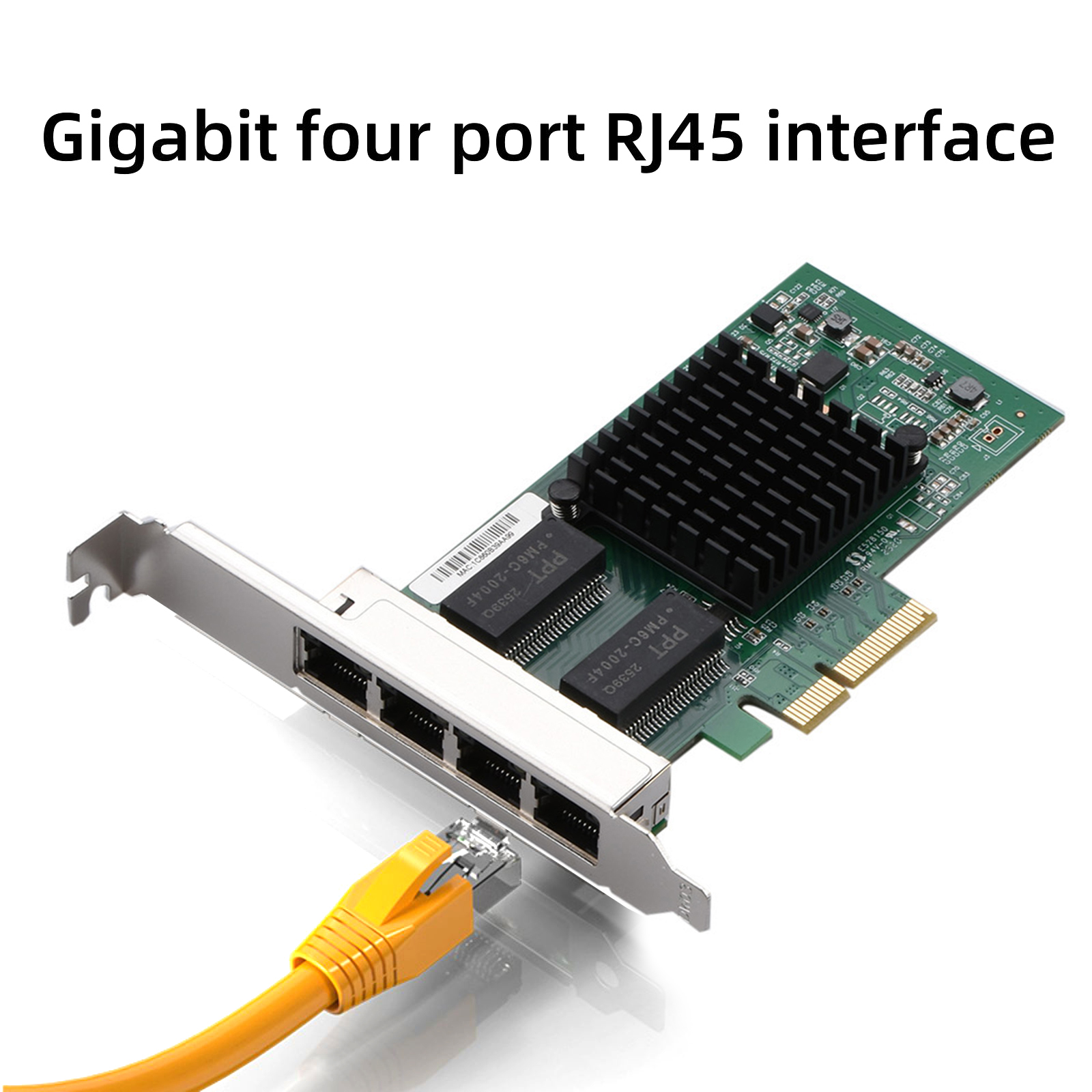

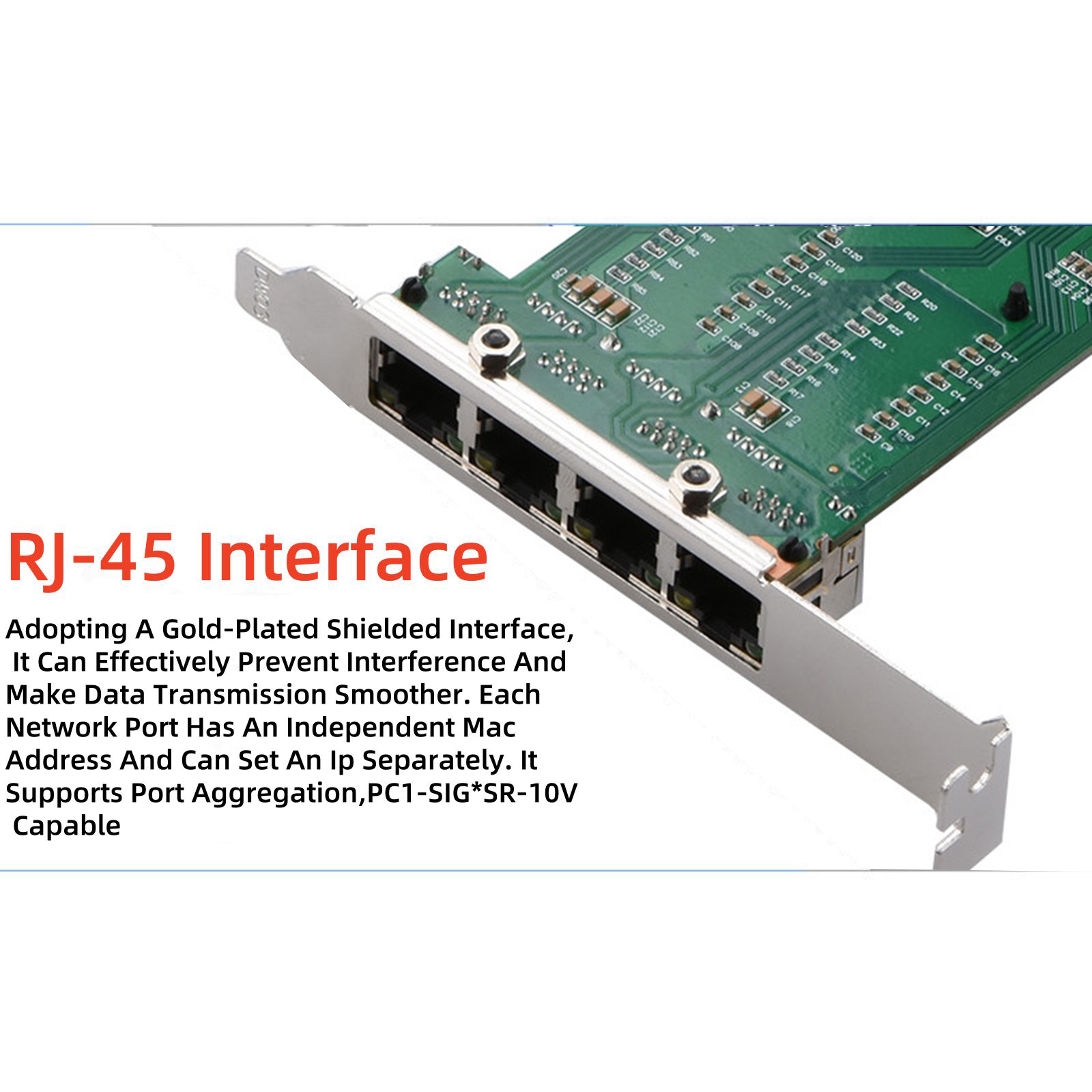

3. Quad 10/100/1000mbps Rj45 Ports Which Can Support Cat5 Cable Up To 100m. Transmission Rate Per Port: 10/100/1000mbps.
4. Supported Operating Systems: For Windows7、8.1、10, For Windows Server 2008/R2, For Windows Server 2012R2, For Windows Server 2016/ R2, For Windows Server 2019/R2, For Linux SLES 11/12, For CentOS/RHEL 6.6~7.4, For Ubuntu 14.04/10
Specifications:
Product Name: For Intel I350 4 Port Gigabit Ethernet Card
Chip Model: For Intel I350
Ethernet Interface Type: 4 * Rj45 Port
Transmission Rate: 10m/100m/1000mbps
Applicable Network Type: Gigabit Ethernet
Bus Interface: PCI-E (Supports PCI-E X4 X8 X16)
Power Supply: PCIE Power Supply
Supporting Operating Systems: For Windows7、8.1、10, For Windows Server 2008/R2, For Windows Server 2012R2, For Windows Server 2016/ R2, For Windows Server 2019/R2, For Linux SLES 11/12, For CentOS/RHEL 6.6~7.4, For Ubuntu 14.04/10
Network Card Installation:
1. Shut Down The Computer And All Connected Devices, Such As Monitors, Printers, And External Components
2. Disconnect The Power Cable;
3. Remove The Host Cover And Locate The Unused PCI-E (X4, X8, X16) Bus Expansion Slot:
4. Pull Out The Slot Cover (If Any) By Removing The Screws Or Loosening The Pull Rod;
5. Grasp The Top Edge Of The Network Card And Firmly Insert It Into The Card Slot:
6. Use Existing Screws Or Pull Rods To Re Secure The Fixed Bracket Of The Network Card:
7. Cover The Host, Plug In The Cable, And Turn On The Computer;
8. Insert Optical Jumpers, Optical Modules, Or Network Cables.

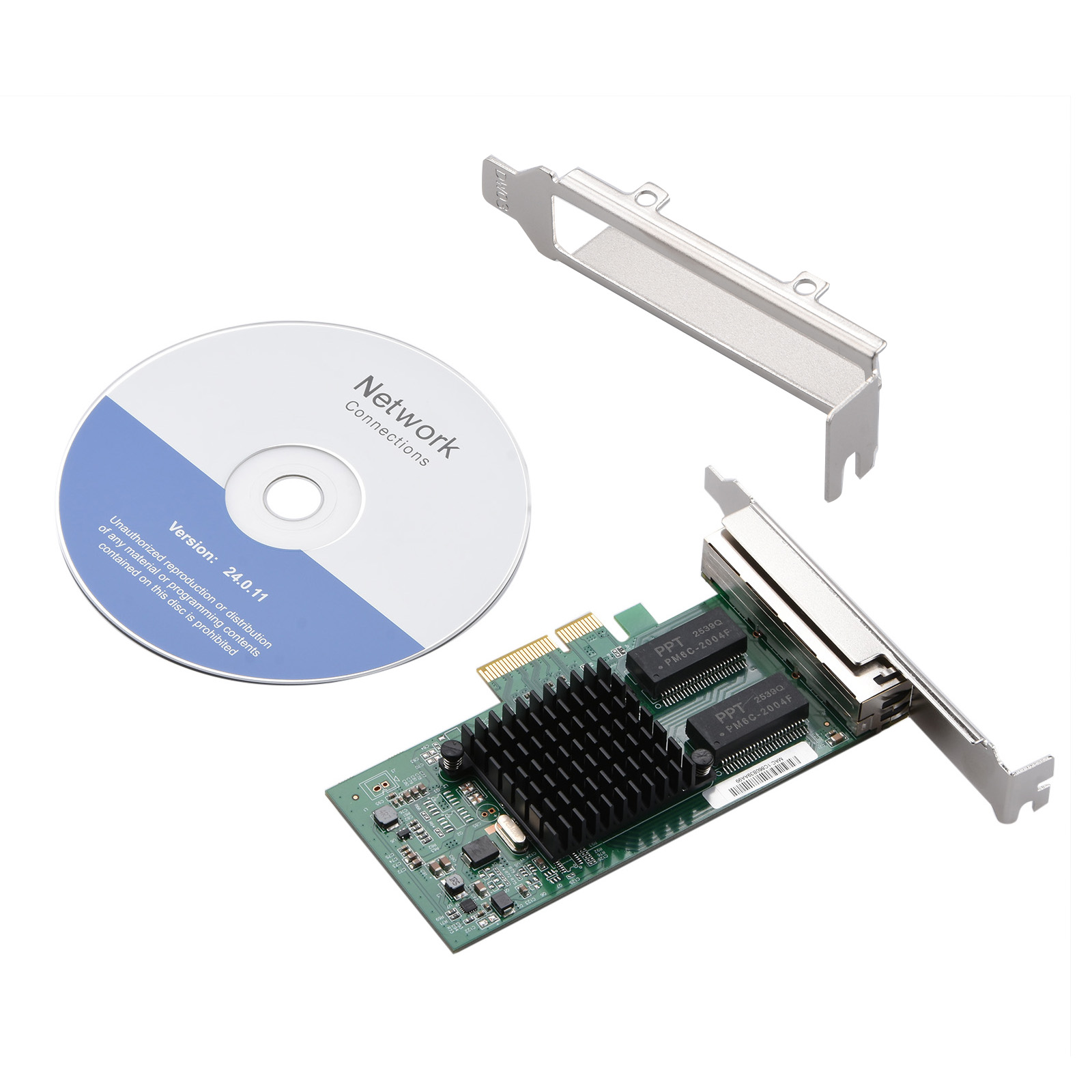

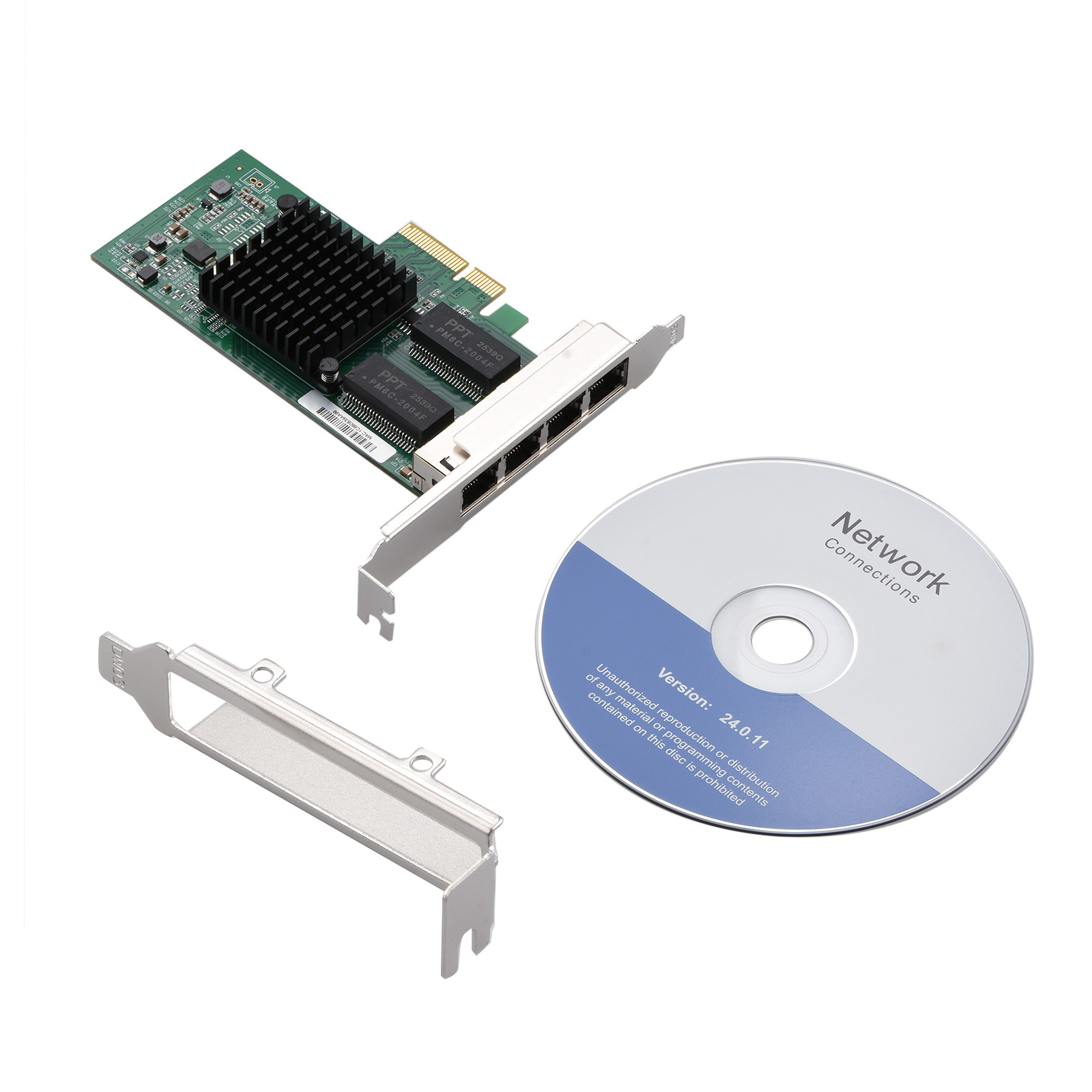

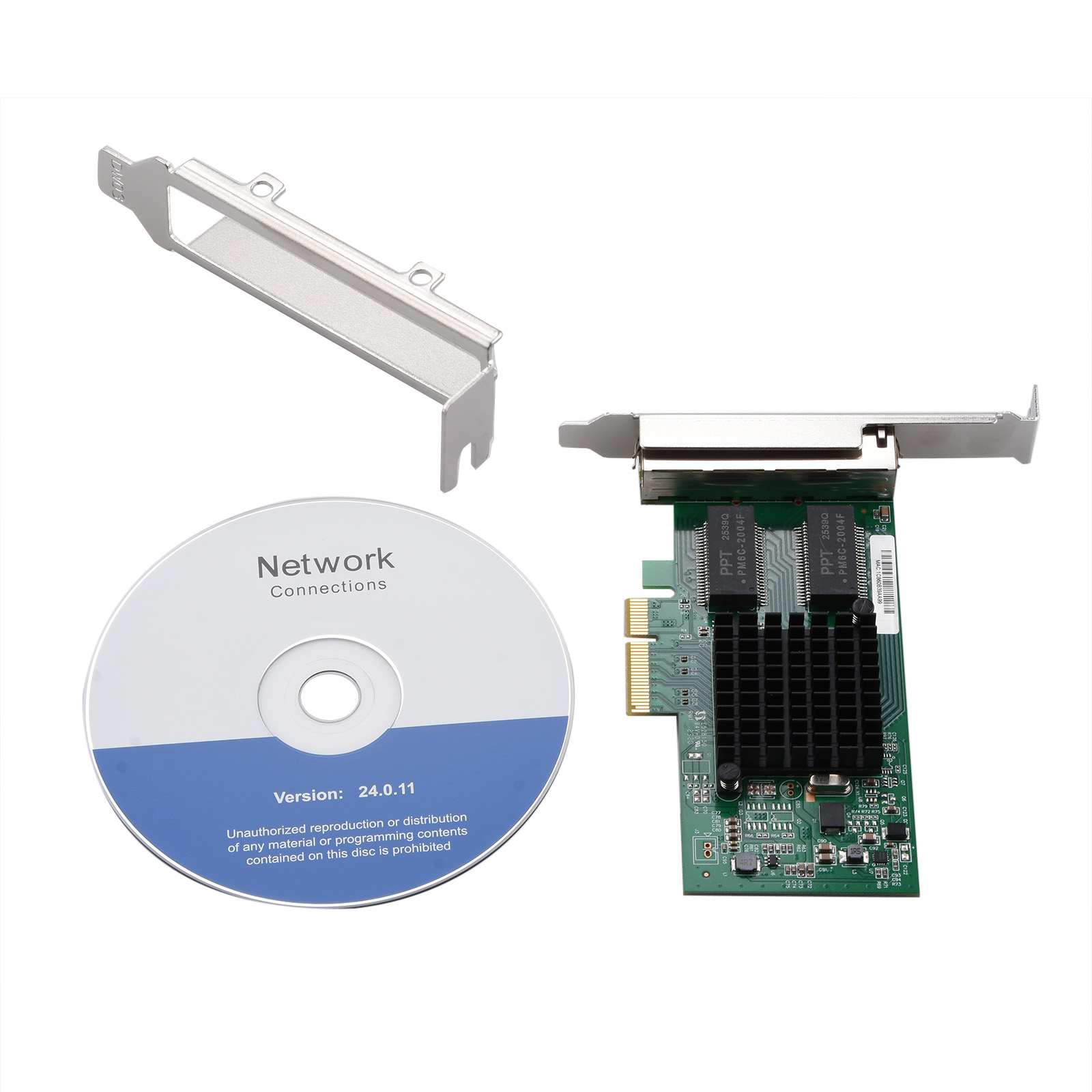

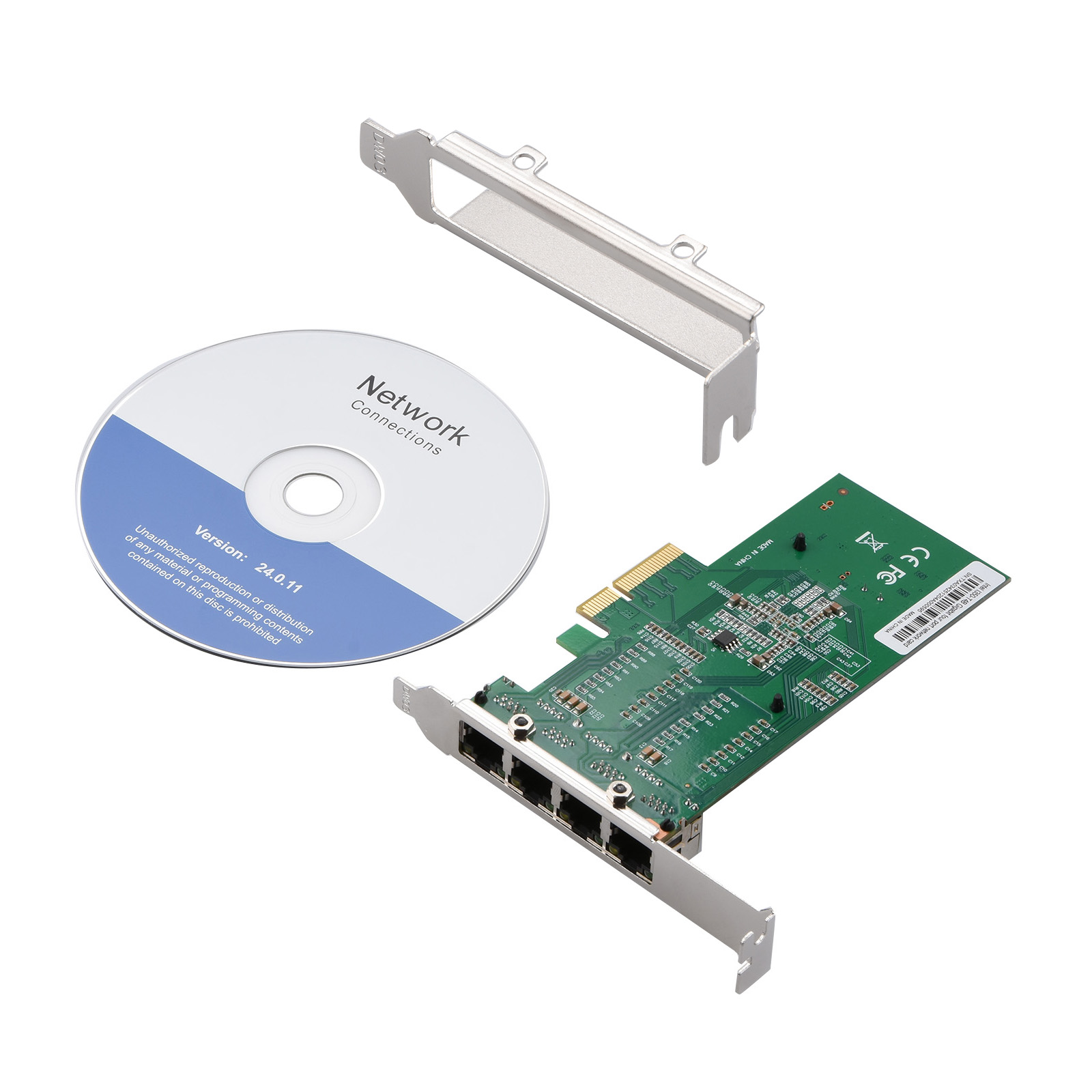

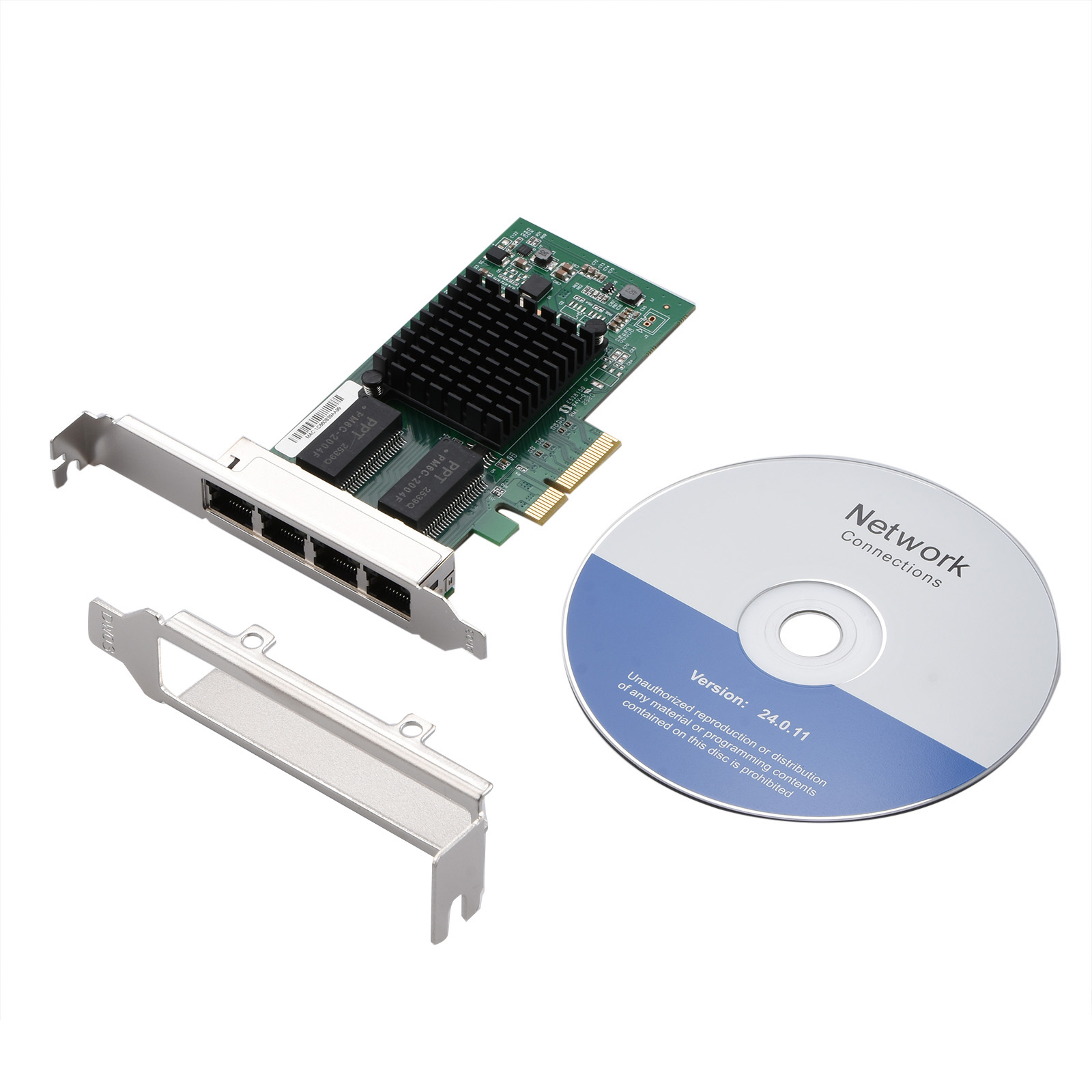

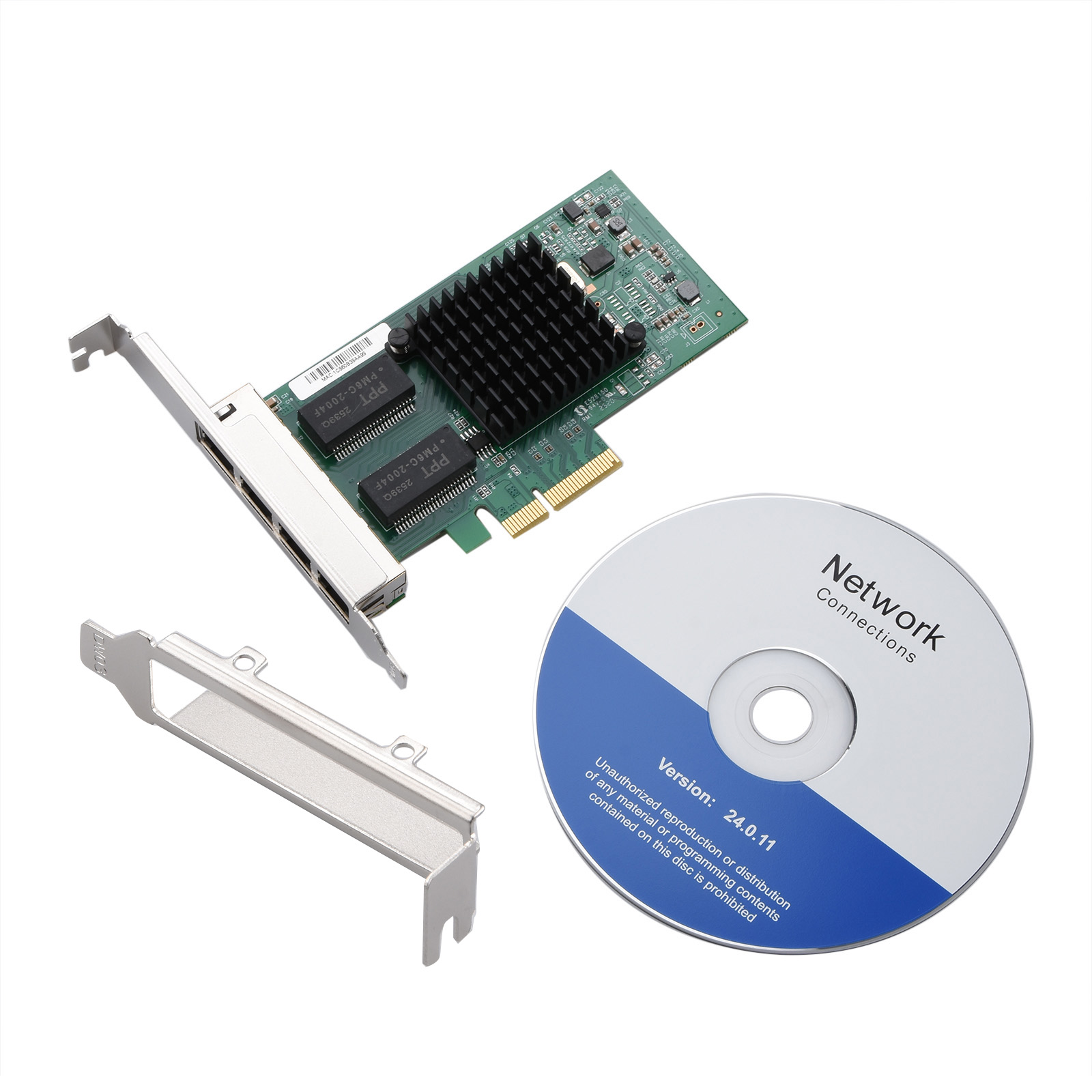

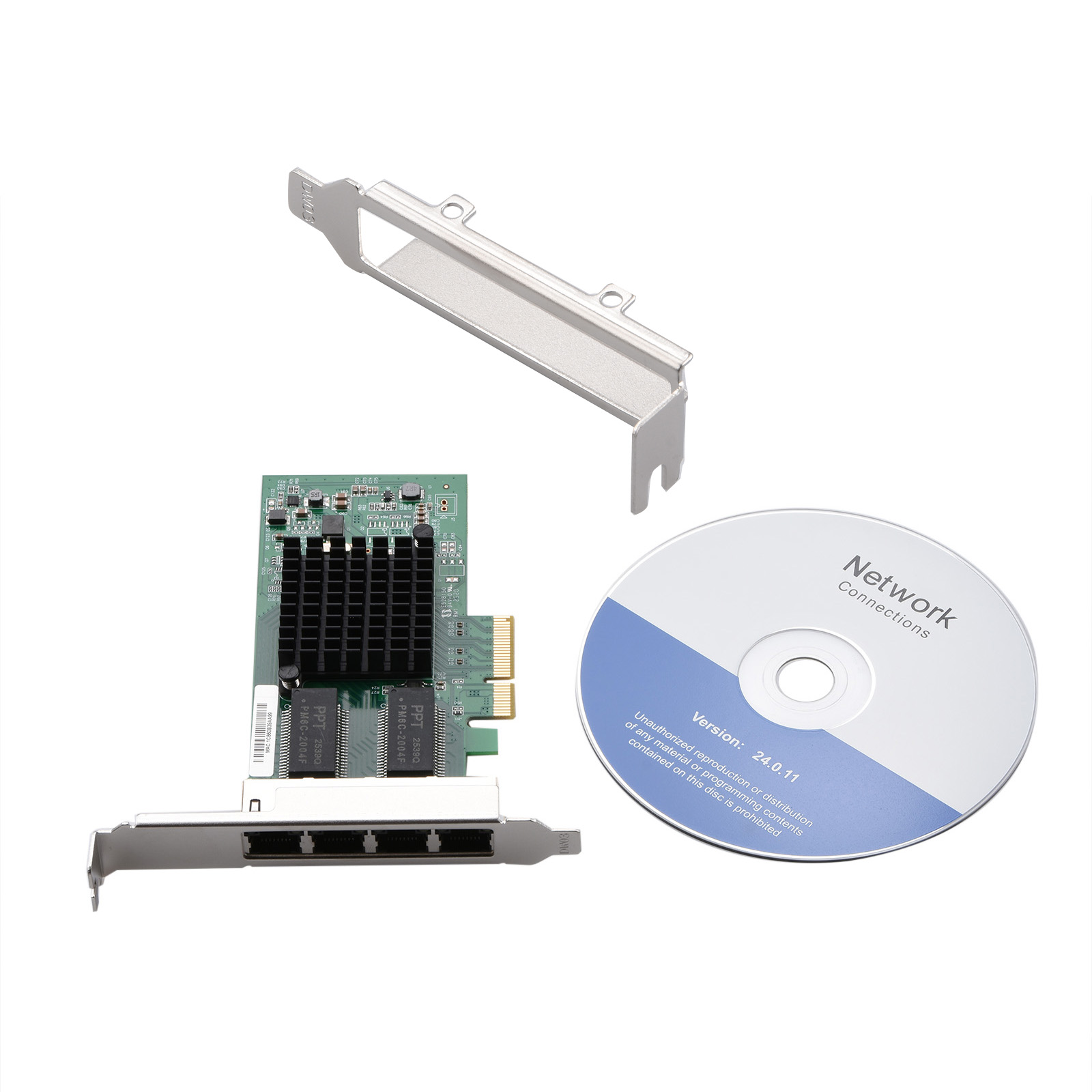

Packing List:
1* 4 Port Gigabit Ethernet Card
1* Low Profile Bracket
1* Driver CD
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
