Features:

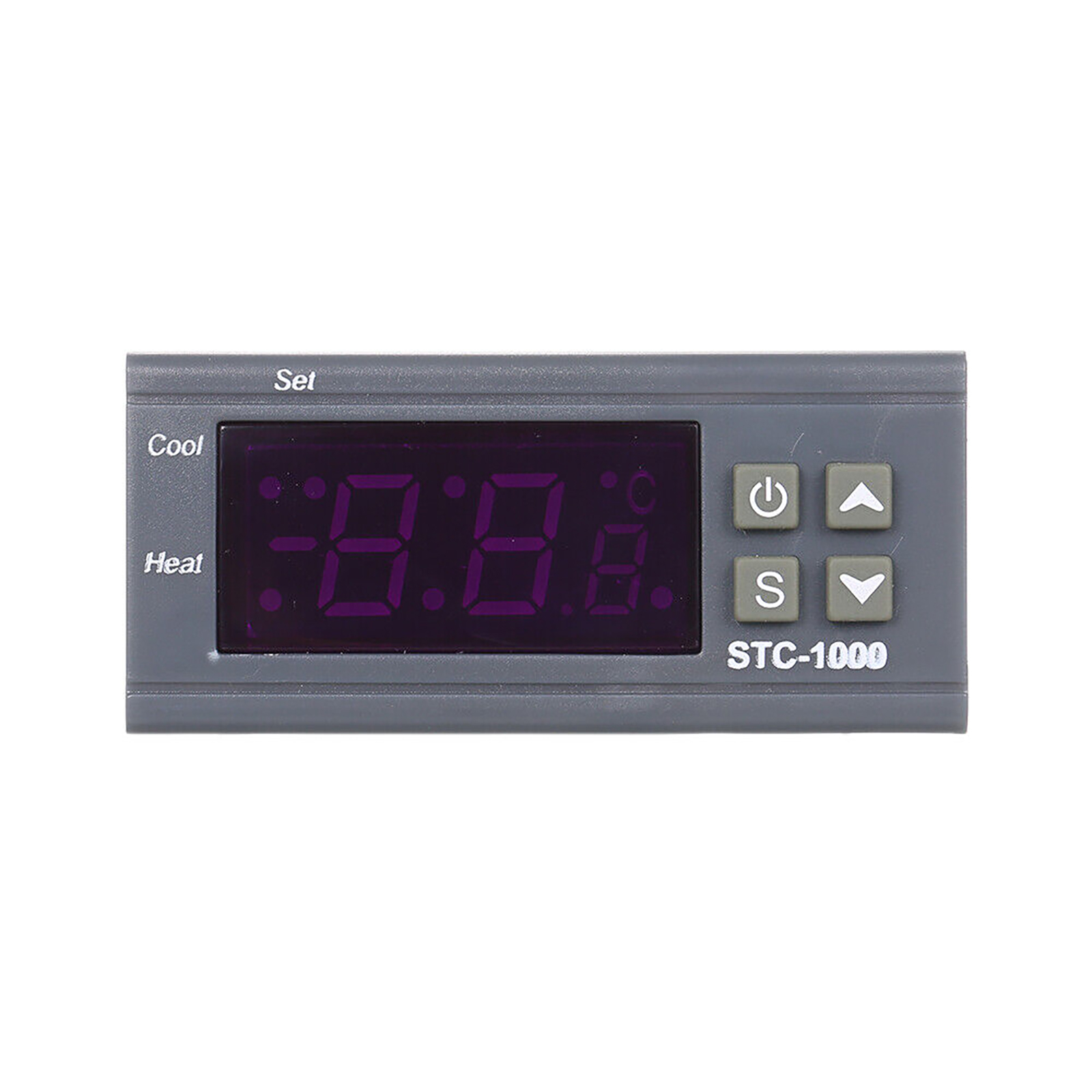

Mini temperature controller with large and clear LED-display for better readability.
Support switch modes between cooling mode and heating mode.
Control temperature by setting the temperature setting value and the difference value.
Support temperature calibration and refrigerating control output delay protection.
Support alarm function when temperature exceeds temperature limit or when sensor error, ensuring safety.

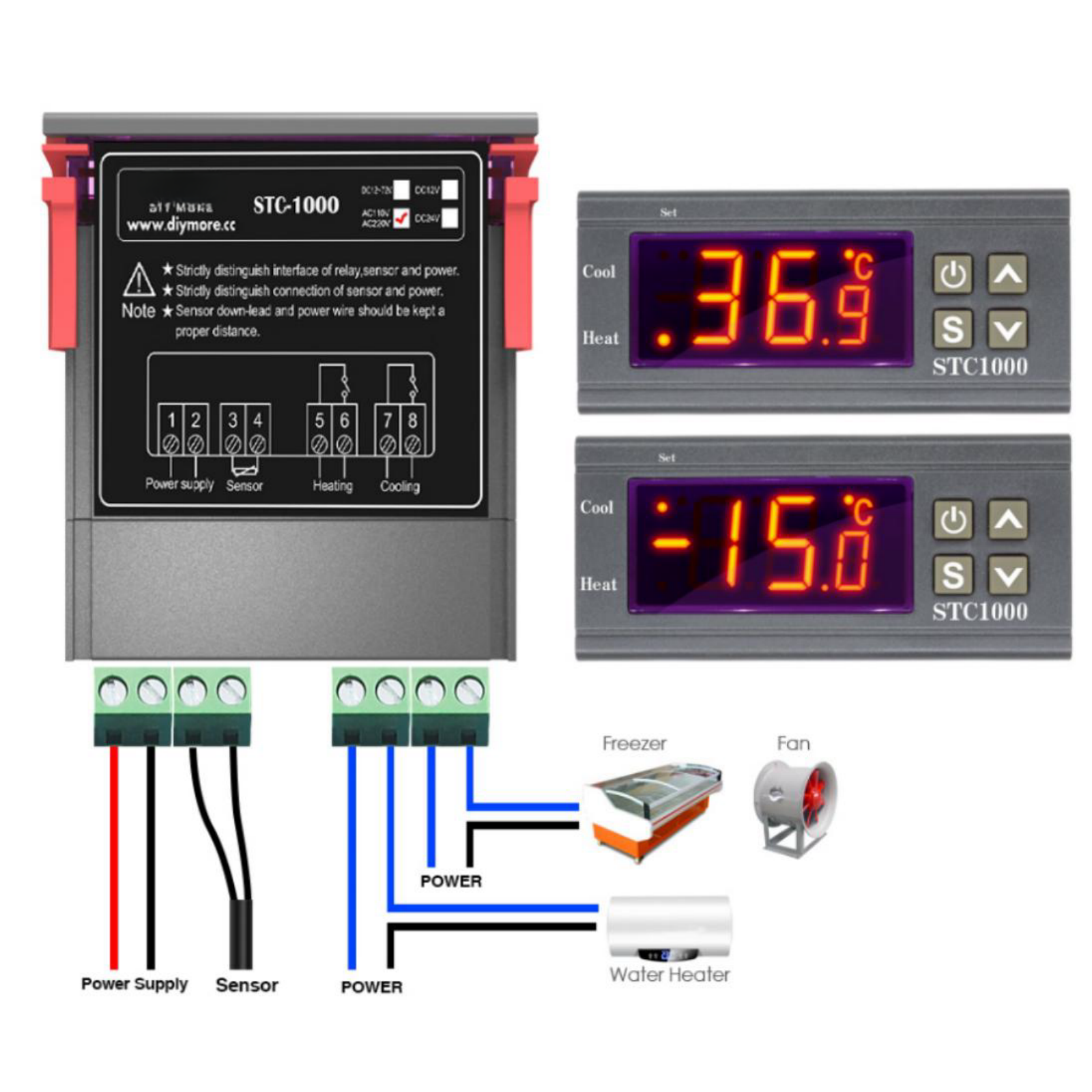

Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, boiler, steamer, industrial equipment and other temperature control applications.
Specifications:

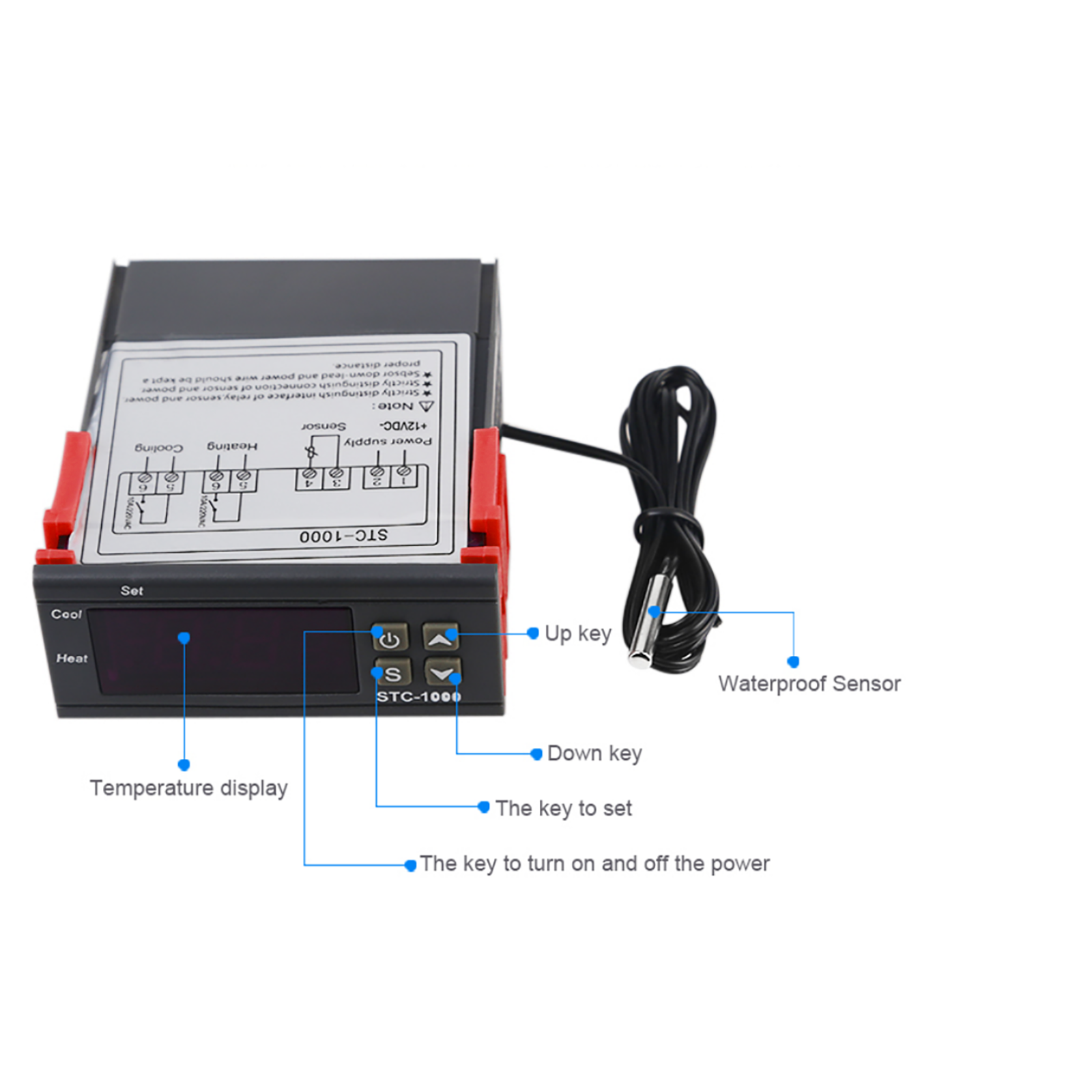

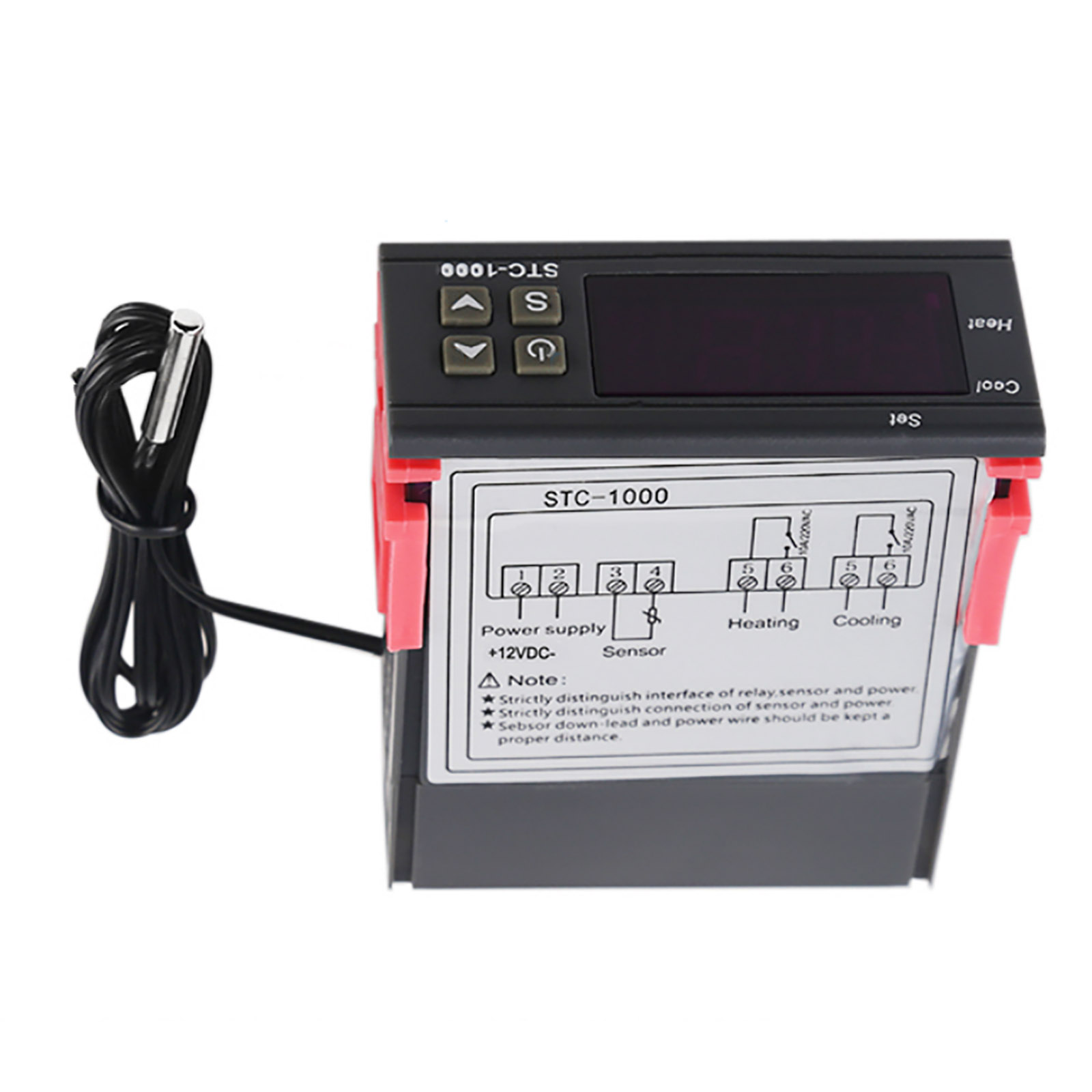

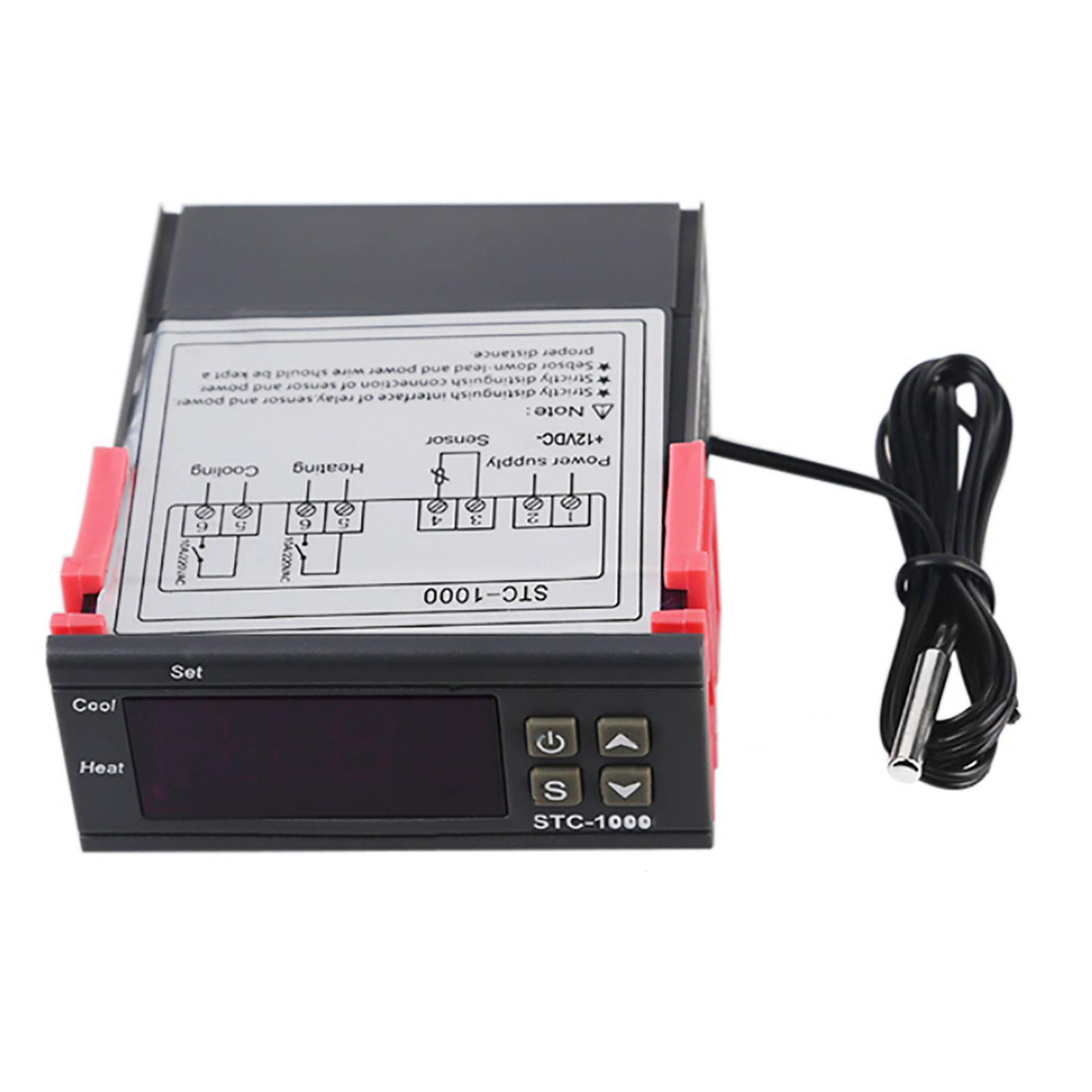

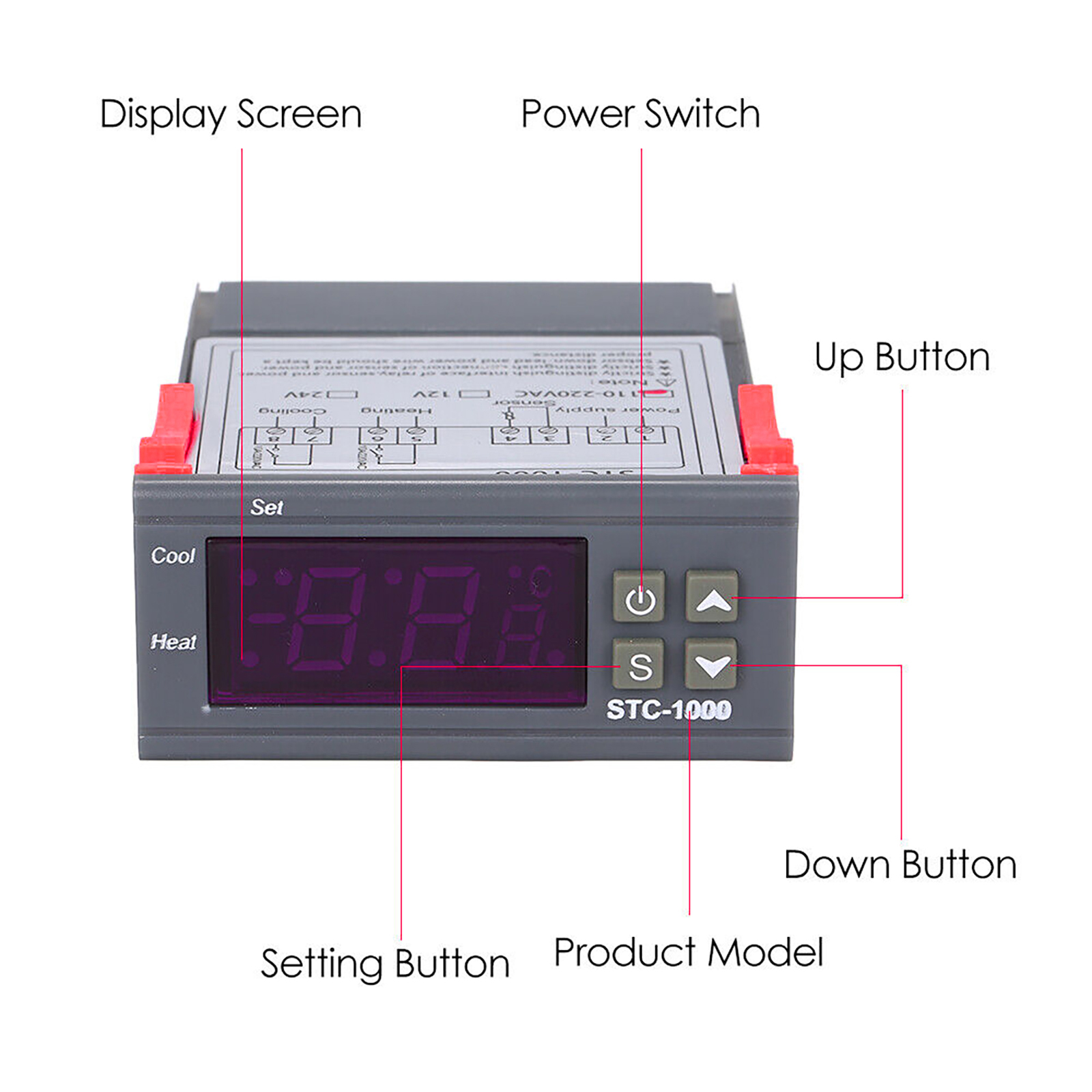

Name: STC-1000 Digital Temperature Controller
Temperature control range: -50°C-99 °C
Power consumption: ＜3w
Temperature measurement accuracy: +1 °C (-50°C~70°C)
Resolution: 0.1 °C

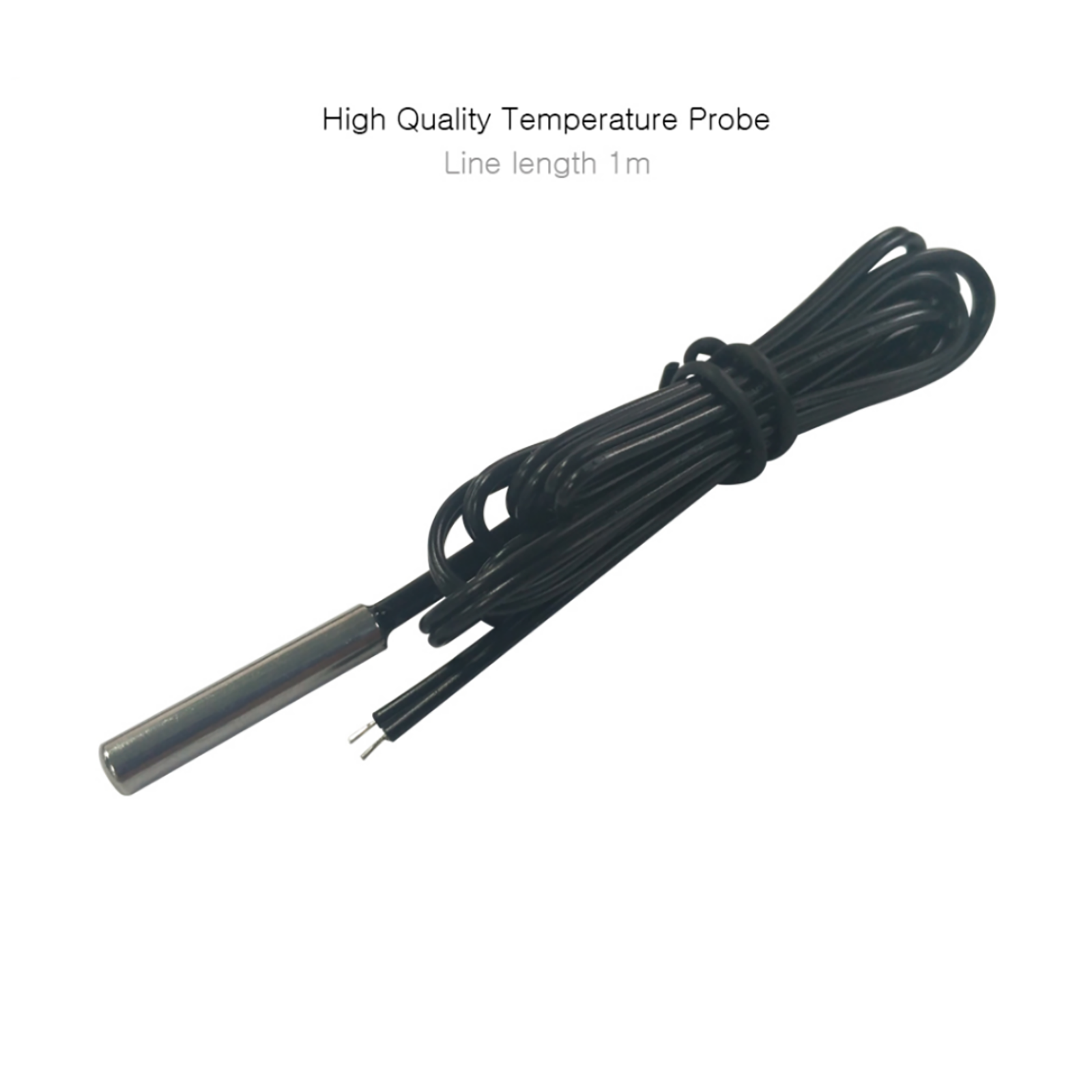

Sensor: NTC sensor (1 meter)
Ambient temperature: 0~60°C
Relative humidity: 20~85% (no condensation)

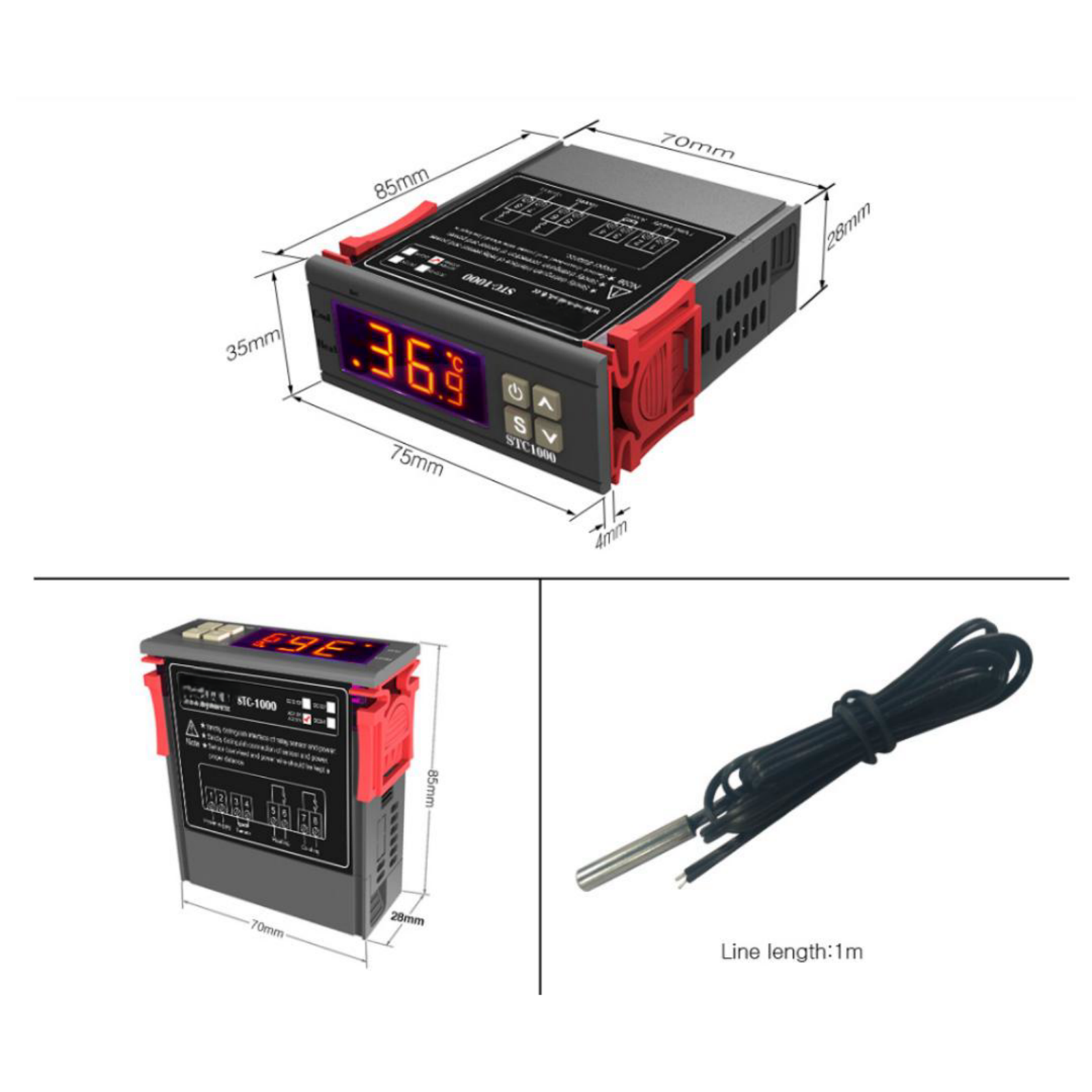

Machine size: 85*75*34.5mm
Installation cut-out: 71*29mm
Housing material: ABS flame retardant plastic shell
Output capacity: 10A/250V AC
Power supply: AC 110-220V

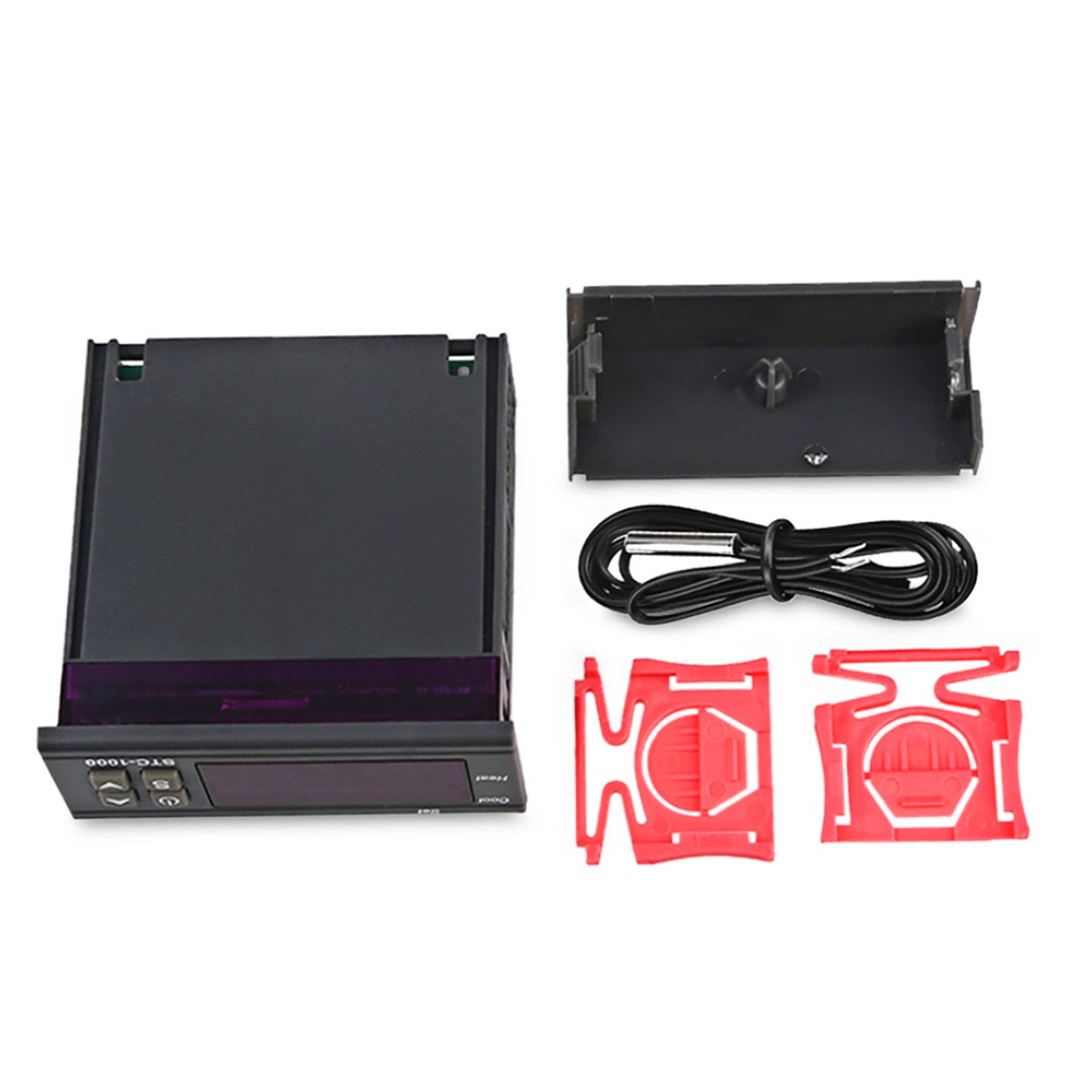

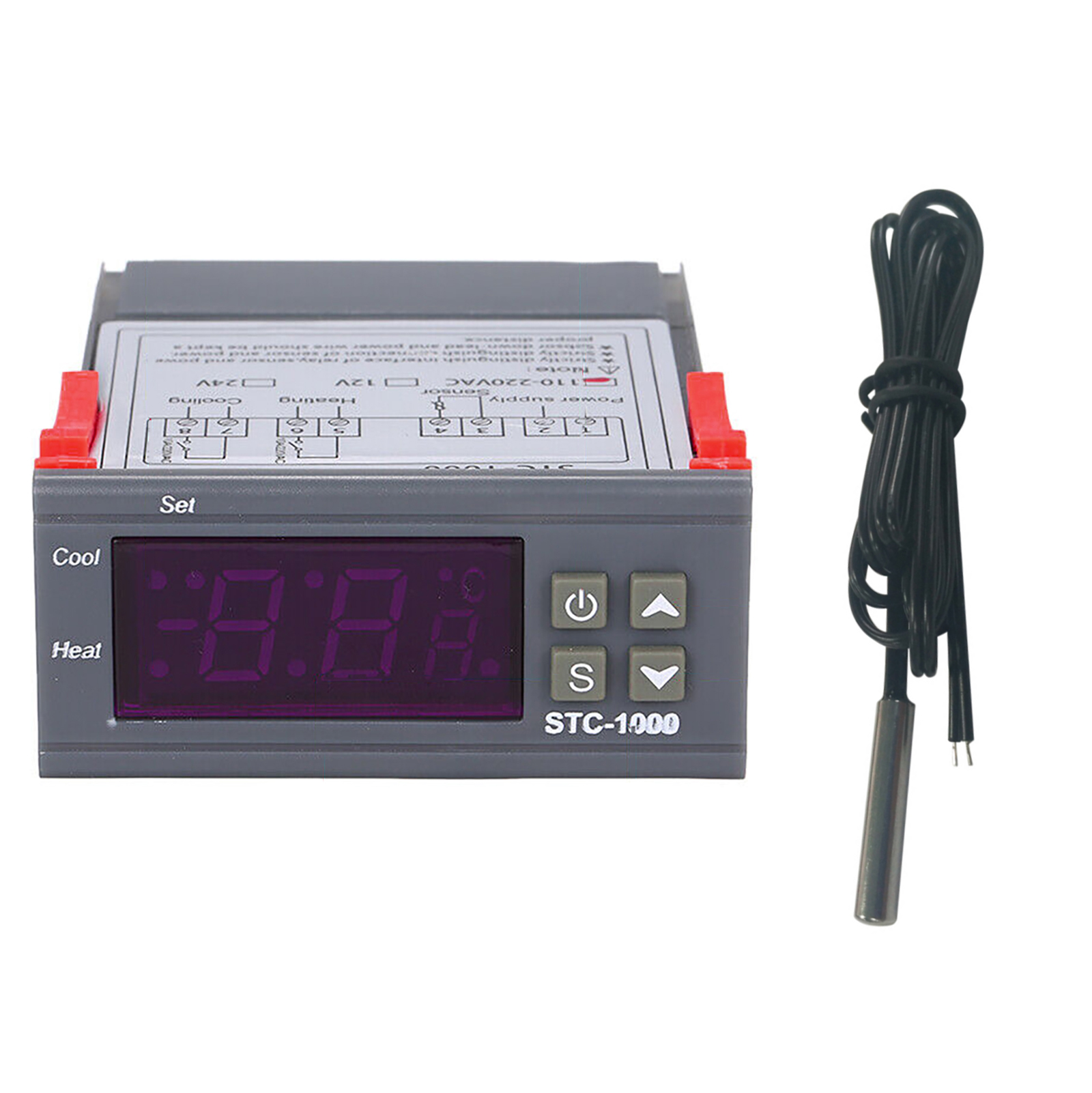

Package Includes:
1 x Temperature controller
1 x Temperature sensor
 |  |
 |  |
 |  |
 |  |
 |  |
 |
