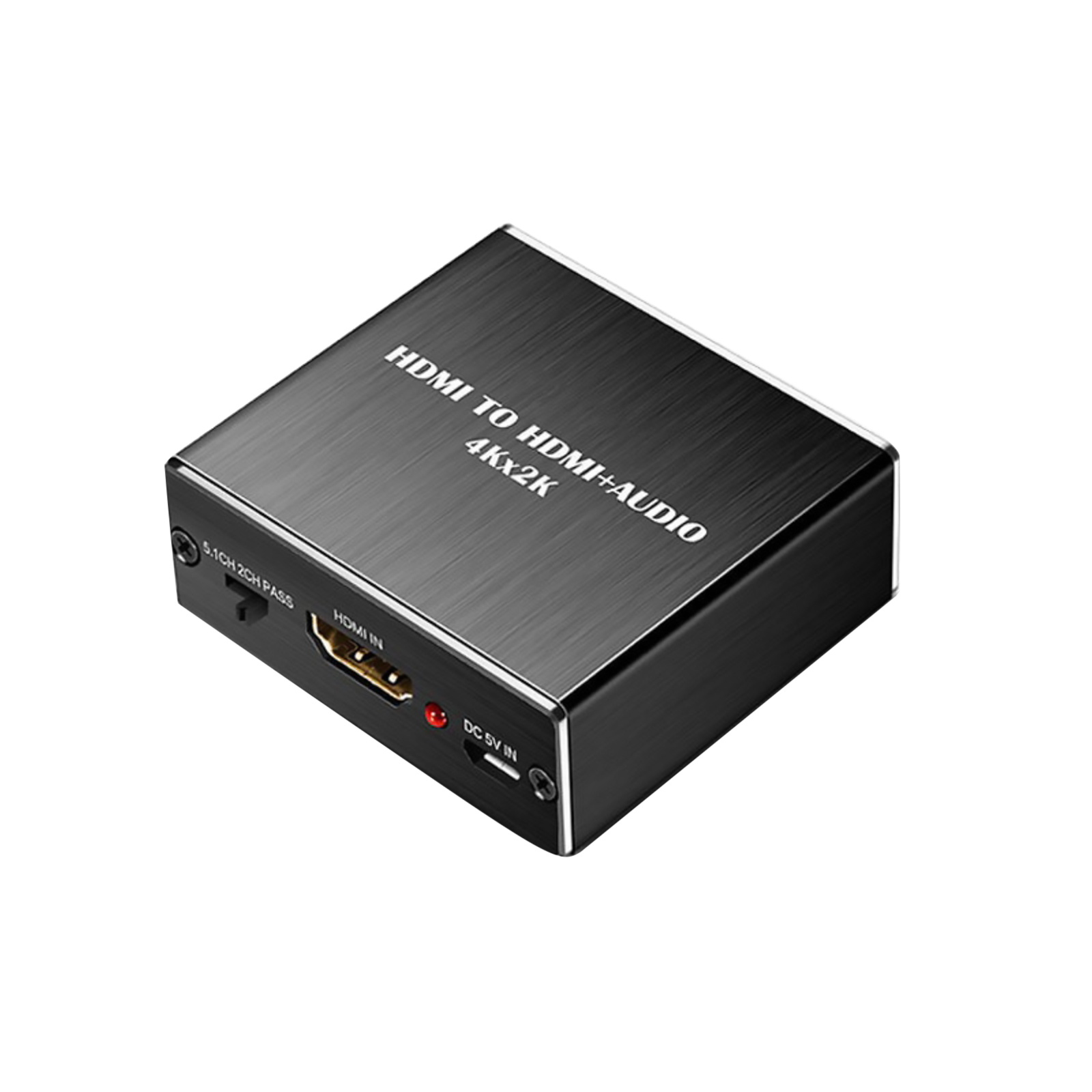

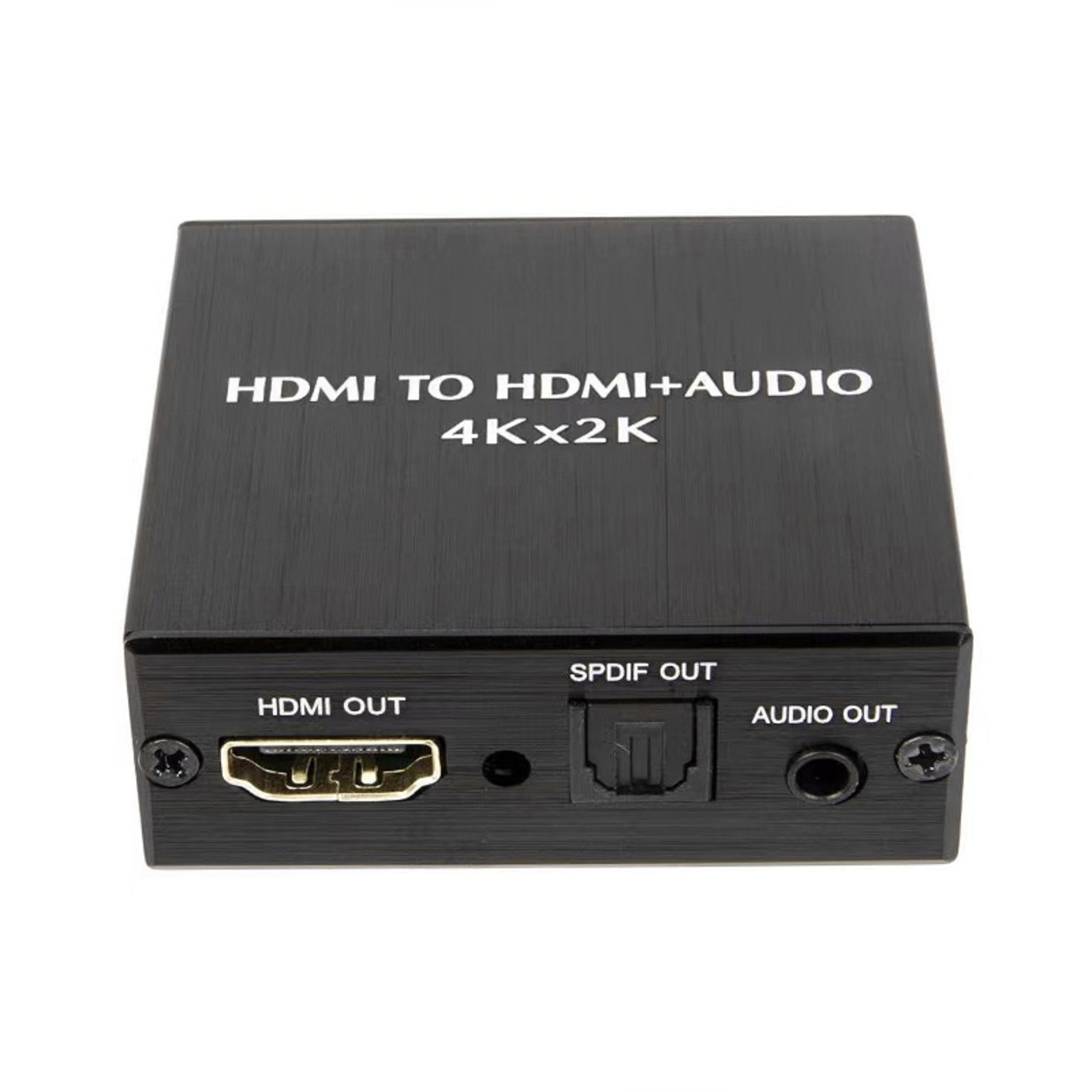

4K x 2K Video Audio Extractor separator HDMI-Compatible to 3.5MM Audio Converter SPDIF Optical Stereo Out Splitter Adapter
HDMI-compatibleVersion: HDMI 1.4
HDMI-compatibleresolution: 4K@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support Video Color Format: 24bits/deep color 30bit,36bit
Audio Output: SPDIF+3.5mm Audio
Max Bandwidth: 340MHz
Max Baud Rate: 10.2Gbps
Input/ Output TMDS signal: 0.5-1.5Volts p-p(TTL)
Input/ Output DDC signal: 5Volts p-p(TTL)
Input Cable Distance: <=7m AWG26 standard cable HDMI compatible
Output cable distance: <=8m AWG26 standard cable HDMI-compatible
Max Working Current: 500mA
Operating temperature range: -15°C to +55°C

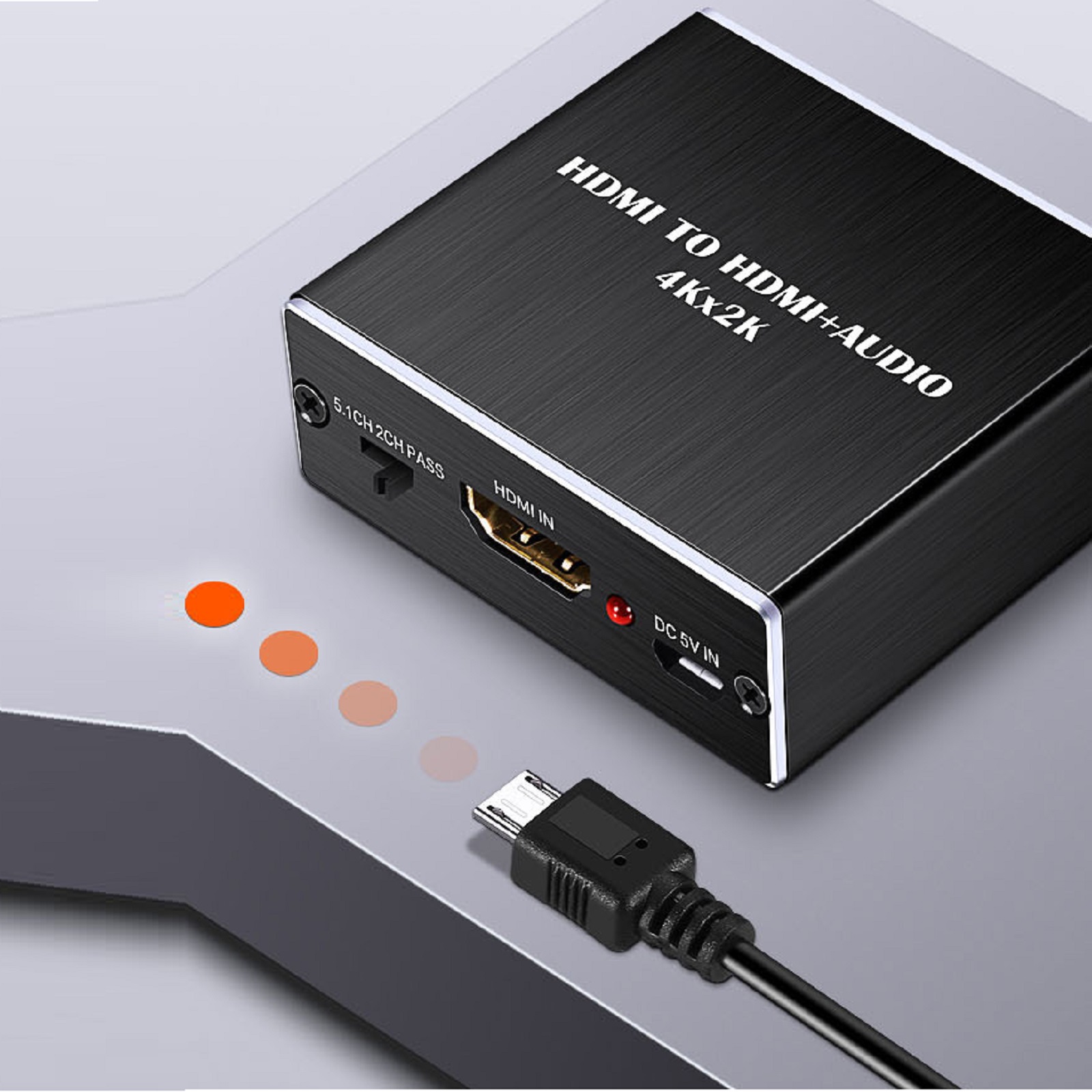

Power Supply: DC5V/1A

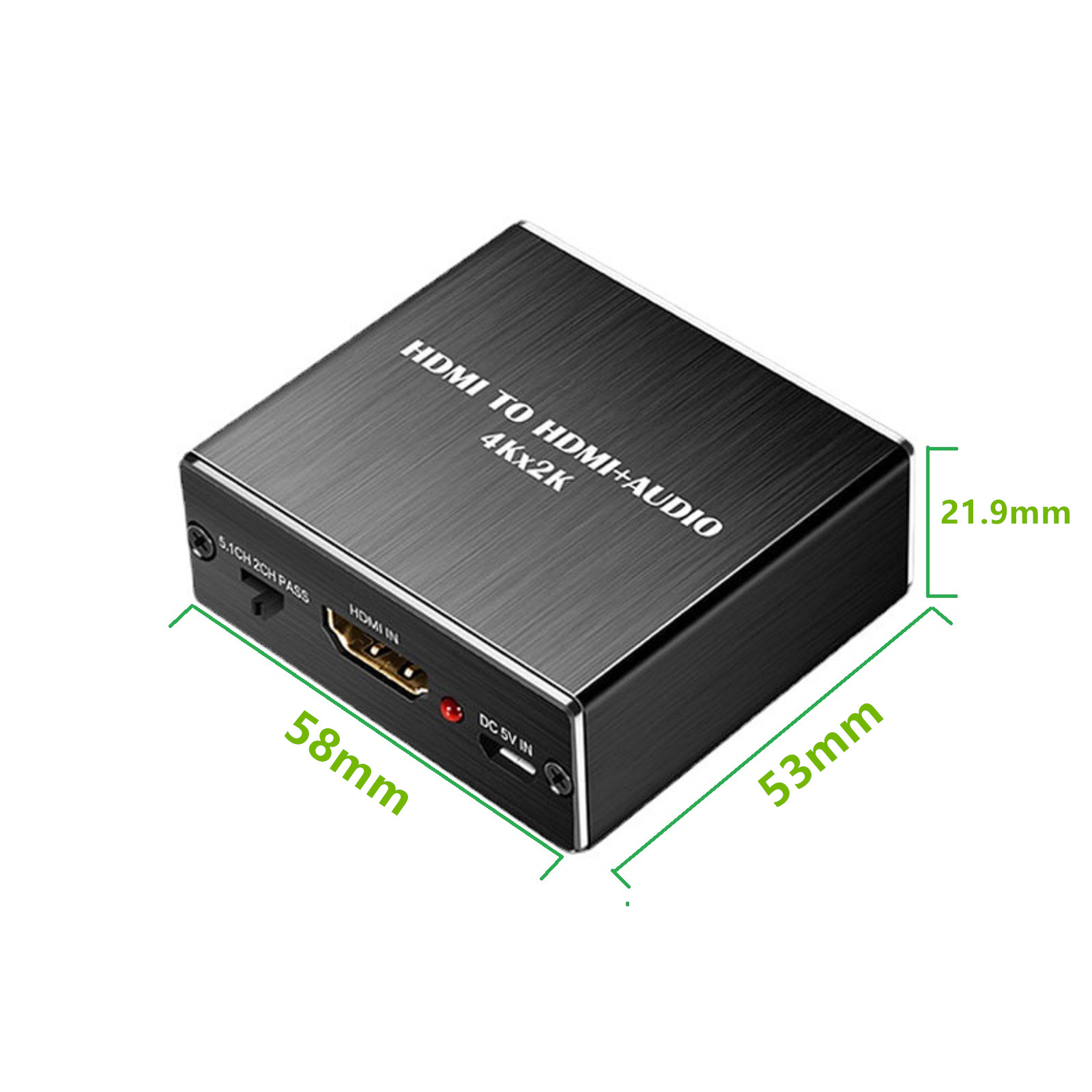

Dimension (LxWxH): 58x53x21.9mm
Features:

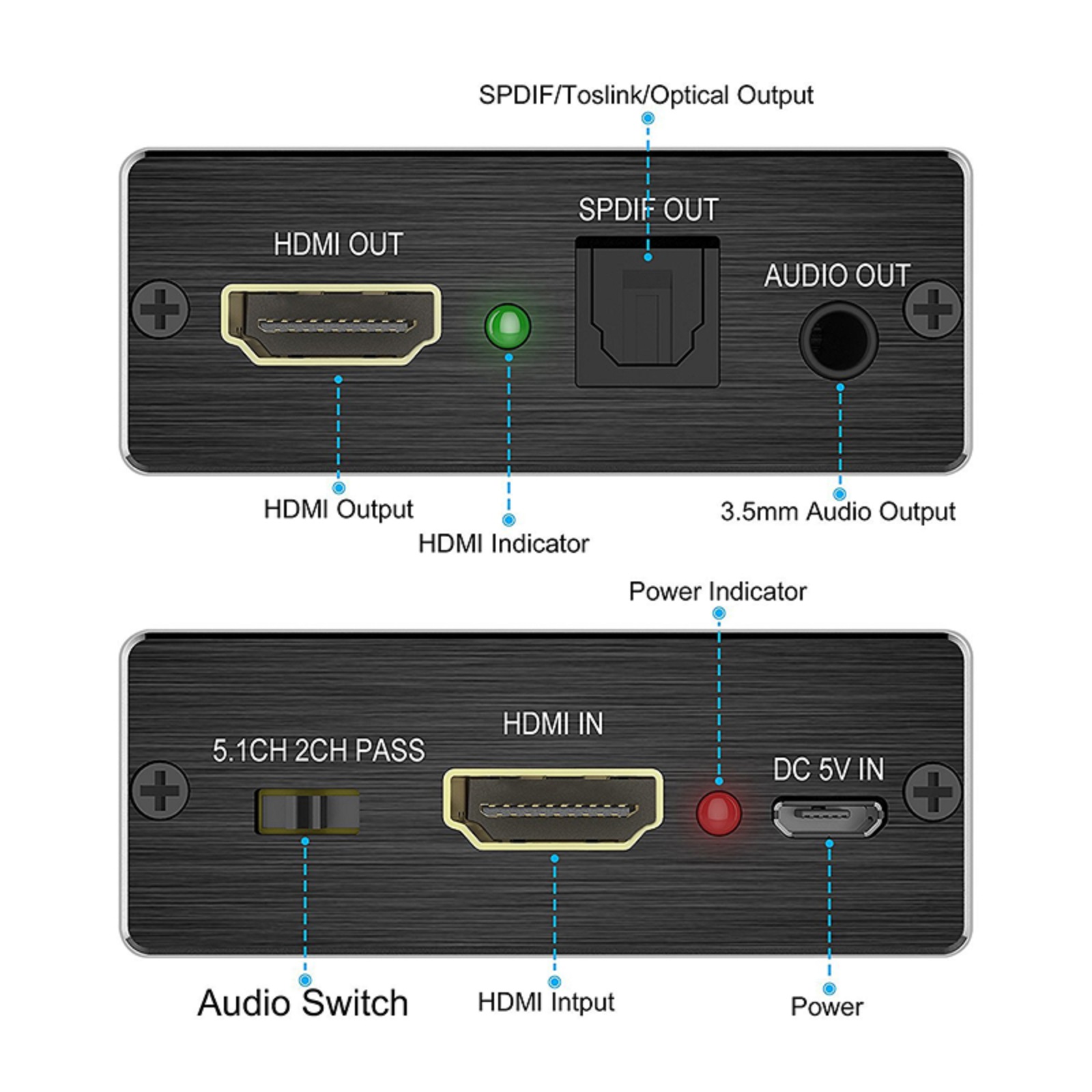

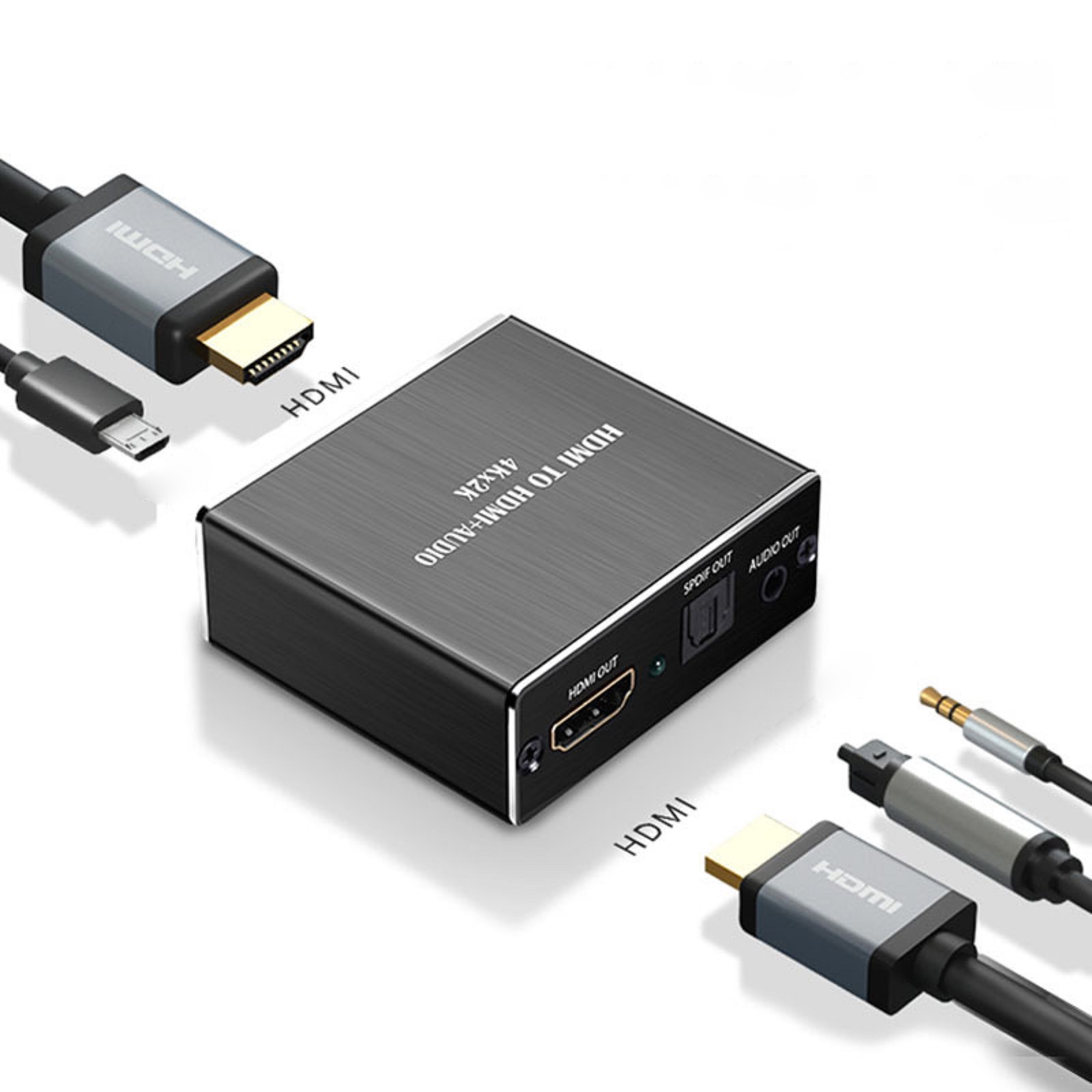

*Convert 1 HDMI-compatibleInput to 1 HDMI-compatible+ 1 Audio (SPDIF) Output+ 3.5mm Analog Audio Output
*Input Resolution: Up to 3840x2160@30Hz; 4096x2160@30Hz.
*HDMI-compatibleto achieve the synchronization of audio signal separation. *There are PASS/ 2.0CH/ 5.1CH three kinds of audio mode options.
*LED clearly indicate the working state of the Extractor.

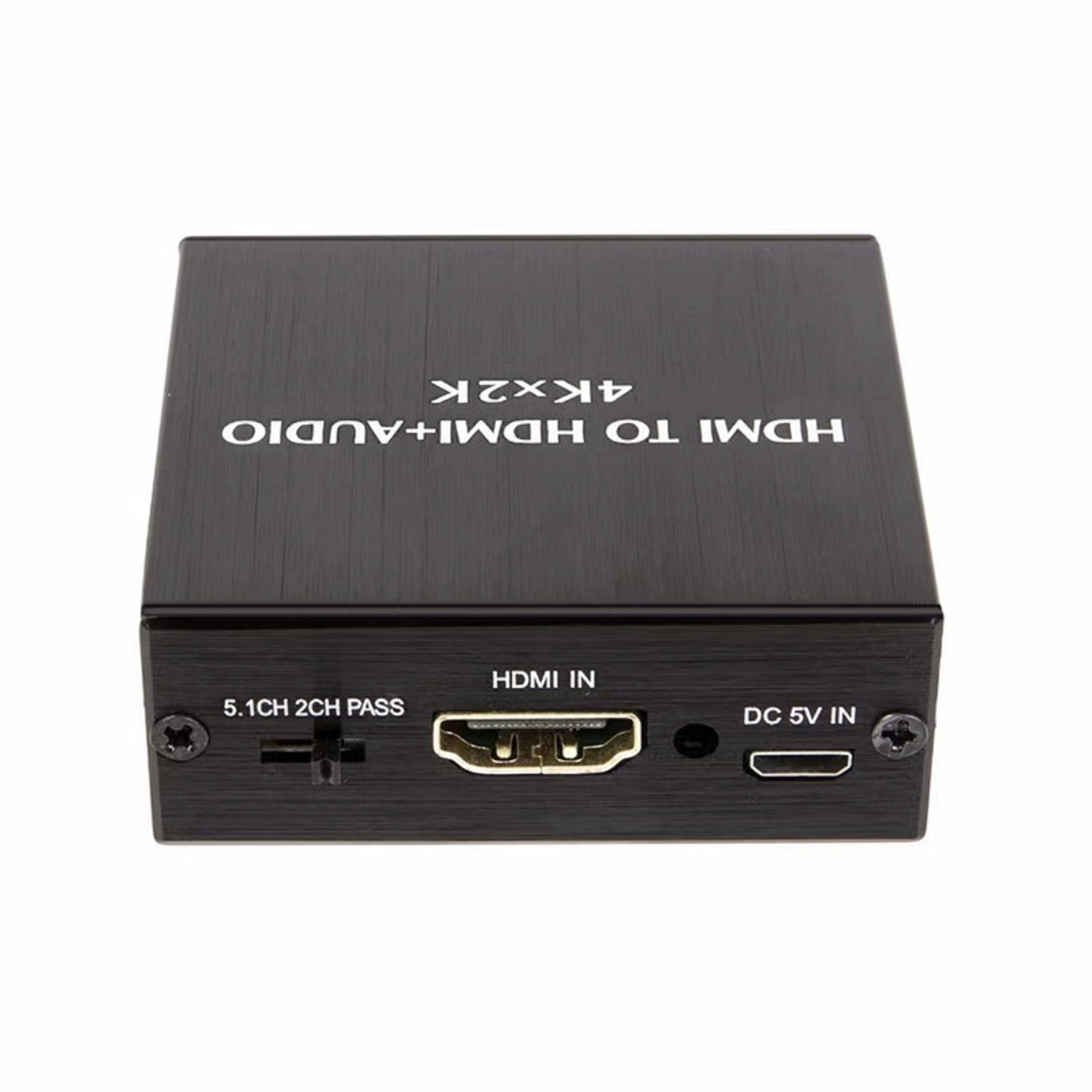

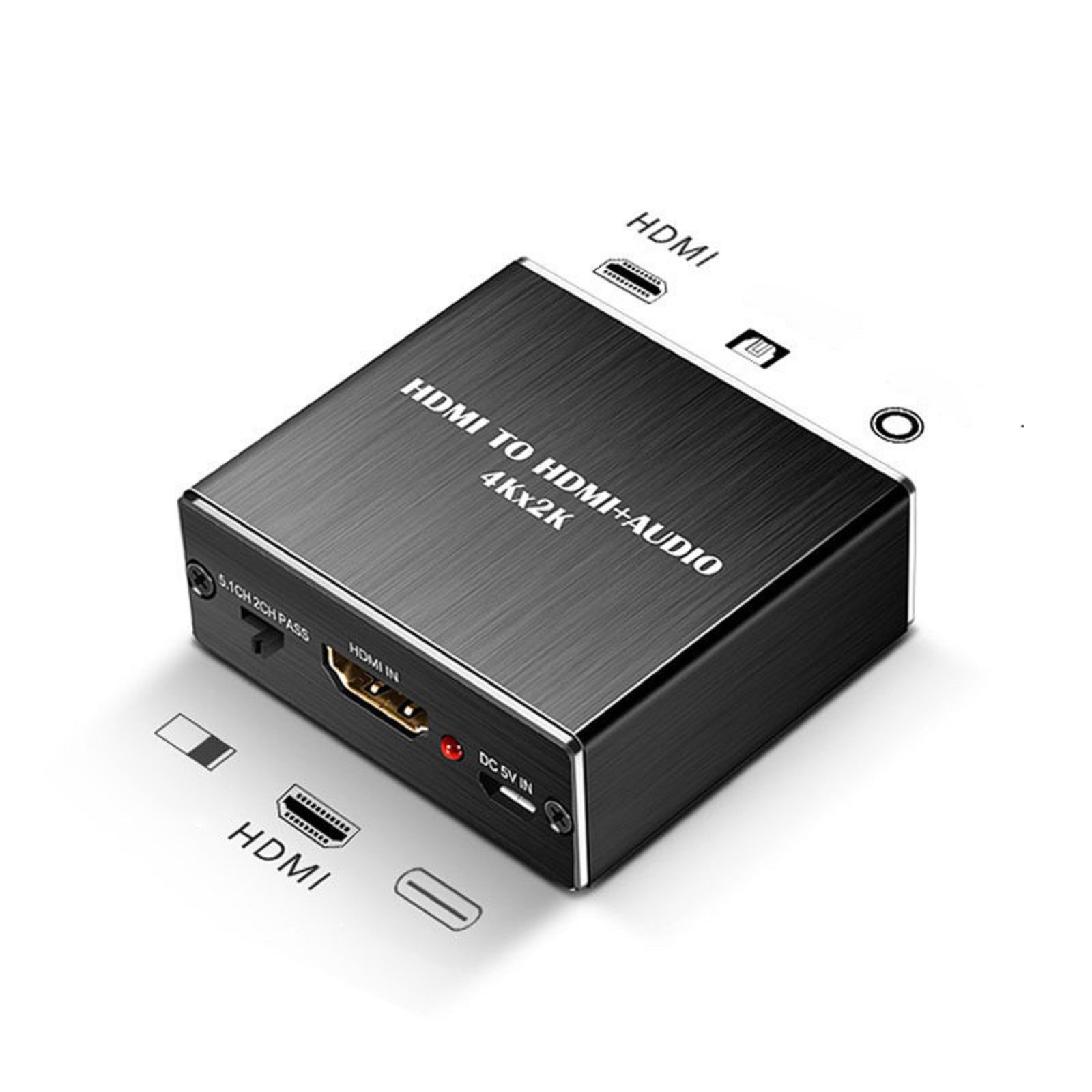

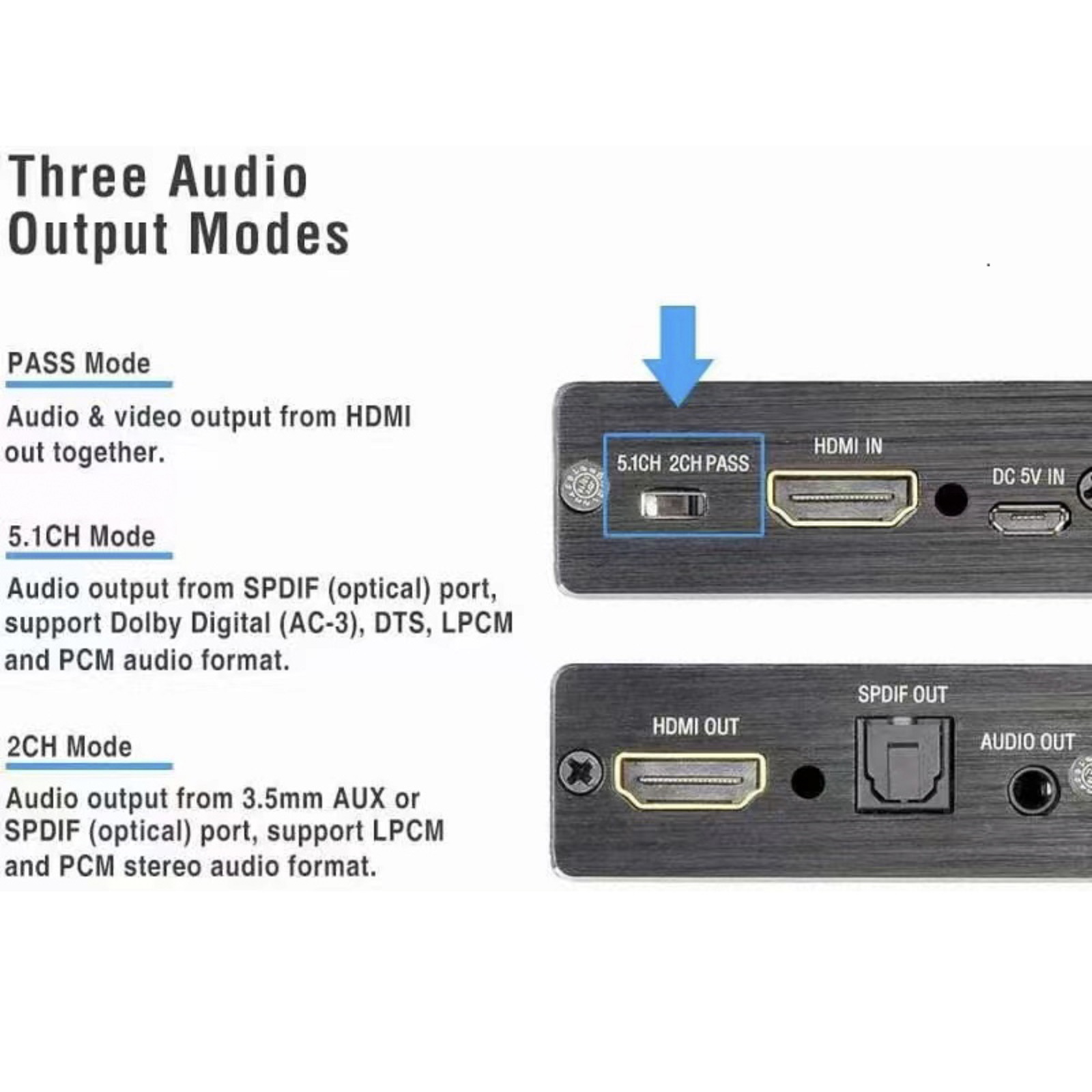

Three switching audio EDID settings:
Pass: HDMI-compatiblepass mode. The audio and video can be convertered from the HDMI-compatibleoutput. SPDIF and L/R will not output any sound.
2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI-compatibleinput and convert it to 2CH analog stereo output through its RCA style L/R analog output and SPDIF output at the same time.
5.1CH Mode: Extract Dolby Digital / DTS and output via SPDIF or RCA L/R. It does NOT support 5.1 Dolby Digital Plus.

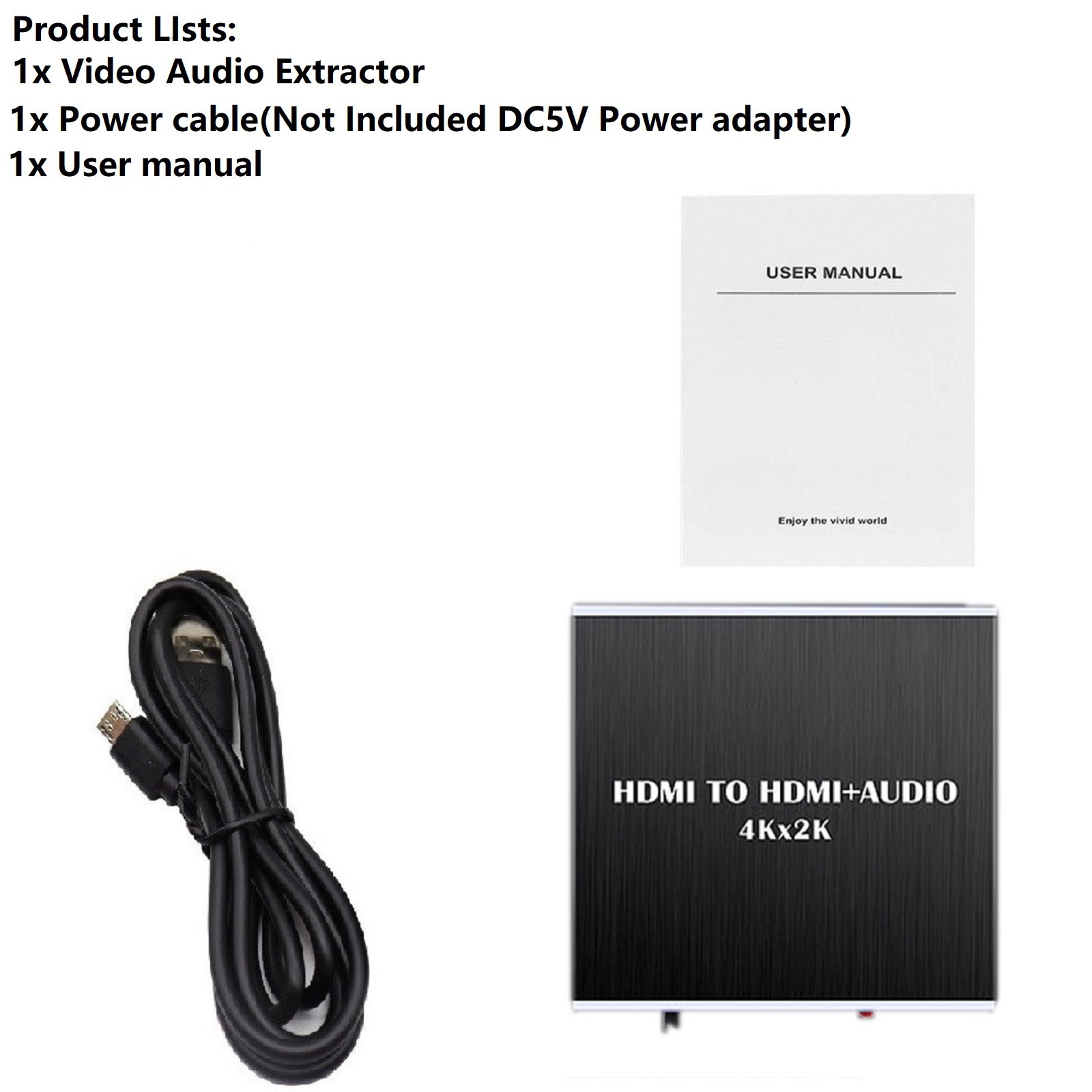

Package Included:
1x HDMI-compatible audio extractor
1x micro USB cable
1x User Manual
Note:
Does not support Dolby Digital Plus audio. It supports DTS audio and Dolby Digital audio.
Specifications:
HDCP Version: HDCP1.4HDMI-compatibleVersion: HDMI 1.4
HDMI-compatibleresolution: 4K@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support Video Color Format: 24bits/deep color 30bit,36bit
Audio Output: SPDIF+3.5mm Audio
Max Bandwidth: 340MHz
Max Baud Rate: 10.2Gbps
Input/ Output TMDS signal: 0.5-1.5Volts p-p(TTL)
Input/ Output DDC signal: 5Volts p-p(TTL)
Input Cable Distance: <=7m AWG26 standard cable HDMI compatible
Output cable distance: <=8m AWG26 standard cable HDMI-compatible
Max Working Current: 500mA
Operating temperature range: -15°C to +55°C
Power Supply: DC5V/1A
Dimension (LxWxH): 58x53x21.9mm
Features:
*Convert 1 HDMI-compatibleInput to 1 HDMI-compatible+ 1 Audio (SPDIF) Output+ 3.5mm Analog Audio Output
*Input Resolution: Up to 3840x2160@30Hz; 4096x2160@30Hz.
*HDMI-compatibleto achieve the synchronization of audio signal separation. *There are PASS/ 2.0CH/ 5.1CH three kinds of audio mode options.
*LED clearly indicate the working state of the Extractor.
Three switching audio EDID settings:
Pass: HDMI-compatiblepass mode. The audio and video can be convertered from the HDMI-compatibleoutput. SPDIF and L/R will not output any sound.
2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI-compatibleinput and convert it to 2CH analog stereo output through its RCA style L/R analog output and SPDIF output at the same time.
5.1CH Mode: Extract Dolby Digital / DTS and output via SPDIF or RCA L/R. It does NOT support 5.1 Dolby Digital Plus.
Package Included:
1x HDMI-compatible audio extractor
1x micro USB cable
1x User Manual
Note:
Does not support Dolby Digital Plus audio. It supports DTS audio and Dolby Digital audio.
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |
