Features:

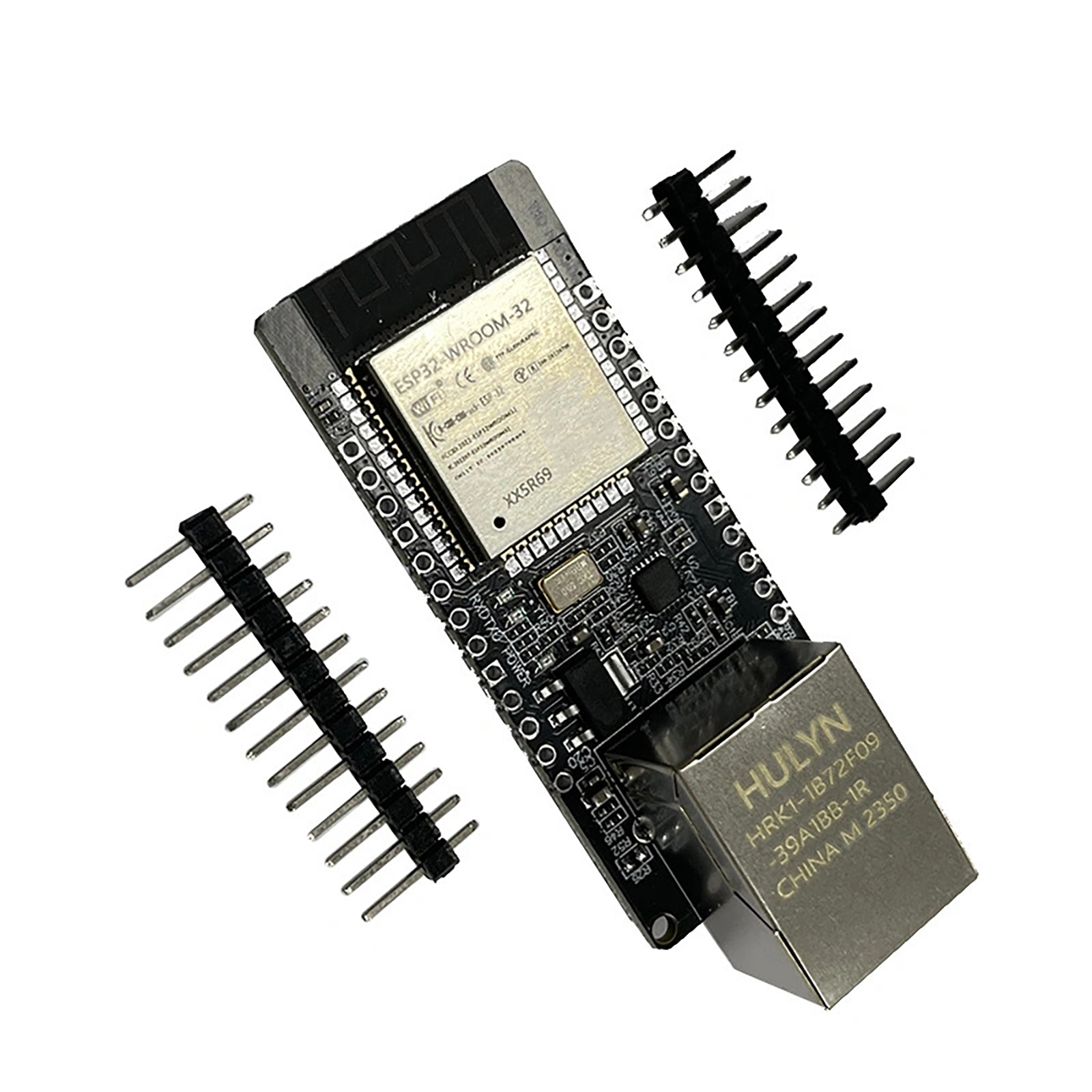

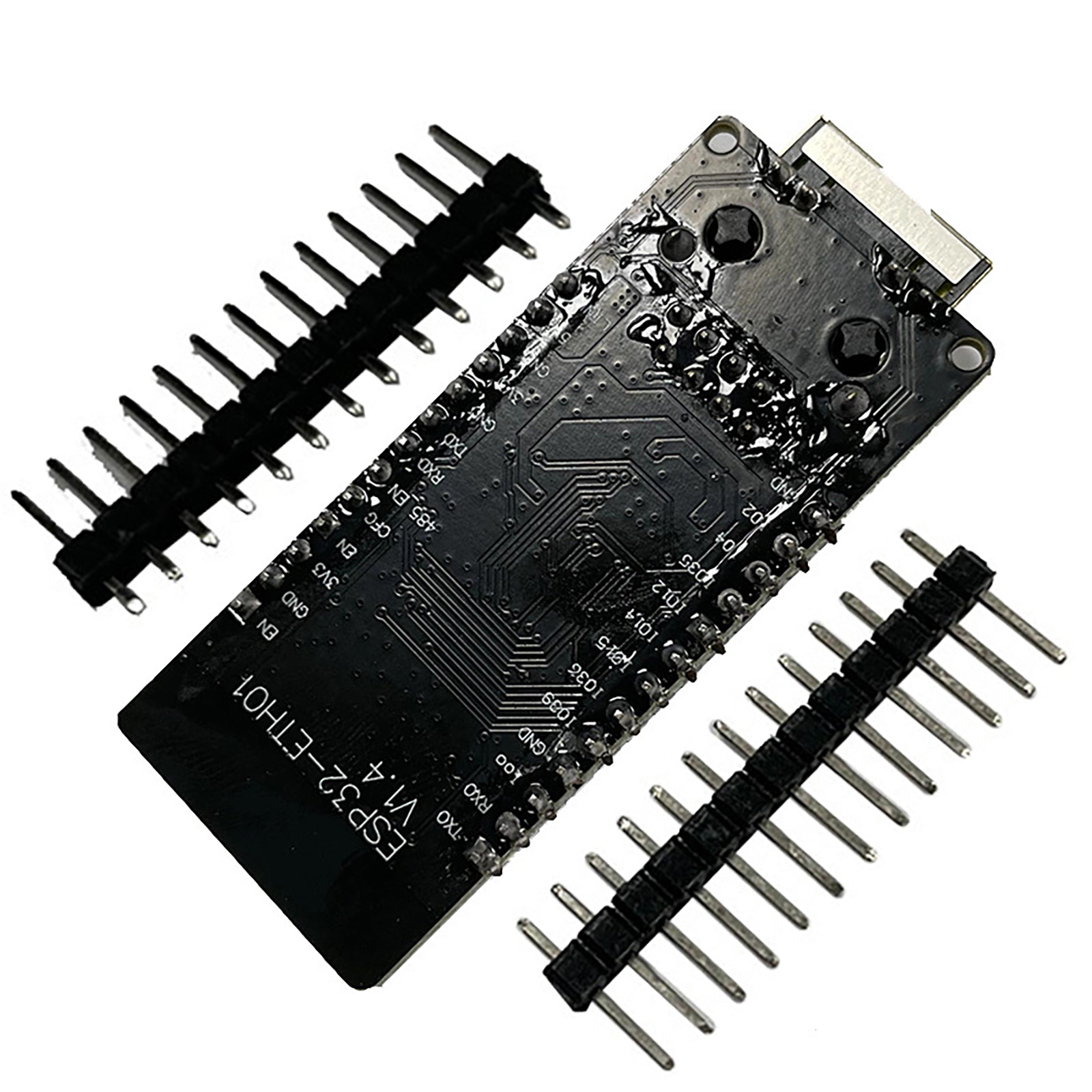

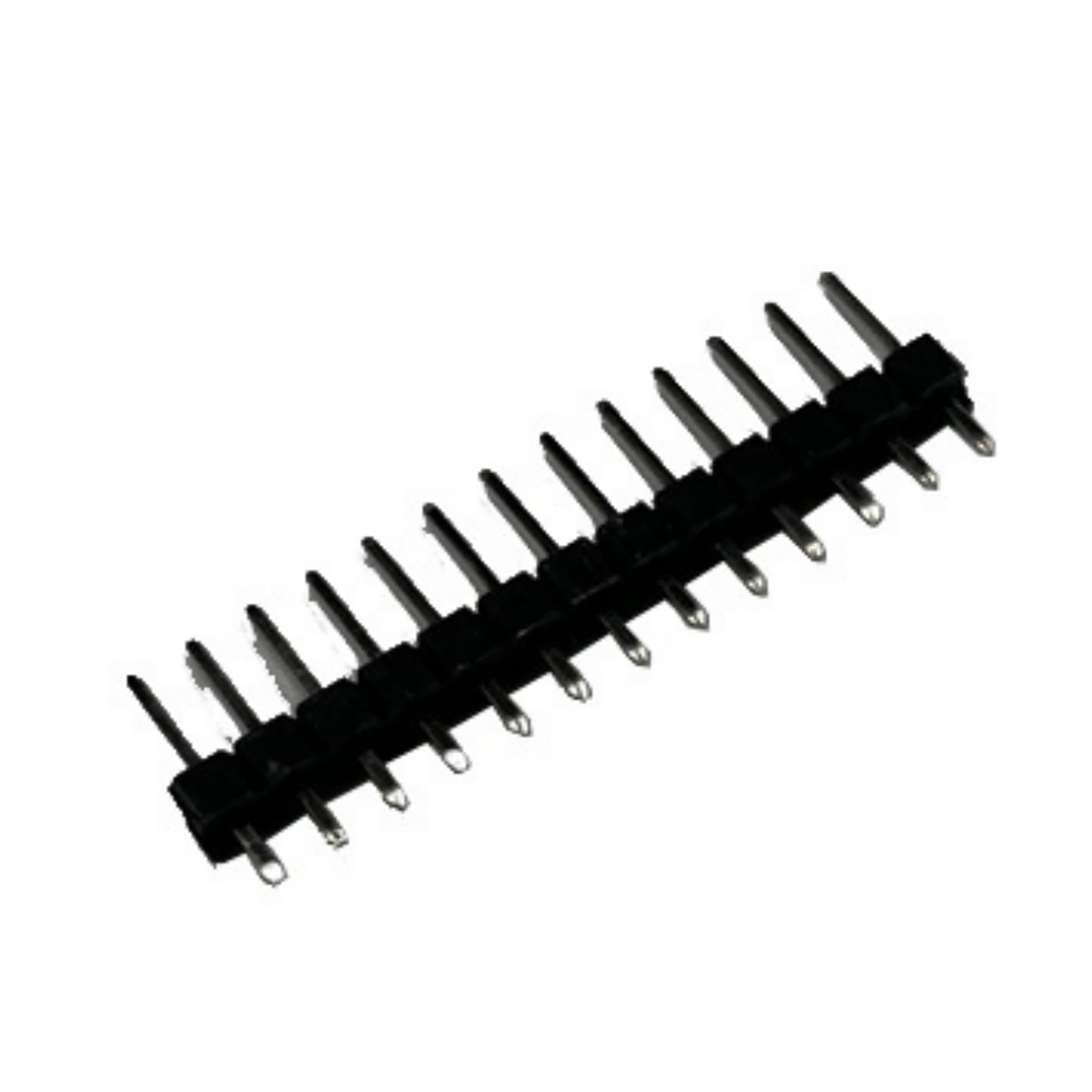

Pins and modual is separate, The issue with the top soldered pins has been resolved.

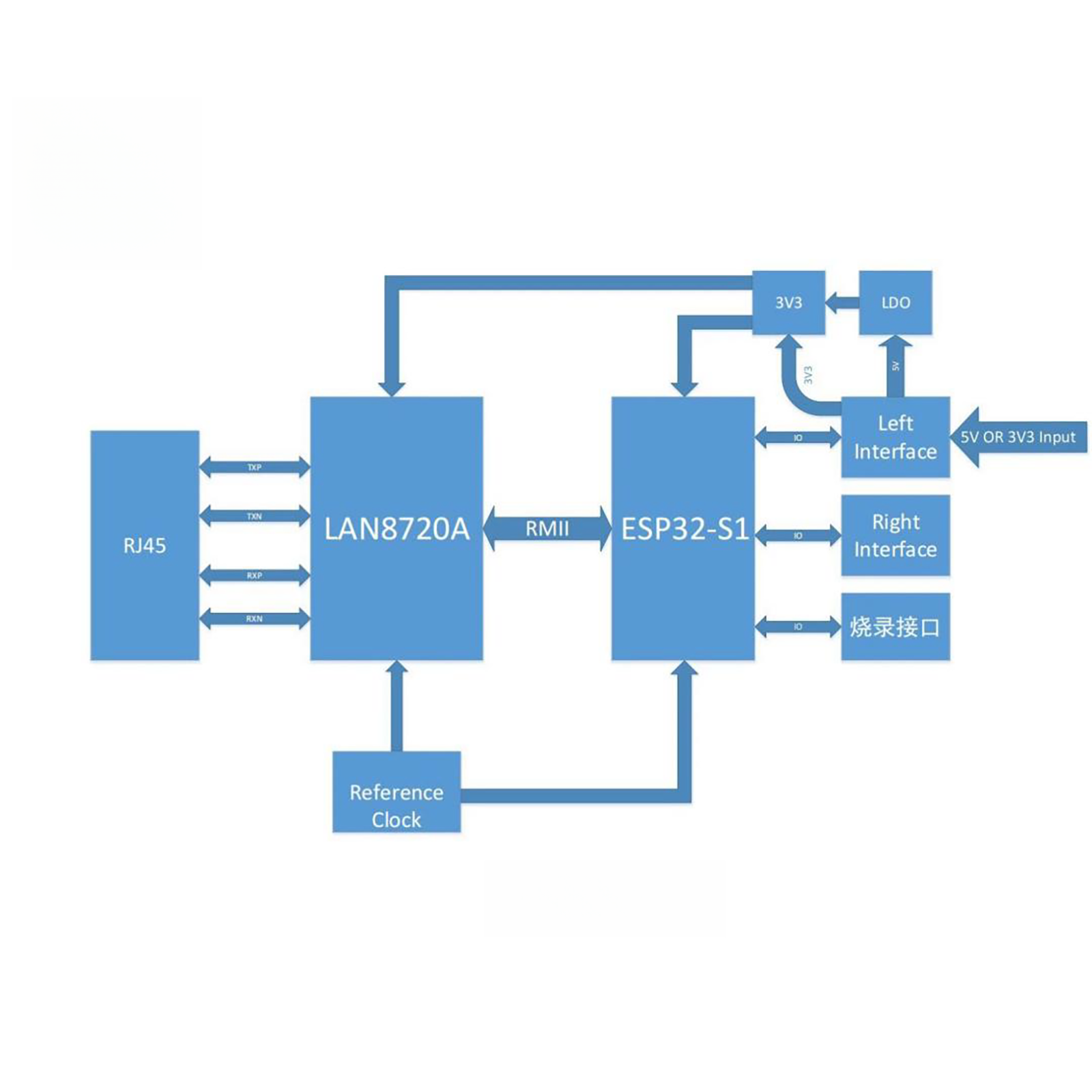

WT32-ETH01 is an embedded serial to Ethernet module based on the ESP32 series WT32-S1 MCU. The module integrates an optimized TCP/IP protocol stack, which is convenient for users to easily complete the networking functions of embedded devices while reducing development time cost. In addition, the module is compatible with half-pad and through-hole connectors.
The board width is a universal width and therefore, it can be directly soldered to boards, connectors, or even breadboards, which is convenient for users to use in different scenarios.
ESP32 series IC is an integrated 2.4GHz Wi-Fi and Bluetooth dual-mode SOC, with ultra-high RF performance, stability, versatility and reliability, as well as ultra-low power consumption.
Adopts dual-core Xtensa@ 32-bit LX6 MCU. Integrated SPI Flash 32Mbitl/SRAM 52OKB supports TCP Server, TCP Client, UDP Server, UDP ClientT mode.
Supports serial port, wifi, Ethernet, and Bluetooth data ports in pairs. Transparent data transmission Supports firmware upgrade by connecting to the network over a wired network or wifi.
Supports wifi to connect to the Internet or LAN through a router, establish a TCP/UDP connection, access the user's designated server, support wired network access, and support user secondary development.
Specifications:
Ethernet port specification: RJ45
Serial baud rate: 80~5000000
Onboard Flash: 32Mbit
Operating voltage: 5V or 3.3V power supply
Average operating current: 80mA
Minimum Supply Current: 500mA
Operating temperature range: -40°C~+85°C
Package include:

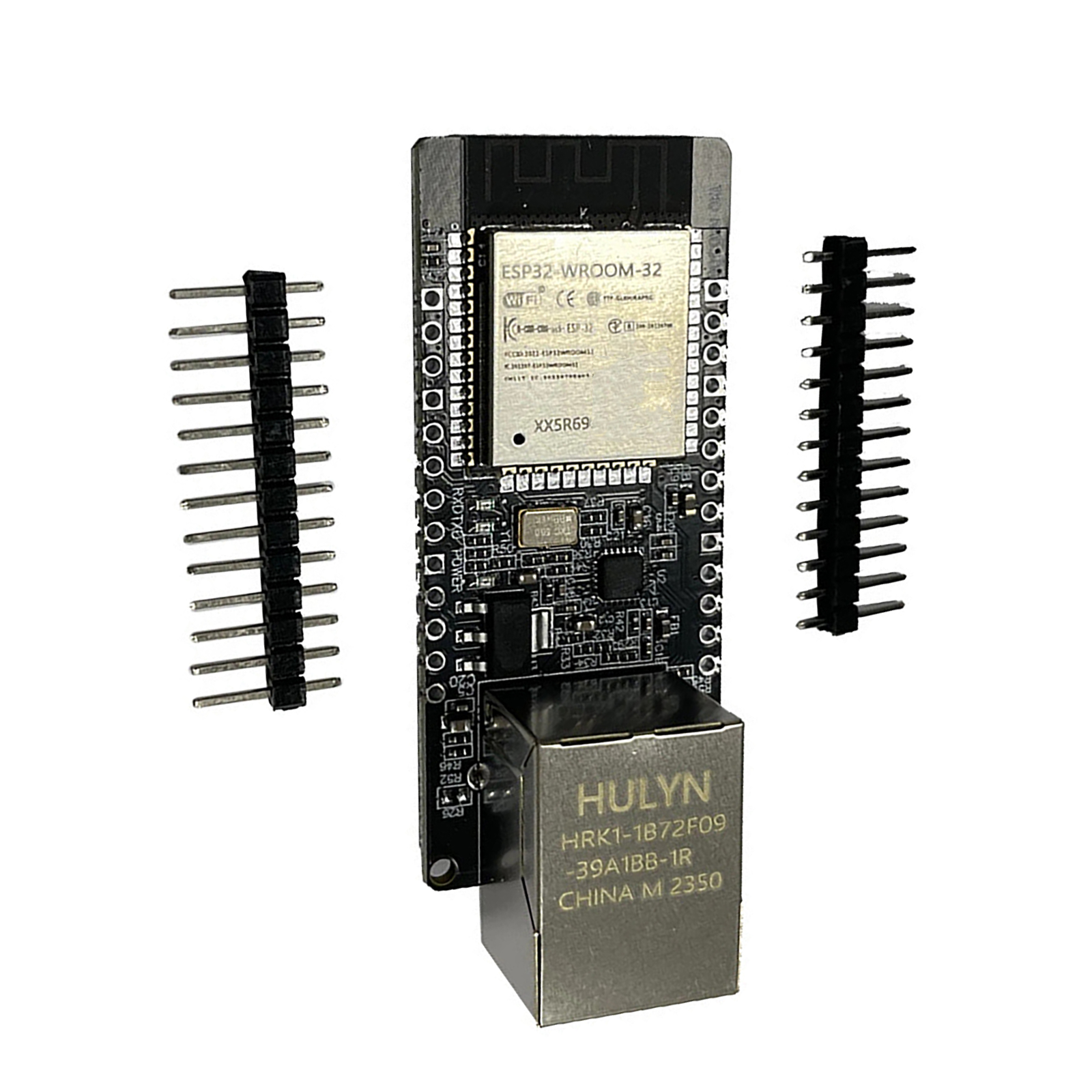

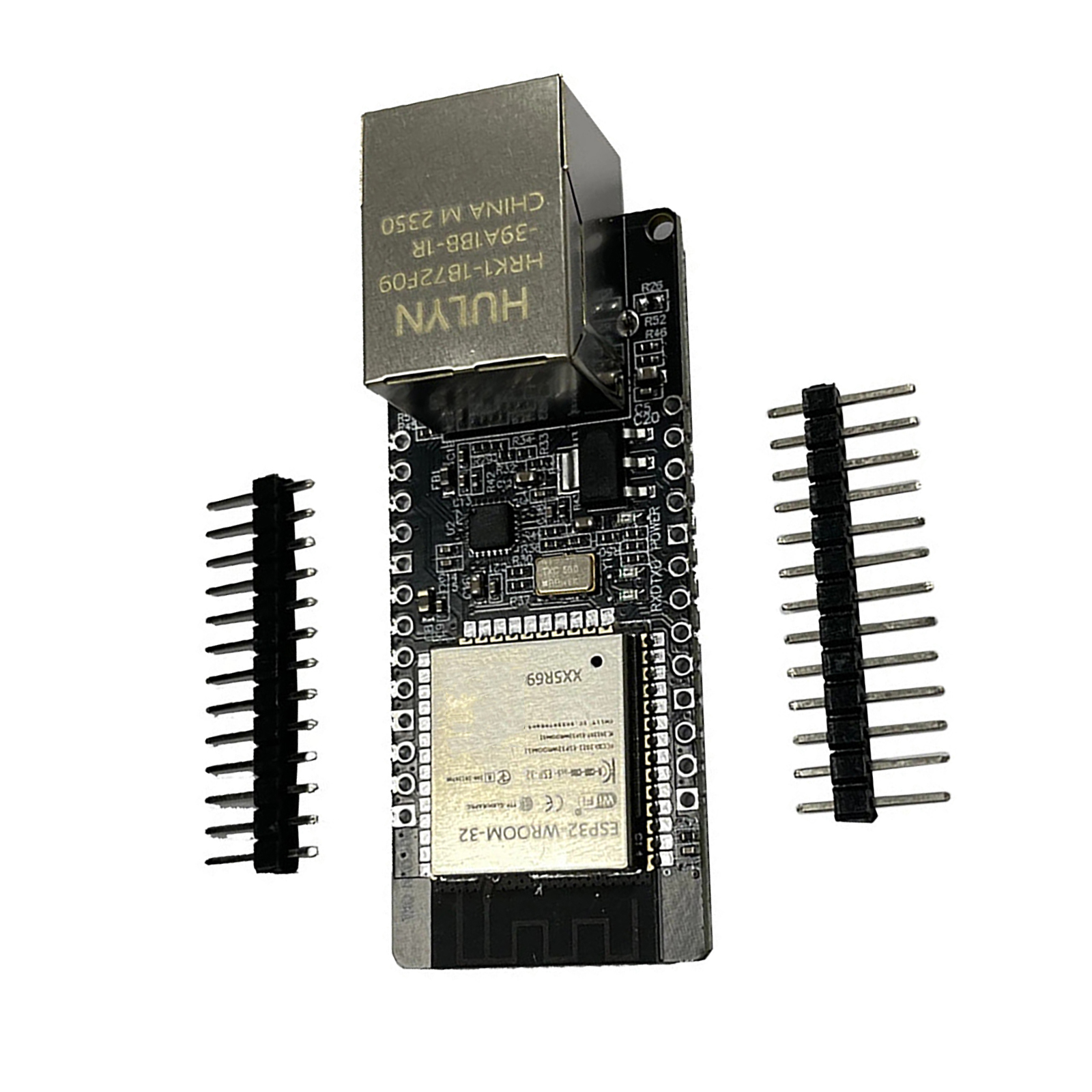

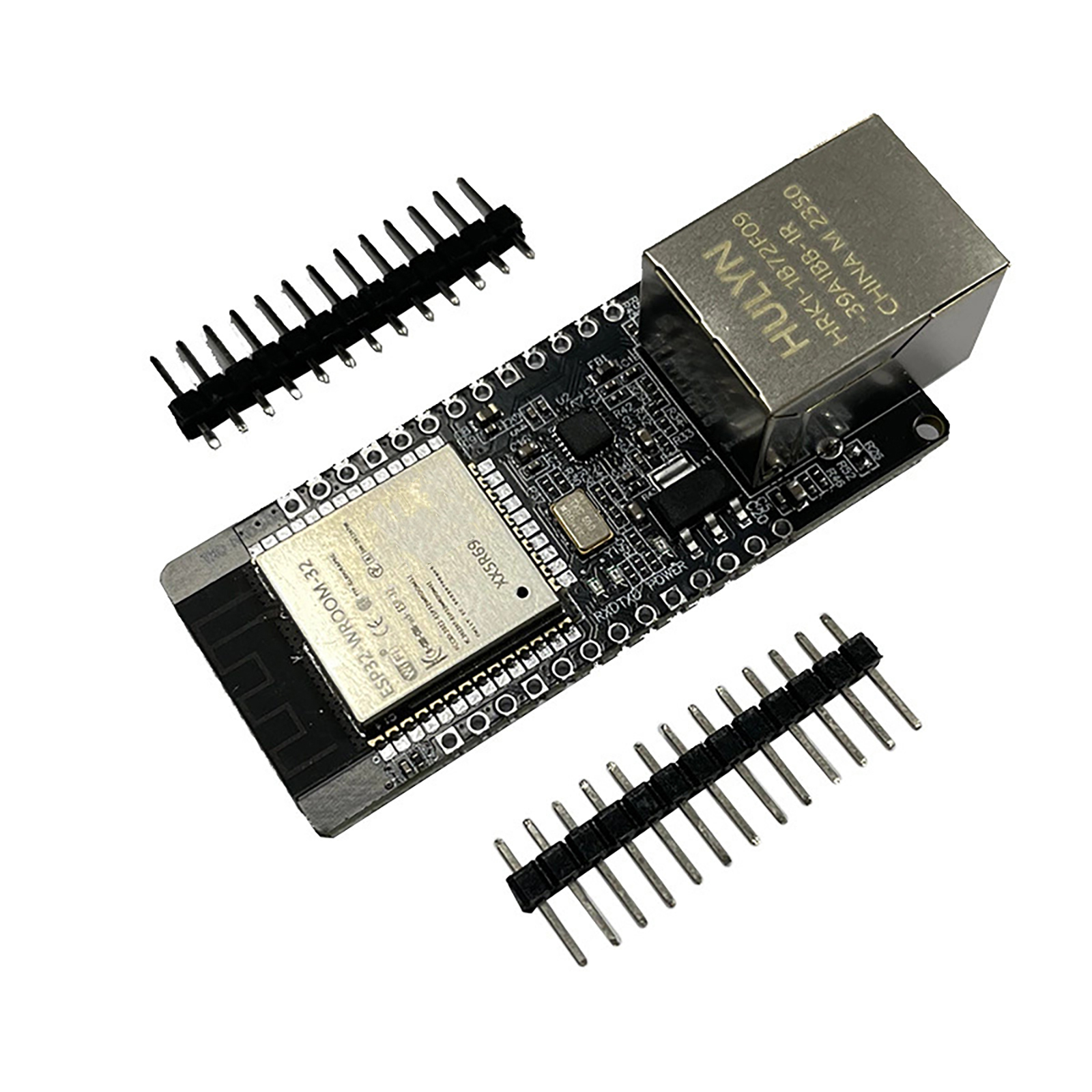

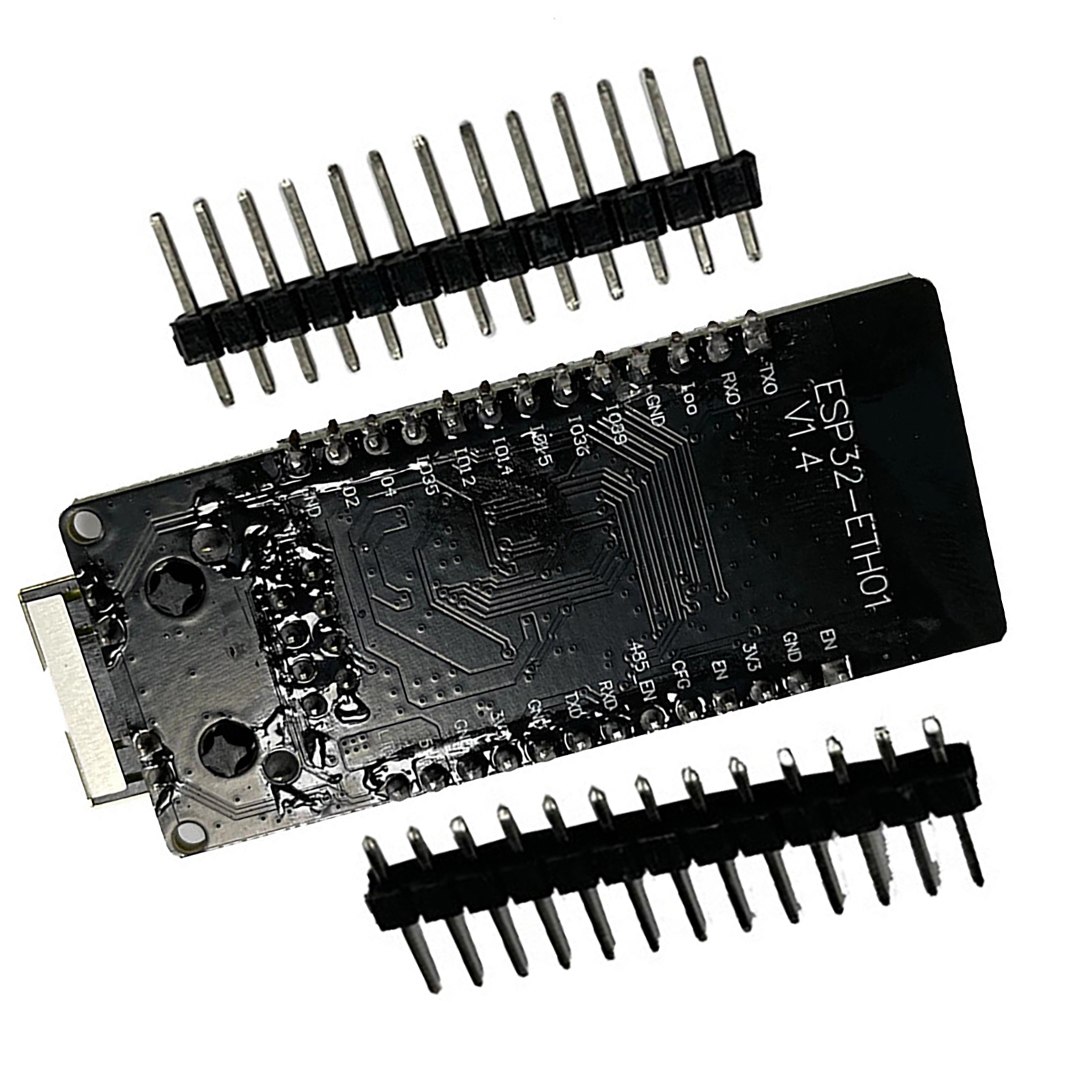

1 x WT32-ETH01 Development Board(Separate unsoldered pins)
