Features:
100% Brand-New.

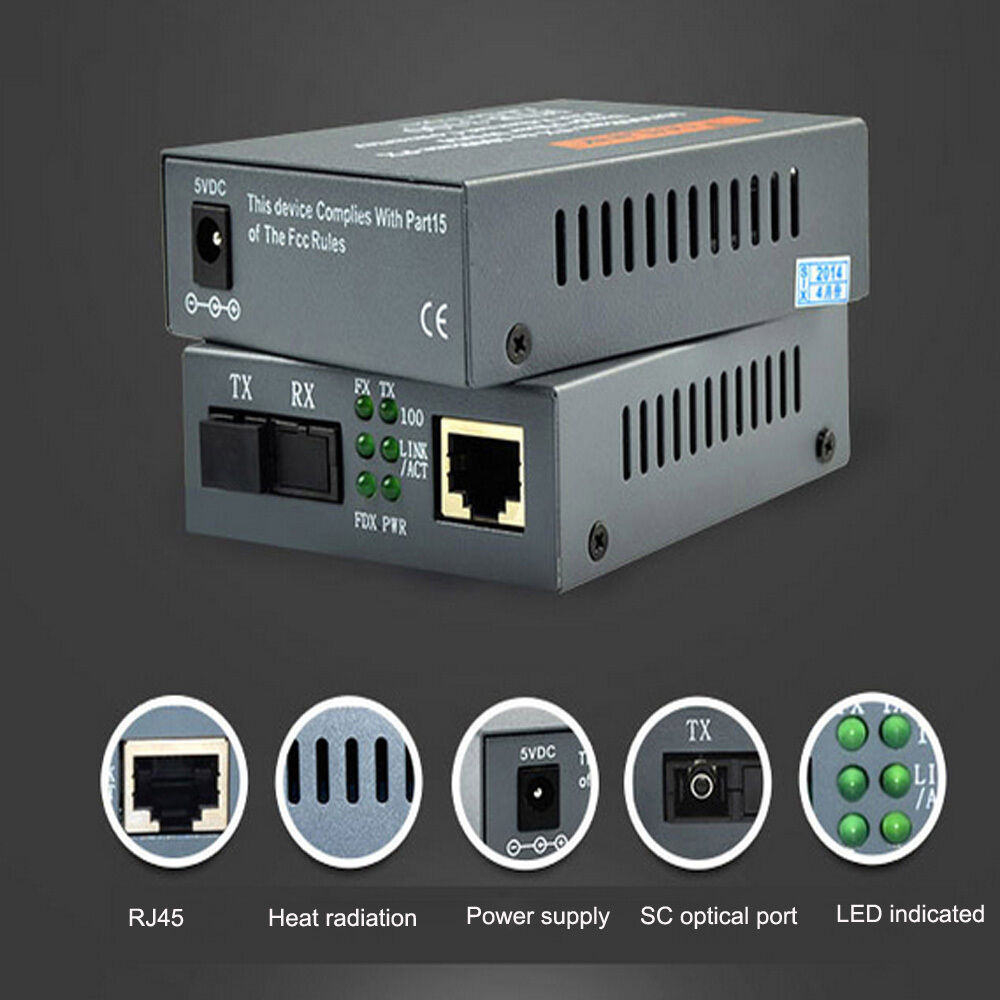

1 RJ45 ports and 1 SC optical port .
Meets IEEE802.3z/AB 1000Base-T standard and 1000Base-SX/LX
10/100M optical port is full duplex mode ;Ethernet port 10/100M adaptive mode
Ethernet interface can adaptively direct line / crossover cable connection
Ethernet ports support full / half duplex mode
Supports a maximum of 9K bytes long packets
IEEE802.3X flow control support full-duplex , half-duplex backpressure flow control
Support Link Fail Pass fiber breakage detection function ( optional )
UTP ethernet cable up to 100 meters ; longest 25 km single-mode fiber

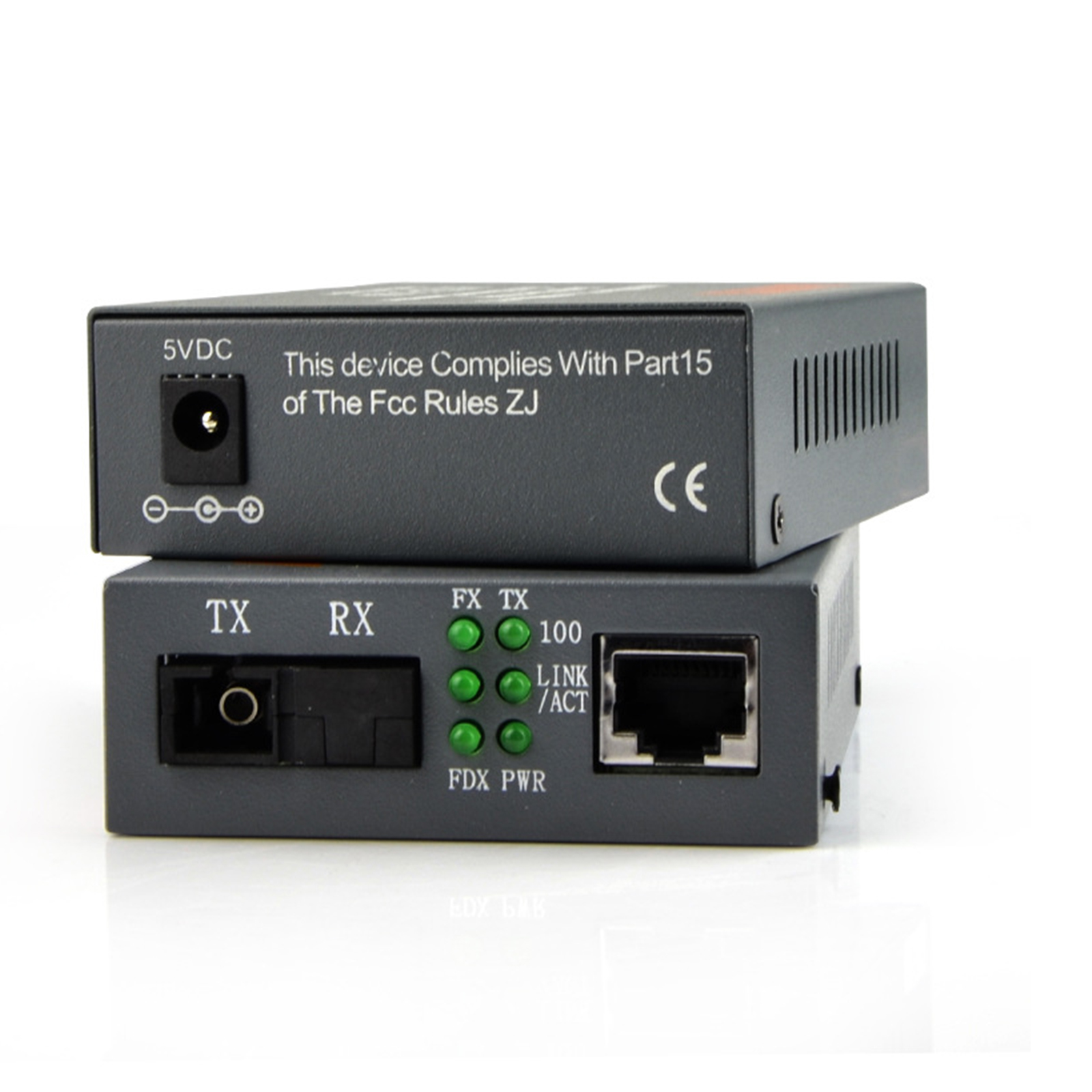

There are six LED indicators : Power, FX Link / Act, TX 100, TX 1000, TX FDX, TX Act to facilitate the monitoring of transceiver operating status and determine the cause of failure
Internal power supply : AC100 ~ 265V / DC5V switching power supply
Working temperature : 0 ~ 50 degree
Storage temperature : - 40 ~ 70 degree
Built-in power
Package: ESD package box.
Specifications:
Telecommunications
Broadcasting
Broadband fiber optic network data traffic
Any need to improve performance, High-reliability network environment.
Package Includes:

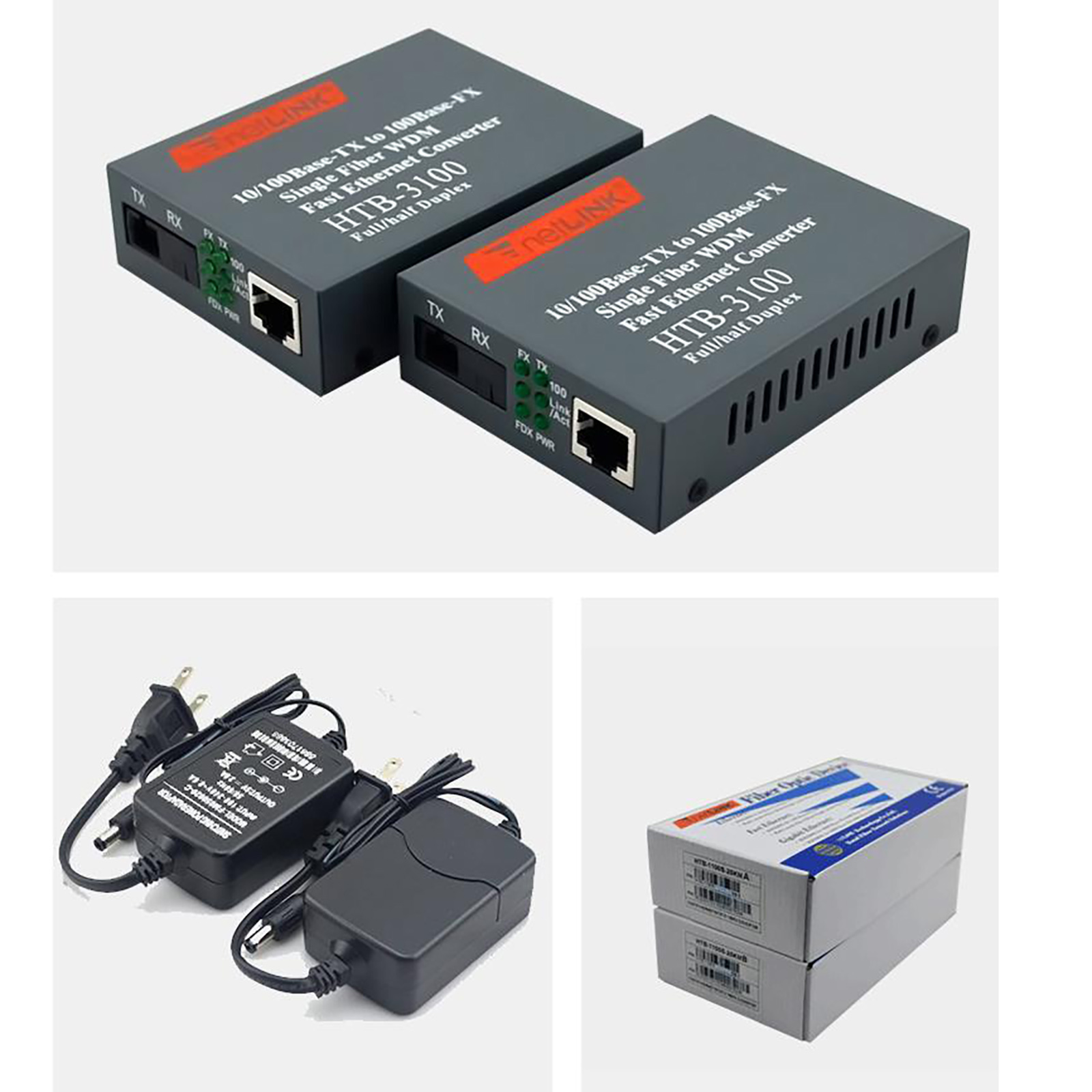

2 x 10/100M ethernet to fiber converter (A & B)
2 x Power supply
1 x User manual
 |  |
 |  |
 |  |
