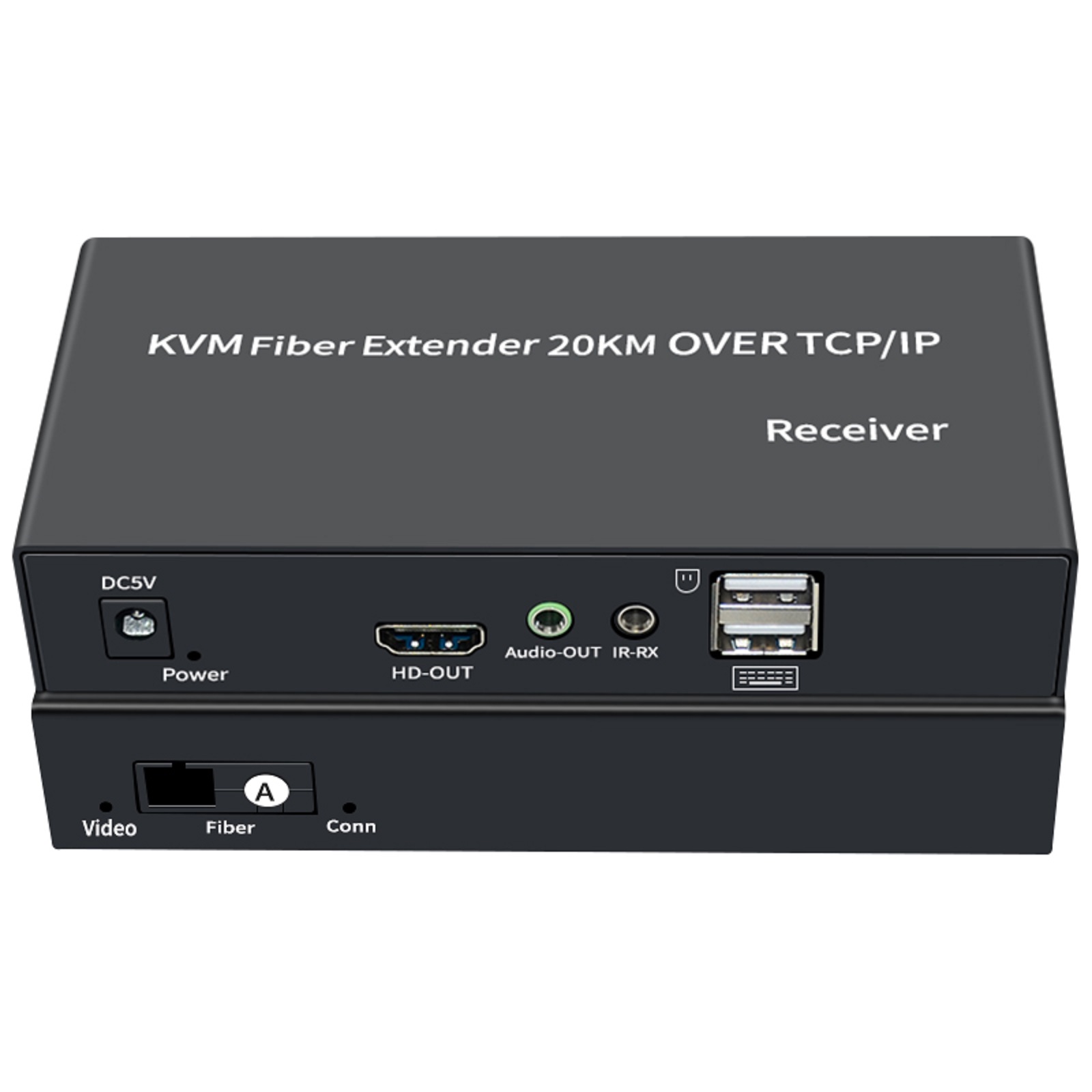

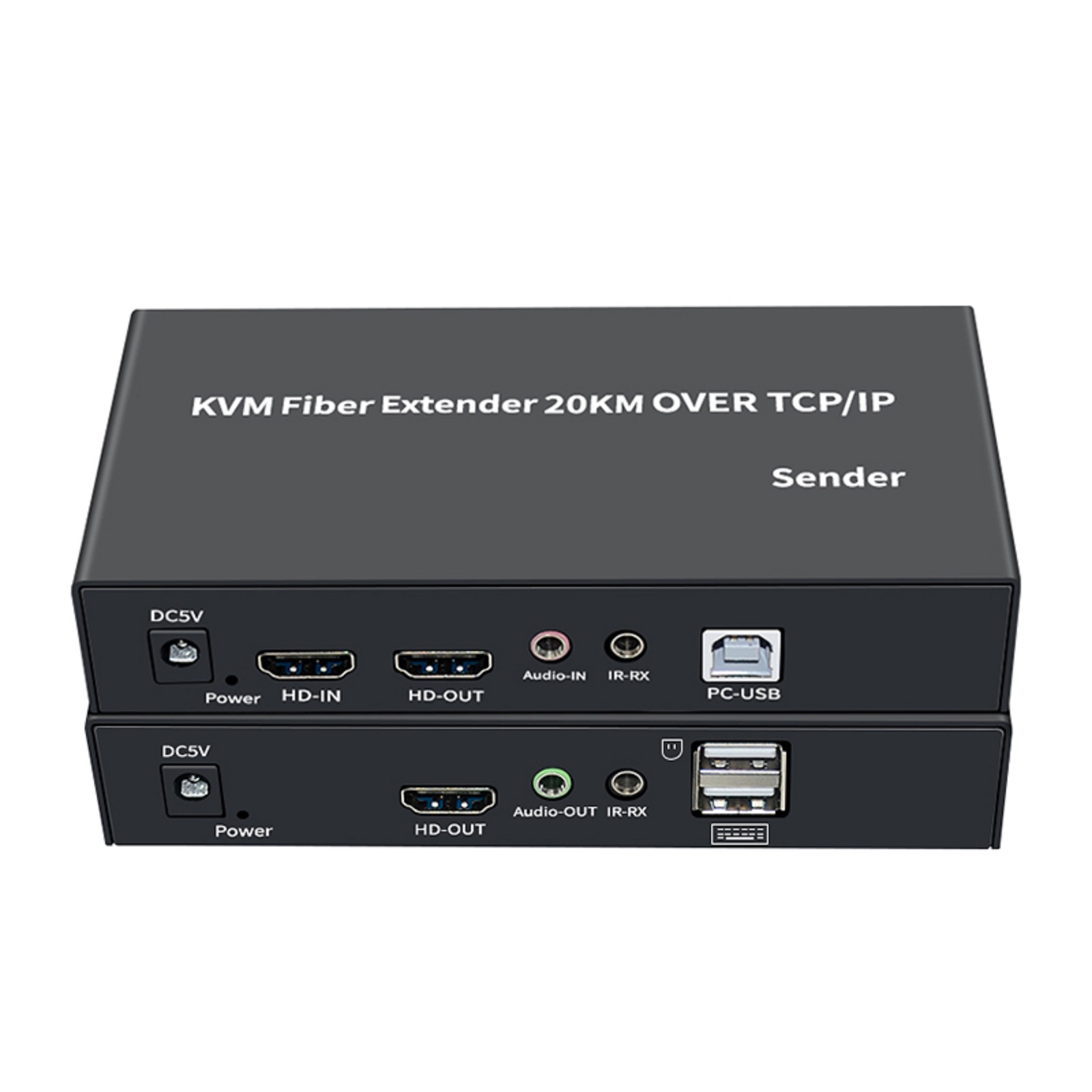

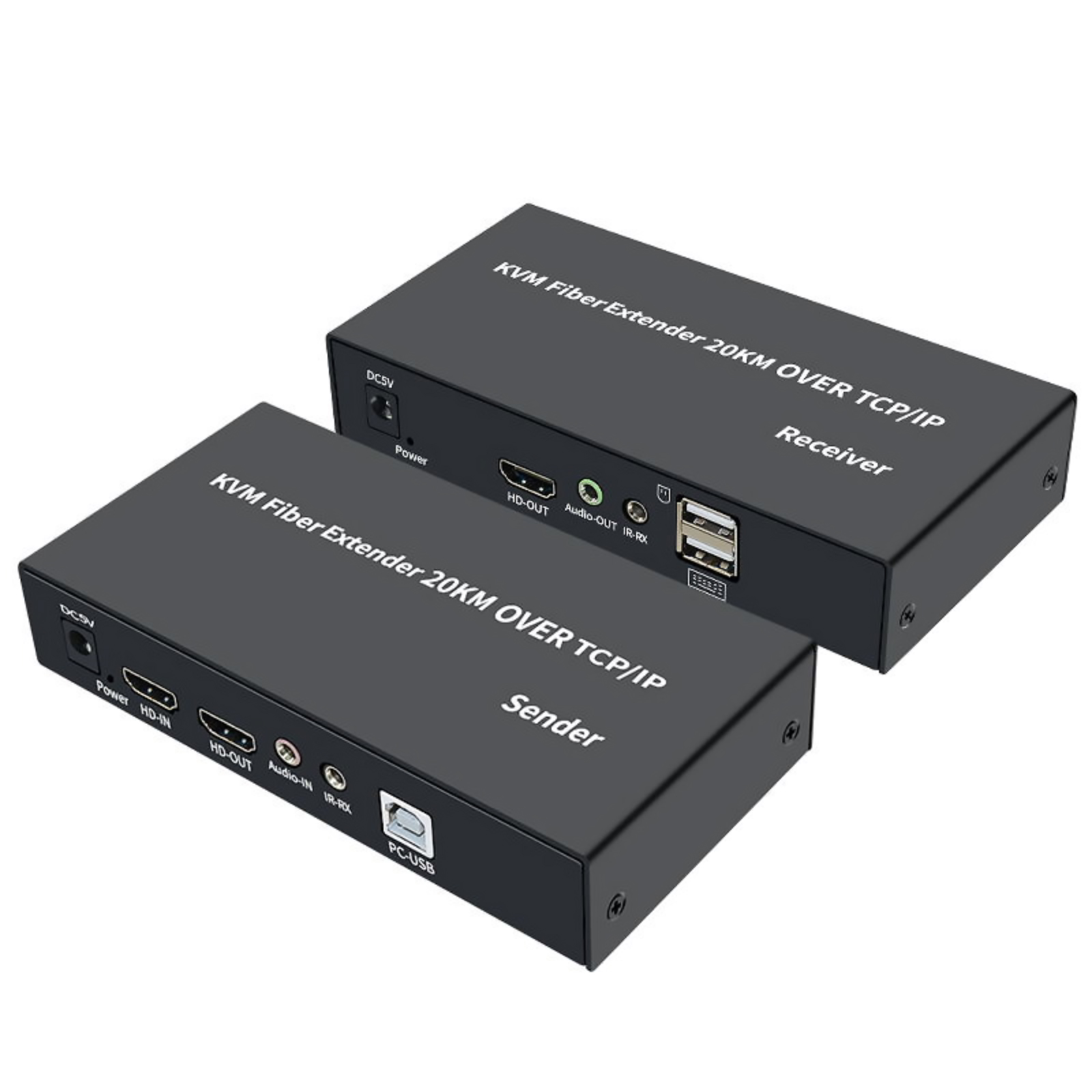

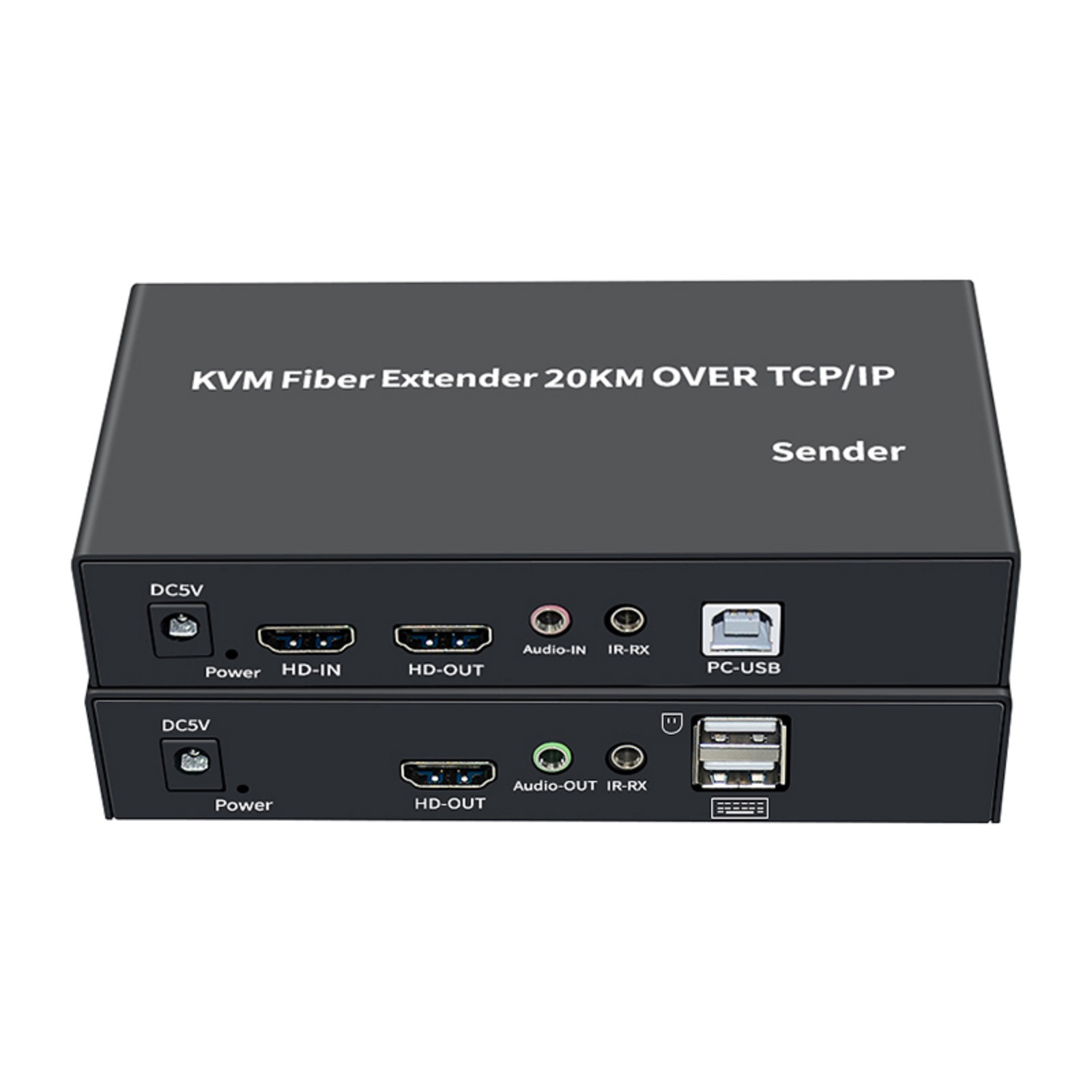

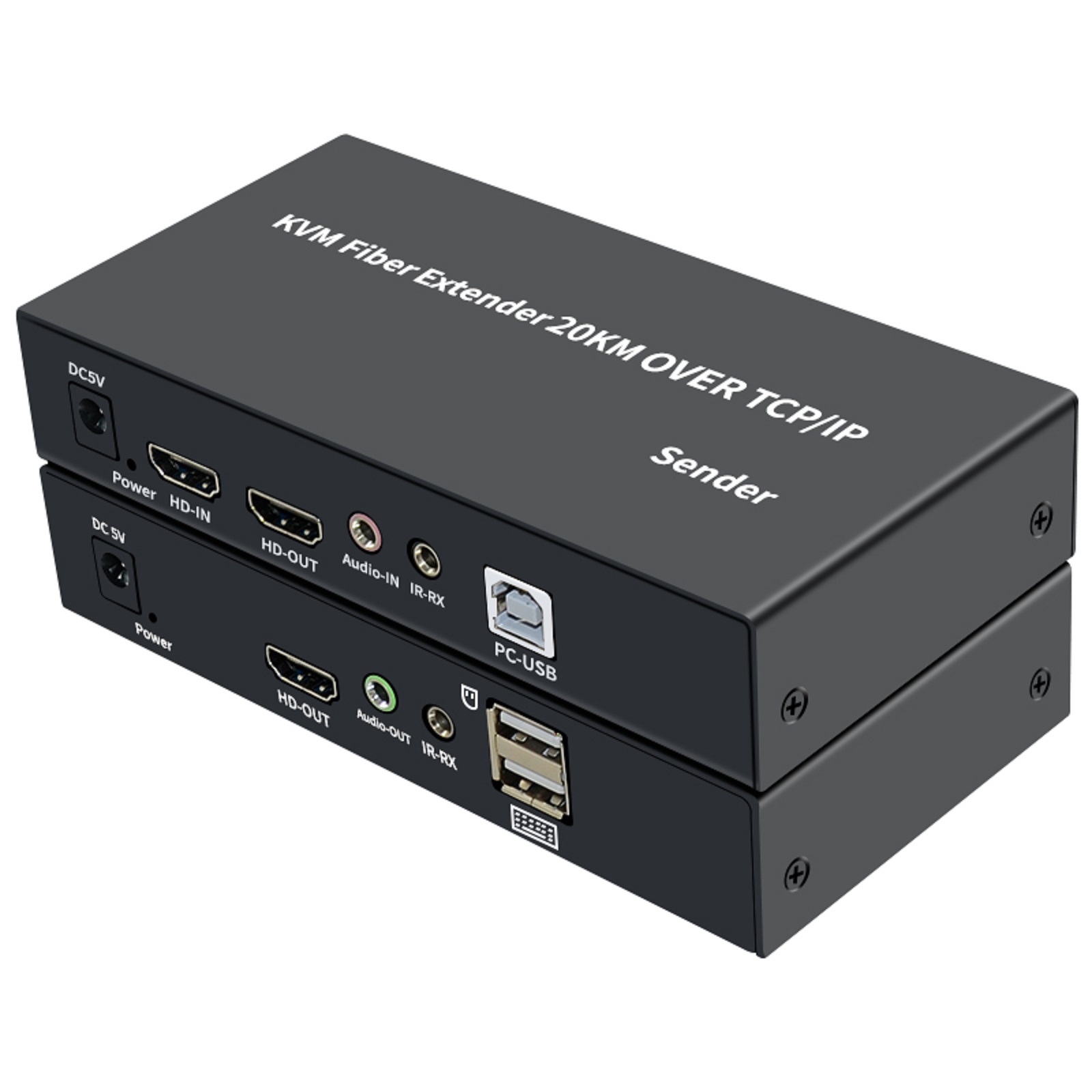

HDMI KVM Fiber Extender over SC Fiber Optical Cable to 20Km HDMI KVM Extender to Fiber Transceiver Support USB Mouse Keyboard
Specification:
Standards: For HD V1.3; for HDCP 1.2
Maximum pixel clock: 165MHz
Maximum data rate: 6.75Gbps
Resolution: 1920X1080P@60Hz
Connector: HD-A
Impedance: 100Ω
PC: Type B USB interface; connect to pc;
K/M: connect USB keyboard and mouse;
Interface: 3.5mm seat
IR frequency: 20-60kHz
Fiber: Interface SC
Fiber Model: Single mode
wavelength: Single mode 1310nm;1550nm
bandwidth: 6.25Gbps
Transmission distance: MAX up to 20KM
Features:
Transmits HD video and audio signals up to 20KM over a single Fiber
Support video resolution up to 1920*1080P@60Hz
Support IR signal transmission(20KHz~60KHz)
Support keyboard and mouse
Support over TCP/IP, support one TX to more RX by optical fiber splitter or optical fiber switch , distribution function is realized
Compliance with HD V1.3 and For HDCP 1.2 standard
High compatibility, can auto-match source and display device
Built-in automatic adjustment system, make the image smooth, clear and stable
Built-in ESD protection system
Simple to install, plug and play

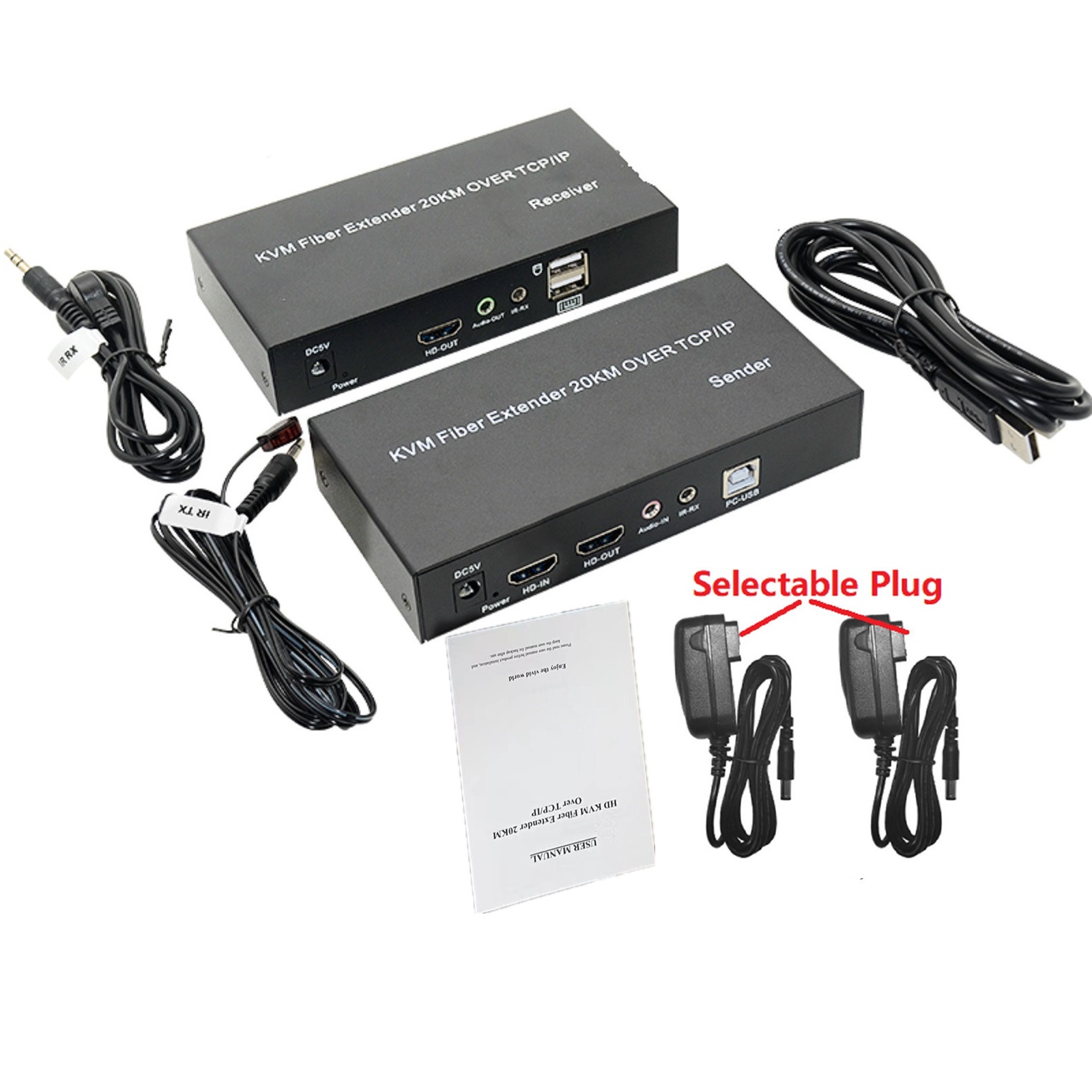

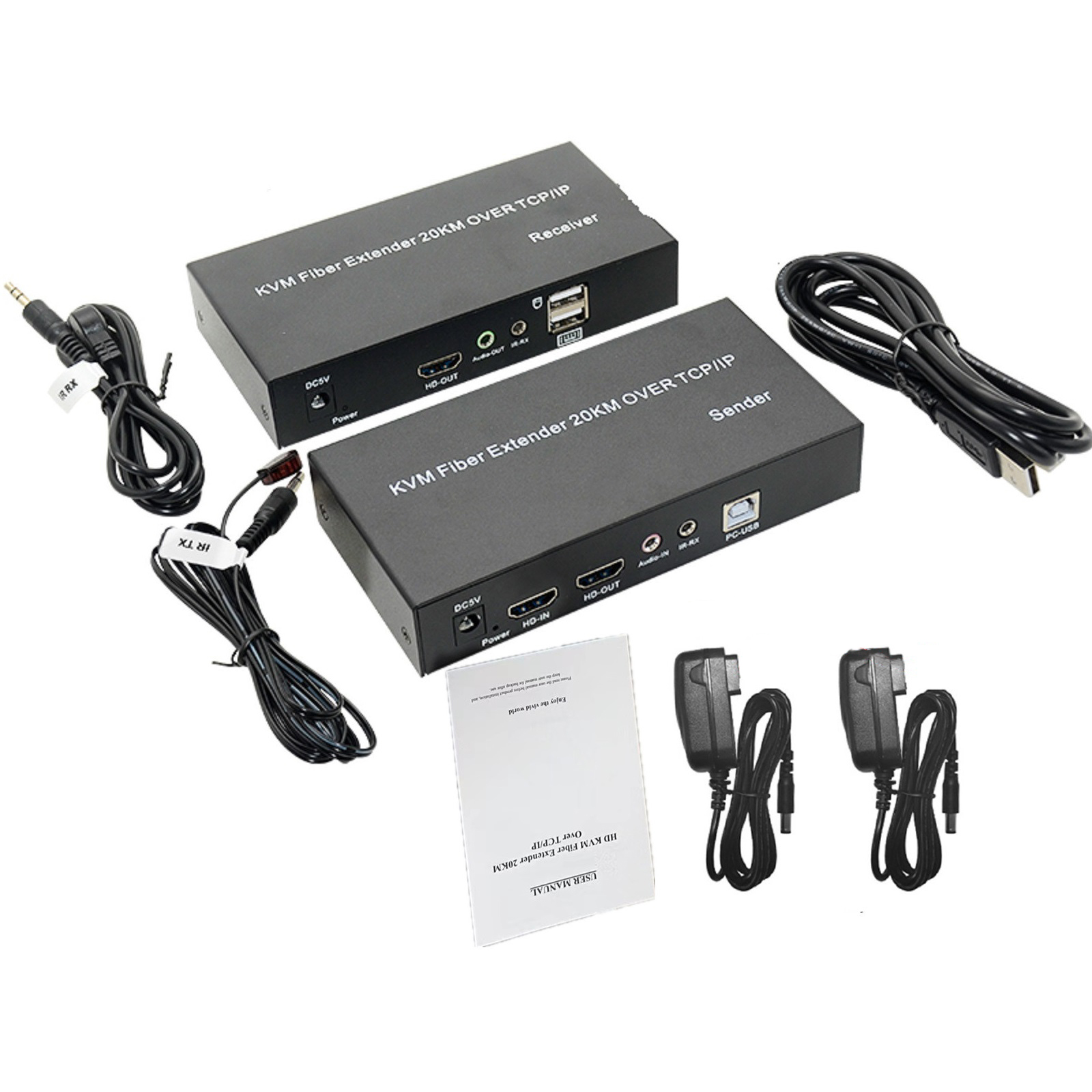

Package:
1 x HDMI transmitter
1 x HDMI receiver
1 x USB A/B cable
2x IR cable
2 x DC 5V selectable Power adapter
1 x User manual
Specification:
Standards: For HD V1.3; for HDCP 1.2
Maximum pixel clock: 165MHz
Maximum data rate: 6.75Gbps
Resolution: 1920X1080P@60Hz
Connector: HD-A
Impedance: 100Ω
PC: Type B USB interface; connect to pc;
K/M: connect USB keyboard and mouse;
Interface: 3.5mm seat
IR frequency: 20-60kHz
Fiber: Interface SC
Fiber Model: Single mode
wavelength: Single mode 1310nm;1550nm
bandwidth: 6.25Gbps
Transmission distance: MAX up to 20KM
Features:
Transmits HD video and audio signals up to 20KM over a single Fiber
Support video resolution up to 1920*1080P@60Hz
Support IR signal transmission(20KHz~60KHz)
Support keyboard and mouse
Support over TCP/IP, support one TX to more RX by optical fiber splitter or optical fiber switch , distribution function is realized
Compliance with HD V1.3 and For HDCP 1.2 standard
High compatibility, can auto-match source and display device
Built-in automatic adjustment system, make the image smooth, clear and stable
Built-in ESD protection system
Simple to install, plug and play
Package:
1 x HDMI transmitter
1 x HDMI receiver
1 x USB A/B cable
2x IR cable
2 x DC 5V selectable Power adapter
1 x User manual
 |  |
 |  |
 |  |
 |  |
