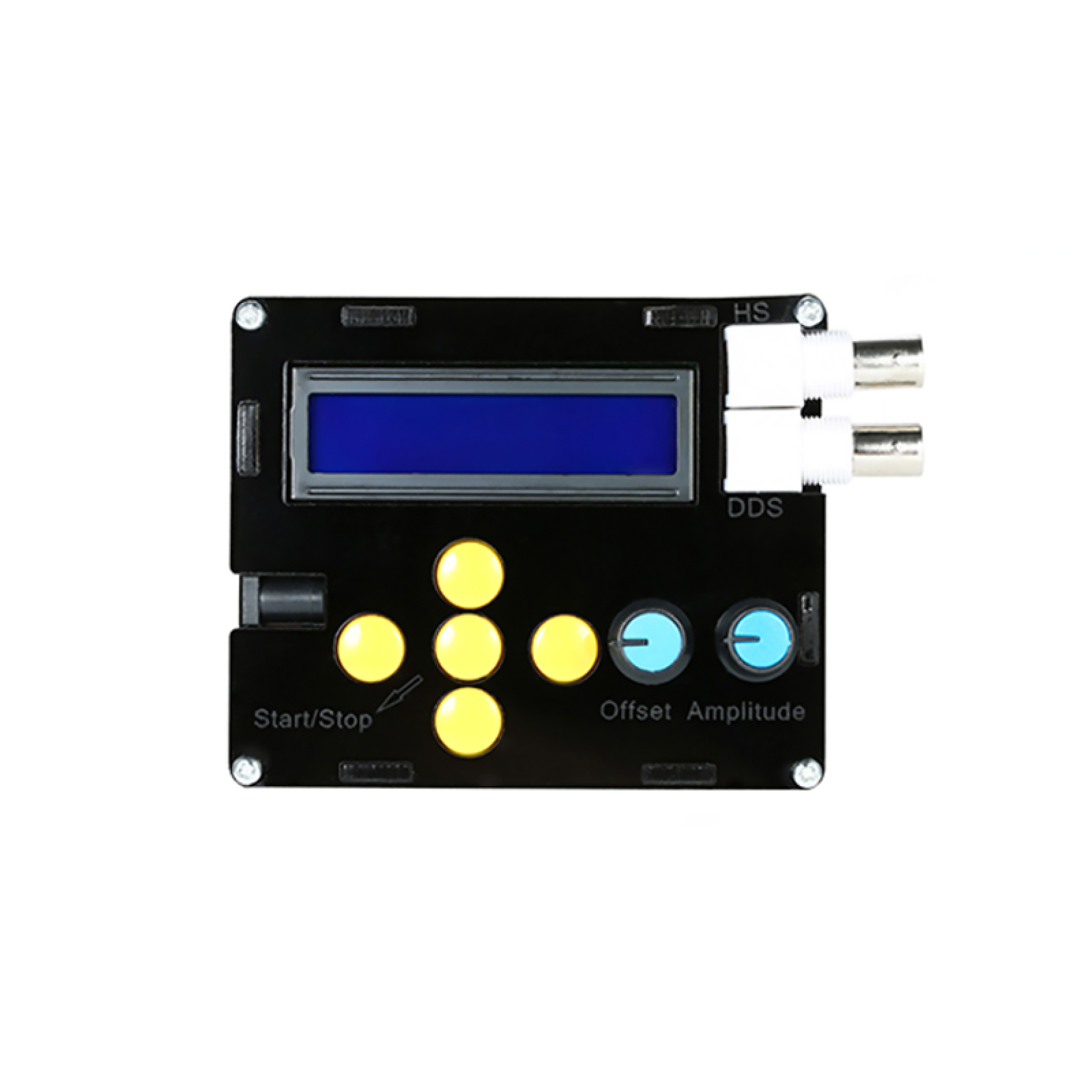

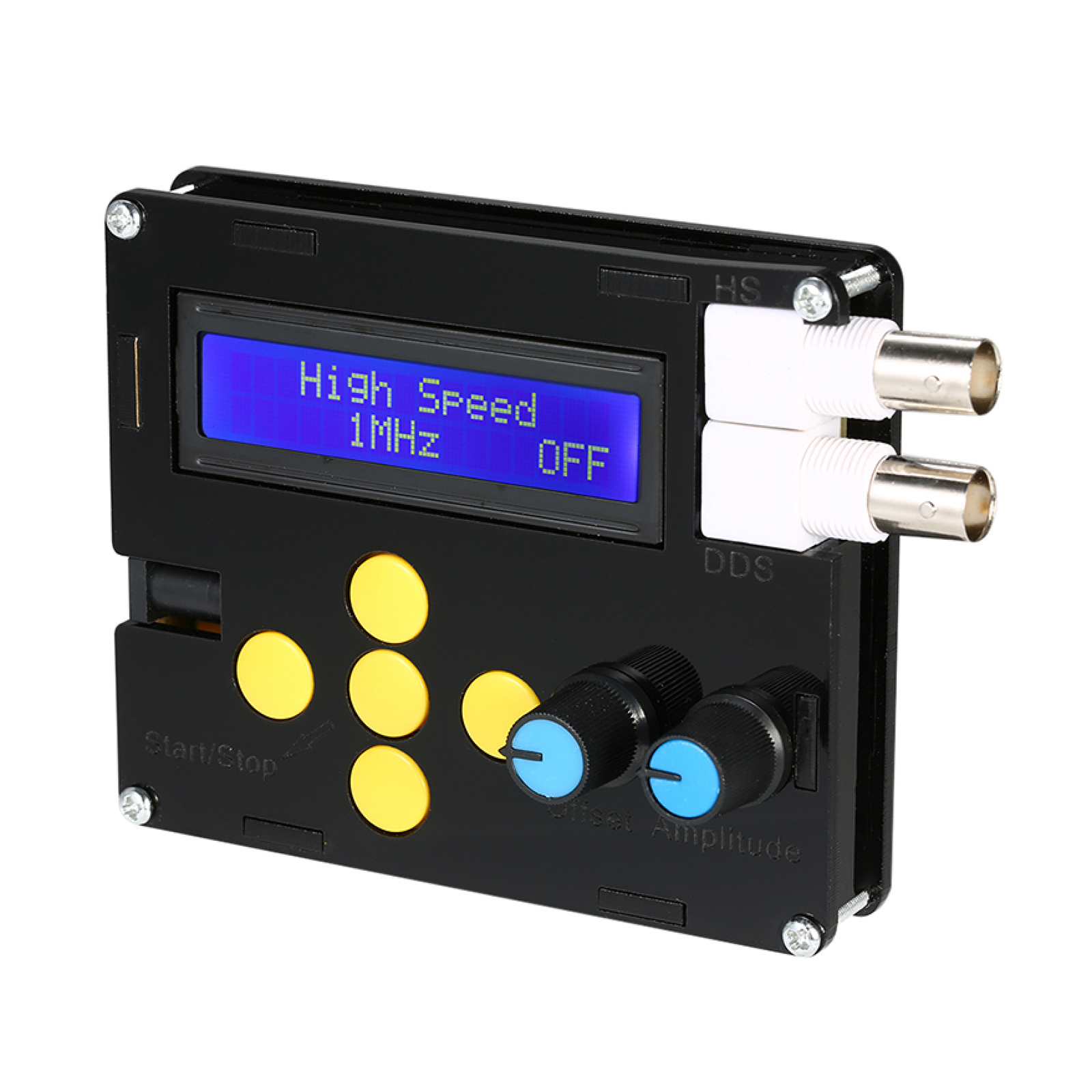

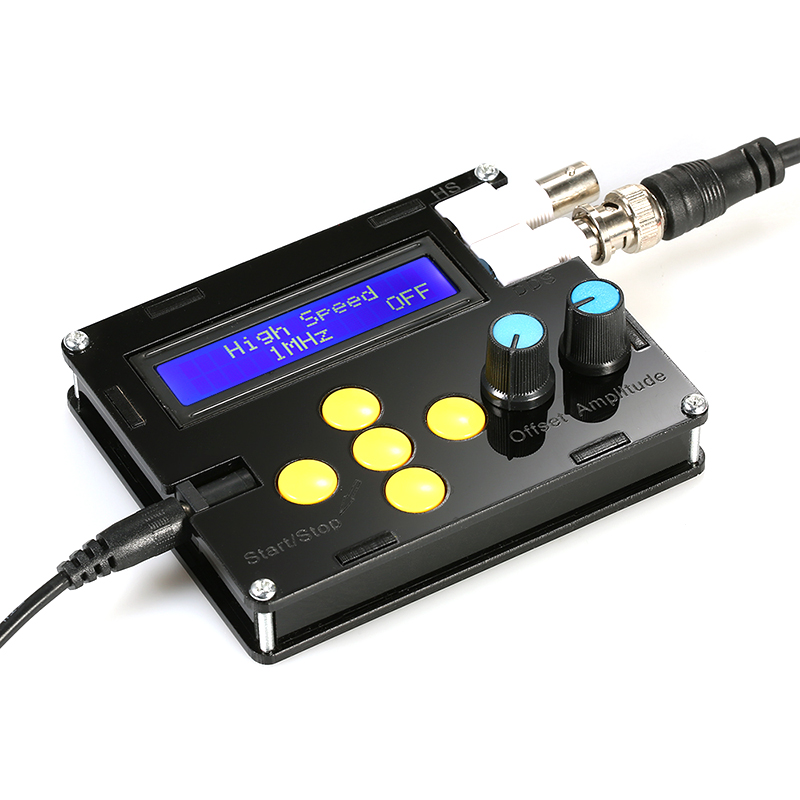

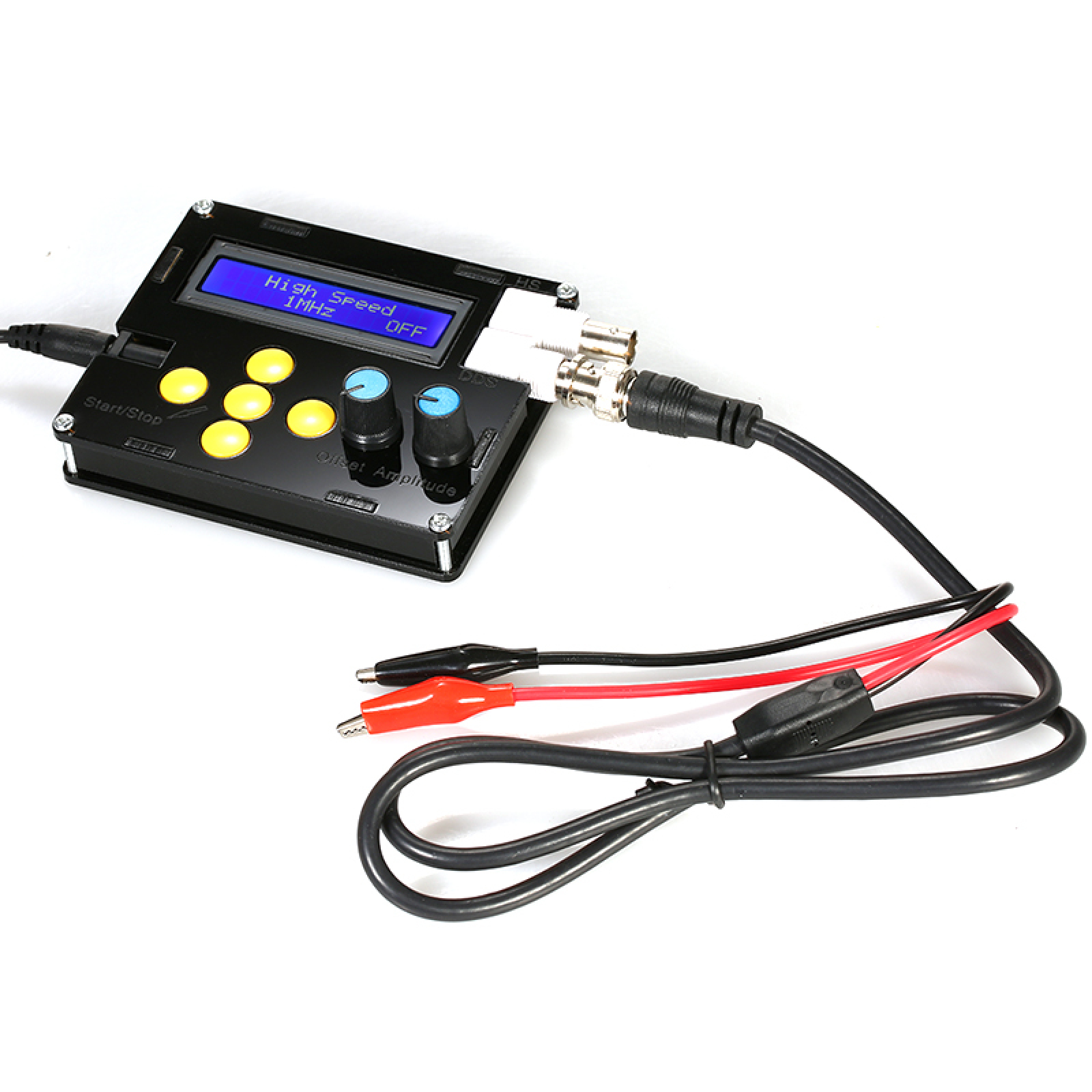

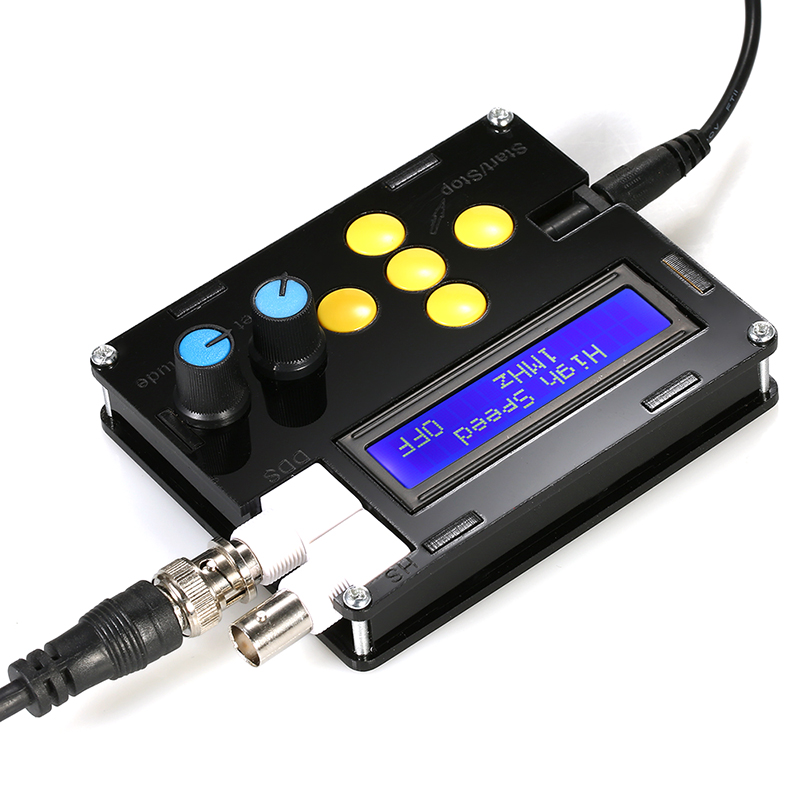

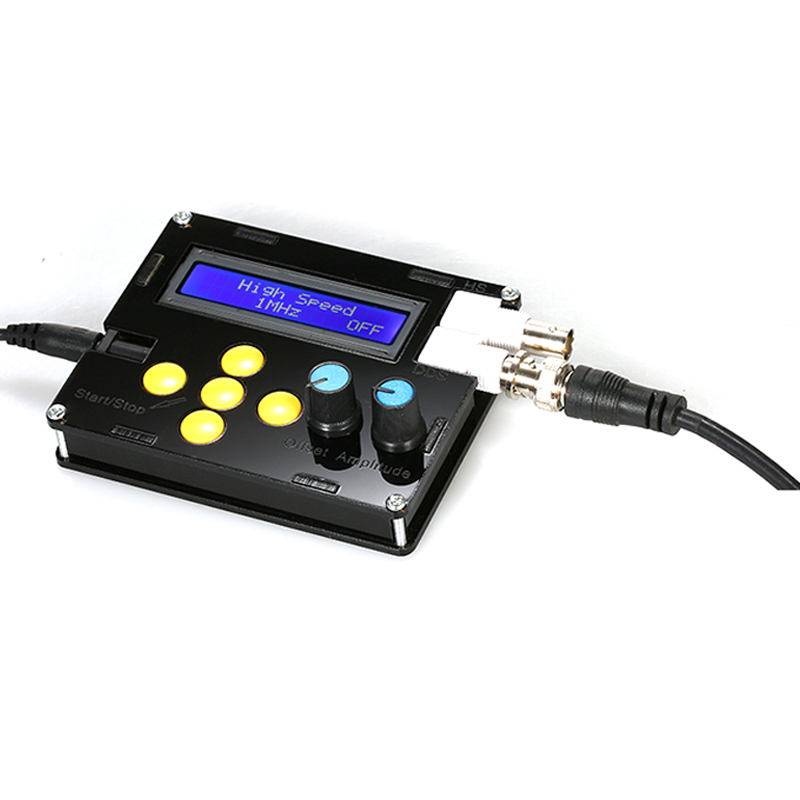

Features:
LCD display to indicate the data accurately.
Can output sine/triangle/square/forward and reverse sawtooth/ECG/Noise waveforms.
DDS Frequency Range: 1Hz~65534Hz.
Can section into the value: 1, 10, 100, 1000, 10000Hz.
DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers.
The power will restore the last used configuration automatically.
Specifications:
Material: FR4 + Acrylic
Operating Voltage: DC9V
DDS Frequency Range: 1Hz~65534Hz
Offset: 0.5pp~5Vpp
Output Amplitude Range: 0.5~14VPP

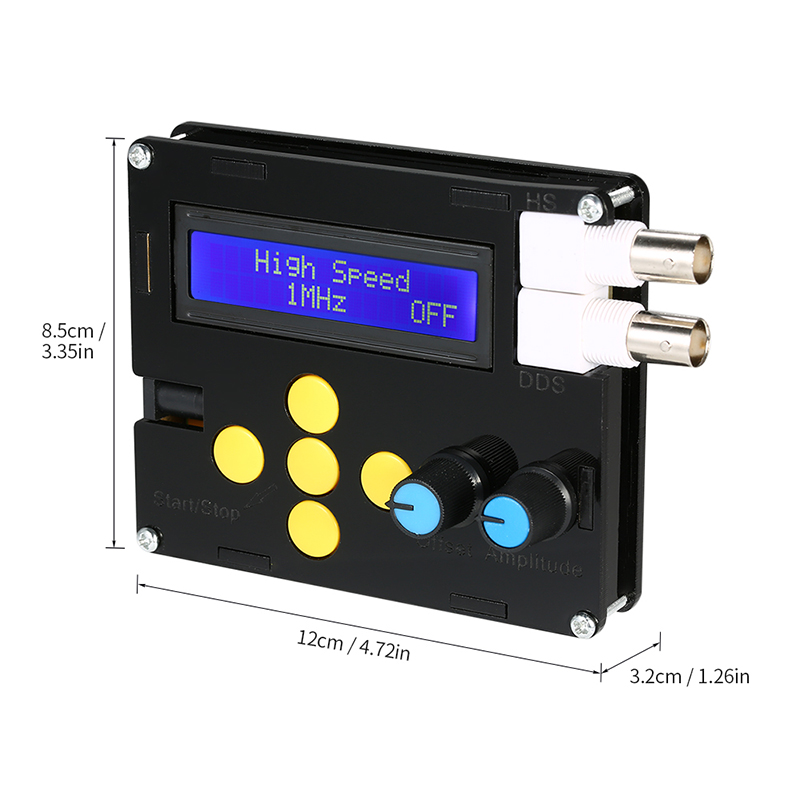

Size: (Approx.) 12 * 8.5 * 3.2cm / 4.72 * 3.35 * 1.26in
Weight: about 160g

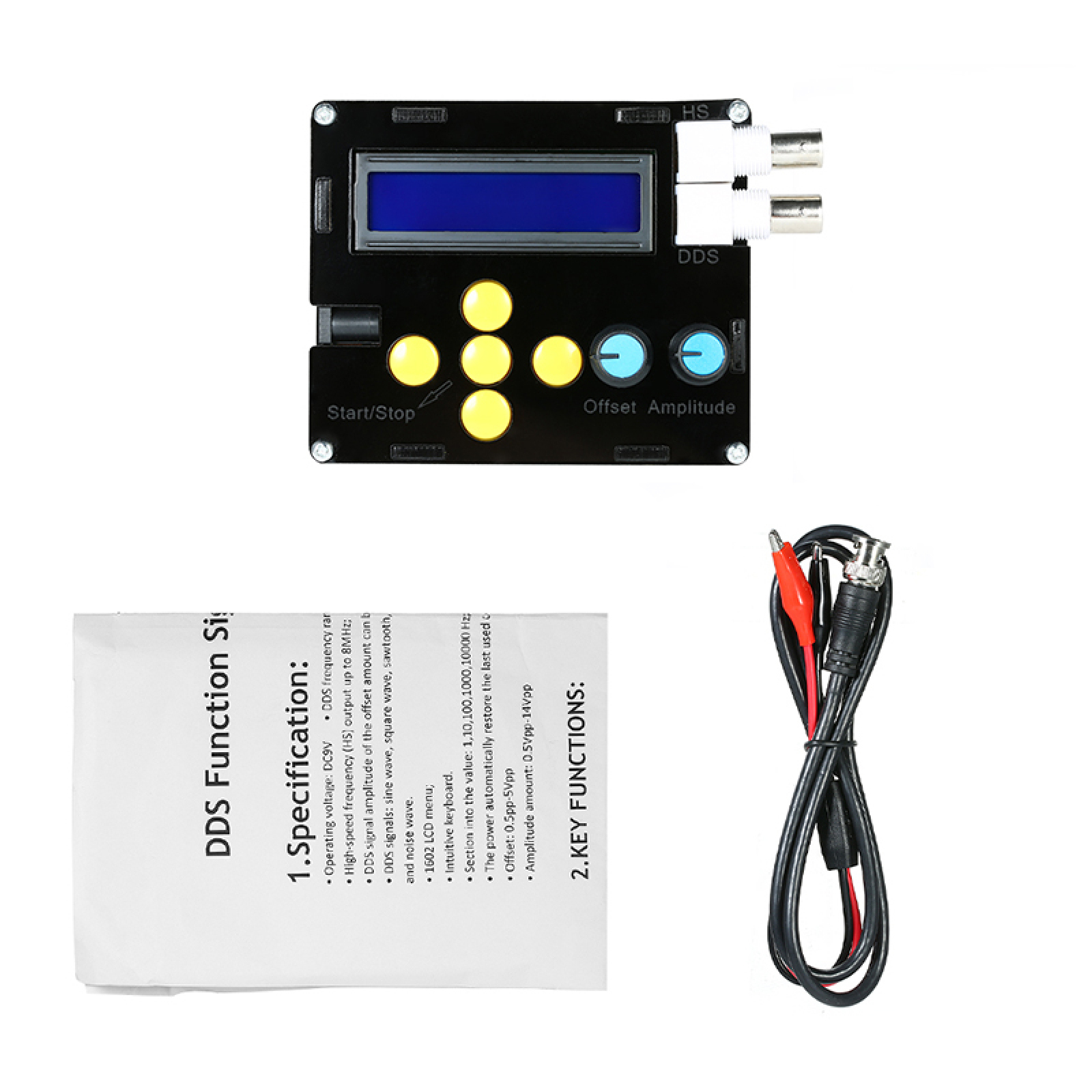

Package Content:
1 * Signal Generator
Note:
The instrument will be damaged if the voltage is higher than 9V.
