Basic parameters:
Voltage range: DC5V-12V
Rated current: ≤ 800mA
Power reverse connection protection: yes
Overcurrent protection: yes
Overheat protection: yes

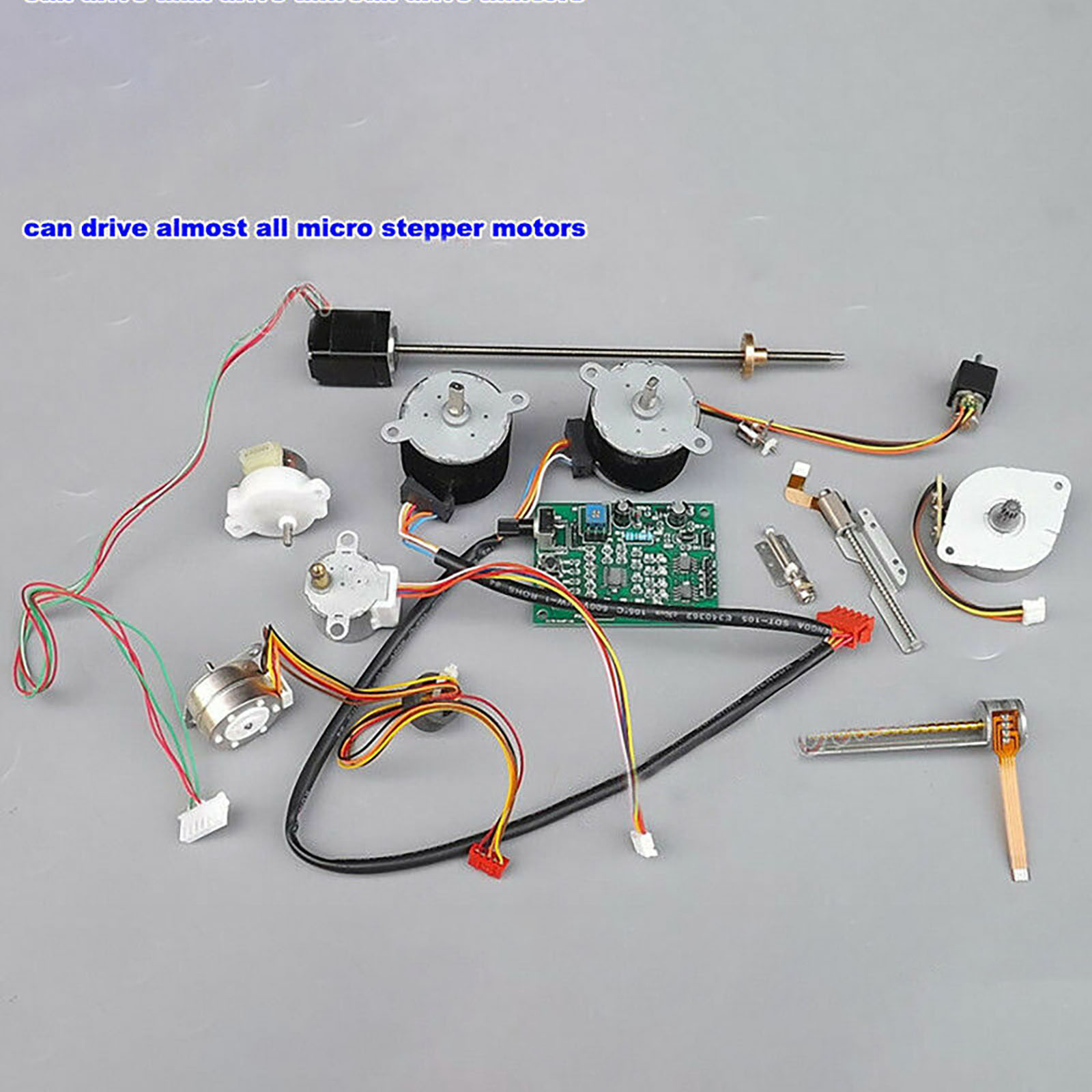

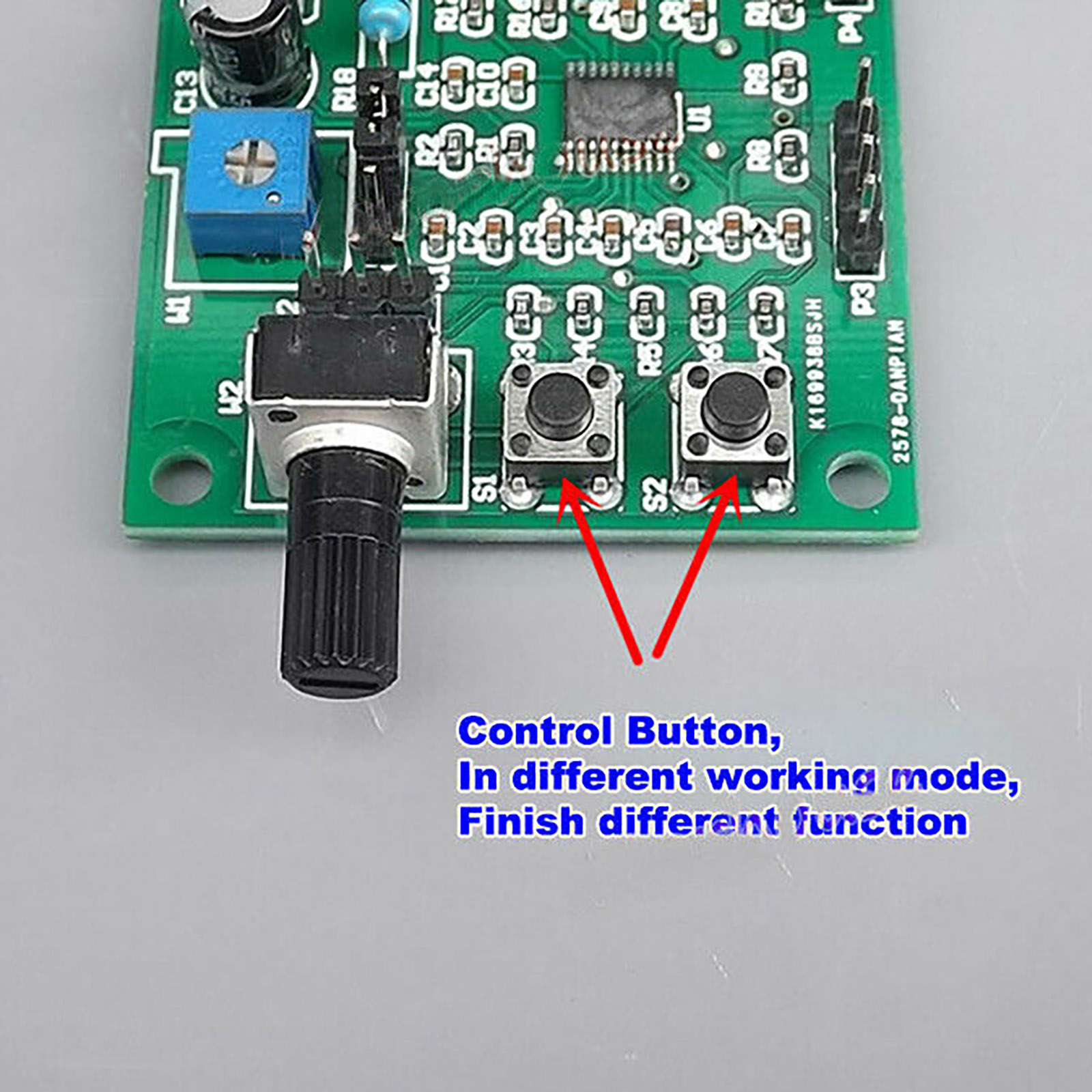

Working mode:

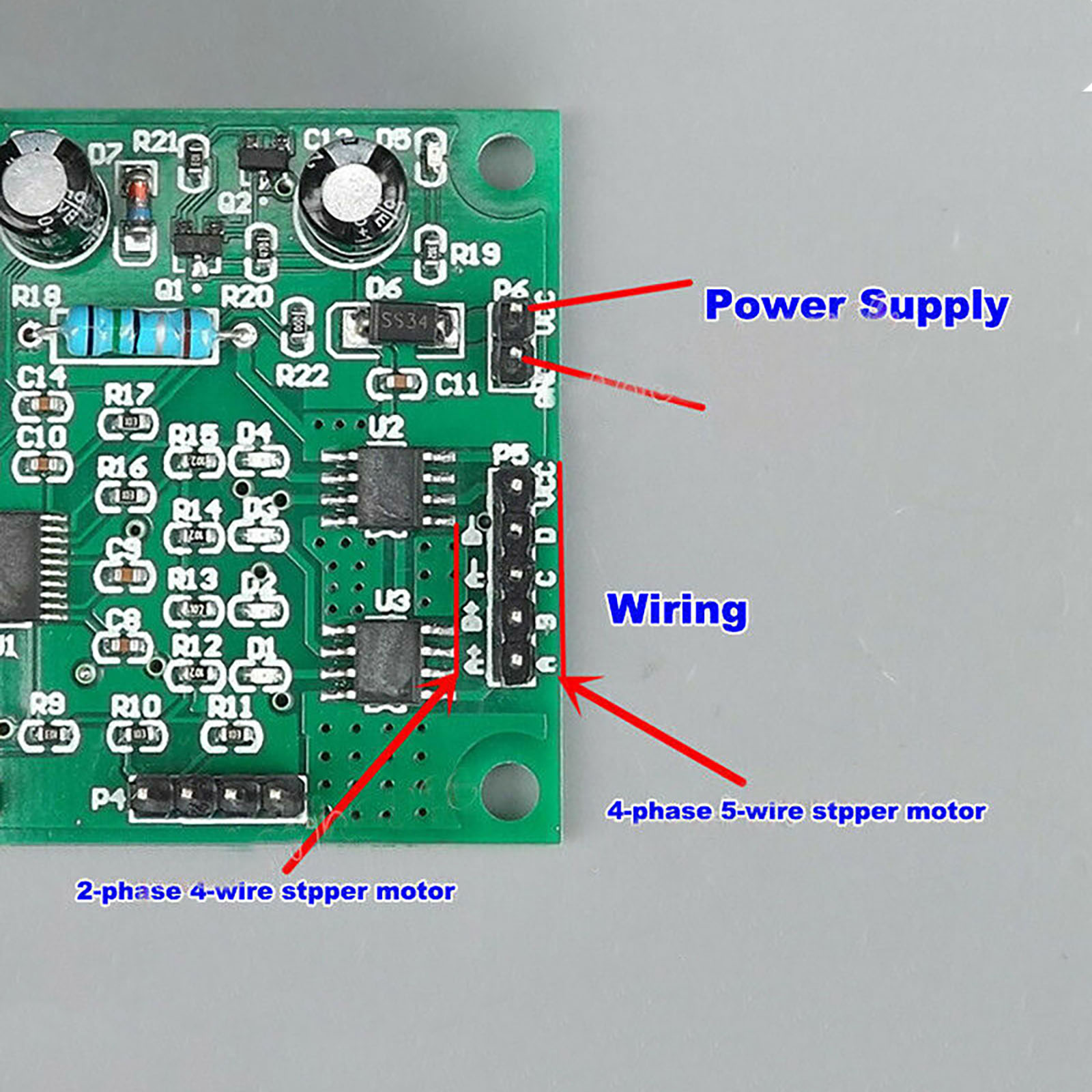

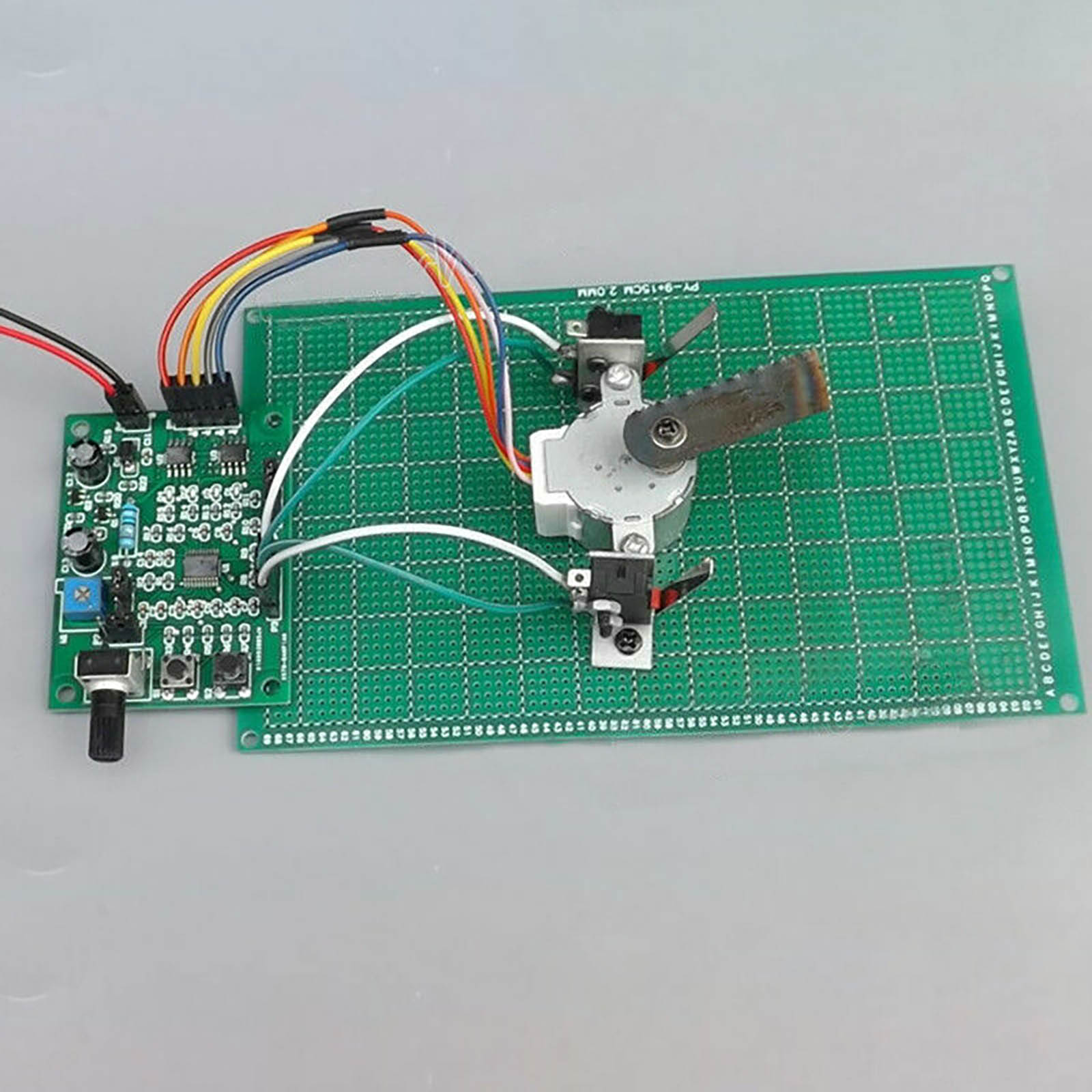

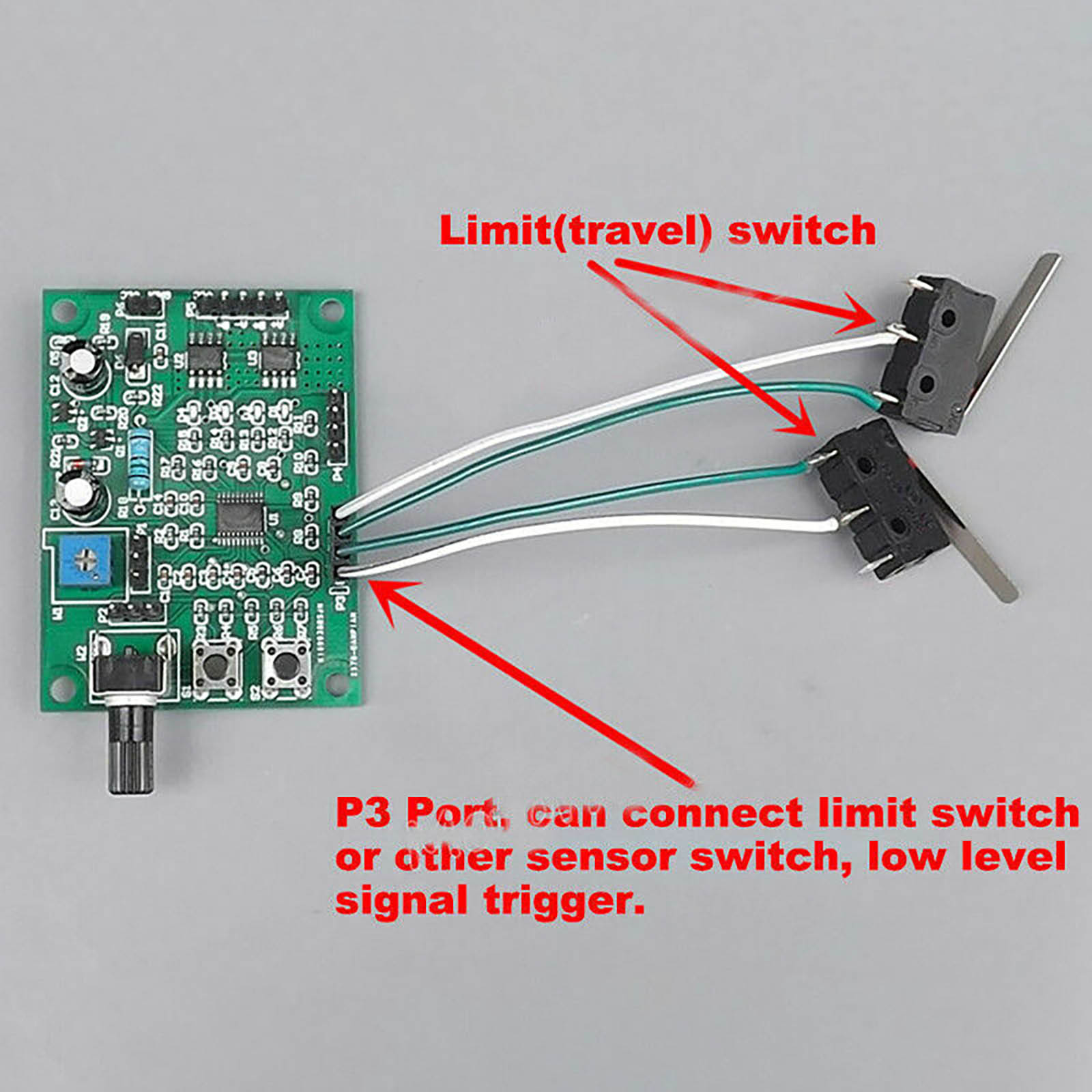

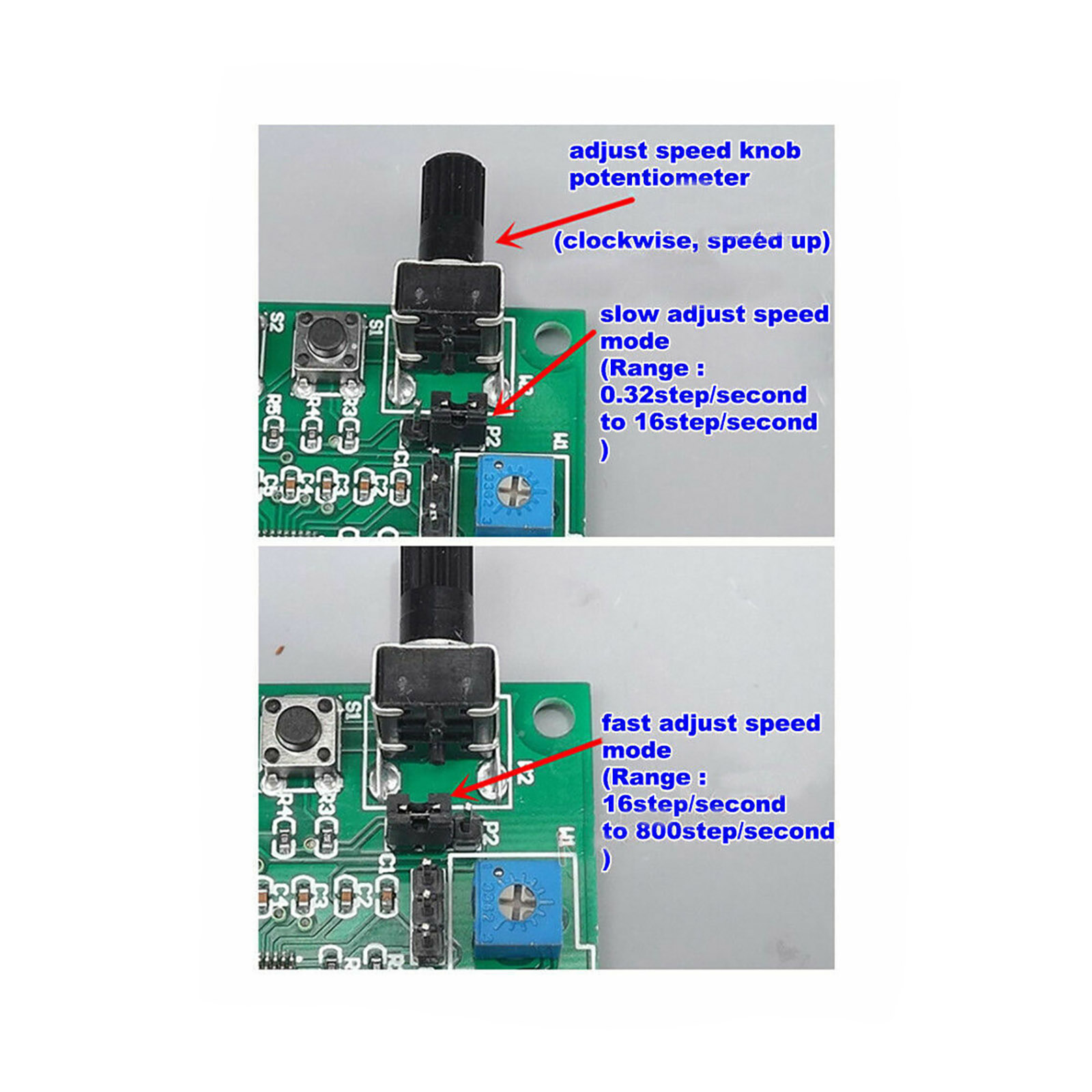

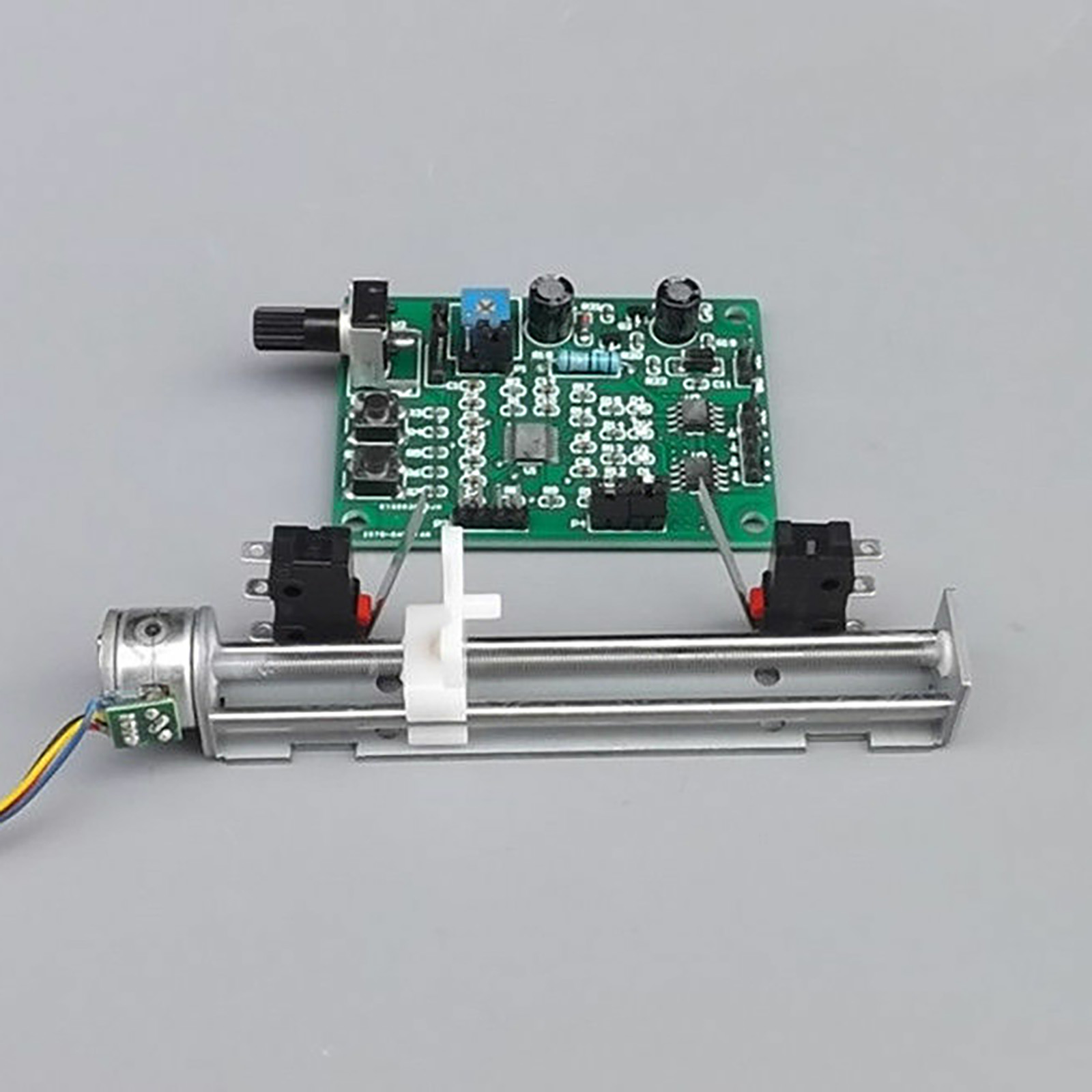

Normal mode 1: S1 start stop button, S2 forward and reverse button, W2 potentiometer speed control. If limit reversal is required, two limit switches can be connected to the P3 pin, and the motor motion shaft is mounted with contacts, so that the motor will reciprocate within the stroke between the two limit switches.
Normal mode 2: S1 forwards the start button, S2 reverses the start button, press any button to stop. W2 potentiometer speed regulation. If the limit stop is required, two limit switches can be connected to the P3 pin, so that the motor will stop moving when it touches the limit switch, and the motor will reverse after the opposite button is clicked.
Jog mode: S1 presses the forward rotation, releases the stop, S2 presses the reverse rotation, releases the stop, and the W2 potentiometer adjusts the speed. If a limit stop is required, the upper limit switch can be connected to P3.

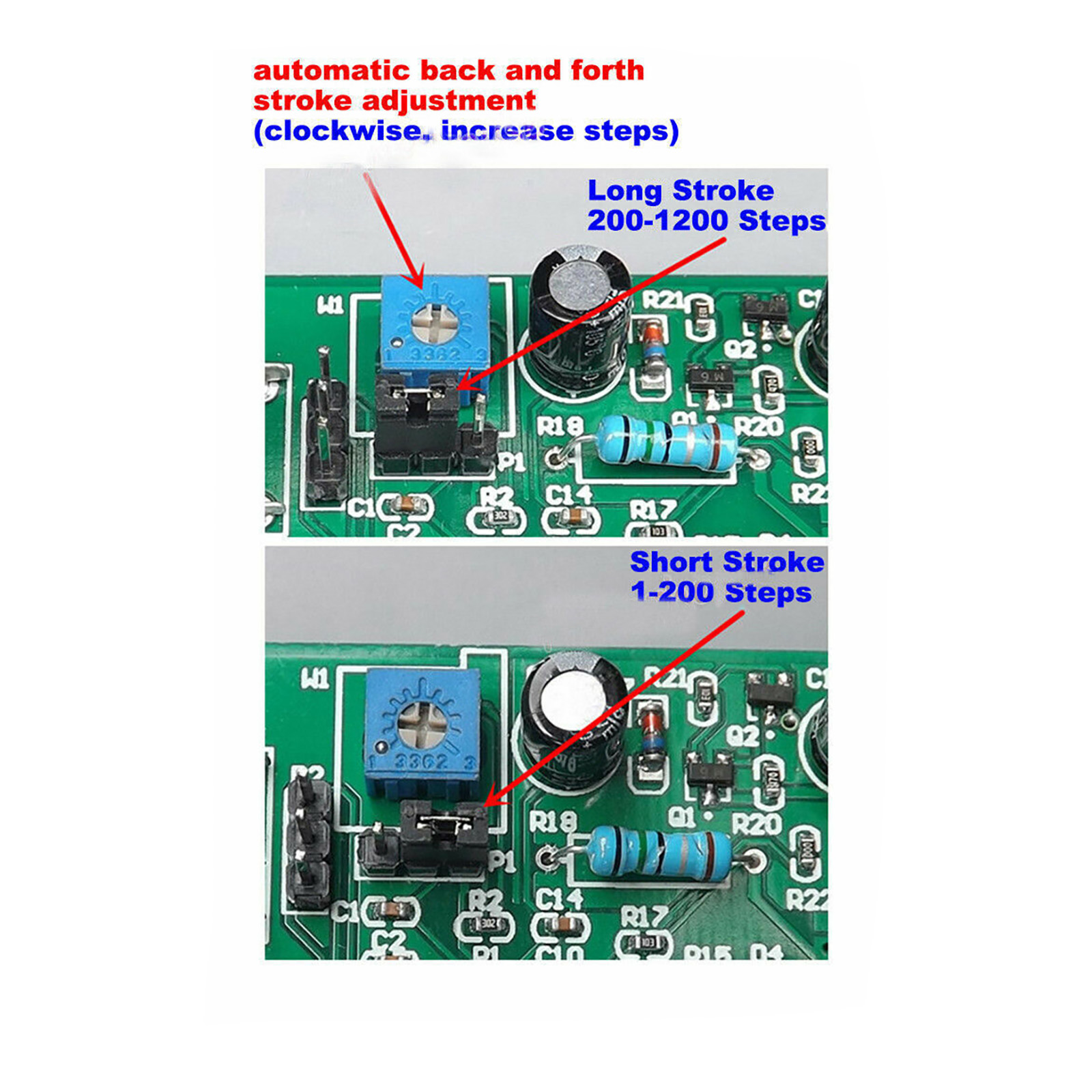

Automatic round-trip mode: S1 starts and stops, S2 is reversed, W2 potentiometer speeds, and W1 potentiometer adjusts the automatic round-trip steps. After starting, the motor automatically runs back and forth within the number of steps adjusted by W1.
Package Content:

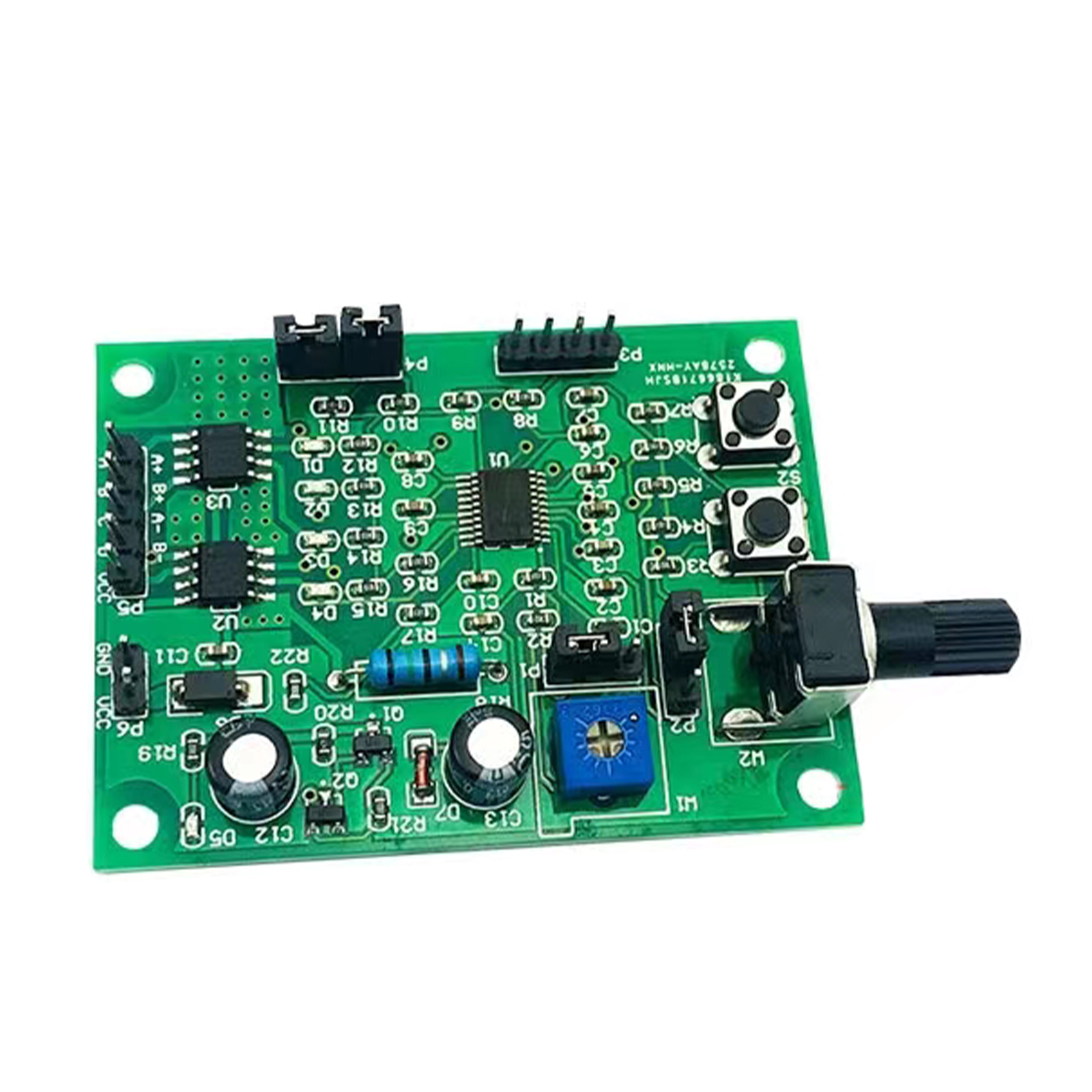

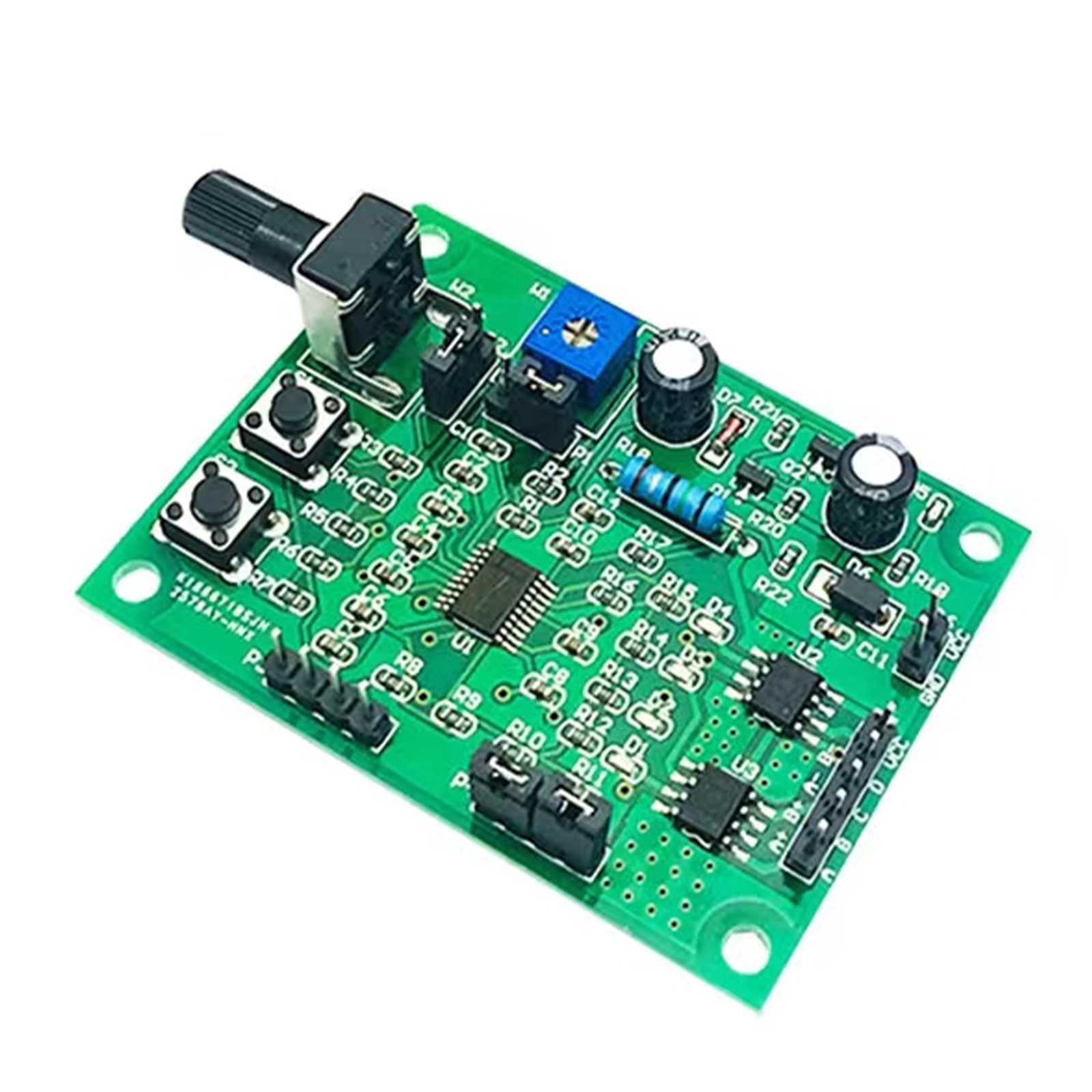

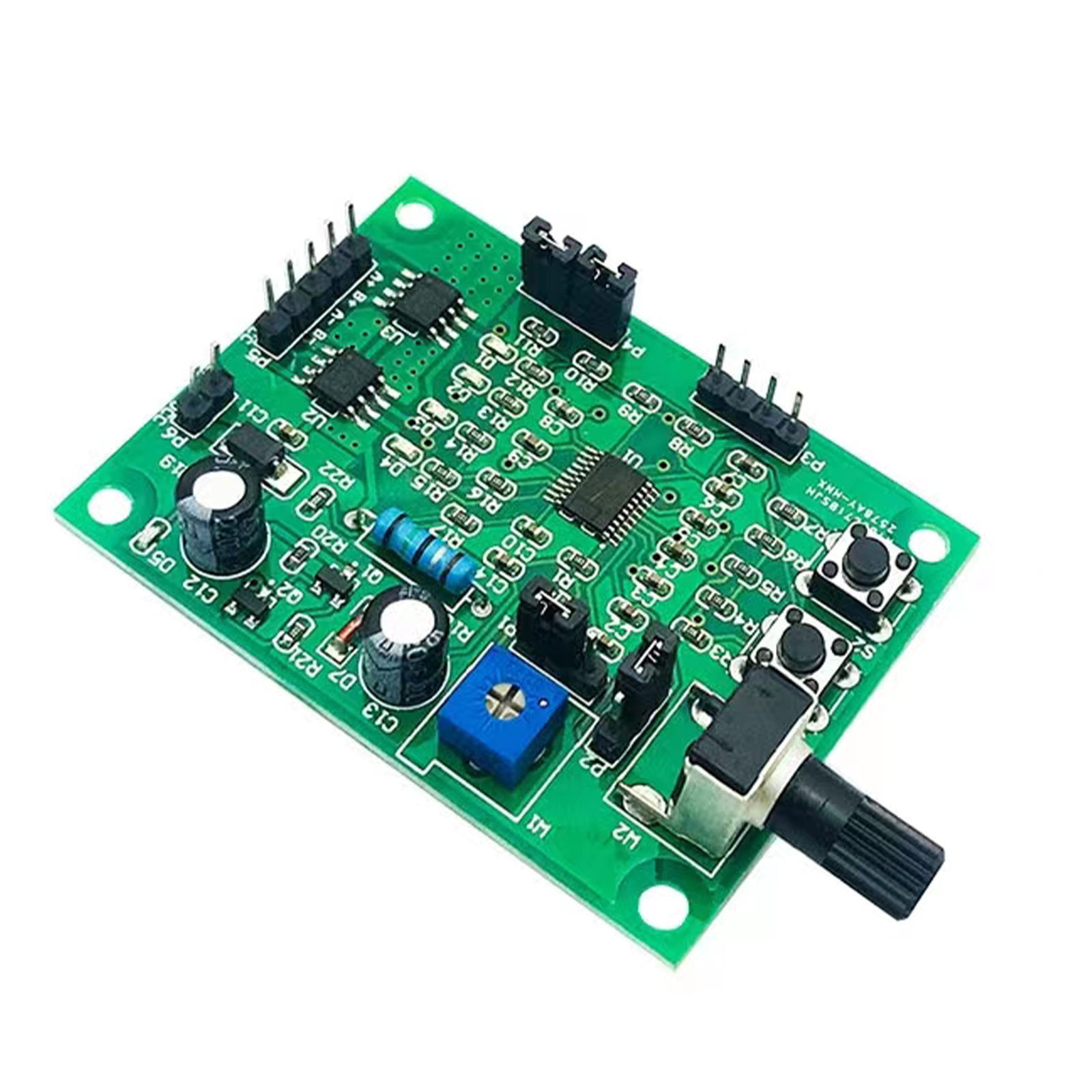

1* Driver Board
