Features:

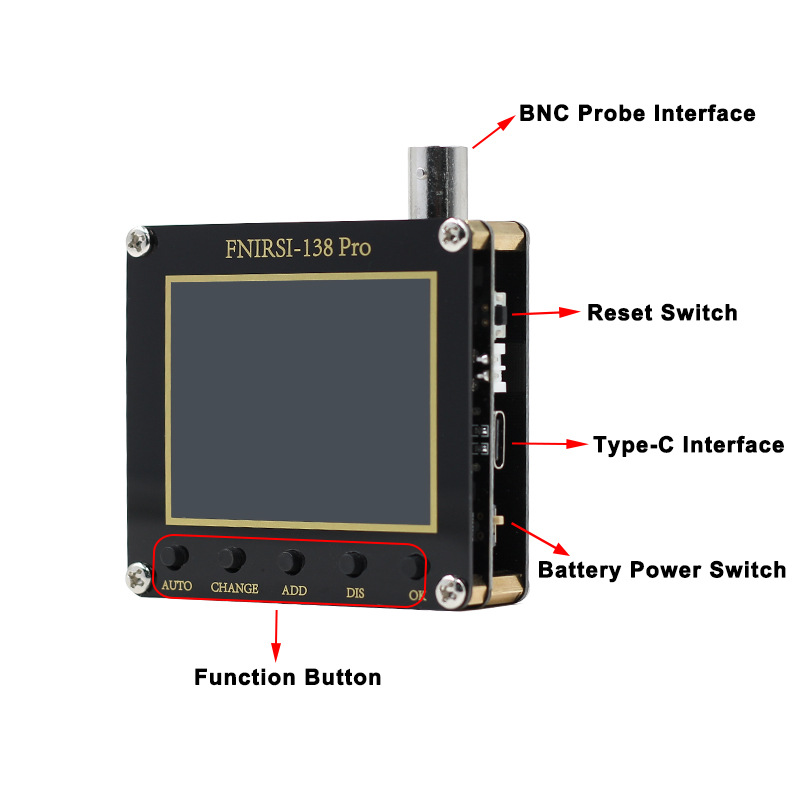

One button automatically sets all parameters and fast waveform measurements. Long press the auto button quickly calibrate the baseline.
Three trigger modes: Test a single trigger mode of a non-periodic signal, the automatic trigger mode of the test cycle analog signal and normal trigger mode for testing digital logic signals.

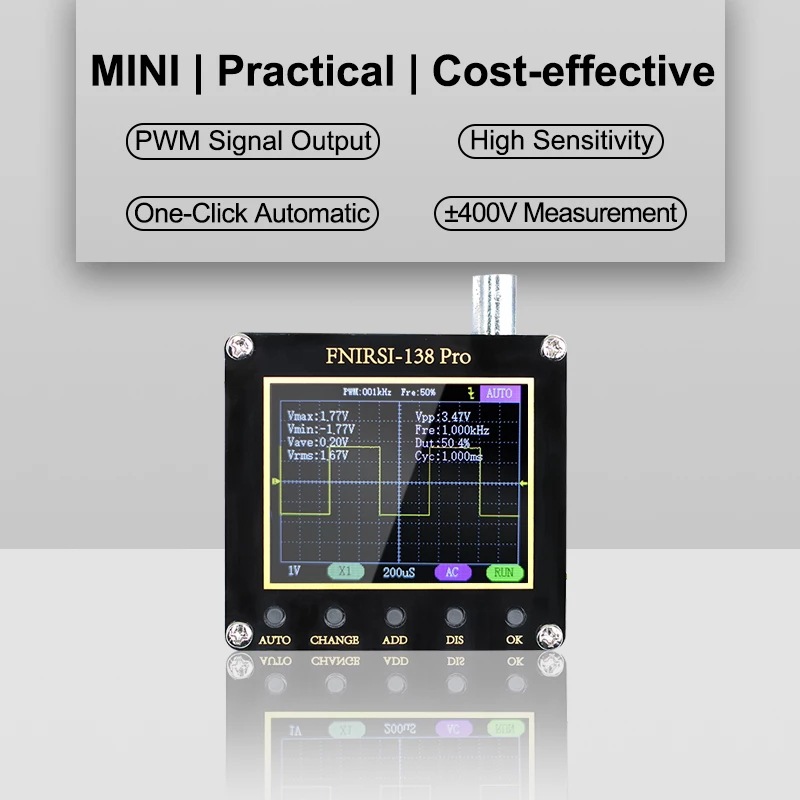

PWM square wave output: This oscilloscope has a PWM square wave output function with a frequency range of 0-80 kHz, a duty cycle of 0-100%.

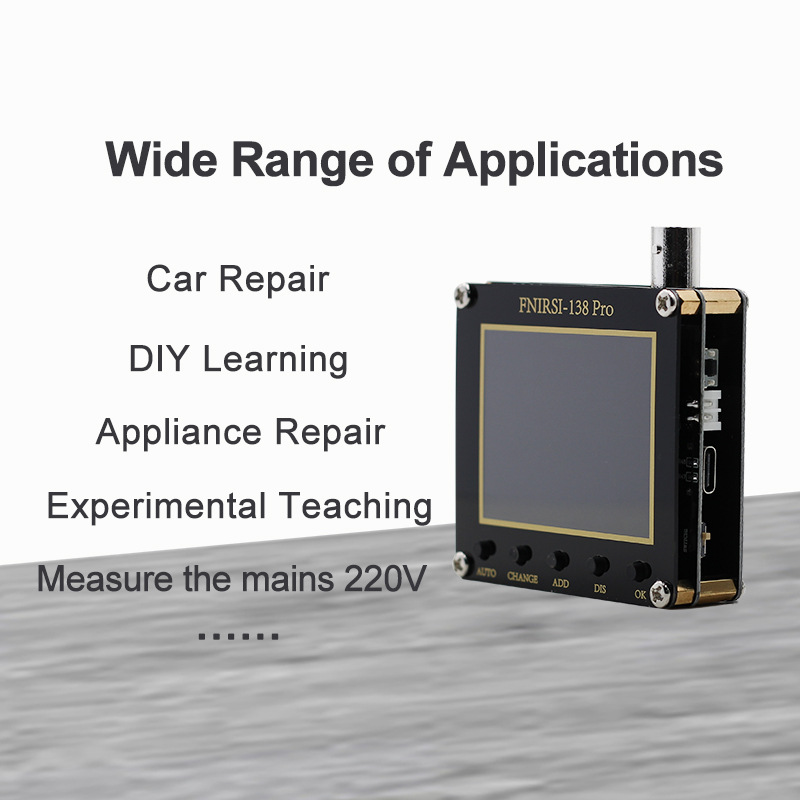

Suitable for automotive maintenance, DIY, home appliance repair, experimental teaching, etc.
Fine workmanship and good performance.

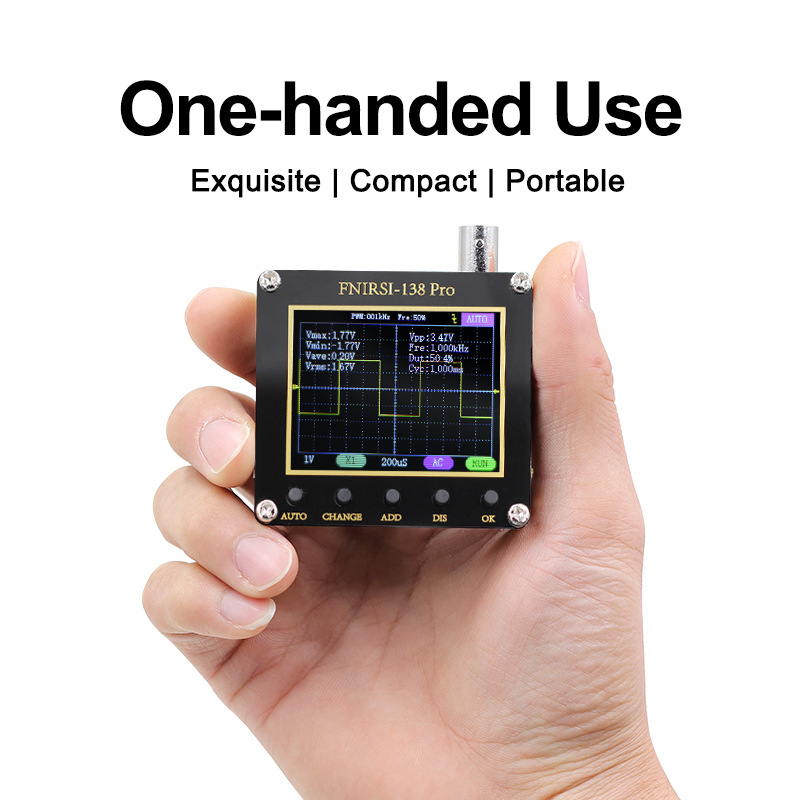

Easy to use.
Long service life.
Specifications:
Type: With battery With Probe / With battery Without Probe / Without battery With Probe / Without battery Without Probe (optional)
Sample rate: 2.5ms / s
Bandwidth: 200khz
voltage range:
X1: ± 40V (VPP: 80V)
X10: ± 400V (VPP: 800V) (Type3 & 4 only)
Trigger mode: single, automatic, normal
Coupling mode: AC / DC
PWM output: 3.3V
Frequency: 0-80khz
Duty cycle: 0-100%

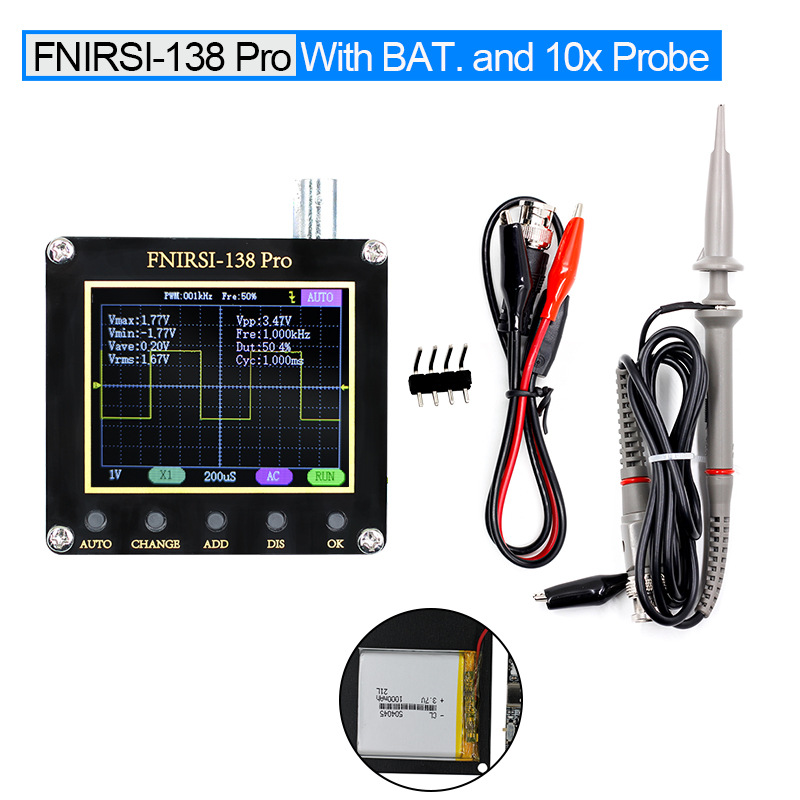

Package Included:

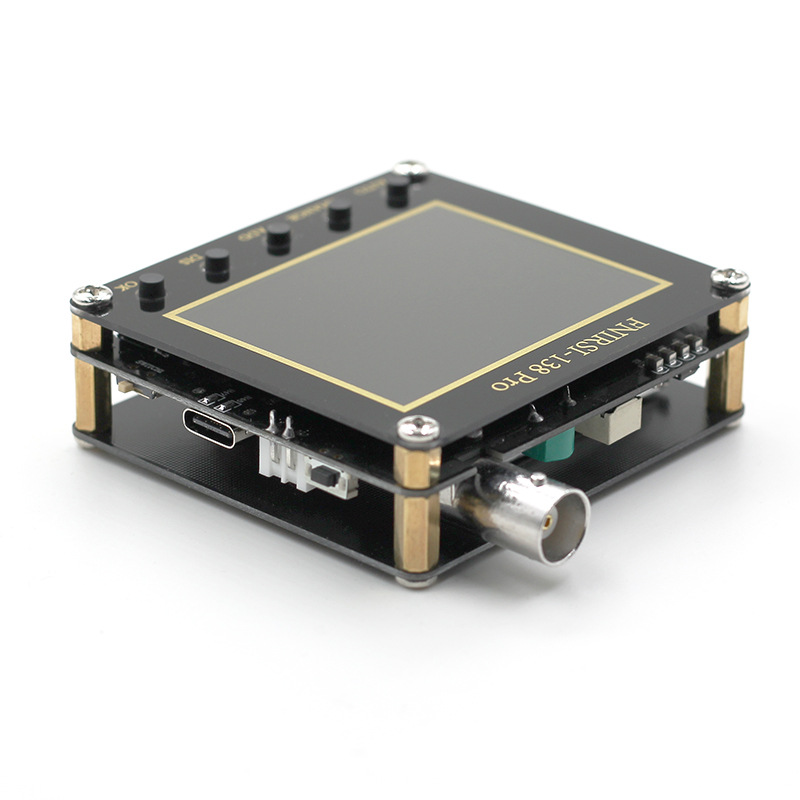

1* Digital Oscilloscope Set (including battery)
Note:
Please allow 1-5mm size errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
 |  |
 |  |
 |  |
 |  |
 |
