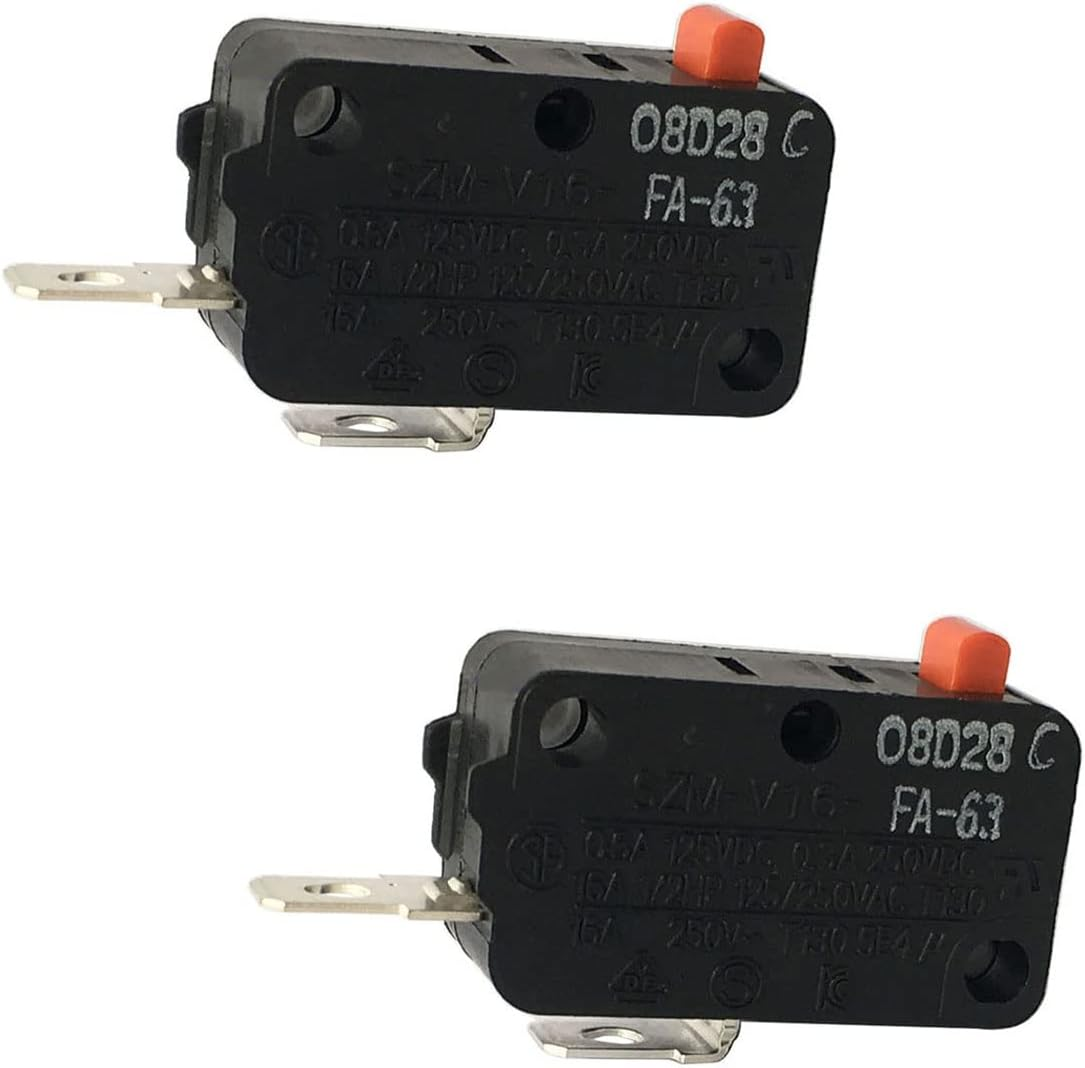

LONYE 3B73362F SZM-V16-FA-63 Microwave Door Switch Fit for LG GE Samsung Microwave Oven WB24X10047 SZM-V16-FD-63 PS3522738 (Normally Open)(Pack of 2)
Description
| Unit Count | 2.0 Count |
| Item dimensions L x W x H | 9 x 13 x 1 inches |
| Current Rating | 16 Amps |
| Number of Items | 2 |
| Brand Name | LONYE |
| Item Dimensions | 9 x 13 x 1 inches |
| Color | black |
| Part Number | SMZ-V16-AF-63 |
| Wattage | 373 watts |
| Material | Plastic |
| Material Type | Plastic |
| Connector Type | Plug In |
| Operation Mode | ON-OFF |
| Operating Voltage | 250 Volts |
| Contact Type | Normally Open |
| Model | 3b73362f |
| Item Type Name | door switch |
| Brand | LONYE |
| Manufacturer | LONYE |
- 💙Package includes 2 pcs 3b73362f microwave oven door switch
- 💙3B73362F switch replaces for 3405-001034 28QBP0497, D3V-16G-3C25, SZM-V16-FA-63, WB24x829, WB24X10076, WB24X10038, WB24X801,WB24X796, WB24X5228, WB24X5227, WB24X445, WB24X441, WB24X439, WB24X429, WB24X426,WB24X414, WB24X401, WB24X384, WB24X368, WB24X3297
- 💙The micro switch is in the latch board section and monitors the position of the door.
- 💙3B73362F Switch is compatible with the following brands: LG, Whirlpool, GE etc.
- 💙Notice: If you want to buy a air fryer switch, please confirm the model with us before order.
Product description
SZM-V16-FA-63 Microwave Door Switch Description:
- Microwave door switch SZM-V16-FA-63 provides power to the various components in the microwave when the door is in a closed position, and interrupts power when the door is open.
- When the door is shut, the door switch will close to send power to the microwave to operate.
3B73362F switch is compatible with the following models:
28QBP0497, D3V-16G-3C25, SZM-V16-FA-63, WB24x829, WB24X10076, WB24X10038, WB24X801,WB24X796, WB24X5228, WB24X5227, WB24X445, WB24X441, WB24X439, WB24X429, WB24X426,WB24X414, WB24X401, WB24X384, WB24X368, WB24X3297, GSM-V1603A2, 75304440026,W10269460, 61005520, 940337, 3405-001034, ANE61424L0AG, ANE6142-1450, 3405-000178, J61424T00AP, QSWMA085WREO, J61414T00AP, MOS0223K, QSWMA137WREO, R1491, ANE6142F60, NE9870, R1611, ANE6142F60, 46-692286-3, QSWMA11OWREO
Note: Commonly found in microwave ovens, this switch will close the circuit once the button is depressed. Made for safety reasons, the circuit disables the microwave oven when the door is opened. This switch may be used in many other appliances.
3B73362F Switch:
- Works with the following brands: LG, Whirlpool, GE, Amana, KitchenAid, Panasonic etc.
- Works with the following products: Microwave, Microwave Oven Combo
This part fixes the following symptoms:
- No heat
- Won’t turn on
- Doesn’t shut off
- Tray won’t turn
SZM-V16-FA-63 Microwave Door Switch:
Known as a micro switch.
- 0.6A 125VDC 0.3A 250VDC
- 16A 1/2HP 125/250VAC T130
- 16(3)A 250V ~ T130 5E4u
- Normally Open
- 2 metal prongs(terminals) that extend from its body.
3B73362F Microwave Door Switch More Details:
- If your microwave will not turn or heat properly, there could be an issue with the door switch.
- You can check the switch for continuity using a multi-meter. With the actuator button depressed, you should see continuity between these terminals. If there is no continuity the switch will need to be replaced.
NOTE: Before you begin this repair, first make sure your microwave is unplugged, and that your capacitor is discharged. A capacitor stores large amounts of electricity even when your microwave is unplugged.
How to install SZM-V16-FA-63 microwave door switch:
step 1:
Unplug the microwave oven before you attempt any disassembly.
step 2:
open the door and remove the screws to securing the grill, slide the grill to the left to release it.
step 3:
Remove the screw on the left to securing the control panel and loosen the screw behind the panel, lift the panel up and pull it forward to detach
step 4:
Remove the screws to release the switch assembly, depress the release tab and the actuator to detach the switch you are replacing
step 5:
Disconnect the wire connector to fully release the old switch, install the new door switch by first connecting the wire connector, and position the new switch in the assembly and snap it into place.
step 6:
Realign the switch assembly on the frame, and replace the screws to secure.
step 7:
Position the control panel, tighten the screw behind the panel, replace the screw on the left, reposition the grille, slide it to the right and replace the screws.
step 8:
plug the power cord back in, and the microwave oven should be ready for use.
