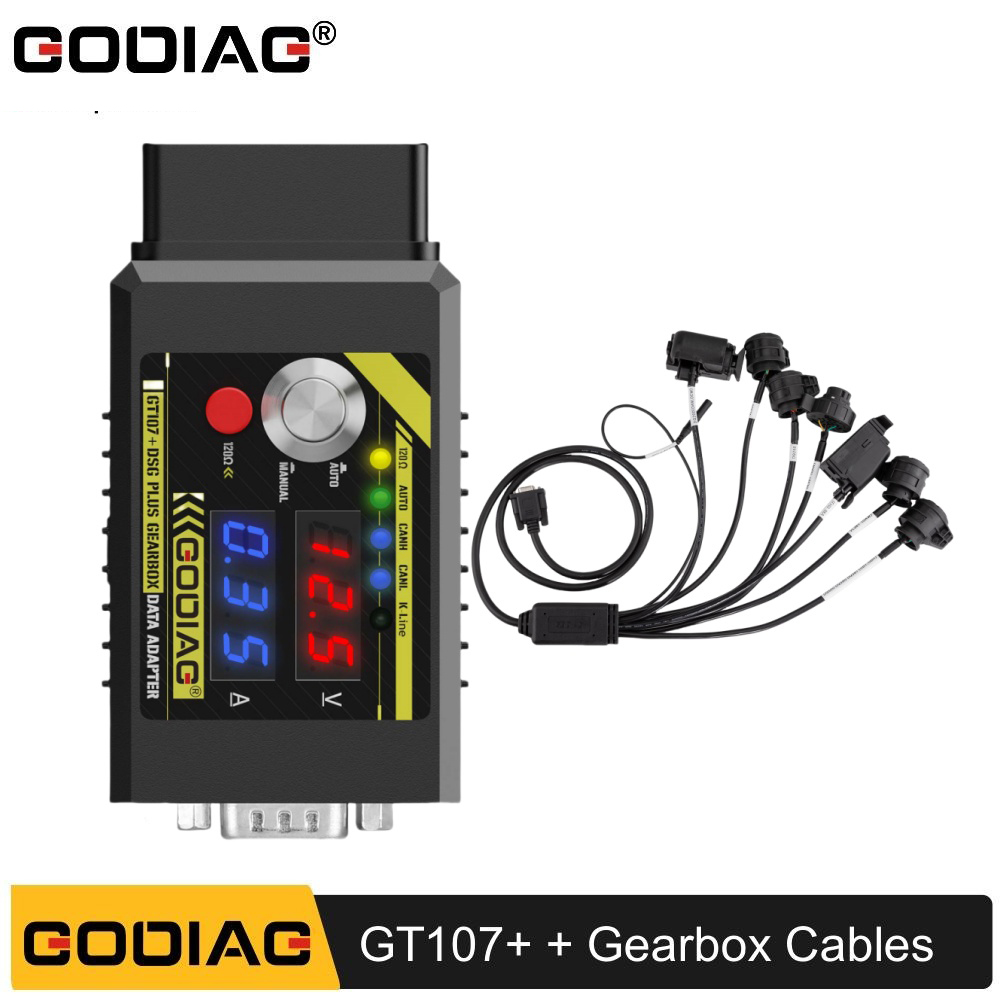

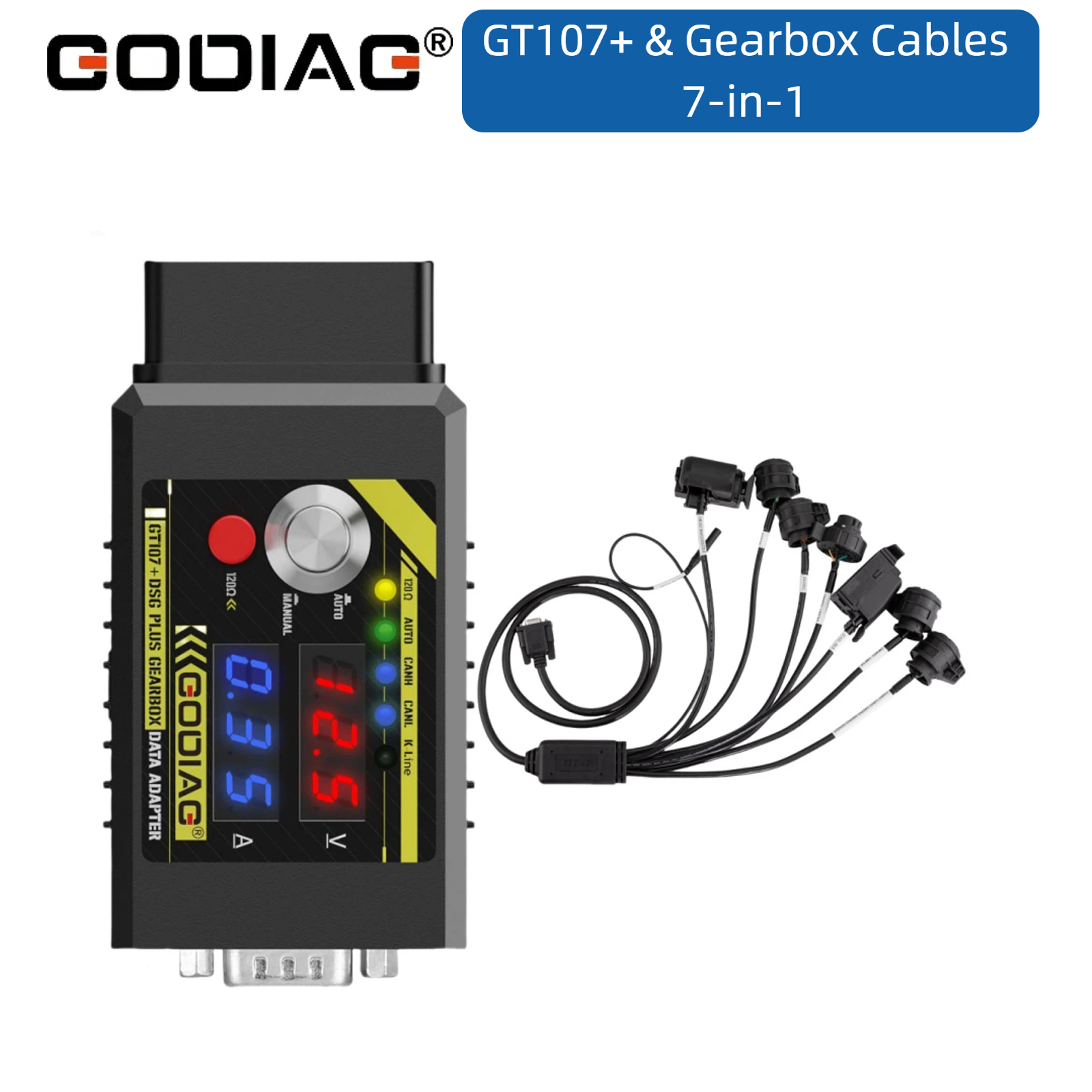

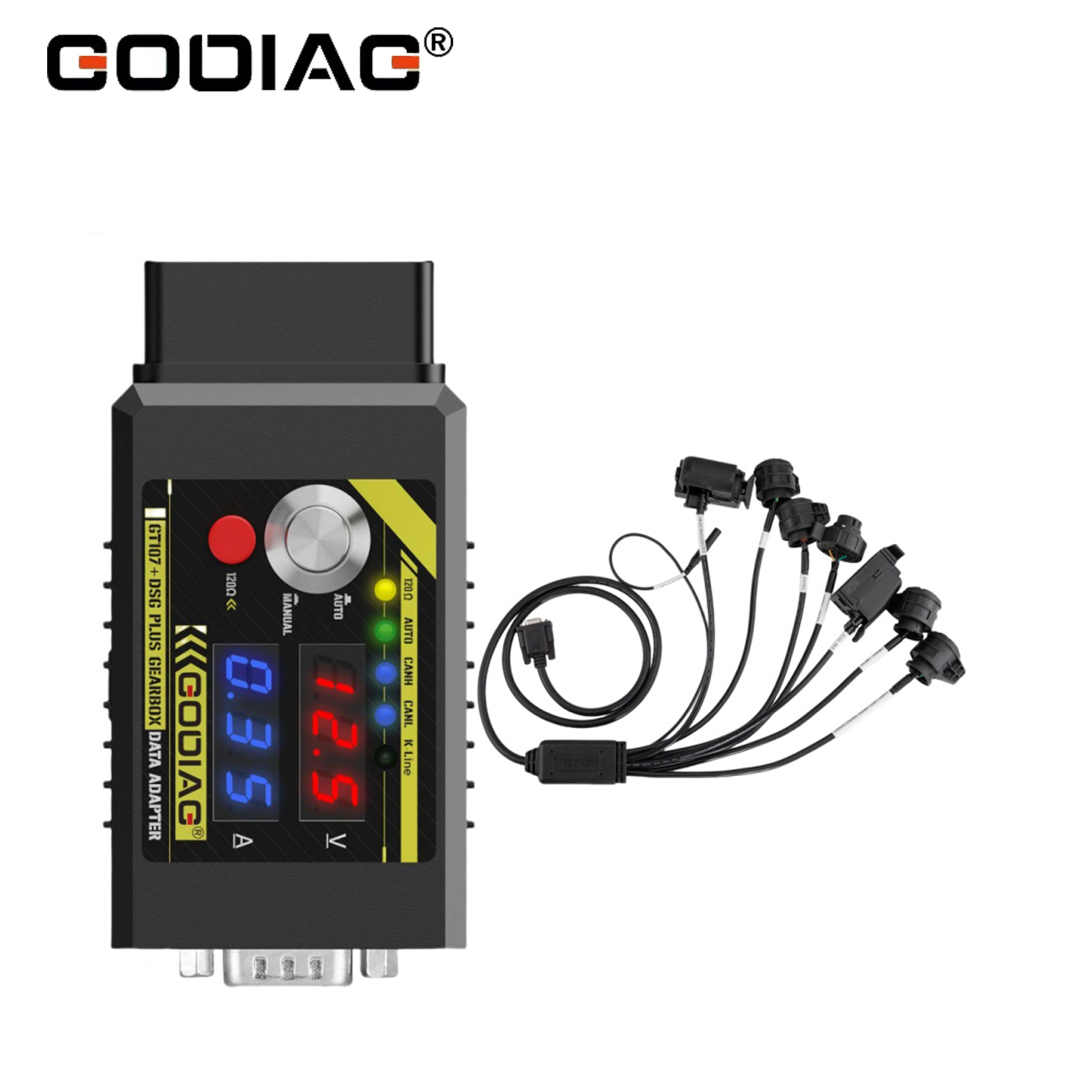

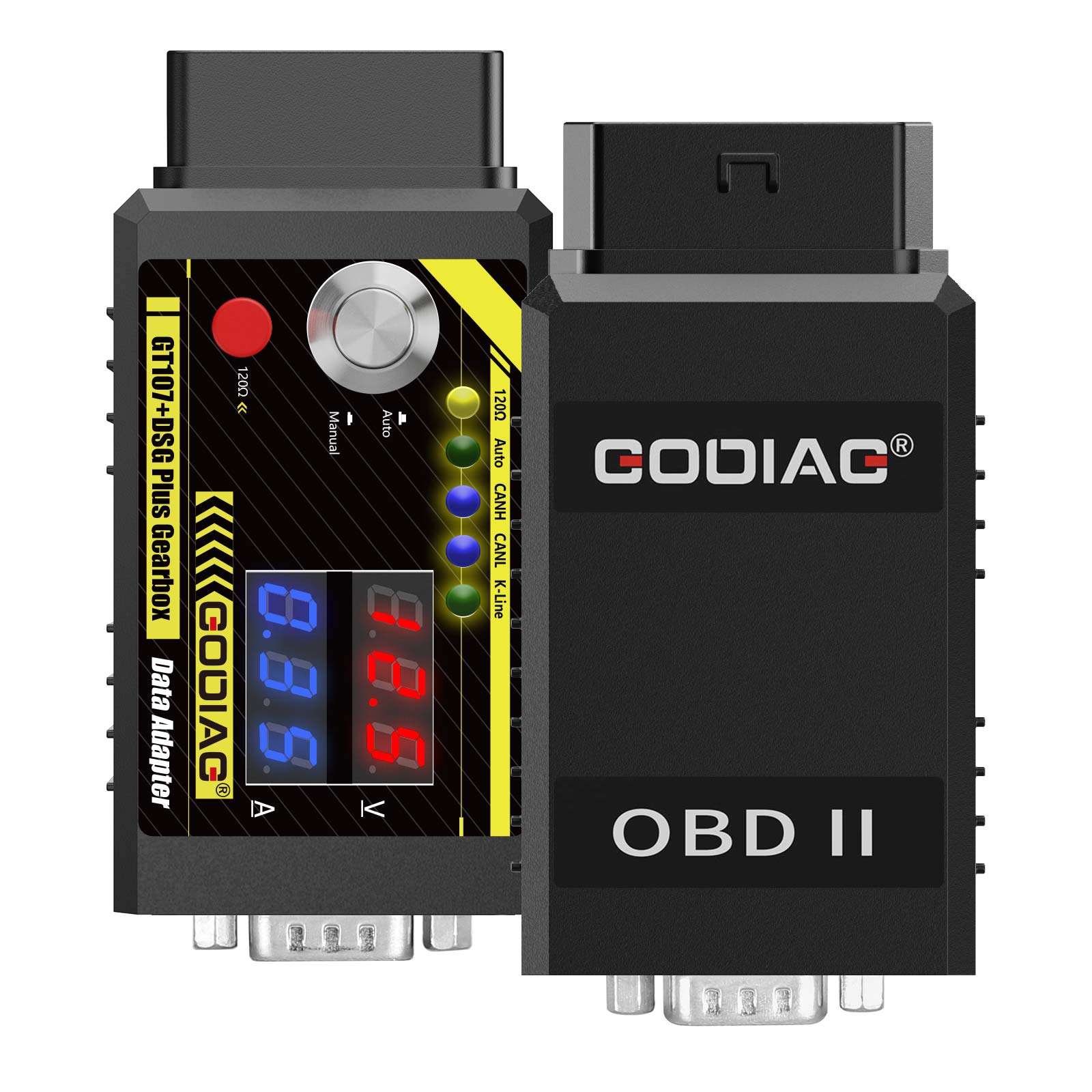

GODIAG GT107+ DSG Plus Gearbox Data Adapter For DQ250, DQ200, VL381, VL300, DQ500, DL501, For Benz, For BMW

Product Introduction:

GODIAG GT107+ DSG plus gearbox data adapter is a DSG gearbox connection adapter. DSG gearbox maintenance engineers can clone, diagnose and repair DSG gearbox E/CU and can also read, write and adjust data for DSG gearbox E/CU via P-C-M/F-lash, P-C-M/Tuner, and K-e-s-s-v2, etc.

This adapter has automatic and manual selection for PCMFlash software. For data reading and writing, you can choose “Auto”, and for diagnosis you can choose "Manual". For other software k-e-s-s-v2, DQ200, DQ250, DQ500, you can also choose "Manual".

Moreover, with the car battery power, the adapter can directly read and write DSG gearbox data and you can clearly check the communication status during the data reading and writing process.

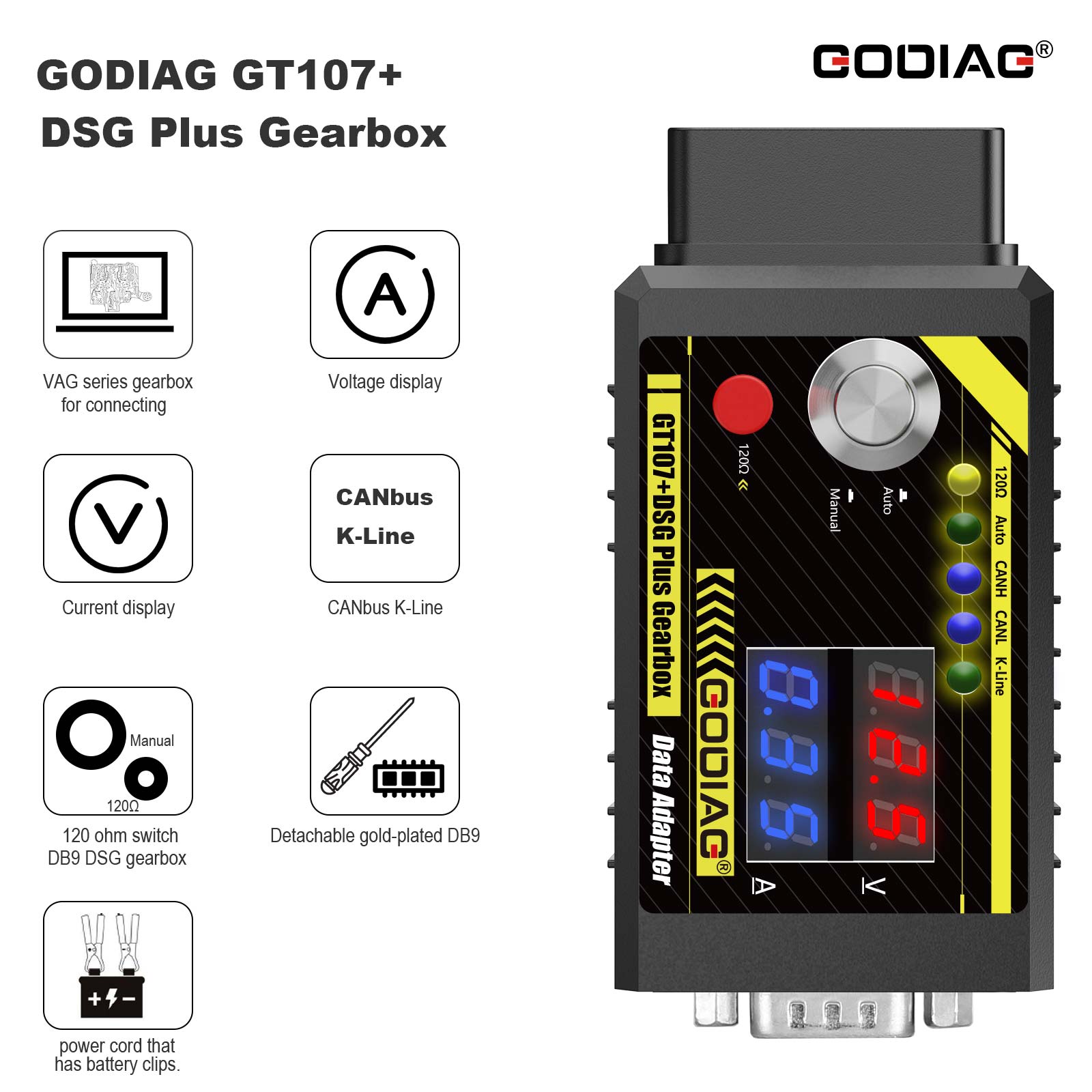

Product Features:

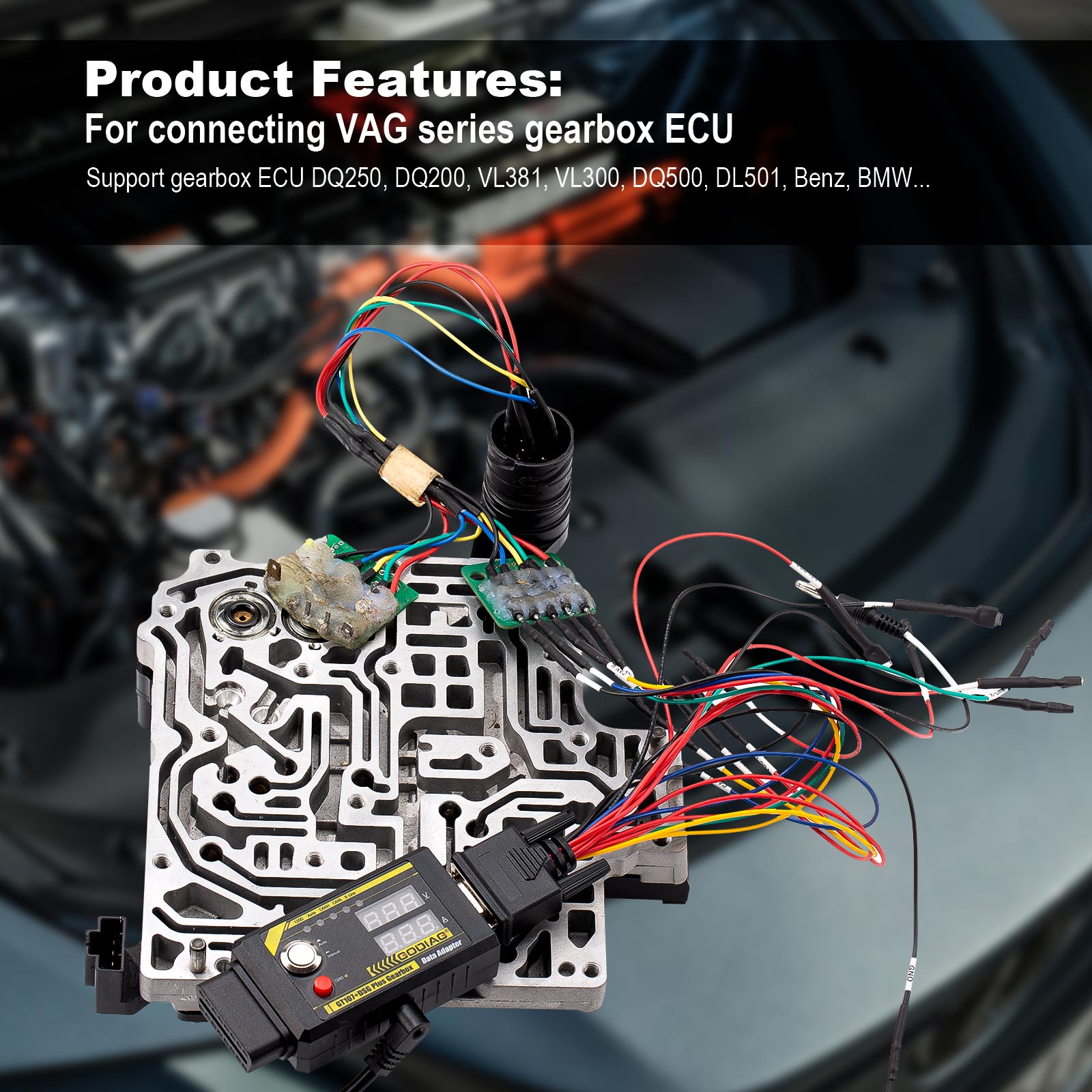

1. The adapter is suitable for connecting V-A-G series gearbox E/CUs, supporting gearbox E/CU DQ250, DQ200, VL381, VL300, DQ500, DL501, For Benz, For BMW...

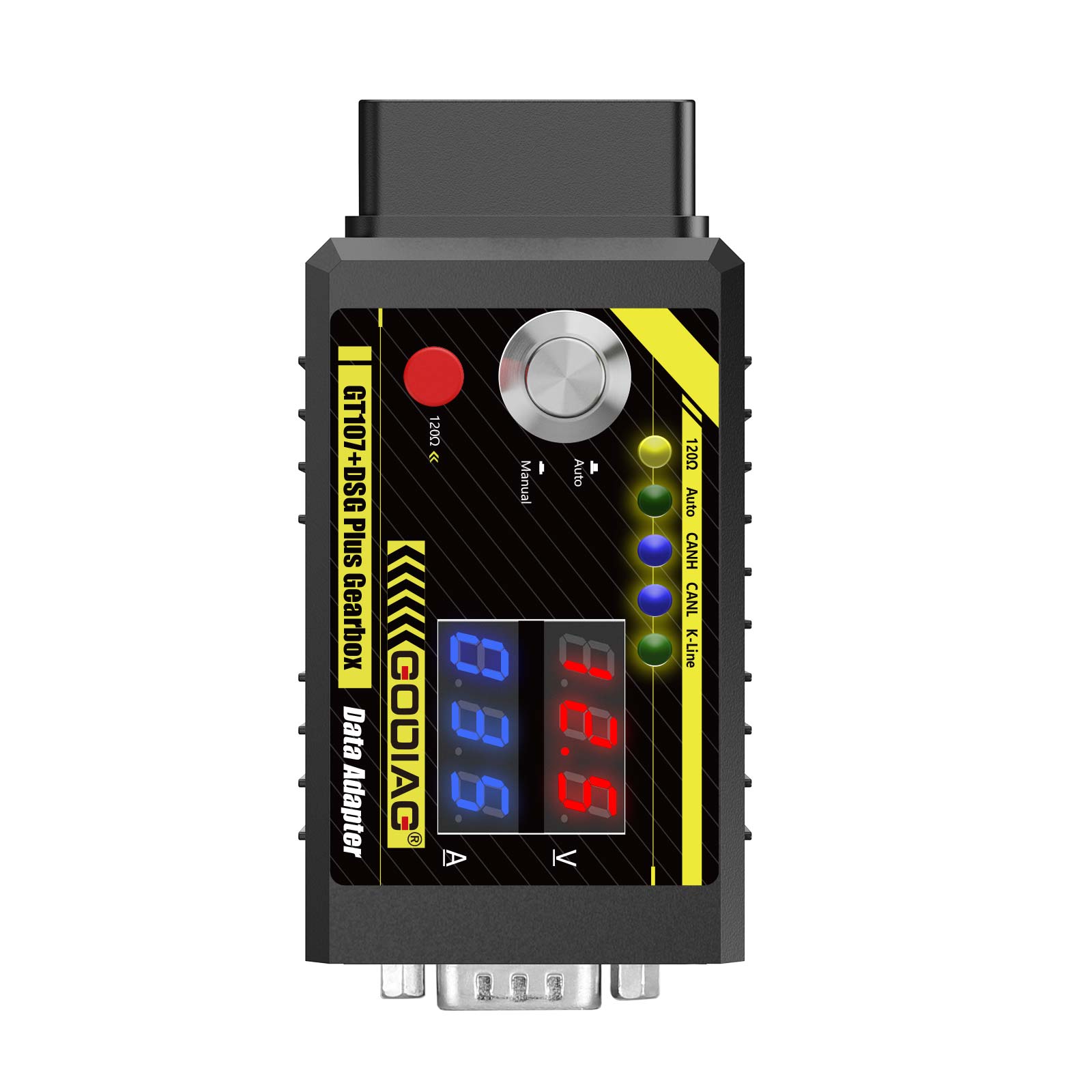

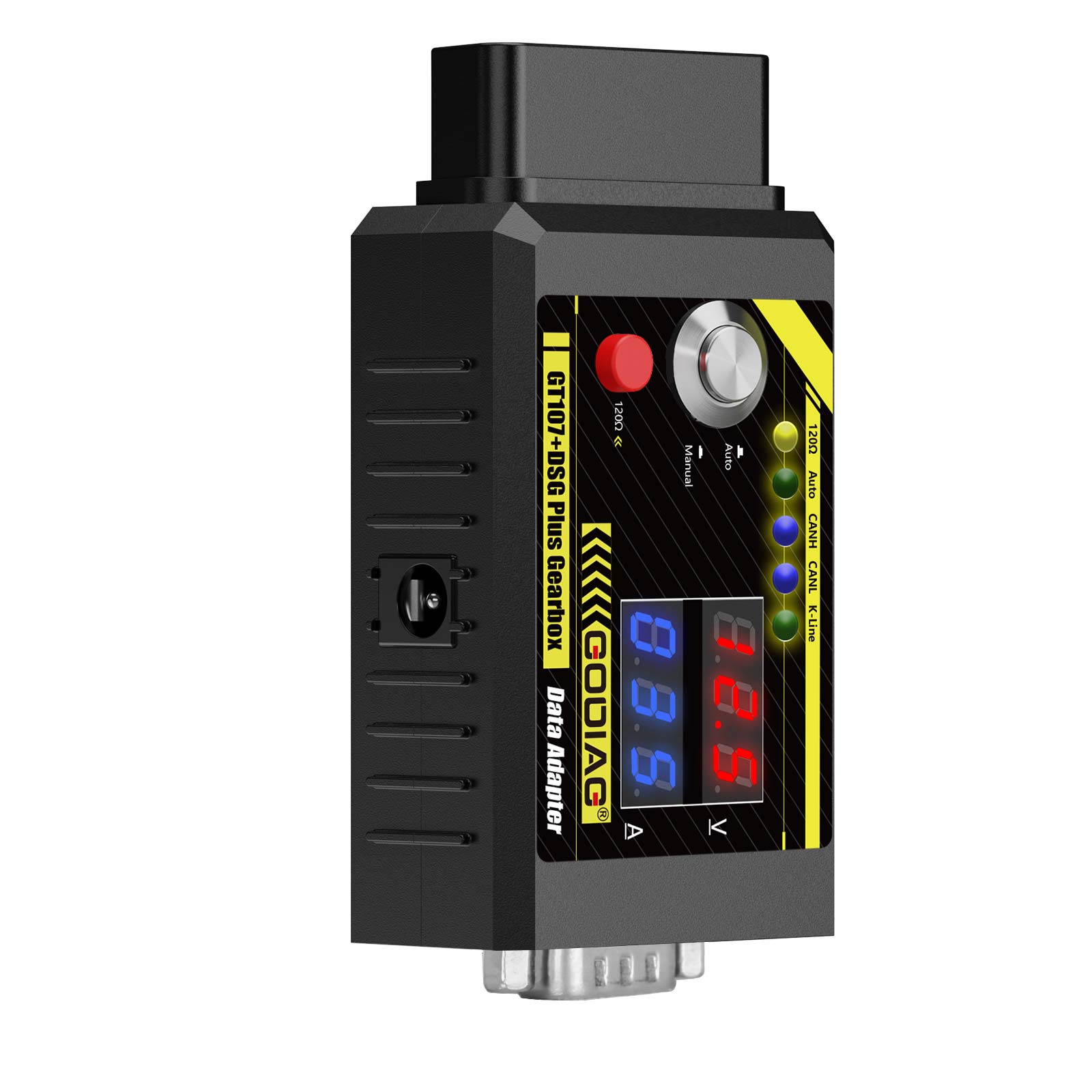

2. Voltage display: the user can know the current operating voltage of the gearbox E/CU. If there is a short circuit or wrong wiring, the voltage will drop severely, which can be used to judge the problem.

3. The current display can display the current working current of the gearbox E/CU, which is used to judge the working condition of the gearbox E/CU.

4. The communication indicator can display the current CANbus K-Line communication status.

5. Manual and automatic power switch, 120 ohm switch. There are  boot mode cable (DB9 DSG gearbox universal conversion jumper) and a probe.

6. Detachable gold-plated DB9 connection interface, users can make professional connection ports by themselves to realize DIY development.

7. Equipped with power cord that has battery clips. Users can draw power from the vehicle battery.

Connection Diagram & Operation:

Used with PCMtuner：

Easy Operation:

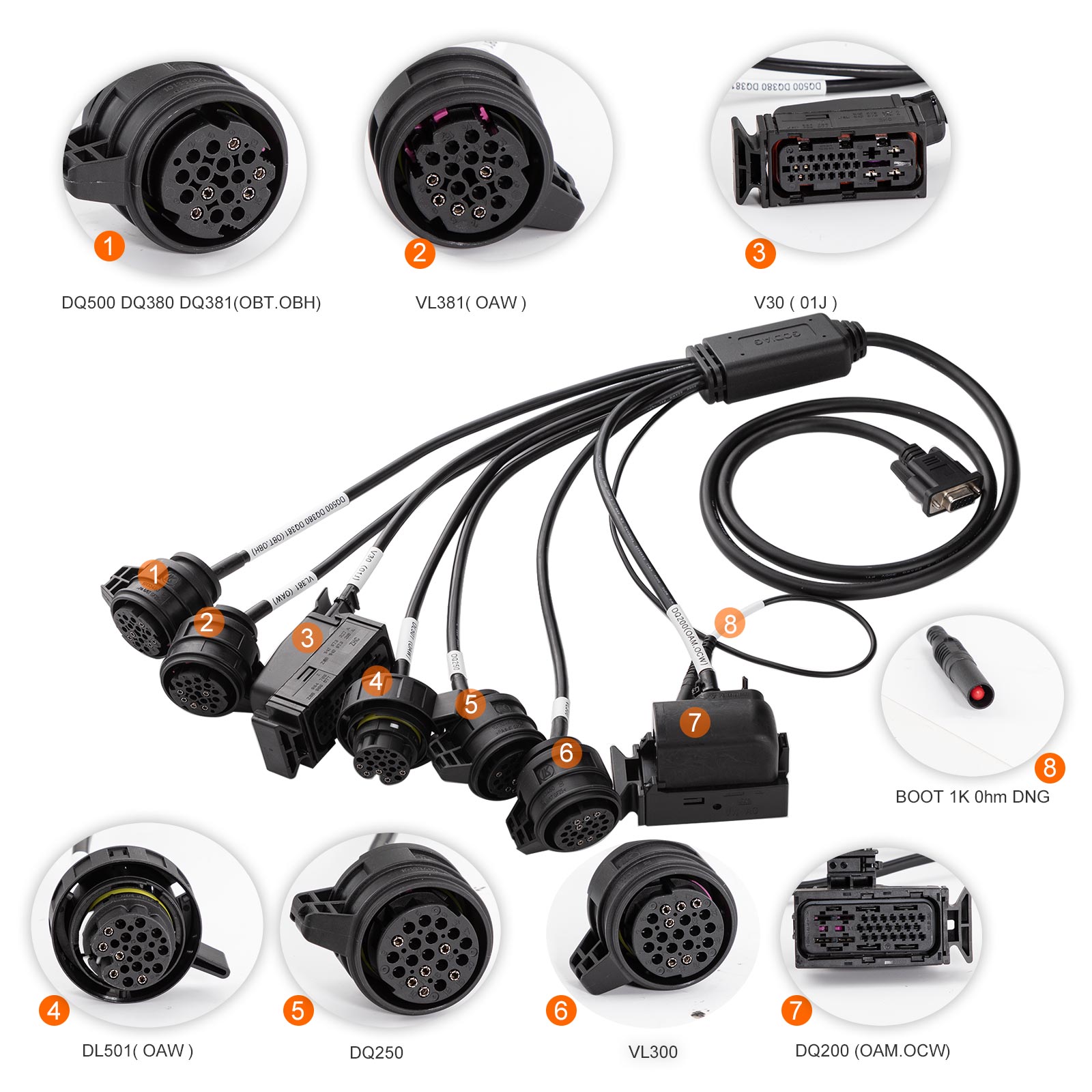

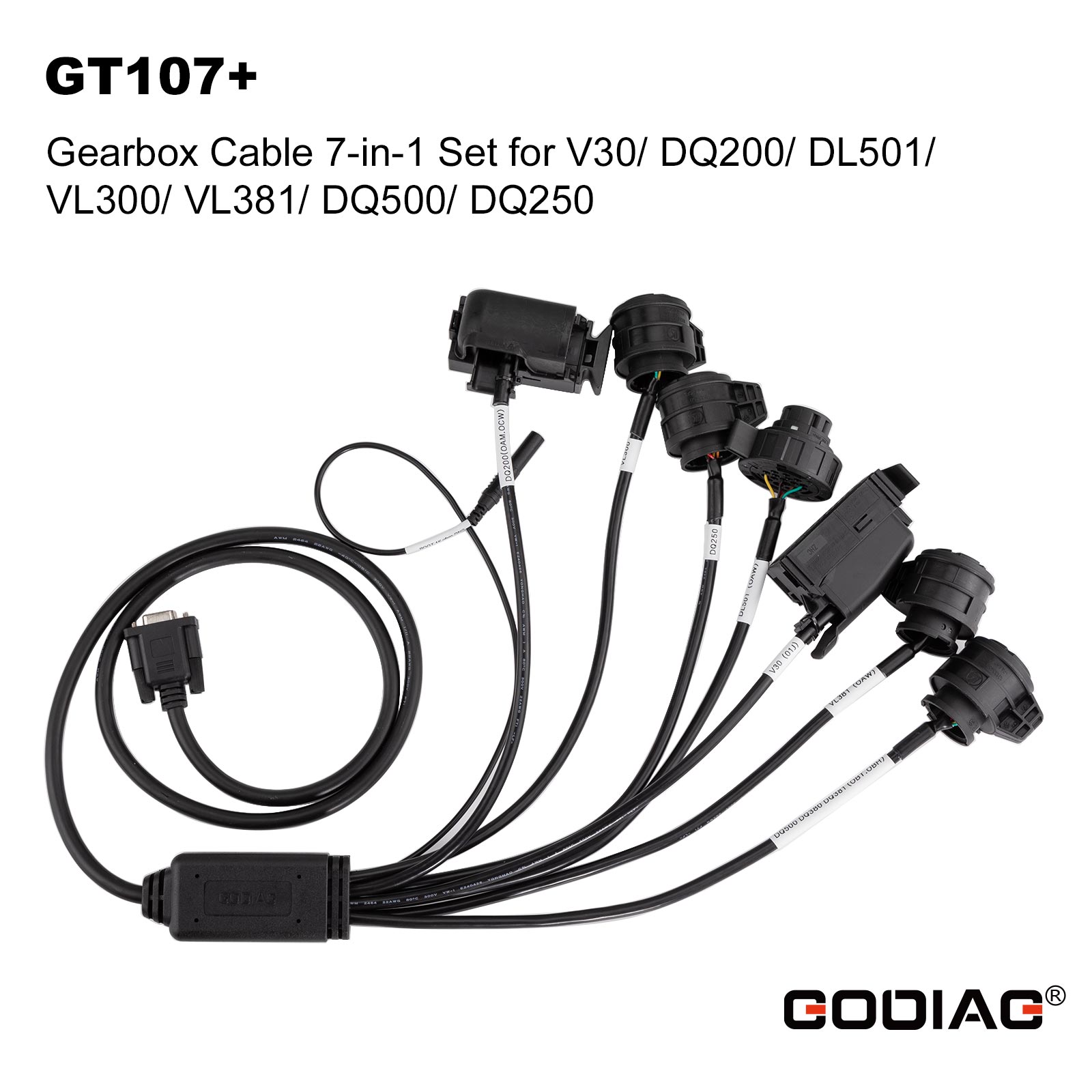

1.Connect the Godiag GT107+ to the gearbox E/CU according to the gearbox E/CU wiring definition. For V-A-G DQ250, DQ200, VL381, VL300, DQ500, DL501, for R-enault DC0/DC4, Gen2, for Honda LUK UDCT.

2.Connect the 12V 2A DC power supply. (The function buttons must be popped up before connecting the power supply.)

3.GODIAG GT107 + analog ignition switch is in “automatic” mode if the ignition switch is not pressed, the voltage and current data of the adapter displays 0V 0A, and it is in “manual” mode, if the ignition switch is pressed, the adapter displays the current working voltage of the power supply, and the current working current of gearbox E/CU. (Note: please select the “automatic” or “manual” analog ignition mode, according to the mode required by the device for reading and writing data, )

4.Connect PCMFlash, PCMTuner, J2534passthru.

5.Perform data reading and writing operations.

Used on the Car:

Easy Operation:

1.According to the wiring definition of Gearbox E/CU, connect Godiag GT107+ to the gearbox E/CU. For V-A-G DQ250, DQ200, VL381, VL300, DQ500, DL501, for Renault DC0/DC4, Gen2, for Honda LUK UDCT.

2.Connect the 12V 2A DC power supply. (The function buttons must be popped up before connecting the power supply.)

3.GODIAG GT107 + analog ignition switch is in “automatic” mode if the ignition switch is not pressed, the voltage and current data of the adapter displays 0V 0A, and it is in “manual” mode, if the ignition switch is pressed, the adapter displays the current working voltage of the power supply, and the current working current of gearbox E/CU. (Note: please select the “automatic” or “manual” analog ignition mode, according to the mode required by the device for reading and writing data, )

4.Connect PCMFlash, PCMTuner, J2534passthru.

5.Perform data reading and writing operations.

Used with K-E-S-SV DQ200, DQ250, DQ500:

Easy Operation:

1.Connect the Godiag GT107+ to the gearbox E/CU according to the gearbox E/CU wiring definition. For V-A-G DQ250, DQ200, VL381, VL300, DQ500, DL501, for Renault, DC0/DC4, Gen2, for Honda LUK UDCT, For Benz, For BMW, gearbox E/CU.

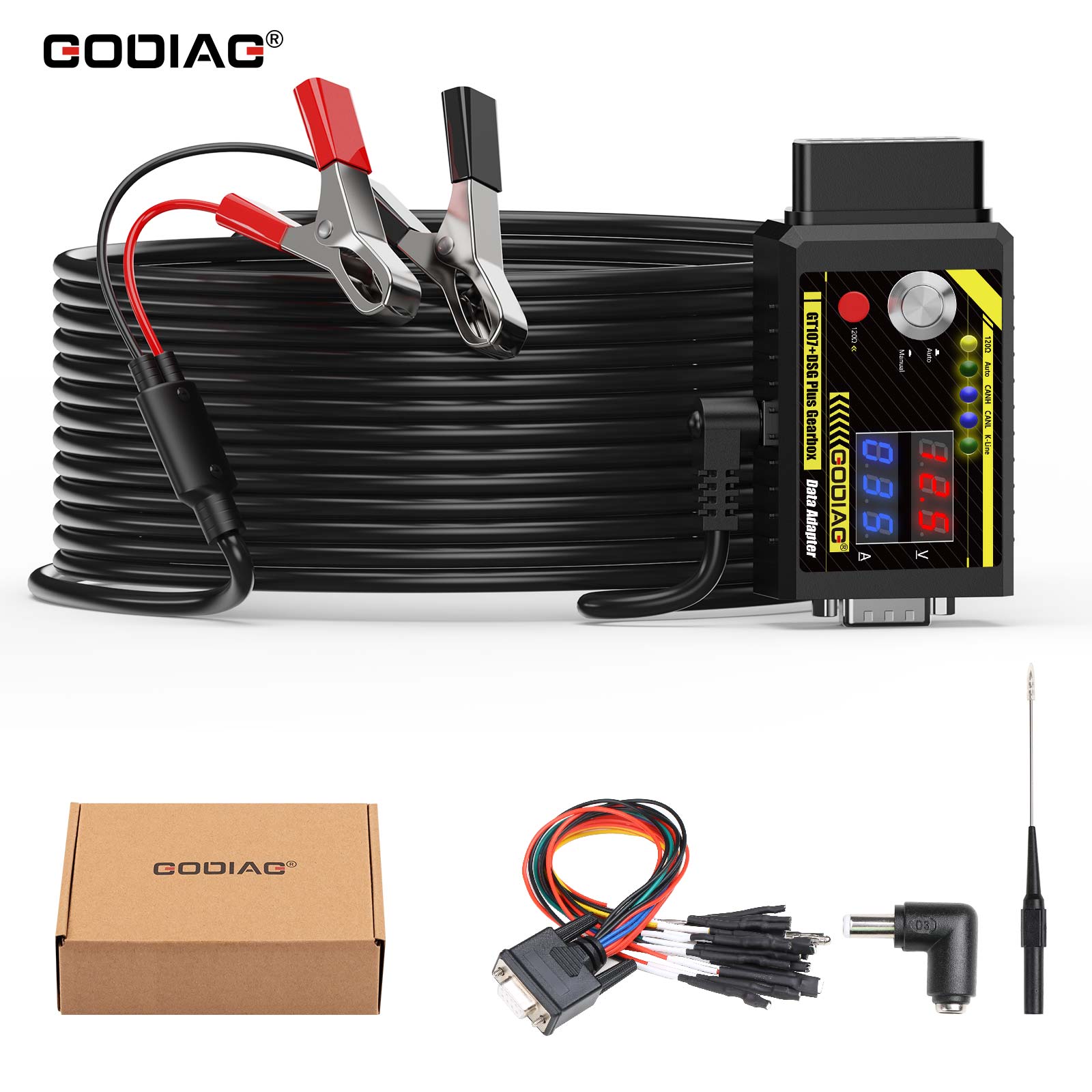

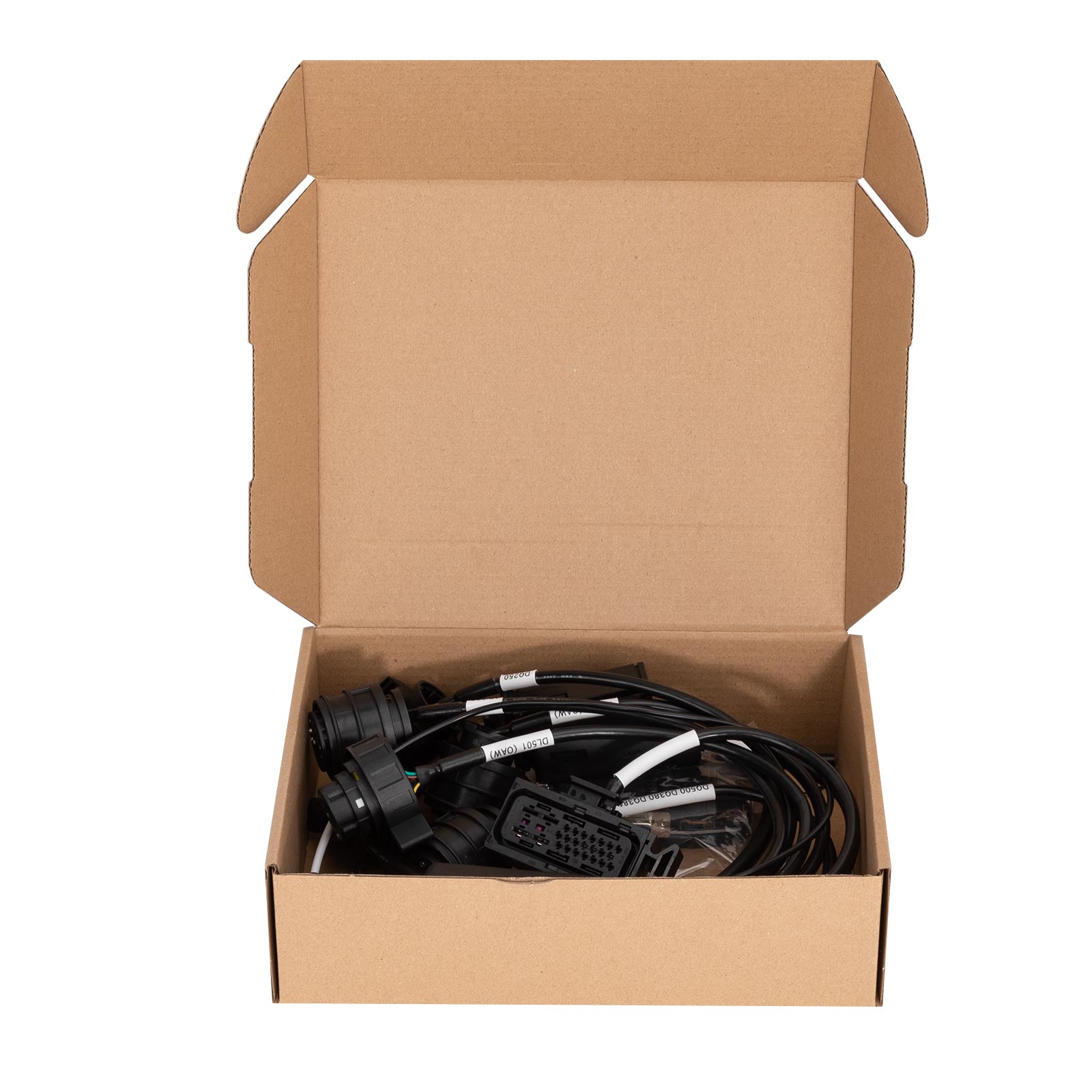

Package Includes:

1pc x Godiag GT107+ E/CU Prog AD

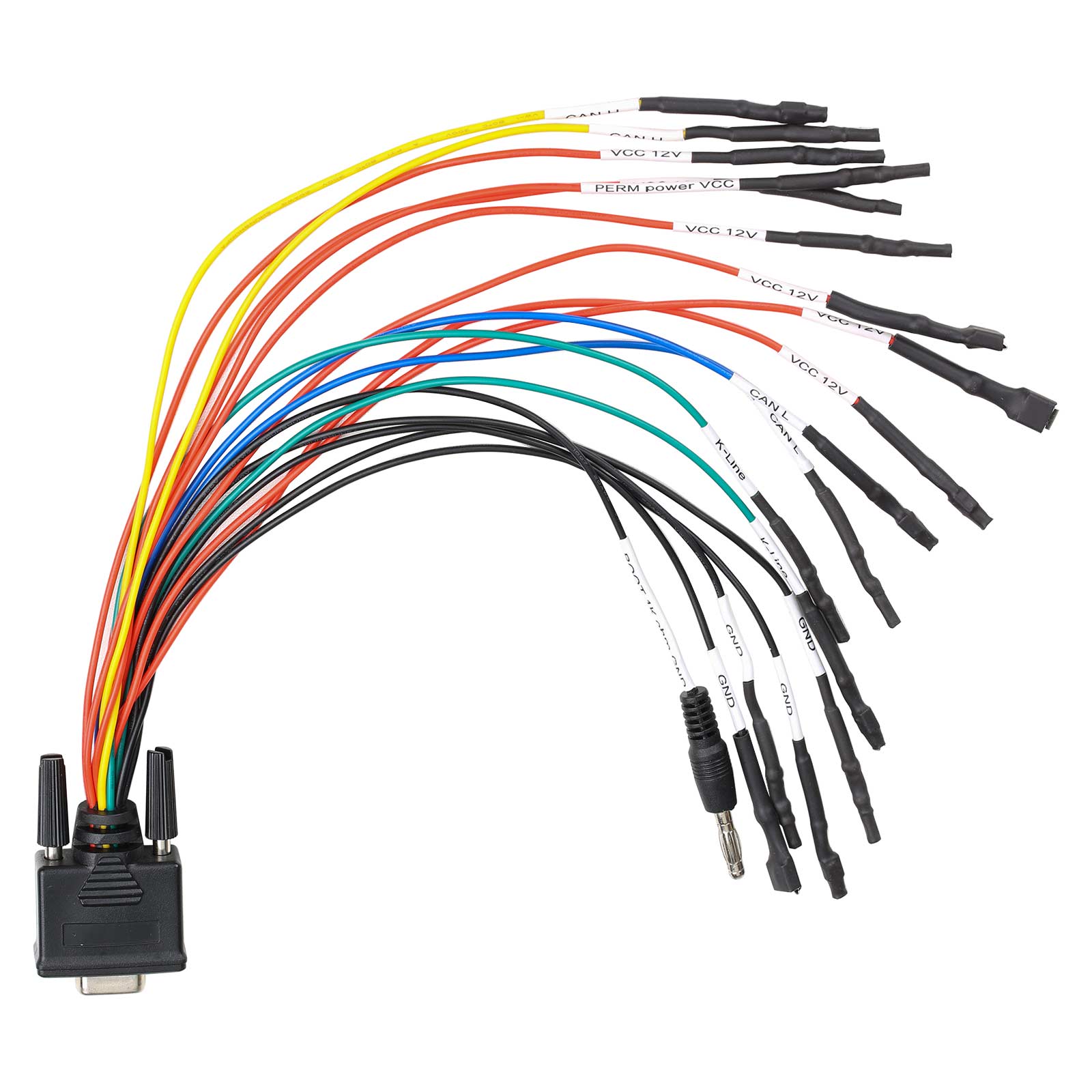

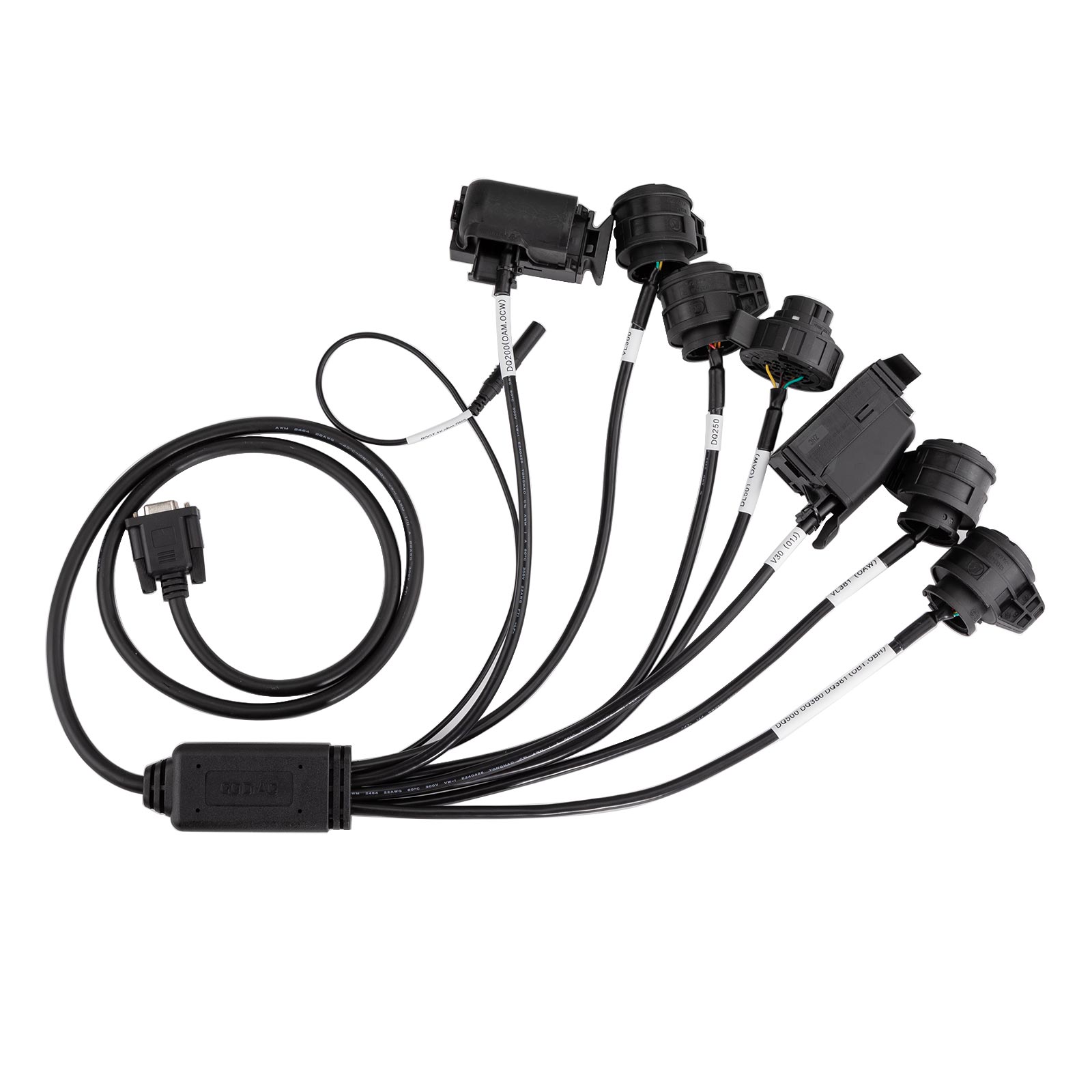

1pc x DB9 DSG Gearbox Universal Conversion Jumper

1pc x Power Cord with Battery Clips

1pc x Probe

1pc x DC power adapter(5.5*2.1mm female to 5.5*2.5mm male)

1pc x Manual
