Technical Details:

1.Latest ELM327 version for greater for  compatibility

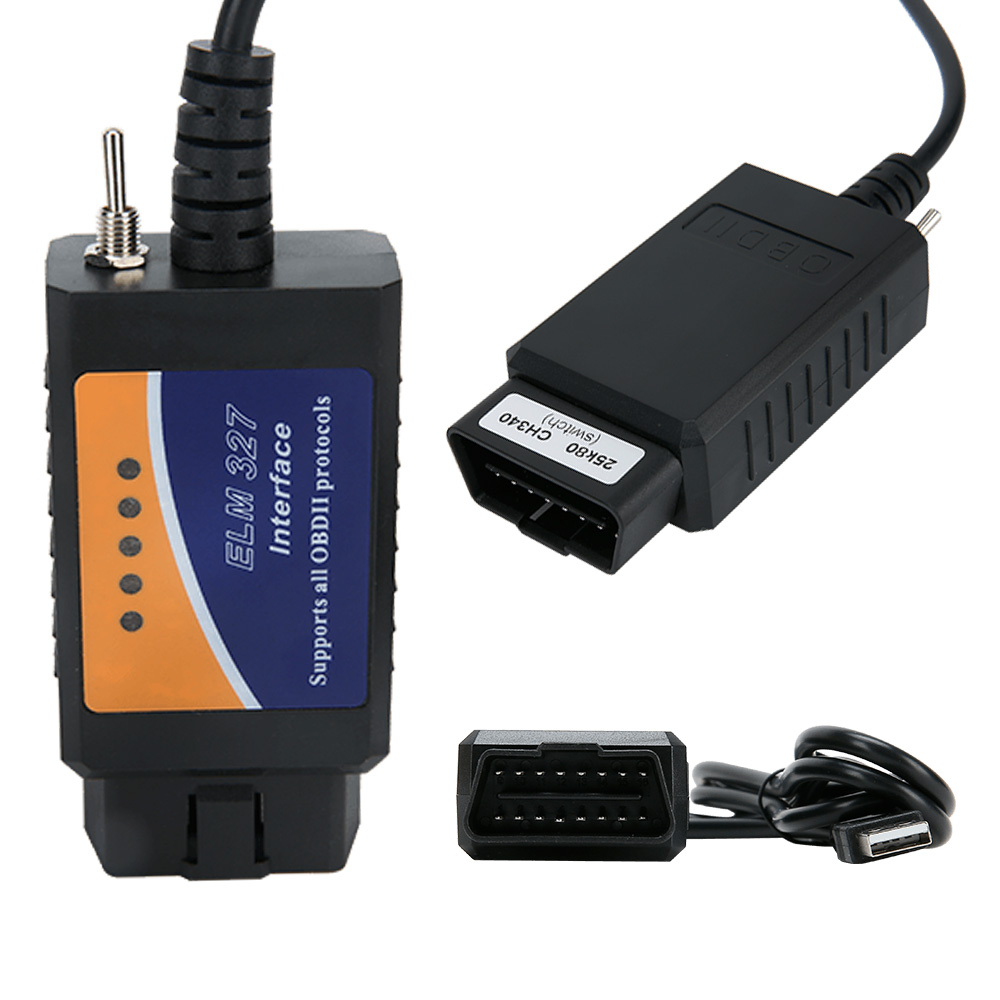

2.Manufactured modification to include a switch to connect to different CAN buses
3.Designed for FORScan software
4.Compatible with software venders; FORScan, Elmconfig, FF2 and FoCCCus, plus more
5.MS CAN bus and HS CAN bus support

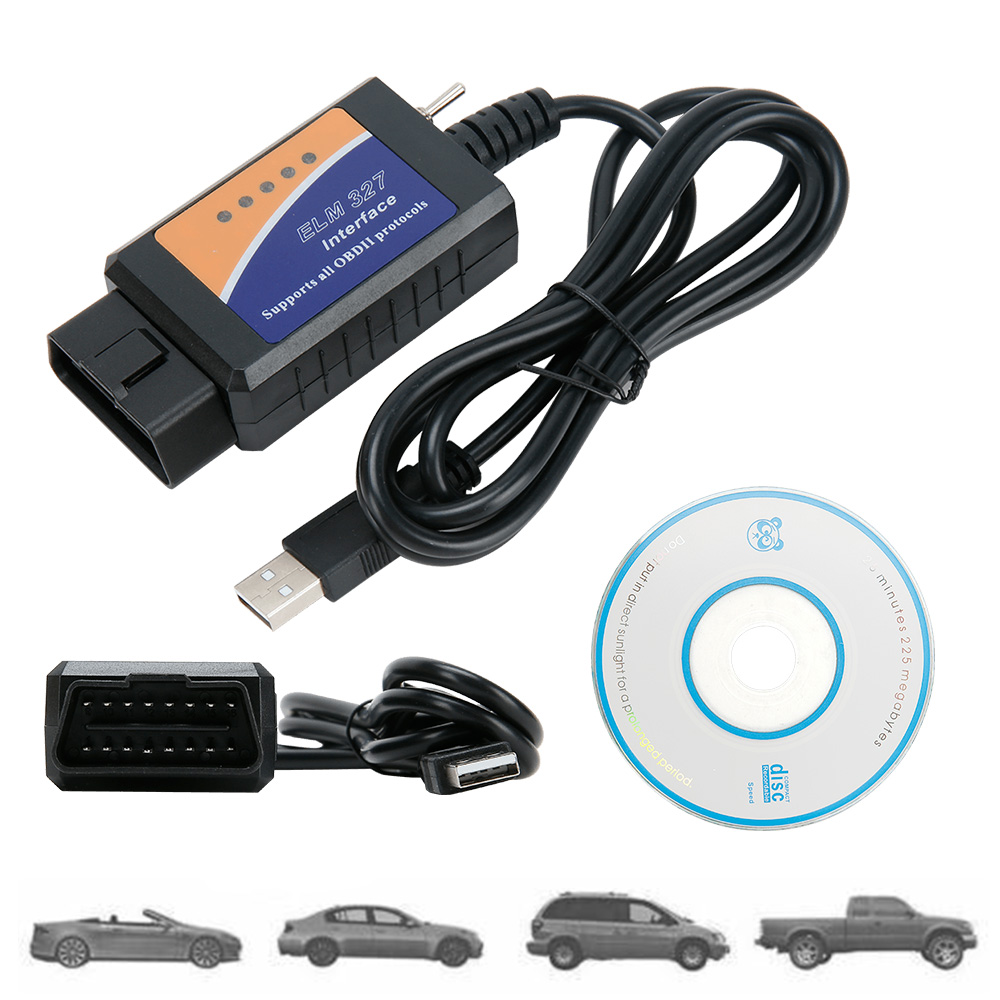

6.Drivers and instructions included


Introduction:

One ELM327 OBDII OBD2 USB with switch. Designed for communicating  for FORD, Mazda, Lincoln and Mercury vehicles. With this cable and the one of the supported software vendors you can detected modules which are not visible for regular

OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327.


Basic Features:

Reset fault /trouble codes / parameter ids (PIDs)
Change car configuration data
Run tests
Services procedures
Program certain models


Pin Configurations:

Switch position one: HS CAN - Occupies pins 6 and 14
Switch position two: MS CAN - Occupies pins 3 and 11


Supported Software:

FORScan
Elmconfig
FoCCCus
FF2
Plus more


Modified EML:

Please note that many  for FORD and Mazda models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN

is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.
ELM327 supports HS CAN from the stock, because  for FORD HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.

Supported Vehicles:

All  for FORD, Mazda, Lincoln, Mercury vehicles that can be addressed using an ELM via an OBDII connector.

Supported Protocols:

 for FORD HS CAN

 for FORD MS CAN
