ASRock X570S PG Riptide AMD
Chipset X570 Socket AM4 DDR4 SATA
6Gb/s HDMI ATX Desktop Motherboard
80-MXBHX0-A1A01

Please note, this motherboard does not include an I/O Shield, cables, fan bracket, fan backplate, WiFi Antenna ports, or any other accessories!

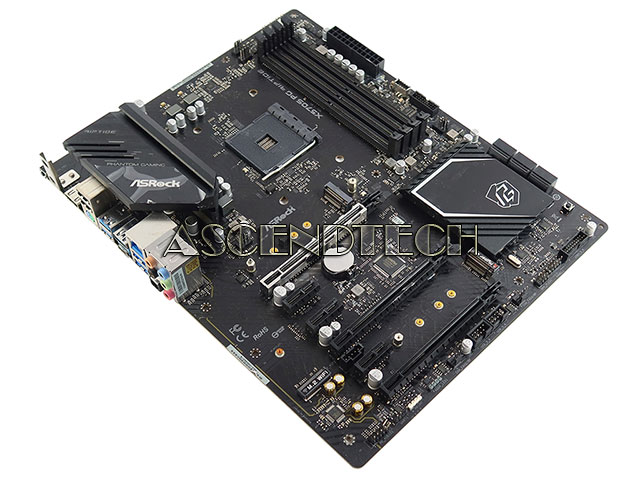

ASRock X570S PG Riptide AMD Chipset X570 Socket AM4 DDR4 SATA 6Gb/s HDMI ATX Desktop Motherboard 80-MXBHX0-A1A01.

Model: X570S PG Riptide

Part Number: 80-MXBHX0-A1A01

Chipset: AMD X570

Socket: AMD AM4

Compatible/Supported CPU: AMD AM4 Socket Ryzen 2000 3000 4000 5000 Series Desktop Processors

Max Supported Memory: 128GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Speed: 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz

Storage Interface: SATA 6Gb/s

RAID Support: SATA: 0, 1, 5, 10; NVMe: 0, 1, 5

Network/Communications: Killer E3100G 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Connectors: 1x Power LED and Speaker Header, 2x RGB LED Headers, 2x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin), 5x Chassis/Water Pump Fan Connectors (4-pin), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x 4 pin 12V Power Connector, 1x Front Panel Audio Connector, 1x Thunderbolt AIC Connector (5-pin), 2x USB 2.0 Headers (Support 4 USB 2.0 ports), 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports), 1x Front Panel Type C USB 3.2 Gen2 Header, 1x Clear CMOS Button

Input/Output Ports: 1x Antenna Bracket, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x Optical SPDIF Out Port, 1x USB 3.2 Gen2 Type-A Port (10 Gb/s), 1x USB 3.2 Gen2 Type-C Port (10 Gb/s), 4x USB 3.2 Gen1 Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port with LED, 1x BIOS Flashback Button with LED, HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Expansion Slots: 1x PCI Express 4.0 x16, 2x PCI Express 4.0 x16 (x2/x4), 3x PCI Express 4.0 x1, 1x M.2 Socket (Key E) WiFI BT, 2x M.2 PCIe Gen4x4, 6x SATA3 6.0 Gb/s

Form Factor: ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit / 11 64-bit

Additional Specifications:

Onboard Graphics
Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) 60Hz

BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment

Unique Features
ASRock Lightning Gaming Port
ASRock Steel Slot Gen4
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Killer LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
