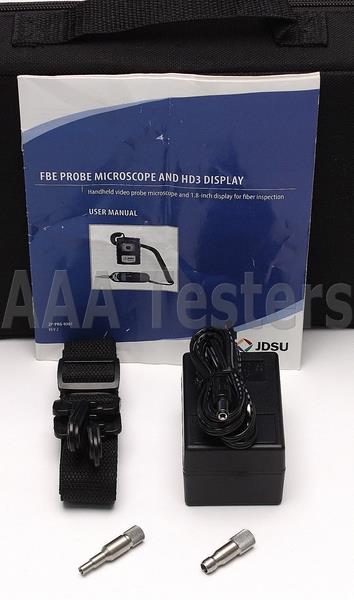

The Following Items Are Included:

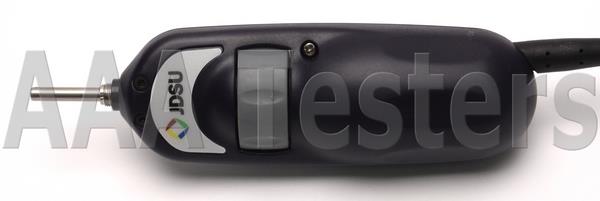

  • JDSU Westover HD3 Display & Westover FBE Probe Microscope (BC# 25334-L/T*)
  • FBPT-SC Connector
  • FBPT-U25M Connector
  • AC Adapter/Charger
  • Hard Copy User Manual
  • Carrying Case w/ Strap


BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

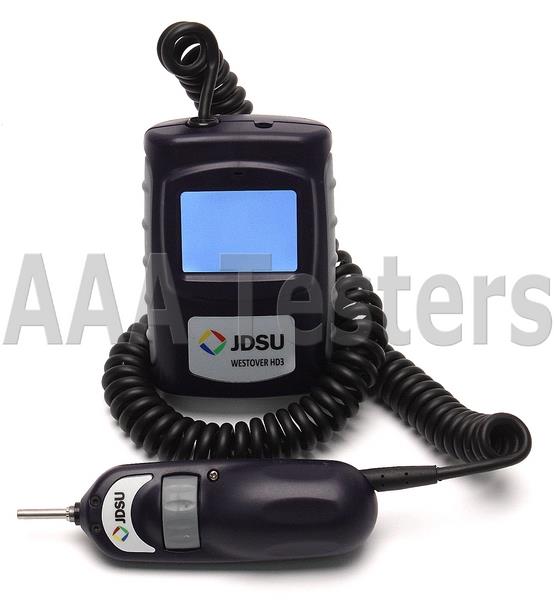

JDSU HD3 Display & JDSU Westover FBE Probe Inspection Fiber System



Includes Carrying Case & Accessories As Listed Above!









Working Condition: Excellent
Condition: Refurbished
Warranty: 1 Year Warranty



HD3 Display

Key Features

  • High-resolution 1.8-inch TFT LCD display that can detect 1 µm or smaller scratches and dirt particles
  • Ruggedized enclosure for use in any environment
  • GripSwitch™ mode activates the display when held in-hand and deactivates when released, extending battery life
  • Built-in rechargeable NiMH battery pack
  • Over 3-hour run time on continuous-ON mode and extended run time in GripSwitch mode
  • Low-battery warning LED (illuminates when battery life is < 30 minutes)
  • AC adapter (100–240 VAC/12 VDC) charges NiMH battery and also acts as alternate power supply



Applications

  • View clear detailed fiber end face images on 1.8-in video display
  • Use with JDSU probe microscope to inspect both bulkhead (female) and patch cord (male) sides of fiber interconnect
  • Promote proper fiber handling workflow and practice

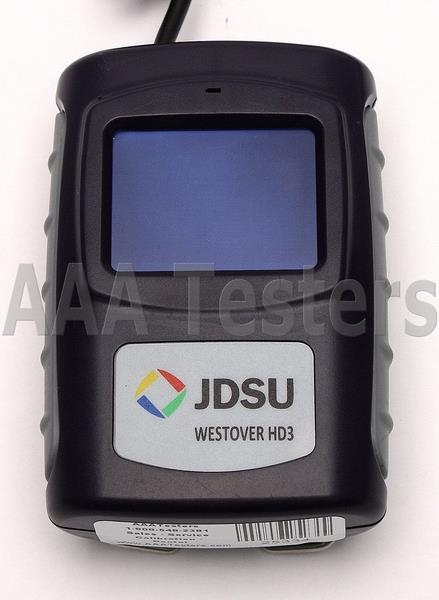

HD3 Handheld Display
The HD3 display combines performance and value in a small, durable device that fits comfortably in the user’s hand. Used with JDSU fiber inspection probe microscopes, the HD3 provides a highly portable, efficient display for viewing and inspecting fiber connector end faces. With its durable design and rugged enclosure, the HD3 ensures excellent performance during field applications. It features a 1.8-inch thin film transistor (TFT) liquid crystal display (LCD) incorporated into a durable, rugged enclosure, and powered with a rechargeable NiMH battery. An innovative GripSwitch conserves battery life with instant-ON functionality when holding the unit in-hand, and it deactivates, or powers OFF when set down. It is equipped with a continuous-ON feature for hands-free operation.



HD3 Display Specifications

Dimensions 10 x 7.2 x 4.3 cm
(3.9 x 2.8 x 1.7 in)
Weight 230 g (8.1 oz) with probe
Video display 1.8-in (45.7 mm) TFT LCD
Connector 4-pin Hirose for FBP probes; hardwired to FBP or FBE probes
Power source Built-in rechargeable NiMH (nickel metal hydride), 800mAH battery or AC adapter (100–200VAC/12VDC)
Power modes ON (continuous on)GripSwitch (power saving mode)OFF/CHARGE
Run time ~3 hours (continuous on)Extended run time with use of GripSwitch (power saving mode)
